Presentation Transcript
cardinal points

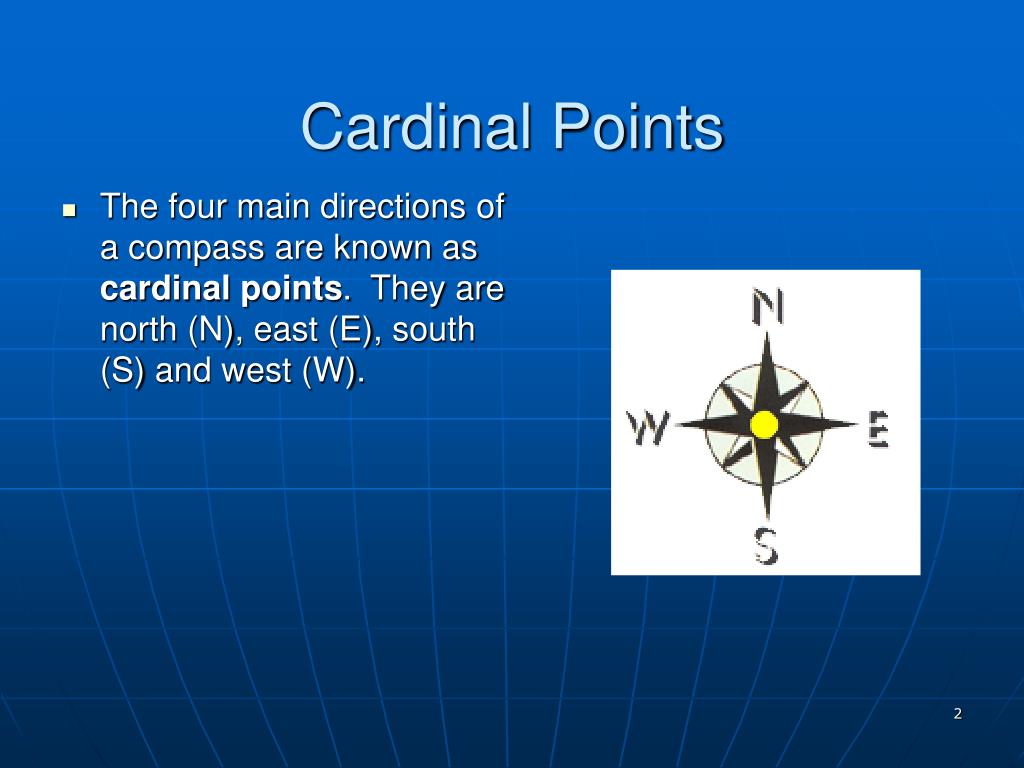

Cardinal Points
  • The four main directions of a compass are known as cardinal points.  They are north (N), east (E), south (S) and west (W).
intercardinal ordinal points
Intercardinal (Ordinal) Points
  • Sometimes, the intercardinal (ordinal) points of:
    • north-east (NE),
    • north-west (NW),
    • south-east (SE) and
    • south-west (SW)

are shown on the compass.

compass bearings

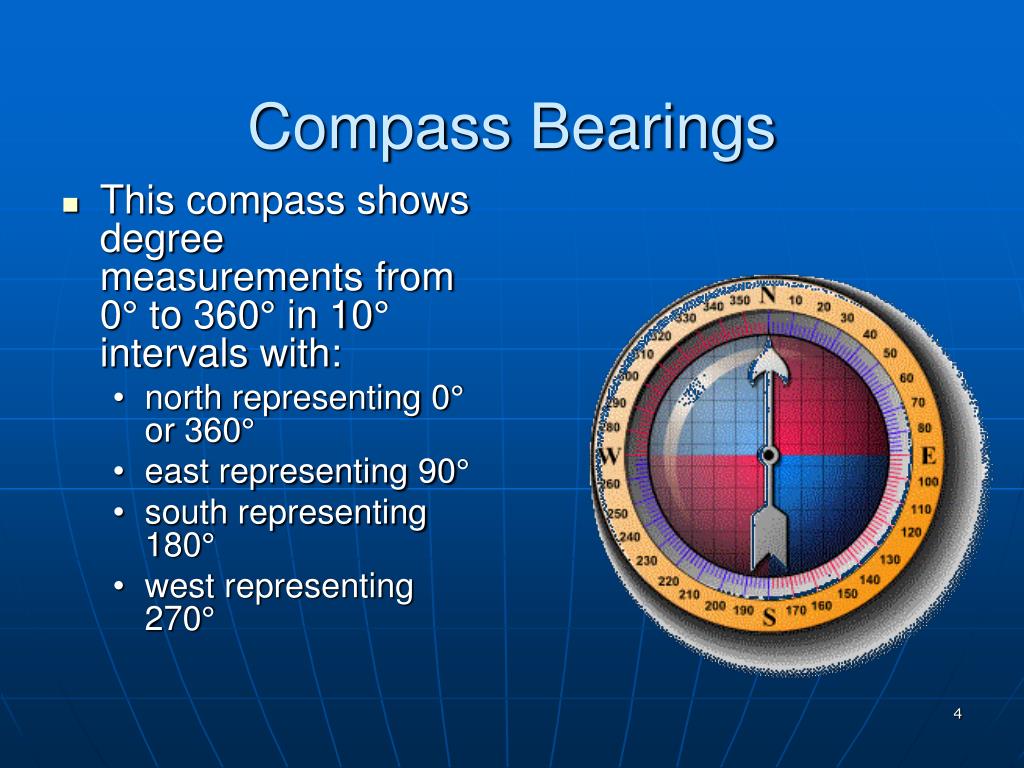

Compass Bearings
  • This compass shows degree measurements from 0° to 360° in 10° intervals with:
    • north representing 0° or 360°
    • east representing 90°
    • south representing 180°
    • west representing 270°
bearing
Bearing
  • The true bearing to a point is the angle measured in degrees in a clockwise direction from the north line.  We will refer to the true bearing simply as the bearing.

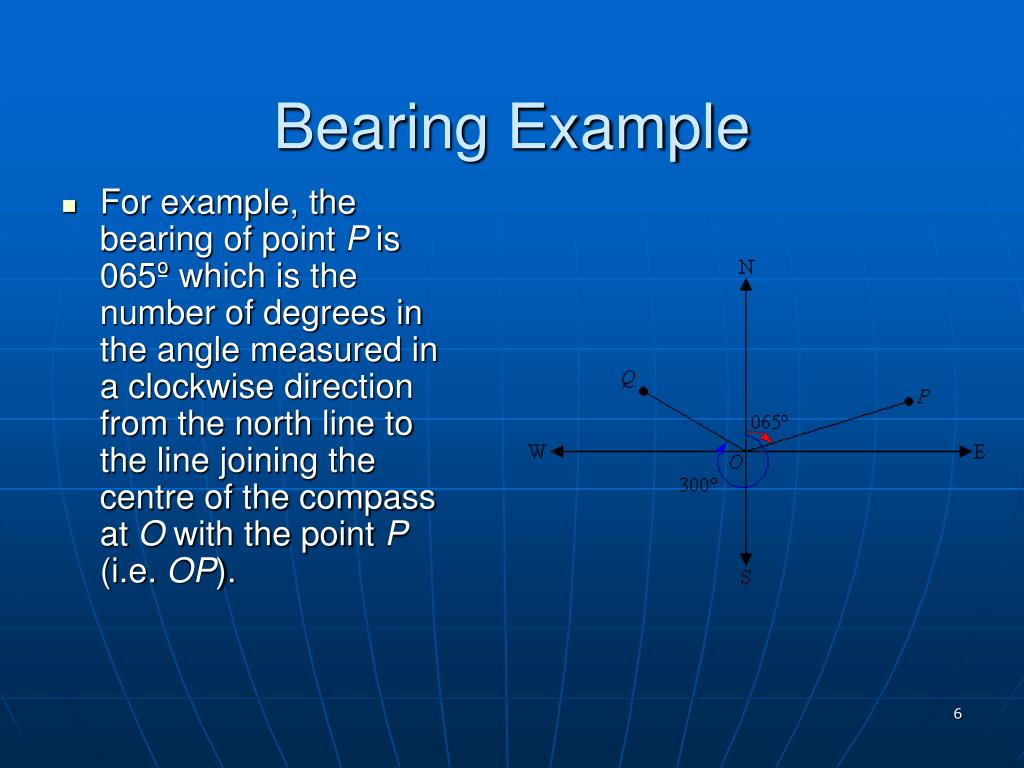

bearing example
Bearing Example
  • For example, the bearing of point P is 065º which is the number of degrees in the angle measured in a clockwise direction from the north line to the line joining the centre of the compass at O with the point P (i.e. OP).

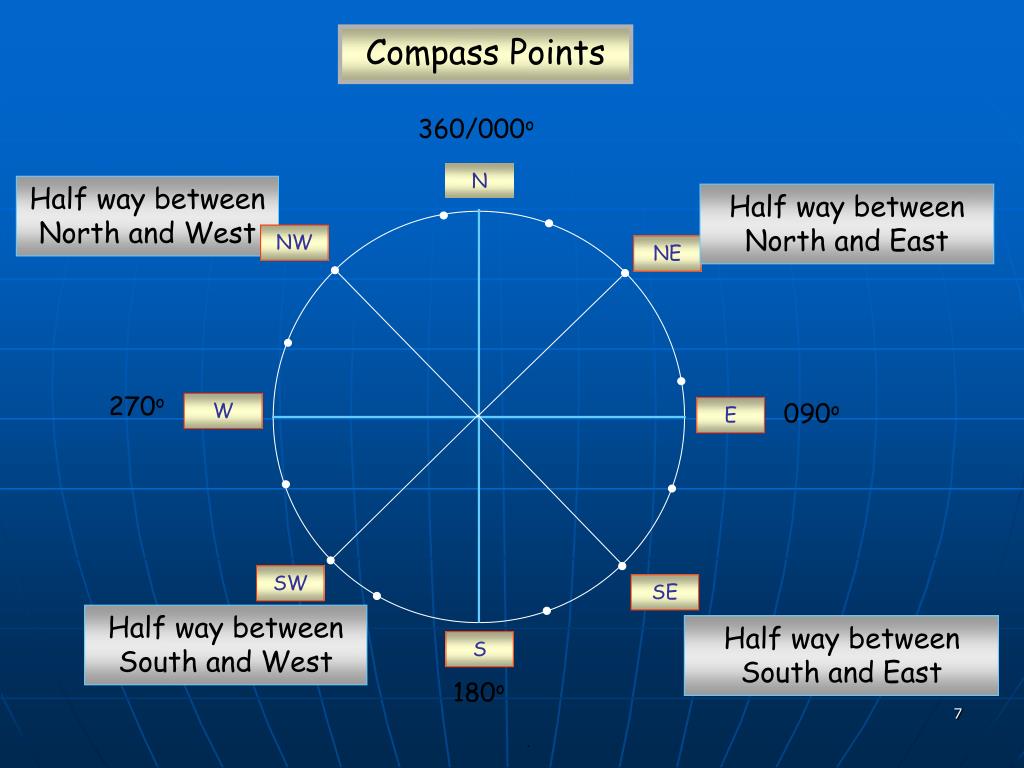

slide7

360/000o

N

Half way between North and West

Half way between North and East

NW

NE

270o

090o

W

E

SW

SE

Half way between South and West

Half way between South and East

S

180o

Compass Points

.

slide8

Bearings

360/000o

N

N

N

N

60o

270o

090o

W

W

W

W

E

E

E

E

S

S

S

S

180o

145o

315o

230o

1. Measured from North.

060o

2. In a clockwise direction.

3. Written as 3 figures.

315o

230o

145o

slide9

360/000o

350o

020o

N

315o

045o

NW

NE

290o

080o

270o

090o

W

E

250o

110o

SW

SE

225o

210o

135o

160o

S

180o

Use your protractor to measure the bearing of each point from the centre of the circle. (Worksheet 1)

Bearings

A 360o protractor is used to measure bearings.

slide10

N

360/000o

030o

330o

045o

315o

290o

075o

090o

E

270o

W

Air Traffic Controller

110o

250o

Control Tower

135o

225o

170o

200o

180o

S

Estimate the bearing of each aircraft from the centre of the radar screen.

10-Jun-14

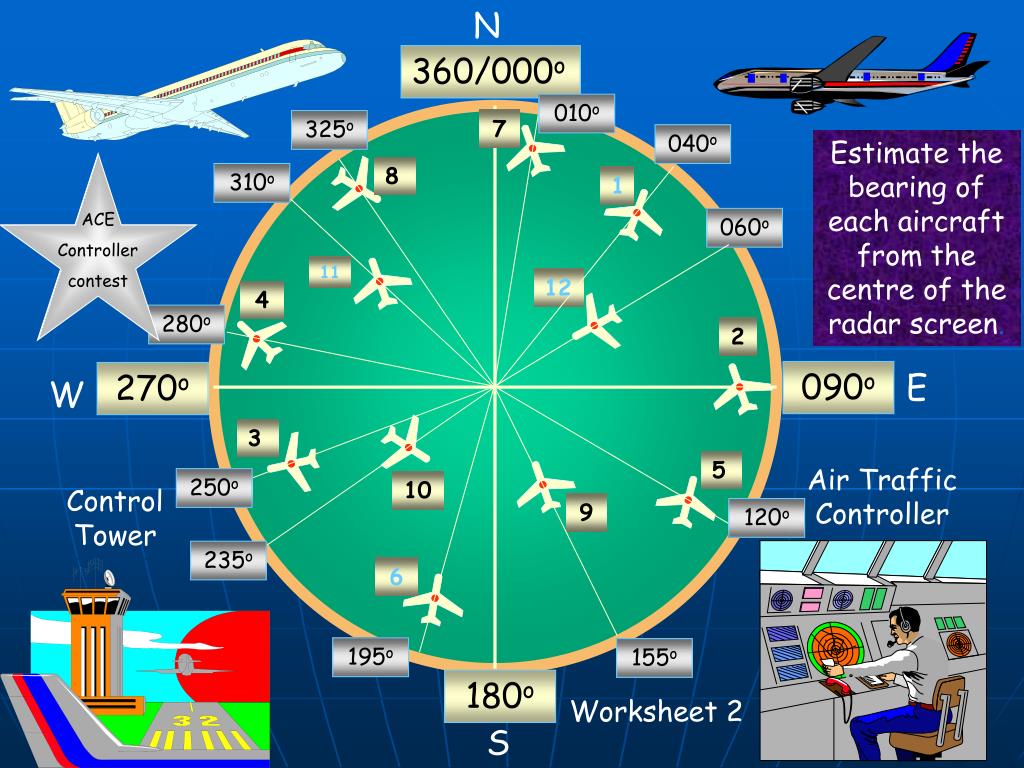

slide11

N

360/000o

010o

7

325o

040o

Estimate the bearing of each aircraft from the centre of the radar screen.

8

310o

1

ACE

Controller

contest

060o

11

12

4

280o

2

090o

E

270o

W

3

5

Air Traffic Controller

250o

10

Control Tower

9

120o

235o

6

195o

155o

180o

S

Worksheet 2

10-Jun-14

slide12

Bearings

Measuring the bearing of one point from another.

To Find the bearing of Q from P.

N

P

Q

118o

1.Draw a straight line between both points.

2.Draw a North line at P.

3.Measure angle between.

slide13

Bearings

Measuring the bearing of one point from another.

To Find the bearing of P from Q.

N

P

Q

298o

1.Draw a straight line between both points.

2.Draw a North line at Q.

3.Measure angle between.

slide14

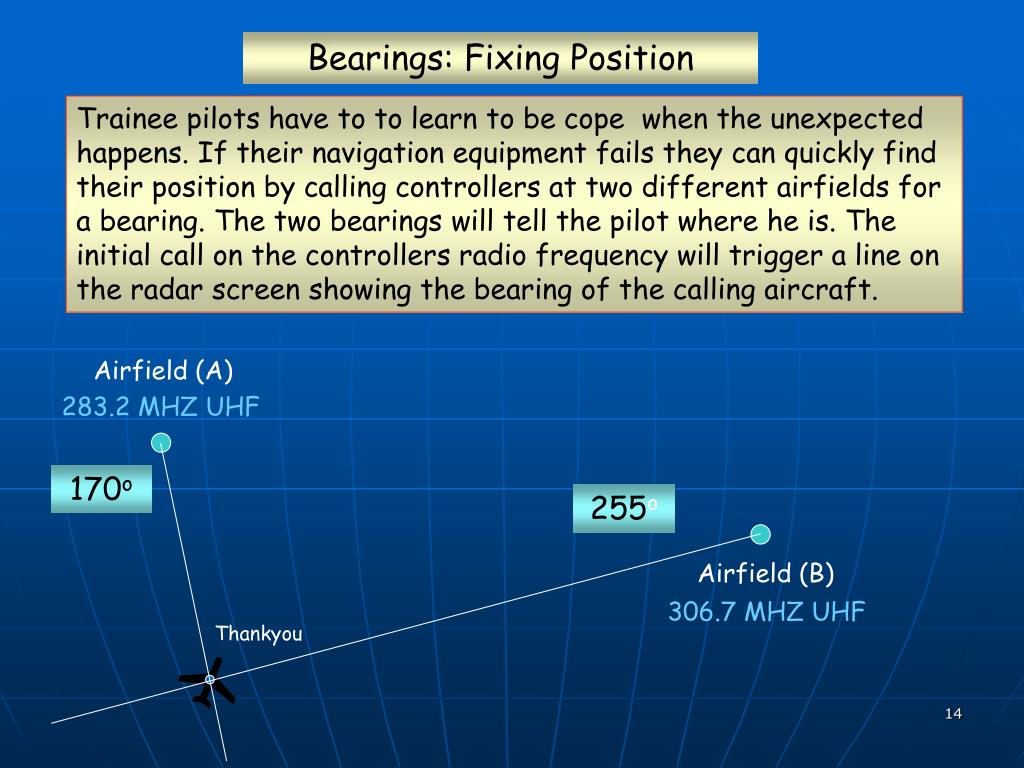

Bearings: Fixing Position

Trainee pilots have to to learn to be cope when the unexpected happens. If their navigation equipment fails they can quickly find their position by calling controllers at two different airfields for a bearing. The two bearings will tell the pilot where he is. The initial call on the controllers radio frequency will trigger a line on the radar screen showing the bearing of the calling aircraft.

Airfield (A)

283.2 MHZ UHF

170o

255o

Airfield (B)

306.7 MHZ UHF

Thankyou

slide15

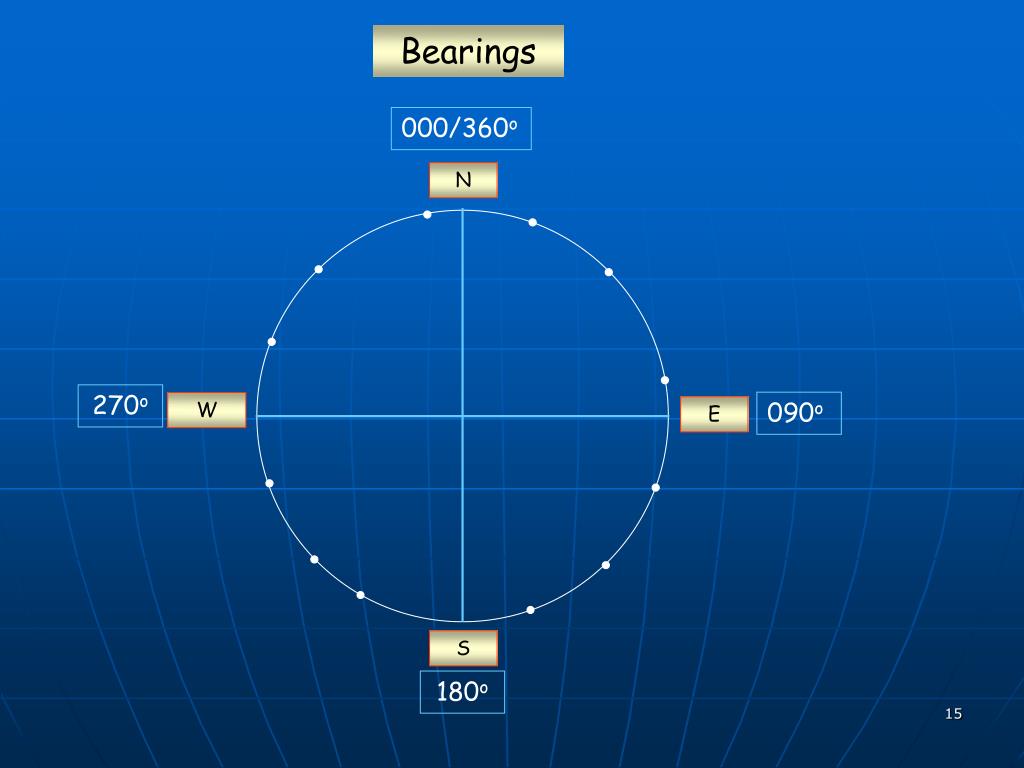

Bearings

000/360o

N

270o

090o

W

E

S

180o

grid systems

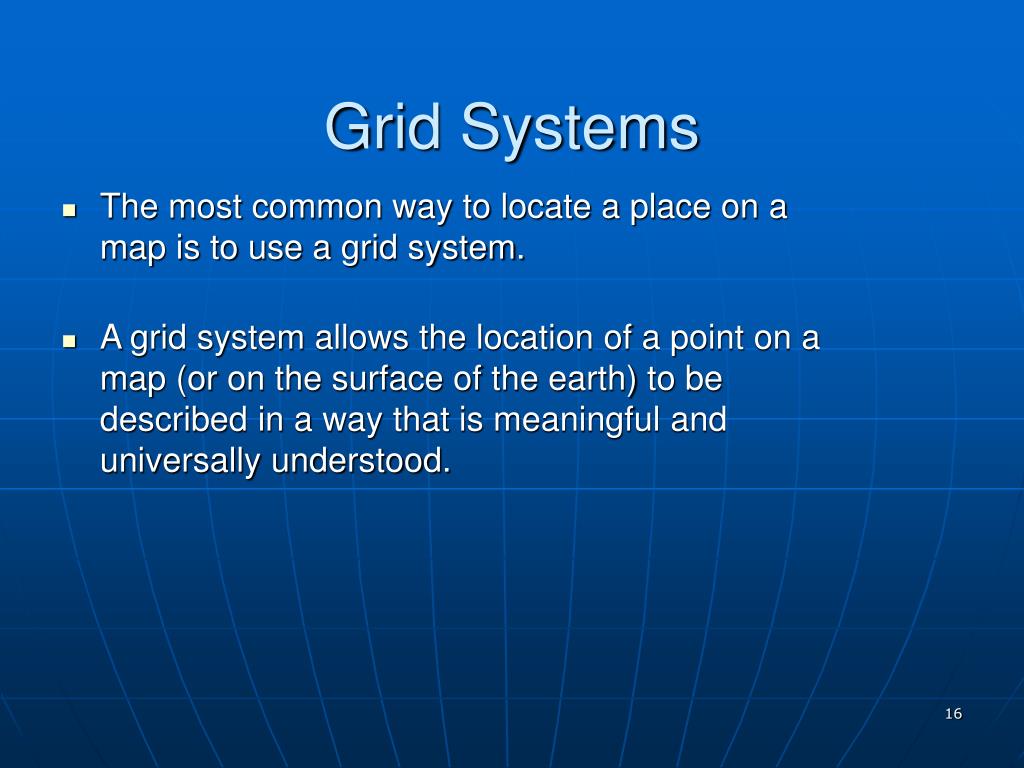

Grid Systems
  • The most common way to locate a place on a map is to use a grid system.
  • A grid system allows the location of a point on a map (or on the surface of the earth) to be described in a way that is meaningful and universally understood.

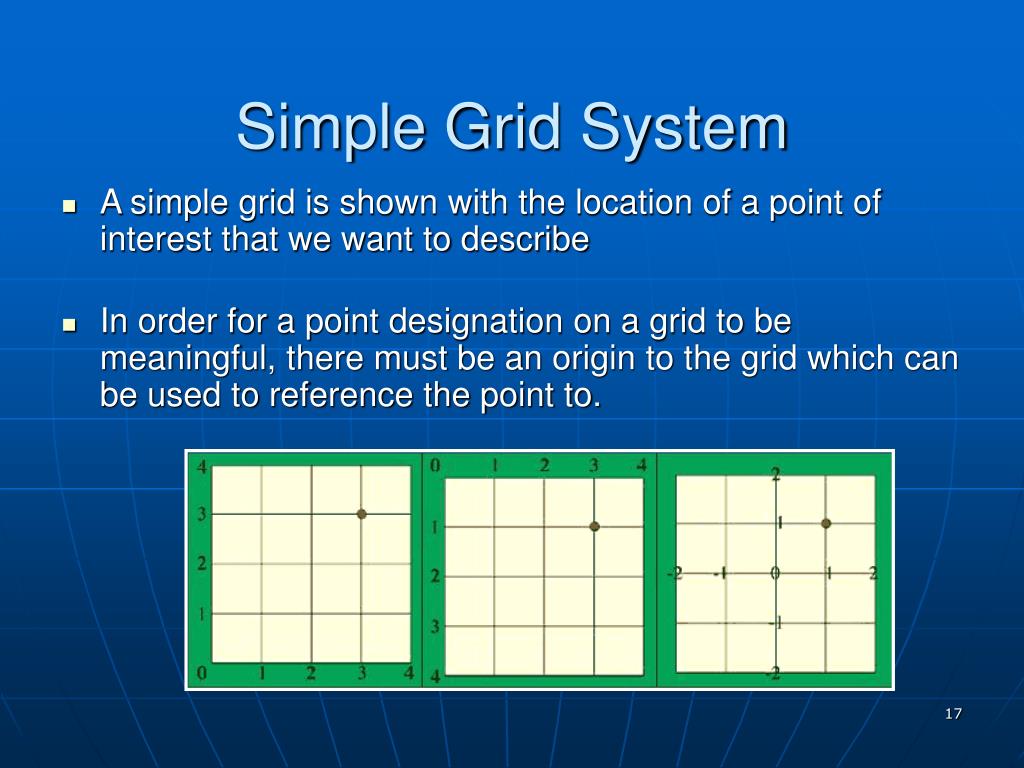

simple grid system
Simple Grid System
  • A simple grid is shown with the location of a point of interest that we want to describe
  • In order for a point designation on a grid to be meaningful, there must be an origin to the grid which can be used to reference the point to.
alphanumeric grid

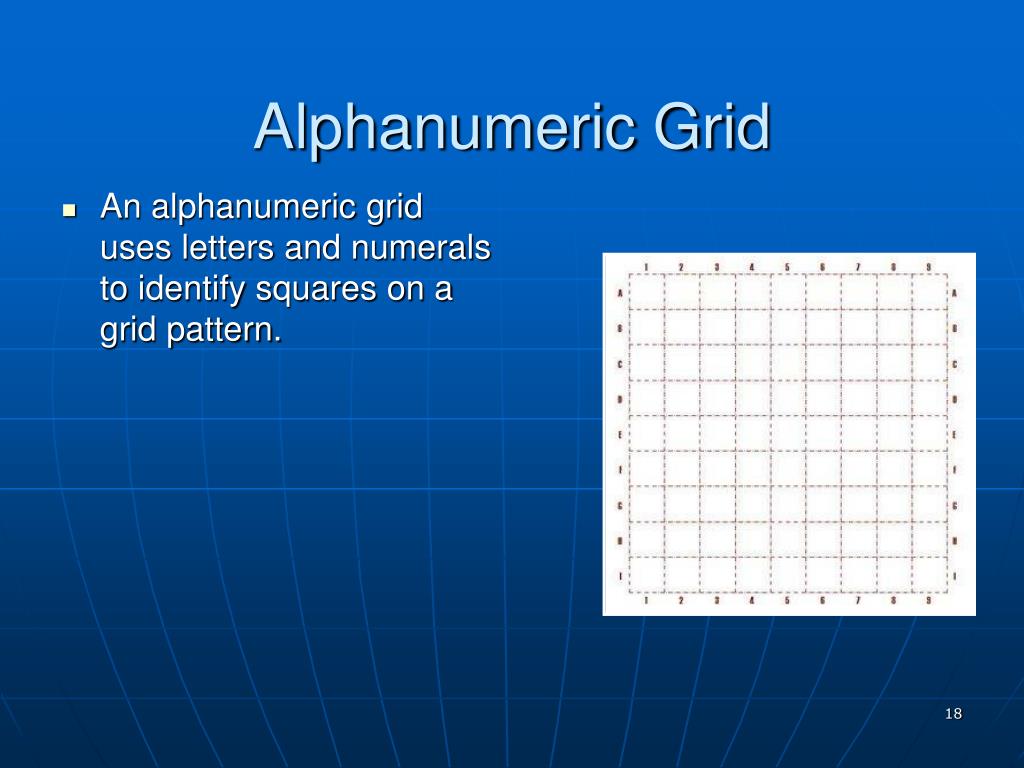

Alphanumeric Grid
  • An alphanumeric grid uses letters and numerals to identify squares on a grid pattern.
map grid military grid

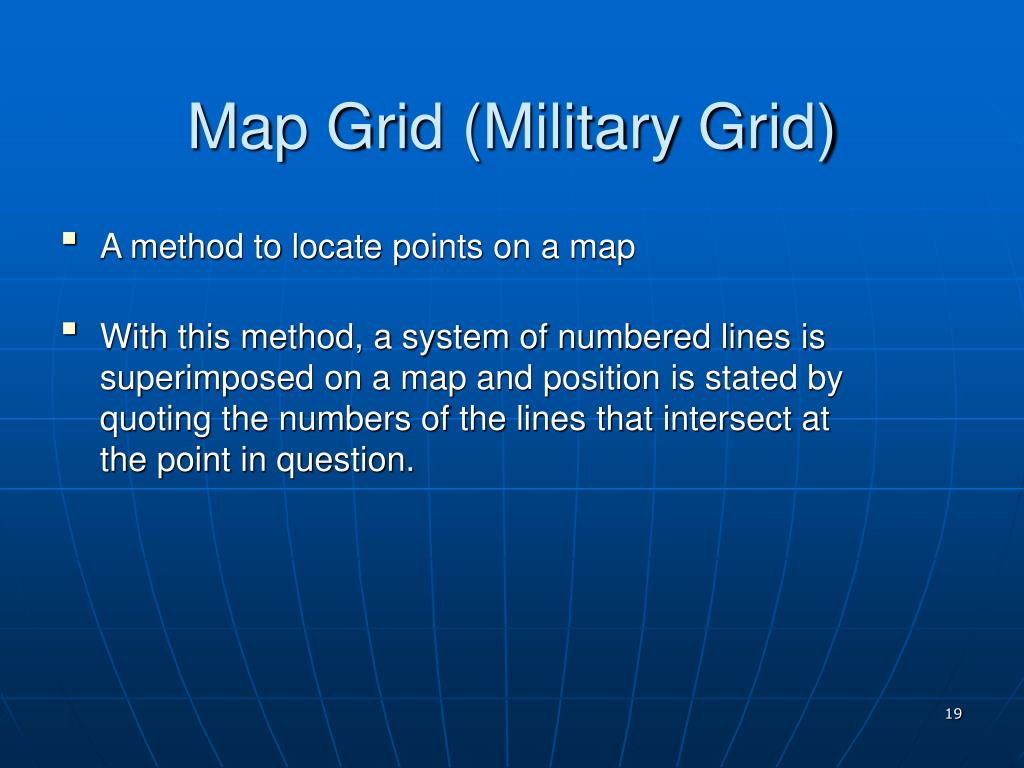

Map Grid (Military Grid)
  • A method to locate points on a map
  • With this method, a system of numbered lines is superimposed on a map and position is stated by quoting the numbers of the lines that intersect at the point in question.
using the military grid
Using the Military Grid
  • For instance, let's utilize the military grid to determine which grid square the church is located in.
identifying grid squares easting
Identifying Grid Squares - Easting
  • First, go to the Western edge of the grid square that the object is in first. Then from that western edge, go up or down until you come to a number. In this case, going up or down yields the number 91. These are the first two digits for the square that the church is in.
identifying grid squares northing
Identifying Grid Squares - Northing
  • Secondly, go to the Southern edge of the grid square that the object is in. From that southern edge, go across until you come to a number. In this case, the number is 94. This represents the third and fourth digits for the square that the church is in.
  • Hence, the church is in grid square 9194
six digit military grid method
Six Digit Military Grid Method
  • With this method, you start out exactly the same way as the four digit method. Then ask yourself, how far over from that western edge is the church? To determine this, picture the grid square as if it was divided into ten equal vertical sections.
  • The church is 6 sections over from the Western edge of the grid square. Therefore, the first three digits are 916.
fourth and fifth digits

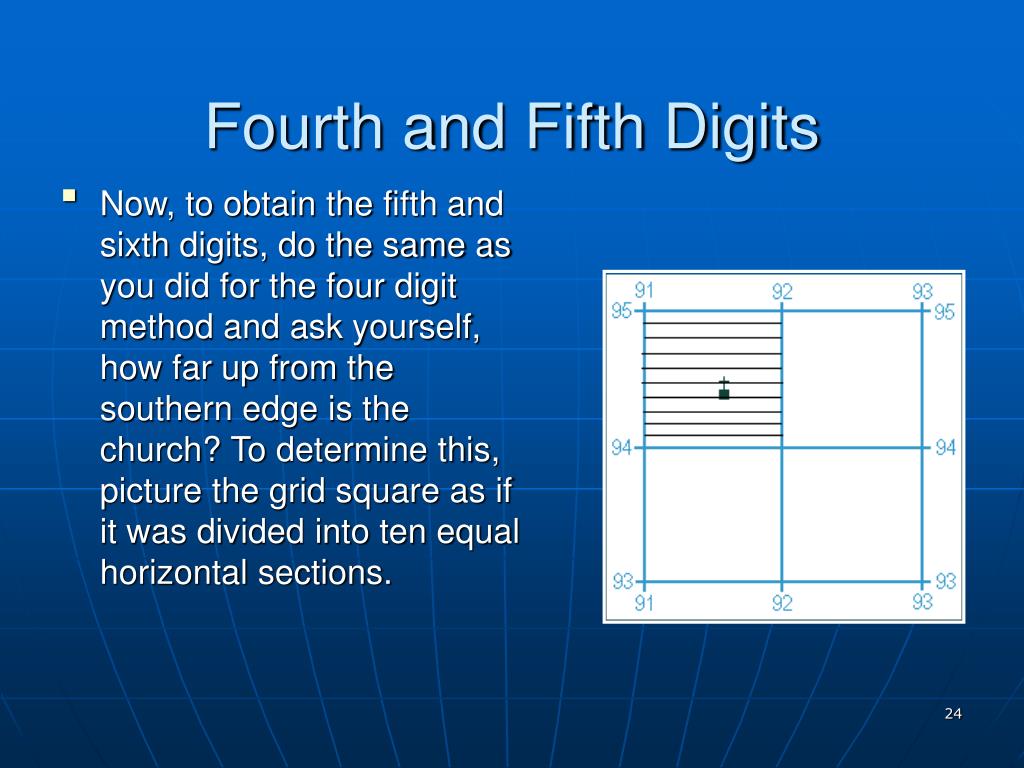

Fourth and Fifth Digits
  • Now, to obtain the fifth and sixth digits, do the same as you did for the four digit method and ask yourself, how far up from the southern edge is the church? To determine this, picture the grid square as if it was divided into ten equal horizontal sections.

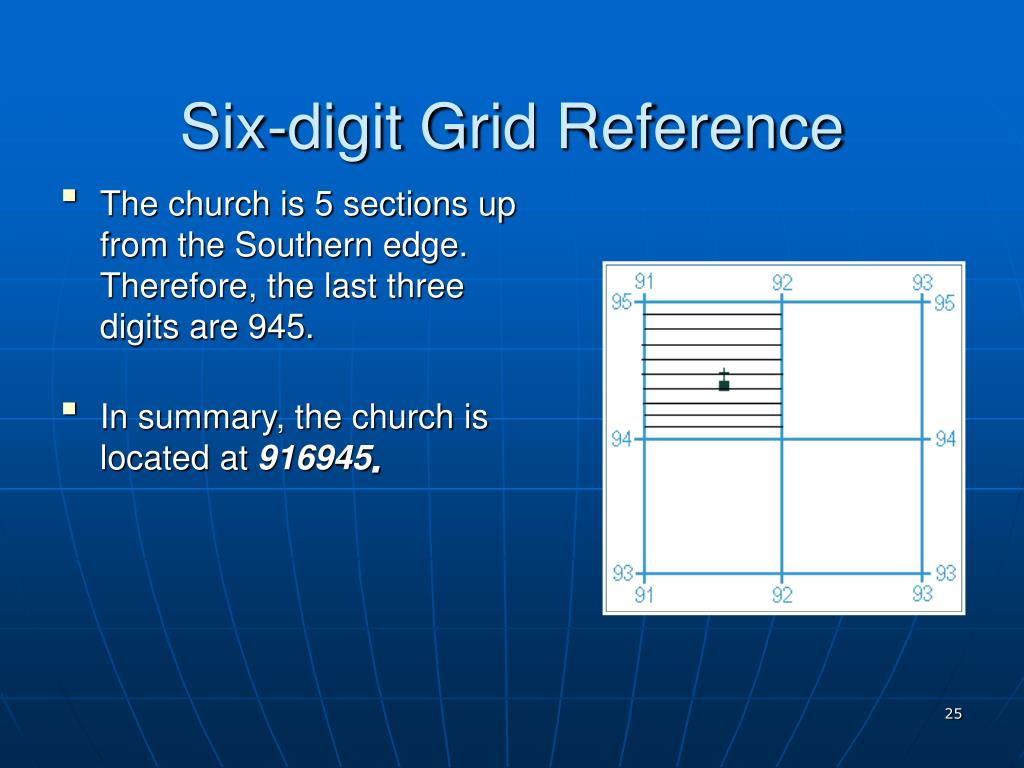

six digit grid reference
Six-digit Grid Reference
  • The church is 5 sections up from the Southern edge. Therefore, the last three digits are 945.
  • In summary, the church is located at 916945.
questions
Questions
  • Page 30, #1-10
  • Page 33, Hamilton-Burlington Topographic Map Study, #1, 2.
