LUBE OIL FILLING LINE

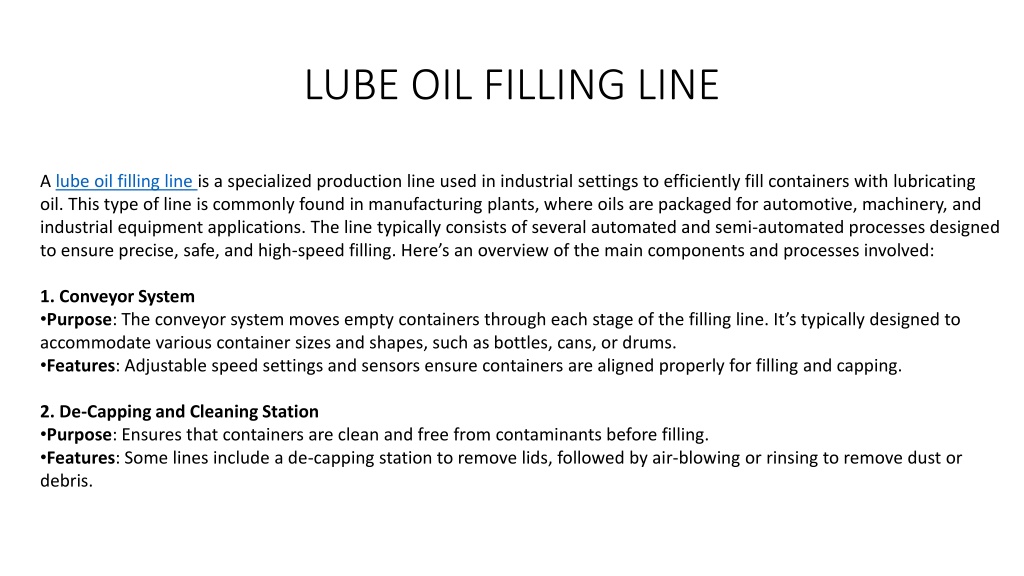

2. LUBE OIL FILLING LINE • A lube oil filling line is a specialized production line used in industrial settings to efficiently fill containers with lubricating oil. This type of line is commonly found in manufacturing plants, where oils are packaged for automotive, machinery, and industrial equipment applications. The line typically consists of several automated and semi-automated processes designed to ensure precise, safe, and high-speed filling. Here’s an overview of the main components and processes involved: • 1. Conveyor System • Purpose: The conveyor system moves empty containers through each stage of the filling line. It’s typically designed to accommodate various container sizes and shapes, such as bottles, cans, or drums. • Features: Adjustable speed settings and sensors ensure containers are aligned properly for filling and capping. • 2. De-Capping and Cleaning Station • Purpose: Ensures that containers are clean and free from contaminants before filling. • Features: Some lines include a de-capping station to remove lids, followed by air-blowing or rinsing to remove dust or debris.

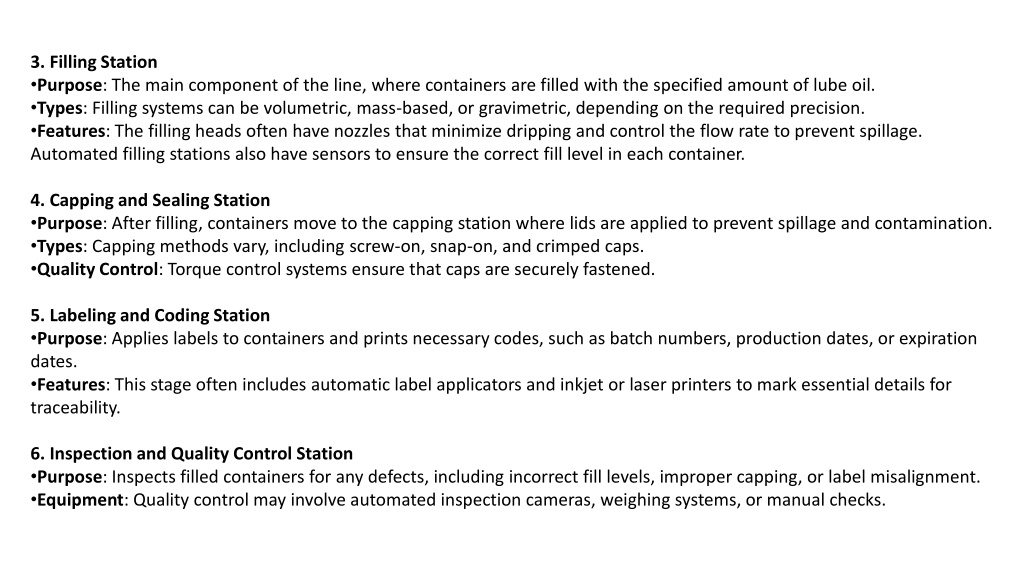

3. 3. Filling Station • Purpose: The main component of the line, where containers are filled with the specified amount of lube oil. • Types: Filling systems can be volumetric, mass-based, or gravimetric, depending on the required precision. • Features: The filling heads often have nozzles that minimize dripping and control the flow rate to prevent spillage. Automated filling stations also have sensors to ensure the correct fill level in each container. • 4. Capping and Sealing Station • Purpose: After filling, containers move to the capping station where lids are applied to prevent spillage and contamination. • Types: Capping methods vary, including screw-on, snap-on, and crimped caps. • Quality Control: Torque control systems ensure that caps are securely fastened. • 5. Labeling and Coding Station • Purpose: Applies labels to containers and prints necessary codes, such as batch numbers, production dates, or expiration dates. • Features: This stage often includes automatic label applicators and inkjet or laser printers to mark essential details for traceability. • 6. Inspection and Quality Control Station • Purpose: Inspects filled containers for any defects, including incorrect fill levels, improper capping, or label misalignment. • Equipment: Quality control may involve automated inspection cameras, weighing systems, or manual checks.

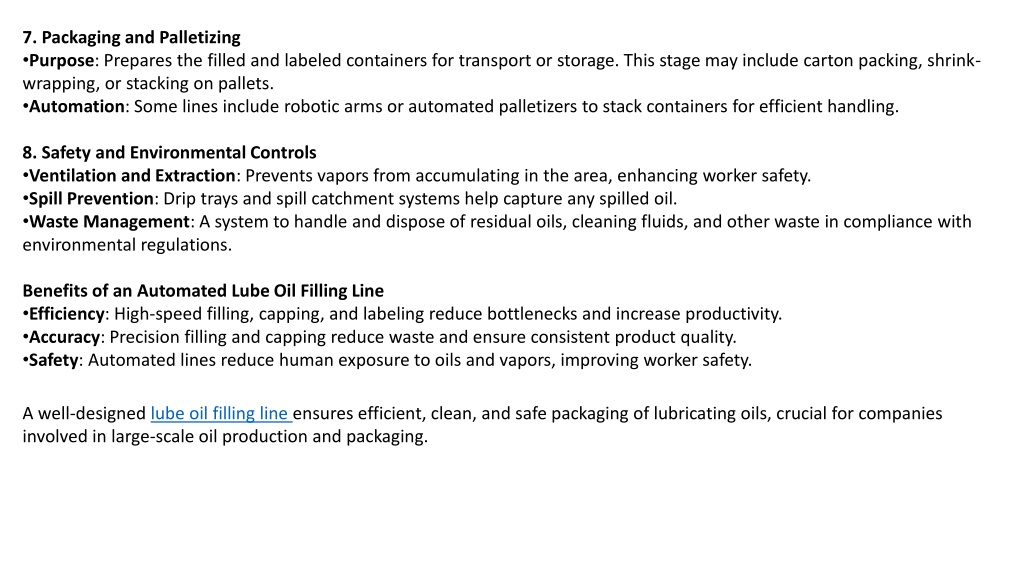

4. 7. Packaging and Palletizing • Purpose: Prepares the filled and labeled containers for transport or storage. This stage may include carton packing, shrink-wrapping, or stacking on pallets. • Automation: Some lines include robotic arms or automated palletizers to stack containers for efficient handling. • 8. Safety and Environmental Controls • Ventilation and Extraction: Prevents vapors from accumulating in the area, enhancing worker safety. • Spill Prevention: Drip trays and spill catchment systems help capture any spilled oil. • Waste Management: A system to handle and dispose of residual oils, cleaning fluids, and other waste in compliance with environmental regulations. • Benefits of an Automated Lube Oil Filling Line • Efficiency: High-speed filling, capping, and labeling reduce bottlenecks and increase productivity. • Accuracy: Precision filling and capping reduce waste and ensure consistent product quality. • Safety: Automated lines reduce human exposure to oils and vapors, improving worker safety. A well-designed lube oil filling line ensures efficient, clean, and safe packaging of lubricating oils, crucial for companies involved in large-scale oil production and packaging.
