The Lintec containerized series of asphalt batching plants are built for their unique ability to be erected and dismantled quickly on-site without much hindrance or delays to an ongoing project.
E N D

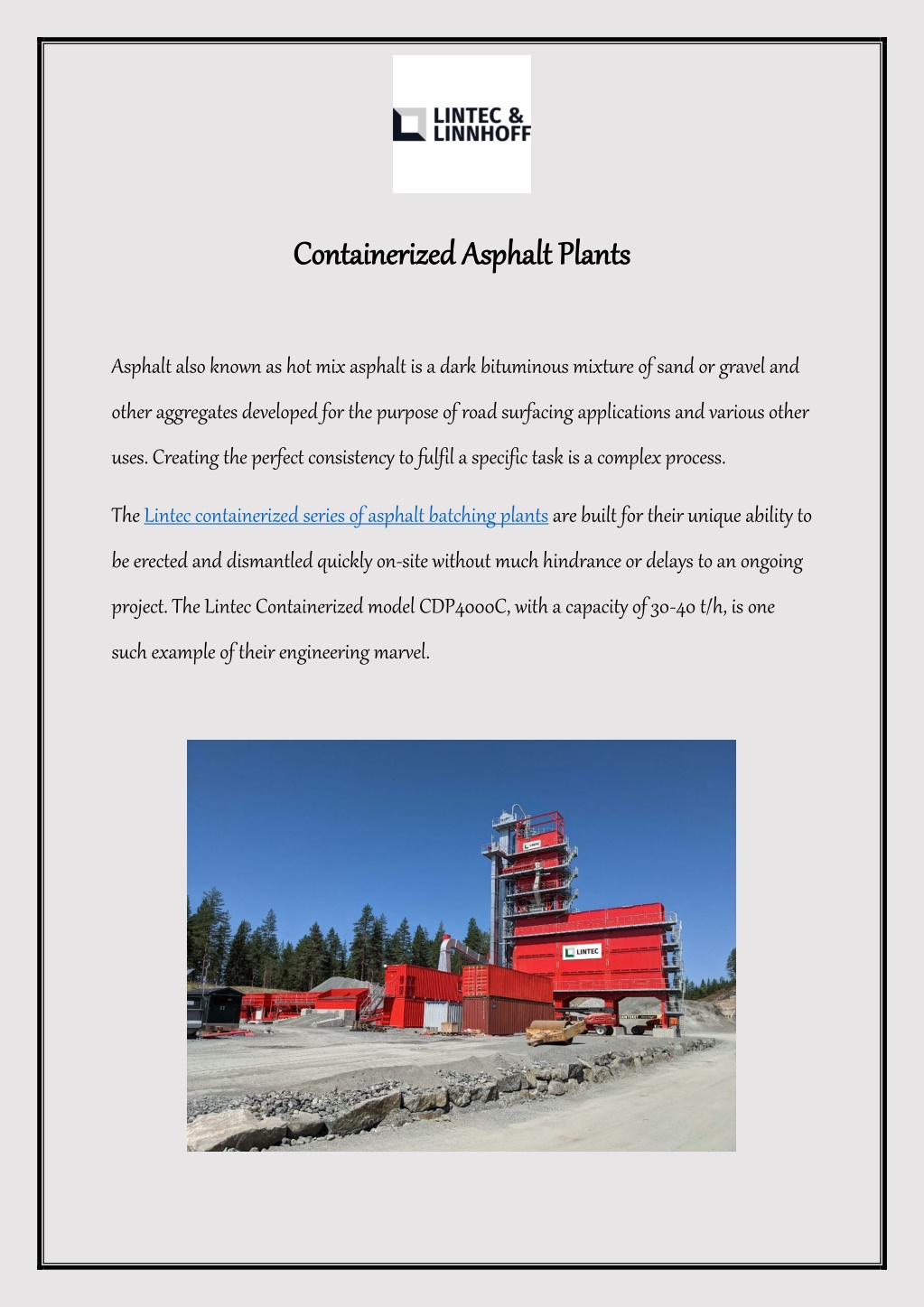

Containerized Asphalt Plants Containerized Asphalt Plants Asphalt also known as hot mix asphalt is a dark bituminous mixture of sand or gravel and other aggregates developed for the purpose of road surfacing applications and various other uses. Creating the perfect consistency to fulfil a specific task is a complex process. The Lintec containerized series of asphalt batching plants are built for their unique ability to be erected and dismantled quickly on-site without much hindrance or delays to an ongoing project. The Lintec Containerized model CDP4000C, with a capacity of 30-40 t/h, is one such example of their engineering marvel.

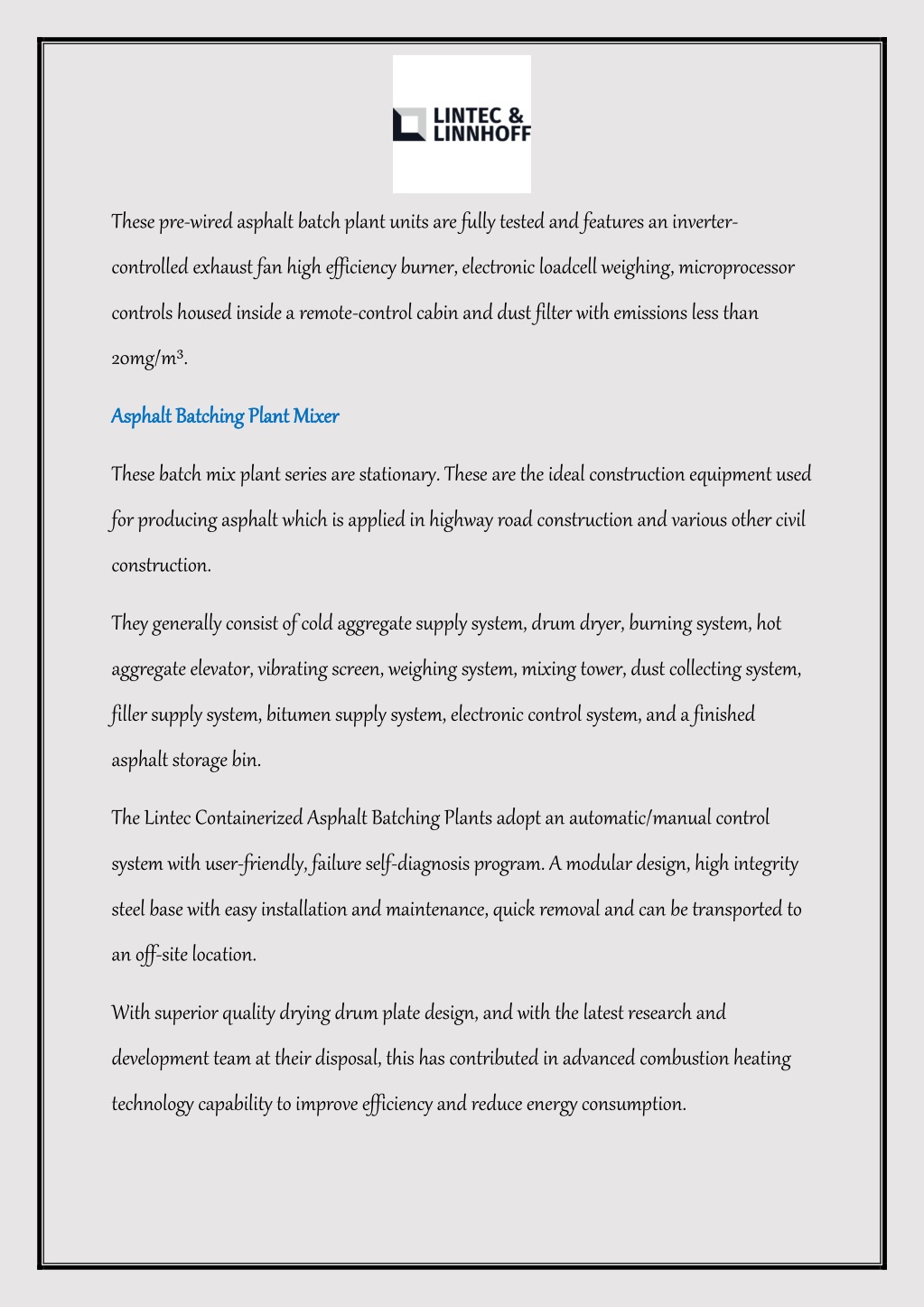

These pre-wired asphalt batch plant units are fully tested and features an inverter- controlled exhaust fan high efficiency burner, electronic loadcell weighing, microprocessor controls housed inside a remote-control cabin and dust filter with emissions less than 20mg/m³. Asphalt Batching Plant Mixer Asphalt Batching Plant Mixer These batch mix plant series are stationary. These are the ideal construction equipment used for producing asphalt which is applied in highway road construction and various other civil construction. They generally consist of cold aggregate supply system, drum dryer, burning system, hot aggregate elevator, vibrating screen, weighing system, mixing tower, dust collecting system, filler supply system, bitumen supply system, electronic control system, and a finished asphalt storage bin. The Lintec Containerized Asphalt Batching Plants adopt an automatic/manual control system with user-friendly, failure self-diagnosis program. A modular design, high integrity steel base with easy installation and maintenance, quick removal and can be transported to an off-site location. With superior quality drying drum plate design, and with the latest research and development team at their disposal, this has contributed in advanced combustion heating technology capability to improve efficiency and reduce energy consumption.

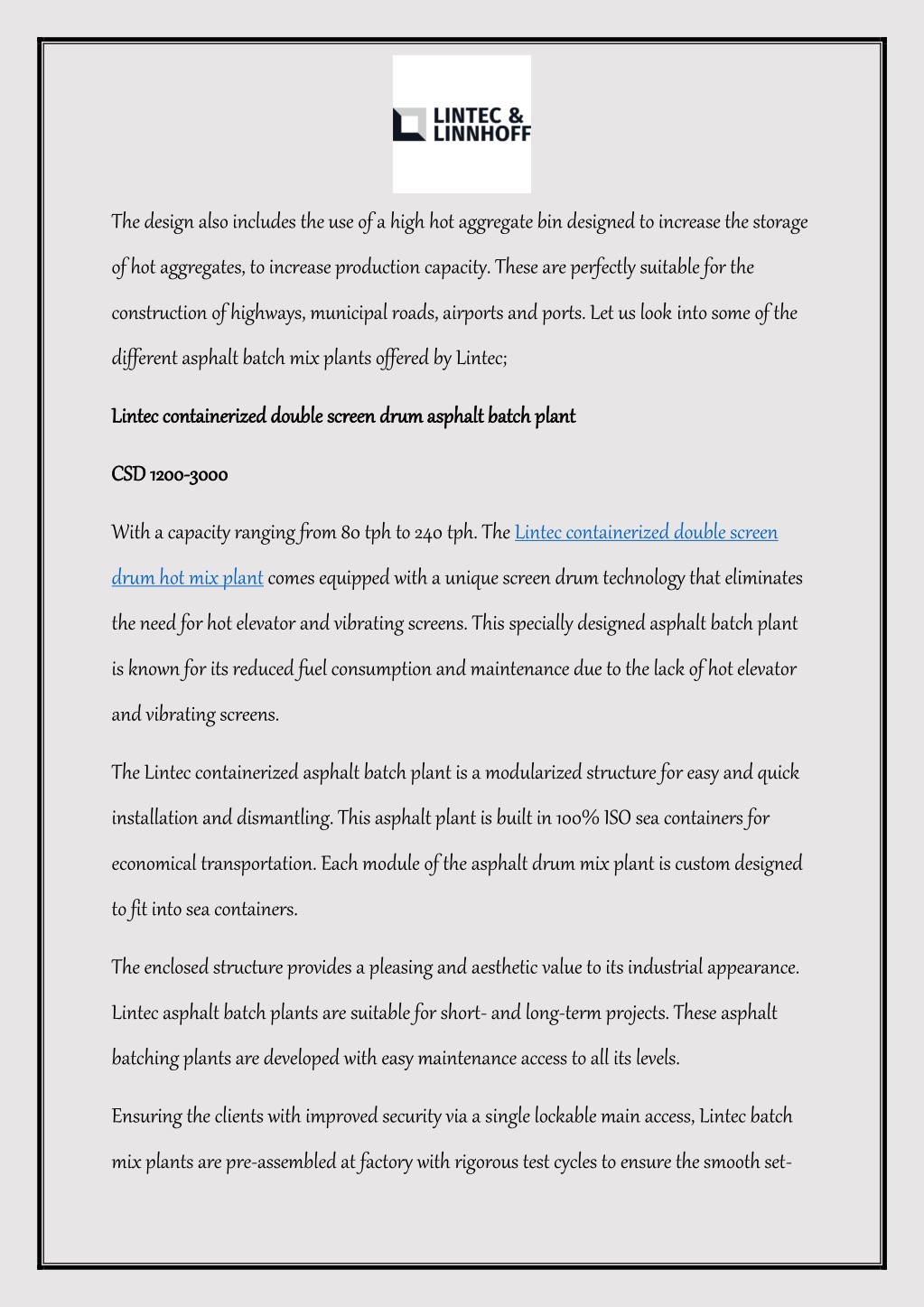

The design also includes the use of a high hot aggregate bin designed to increase the storage of hot aggregates, to increase production capacity. These are perfectly suitable for the construction of highways, municipal roads, airports and ports. Let us look into some of the different asphalt batch mix plants offered by Lintec; Lintec containerized double screen drum asphalt batch plant Lintec containerized double screen drum asphalt batch plant CSD 1200 CSD 1200- -3000 3000 With a capacity ranging from 80 tph to 240 tph. The Lintec containerized double screen drum hot mix plant comes equipped with a unique screen drum technology that eliminates the need for hot elevator and vibrating screens. This specially designed asphalt batch plant is known for its reduced fuel consumption and maintenance due to the lack of hot elevator and vibrating screens. The Lintec containerized asphalt batch plant is a modularized structure for easy and quick installation and dismantling. This asphalt plant is built in 100% ISO sea containers for economical transportation. Each module of the asphalt drum mix plant is custom designed to fit into sea containers. The enclosed structure provides a pleasing and aesthetic value to its industrial appearance. Lintec asphalt batch plants are suitable for short- and long-term projects. These asphalt batching plants are developed with easy maintenance access to all its levels. Ensuring the clients with improved security via a single lockable main access, Lintec batch mix plants are pre-assembled at factory with rigorous test cycles to ensure the smooth set-

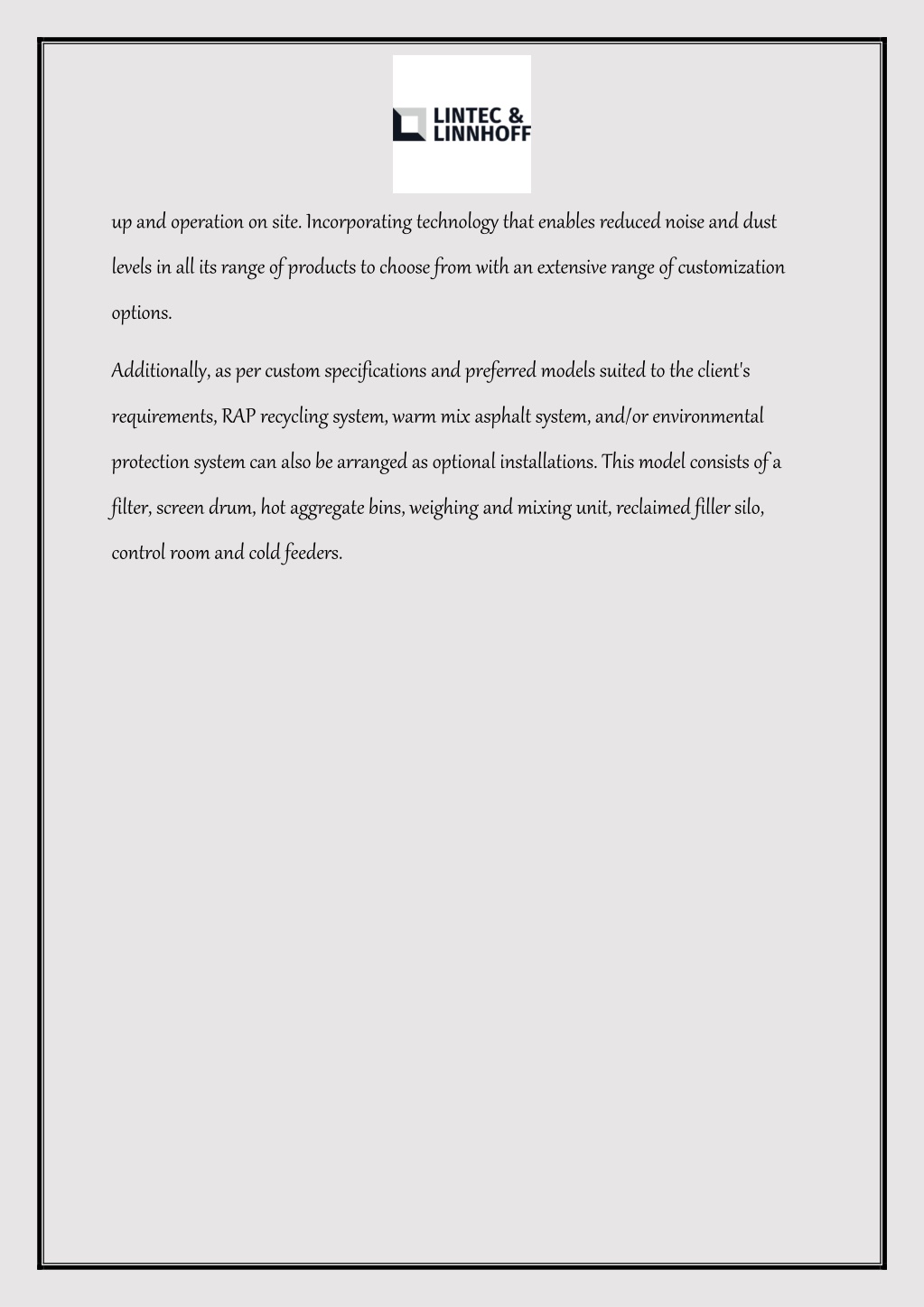

up and operation on site. Incorporating technology that enables reduced noise and dust levels in all its range of products to choose from with an extensive range of customization options. Additionally, as per custom specifications and preferred models suited to the client's requirements, RAP recycling system, warm mix asphalt system, and/or environmental protection system can also be arranged as optional installations. This model consists of a filter, screen drum, hot aggregate bins, weighing and mixing unit, reclaimed filler silo, control room and cold feeders.
