PHP SuperGlobals : Supersized Trouble

1. PHP SuperGlobals: Supersized Trouble Shelly Hershkovitz, Senior Security Analyst, Imperva

2. Shelly Hershkovitz • Senior Security Analyst at Imperva • Leads the efforts to capture and analyze hacking activities • Responsible for number of Imperva’s HII reports • Experienced in machine learning and computer vision • Holds BA in Computer Science & M.Sc degree in Bio-Medical Engineering

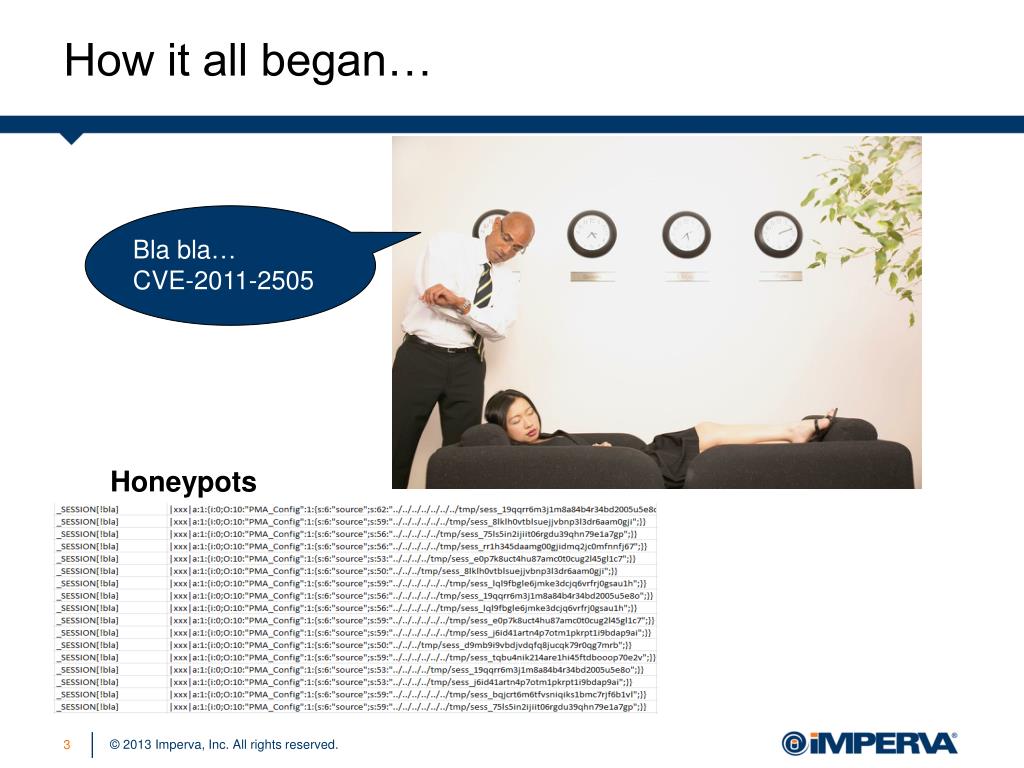

3. How it all began… Blabla… CVE-2011-2505 Honeypots

4. Agenda • Introduction • Relevant PHP background • An Anatomy of a Modern Web Exploit • Abusing SuperGlobals • Demo • Additional PHP SuperGlobal Attacks • In the wild • Summary & Conclusions • Q&A

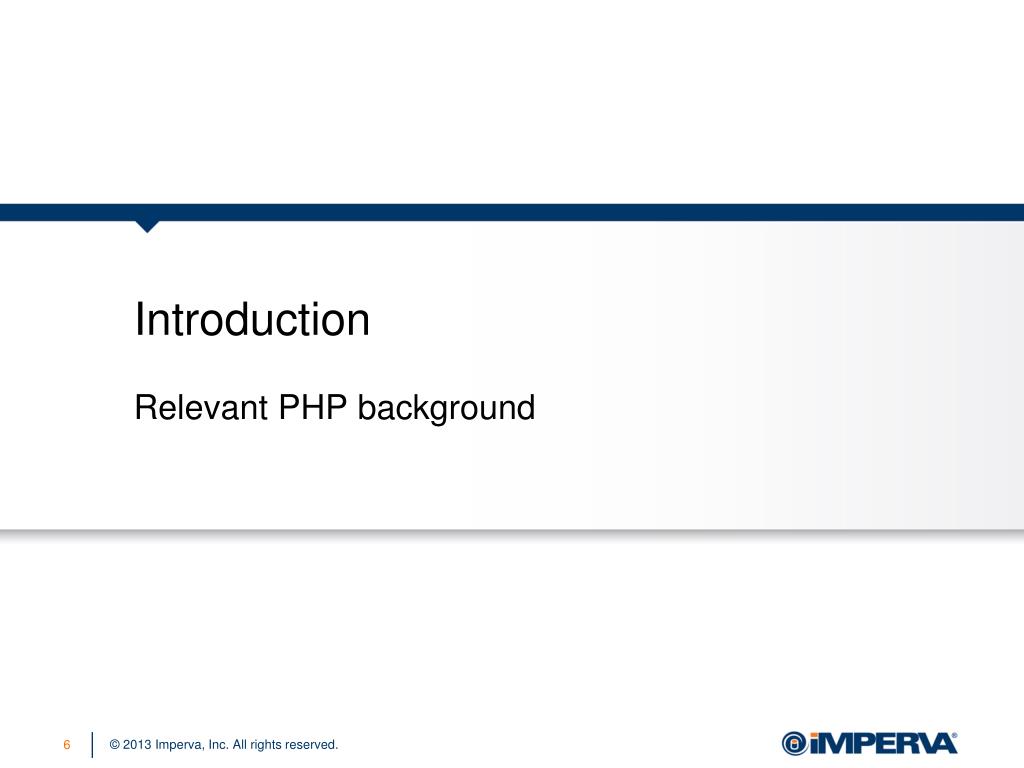

5. Introduction Relevant PHP background

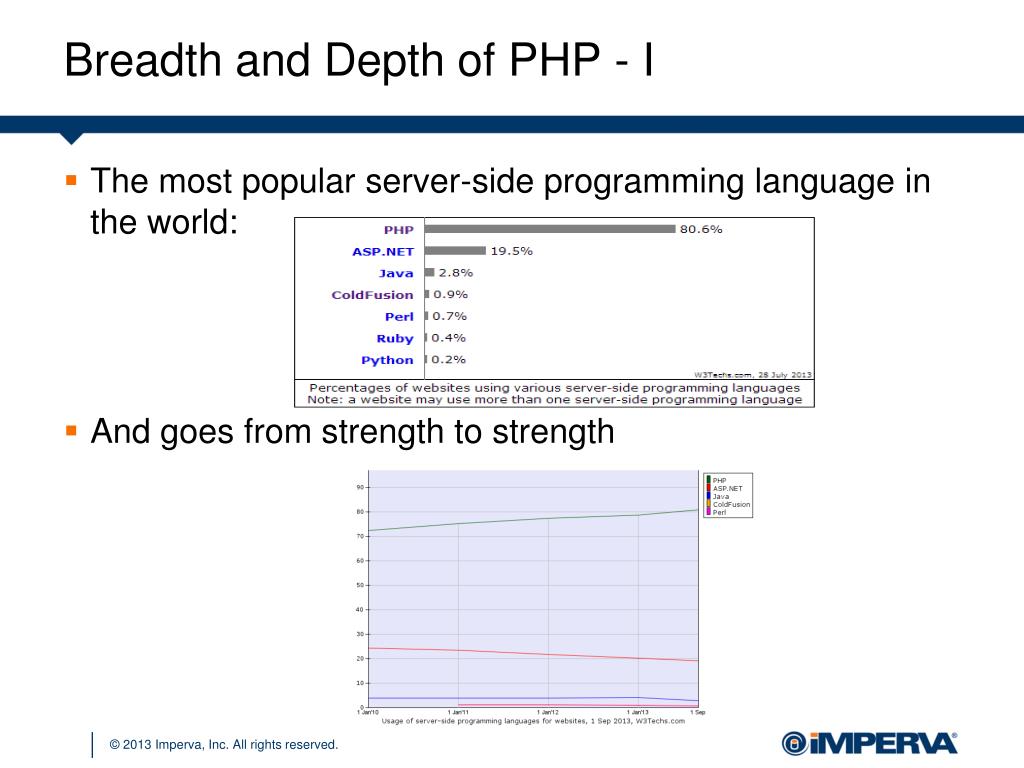

6. Breadth and Depth of PHP - I • The most popular server-side programming language in the world: • And goes from strength to strength

7. Breadth and Depth of PHP – II • The most popular web applications are powered by PHP http://www.alexa.com/topsites

8. Outline – PHP Background SuperGlobals Session Management Serialization

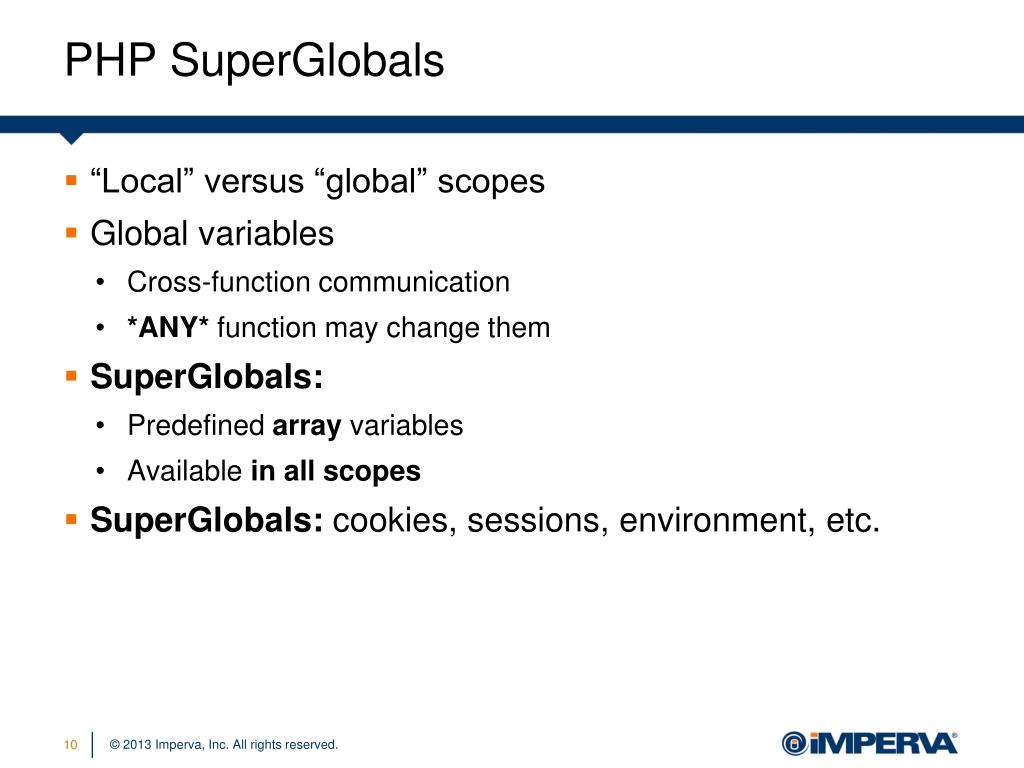

9. PHP SuperGlobals • “Local” versus “global” scopes • Global variables • Cross-function communication • *ANY* function may change them • SuperGlobals: • Predefined array variables • Available in all scopes • SuperGlobals: cookies, sessions, environment, etc.

10. PHP SuperGlobal list

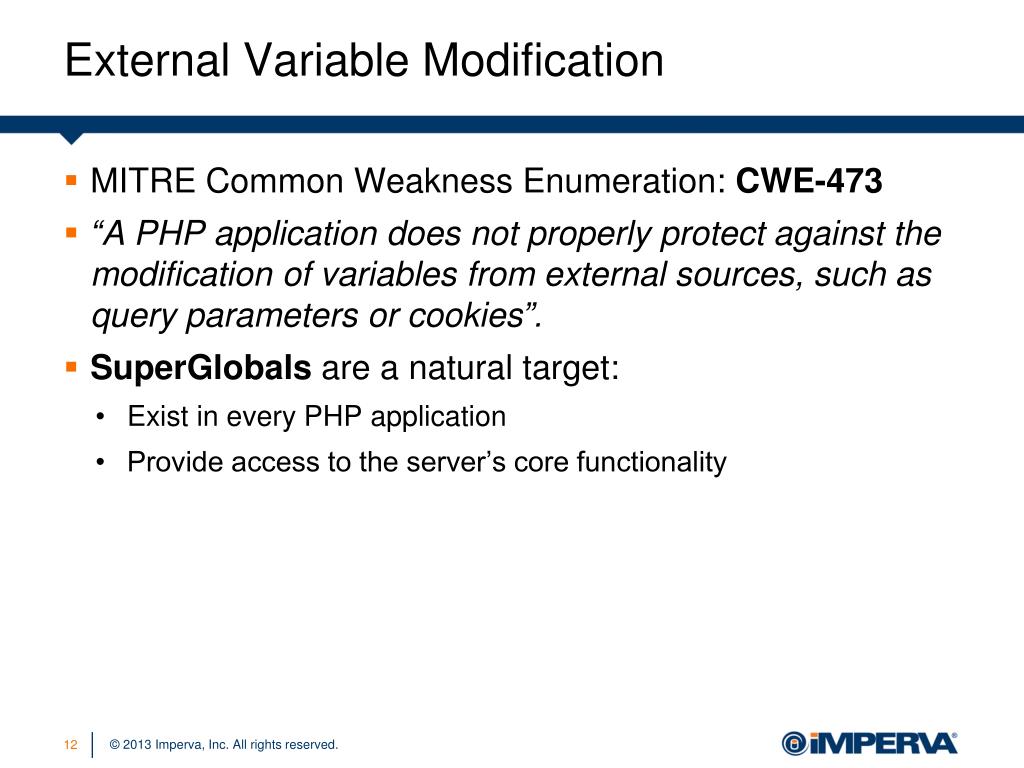

11. External Variable Modification • MITRE Common Weakness Enumeration: CWE-473 • “A PHP application does not properly protect against the modification of variables from external sources, such as query parameters or cookies”. • SuperGlobalsare a natural target: • Exist in every PHP application • Provide access to the server’s core functionality

12. Serialization • The process of saving data stored in memory to file is called “serialization” • The process of loading data stored in file to memory is called “deserialization” __sleep() __wakeup() http://www.studytonight.com/java/images/Serialization-deserialization.JPG

13. PHP Session Management • New user: • Unique identifier for the session. • A cookie called PHPSESSID is sent to the user with this identifier. • A file is created on the server, for example: sess_1q8jkgkoetd3dprcb3n7mpmc4o26eili. • Resuming session data.

14. An Anatomy of a Modern Web Exploit Exploiting SuperGlobals

15. Outline • PHPMyAdmin • CVE-2011-2505 • CVE-2010-3065 • Attack Flow • Demo • Attacks on the wild

16. PHPMyAdmin (PMA) • The most popular MySQL administration tool for PHP • Often is bundled by default in LAMP (Linux, Apache, MySQL, PHP) installations

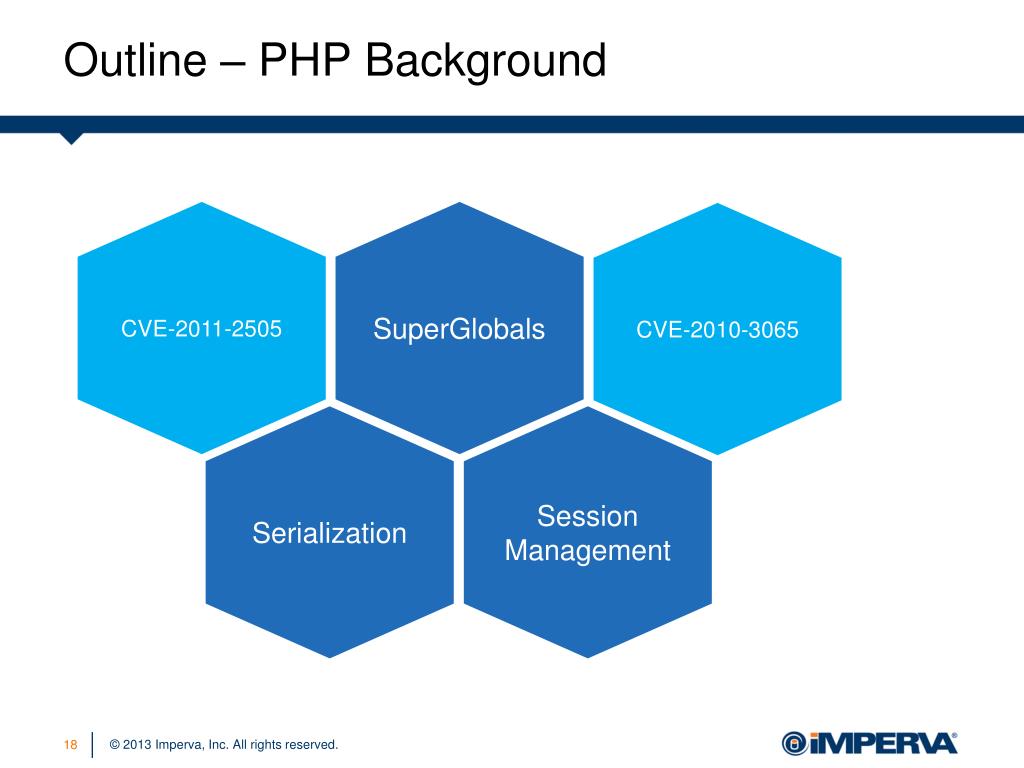

17. Outline – PHP Background CVE-2011-2505 SuperGlobals CVE-2010-3065 Serialization Session Management

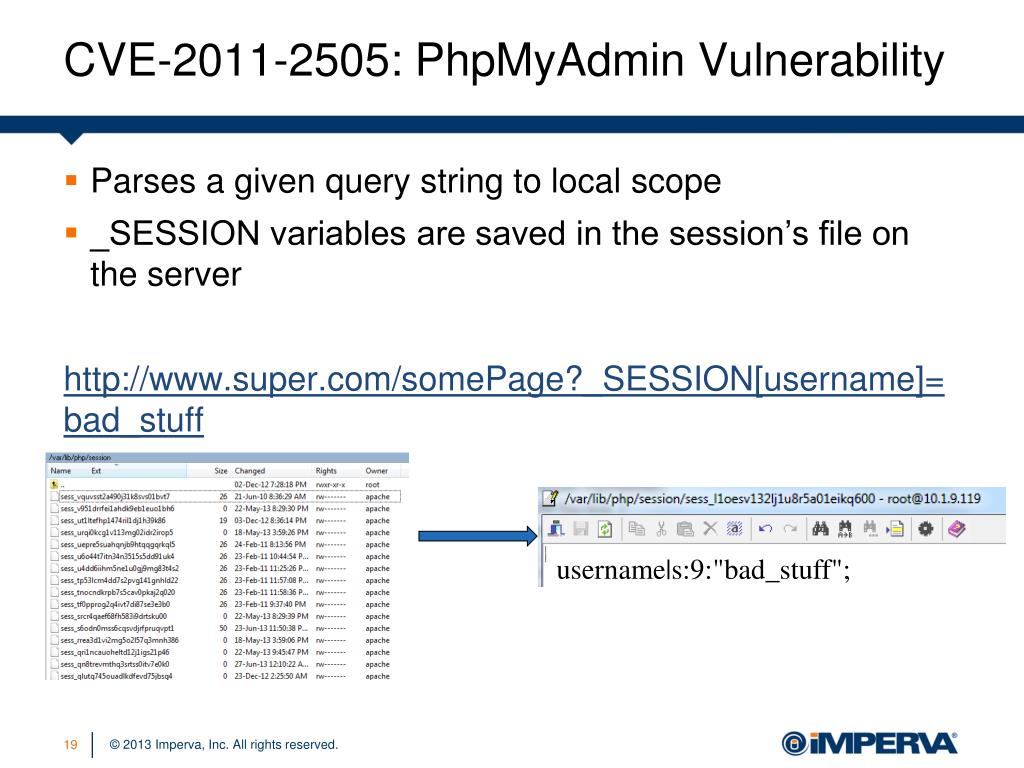

18. CVE-2011-2505: PhpMyAdmin Vulnerability • Parses a given query string to local scope • _SESSION variables are saved in the session’s file on the server http://www.super.com/somePage?_SESSION[username]=bad_stuff username|s:9:"bad_stuff";

19. CVE-2011-2505: PhpMyAdmin Vulnerability • PhpMyAdmin’s Unset session functionality • Parse_str() : parses the given query string and stores the variables in the current scope. • Session_write_close(): Makes Session data persistent throughout the entire user’s session.

20. CVE-2011-2505: Exploit • An attacker can now • Craft a malicious query string with the _SESSION SuperGlobal • Injected _SESSION value overrides the session’s original values • New values are saved to local file

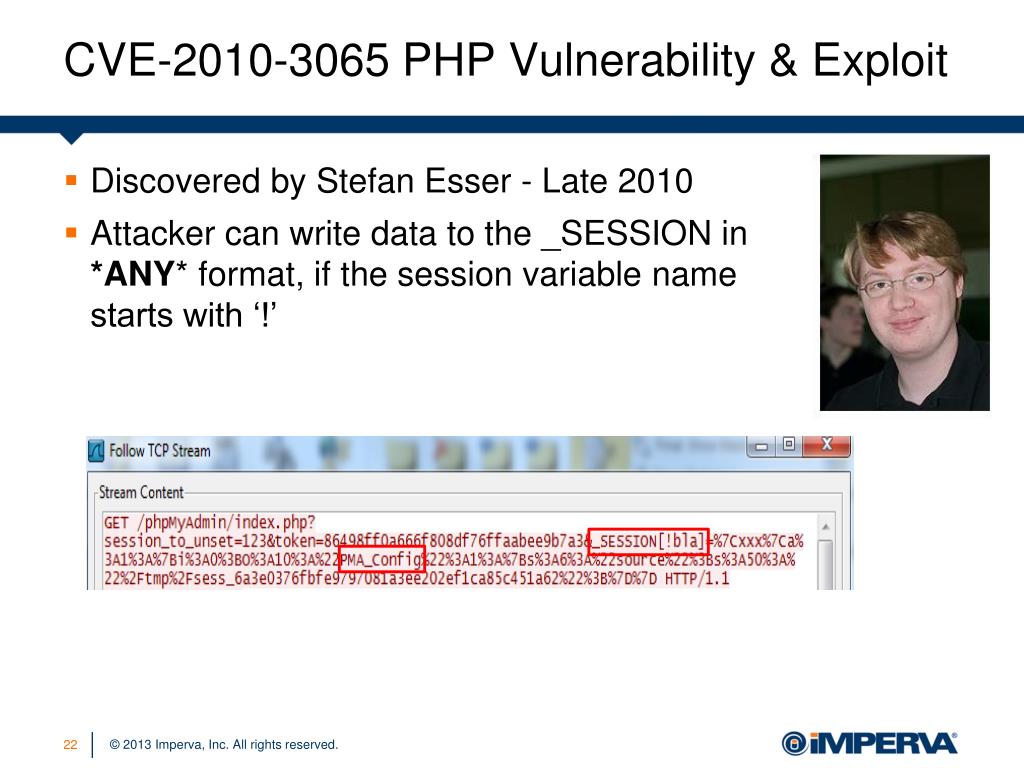

21. CVE-2010-3065 PHP Vulnerability & Exploit • Discovered by Stefan Esser- Late 2010 • Attacker can write data to the _SESSION in *ANY* format, if the session variable name starts with ‘!’

22. Serialization • The process of saving data stored in memory to file is called “serialization” • The process of loading data stored in file to memory is called “deserialization” __sleep() __wakeup() http://www.studytonight.com/java/images/Serialization-deserialization.JPG

23. PMA Session deserialization: Vulnerability • On session deserialization, the load() function is called • Eval is evil! • Can be used to execute unexpected code

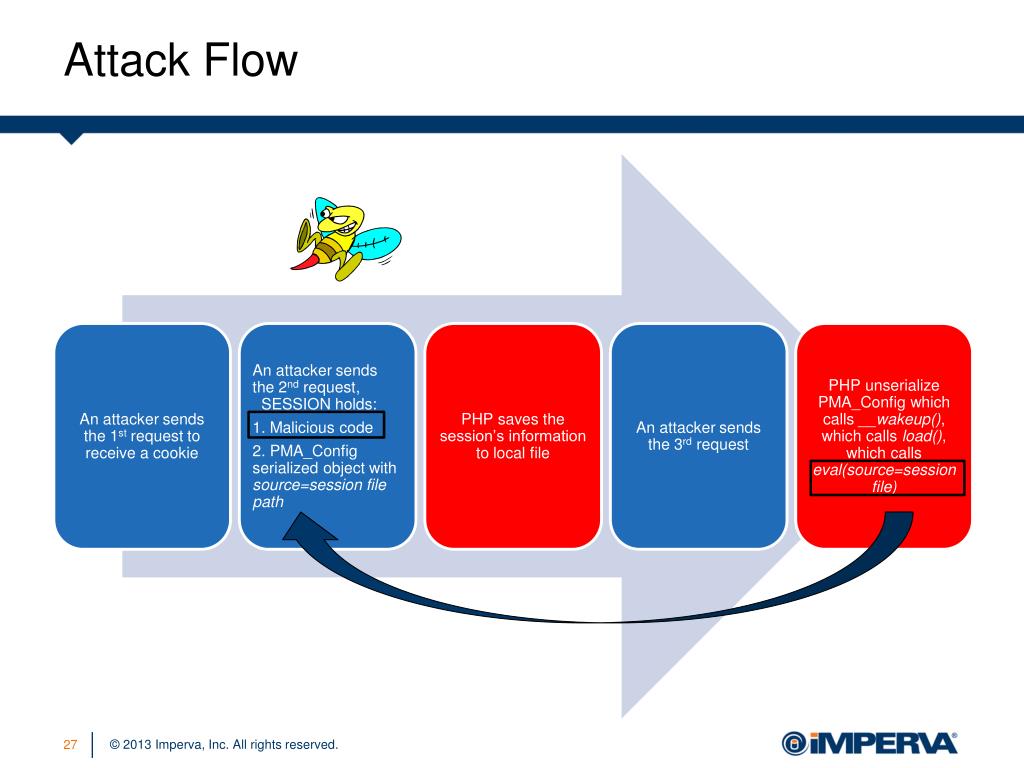

24. Attack Flow • An attacker sends the 1st request to receive a cookie • An attacker sends the 2nd request, _SESSION holds: • 1. Malicious code • 2. PMA_Config serialized object with source=session file path • PHP saves the session’s information to local file • An attacker sends the 3rd request • PHP deserializePMA_Configwhich calls __wakeup(), which calls load(), which calls eval(source=session file)

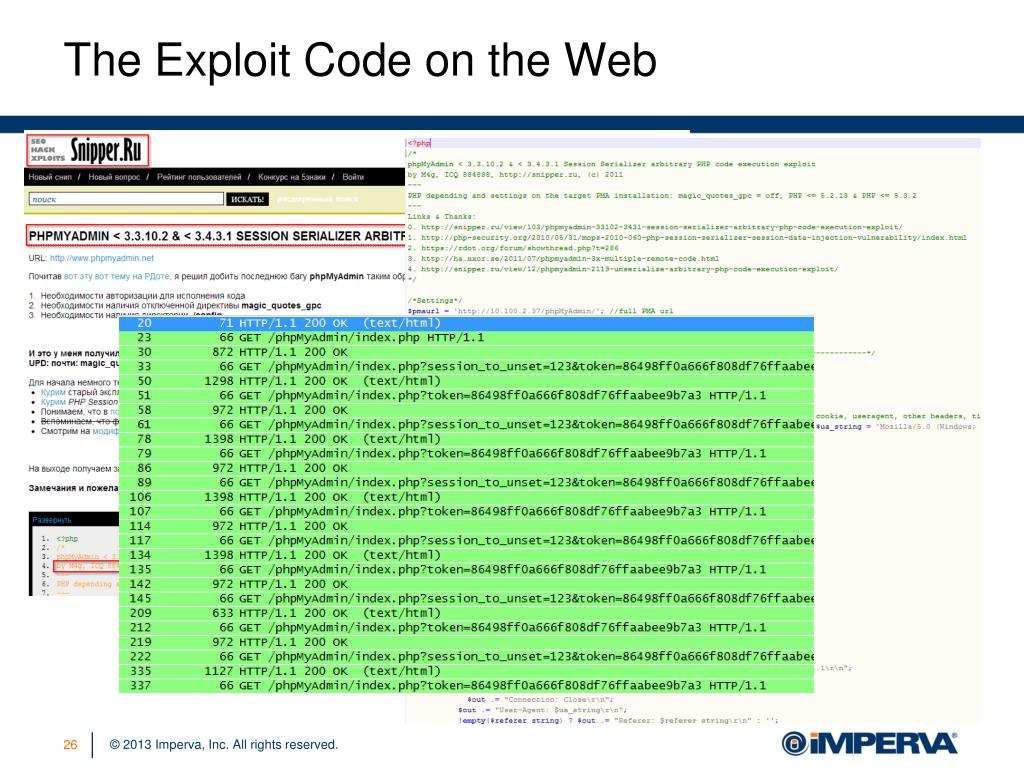

25. The Exploit Code on the Web

26. Attack Flow • An attacker sends the 1st request to receive a cookie • An attacker sends the 2nd request, _SESSION holds: • 1. Malicious code • 2. PMA_Config serialized object with source=session file path • PHP saves the session’s information to local file • An attacker sends the 3rd request • PHP unserializePMA_Configwhich calls __wakeup(), which calls load(), which calls eval(source=session file)

27. Guessing Session Filename • Luckily for the attacker, the location of the session file is predictable • Session File name consists of • The “sess_” prefix • The session identifier – known to the user/attacker • File’s path is predictable • default values

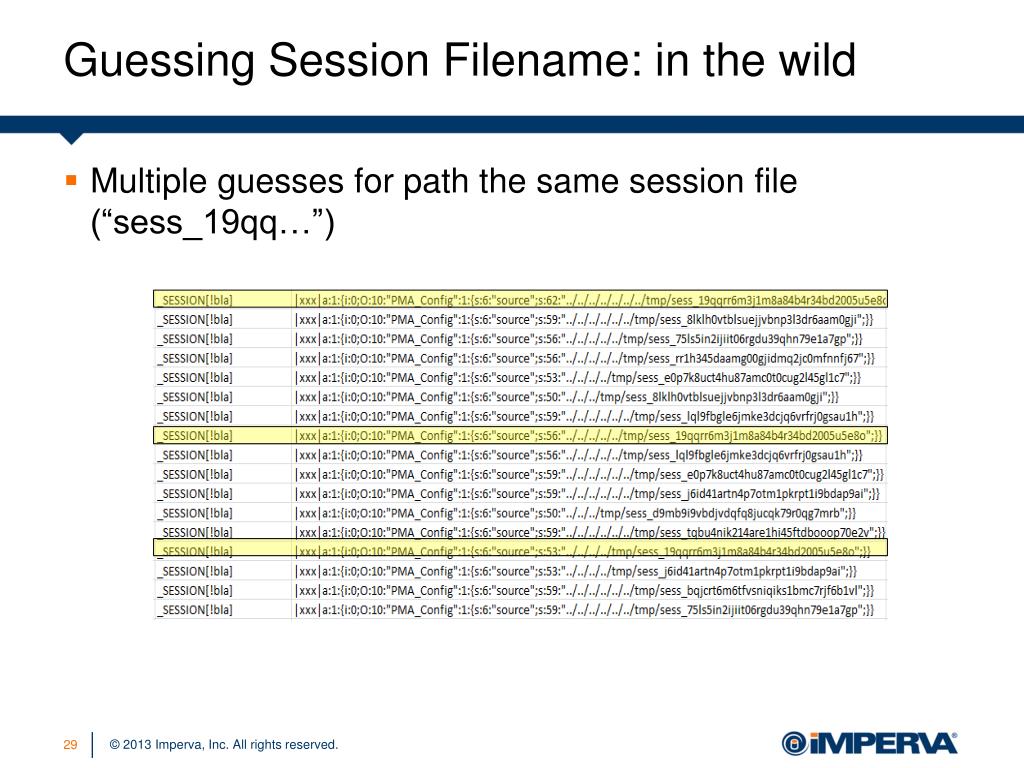

28. Guessing Session Filename: in the wild • Multiple guesses for path the same session file (“sess_19qq…”)

29. The Final Exploit • Now the attackers can, *FINALLY*,get their code evaluated • /phpMyAdmin/index.php?session_to_unset=123&token=86498ff0a666f808df76ffaabee9b7a3& _SESSION[!bla]=|xxx|a:1:{i:0;O:10:"PMA_Config":1:{s:6:“source";s:59:"/var/lib/php5/sess_6a3e0376fbfe9797081a 3ee202ef1ca85c451a62";}}& _SESSION[payload]=<?phpphpinfo(); ?>

30. Demo

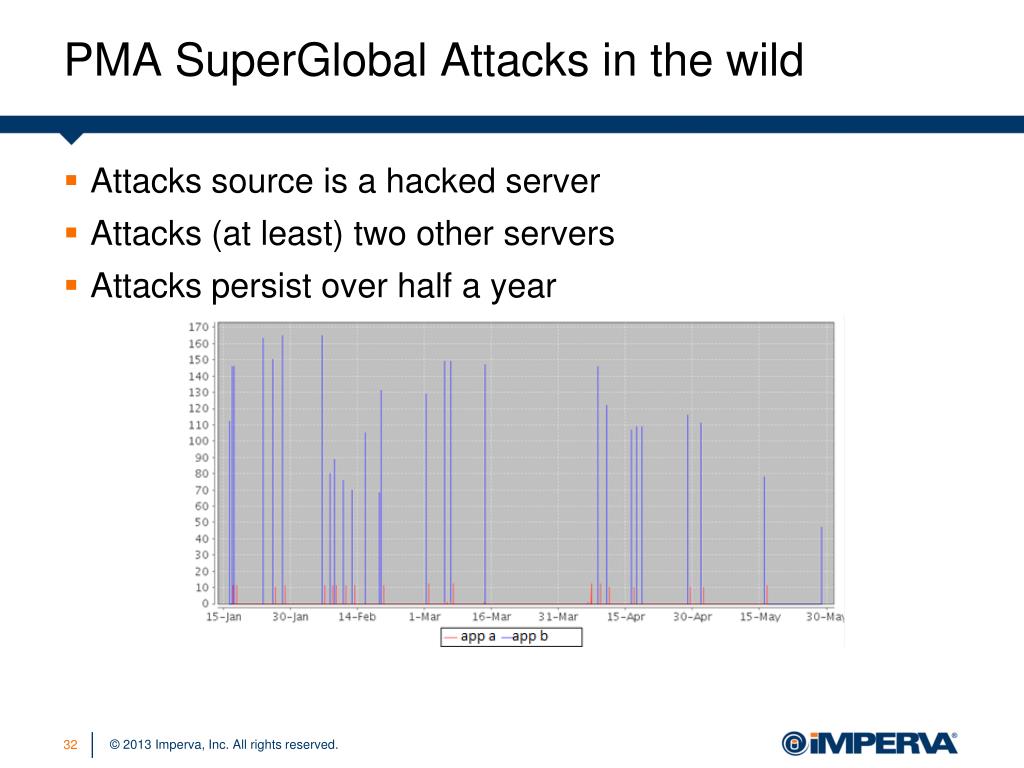

31. PMA SuperGlobal Attacks in the wild • Attacks source is a hacked server • Attacks (at least) two other servers • Attacks persist over half a year

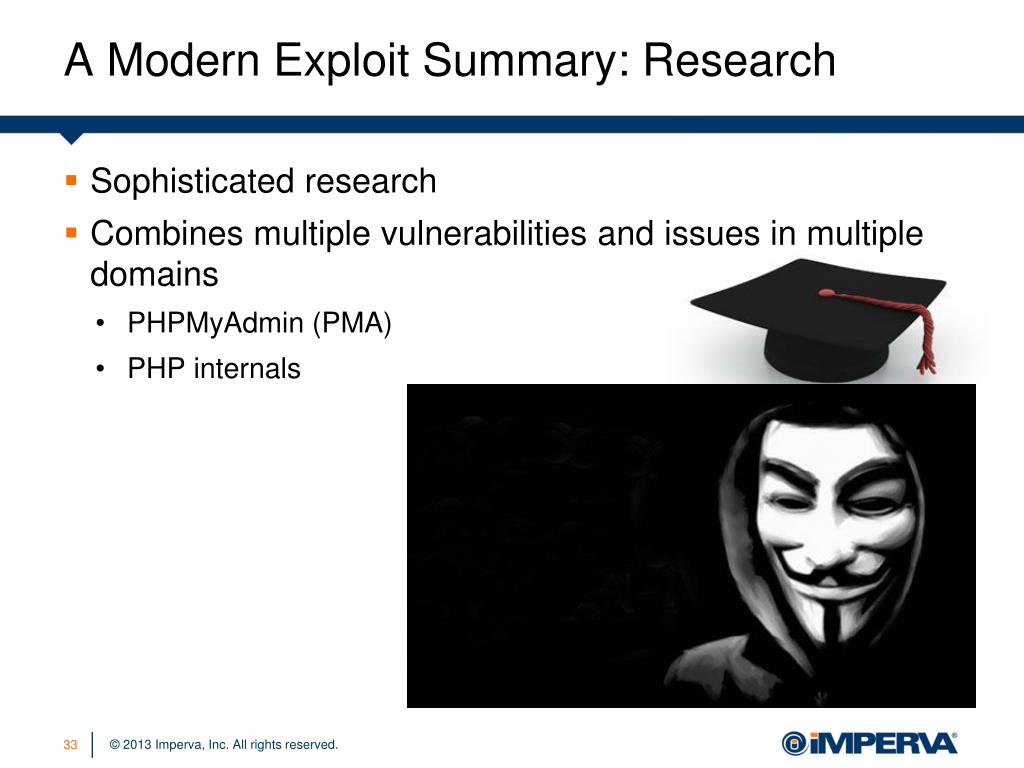

32. A Modern Exploit Summary: Research • Sophisticated research • Combines multiple vulnerabilities and issues in multiple domains • PHPMyAdmin (PMA) • PHP internals

33. A Modern Exploit Summary: Development • Exploit packed in a single, “click once” PHP script • Automates the different attack stages • Can be launched from infected servers to infect others

34. PHP SuperGlobal Attacks In the wild

35. SuperGlobal Attacks Targets • RFI (Remote File Inclusion): trying to overwrite “_Server[document_root]” to point to external resource

36. SuperGlobal Attacks Targets • Part of general scanning against the site – Nikto, Acunetix, Nessus • Intrusion Detection System filter evasion: an alternative way to represent HTTP query parameters • “_REQUEST[Itemid]=1” request parameter is equivalent to “Itemid=1” • However, it evades a naïve IDS signature that blacklists “Itemid=1”

37. SuperGlobal Attacks Targets • During May 2013 • 3.5K requests that manipulated PHP SuperGlobal variables. • 27 different attack sources • 24 web applications as targets

38. Targeted SuperGlobal • Some SuperGlobals are more targeted than others • The more targeted SuperGlobals provide access to more sensitive resources

39. Summary & Conclusions

40. Third-Party Code Perils • PHPMyAdmin: • Popular utility installation • Often bundled with other applications • Even if PMA is not used, the server is exposed to code execution attacks!! • Administrators might not be aware to all bundled software • An “opt out” security model is needed • Optional solution is Web Application Firewall (WAF) with constant updates of security content.

41. Conclusions • Establish a positive security model • Use layered security mechanisms • Beware of third-party code perils • Block SuperGlobal parameters in requests

42. More information in HII:http://www.imperva.com/resources/hacker_intelligence.asp Q&A
