  1. Programming Logic and DesignSixth Edition Chapter 6 Arrays

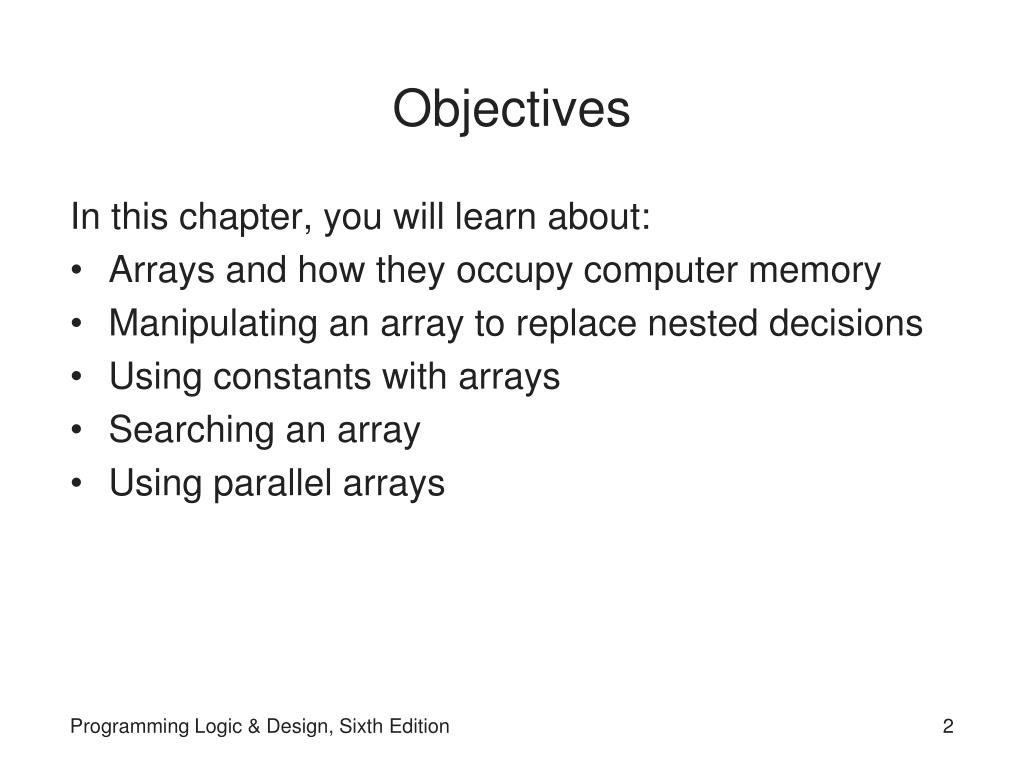

  2. Objectives In this chapter, you will learn about: • Arrays and how they occupy computer memory • Manipulating an array to replace nested decisions • Using constants with arrays • Searching an array • Using parallel arrays Programming Logic & Design, Sixth Edition

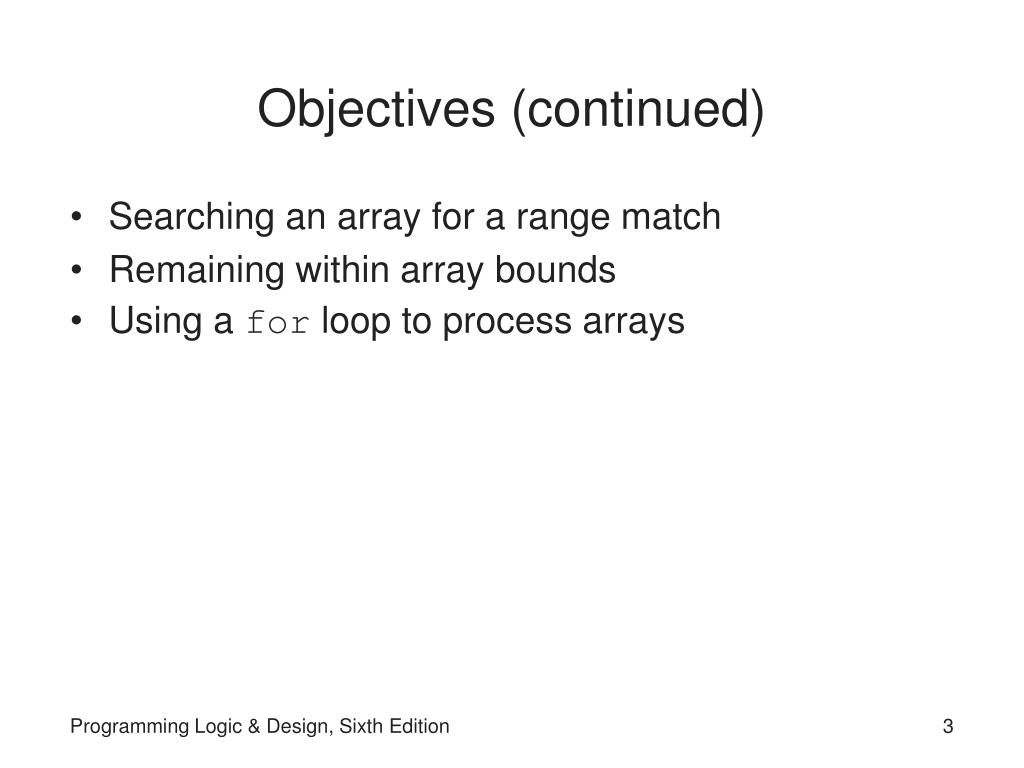

  3. Objectives (continued) • Searching an array for a range match • Remaining within array bounds • Using a for loop to process arrays Programming Logic & Design, Sixth Edition

  4. Understanding Arrays and How They Occupy Computer Memory • Array • Series or list of variables in computer memory • All variables share the same name • Each variable has a different subscript • Subscript (or index) • Position number of an item in an array • Subscripts are always a sequence of integers Programming Logic & Design, Sixth Edition

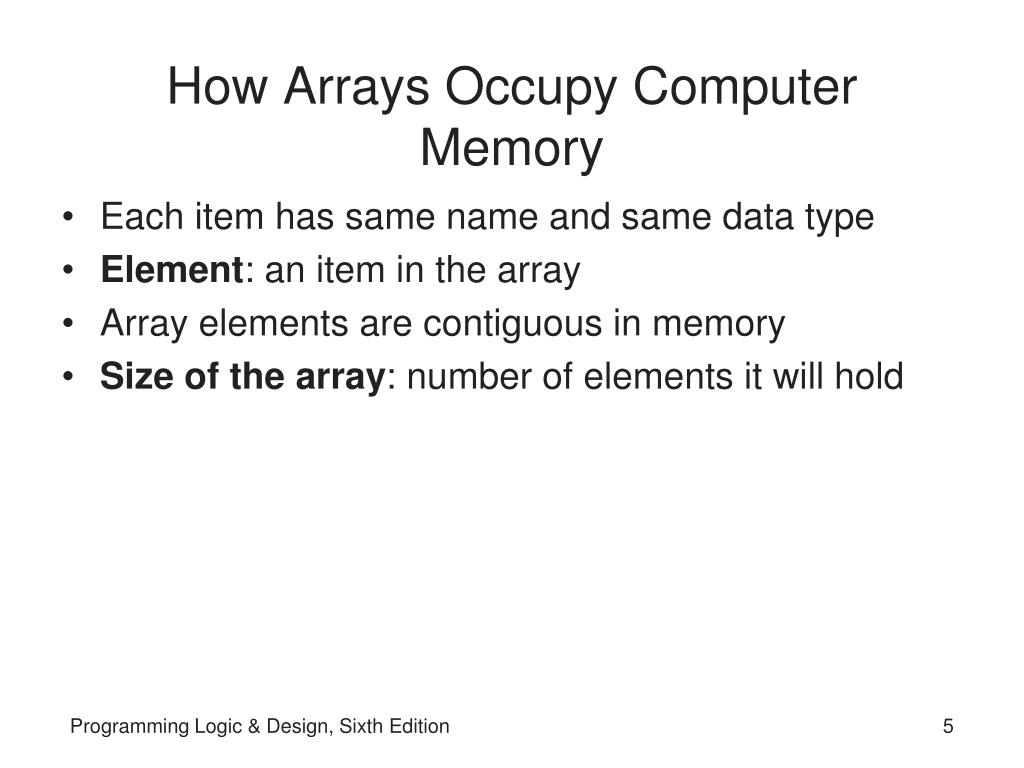

  5. How Arrays Occupy Computer Memory • Each item has same name and same data type • Element: an item in the array • Array elements are contiguous in memory • Size of the array: number of elements it will hold Programming Logic & Design, Sixth Edition

  6. How Arrays Occupy Computer Memory (continued) Figure 6-1 Appearance of a three-element array in computer memory Programming Logic & Design, Sixth Edition

  7. How Arrays Occupy Computer Memory (continued) • All elements have same group name • Individual elements have unique subscript • Subscript indicates distance from first element • Subscripts are a sequence of integers • Subscripts placed in parentheses or brackets following group name • Syntax depends on programming language Programming Logic & Design, Sixth Edition

  8. Manipulating an Array to Replace Nested Decisions • Example: Human Resources Department Dependents report • List employees who have claimed zero through five dependents • Assume no employee has more than five dependents • Application produces counts for dependent categories • Uses series of decisions • Application does not scale up to more dependents Programming Logic & Design, Sixth Edition

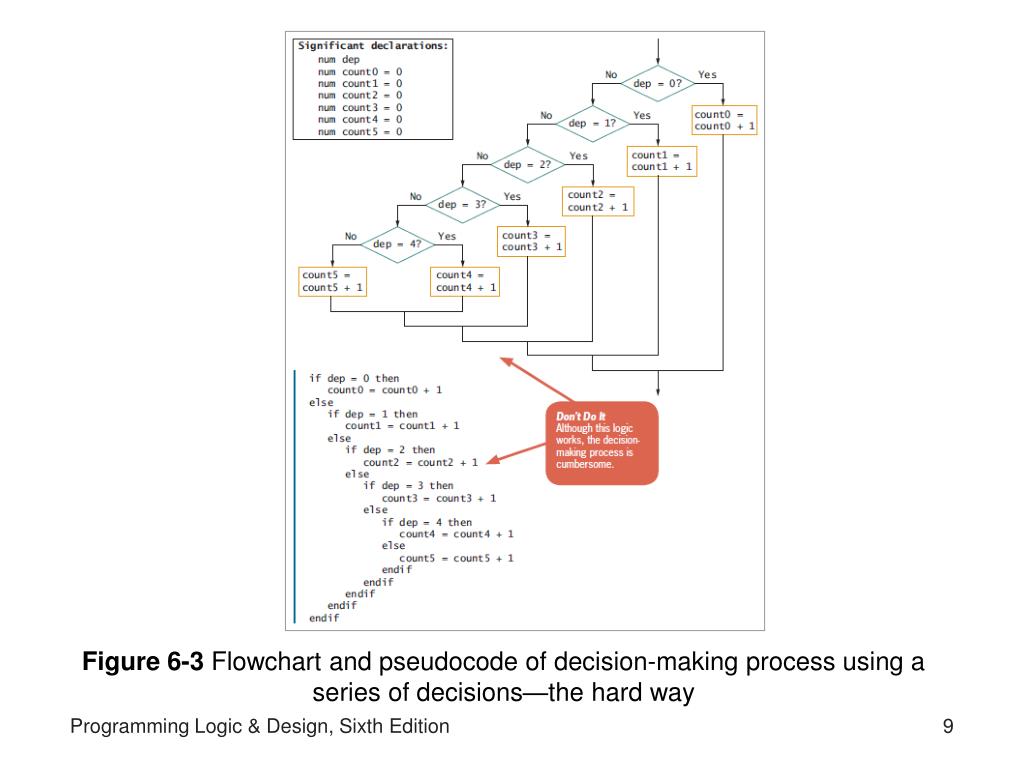

  9. Figure 6-3 Flowchart and pseudocode of decision-making process using a series of decisions—the hard way Programming Logic & Design, Sixth Edition

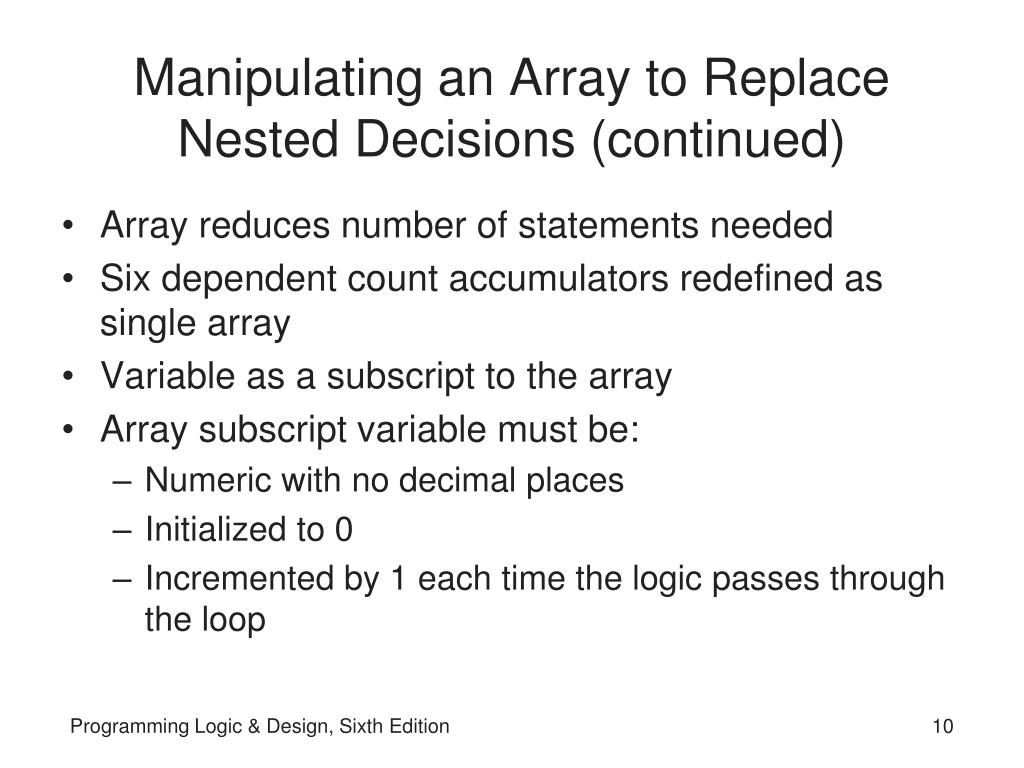

  10. Manipulating an Array to Replace Nested Decisions (continued) • Array reduces number of statements needed • Six dependent count accumulators redefined as single array • Variable as a subscript to the array • Array subscript variable must be: • Numeric with no decimal places • Initialized to 0 • Incremented by 1 each time the logic passes through the loop Programming Logic & Design, Sixth Edition

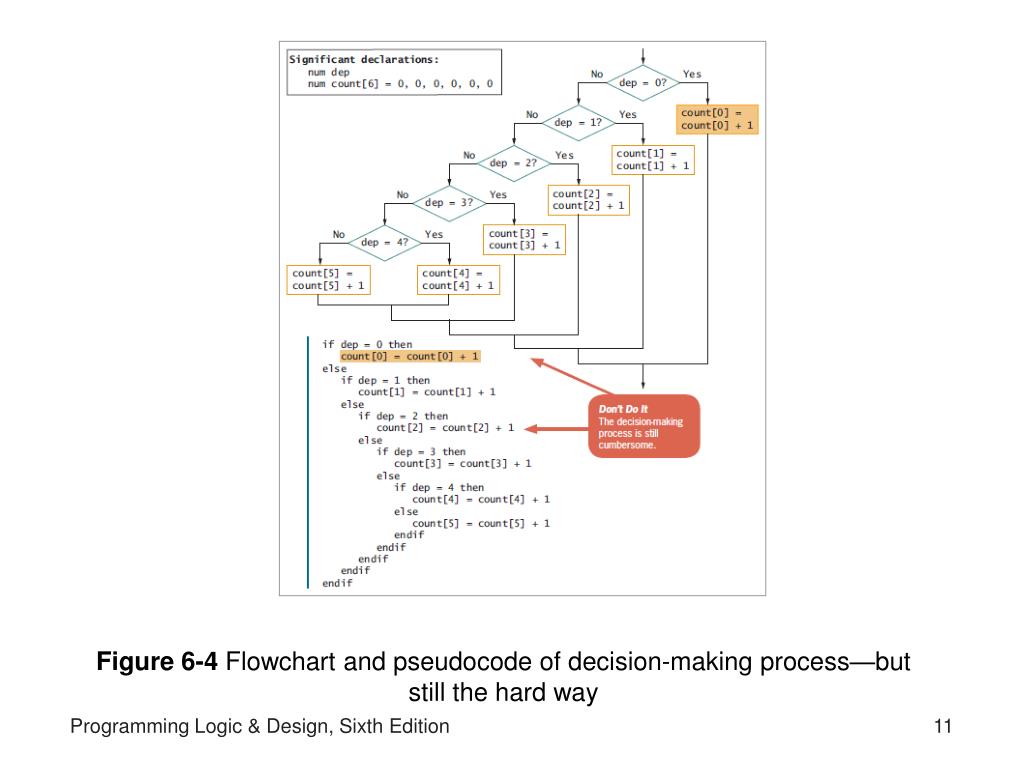

  11. Figure 6-4 Flowchart and pseudocode of decision-making process—but still the hard way Programming Logic & Design, Sixth Edition

  12. Figure 6-5 Flowchart and pseudocode of decision-making process using an array—but still a hard way Programming Logic & Design, Sixth Edition

  13. Manipulating an Array to Replace Nested Decisions (continued) Figure 6-6 Flowchart and pseudocode of efficient decision-making process using an array Programming Logic & Design, Sixth Edition

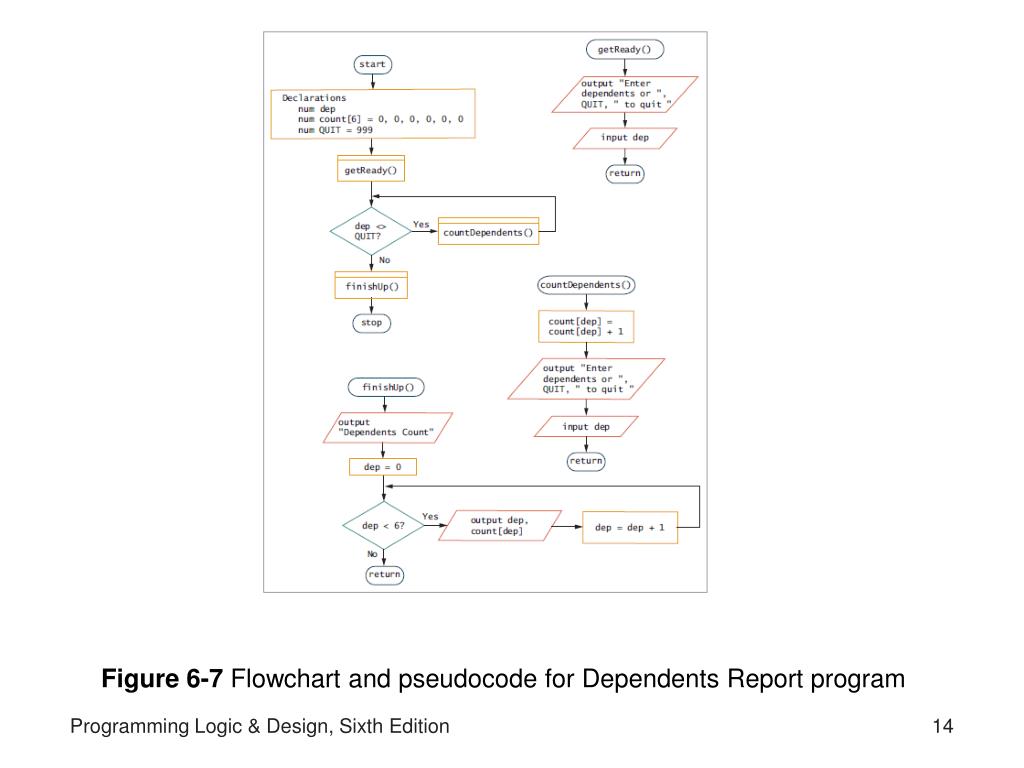

  14. Figure 6-7 Flowchart and pseudocode for Dependents Report program Programming Logic & Design, Sixth Edition

  15. Manipulating an Array to Replace Nested Decisions (continued) Figure 6-7 Flowchart and pseudocode for Dependents Report program (continued) Programming Logic & Design, Sixth Edition

  16. Using Constants with Arrays • Use constants in several ways • To hold the size of an array • As the array values • As a subscript Programming Logic & Design, Sixth Edition

  17. Using a Constant as the Size of an Array • Avoid “magic numbers” (unnamed constants) • Declare a named numeric constant to be used every time array is accessed • Make sure any subscript remains less than the constant value • Constant created automatically in many languages Programming Logic & Design, Sixth Edition

  18. Using Constants as Array Element Values • Sometimes the values stored in arrays should be constants • Example string MONTH[12] = "January", "February", "March", "April", "May", "June", "July", "August", "September", "October“, "November", "December" Programming Logic & Design, Sixth Edition

  19. Using a Constant as an Array Subscript • Use a numeric constant as a subscript to an array • Example • Declare a named constant as num INDIANA = 5 • Display value with: output salesArray[INDIANA] Programming Logic & Design, Sixth Edition

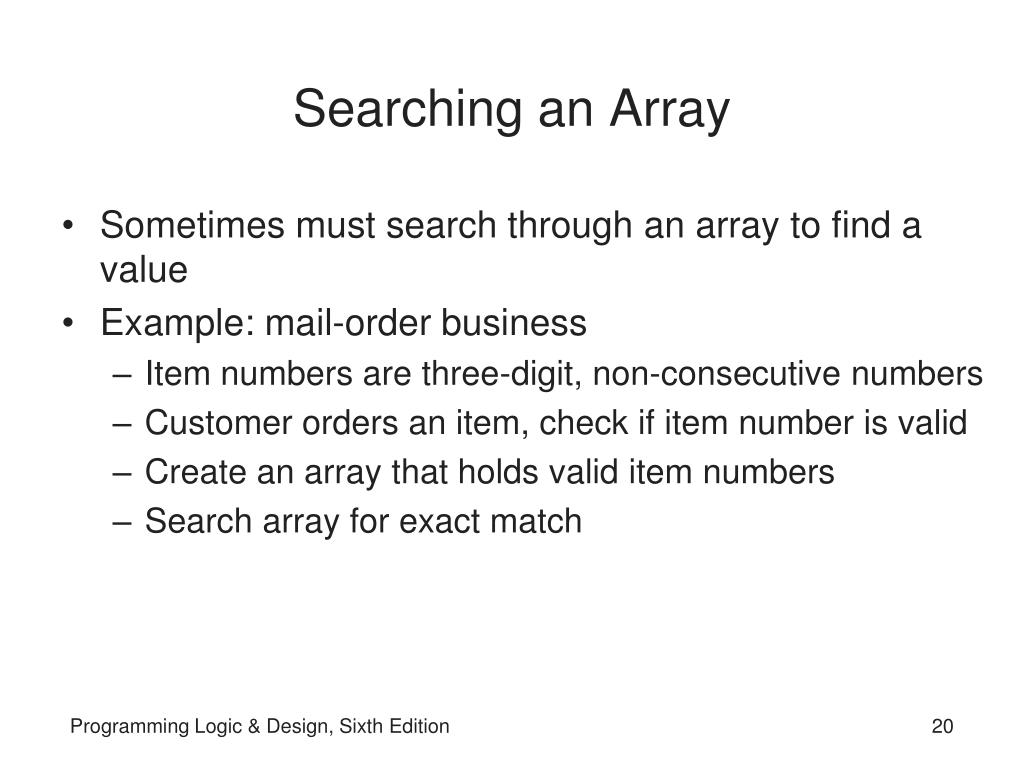

  20. Searching an Array • Sometimes must search through an array to find a value • Example: mail-order business • Item numbers are three-digit, non-consecutive numbers • Customer orders an item, check if item number is valid • Create an array that holds valid item numbers • Search array for exact match Programming Logic & Design, Sixth Edition

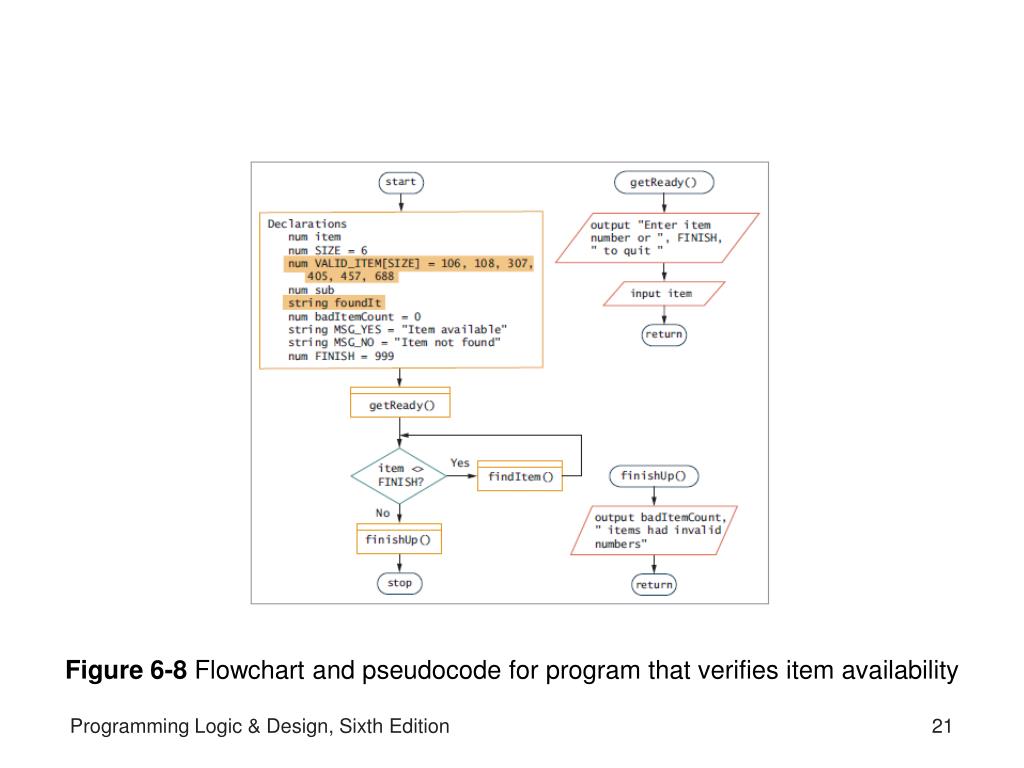

  21. Figure 6-8 Flowchart and pseudocode for program that verifies item availability Programming Logic & Design, Sixth Edition

  22. Figure 6-8 Flowchart and pseudocode for program that verifies item availability (continued) Programming Logic & Design, Sixth Edition

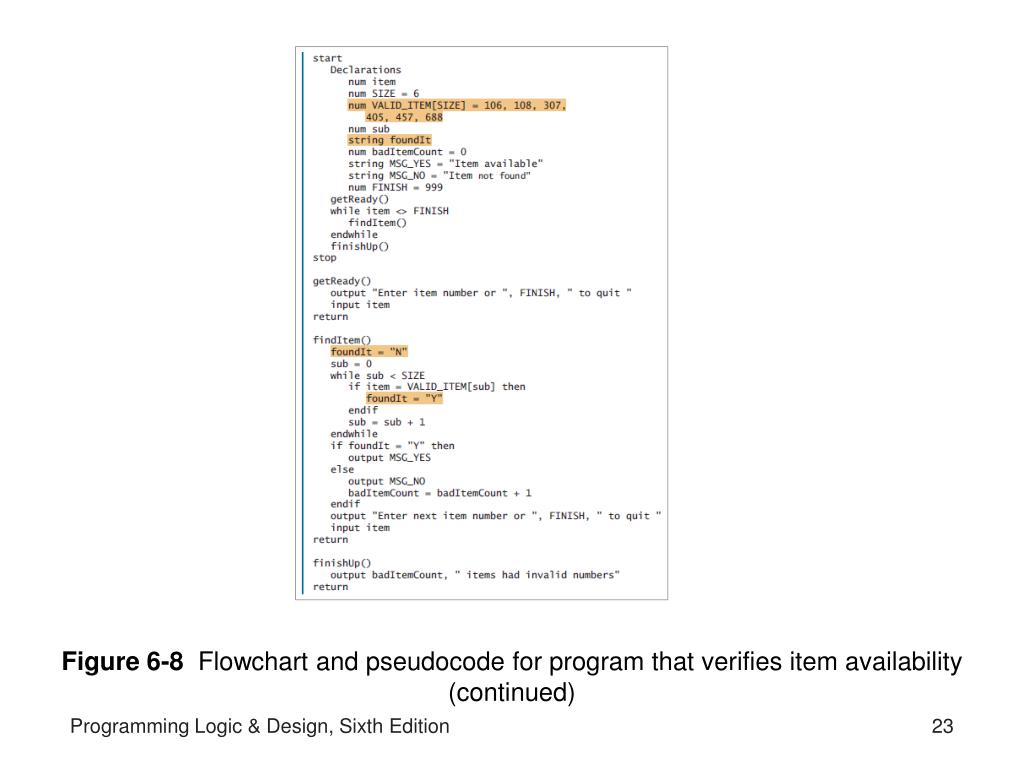

  23. Figure 6-8 Flowchart and pseudocode for program that verifies item availability (continued) Programming Logic & Design, Sixth Edition

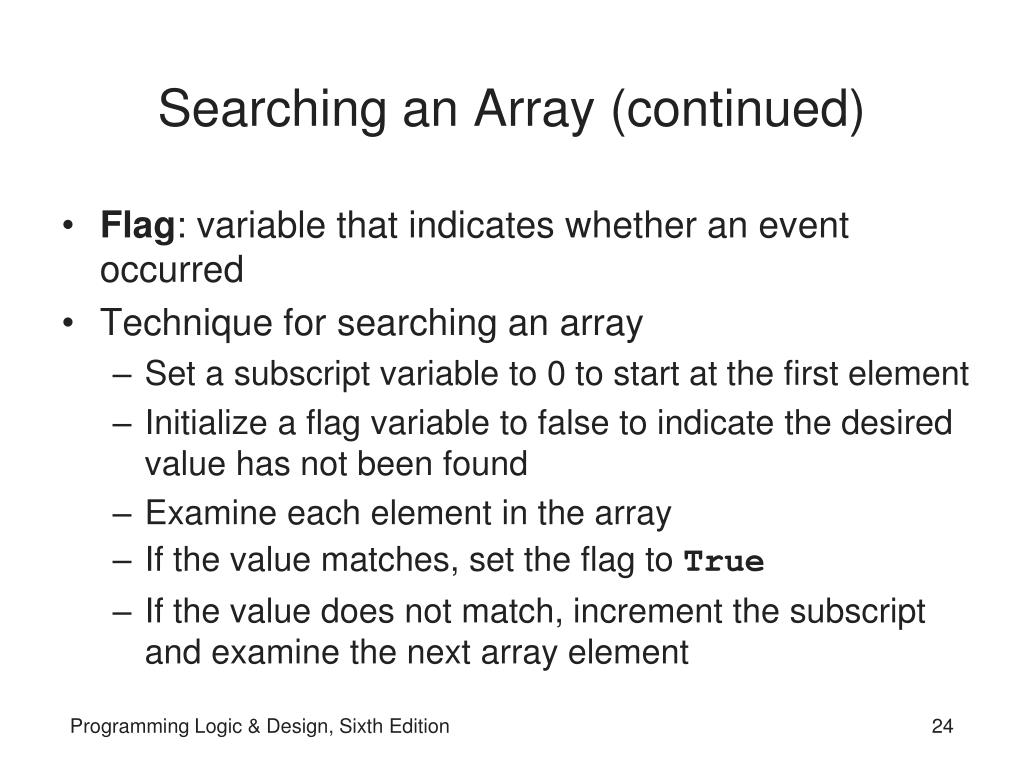

  24. Searching an Array (continued) • Flag: variable that indicates whether an event occurred • Technique for searching an array • Set a subscript variable to 0 to start at the first element • Initialize a flag variable to false to indicate the desired value has not been found • Examine each element in the array • If the value matches, set the flag to True • If the value does not match, increment the subscript and examine the next array element Programming Logic & Design, Sixth Edition

  25. Using Parallel Arrays • Example: mail-order business • Two arrays, each with six elements • Valid item numbers • Valid item prices • Each price in valid item price array in same position as corresponding item in valid item number array • Parallel arrays • Each element in one array associated with element in same relative position in other array • Look through valid item array for customer item • When match is found, get price from item price array Programming Logic & Design, Sixth Edition

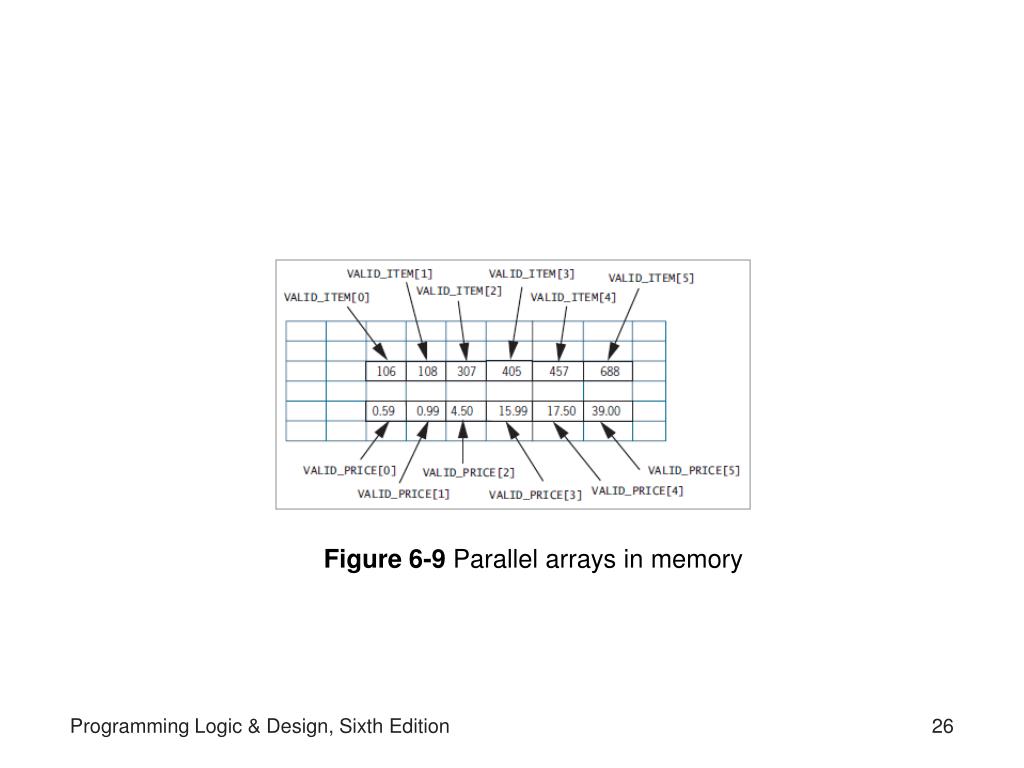

  26. Figure 6-9 Parallel arrays in memory Programming Logic & Design, Sixth Edition

  27. Using Parallel Arrays • Use parallel arrays • Two or more arrays contain related data • A subscript relates the arrays • Elements at the same position in each array are logically related Programming Logic & Design, Sixth Edition

  28. Figure 6-10 Flowchart and pseudocode of program that finds an item’s price using parallel arrays Programming Logic & Design, Sixth Edition

  29. Figure 6-10 Flowchart and pseudocode of program that finds an item’s price using parallel arrays (continued) Programming Logic & Design, Sixth Edition

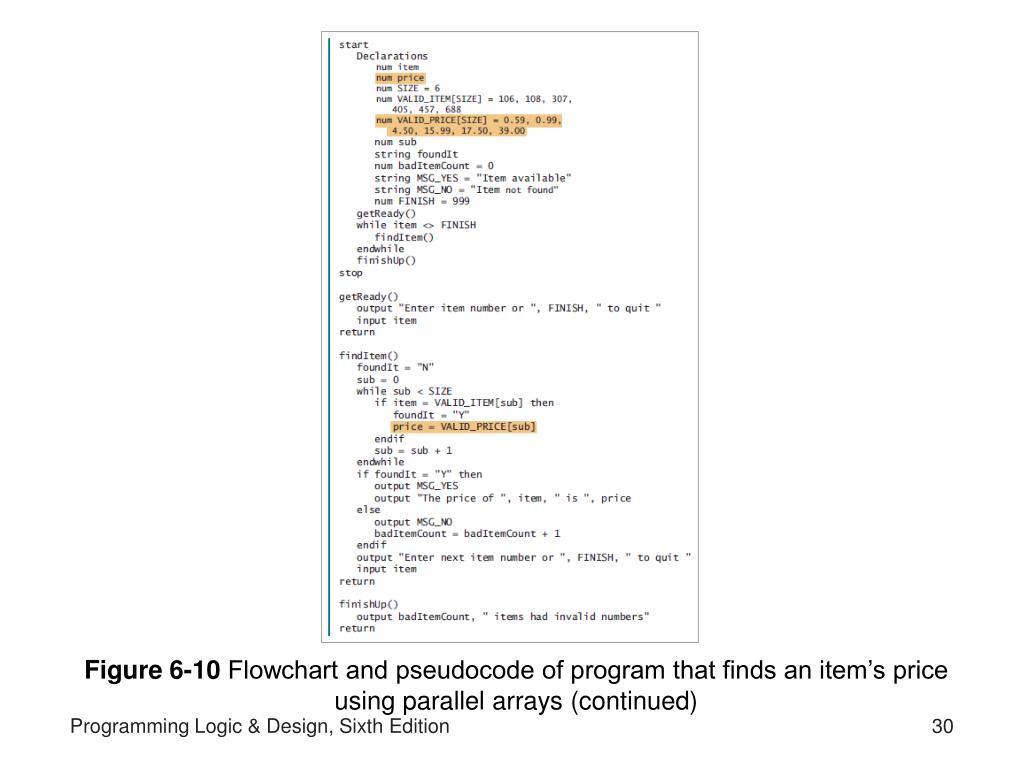

  30. Figure 6-10 Flowchart and pseudocode of program that finds an item’s price using parallel arrays (continued) Programming Logic & Design, Sixth Edition

  31. Improving Search Efficiency • Program should stop searching the array when a match is found • Setting a variable to a specific value instead of letting normal processing set it • Improves efficiency • The larger the array, the better the improvement by doing an early exit Programming Logic & Design, Sixth Edition

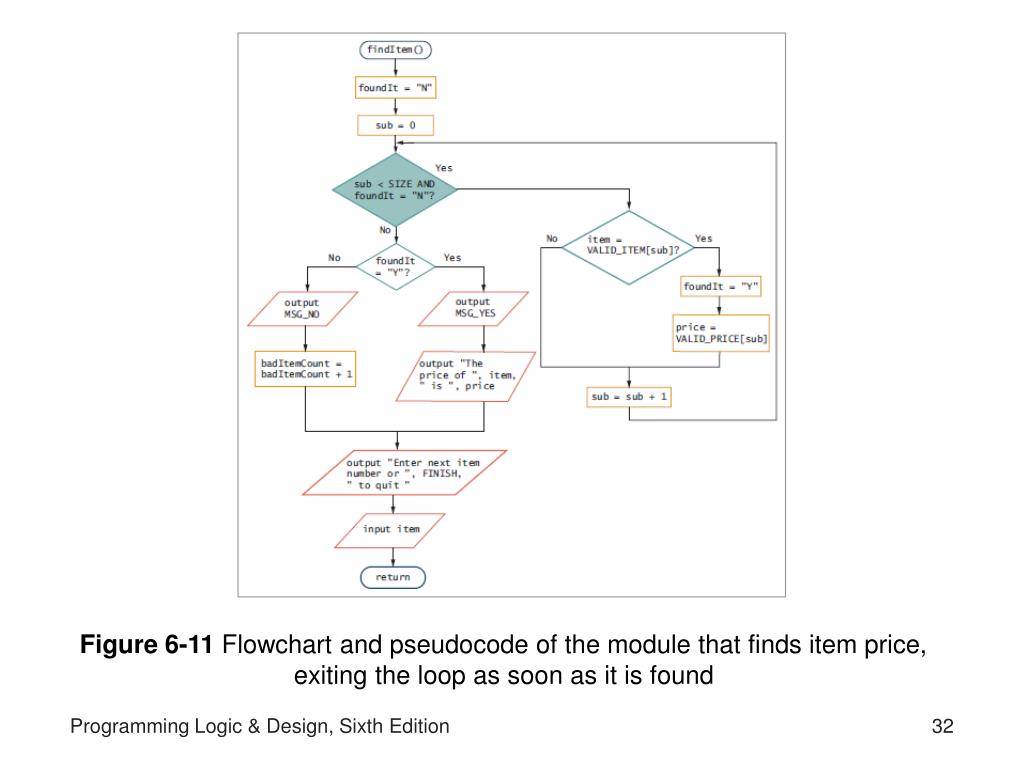

  32. Figure 6-11 Flowchart and pseudocode of the module that finds item price, exiting the loop as soon as it is found Programming Logic & Design, Sixth Edition

  33. Improving Search Efficiency (continued) Figure 6-11 Flowchart and pseudocode of the module that finds item price, exiting the loop as soon as it is found (continued) Programming Logic & Design, Sixth Edition

  34. Searching an Array for a Range Match • Sometimes programmers want to work with ranges of values in arrays • Example: mail-order business • Read customer order data; determine discount based on quantity ordered • First approach • Array with as many elements as each possible order quantity • Store appropriate discount for each possible order quantity Programming Logic & Design, Sixth Edition

  35. Searching an Array for a Range Match (continued) Figure 6-13 Usable—but inefficient—discount array Programming Logic & Design, Sixth Edition

  36. Searching an Array for a Range Match (continued) • Drawbacks of first approach • Requires very large array; uses a lot of memory • Stores same value repeatedly • How do you know you have enough elements? • Customer can always order more • Better approach • Create four discount array elements for each discount rate • Parallel array with discount range • Use loop to make comparisons Programming Logic & Design, Sixth Edition

  37. Searching an Array for a Range Match (continued) Figure 6-14 Parallel arrays to use for determining discount Programming Logic & Design, Sixth Edition

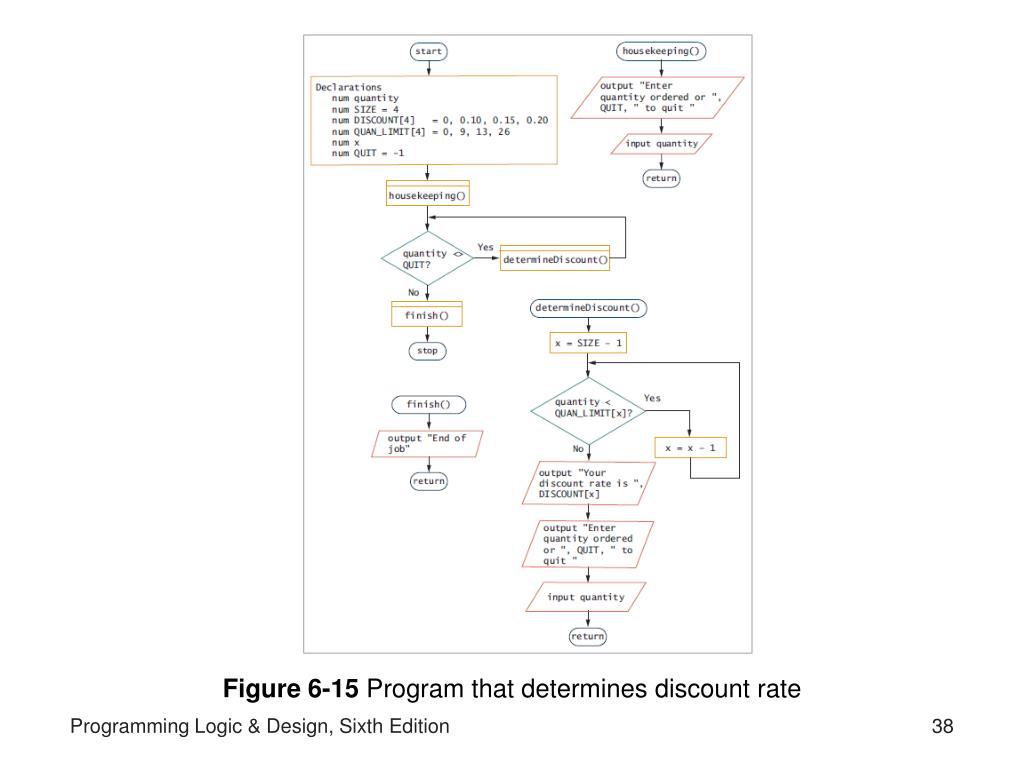

  38. Figure 6-15 Program that determines discount rate Programming Logic & Design, Sixth Edition

  39. Remaining within Array Bounds • Every array has finite size • Number of elements in the array • Number of bytes in the array • Arrays composed of elements of same data type • Elements of same data type occupy same number of bytes in memory • Number of bytes in an array is always a multiple of number of array elements • Access data using subscript containing a value that accesses memory occupied by the array Programming Logic & Design, Sixth Edition

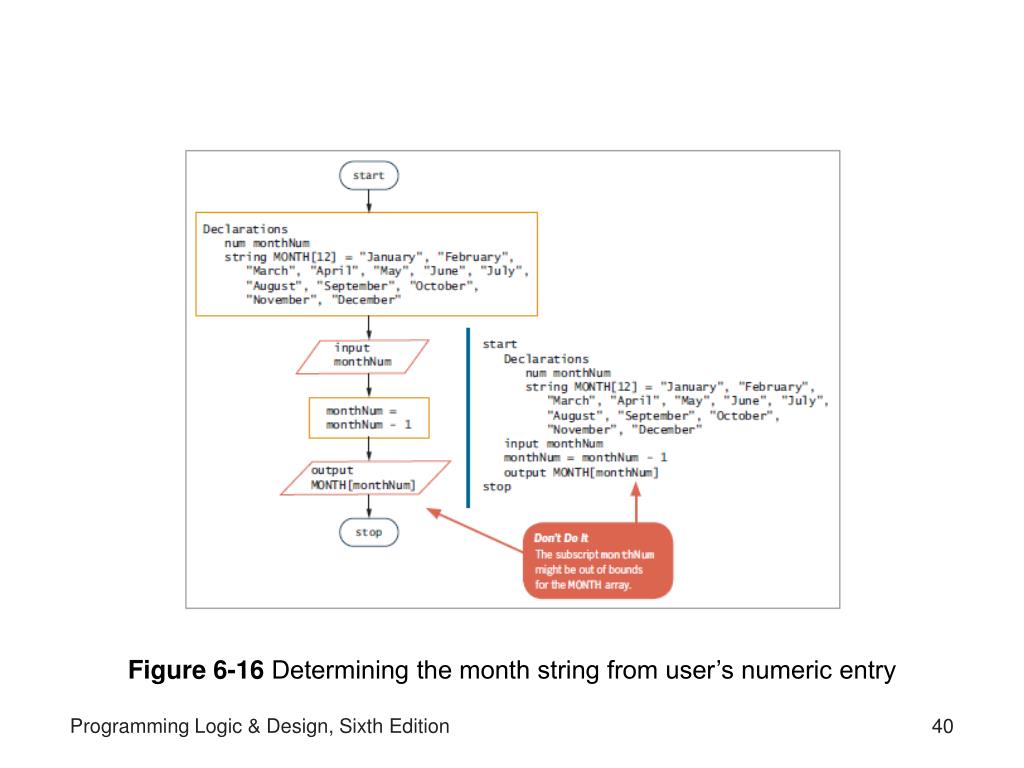

  40. Figure 6-16 Determining the month string from user’s numeric entry Programming Logic & Design, Sixth Edition

  41. Remaining within Array Bounds (continued) • Program logic assumes every number entered by the user is valid • When invalid subscript is used: • Some languages stop execution and issue an error • Other languages access a memory location outside of the array • Invalid array subscript is a logical error • Out of bounds: using a subscript that is not within the acceptable range for the array • Program should prevent bounds errors Programming Logic & Design, Sixth Edition

  42. Using a for Loop to Process Arrays • for loop: single statement • Initializes loop control variable • Compares it to a limit • Alters it • for loop especially convenient when working with arrays • To process every element • Must stay within array bounds • Highest usable subscript is one less than array size Programming Logic & Design, Sixth Edition

  43. Using a for Loop to Process Arrays (continued) Figure 6-17 Pseudocode that uses a for loop to display an array of department names Programming Logic & Design, Sixth Edition

  44. Using a for Loop to Process Arrays (continued) Figure 6-26 Pseudocode that uses a more efficient for loop to output month names Programming Logic & Design, Sixth Edition

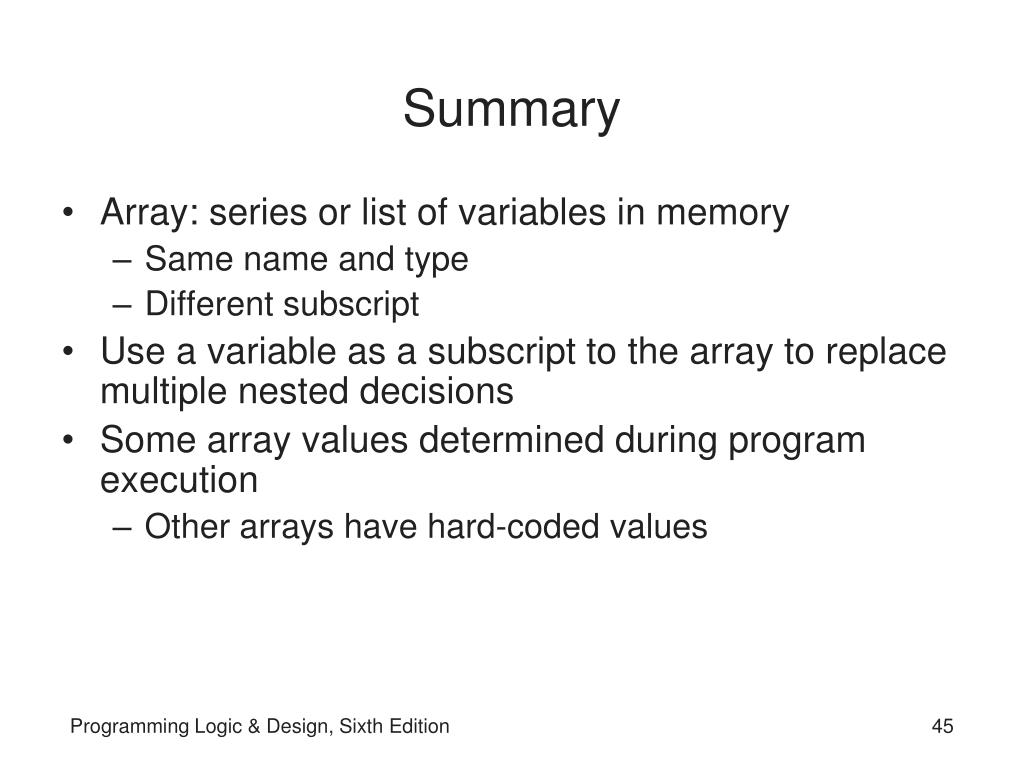

  45. Summary • Array: series or list of variables in memory • Same name and type • Different subscript • Use a variable as a subscript to the array to replace multiple nested decisions • Some array values determined during program execution • Other arrays have hard-coded values Programming Logic & Design, Sixth Edition

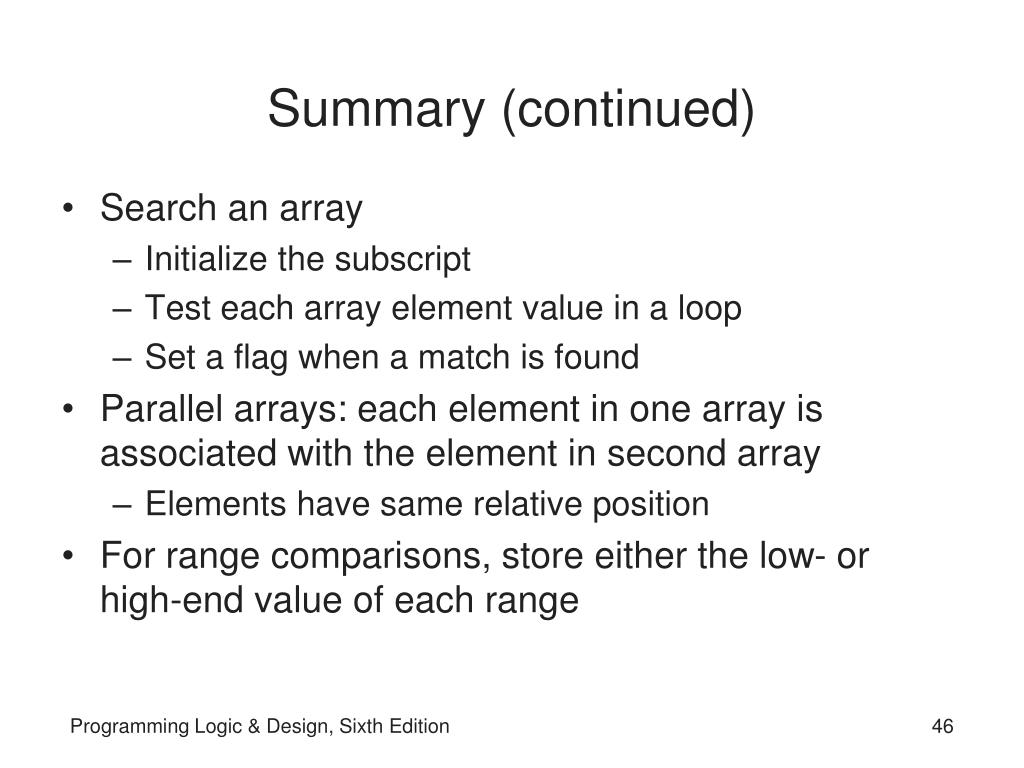

  46. Summary (continued) • Search an array • Initialize the subscript • Test each array element value in a loop • Set a flag when a match is found • Parallel arrays: each element in one array is associated with the element in second array • Elements have same relative position • For range comparisons, store either the low- or high-end value of each range Programming Logic & Design, Sixth Edition

  47. Summary (continued) • Access data in an array • Use subscript containing a value that accesses memory occupied by the array • Subscript is out of bounds if not within defined range of acceptable subscripts • for loop is a convenient tool for working with arrays • Process each element of an array from beginning to end Programming Logic & Design, Sixth Edition
