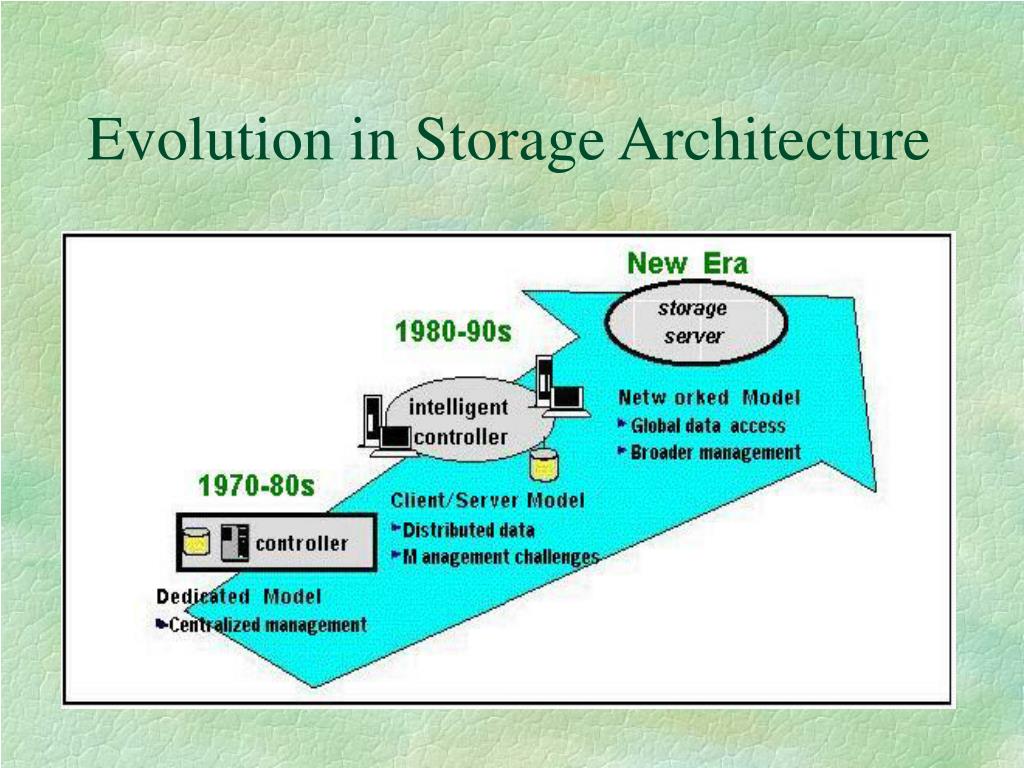

Introduction to Storage Area Network (SAN). Jie Feng Winter 2001. What is SAN about. Data is Asset How to Store Data? How to Access Data? How to Manage Data Storage?. Evolution in Storage Architecture. Problem we are facing. Scalability --Rapidly growing data volume

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Introduction to Storage Area Network (SAN)' - lindley


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
what is san about

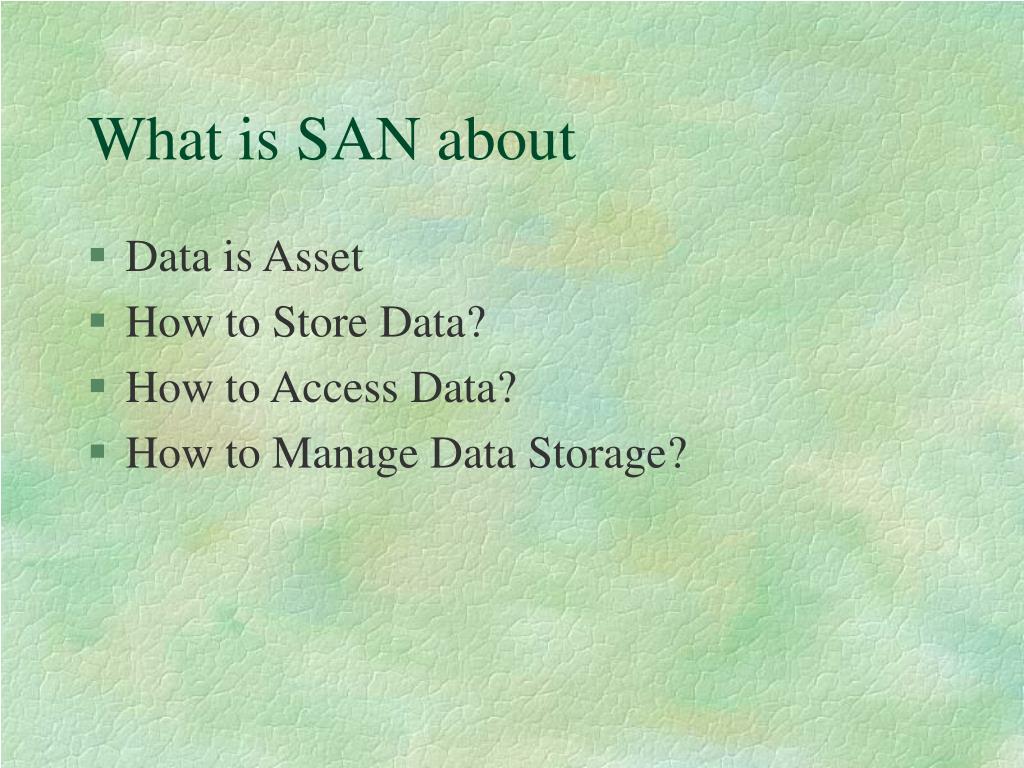

What is SAN about
  • Data is Asset
  • How to Store Data?
  • How to Access Data?
  • How to Manage Data Storage?
problem we are facing

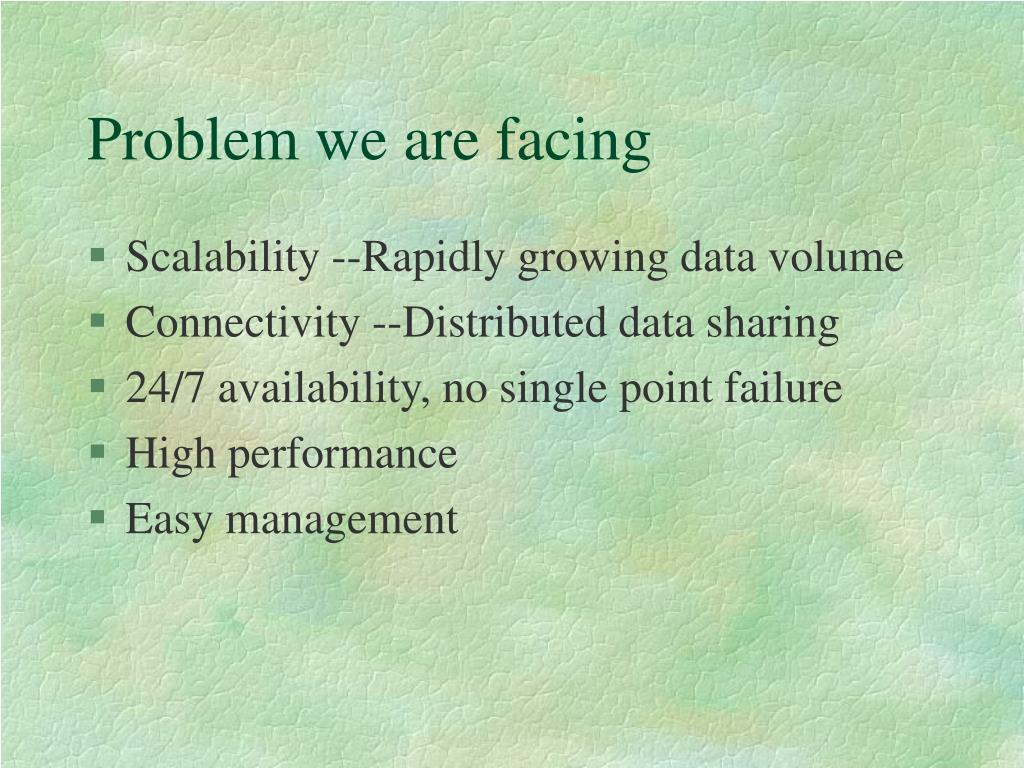

Problem we are facing
  • Scalability --Rapidly growing data volume
  • Connectivity --Distributed data sharing
  • 24/7 availability, no single point failure
  • High performance
  • Easy management
sas how to share data
Each has own copy

scalability: Poor

availability: OK

performance: OK

management: how to keep data sync?

Connectivity: NA

One copy, share

OK

single point failure

not that good

how to make back up without affecting service?

System dependent

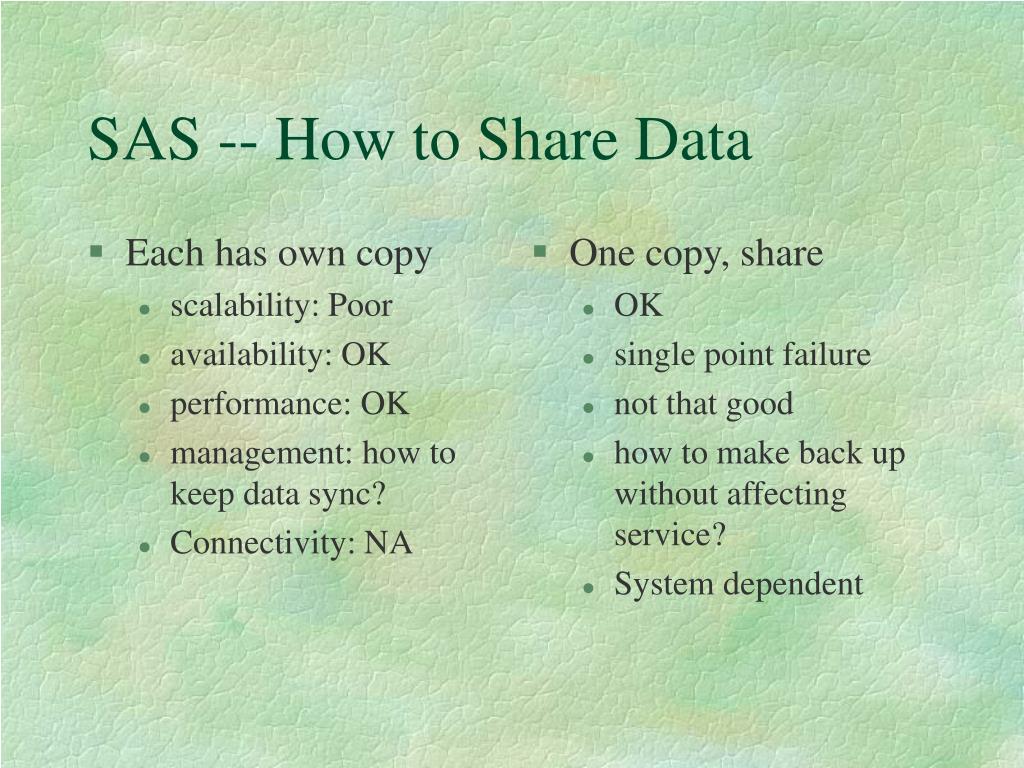

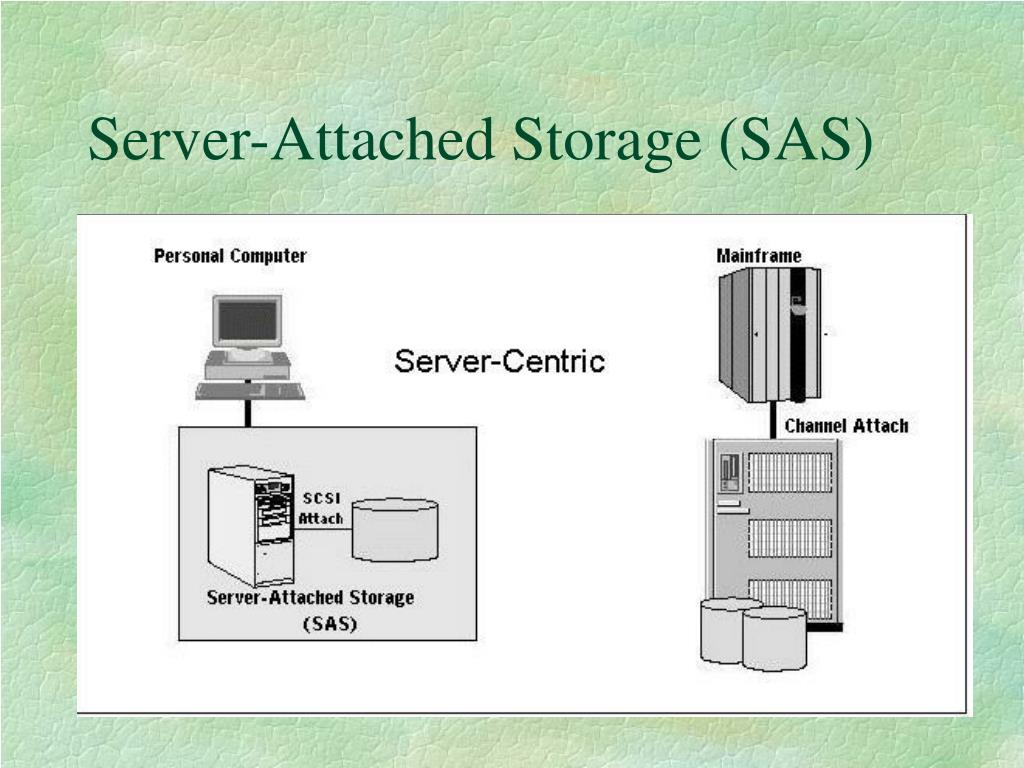

SAS -- How to Share Data
slide8

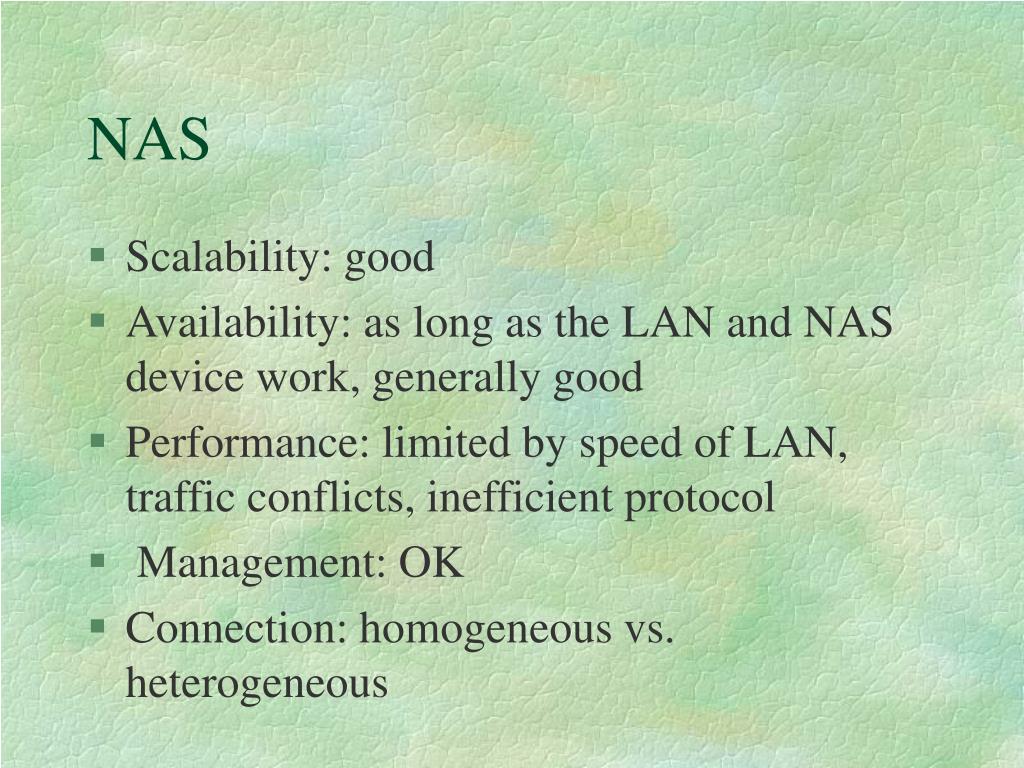

NAS
  • Scalability: good
  • Availability: as long as the LAN and NAS device work, generally good
  • Performance: limited by speed of LAN, traffic conflicts, inefficient protocol
  • Management: OK
  • Connection: homogeneous vs. heterogeneous
storage area network san10

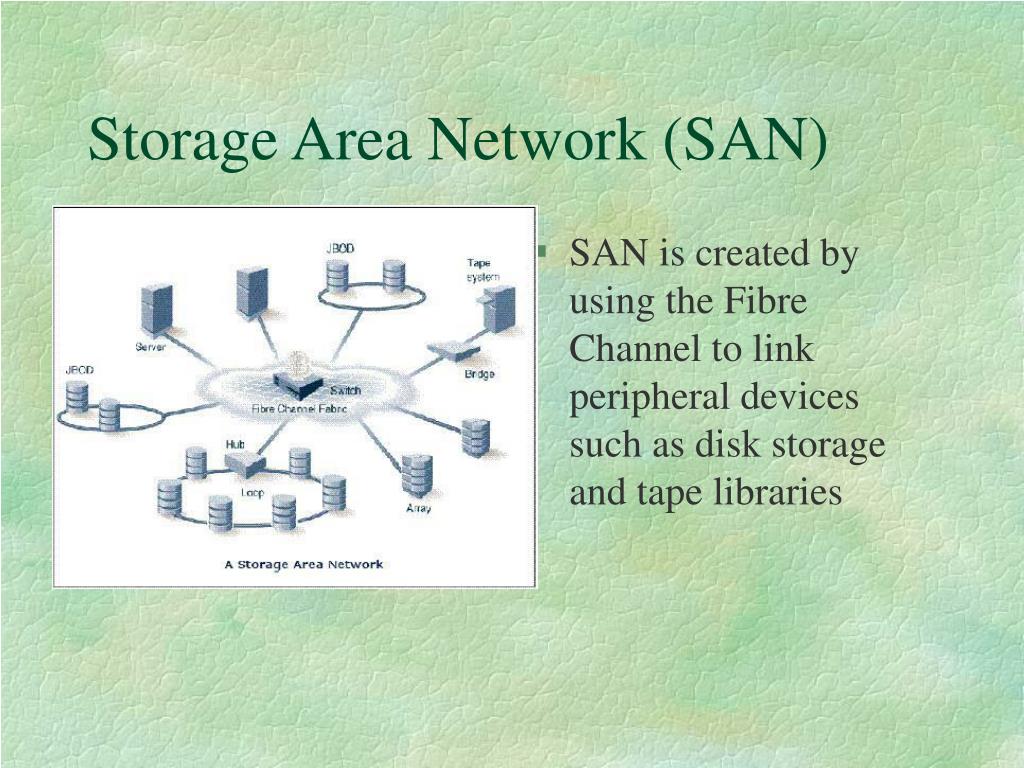

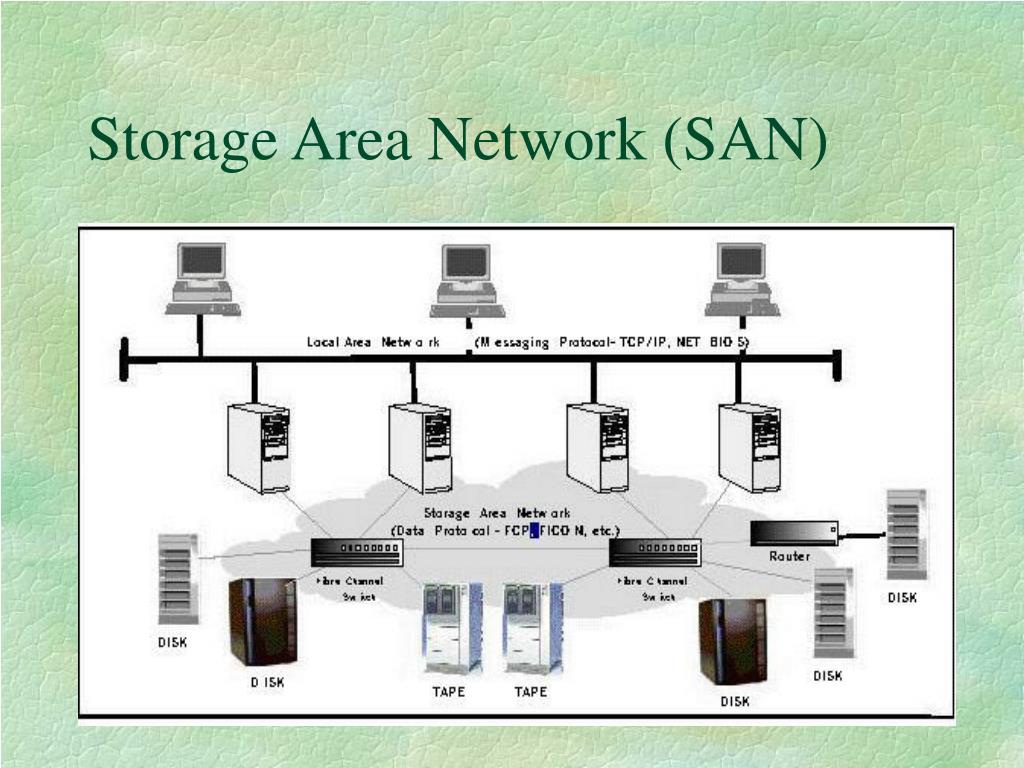

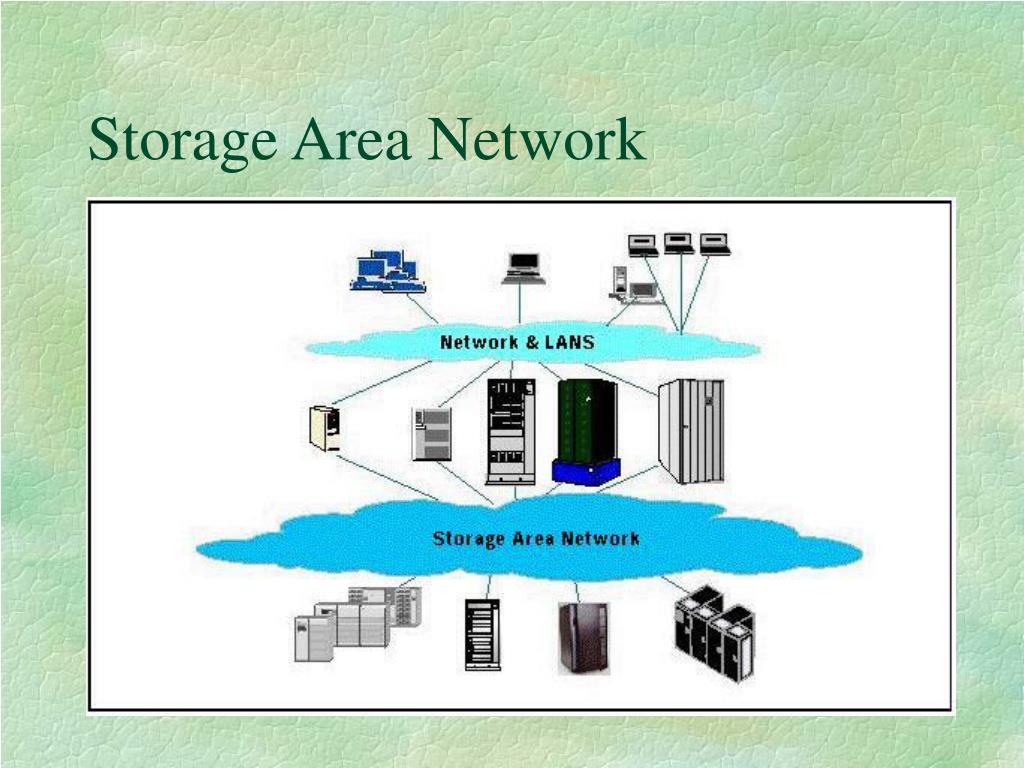

Storage Area Network (SAN)
  • SAN is created by using the Fibre Channel to link peripheral devices such as disk storage and tape libraries
san vs nas

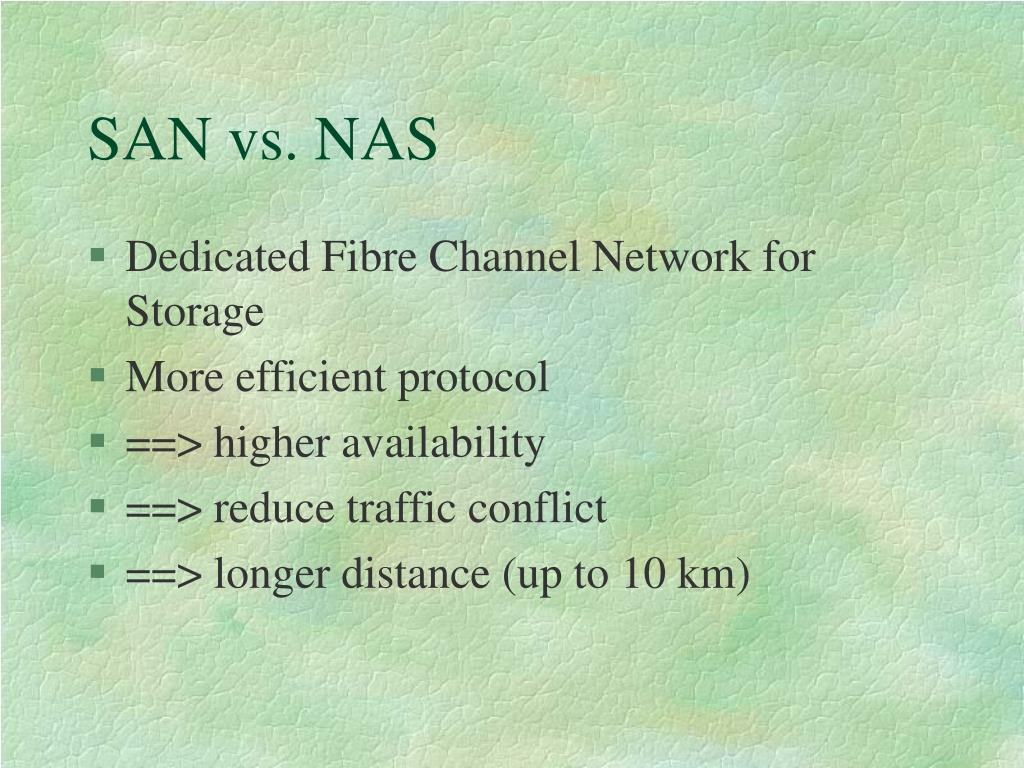

SAN vs. NAS
  • Dedicated Fibre Channel Network for Storage
  • More efficient protocol
  • ==> higher availability
  • ==> reduce traffic conflict
  • ==> longer distance (up to 10 km)
fibre channel

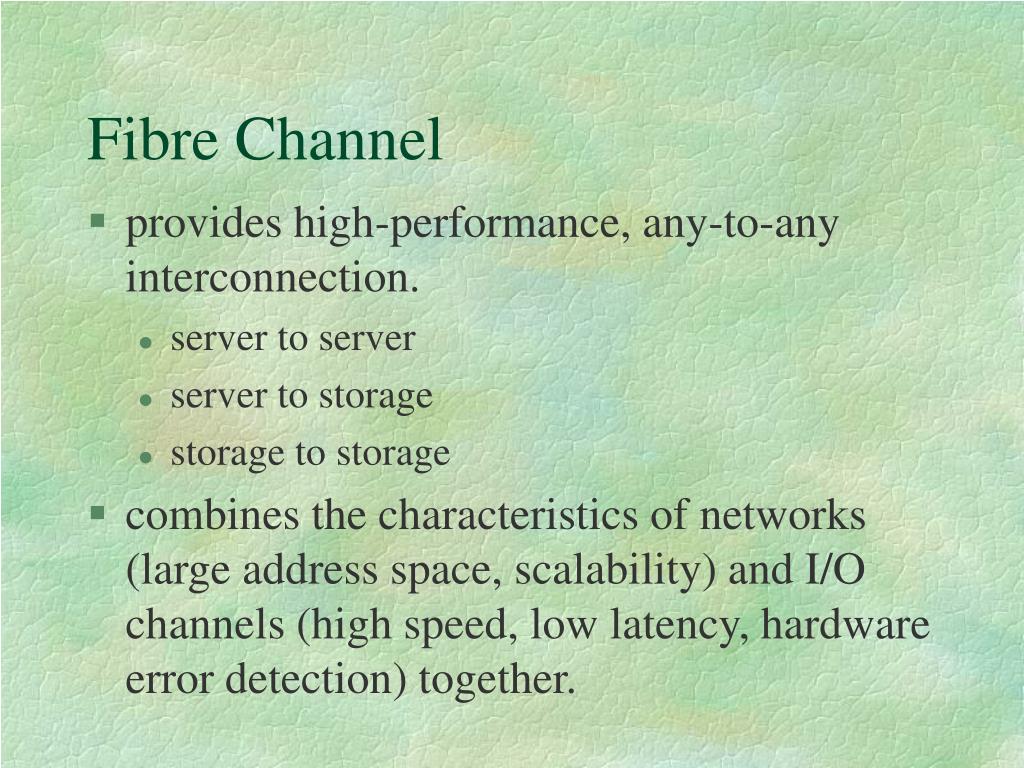

Fibre Channel
  • provides high-performance, any-to-any interconnection.
    • server to server
    • server to storage
    • storage to storage
  • combines the characteristics of networks (large address space, scalability) and I/O channels (high speed, low latency, hardware error detection) together.
benefits of san
Benefits of SAN

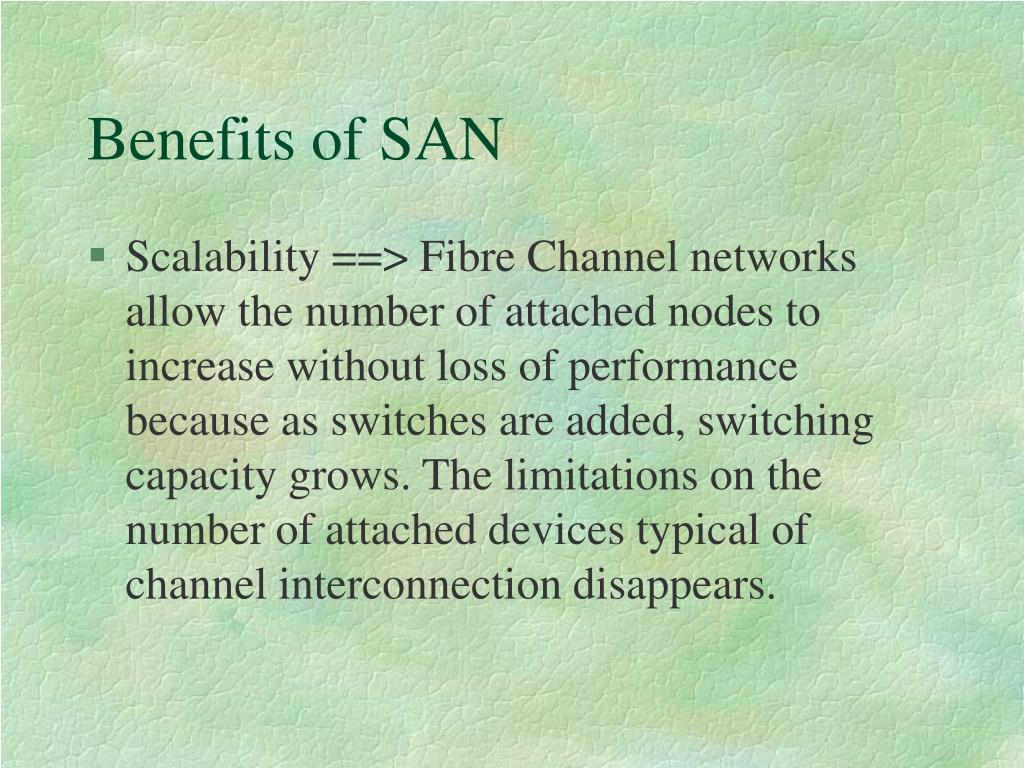

  • Scalability ==> Fibre Channel networks allow the number of attached nodes to increase without loss of performance because as switches are added, switching capacity grows. The limitations on the number of attached devices typical of channel interconnection disappears.
benefits of san14
Benefits of SAN

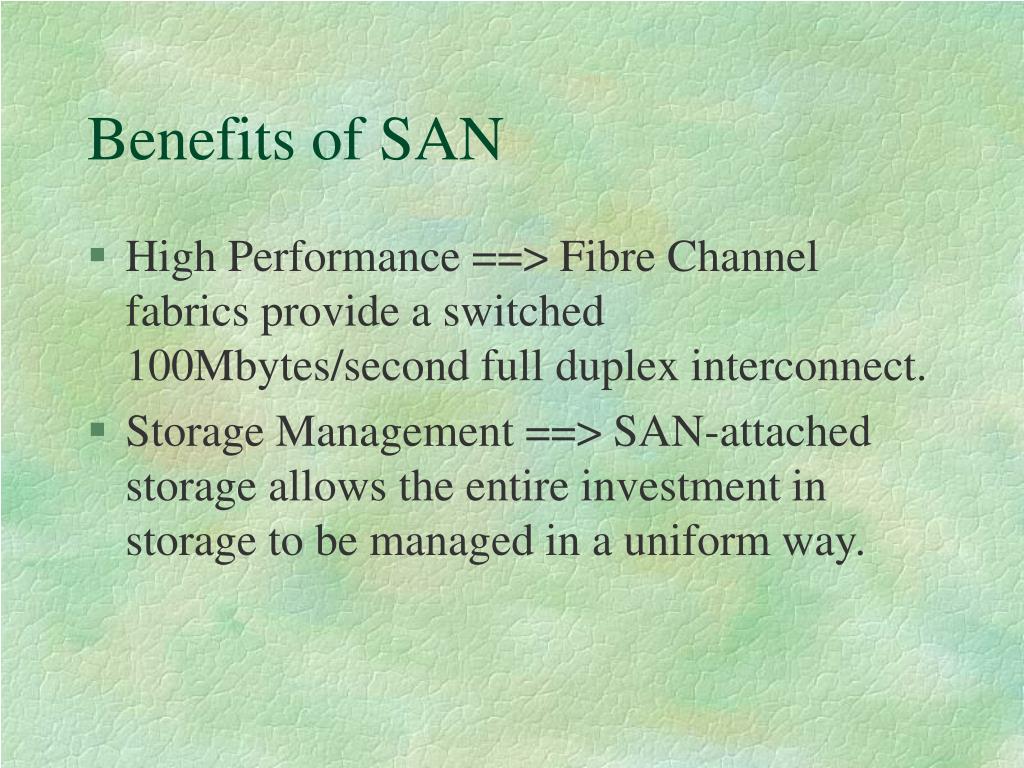

  • High Performance ==> Fibre Channel fabrics provide a switched 100Mbytes/second full duplex interconnect.
  • Storage Management ==> SAN-attached storage allows the entire investment in storage to be managed in a uniform way.
benefits of san15

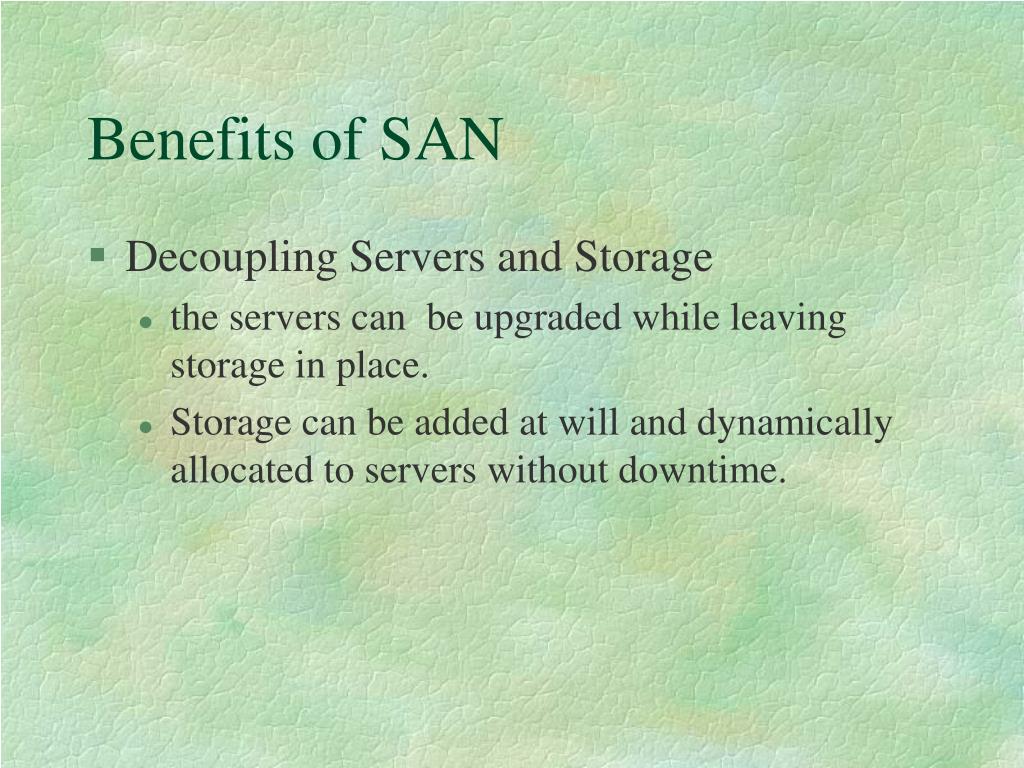

Benefits of SAN
  • Decoupling Servers and Storage
    • the servers can be upgraded while leaving storage in place.
    • Storage can be added at will and dynamically allocated to servers without downtime.
easy migration to san
Easy Migration to SAN
  • Host Bus Adapters (HBAs) -- connect servers to the SAN
  • Fibre Channel storage -- connects directly to the SAN
  • SCSI-FC bridge -- allows SCSI (disk and tape) components to be attached to the SAN
  • SAN Network Components -- Fibre Channel switches
summary

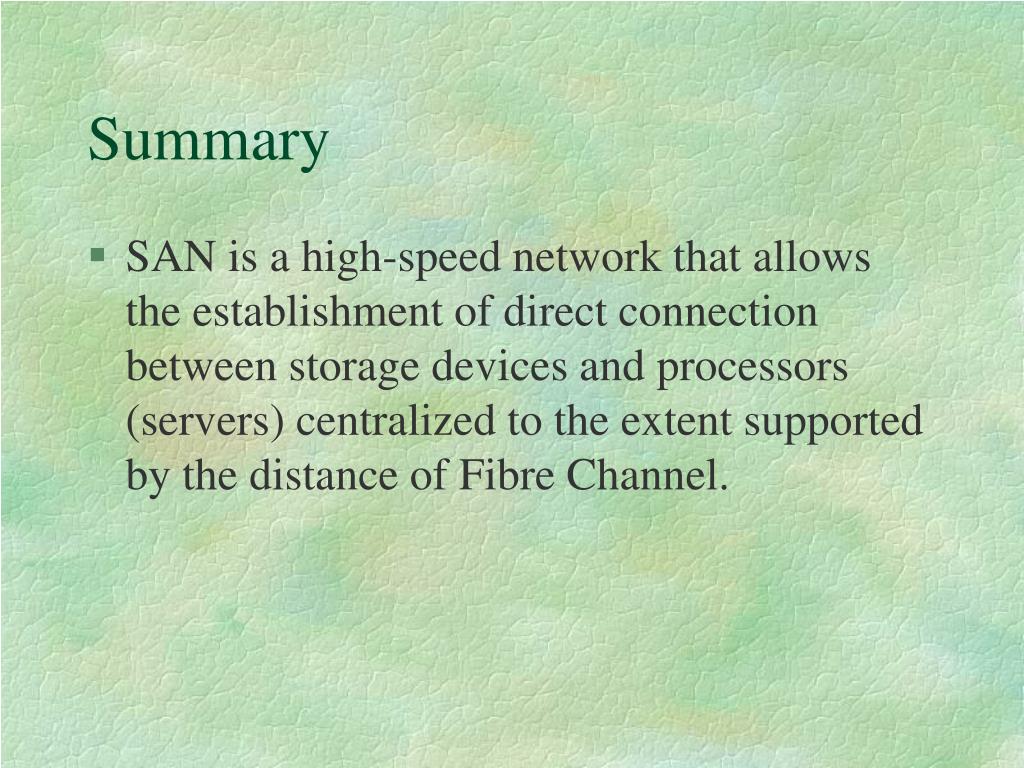

Summary
  • SAN is a high-speed network that allows the establishment of direct connection between storage devices and processors (servers) centralized to the extent supported by the distance of Fibre Channel.
