Handheld-pulse-oximeter-AM-HPOA22

Abimed Handheld Pulse Oximeter provides accurate SpO2 and pulse rate monitoring with a 2.8-inch TFT display, a 10-hour rechargeable battery, and data storage. It ensures reliability in various healthcare settings, featuring a compact design, a pulse waveform display, and external SpO2 probe support.

lindahaley
Download Presentation

Handheld-pulse-oximeter-AM-HPOA22

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

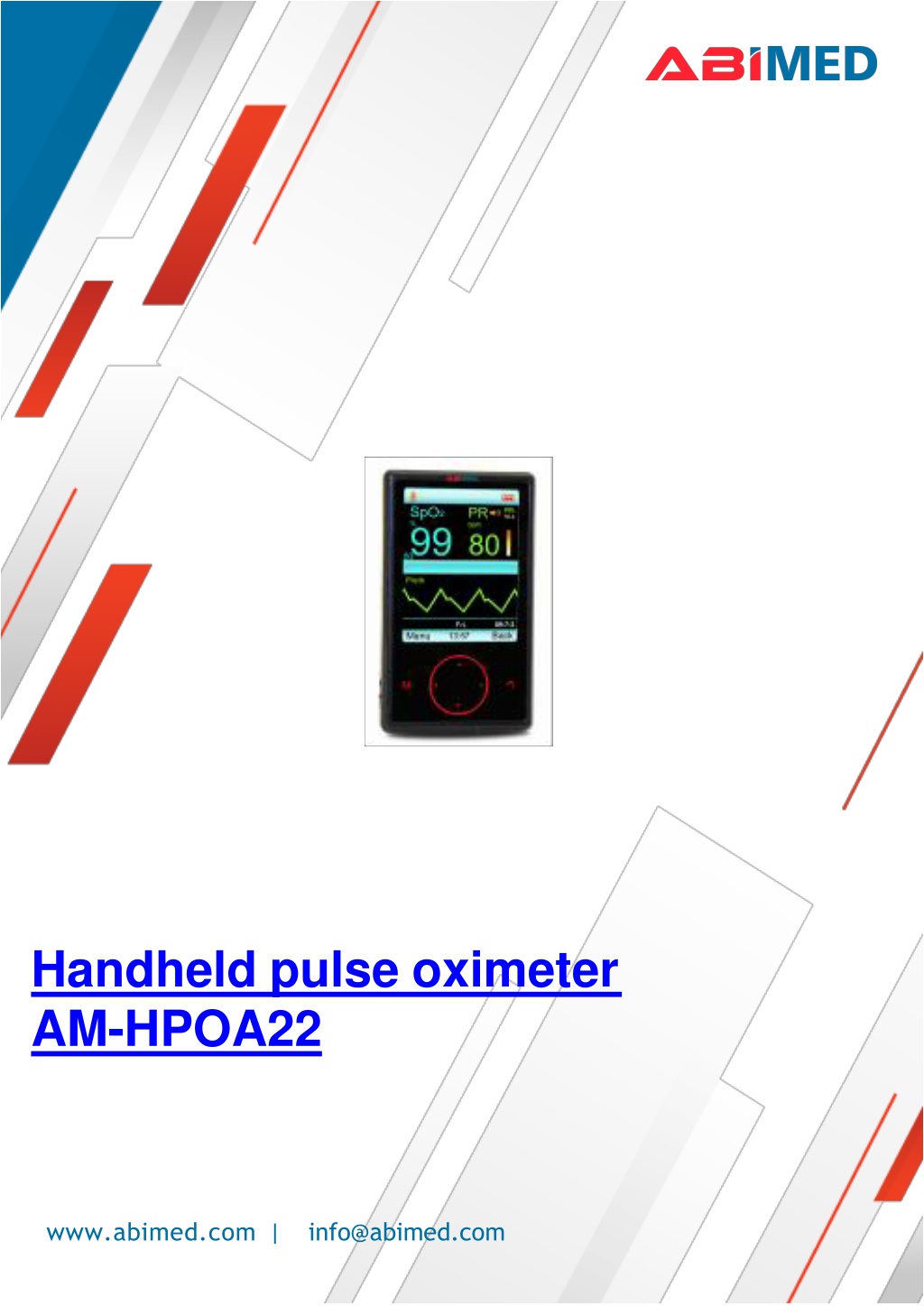

  1. Handheld pulse oximeter AM-HPOA22 www.abimed.com | info@abimed.com

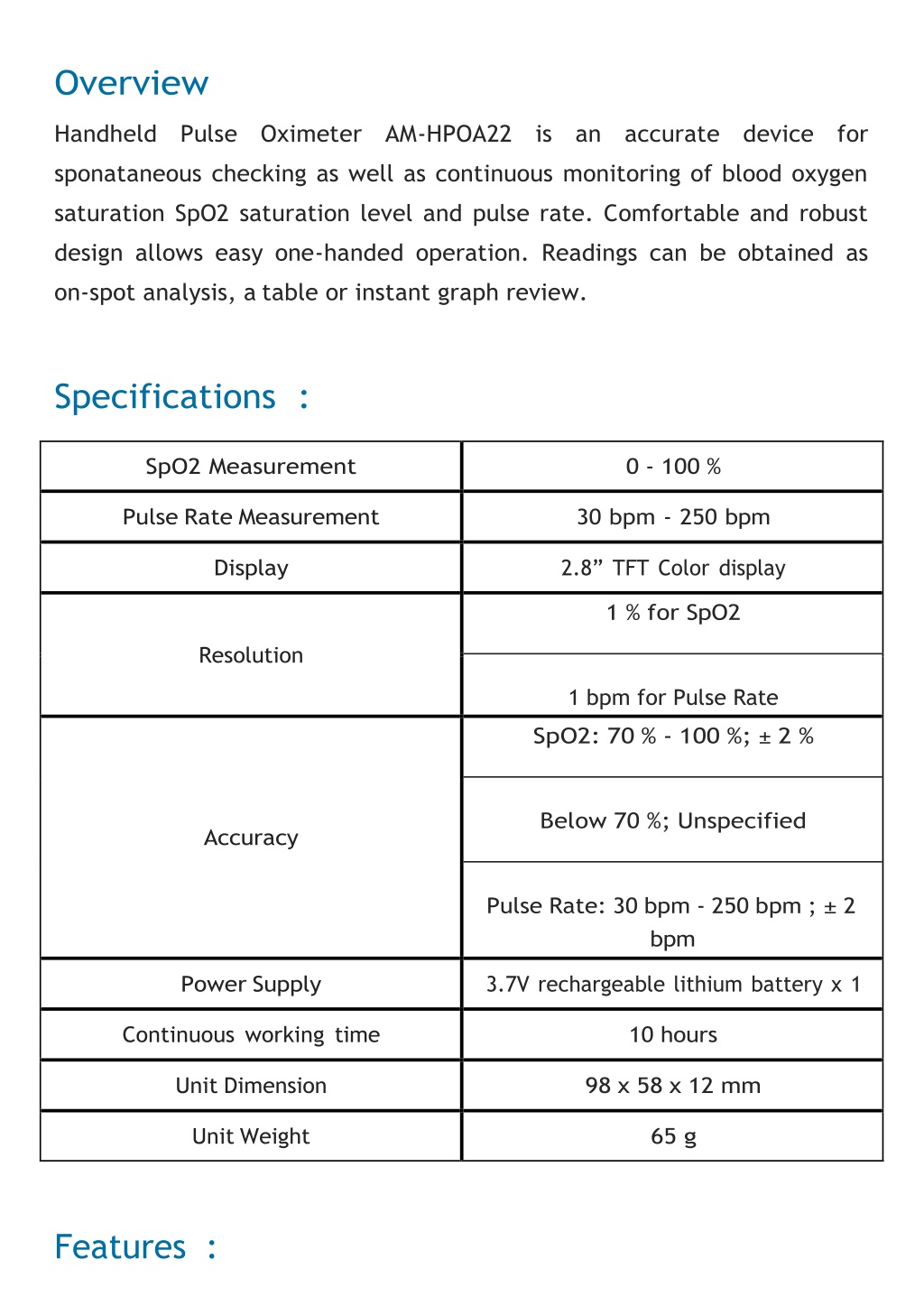

  2. Overview Handheld Pulse Oximeter AM-HPOA22 is an accurate device for sponataneous checking as well as continuous monitoring of blood oxygen saturation SpO2 saturation level and pulse rate. Comfortable and robust design allows easy one-handed operation. Readings can be obtained as on-spot analysis, a table or instant graph review. Specifications: SpO2 Measurement 0 - 100 % Pulse Rate Measurement 30 bpm - 250 bpm Display 2.8” TFT Color display 1 % for SpO2 Resolution 1 bpm for Pulse Rate SpO2: 70 % - 100 %; ± 2 % Below 70 %; Unspecified Accuracy Pulse Rate: 30 bpm - 250 bpm ; ± 2 bpm Power Supply 3.7V rechargeable lithium battery x 1 Continuous working time 10 hours Unit Dimension 98 x 58 x 12 mm Unit Weight 65 g Features:

  3. -Displays Pulse-Rate Waveform and bar graph display -Screen brightness adjustable -Touch key and locking touch key operation -Pulse rate sound indication -Resistance to surrounding light -Low battery indication -Battery capacity indication -Data can be stored and transferred to computer -External SpO2 probe Applications: It is extensively used in hospitals, clinical settings and emergency treatment facilities for regular monitoring of pulse rate and during routine body-checkups. Abimed Inc USA. Email: info@abimed.com | Website: www.abimed.com
