Presentation Transcript

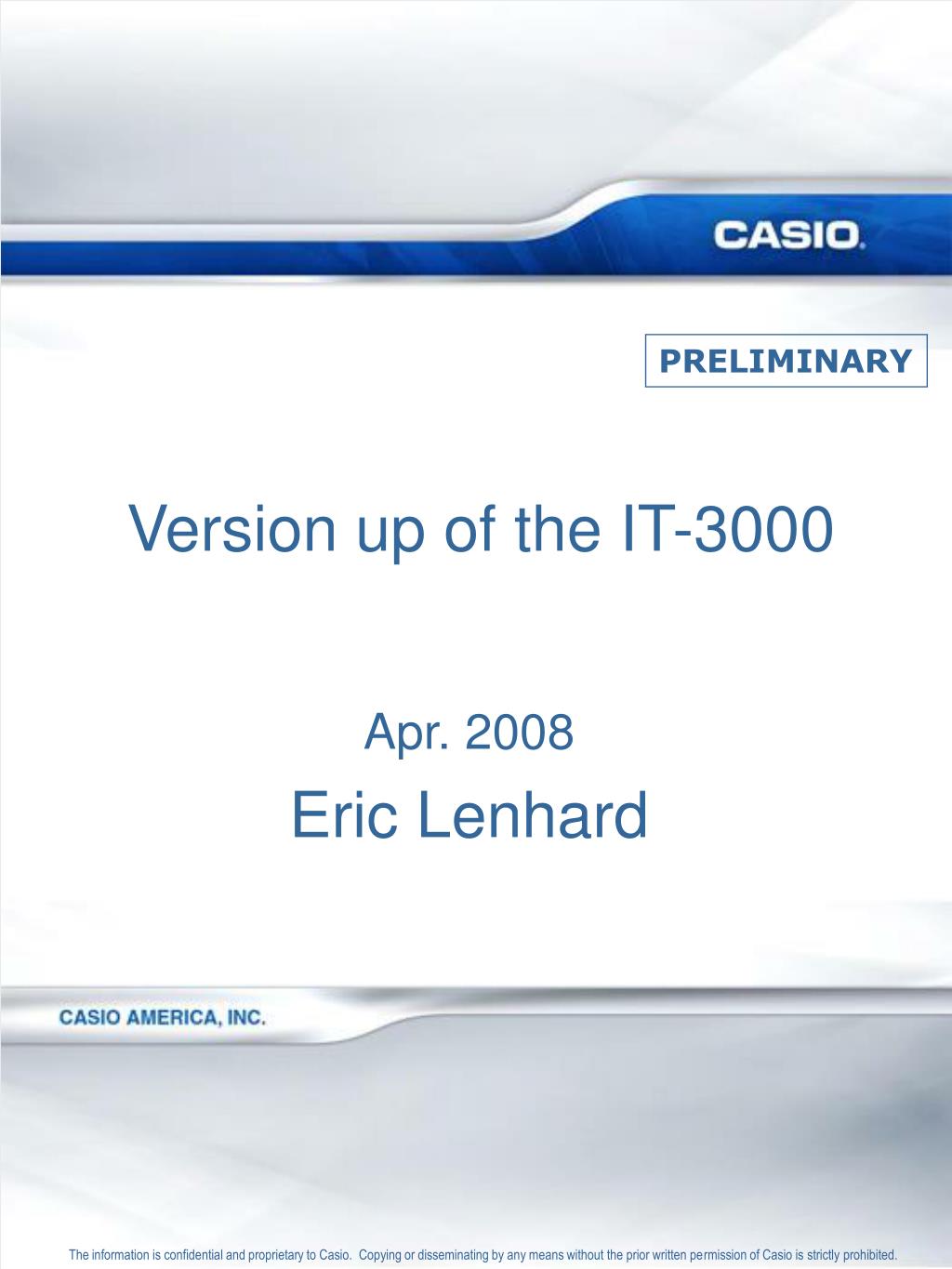

version up of the it 3000

PRELIMINARY

Version up of the IT-3000

Apr. 2008

Eric Lenhard

The information is confidential and proprietary to Casio. Copying or disseminating by any means without the prior written permission of Casio is strictly prohibited.

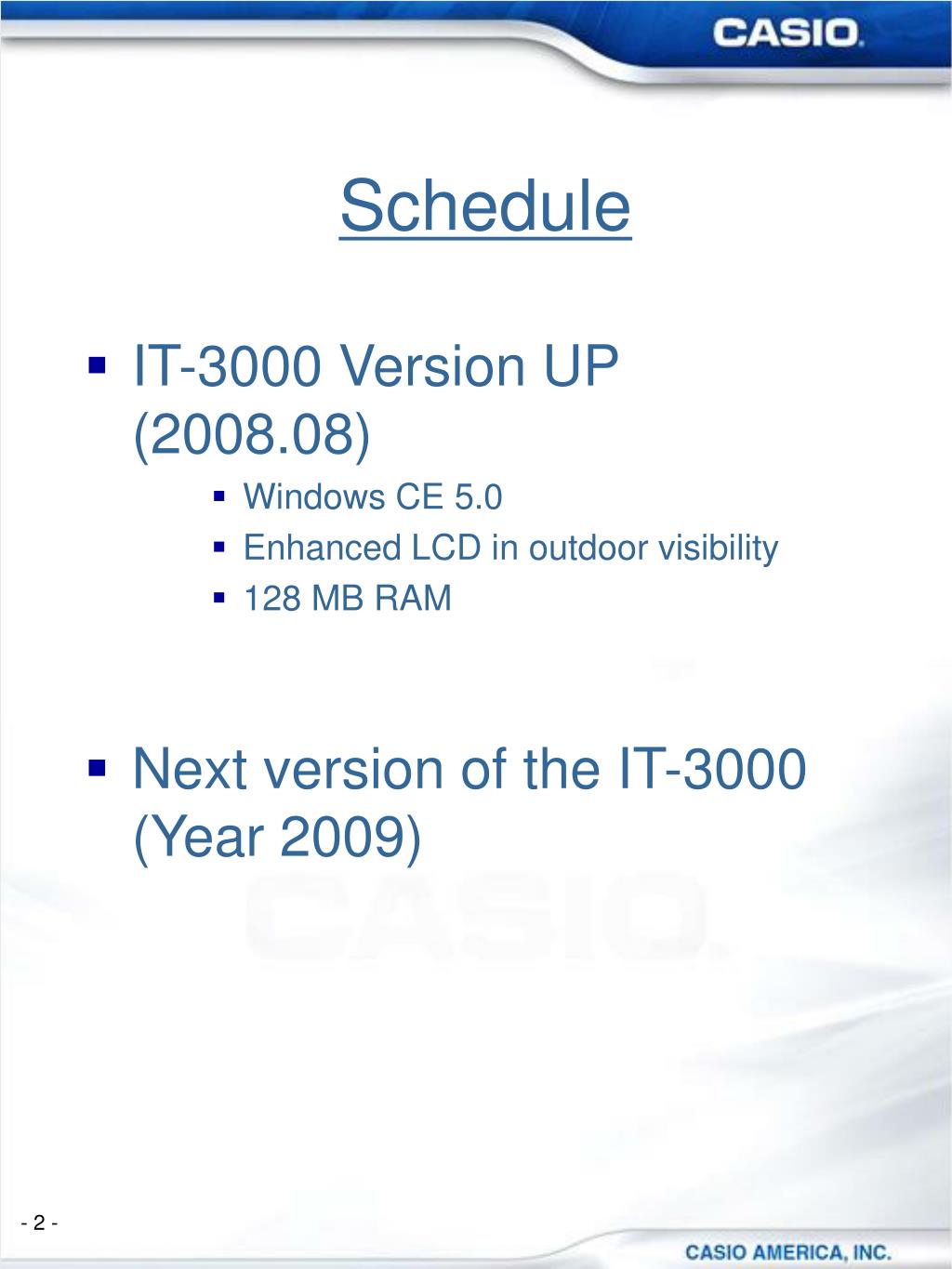

schedule
Schedule
  • IT-3000 Version UP (2008.08)
      • Windows CE 5.0
      • Enhanced LCD in outdoor visibility
      • 128 MB RAM
  • Next version of the IT-3000 (Year 2009)

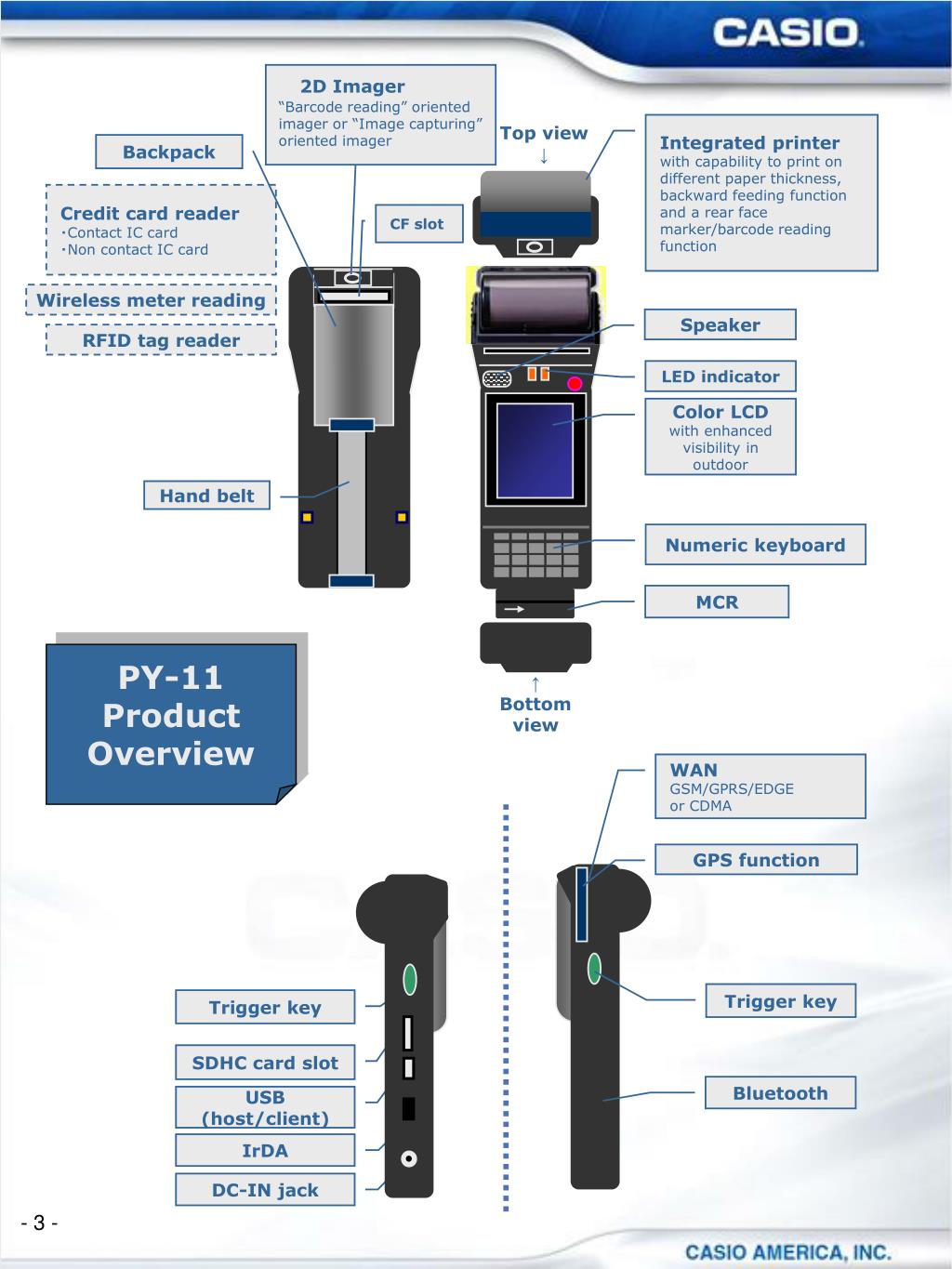

slide3

2D Imager

“Barcode reading” oriented imager or “Image capturing” oriented imager

Top view

Integrated printer with capability to print on different paper thickness, backward feeding function and a rear face marker/barcode reading function

Backpack

Credit card reader

・Contact IC card

・Non contact IC card

CF slot

Wireless meter reading

Speaker

RFIDtag reader

LED indicator

Color LCD with enhanced visibility in outdoor

Hand belt

Numeric keyboard

MCR

PY-11

Product

Overview

Bottom view

WAN

GSM/GPRS/EDGE

or CDMA

GPS function

Trigger key

Trigger key

SDHC card slot

Bluetooth

USB(host/client)

IrDA

DC-IN jack
