  1. 3G and B3G Deployment China Mobile Research Institute 2009.01

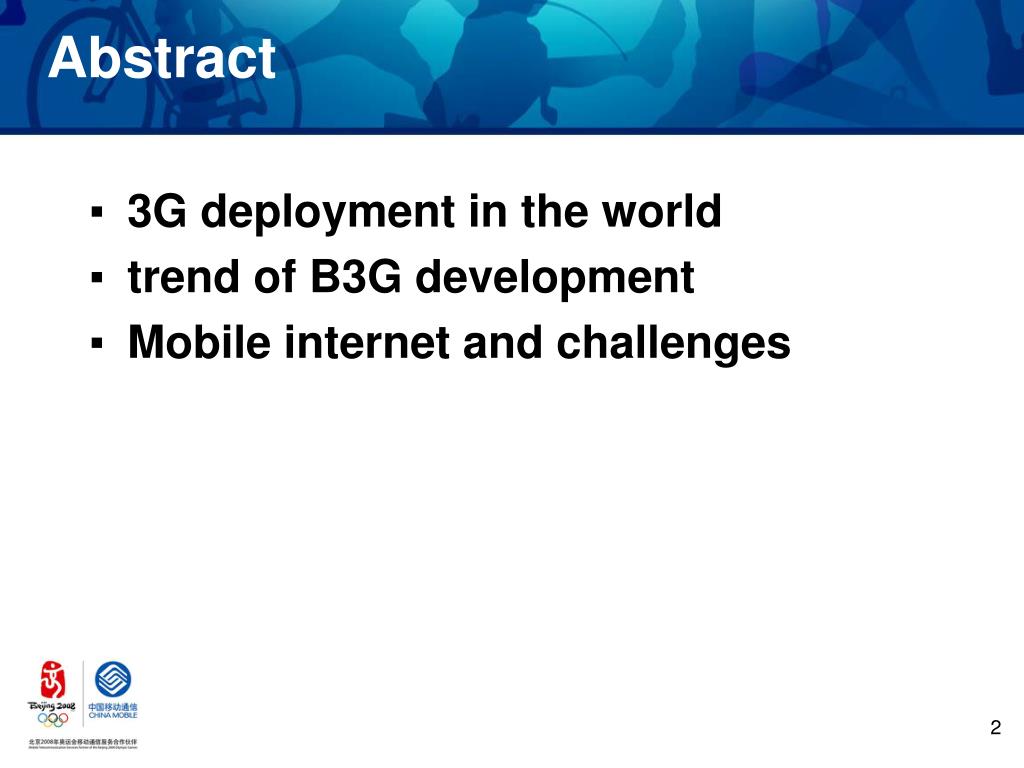

  2. Abstract • 3G deployment in the world • trend of B3G development • Mobile internet and challenges

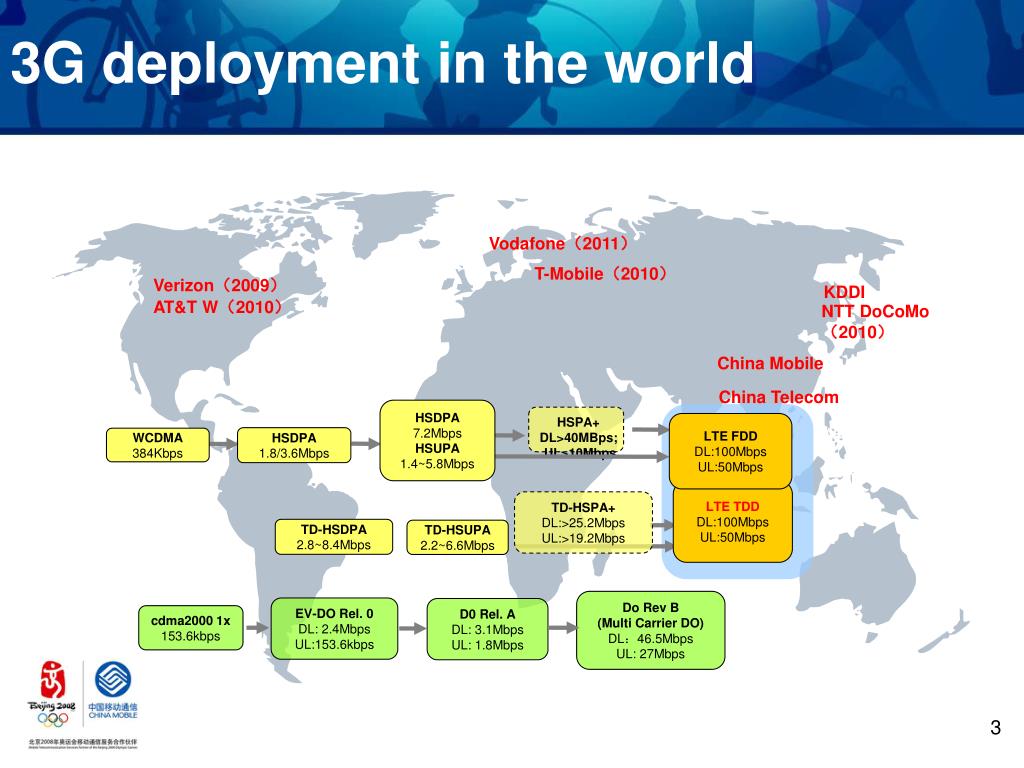

  3. LTE TDD1 LTE TDD2 3G deployment in the world Vodafone（2011） T-Mobile（2010） Verizon（2009） KDDI AT&T W（2010） NTT DoCoMo（2010） China Mobile China Telecom HSDPA 7.2Mbps HSUPA 1.4~5.8Mbps HSPA+ DL>40MBps; UL>10Mbps LTE FDD DL:100Mbps UL:50Mbps HSDPA 1.8/3.6Mbps WCDMA 384Kbps LTE TDD DL:100Mbps UL:50Mbps TD-HSPA+ DL:>25.2Mbps UL:>19.2Mbps TD-HSDPA 2.8~8.4Mbps TD-HSUPA 2.2~6.6Mbps Do Rev B (Multi Carrier DO) DL：46.5Mbps UL: 27Mbps EV-DO Rel. 0 DL: 2.4Mbps UL:153.6kbps D0 Rel. A DL: 3.1Mbps UL: 1.8Mbps cdma2000 1x 153.6kbps

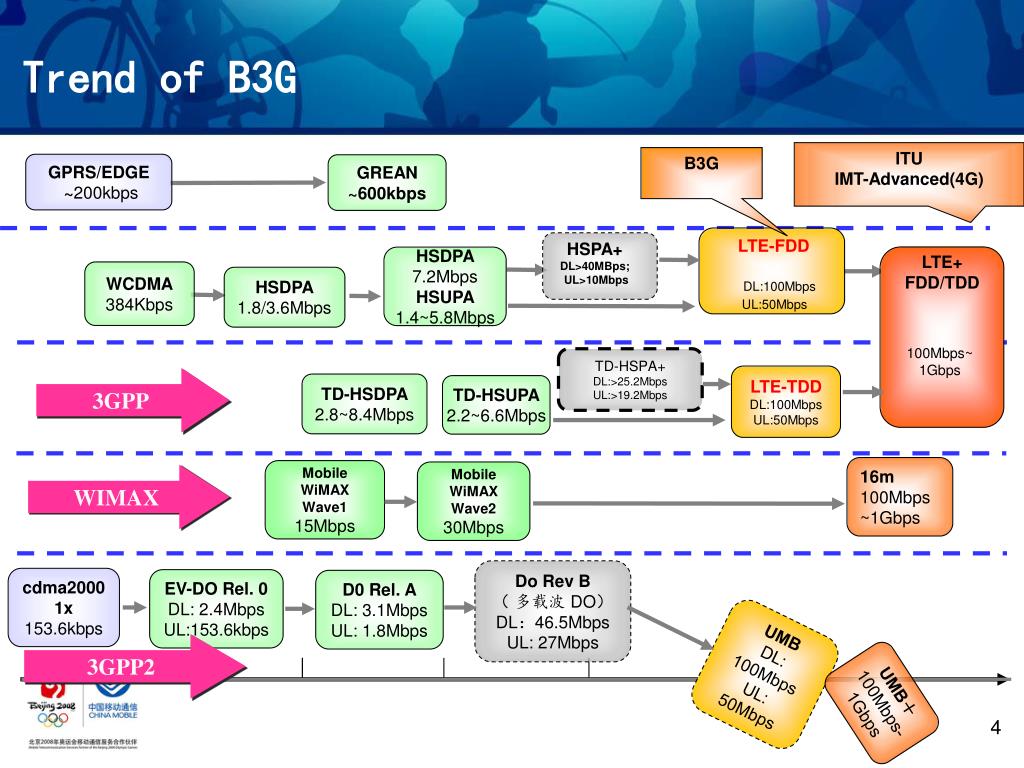

  4. GPRS/EDGE ~200kbps GREAN ~600kbps HSPA+ DL>40MBps; UL>10Mbps HSDPA 7.2Mbps HSUPA 1.4~5.8Mbps WCDMA 384Kbps HSDPA 1.8/3.6Mbps TD-HSPA+ DL:>25.2Mbps UL:>19.2Mbps LTE-TDD DL:100Mbps UL:50Mbps TD-HSDPA 2.8~8.4Mbps TD-HSUPA 2.2~6.6Mbps 16m 100Mbps~1Gbps Mobile WiMAX Wave1 15Mbps Mobile WiMAX Wave2 30Mbps UMB DL: 100Mbps UL: 50Mbps Do Rev B （ 多载波 DO） DL：46.5Mbps UL: 27Mbps cdma2000 1x 153.6kbps EV-DO Rel. 0 DL: 2.4Mbps UL:153.6kbps D0 Rel. A DL: 3.1Mbps UL: 1.8Mbps Trend of B3G ITU IMT-Advanced(4G) B3G LTE-FDD LTE+ FDD/TDD DL:100Mbps UL:50Mbps 100Mbps~ 1Gbps 3GPP WIMAX 3GPP2 UMB＋ 100Mbps-1Gbps

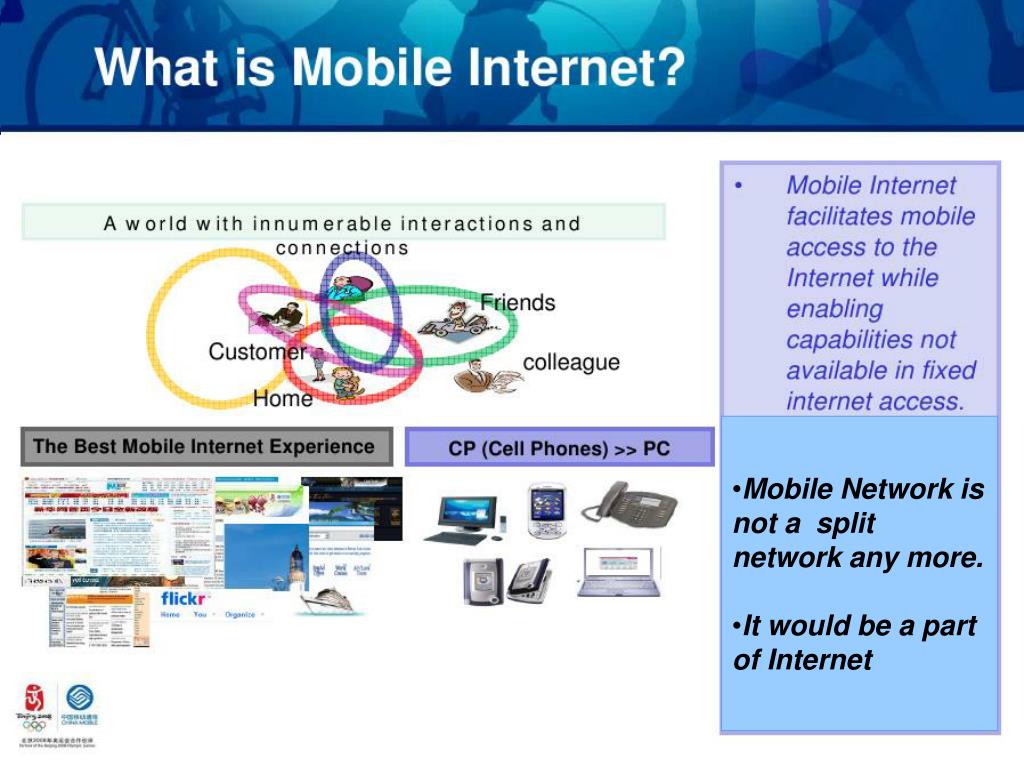

  5. Mobile Network is not a split network any more. • It would be a part of Internet

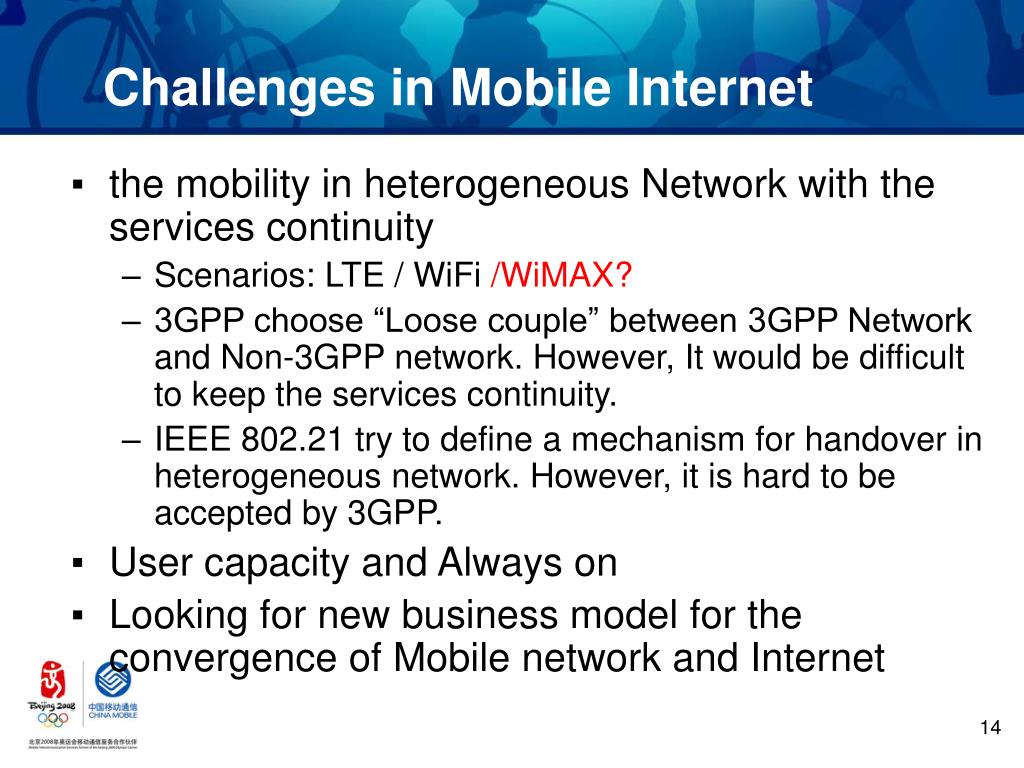

  6. Challenges in Mobile Internet • the mobility in heterogeneous Network with the services continuity • Scenarios: LTE / WiFi /WiMAX? • 3GPP choose “Loose couple” between 3GPP Network and Non-3GPP network. However, It would be difficult to keep the services continuity. • IEEE 802.21 try to define a mechanism for handover in heterogeneous network. However, it is hard to be accepted by 3GPP. • User capacity and Always on • Looking for new business model for the convergence of Mobile network and Internet
