  1. Snails + Water Weeds

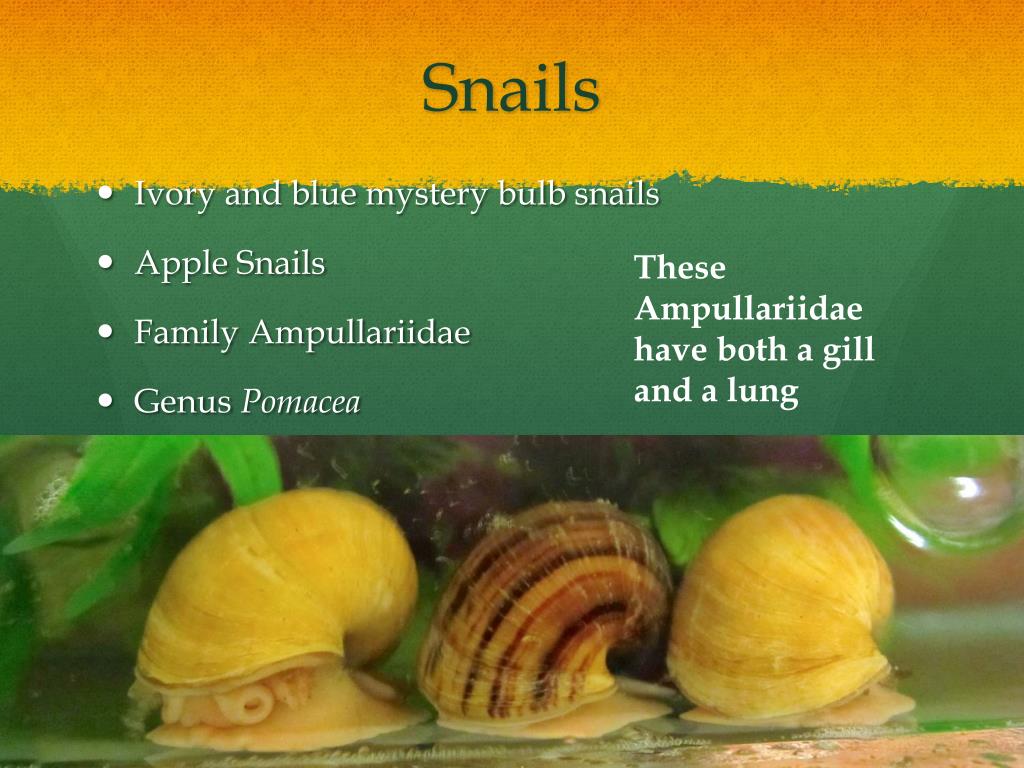

  2. Snails • Ivory and blue mystery bulb snails • Apple Snails • Family Ampullariidae • Genus Pomacea These Ampullariidae have both a gill and a lung

  3. Snails use photosynthesis or respiration?

  4. Water Weeds - Wisteria • Hygrophiladifformis • Aquarium plant • Uses photosynthesis

  5. Lab Setup • 8 airtight containers • 4 under a light • 4 in the dark

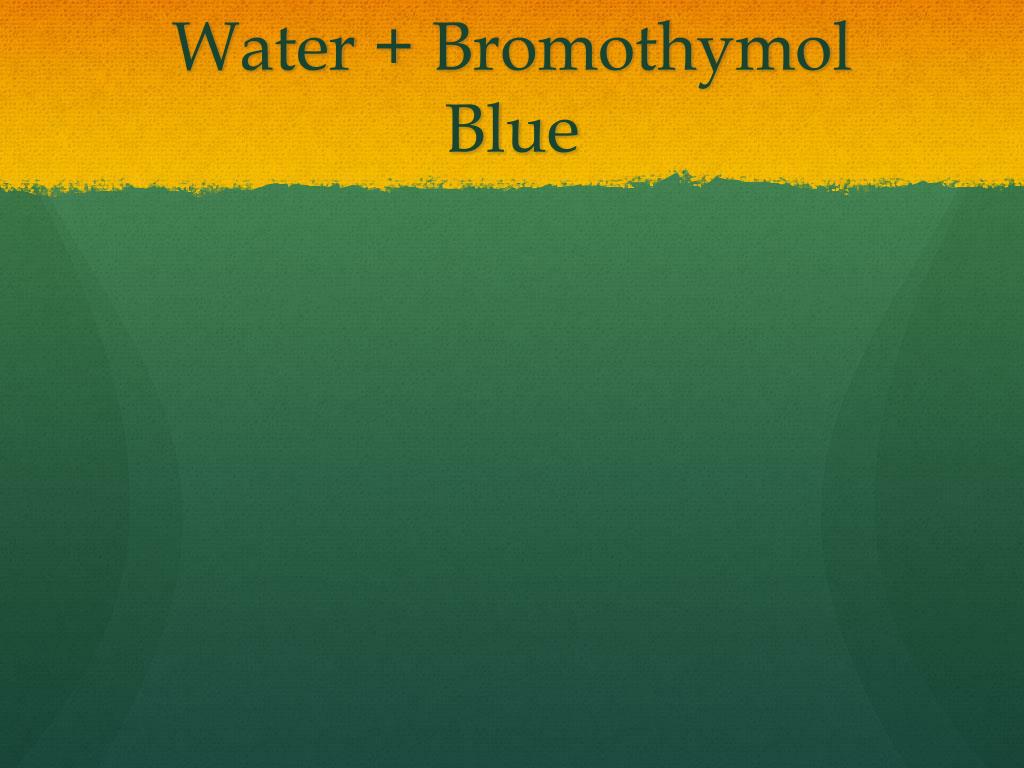

  6. Water + Bromothymol Blue

  7. WDYT? • What do you think? • What is going on in each container? • Why are we putting 4 containers in the dark and 4 in the light? • Why bromothymol blue? • What does this do? • Why should we have a control?

  8. Initial Observation • What color is the water? • Will there be a change in what the liquid looks like after a couple of hours? • What gas exchange is occurring?

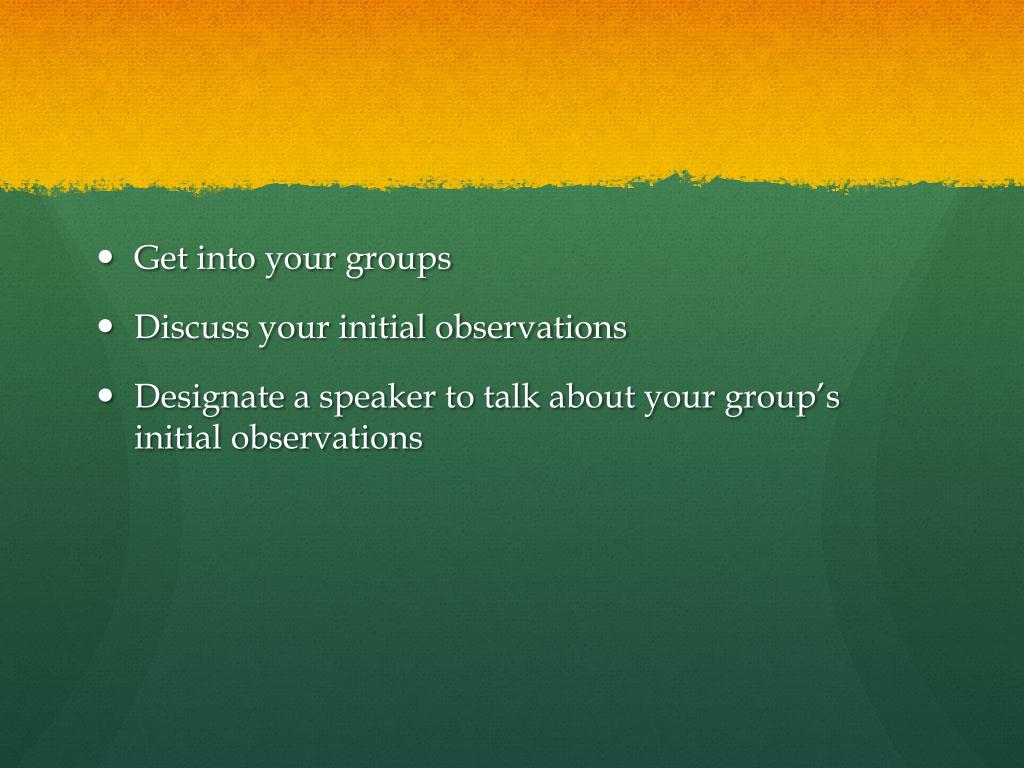

  9. Get into your groups • Discuss your initial observations • Designate a speaker to talk about your group’s initial observations

  10. Info that may change your mind… • Carbon dioxide dissolves in (and reacts with) water, forming carbonic acid, H2CO3 • CO2(g) + H2O(l) ←→ H2CO3 ←→ H+(aq) + HCO3–(aq) • The free hydrogen ions (H+) lower the pH of the solution, making it more acidic. • As CO2dissolves in water, the pH of the solution will continue to decrease (becoming acidic). If CO2 is removed from the solution, the pH will increase (becoming more basic)

  11. Bromothymol blue • A pH indicator such as BTB can therefore indicate the relative amount of CO2 dissolved in water based on the color of the solution. • Higher pH: Blue, basic • Lower pH: Yellow, acidic

  12. Photosynthesis is Occurring • 6CO2 + 12H2O C6H12O6 + 6H2O + 6O2 • Plant exposed to light • Removes CO2 form the solution • Raises the pH (more basic)

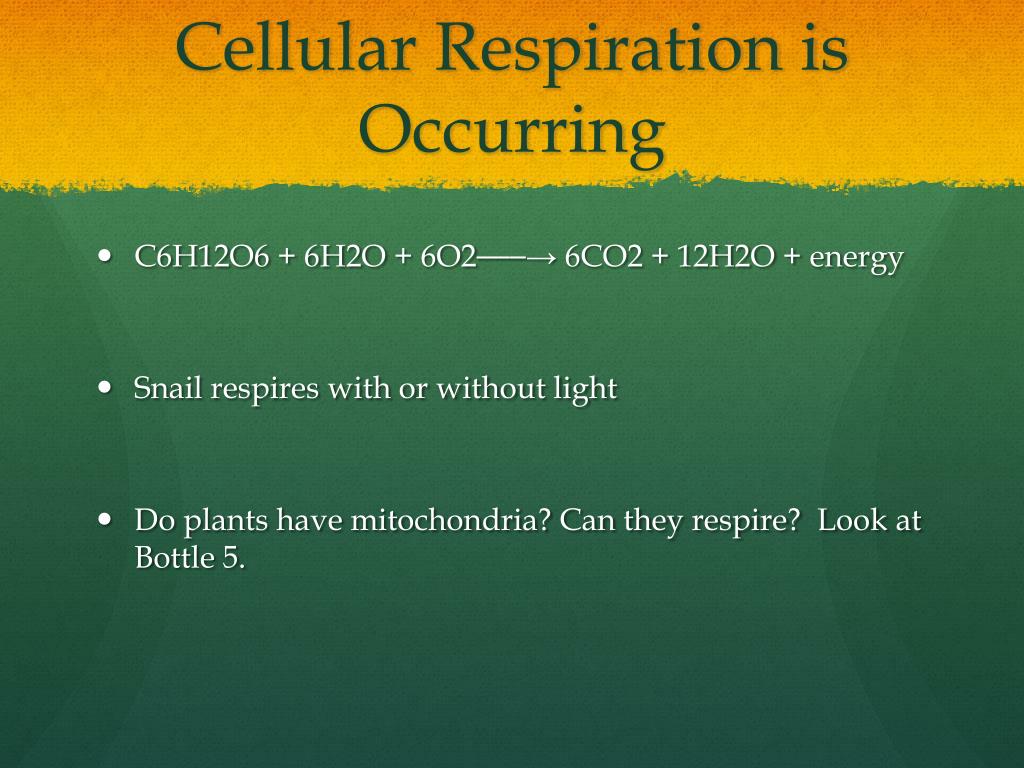

  13. Cellular Respiration is Occurring • C6H12O6 + 6H2O + 6O2⎯⎯⎯→ 6CO2 + 12H2O + energy • Snail respires with or without light • Do plants have mitochondria? Can they respire? Look at Bottle 5.

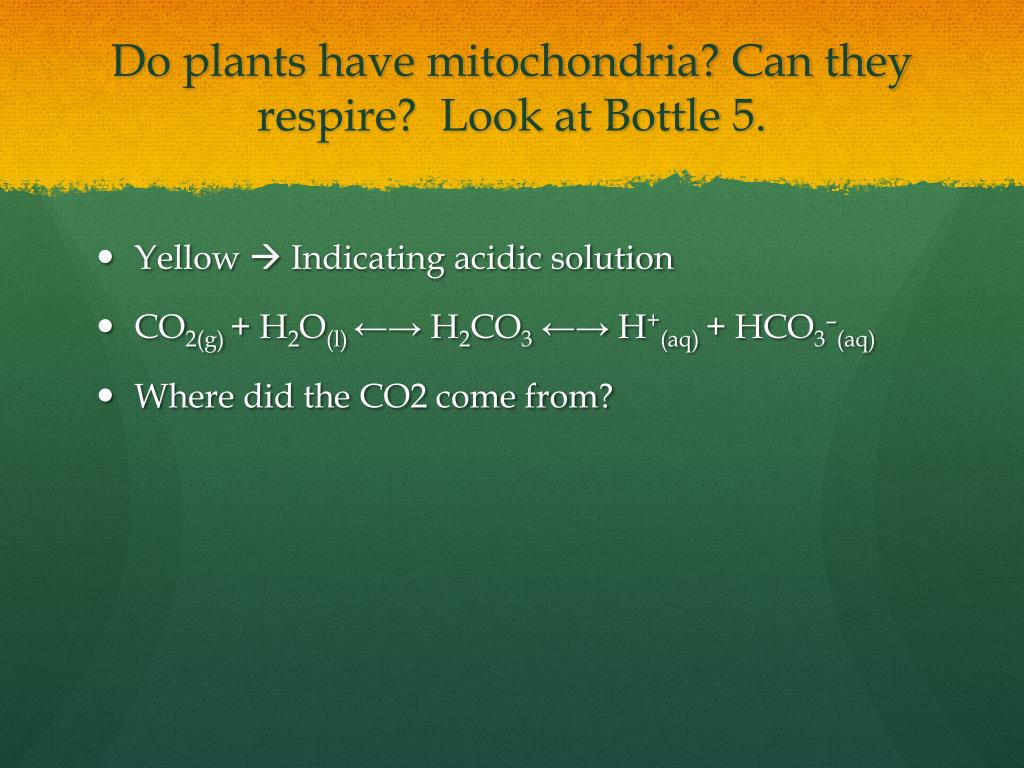

  14. Do plants have mitochondria? Can they respire? Look at Bottle 5. • Yellow  Indicating acidic solution • CO2(g) + H2O(l) ←→ H2CO3 ←→ H+(aq) + HCO3–(aq) • Where did the CO2 come from?

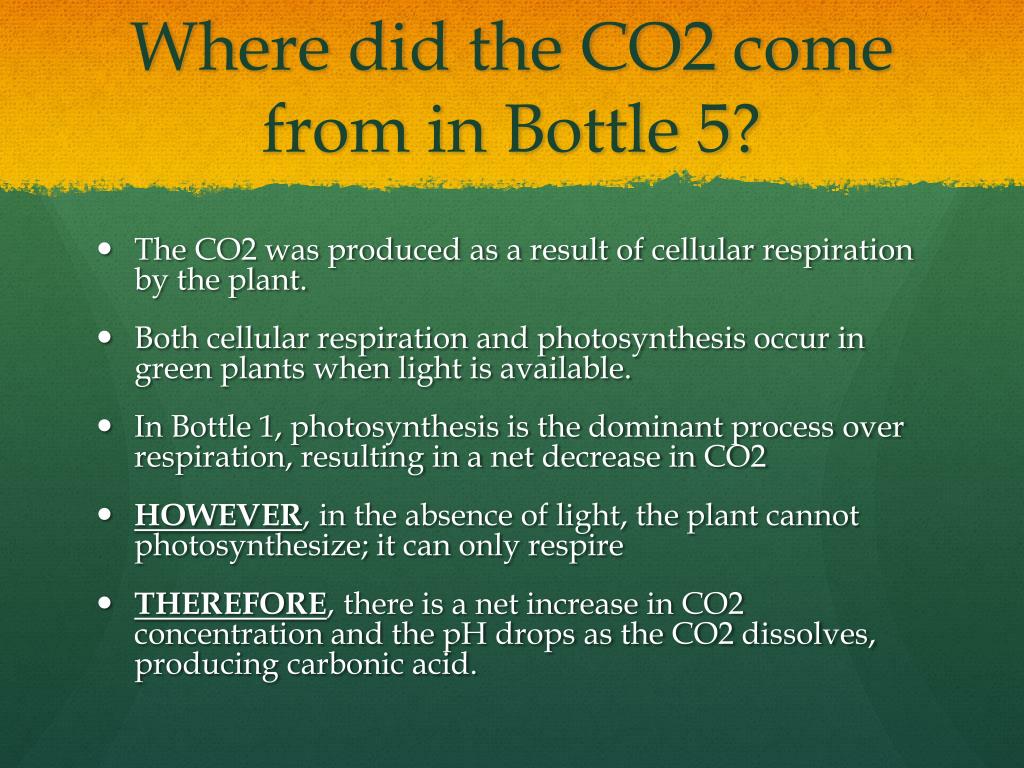

  15. Where did the CO2 come from in Bottle 5? • The CO2 was produced as a result of cellular respiration by the plant. • Both cellular respiration and photosynthesis occur in green plants when light is available. • In Bottle 1, photosynthesis is the dominant process over respiration, resulting in a net decrease in CO2 • HOWEVER, in the absence of light, the plant cannot photosynthesize; it can only respire • THEREFORE, there is a net increase in CO2 concentration and the pH drops as the CO2 dissolves, producing carbonic acid.

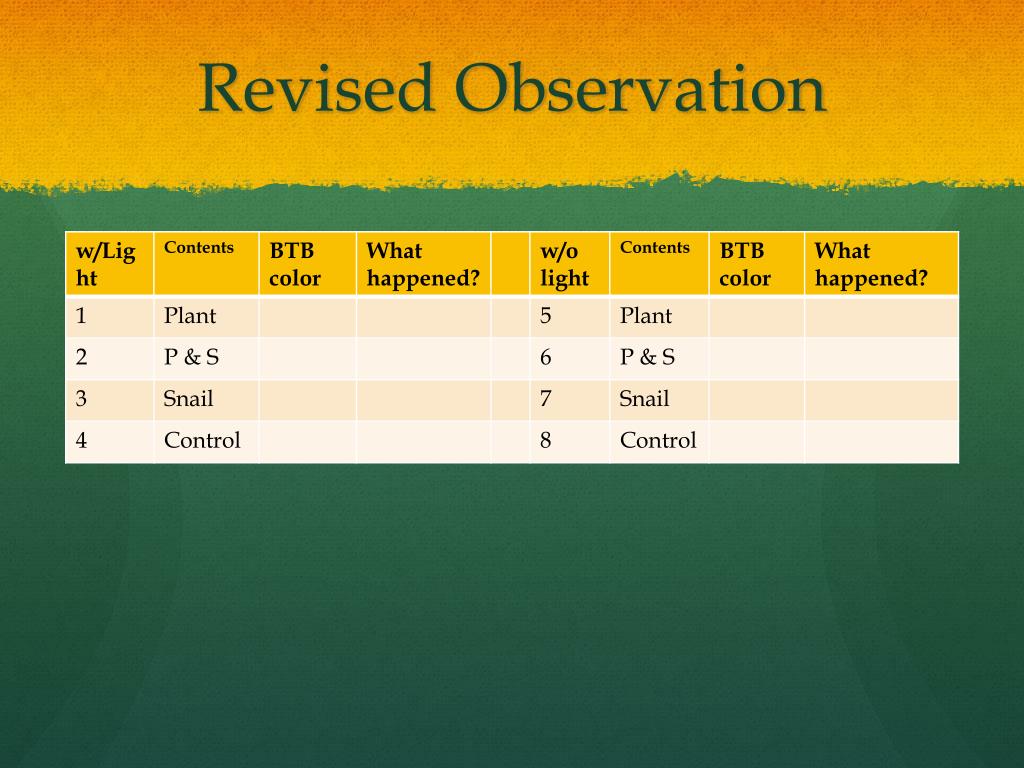

  16. Revised Observation

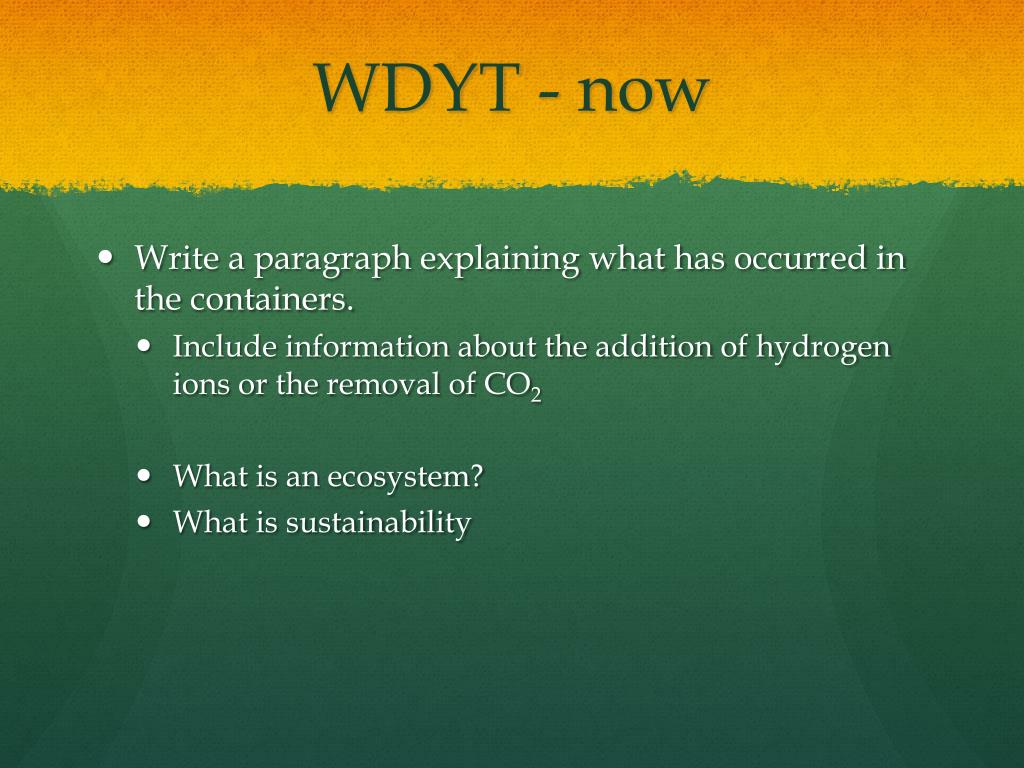

  17. WDYT - now • Write a paragraph explaining what has occurred in the containers. • Include information about the addition of hydrogen ions or the removal of CO2 • What is an ecosystem? • What is sustainability
