slide1

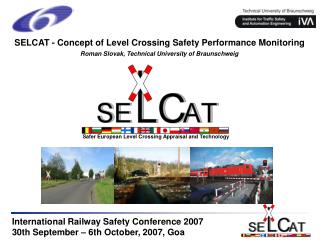

SELCAT - Concept of Level Crossing Safety Performance MonitoringRoman Slovak, Technical University of Braunschweig

Safer European Level Crossing Appraisal and Technology

International Railway Safety Conference 2007

30th September – 6th October, 2007, Goa

selcat project motivation
SELCAT project motivation
  • Level crossings are connected with the highest human fatality rate of European Railways (50-80% of all railway fatalities)
  • Not adequate human behaviour is main reason (>90%) for the accident causes without involvement of the safety system failure
  • High safety requirements on the level crossing safety system in many European countries are connected with high costs hindering technological upgrade of existing systems
  • Relatively small number of fatalities in comparison to other road transport accidents results in insufficient human danger awareness and lack of legislative regulations to stimulate the drivers discipline
outline
Outline

Project aims

Consortium

Structure of the safety performance database

Collection of statistics

First analysis results

Conclusions

aims and objectives of selcat 1
Aims and objectives of SELCAT (1)

To provide a knowledge base for the improvement of the level crossing safety by an analysis of results of safety-related projects from FP5 and FP6 with regard to Railway and Road Transport

To provide an overview of existing and planned level crossing research and improvement activities in 15 countries from Europe, Asia and Africa

To analyse incident and accident data and databases related to worldwide level crossings

To disseminate the results of in SELCAT (Workshops, Web portal)

aims and objectives of selcat 2
Aims and objectives of SELCAT (2)

To set up a common level crossing accident information system

To propose a standard for reporting level crossing accidents in European countries

To examine the potential for existing and new technologies to improve the safety and the performance of level crossing systems.

To investigate the applicability of available risk and cost-benefit analysis methods for the classification of technological solutions for the safer interface of rail and road traffic at level crossings

selcat work packages and their interdependancies
SELCAT Work packages and their interdependancies

Representation

:

WP

5

Meetings

,

Project

coordination

,

ressources and

Manage

-

Information

results

exchange

ment

activities

information

WP

1

Characteristics

,

exchange

Level

Statistics

,

crossing

Requirements

,

information

Standards

appraisal

input

information

output

Risk

,

,

FP

5

,

FP

6

,

Safety

,

,

WP

4

EU Level

Workshops

,

WP

3

Performance

,

,

Dissemi

-

Crossing

Conferences

,

Methodology

Cost

-

Benefit

Research and

Web portal

nation

Analysis

statistics

Methods

WP

2

Technical

&

Level

legislative

Crossing

solutions

,

Regulations

technology

selcat partners and their roles
SELCAT Partners and their roles
  • Universities:
    • TUBS - Technical University of Braunschweig, Institute for Traffic Safety and Automation Engineering (D)
    • DITS – University of Rome, Department of Department of Hydraulic, Transport and Road (I)
    • UNIZA – University of Zilina, Department of Control & Information Systems (SK)
    • UB – University of Birmingham (GB)
    • VTU – University of Transport Sofia (BG)
  • Railway and Road Research Institutes:
    • INRETS - French National Institute for Transportation Research (F)
    • RSSB – Railway Safety and Standards Board (GB)
    • CNTK - Railway Scientific and Technical Centre (PL)
    • DLR – German Aerospace Center, Institute of Transportation Systems (D)
    • VTT - Technical Research Centre of Finland (SF)
    • MULT – Applied signal processing and telecoms research centre (B)
    • RTRI - Railway Technical Research Institute (JP)
  • Road and Railway Organisations
    • UIC – International Union of Railways (F)
    • ADAC – General German Automobile Association (D)
    • VPE - Railway allocation office (H)
  • Infrastructure Managers:
    • DB – German railways (D)
    • NR – Network Rail (GB)
    • RFI – Italian national railways (I)
    • NRIC – Bulgarian national railways (BG)
selcat ttc an world extension of selcat
SELCAT TTC - an world extension of SELCAT

Universities:

EMI - Engineers' Mohammadia school (MA)

Railway and Road Research Institutes:

VNIIZhT- All-Russian Railway Research Institute (RUS)

CARS - China Academy of Railway Science (CN)

Railway companies:

RDSO - Indian Railways, Research, Designs & Standards organisation (IN)

ONCF – Railways of Morocco, National office of the Railroads (MA)

coordination action s expectations
Coordination action‘s expectations

Structured collection of the knowledge provided by SELCAT partners

structured storage of the knowledge and its classification

structured access to the knowledge

Need of a suitable structure of the Knowledge

structure of the knowledge platform
Structure of the knowledge platform

Laws

Laws

Loops

TVP

Cameras

St. Andrews Cross

Plates

Operational Processes

Operational Processes

Signs

TrafficLights

ATP

Barriers

Level Crossing

Level Crossing Organisation

Road User Detection

Railway Vehicle Detection

Road User Information

Railway Vehicle Information

Road User Warning

Railway Vehicle Warning

Road User Protection

Railway Vehicle Protection

Railway

Road

steps of the level crossing risk appraisal
Collection of LC types (country specific)
    • Functional configuration
    • Operational conditions (traffic flows, infrastructure conditions, etc.)
    • Population (country specific)
    • Pictures
  • Collection of LC accident statistics (LC type specific)
    • Fatalities, serious and light injuries
    • Accident causes (human, technical, etc.)
  • Definition of basic LC types
    • Specification according to the ERA draft definition
    • Association with related national LC types
  • Accident statistics analysis
    • Definition of normalization (scaling factors)
    • Comparative risk evaluation for basic LC types
Steps of the Level Crossing Risk appraisal
integration of statistics data
Integration of statistics data

LC types population (by year)

Accident statistics association (fatalities, injuries, causes on road and railway side, etc)

Typical traffic conditions

LC types costs (acquisition, operation)

normalisation of statistics
Normalisation of statistics

Basic scaling factors

Population of the particular level crossing type in the country NLC

Length of railway network of the country LRN

Train operation volume given in millions of train kilometres VTKM

Number of inhabitants per square kilometres of the country

Road passenger in million km per year VRKM

Number of cars/1000 inhabitants

Number of road fatalities

Number of railway accidents

Population in millions

Total number of LC accidents

normalisation data
Normalisation data

Composed scaling factors

ERA LC safety indicator

Other scaling formulas, e.g.

Wherby:

NLC Population of the particular level crossing type in the country

LRN Length of railway network of the country

VTKM Train operation volume given in millions of train kilometres

VRKM Road passenger in million km per year

conclusions
Conclusions

SELCAT concept of safety performance monitoring aims at:

  • collection of available LC accident statistics under consideration of national operating conditions
  • interactive analysis of the statistics by
    • providing information about the extend of accident damage
    • and accident causes
    • offering large number of normalisation factors (predefined, user defined)
    • visualised by time based charts (LC specific, country specific, EU/NonEU, etc.)
  • providing input for further SELCAT work
    • Identification of most critical LC operating conditions
    • Identification of typical causes of LC accidents
    • Offering statistical base for application of advanced methods for risk and cost-benefit evaluation
  • future aim: Level Crossing accident information system allowing collection of accident data including detailed operation conditions and causes
slide31

psn_2006-07-24_Dissertationsvortrag-_1-16_Sl.pot , Seite 31

WP3 - EDSPNmodel for level crossing risk analysis

the 2nd selcat workshop
The 2nd SELCAT workshop

„Level Crossing Technology“

November 22-23, 2007

Venue: Marrakech, Morroco, Hotel „Le Tikida Garden“

Agenda:

Results of WP1 „Level crossing appraisal“

Results of WP2 „Level crossing Technology“

LC papers presentations

contact

Better Safety at Level Crossings

www.levelcrossing.net

Roman Slovák+49 531 391 3307r.slovak@tu-bs.de
