  1. GROSS ANATOMY UPPER EXTREMITYOVERLAYS

  2. SHOULDER—AP VIEW ACROMIOCLAVICULAR JOINT ACROMION CLAVICLE HUMERAL HEAD GREATER TUBERCLE CORACOID BICIPITAL GROOVE LESSER TUBERCLE GLENOID VERTEBRAL BORDER OF SCAPULA

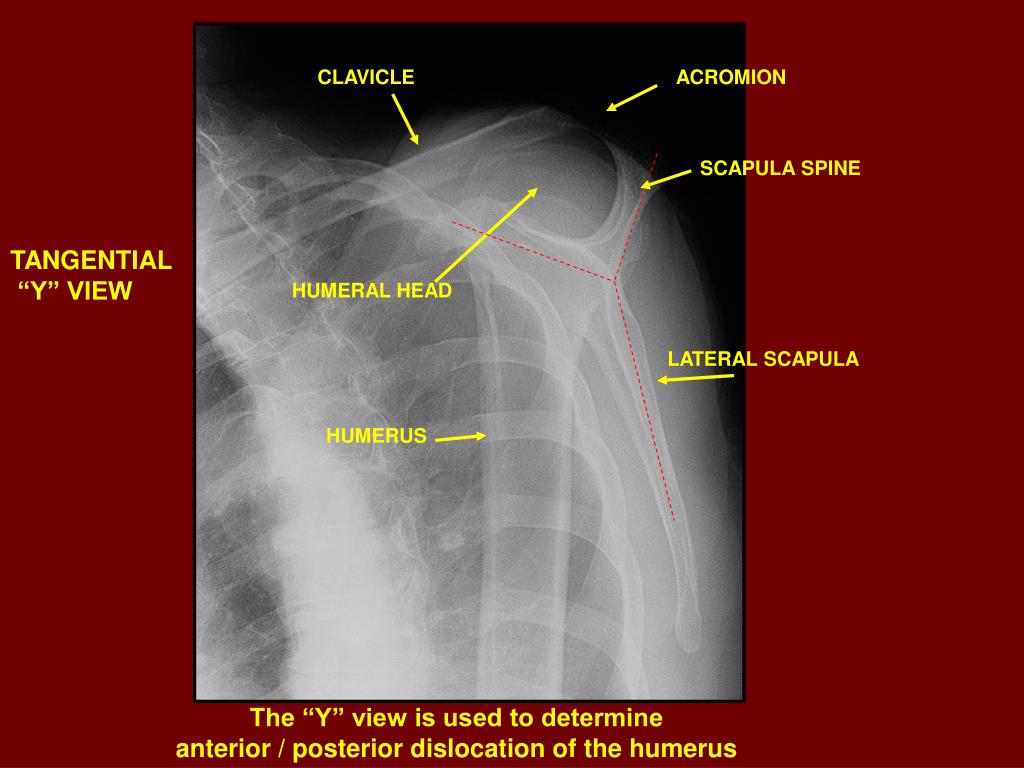

  3. CLAVICLE ACROMION SCAPULA SPINE TANGENTIAL “Y” VIEW HUMERAL HEAD LATERAL SCAPULA HUMERUS The “Y” view is used to determine anterior / posterior dislocation of the humerus

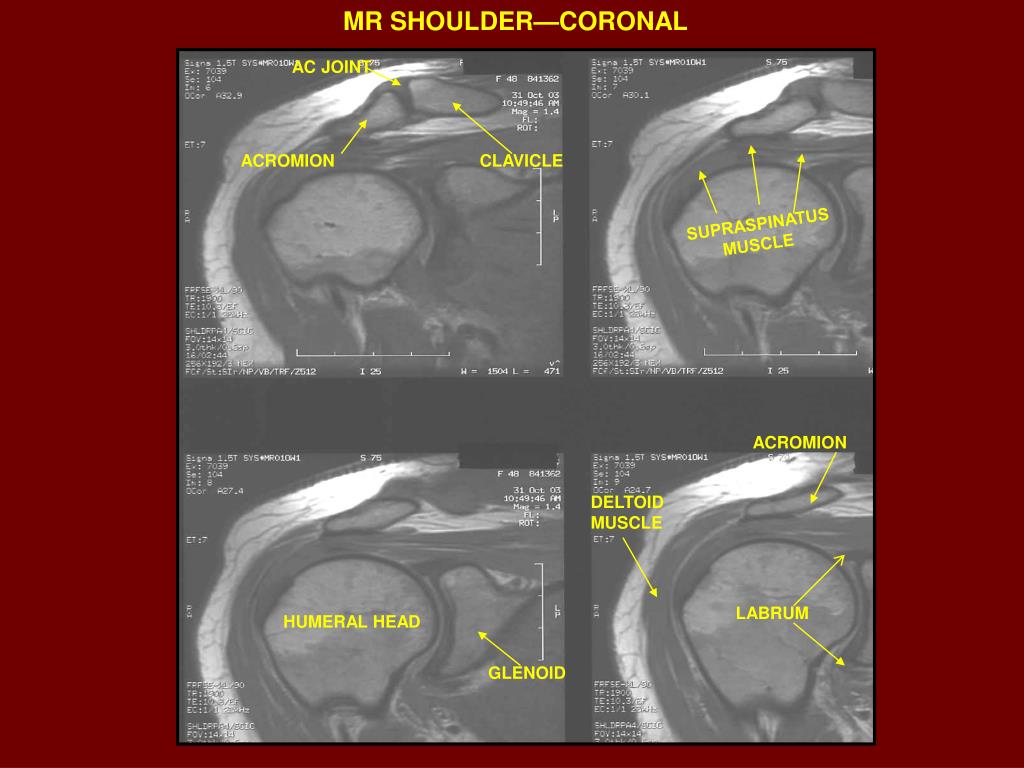

  4. MR SHOULDER—CORONAL AC JOINT ACROMION CLAVICLE SUPRASPINATUS MUSCLE ACROMION DELTOID MUSCLE LABRUM HUMERAL HEAD GLENOID

  5. HUMERAL HEAD HUMERUS GREATER TUBEROSITY LESSOR TUBEROSITY HUMERAL SHAFT (DIAPHYSIS) PROXIMAL DISTAL METAPHYSIS

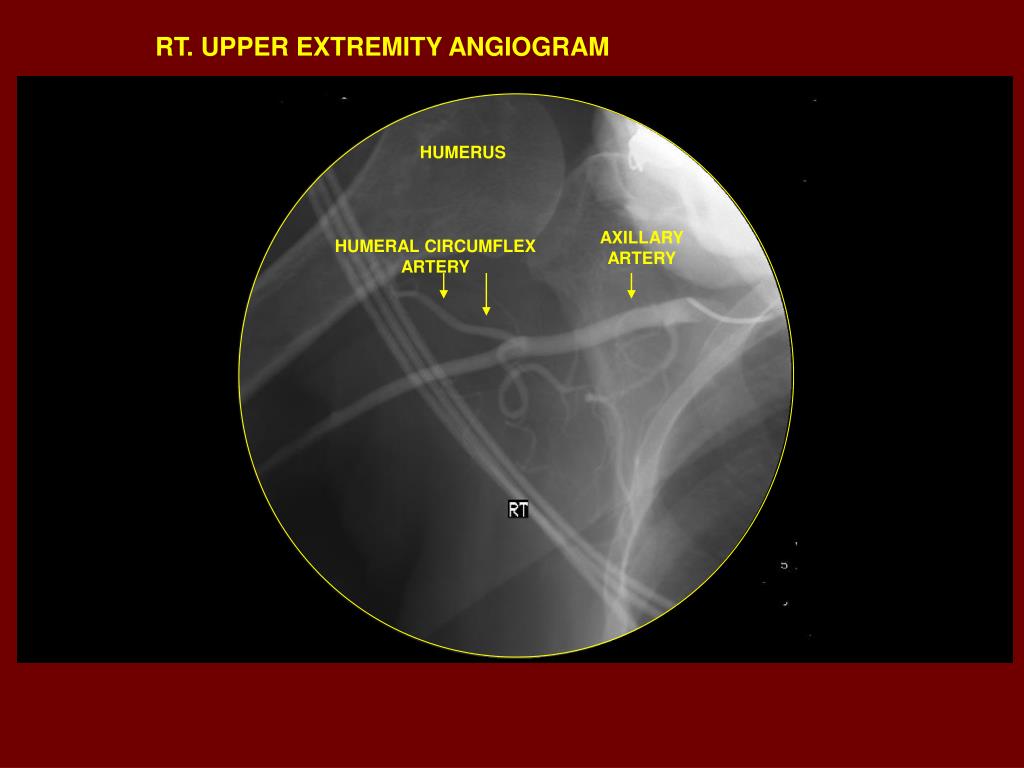

  6. RT. UPPER EXTREMITY ANGIOGRAM HUMERUS AXILLARY ARTERY HUMERAL CIRCUMFLEX ARTERY

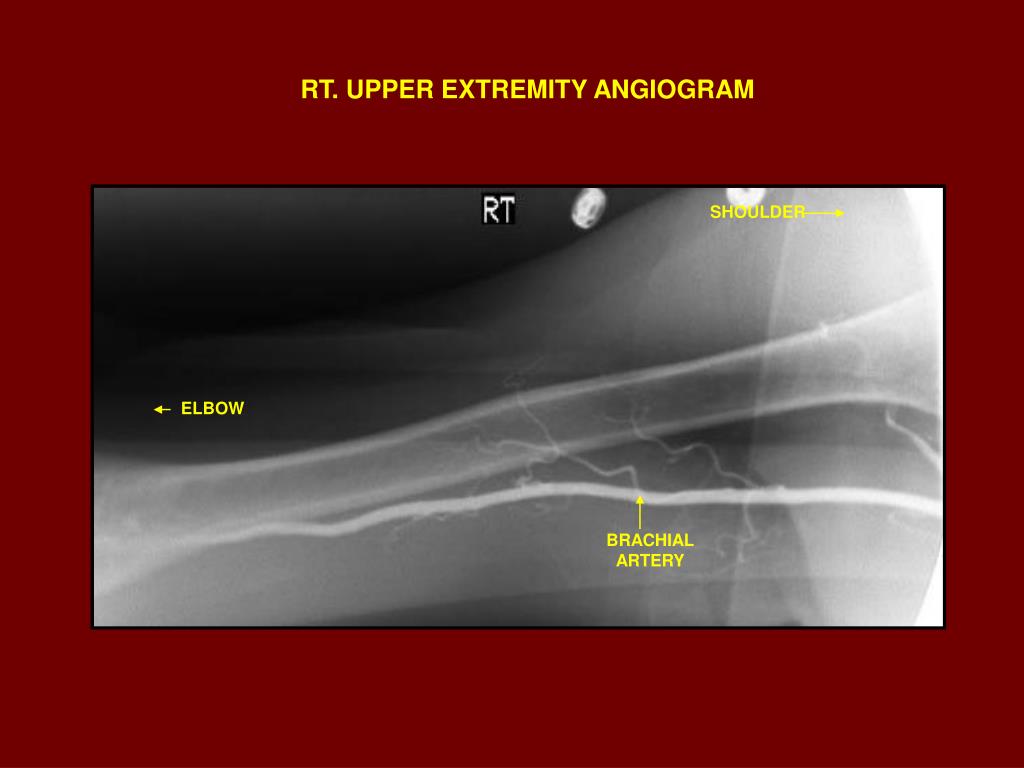

  7. RT. UPPER EXTREMITY ANGIOGRAM SHOULDER ELBOW BRACHIAL ARTERY

  8. RT. UPPER EXTREMITY ANGIOGRAM RADIAL ARTERY ELBOW INTEROSSEOUS ARTERY ULNA ARTERY

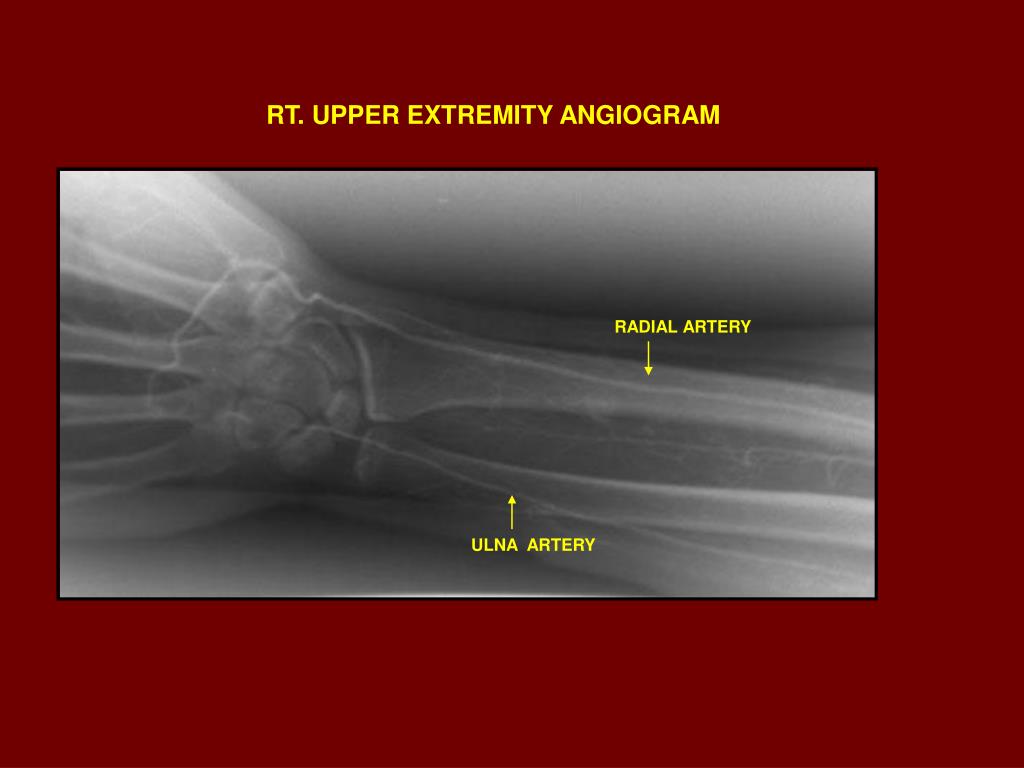

  9. RT. UPPER EXTREMITY ANGIOGRAM RADIAL ARTERY ULNA ARTERY

  10. ELBOW AP VIEW HUMERUS OLECRANAN LATERAL EPICONDYLE CAPITULUM OLECRANON FOSSA RADIAL HEAD RADIAL TUBEROSITY MEDIAL EPICONDYLE ULNA CORONOID PROCESS TROCHLEA RADIUS

  11. ELBOW-LATERAL VIEW HUMERUS RADIAL HEAD CORONOID PROCESS RADIAL TUBEROSITY OLECRANON FOSSA RADIUS ULNA OLECRANON

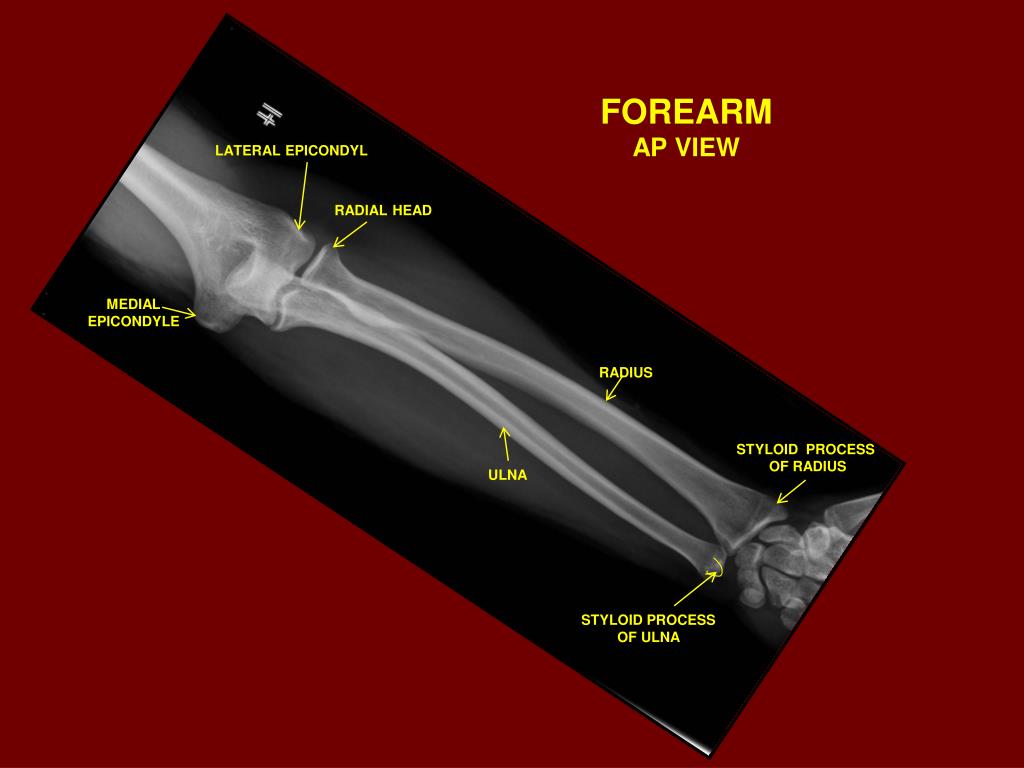

  12. FOREARM AP VIEW LATERAL EPICONDYL RADIAL HEAD MEDIAL EPICONDYLE RADIUS STYLOID PROCESS OF RADIUS ULNA STYLOID PROCESS OF ULNA

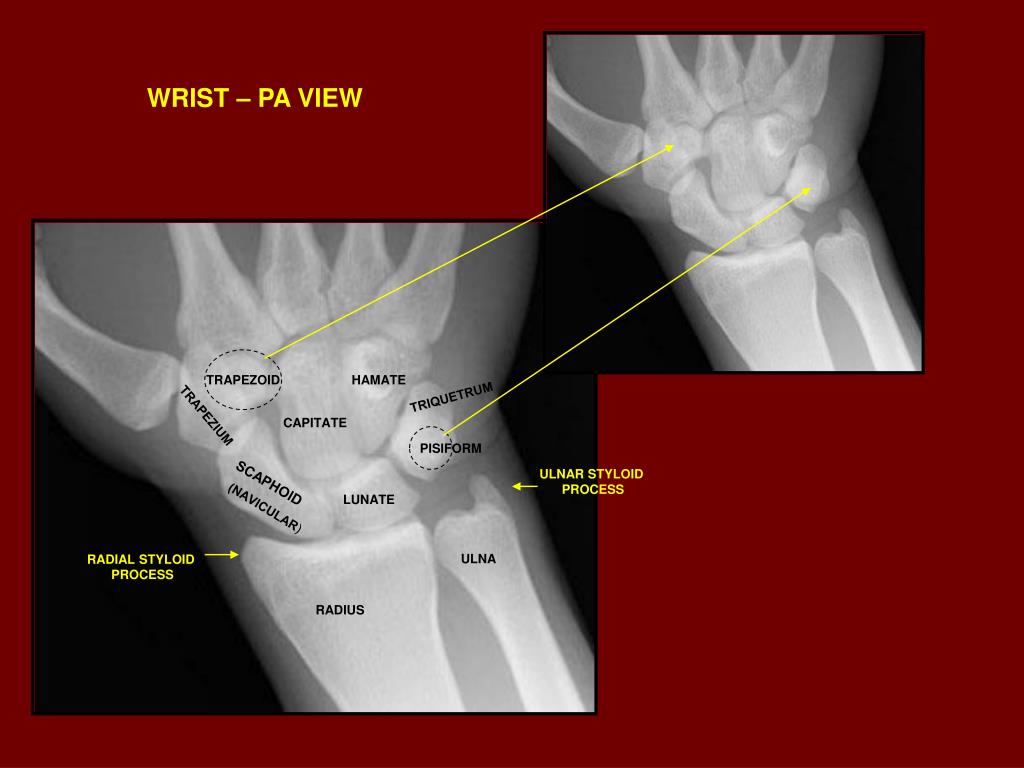

  13. WRIST – PA VIEW TRAPEZOID HAMATE TRIQUETRUM TRAPEZIUM CAPITATE PISIFORM ULNAR STYLOID PROCESS SCAPHOID LUNATE (NAVICULAR) ULNA RADIAL STYLOID PROCESS RADIUS

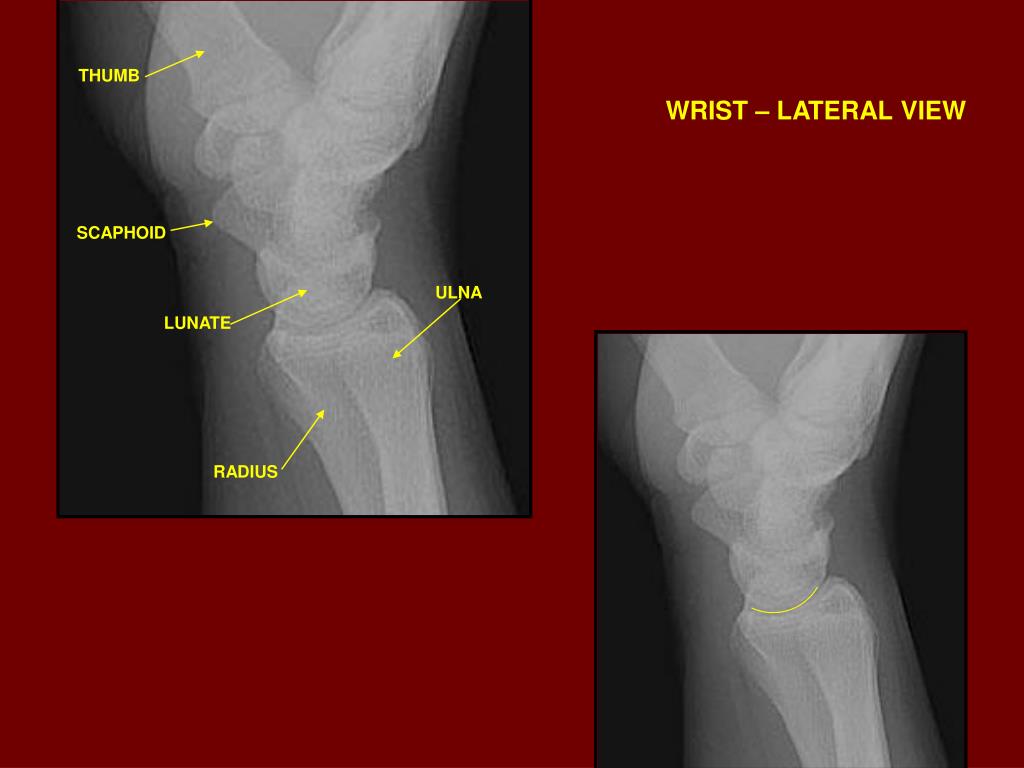

  14. THUMB WRIST – LATERAL VIEW SCAPHOID ULNA LUNATE RADIUS

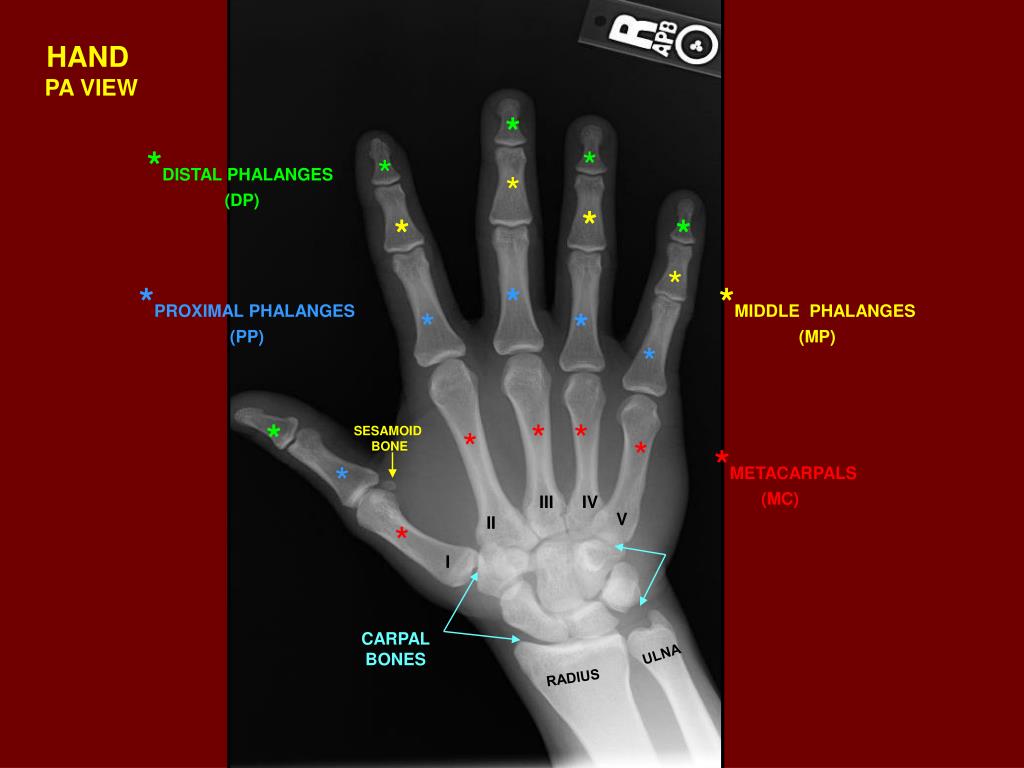

  15. HAND PA VIEW * *DISTAL PHALANGES (DP) * * * * * * * *PROXIMAL PHALANGES (PP) * *MIDDLE PHALANGES (MP) * * * * * * SESAMOID BONE * * *METACARPALS (MC) * III IV V II * I CARPAL BONES ULNA RADIUS

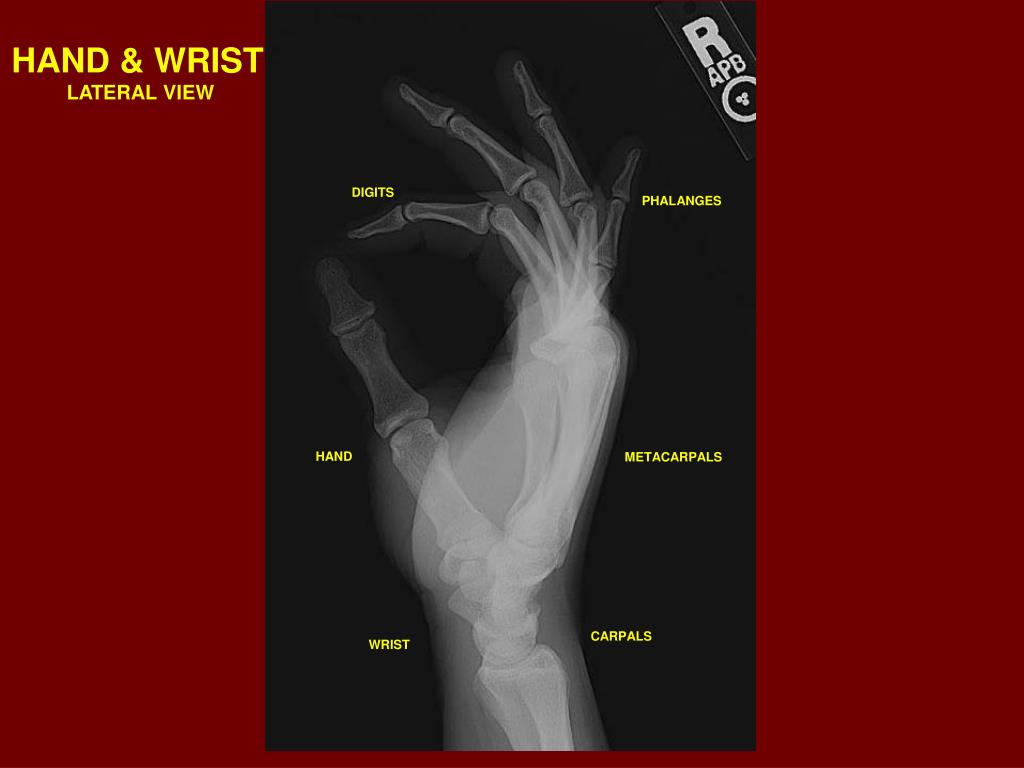

  16. HAND & WRIST LATERAL VIEW DIGITS PHALANGES HAND METACARPALS CARPALS WRIST
