The Circulatory System

The Circulatory System. The circulatory system includes the Heart , Blood Tissue and the Blood Vessels . . The Circulatory System-Transport . The absorption and circulation of materials throughout an organism . What does the circulatory system do? (What is its function?).

lilike
Download Presentation

The Circulatory System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. The Circulatory System • The circulatory system includes the Heart, Blood Tissue and the Blood Vessels.

  2. The Circulatory System-Transport • The absorption and circulation of materials throughout an organism

  3. What does the circulatory system do?(What is its function?) • Delivers food and oxygen to body cells. • Carries carbon dioxideand other waste products away from cells. • Movement of materials into and out of cells occurs by diffusion(from an area of high concentration to low concentration– no energy required) • Movement also occurs by active transport(from an area of low concentration to high– this requires energy)

  4. ** In general, the blood is a fluid tissue helping to maintain homeostasis for all cells in the body. • Transport of needed substances to body cells. (oxygen, amino acids, glucose, fatty acids, glycerol, salts, etc.)

  5. The heart functions as a double pump beating in unison. 1. Deoxygenated blood--relatively low in oxygen • Oxygenated blood--relatively high in oxygen ** Heartbeat is stimulated by an electrochemical impulse. Pacemaker - in the right atrium - initiates the heartbeat

  6. 2. Transport of wastes from cells. (urea, water, carbon dioxide in the form of the bicarbonate ion) 3. Helps to maintain a constant body temperature. 4. Aids the body in fighting disease.

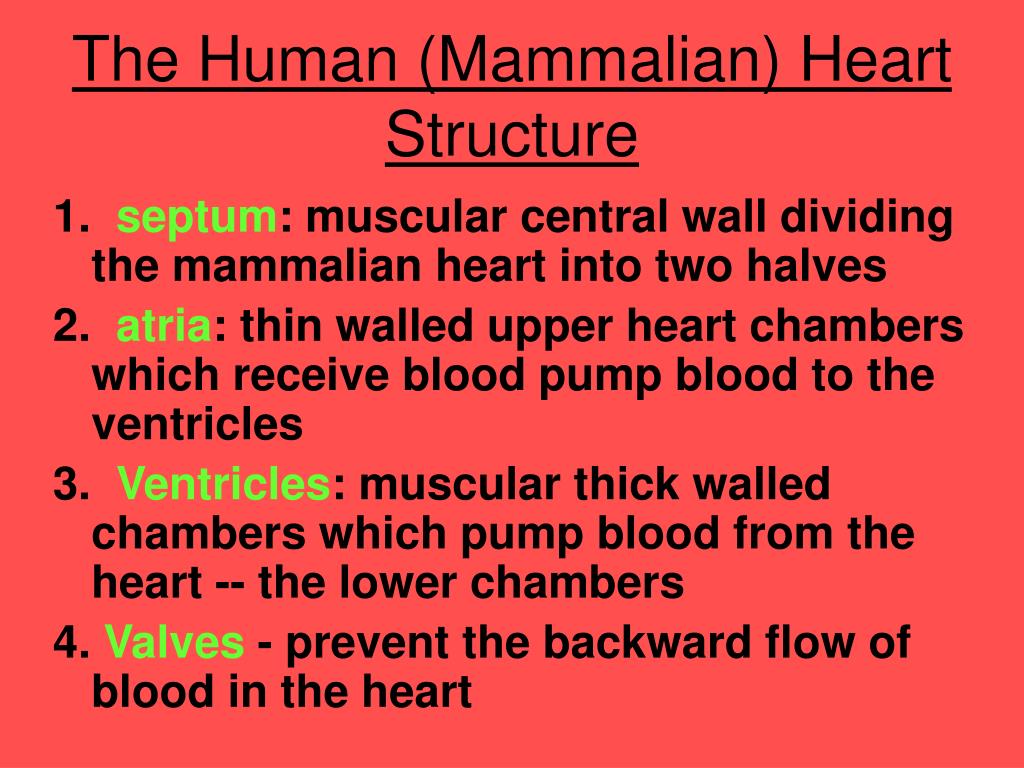

  7. The Human (Mammalian) Heart Structure 1. septum: muscular central wall dividing the mammalian heart into two halves 2. atria: thin walled upper heart chambers which receive blood pump blood to the ventricles 3. Ventricles: muscular thick walled chambers which pump blood from the heart -- the lower chambers 4. Valves - prevent the backward flow of blood in the heart

  8. A = aorta F = left ventricle B = pulmonary arteries G = right ventricle C = pulmonary veins H = valve D = left atrium I = vena cavae E = valve J = right atrium

  9. 1. Inferior & superior vena cava 2. Right atrium 3. valve 4. Right ventricle 5. valve 6. Pulmonary arteries (BLOOD TO THE LUNGS – GAS EXCHANGE) … 7. Pulmonary veins 8. Left Atrium 9. valve 10. Left ventricle 11. valve 12. Aorta

  10. Blood Vessels 1. Arteries --carry blood away from the heart --usually spurt blood when cut --all except the pulmonary artery carry oxygenated blood --thick walled and elastic pulse: expansion and contraction of the artery walls in response to the heartbeat

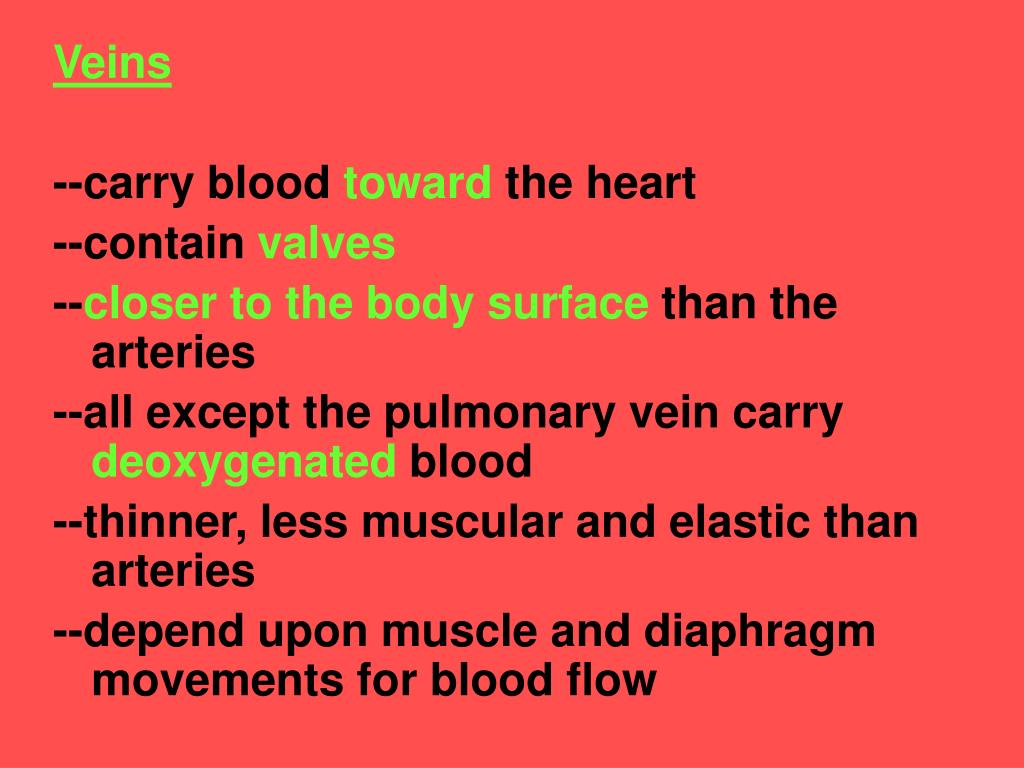

  11. Veins --carry blood toward the heart --contain valves --closer to the body surface than the arteries --all except the pulmonary vein carry deoxygenated blood --thinner, less muscular and elastic than arteries --depend upon muscle and diaphragm movements for blood flow

  12. Capillaries --most numerous vessels --connect arteries to veins --microscopic, one cell thick walls --site of much exchange between the blood and the intracellular fluid (lymph) by diffusion

  13. Lymph vessels -have walls one cell thick -present around all body cells -Lymph composition is similar to that of blood except for the absence of RBC and some plasma proteins. -chief site of material exchange with the tissues

  14. Major lymph vessels have lymph nodes which contain phagocytic white blood cells which filter bacteria and dead cells from the lymph. X = lymph nodes Valves are present in some lymph vessels--aiding in the movement of the lymph. Respiratory movements also aid lymph flow.

  15. Which Way Did it Go?

  16. Blood Pressure

  17. Causes of HBP implicated: 1. excess sodium intake 2. stress 3. cigarettes (nicotine) 4. saturated fats 5. alcohol & caffeine 6. obesity 7. heredity & aging No cure--may be treated by medication & diet. "Silent killer"--millions don't know they have it

  18. Blood Blood = a connective tissue made up of blood cellsand a liquid called blood plasma. • About 7 % of your body mass • About 4.5- 5.6 Liters in an adult human Men = 5.6 Liters Women = 4.5 Liters Pregnant woman = 5.0 Liters The Functions of Blood Delivers:Picks Up: • Nutrients - waste  kidneys • Oxygen, Water, minerals - carbon dioxide  lungs • Hormones and enzymes - heat  skin • pollutants

  19. The Parts of Blood • Plasma =carries everything 2. Red Blood Cells=(RBC) gas exchange 3. White blood Cells =(WBC) fight infection 4. Platelets = clotting

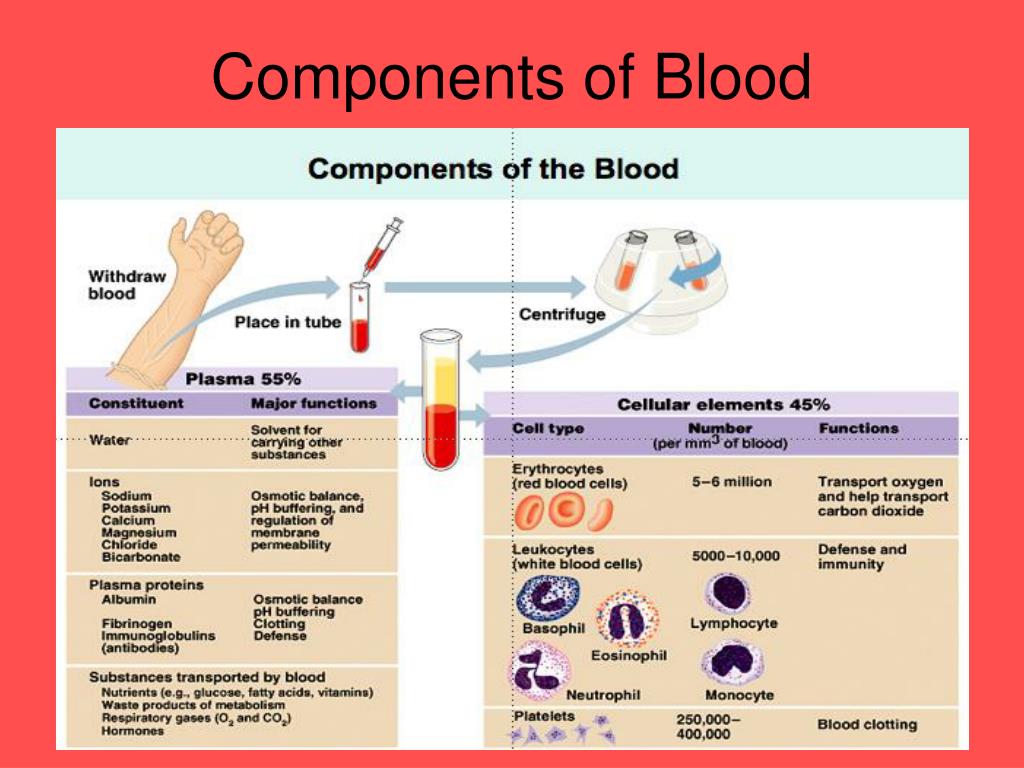

  20. Components of Blood

  21. Blood Composition • Plasma 55% (liquid part of the blood); Blood Cells 45%

  22. 55% plasma 45 % RBC, WBC and platelets

  23. Plasma- nonliving • Yellow liquid (92% H2O) • 8 % nutrients, salts, urea, hormones • Carries: RBC, WBC, Platelets, Carbon dioxide, food and waste

  24. BLOOD CELL TYPES • Red Blood Cells: • most numerous • biconcave disc shaped • smaller than white blood cells, larger than platelets • no nucleus when mature • produced in the red marrow of long bones • destroyed in the liver and spleen • contain the iron protein compound HEMOGLOBIN whose chief function is to combine with oxygen and carry it to the cells

  25. Red Blood Cells-living • 5 million in 1 drop of blood (most common) • Shape = donut Draw here: • Made in bone marrow • Live approximately 120-125 days Hemoglobin = oxygen containing pigment • Binds to oxygen and carries it to the cells • Gives red blood cells its red color

  26. White blood cells-living • AKA- Lymphocytes or Leukocytes • White blood cells are larger than red blood cells, but there are less of them. • 8000 in one drop of blood Function of White Blood Cells • surround and digest bacteria • Attack bacteria and viruses **Pus = WBC + dead bacteria YouTube - White Blood Cell Chases Bacteria

  27. White Blood cells --largest blood cells--several different types --about 8,000 per drop of blood --most are formed in the bone marrow or in the lymph tissue --most protect the body against diseases by forming antibodies or engulfing bacteria

  28. Main White Blood Cell Types • Phagocytes-- engulf bacteria and viruses by phagocytosis --able to leave the bloodstream and move between the cells of the body by squeezing through the capillary walls

  29. 2. Lymphocytes--produce antibodies which clump bacterial poisons or bacteria (antigens) (antigens--foreign substances in the body)

  30. Platelets-living • Bits of cells • Live for approximately 10days Function of Platelets • creates fibrin= enzyme that helps clot blood (tiny threads seal cuts)

  31. 3. Platelets --smallest blood cells (fragments) --150,000 to 300,000 per drop of blood --needed for clotting

  32. Clotting: Involves a series of enzyme controlled reactions resulting in the formation of protein fibers that trap blood cells and form a clot.

  33. Pacemaker- • Uses electrical impulses from wire leads inserted into the Heart. • Keeps the Heart in perfect rhythm.

  34. Diseases and Disorders of the Circulatory System • MyocardialInfarction- heart attack • Hypertension- high blood pressure • Hypotension- low blood pressure • Stroke- clot in the brain • AnginaPectoris- severe pain in chest • Sickle Cell Anemia- sickle shaped rbc’s • Pernicious Anemia- very low rbc count • MVP- prolapsed mitral valve • Pericarditis- inflammation of outer membrane covering the heart • Leukemia- cancer of the blood, elevated wbc count • Varicose veins- enlargement of veins • Arrhythmias- irregularities in heart rhythm • Endocarditis- inflammation of inner lining of heart • Cardiomyopathy- weakening of the heart muscle • Hemophilia- no clotting factor in the blood • Thalassemia- low rbc count, genetic, low hemoglobin count

  35. Heart Disease

  36. Mitral Valve Surgery

  37. Aortic Aneurysm

  38. Aortic Valve Replacement
