Modeling Algal Growth in MATLAB Using Photosynthetic Factory Dynamics

This MATLAB code simulates algal growth using the photosynthetic factory model, focusing on the Porphyridium sp. strain. It assumes constant light intensity and initializes all cells to an inactive state. Two runs are conducted: the first with Me=0 and the second with Me=0.05908 h^−1. The model calculates changes in cell concentrations over time, plotting results for active and inactive cells. Future improvements include incorporating light intensity as a function of cell concentration and adjusting system dimensions in calculations.

lilac
Download Presentation

Modeling Algal Growth in MATLAB Using Photosynthetic Factory Dynamics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Matlab Model

  2. Assumptions • Use the photosynthetic factory model. • Assume light intensity is constant, not a function of anything. • All cells are initially in the inactive state. • For the 1st runs, assume Me=0 • For the 2nd run, set Me=0.05908h-1 • All the constants are from Merchuk et. al. 1996, 2000,2004) • The algae strain they used was Porphyridum sp.

  3. Matlab Code function algae2() tspan=[0 10000]; xzero=[1 0 8000 0]; [t,x]=ode45(@dalgaedt,tspan, xzero); x(:,4)=1-x(:,1)-x(:,2); figure (1) plot(t, x(:,3)) hold figure (2) plot(t,x(:,1), t,x(:,2), t, x(:,4)) end function dxdt=dalgaedt(t,x) alpha=0.001935; beta=5.7848e-7; gamma=0.1460; delta=0.0004796; k=3.6467e-4; Io=250; Me= 0; dxdt=zeros(size(x)); dxdt(1)=(-alpha*Io*x(1))+(gamma*x(2))+(delta*(1-x(1)-x(2))); dxdt(2)=(alpha*Io*x(1))-(gamma*x(2))-(beta*Io*x(2)); dxdt(3)=(k*gamma*x(2)*x(3))-(Me*x(3)); end

  4. For Me=0, xo=106 cell/ ml ,x1=1, t=10000s,

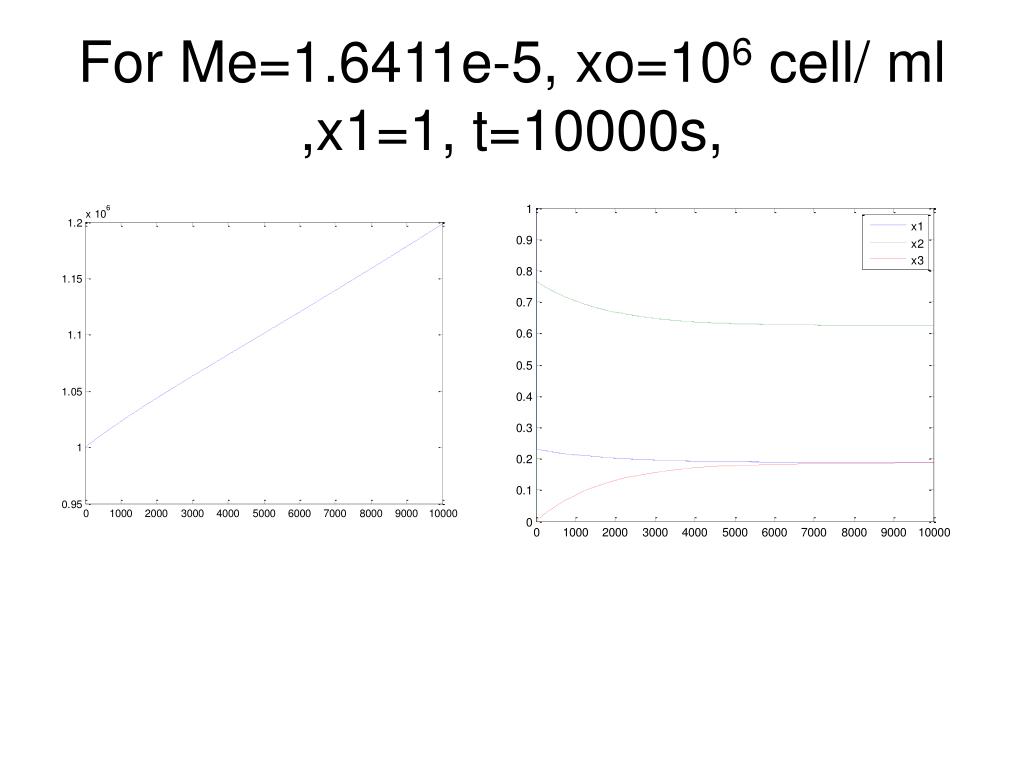

  5. For Me=1.6411e-5, xo=106 cell/ ml ,x1=1, t=10000s,

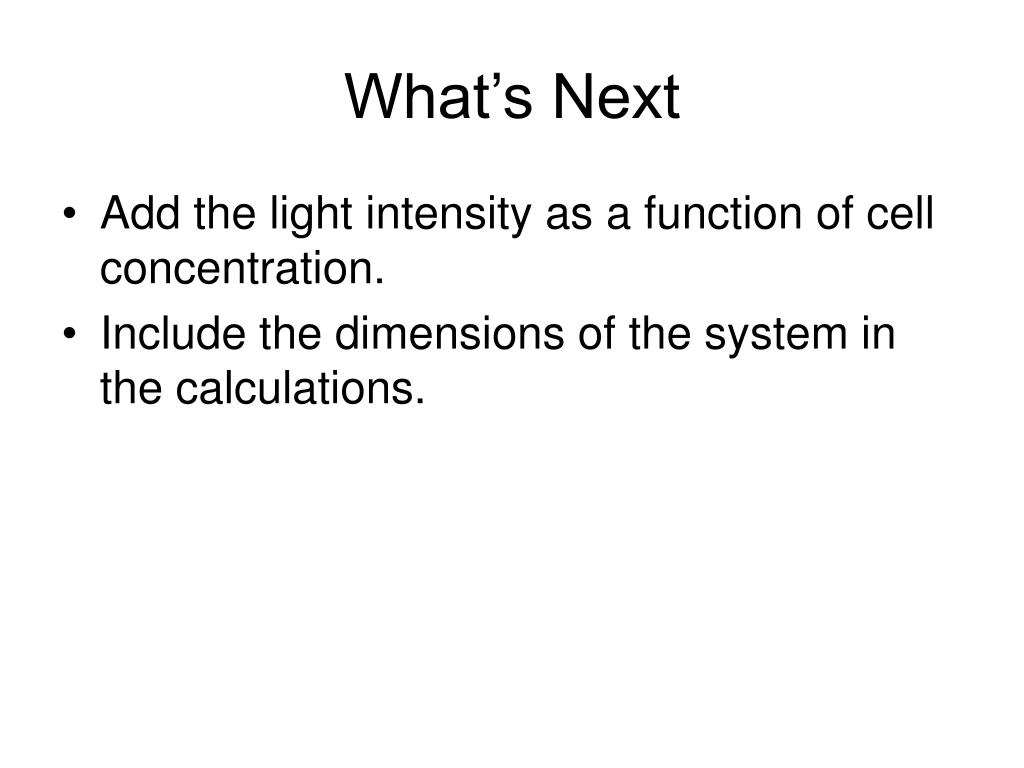

  6. What’s Next • Add the light intensity as a function of cell concentration. • Include the dimensions of the system in the calculations.
