  1. UNC MSK Course Day 9 Lab XR UNKNOWNS (for self study)

  2. Pathology?

  3. Pathology? Inflammation of 1st MTP joint

  4. Pathology? Inflammation of 1st MTP joint Gout

  5. Pathology?

  6. Pathology? Medial joint space narrowing (mild)

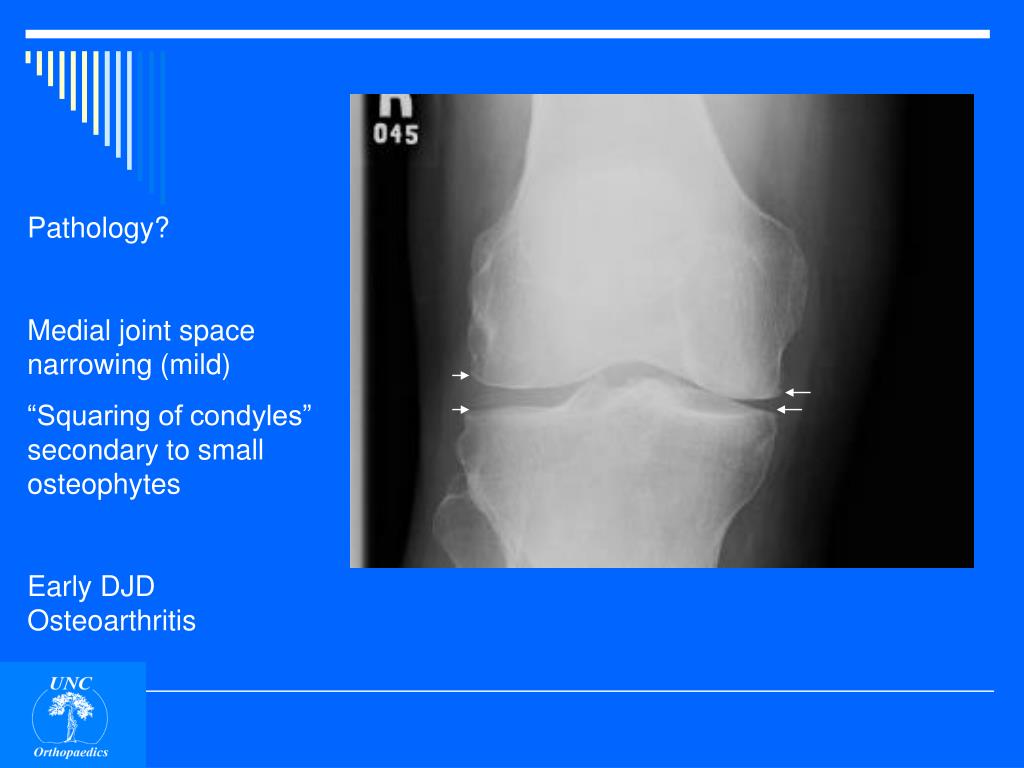

  7. Pathology? Medial joint space narrowing (mild) “Squaring of condyles” secondary to small osteophytes Early DJD Osteoarthritis

  8. Pathology? Medial joint space narrowing (mild) “Squaring of condyles” secondary to small osteophytes Early DJD Osteoarthritis Normal knee for comparison round square

  9. Pathology? Medial joint space narrowing (mild) “Squaring of condyles” secondary to small osteophytes Early DJD Osteoarthritis For extra credit note faint calcification of lateral meniscus from CPPD (pseudogout)

  10. Pathology?

  11. Pathology? Lumps about joints Erosions over lumps with exposed white material

  12. Pathology? Lumps about joints (tophi) Erosions over lumps with exposed white material (sodium urate crystals – tophi) Gout

  13. Pathology?

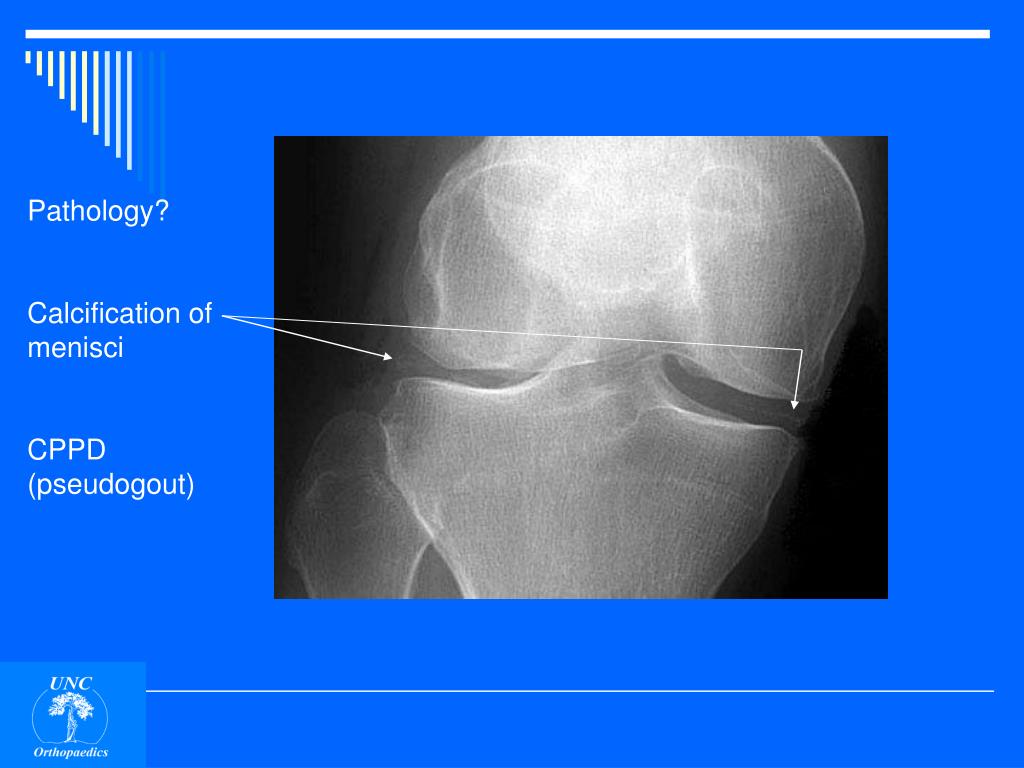

  14. Pathology? Calcification of menisci

  15. Pathology? Calcification of menisci CPPD (pseudogout)

  16. Pathology?

  17. Pathology? Calcification of triangular fibrocartilaginous disc over ulnar head

  18. Pathology? Calcification of triangular fibrocartilaginous disc over ulnar head CPPD (pseudogout)

  19. Pathology?

  20. Pathology? • Joint space narrowing

  21. Pathology? • Joint space narrowing • Osteophytes

  22. Pathology? • Joint space narrowing • Osteophytes • Subchondral sclerosis

  23. Pathology? • Joint space narrowing • Osteophytes • Subchondral sclerosis • Subchondral cysts

  24. Pathology? • Joint space narrowing • Osteophytes • Subchondral sclerosis • Subchondral cysts • These are the four classic radiographic findings in DJD

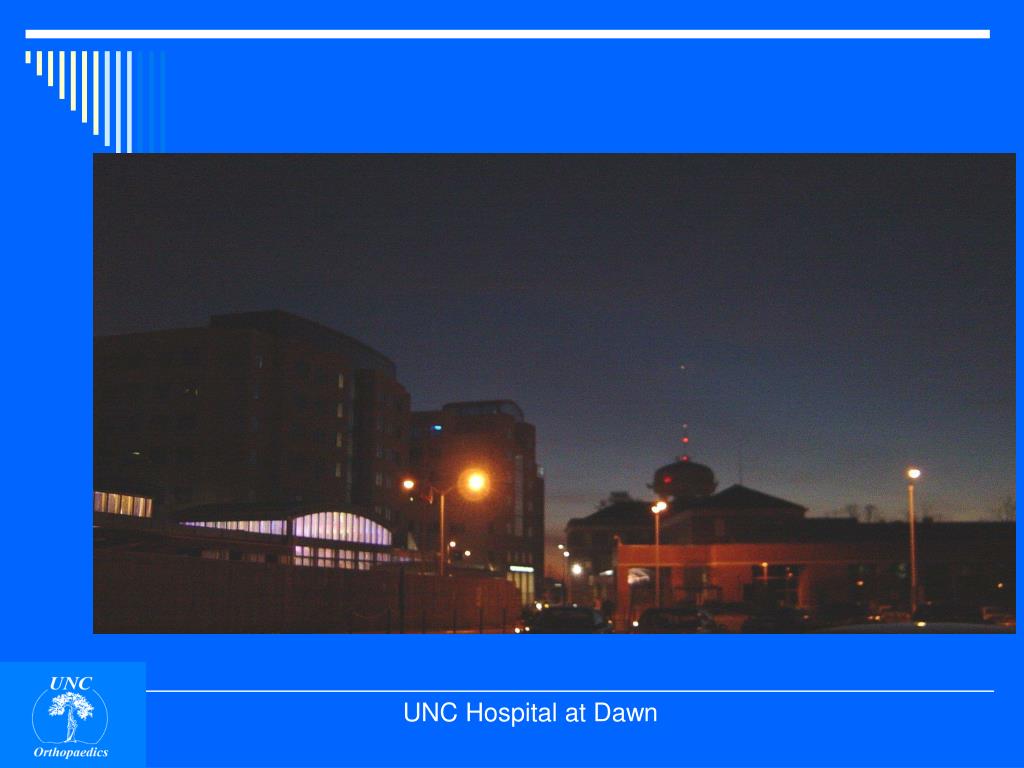

  25. UNC Hospital at Dawn
