Presentation Transcript
agenda
Agenda
  • Improved Support for Events
  • List Relationships and Joins
  • Field & List Item validation and improvements
  • Large List Support
  • XSL Based Views
  • InfoPath for list forms and web part usage
new improved events

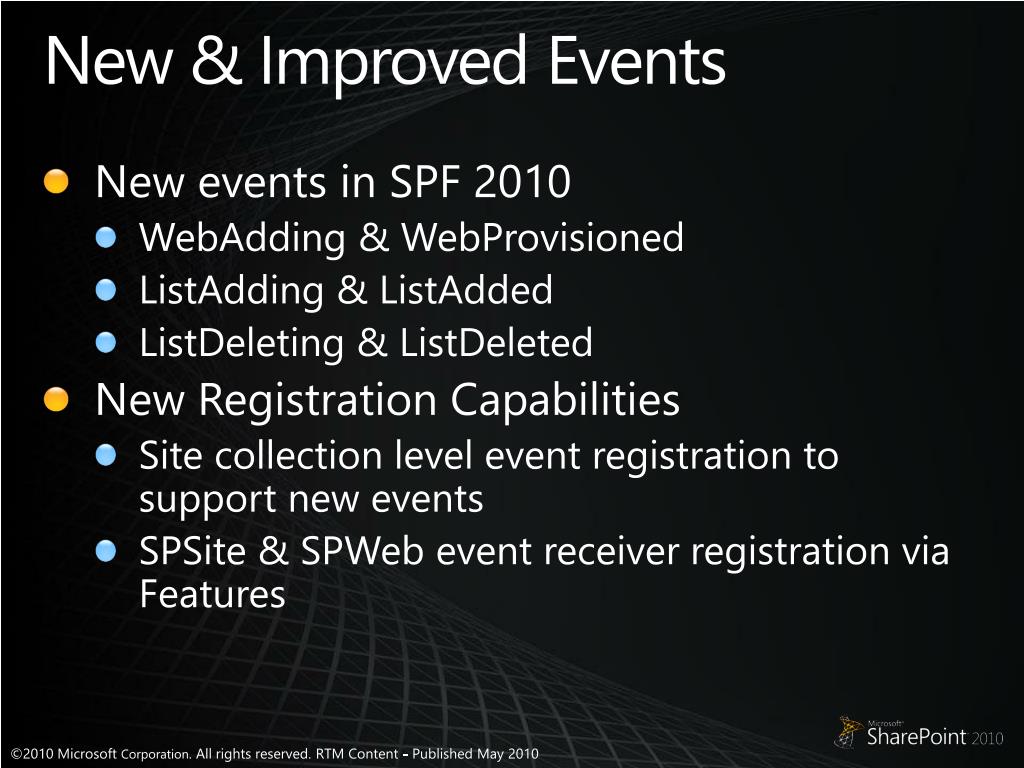

New & Improved Events
  • New events in SPF 2010
    • WebAdding & WebProvisioned
    • ListAdding & ListAdded
    • ListDeleting & ListDeleted
  • New Registration Capabilities
    • Site collection level event registration to support new events
    • SPSite & SPWeb event receiver registration via Features

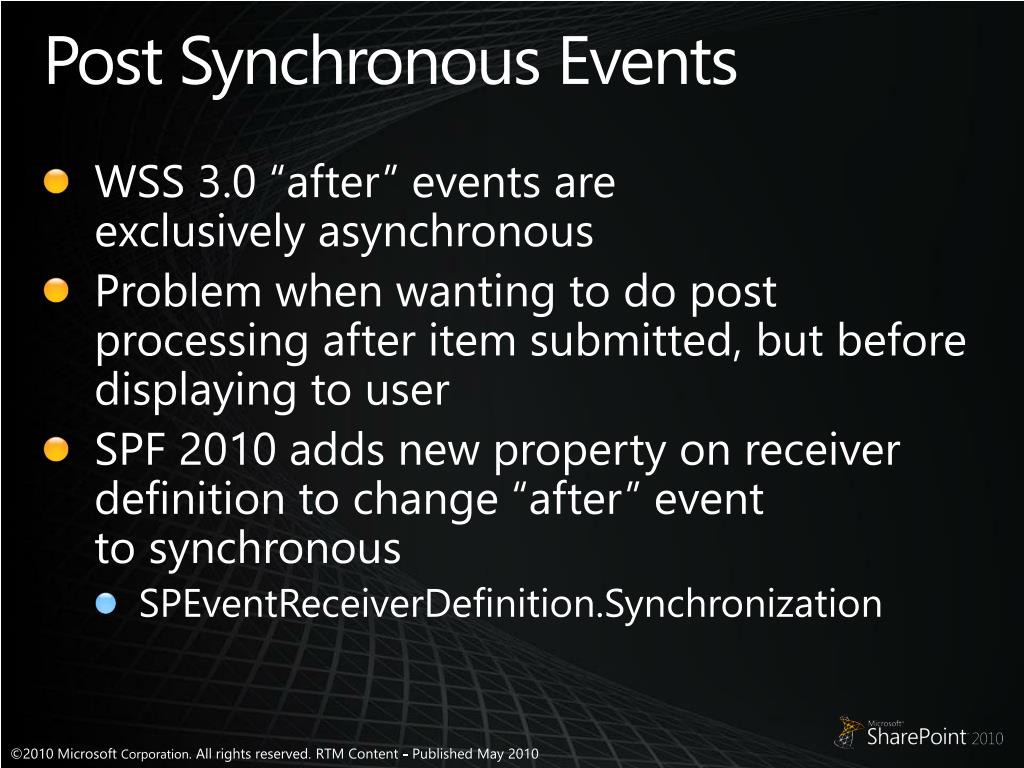

post synchronous events
Post Synchronous Events
  • WSS 3.0 “after” events are exclusively asynchronous
  • Problem when wanting to do post processing after item submitted, but before displaying to user
  • SPF 2010 adds new property on receiver definition to change “after” event to synchronous
    • SPEventReceiverDefinition.Synchronization
cancelling events custom error pages

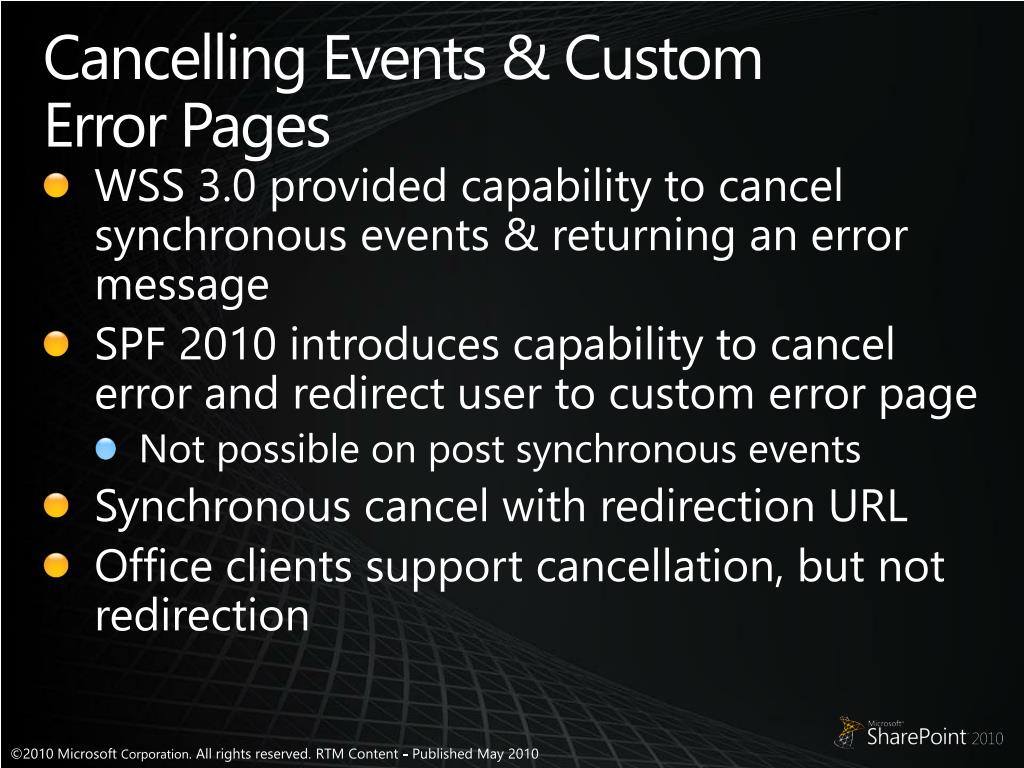

Cancelling Events & Custom Error Pages
  • WSS 3.0 provided capability to cancel synchronous events & returning an error message
  • SPF 2010 introduces capability to cancel error and redirect user to custom error page
    • Not possible on post synchronous events
  • Synchronous cancel with redirection URL
  • Office clients support cancellation, but not redirection
event impersonation improvements

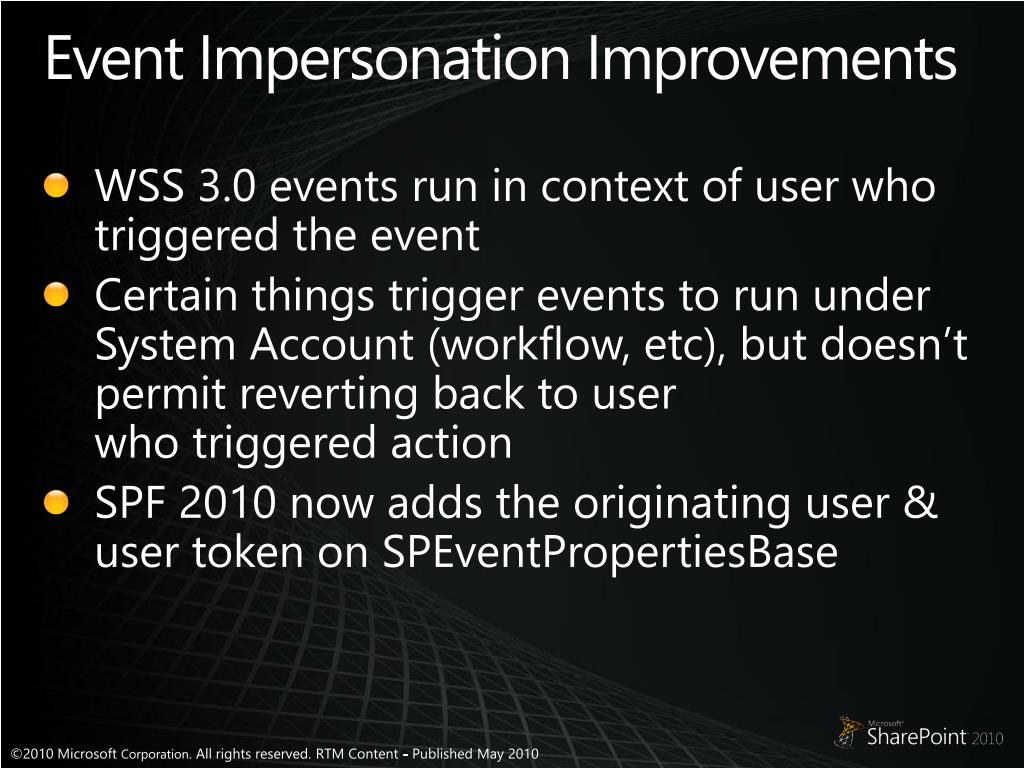

Event Impersonation Improvements
  • WSS 3.0 events run in context of user who triggered the event
  • Certain things trigger events to run under System Account (workflow, etc), but doesn’t permit reverting back to user who triggered action
  • SPF 2010 now adds the originating user & user token on SPEventPropertiesBase

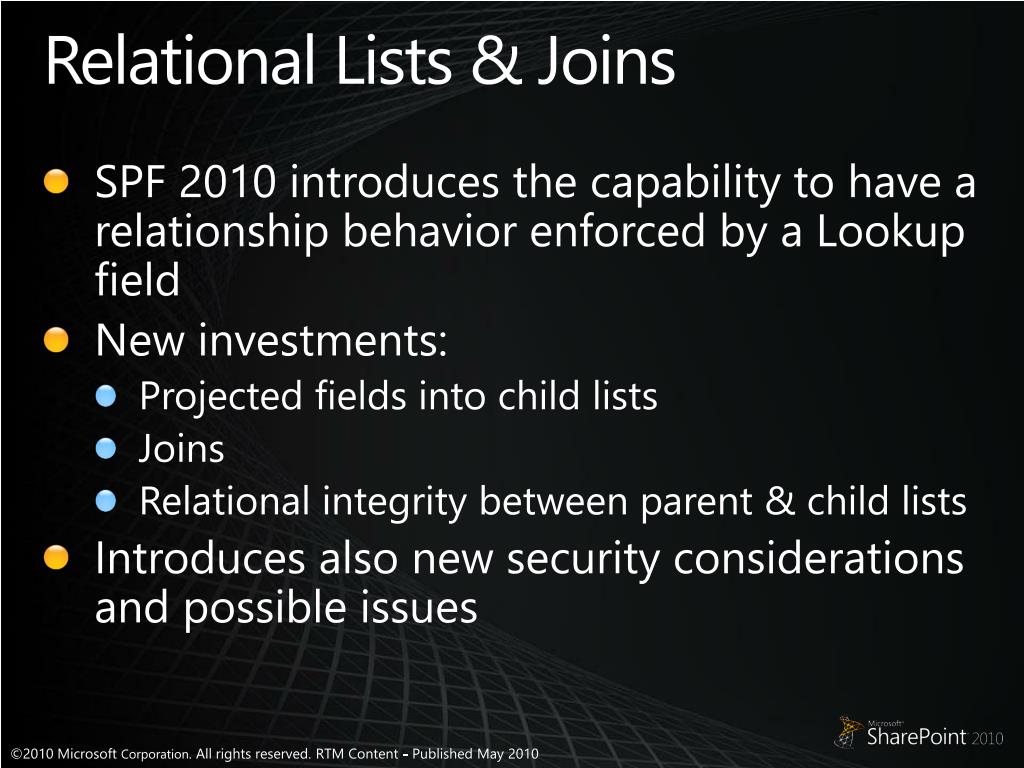

relational lists joins
Relational Lists & Joins
  • SPF 2010 introduces the capability to have a relationship behavior enforced by a Lookup field
  • New investments:
    • Projected fields into child lists
    • Joins
    • Relational integrity between parent & child lists
  • Introduces also new security considerations and possible issues
list lookups

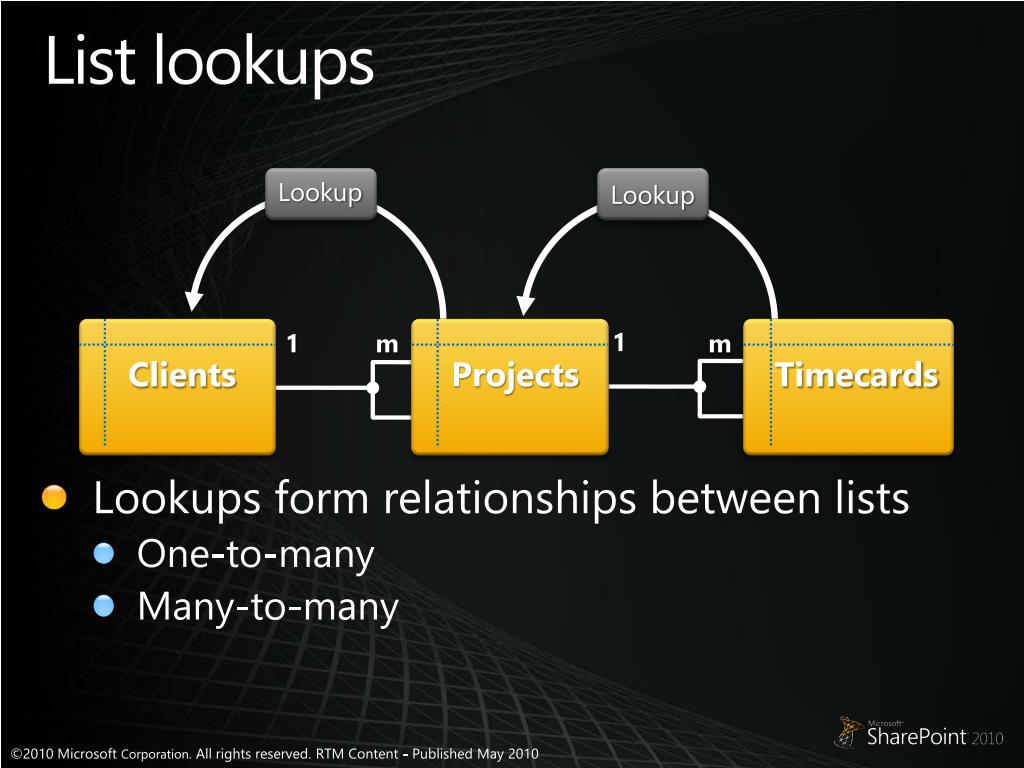

List lookups
  • Lookups form relationships between lists
    • One-to-many
    • Many-to-many

Lookup

Lookup

1

1

m

m

Clients

Projects

Timecards

list relationships and data integrity

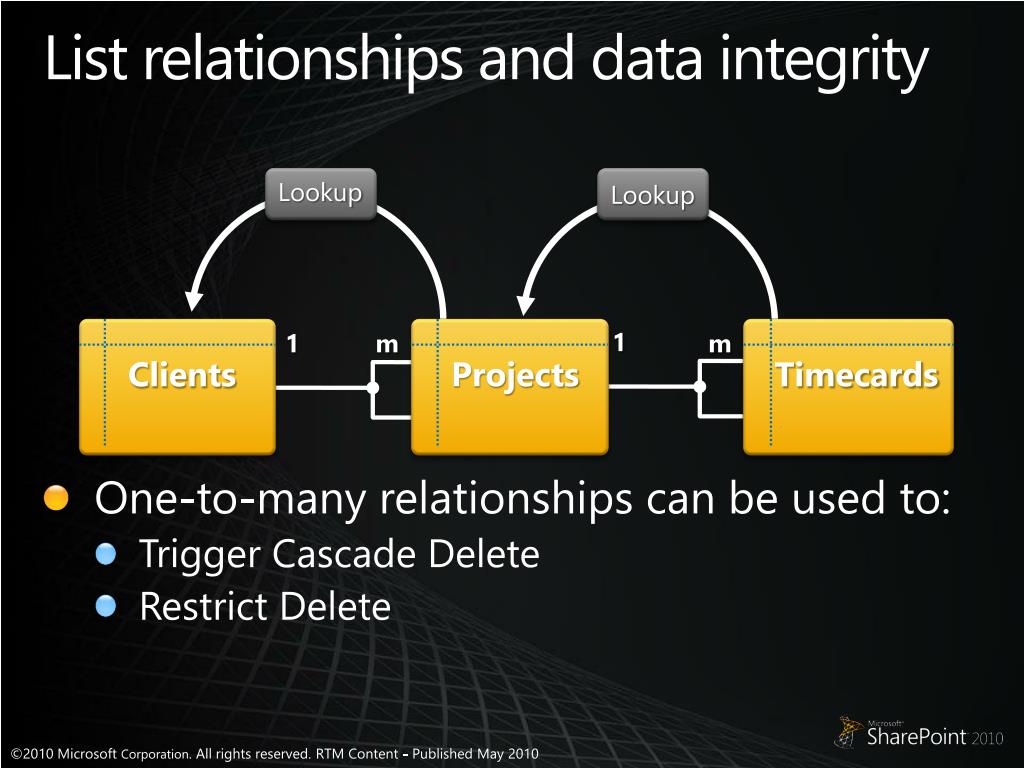

List relationships and data integrity
  • One-to-many relationships can be used to:
    • Trigger Cascade Delete
    • Restrict Delete

Lookup

Lookup

1

1

m

m

Clients

Projects

Timecards

list joins and projections
List joins and projections
  • Query within and across lists:
    • Join lists using lookup columns
    • Lookup to multiple columns

Lookup

Lookup

1

1

m

m

Clients

Projects

Timecards

Query

Result Set

projected fields and joins

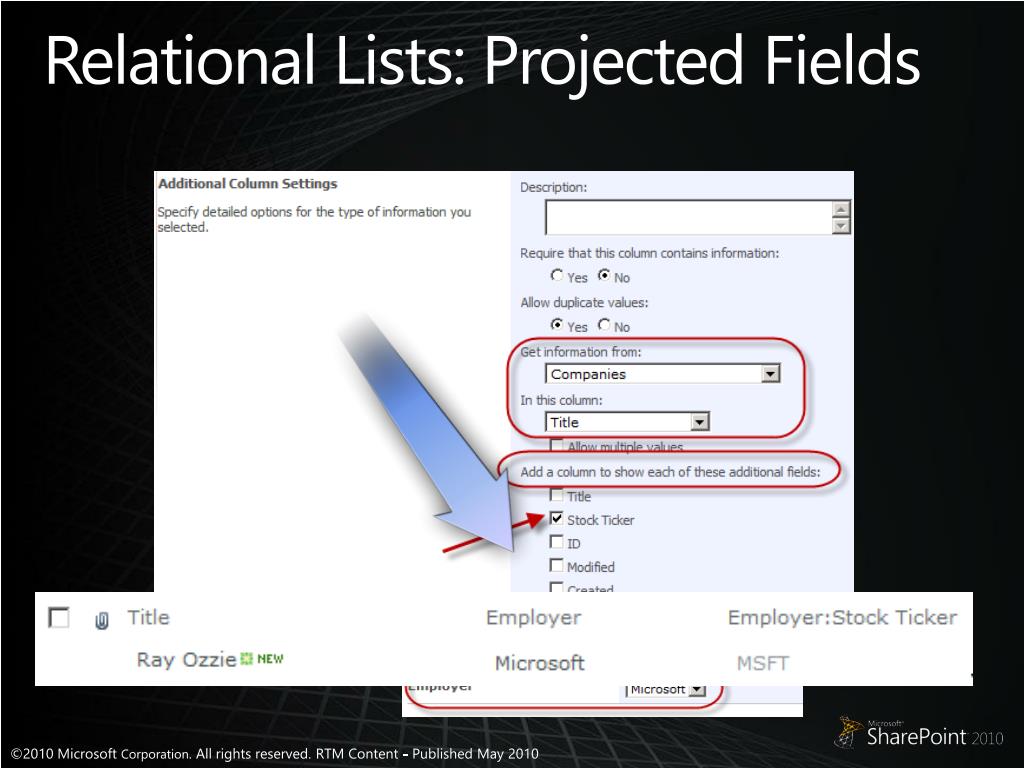

Projected Fields and joins
  • Projected Fields
    • Extra field pulled from parent list into view of child list
    • Via browser interface, users add a lookup
    • User can select a secondary fields to pull into the child list
  • Joins
    • Joins can only be implemented by developers using the API, CAML or SharePoint Designer 2010
    • New properties on SPQuery:
      • SPQuery.Join & SPQuery.ProjectedFields
    • Use SPLinq instead of CAML to join two lists in code easily
large list support20

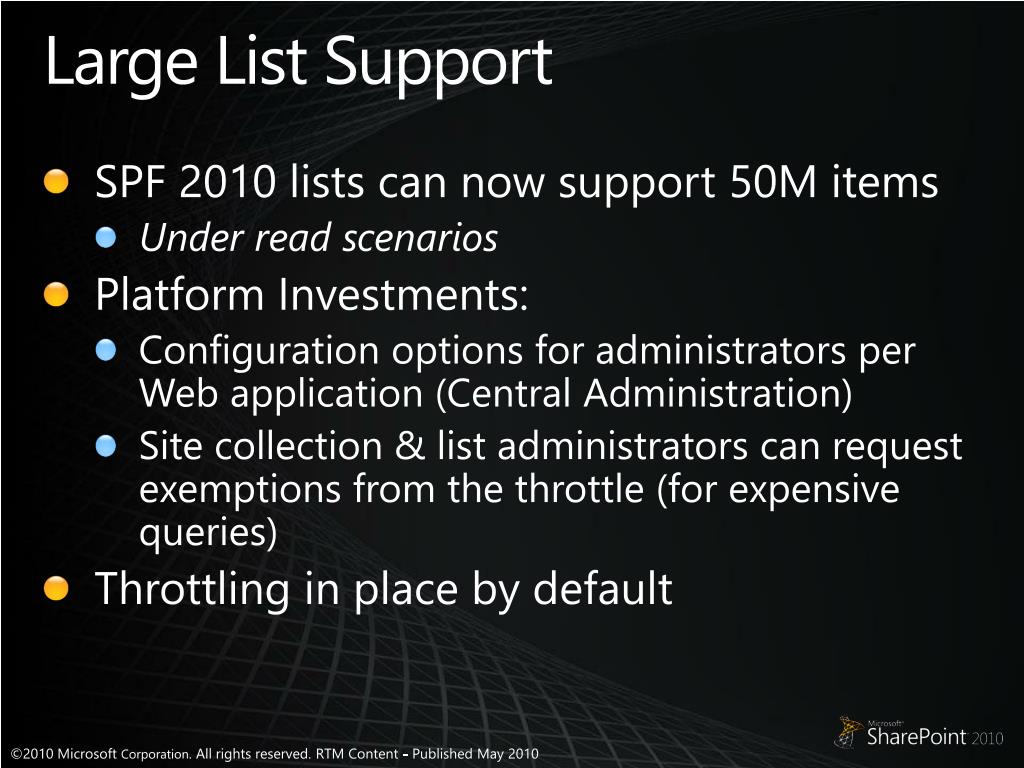

Large List Support
  • SPF 2010 lists can now support 50M items
    • Under read scenarios
  • Platform Investments:
    • Configuration options for administrators per Web application (Central Administration)
    • Site collection & list administrators can request exemptions from the throttle(for expensive queries)
  • Throttling in place by default
managing large lists
Managing Large Lists
  • Web Application Settings:
    • List view threshold (w/ warning threshold)
    • Allow object model override
      • Enables developers with sufficient permissions to programmatically use the List View Threshold for administrators and auditors, which is higher than the normal user's List View Threshold by default:
        • List View Threshold: 5,000 items
        • List View Threshold for Administrators and Auditors: 20,000 items
    • Daily window time for expensive queries without threshold
managing large lists 2

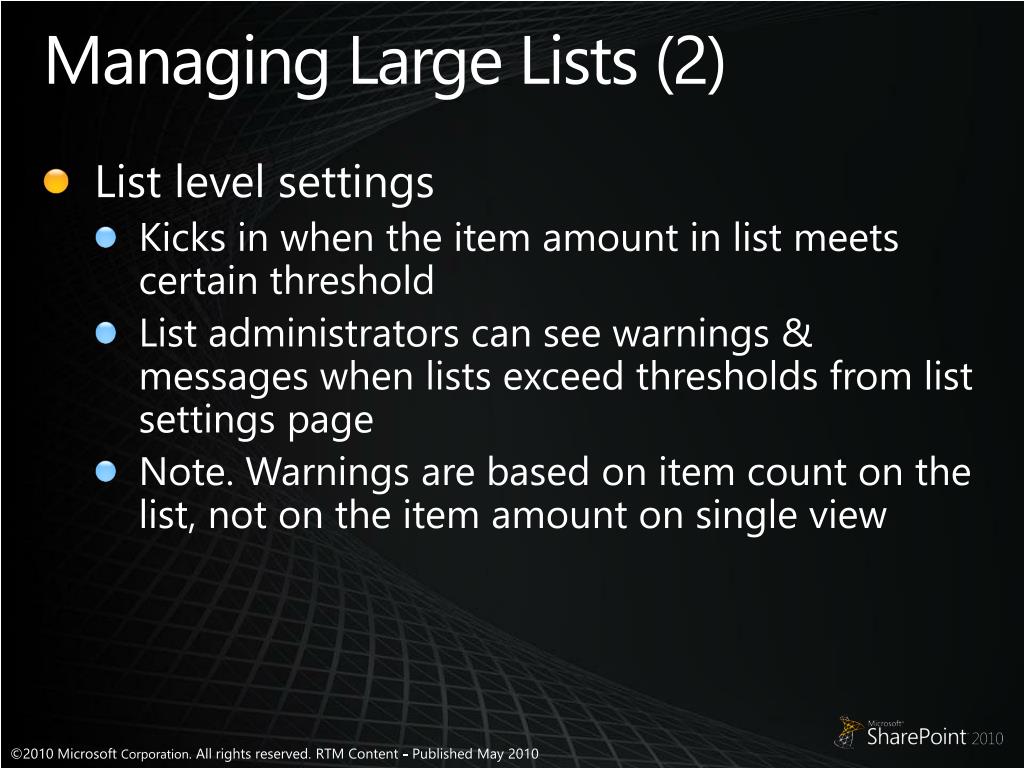

Managing Large Lists (2)
  • List level settings
    • Kicks in when the item amount in list meets certain threshold
    • List administrators can see warnings & messages when lists exceed thresholds from list settings page
    • Note. Warnings are based on item count on the list, not on the item amount on single view
content iteration handling items in batches

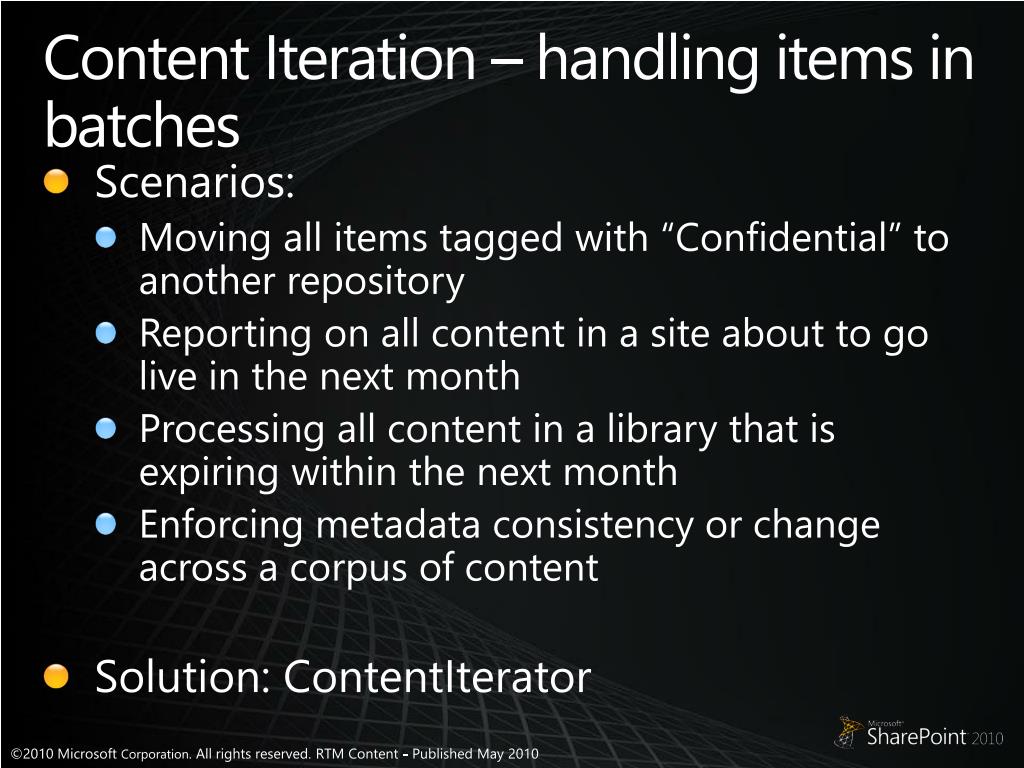

Content Iteration – handling items in batches
  • Scenarios:
    • Moving all items tagged with “Confidential” to another repository
    • Reporting on all content in a site about to go live in the next month
    • Processing all content in a library that is expiring within the next month
    • Enforcing metadata consistency or change across a corpus of content
  • Solution: ContentIterator
threshold
Threshold

query.Query =“<where><Lt><FieldRef Name=‘Expiration’/>” +    “<Value type=‘DateTime’>2009-07-01</Value></Lt></where>” query.ViewAttributes = “Scope=‘Recursive’”;SPListItemCollection items = list.GetItems(query);

Foreach (SpListItem iteminitems) {// Add to report}

List

20,000

All items:

Expiration < 07/01/2009

6,000

Expiration >= 07/01/2009

14,000

Sorted by index:

5,000

Threshold!

SPQuery:

using contentiterator

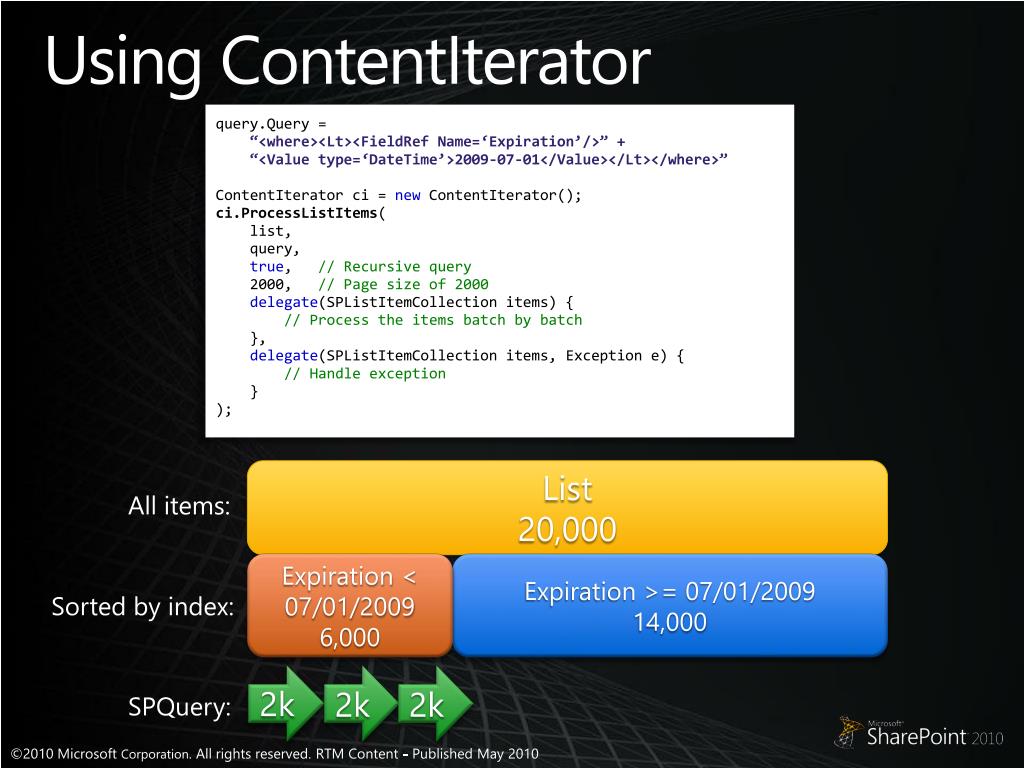

Using ContentIterator

query.Query =“<where><Lt><FieldRef Name=‘Expiration’/>” +    “<Value type=‘DateTime’>2009-07-01</Value></Lt></where>”ContentIterator ci =newContentIterator();ci.ProcessListItems(list,query,true,// Recursive query2000,// Page size of 2000delegate(SPListItemCollection items) {// Process the items batch by batch},delegate(SPListItemCollection items, Exception e) {// Handle exception   });

List

20,000

All items:

Expiration < 07/01/2009

6,000

Expiration >= 07/01/2009

14,000

Sorted by index:

2k

2k

2k

SPQuery:

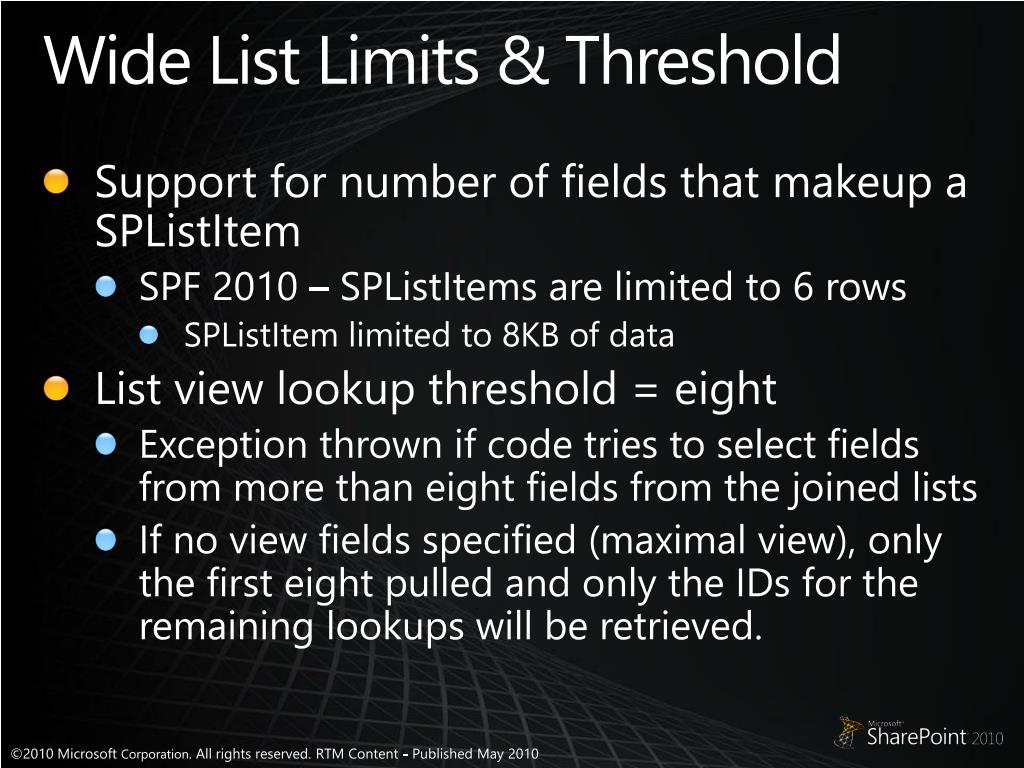

wide list limits threshold
Wide List Limits & Threshold
  • Support for number of fields that makeup a SPListItem
    • SPF 2010 – SPListItems are limited to 6 rows
      • SPListItem limited to 8KB of data
  • List view lookup threshold = eight
    • Exception thrown if code tries to select fields from more than eight fields from the joined lists
    • If no view fields specified (maximal view), only the first eight pulled and only the IDs for the remaining lookups will be retrieved.

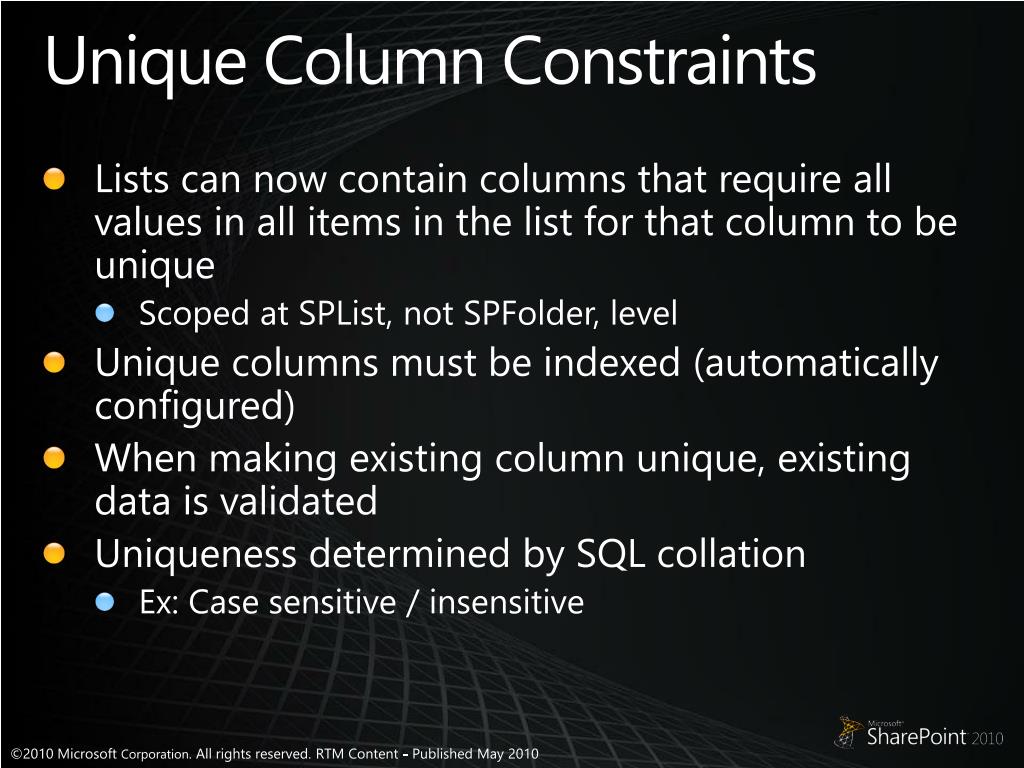

unique column constraints
Unique Column Constraints
  • Lists can now contain columns that require all values in all items in the list for that column to be unique
    • Scoped at SPList, not SPFolder, level
  • Unique columns must be indexed (automatically configured)
  • When making existing column unique, existing data is validated
  • Uniqueness determined by SQL collation
    • Ex: Case sensitive / insensitive

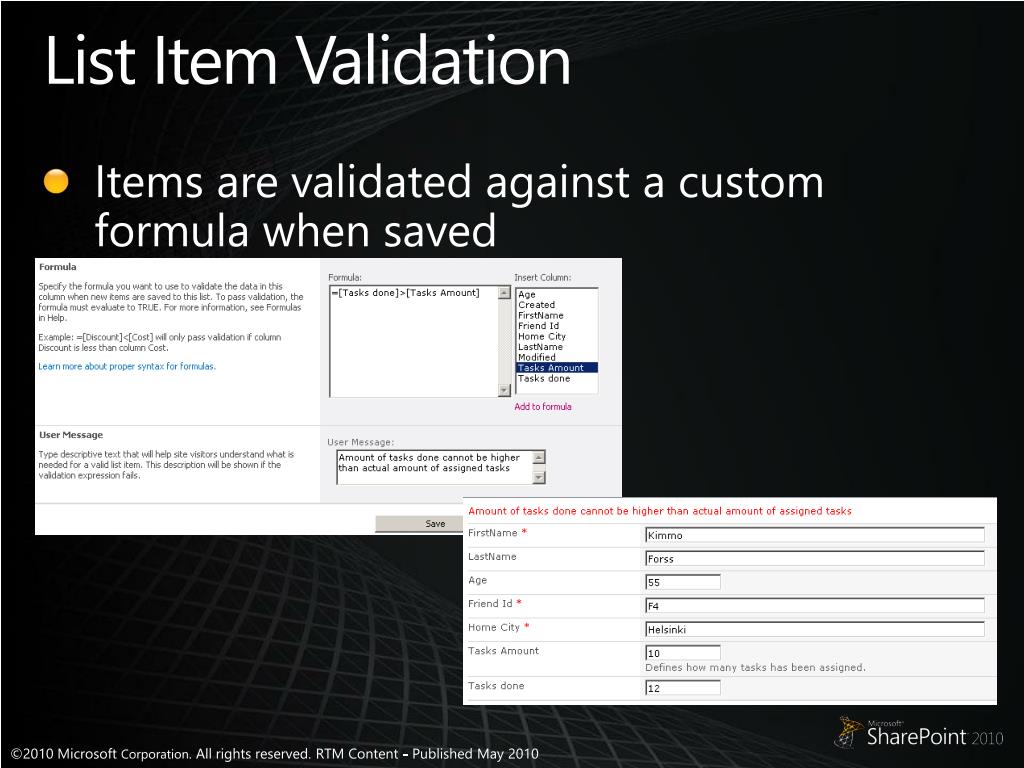

list item validation
List Item Validation
  • Items are validated against a custom formula when saved

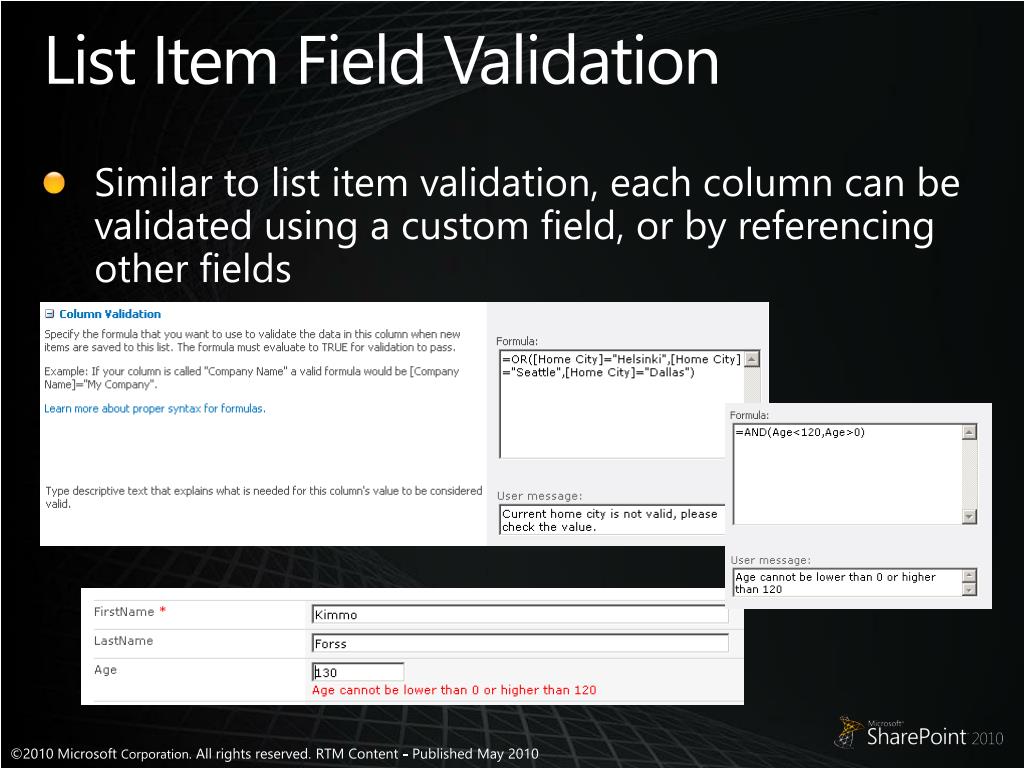

list item field validation
List Item Field Validation
  • Similar to list item validation, each column can be validated using a custom field, or by referencing other fields
defining validations from code

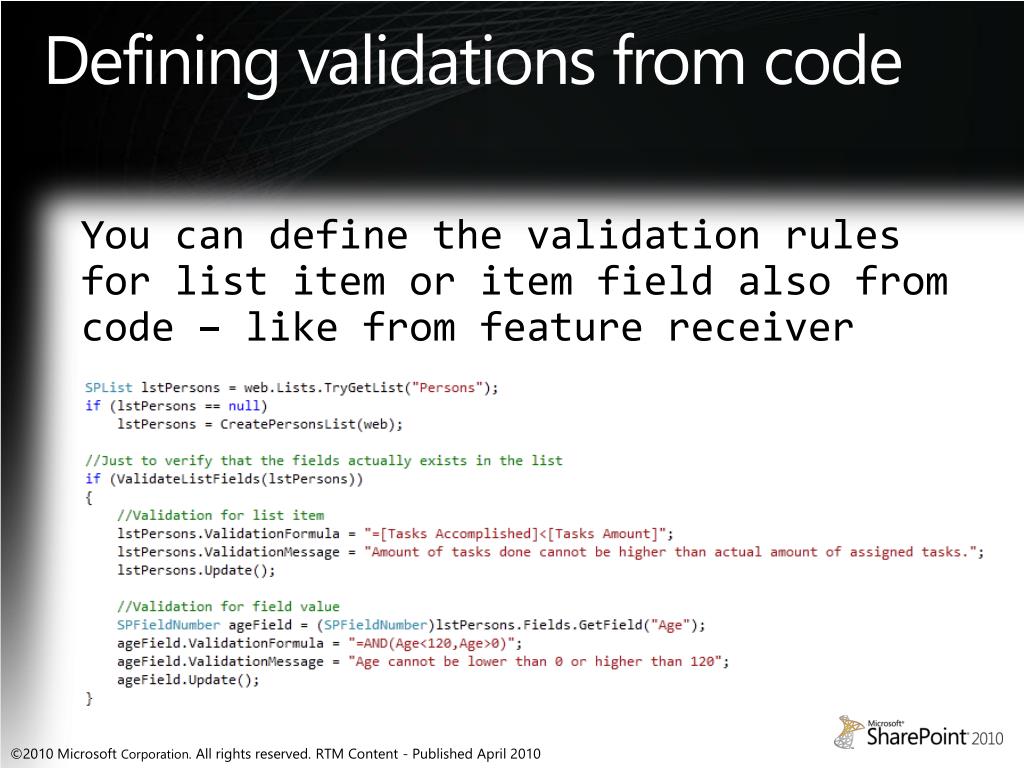

Defining validations from code
  • You can define the validation rules for list item or item field also from code – like from feature receiver
xsltlistviewwebpart
XsltListViewWebPart
  • Replaces ListViewWebPart
  • Rich customization support through SPD
  • Schema agnostic
  • Better UX
  • In-Place Editing
inside the xsltlistviewwebpart
Inside the XsltListViewWebPart

CAML Query

XmlDefinition

SPDataSource

XML Data

XsltListViewWebPart

HTML

List Schema

ListName

XslCompiledTransform

View Transform

XSL

sharepoint list solutions

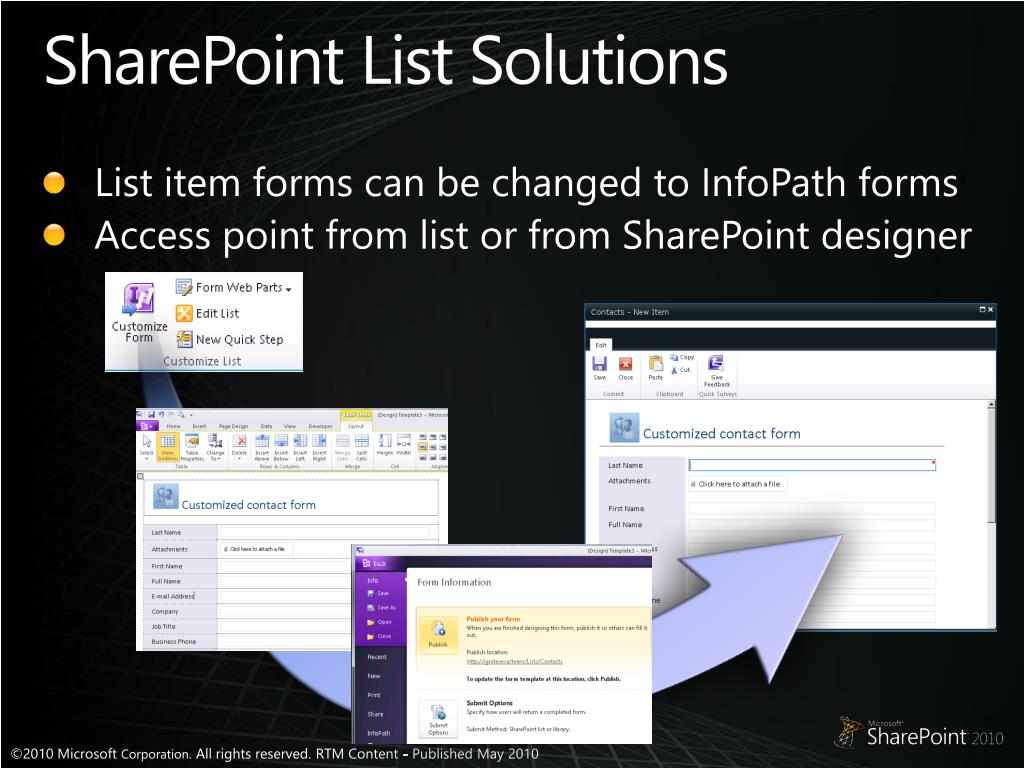

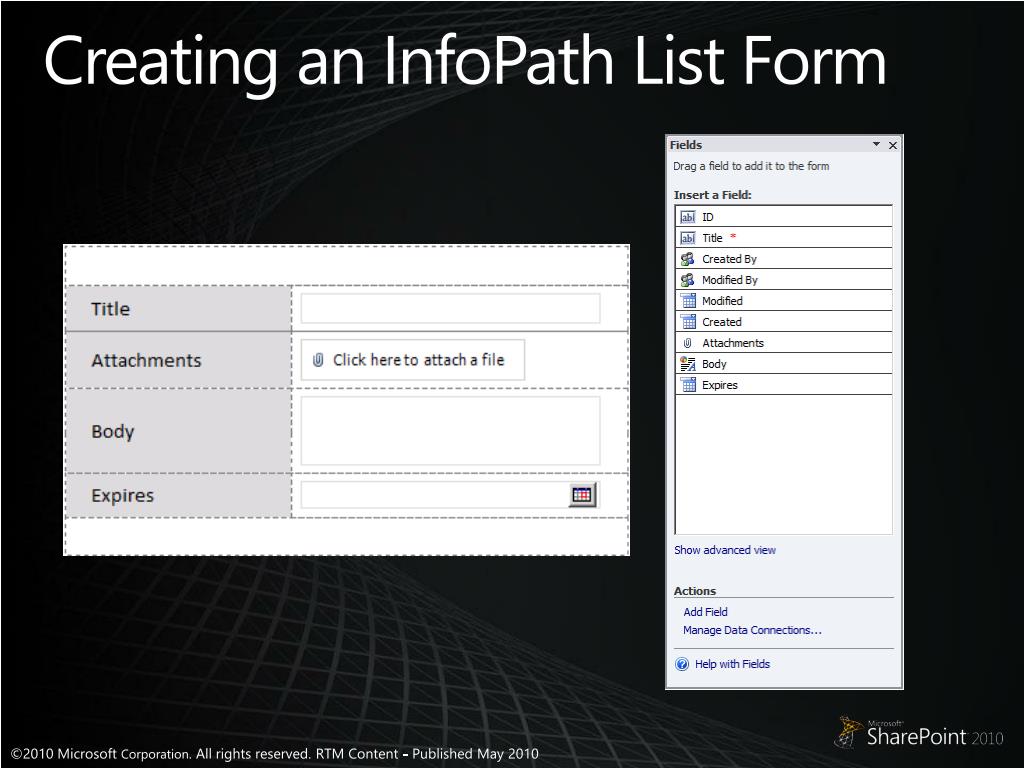

SharePoint List Solutions

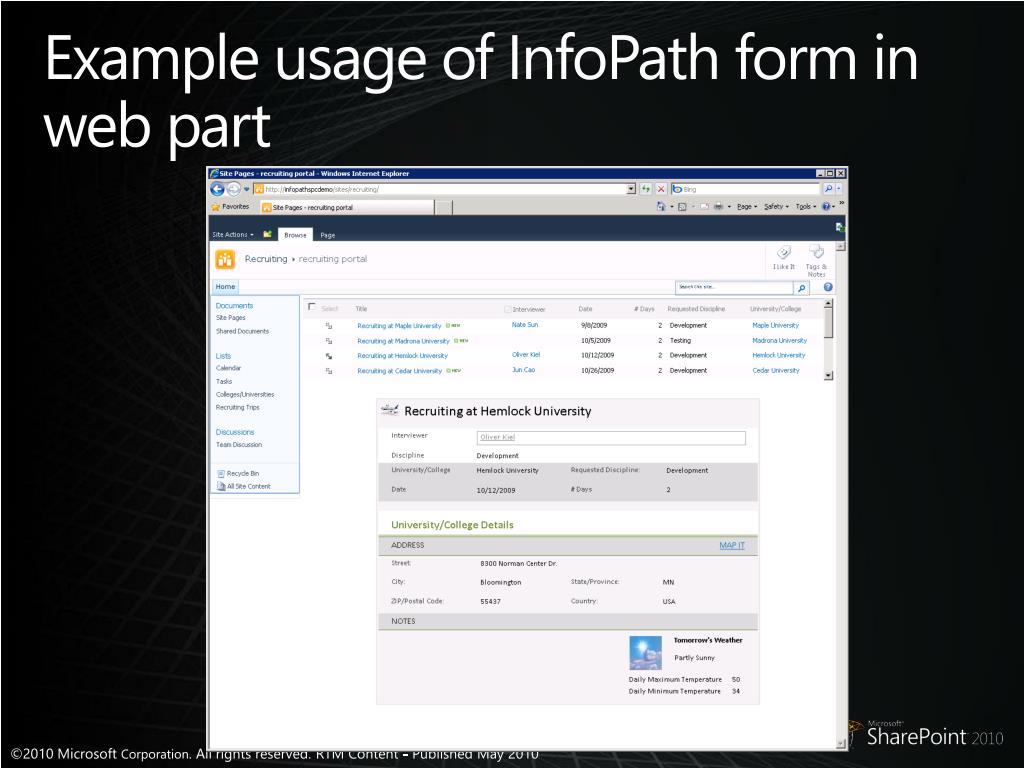

  • List item forms can be changed to InfoPath forms
  • Access point from list or from SharePoint designer
summary

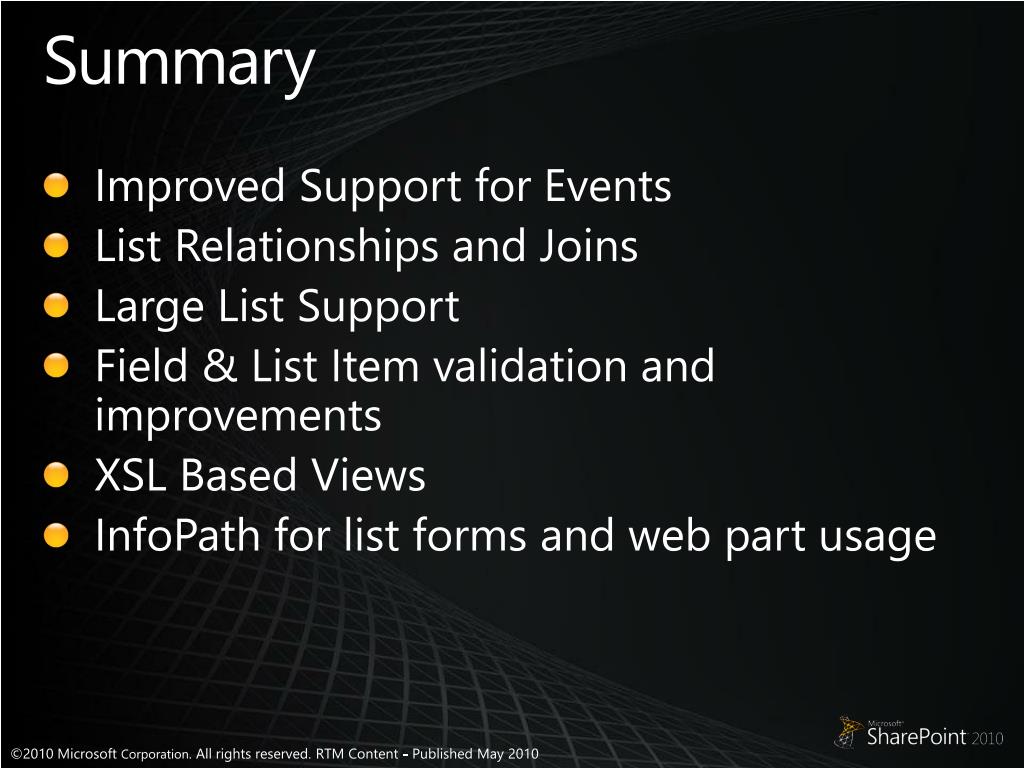

Summary
  • Improved Support for Events
  • List Relationships and Joins
  • Large List Support
  • Field & List Item validation and improvements
  • XSL Based Views
  • InfoPath for list forms and web part usage
