Rupesh nasre advisor prof r govindarajan apr 05 2008

Rupesh Nasre.

Advisor: Prof R Govindarajan.

Apr 05, 2008.

Pointer Analysis.


Outline

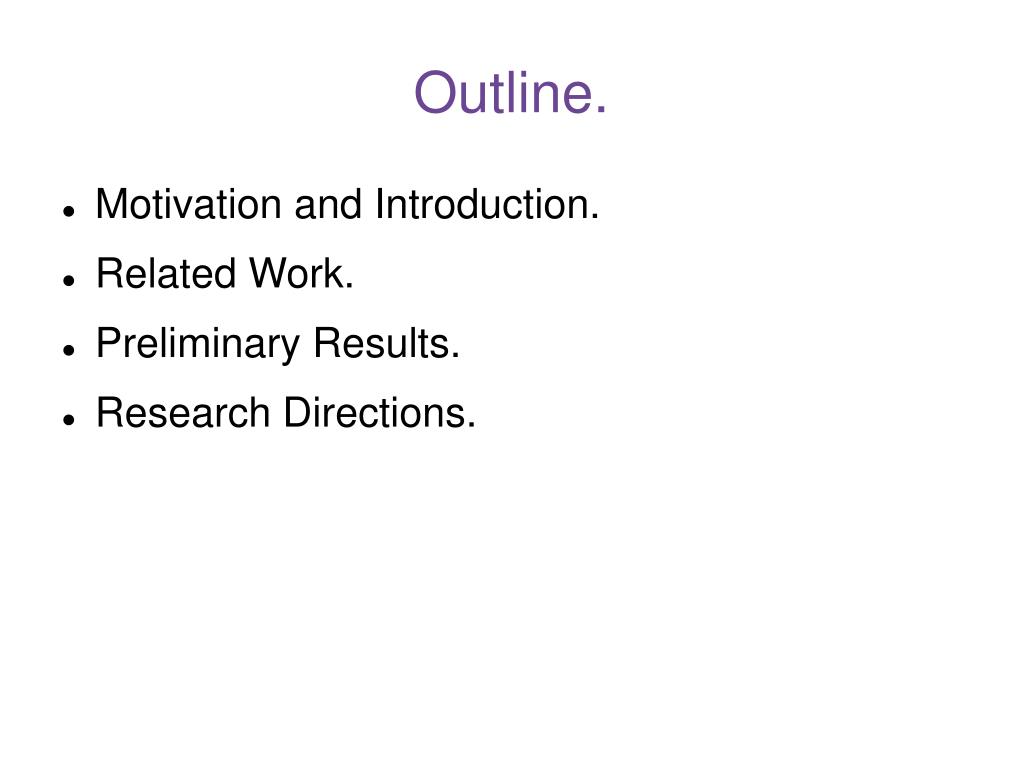

Outline.

  • Motivation and Introduction.

  • Related Work.

  • Preliminary Results.

  • Research Directions.


Pointer analysis is the mechanism of statically finding out possible run time values of a pointer

Pointer analysis is the mechanism of statically finding out possible run-time values of a pointer.

What is Pointer Analysis?


What is pointer analysis

Pointer analysis is the mechanism of statically finding out possible run-time values of a pointer

and

relation of various pointers with each other.

What is Pointer Analysis?


Relation between pointers
Relation between pointers. possible run-time values of a pointer

  • p = arr + ii;

    q = arr + jj;

    if (p == q) {

    fun();

    }

  • q = p;

    ...

    if (p == q) {

    fun();

    }


Variants of pointer analysis
Variants of Pointer Analysis. possible run-time values of a pointer

  • Alias analysis.

    do p and q point to the same memory location?

  • Points-to analysis.

    does p point to memory location x?


Why pointer analysis
Why Pointer Analysis? possible run-time values of a pointer

  • for parallelization:

    fun(p);

    fun(q);

  • for common subexpression elimination:

    x = p + 2;

    y = q + 2;

  • for dead code elimination.

    if (p == q) {

    fun();

    }

  • for other optimizations.


Introduction
Introduction. possible run-time values of a pointer

  • Flow sensitivity.

  • Context sensitivity.

  • Field sensitivity.

  • Unification based.

  • Inclusion based.


Flow sensitivity
Flow sensitivity. possible run-time values of a pointer

p = &x;

p = &y;

label:

...

flow-sensitive: {(p, &y)}.

flow-insensitive: {(p, &x), (p, &y)}.


Context sensitivity
Context sensitivity. possible run-time values of a pointer

caller1() { caller2() { fun(int *ptr) {

fun(p); fun(q); r = ptr;

} } }

context-insensitive: {(r, p), (r, q)}.

context sensitive: {(r, p)} along call-path caller1,

{(r, q)} along call-path caller2.


Field sensitivity
Field sensitivity. possible run-time values of a pointer

x.f = p;

or

p = x.f;

field-sensitive: {(x.f, p)}.

field-insensitive: {(x, p)}.


Unification based
Unification based. possible run-time values of a pointer

one(&s1); one(struct s*p) { two(struct s*q) {

one(&s2); p->a = 3; q->b = 4;

two(&s3); two(p); }

}

unification-based: {(p, &s1), (p, &s2), (p, &s3),

(q, &s1), (q, &s2), (q, &s3)}.


Inclusion based

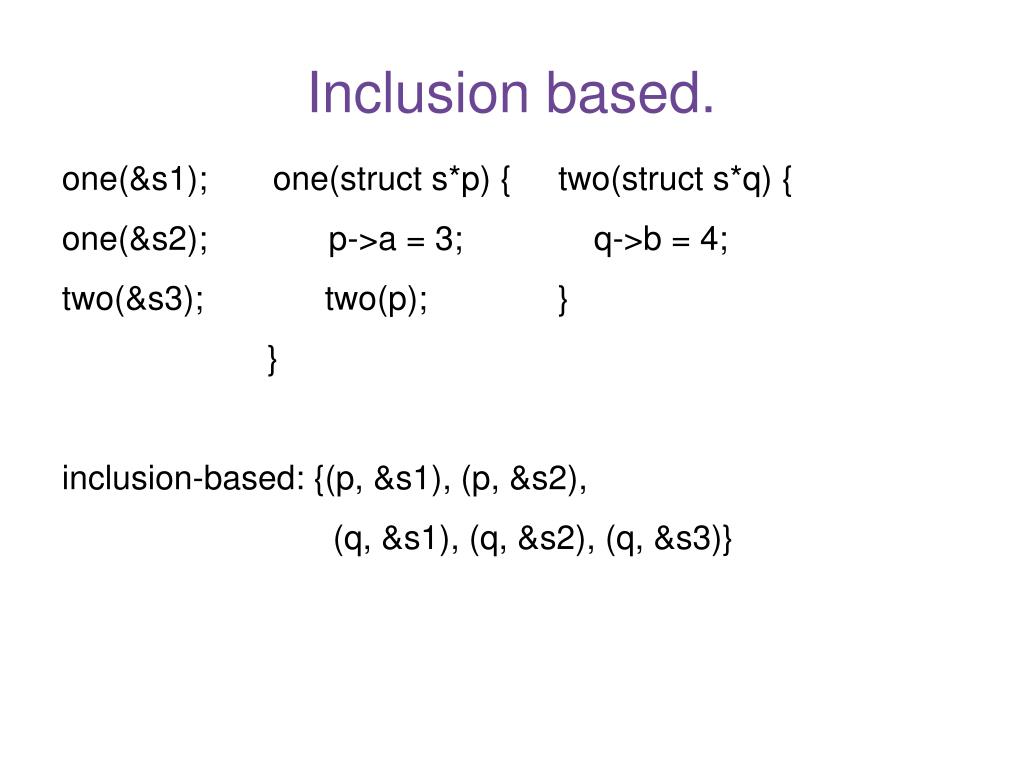

Inclusion based. possible run-time values of a pointer

one(&s1); one(struct s*p) { two(struct s*q) {

one(&s2); p->a = 3; q->b = 4;

two(&s3); two(p); }

}

inclusion-based: {(p, &s1), (p, &s2),

(q, &s1), (q, &s2), (q, &s3)}


Like all other important problems in computer science
Like all other important problems in Computer Science... possible run-time values of a pointer

  • Alias analysis without memory allocation, intra-procedural, flow-sensitive, supporting arbitrary levels of indirection, is NP-hard.

  • For two levels of indirection, it is still NP-hard.

  • Even flow-insensitive analysis is NP-hard (for arbitrary levels of indirection).

  • With dynamic memory allocation, allowing structs, it becomes undecidable.

  • Even for scalars (no structs), it remains undecidable.

    G Ramalingam, The undecidability of aliasing, TOPLAS 1994.

    Venkatesan Chakaravarthy, New results on the computability and complexity of points-to analysis, POPL 2003.


But the good news is
But the good news is... possible run-time values of a pointer

  • For single pointer dereference, even a flow-sensitive analysis with only scalars and well-defined types is in P, if dynamic memory allocation is not allowed.

  • For arbitrary number of dereferences, if the analysis is flow-insensitive, it is in P.

    G Ramalingam, The undecidability of aliasing, TOPLAS 1994.

    Venkatesan Chakaravarthy, New results on the computability and complexity of points-to analysis, POPL 2003.


Open problems

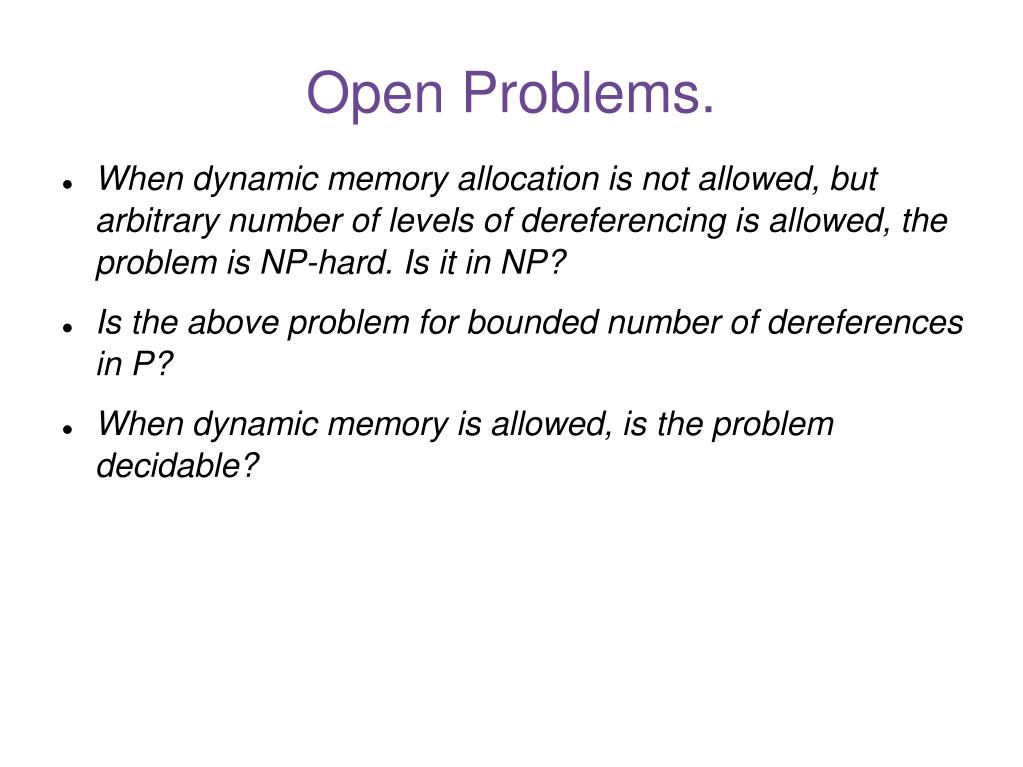

Open Problems. possible run-time values of a pointer

  • When dynamic memory allocation is not allowed, but arbitrary number of levels of dereferencing is allowed, the problem is NP-hard. Is it in NP?

  • Is the above problem for bounded number of dereferences in P?

  • When dynamic memory is allowed, is the problem decidable?


Related work

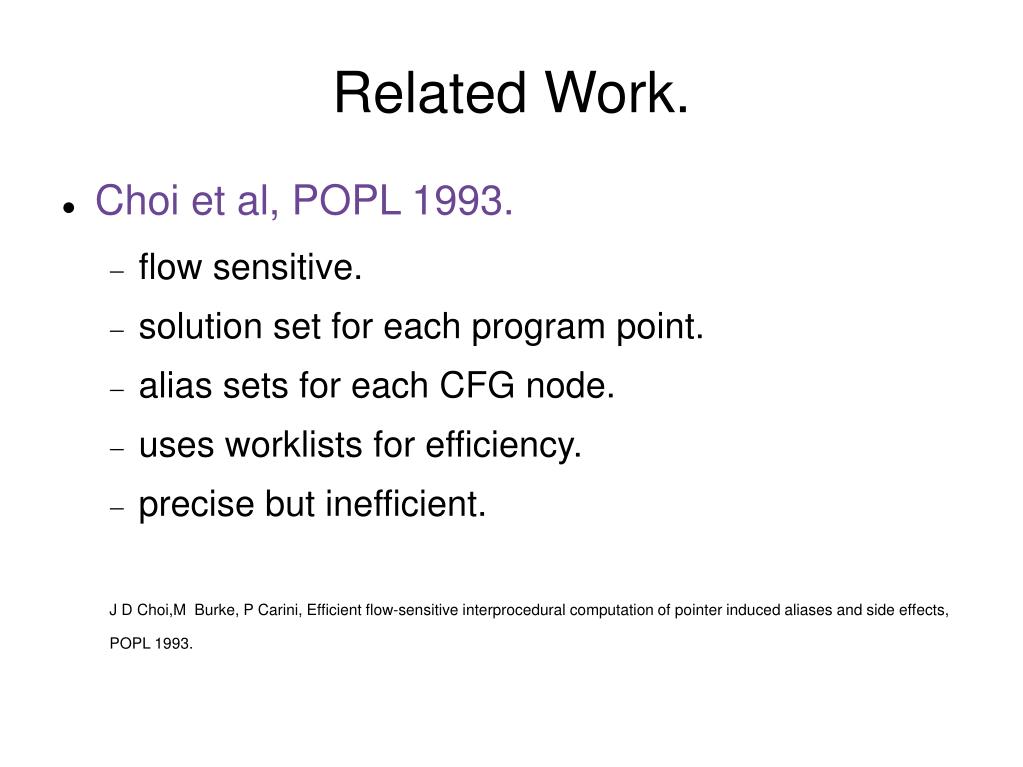

Related Work. possible run-time values of a pointer

  • Choi et al, POPL 1993.

    • flow sensitive.

    • solution set for each program point.

    • alias sets for each CFG node.

    • uses worklists for efficiency.

    • precise but inefficient.

      J D Choi,M Burke, P Carini, Efficient flow-sensitive interprocedural computation of pointer induced aliases and side effects,

      POPL 1993.


Related work1
Related Work. possible run-time values of a pointer

  • Andersen, PhD Thesis, 1994.

    • flow insensitive.

    • context insensitive.

    • inclusion based.

    • each variable represented using separate node.

    • precision used as upper bound.

      Lars Ole Andersen, Program Analysis and Specialization for the C Programming Language, PhD thesis, 1994.


Related work2
Related Work. possible run-time values of a pointer

  • Burke et al, LCPC 1995.

    • flow insensitive.

    • alias solution for each procedure.

    • worklist used for efficiency.

    • can filter alias information based on scoping.

    • nearly as precise as Andersen's.

      M Burke, P Carini, J D Choi, M Hind, Flow-insensitive interprocedural alias analysis in the presence of function pointers,

      LCPC 1995.


Related work3
Related Work. possible run-time values of a pointer

  • Reps et al, POPL 1995.

    • problem formulated using graph reachability.

    • poly-time algorithm for interprocedural finite distributive subset-based problems.

    • graph reachability used for aliasing.

      Thomas Reps, Susan Horwitz, Mooly Sagiv, Precise Interprocedural Dataflow Analysis via Graph Reachability, POPL 1995.


Related work4
Related Work. possible run-time values of a pointer

  • Steensgaard, POPL 1996.

    • flow insensitive.

    • context insensitive.

    • field insensitive.

    • unification based.

    • linear space and almost linear time algorithm.

    • imprecise but sets lower bound on time complexity.

      Bjarne Steensgaard, Points-to Analysis in Almost Linear Time, POPL 1996.


Related work5

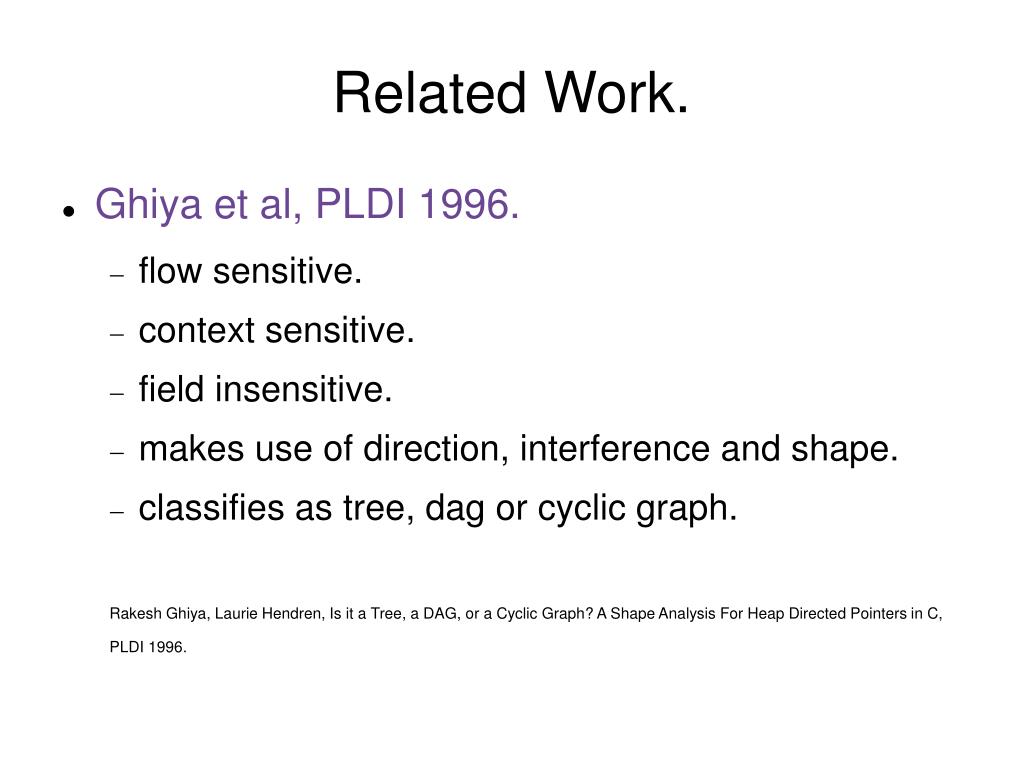

Related Work. possible run-time values of a pointer

  • Ghiya et al, PLDI 1996.

    • flow sensitive.

    • context sensitive.

    • field insensitive.

    • makes use of direction, interference and shape.

    • classifies as tree, dag or cyclic graph.

      Rakesh Ghiya, Laurie Hendren, Is it a Tree, a DAG, or a Cyclic Graph? A Shape Analysis For Heap Directed Pointers in C,

      PLDI 1996.


Related work6

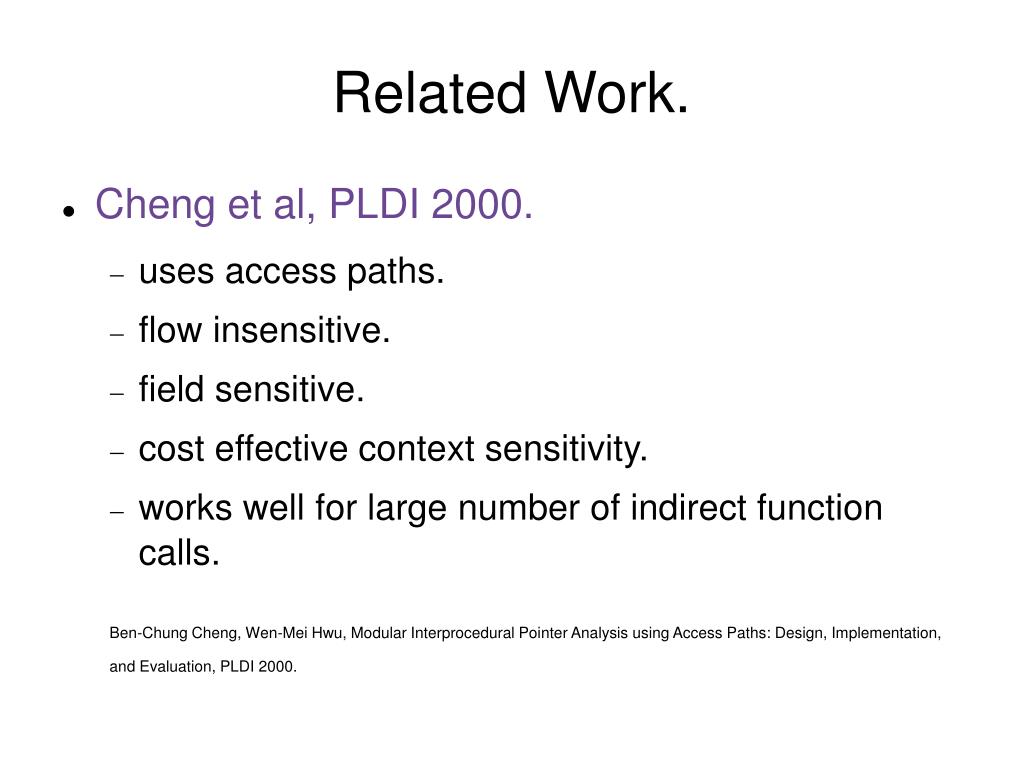

Related Work. possible run-time values of a pointer

  • Cheng et al, PLDI 2000.

    • uses access paths.

    • flow insensitive.

    • field sensitive.

    • cost effective context sensitivity.

    • works well for large number of indirect function calls.

      Ben-Chung Cheng, Wen-Mei Hwu, Modular Interprocedural Pointer Analysis using Access Paths: Design, Implementation,

      and Evaluation, PLDI 2000.


Related work7
Related Work. possible run-time values of a pointer

  • Whaley et al, PLDI 2004.

    • context sensitive.

    • field sensitive.

    • partially flow sensitive.

    • inclusion based.

    • scalable (10 min, 400 MB, 8000 methods).

    • ordered BDDs.

      John Whaley, Monica Lam, Cloning-based Context-sensitive Pointer Alias Analysis Using Binary Decision Diagrams, PLDI

      2004.


Related work8
Related Work. possible run-time values of a pointer

  • Lattner et al, PLDI 2007.

    • context sensitive.

    • flow insensitive.

    • field sensitive.

    • unification based.

    • scalable.

    • efficient (3 sec for 200K lines).

    • low storage requirement (30MB).

      Chris Lattner, Andrew Lenharth, Vikram Adve, Making Context Sensitive Points-to Analysis with Heap Cloning Practical For

      The Real World, PLDI 2007.


Our experiments
Our Experiments. possible run-time values of a pointer

  • framework = LLVM.

  • algorithm = Andersen.

  • benchmark = SPEC 2000.


Our experiments1
Our Experiments. possible run-time values of a pointer

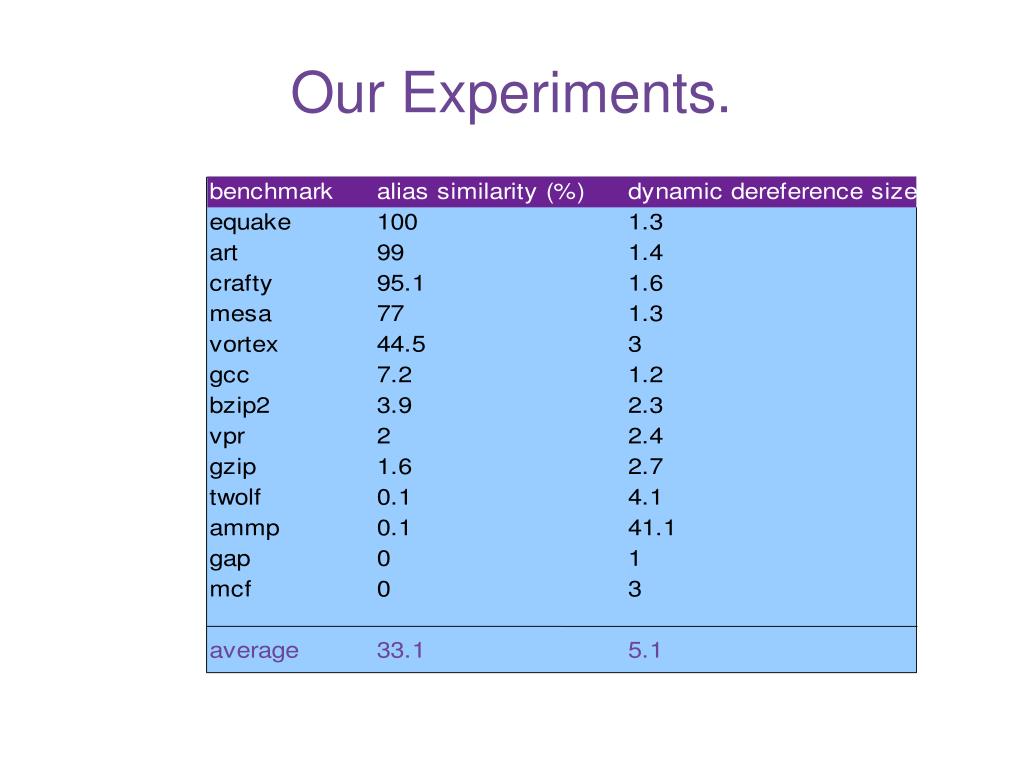

Our experiments2
Our Experiments. possible run-time values of a pointer


Research directions
Research Directions. possible run-time values of a pointer

  • Pointer arithmetic.

    void f(struct list *p, struct list *q) {

    struct list *tmp;

    tmp = p->next;

    p->next = q->next;

    q->next = q->next->next;

    p->next->next = tmp;

    }


Research directions1

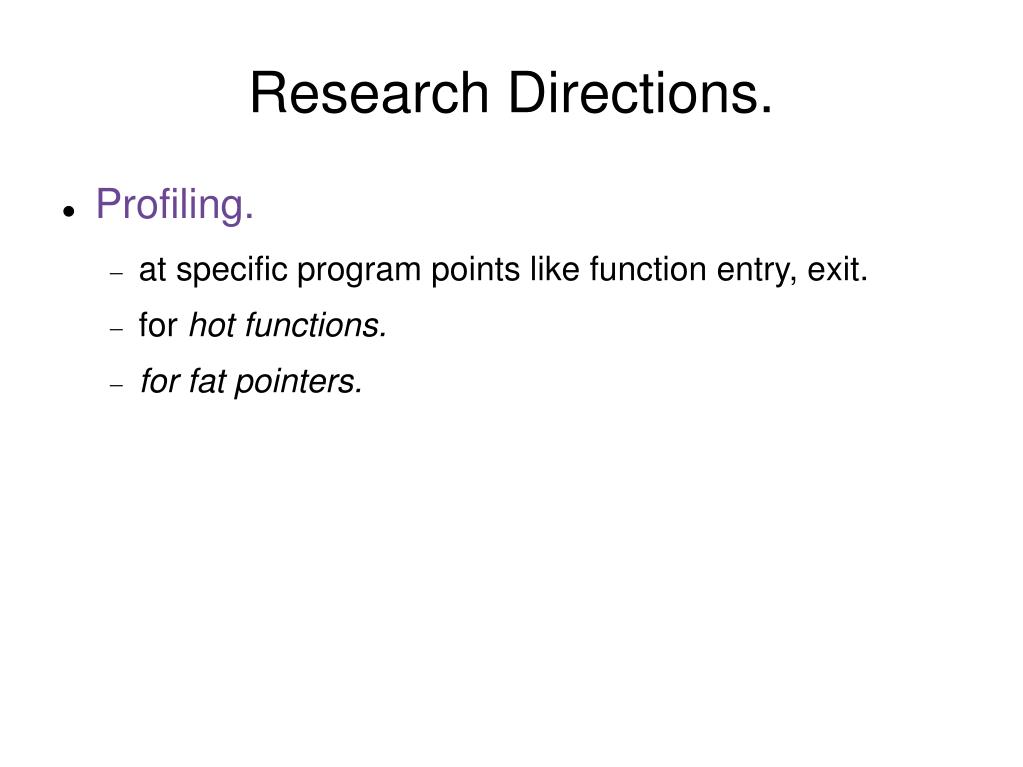

Research Directions. possible run-time values of a pointer

  • Profiling.

    • at specific program points like function entry, exit.

    • for hot functions.

    • for fat pointers.


Research directions2

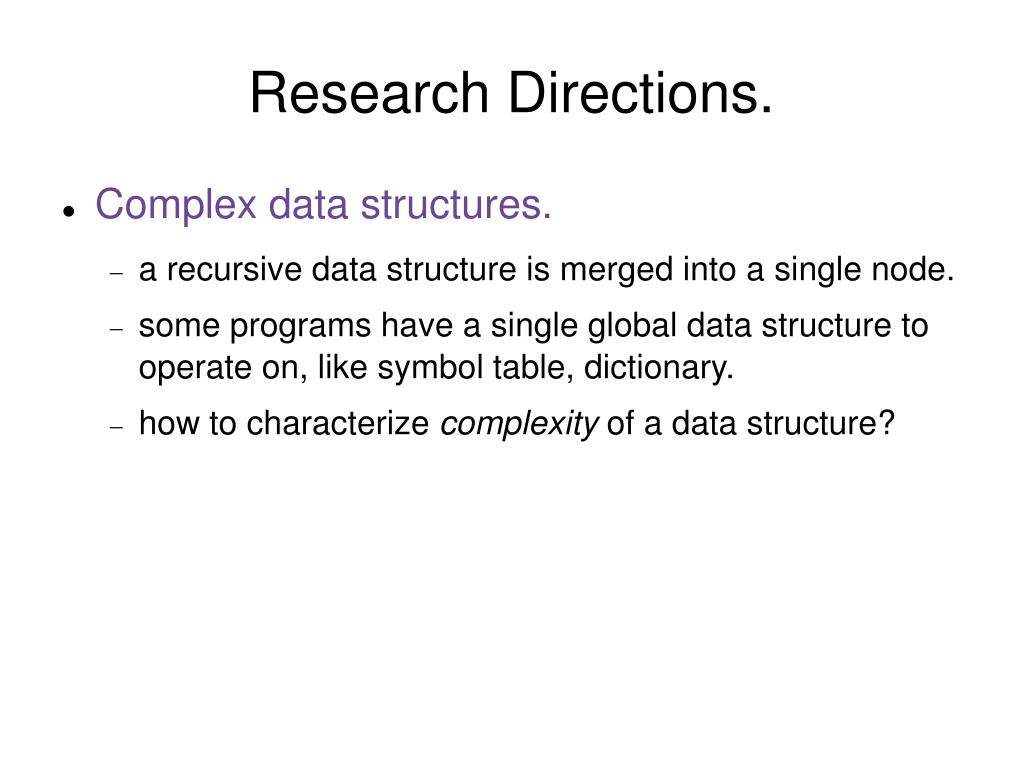

Research Directions. possible run-time values of a pointer

  • Complex data structures.

    • a recursive data structure is merged into a single node.

    • some programs have a single global data structure to operate on, like symbol table, dictionary.

    • how to characterize complexity of a data structure?


Rupesh nasre advisor prof r govindarajan apr 05 20081

Rupesh Nasre. possible run-time values of a pointer

Advisor: Prof R Govindarajan.

Apr 05, 2008.

Pointer Analysis.


188 ammp description

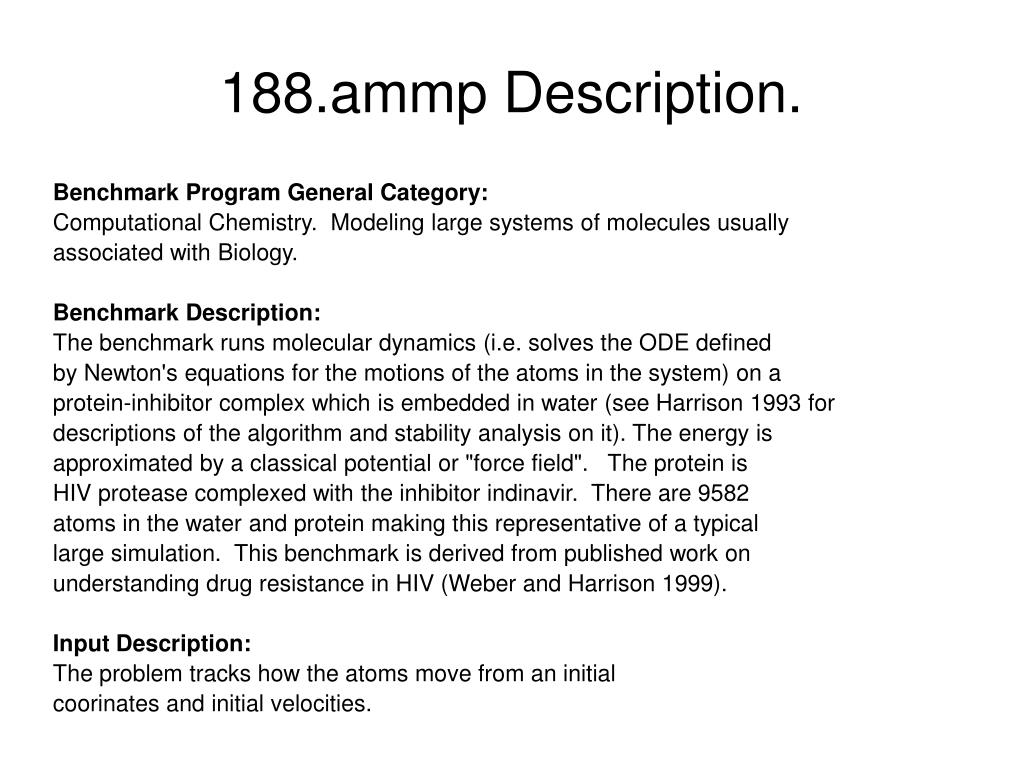

188.ammp Description. possible run-time values of a pointer

Benchmark Program General Category:

Computational Chemistry. Modeling large systems of molecules usually

associated with Biology.

Benchmark Description:

The benchmark runs molecular dynamics (i.e. solves the ODE defined

by Newton's equations for the motions of the atoms in the system) on a

protein-inhibitor complex which is embedded in water (see Harrison 1993 for

descriptions of the algorithm and stability analysis on it). The energy is

approximated by a classical potential or "force field". The protein is

HIV protease complexed with the inhibitor indinavir. There are 9582

atoms in the water and protein making this representative of a typical

large simulation. This benchmark is derived from published work on

understanding drug resistance in HIV (Weber and Harrison 1999).

Input Description:

The problem tracks how the atoms move from an initial

coorinates and initial velocities.


Conferences

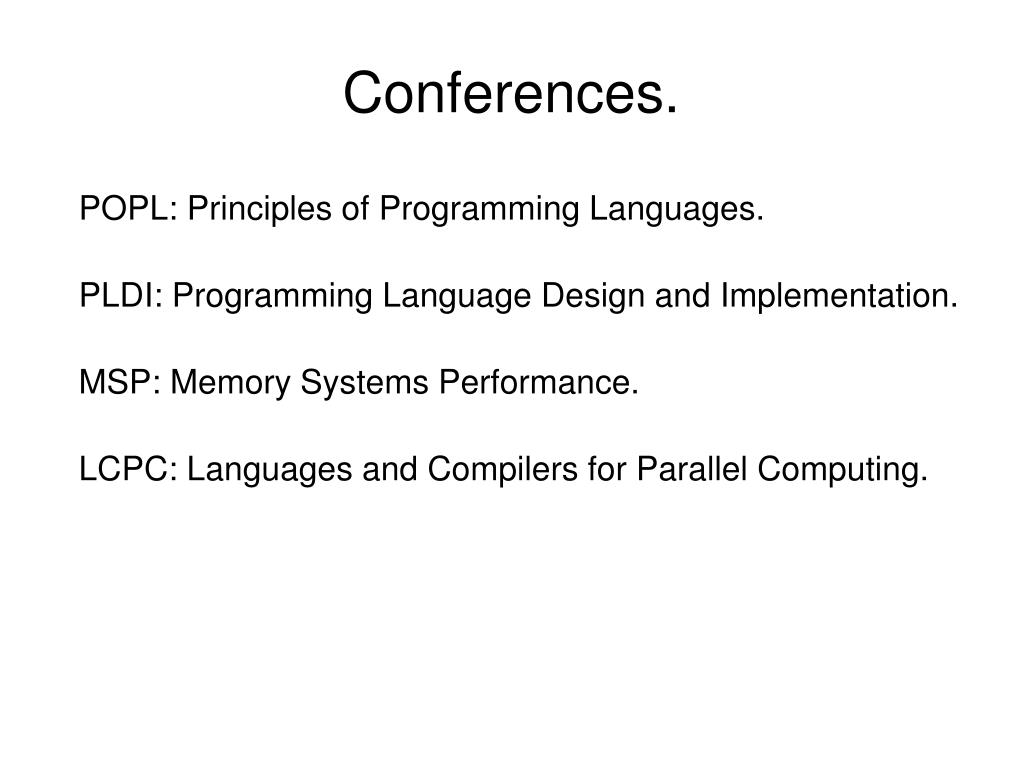

Conferences. possible run-time values of a pointer

POPL: Principles of Programming Languages.

PLDI: Programming Language Design and Implementation.

MSP: Memory Systems Performance.

LCPC: Languages and Compilers for Parallel Computing.


Related work9
Related Work. possible run-time values of a pointer

  • Raman et al, MSP 2005.

    • uses executable instructions.

    • run time (dynamic).

    • collects RDS profile.

    • no type information.

    • interesting properties of data structures are found out.
