  1. Configuration Profiles for CDMA Communcation and Tracking Services SMWG Boulder, CO 31 October – 4 November 2011 John Pietras GST, Inc.

  2. Agenda • Purpose • Background • Approach • Overview of Space Network Configuration Profiles • Walkthrough of CDMA Configuration Profile Class Diagrams

  3. Purpose • To develop a strawman set of configuration profiles suitable for use by the NASA Space Network and other TT&C networks that conform to CCSDS 415.1 3

  4. Background • The proposed Blue-2 refactoring approach provides a framework adding new managed services and extending the managed services already covered by Blue-1 • The NASA Space Network (SN) Ground System Sustainment Project (SGSS) is to implement SCCS-SM Blue-1 “to the greatest extent possible”, but the SN uses code division multiple access (CDMA)-based RF and modulation that is not represented by Blue-1’s CCSDS 401-based RF and modulation managed parameters • In September 2011, CCSDS published CCSDS 415.1-B-1, Data Transmission and PN Ranging for 2 GHz CDMA Link Via Data Relay Satellite • Based on SN CDMA RF and modulation scheme • Required by Space Network Interoperability Panel (SNIP) • NASA, ESA, JAXA

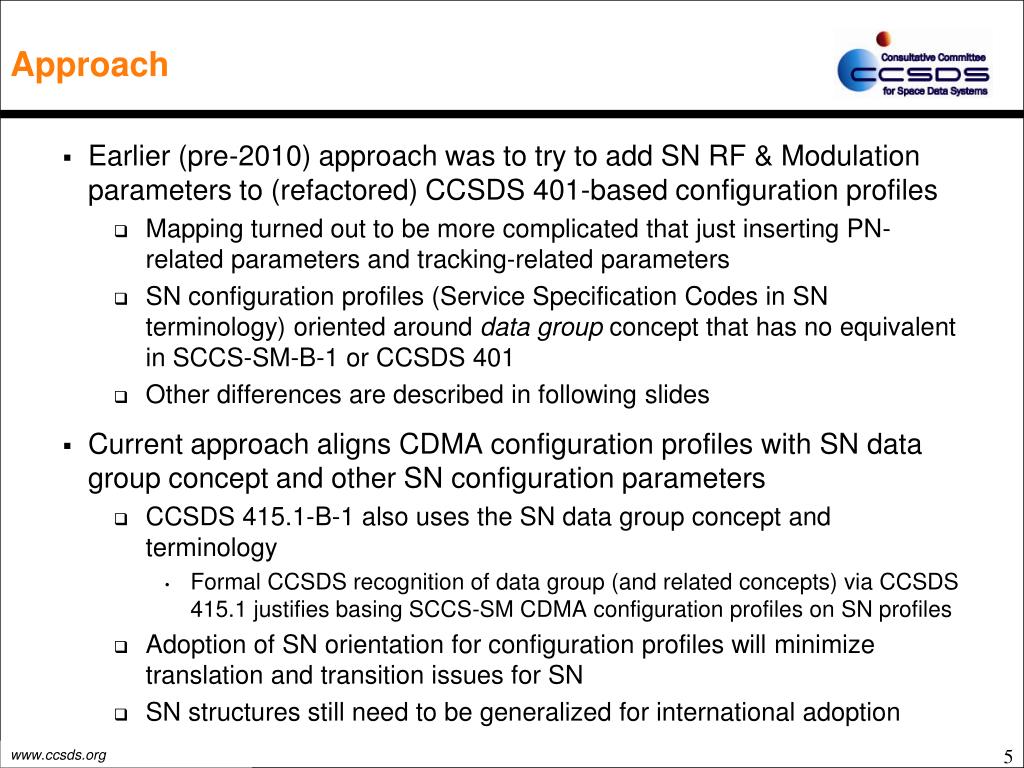

  5. Approach • Earlier (pre-2010) approach was to try to add SN RF & Modulation parameters to (refactored) CCSDS 401-based configuration profiles • Mapping turned out to be more complicated that just inserting PN-related parameters and tracking-related parameters • SN configuration profiles (Service Specification Codes in SN terminology) oriented around data group concept that has no equivalent in SCCS-SM-B-1 or CCSDS 401 • Other differences are described in following slides • Current approach aligns CDMA configuration profiles with SN data group concept and other SN configuration parameters • CCSDS 415.1-B-1 also uses the SN data group concept and terminology • Formal CCSDS recognition of data group (and related concepts) via CCSDS 415.1 justifies basing SCCS-SM CDMA configuration profiles on SN profiles • Adoption of SN orientation for configuration profiles will minimize translation and transition issues for SN • SN structures still need to be generalized for international adoption

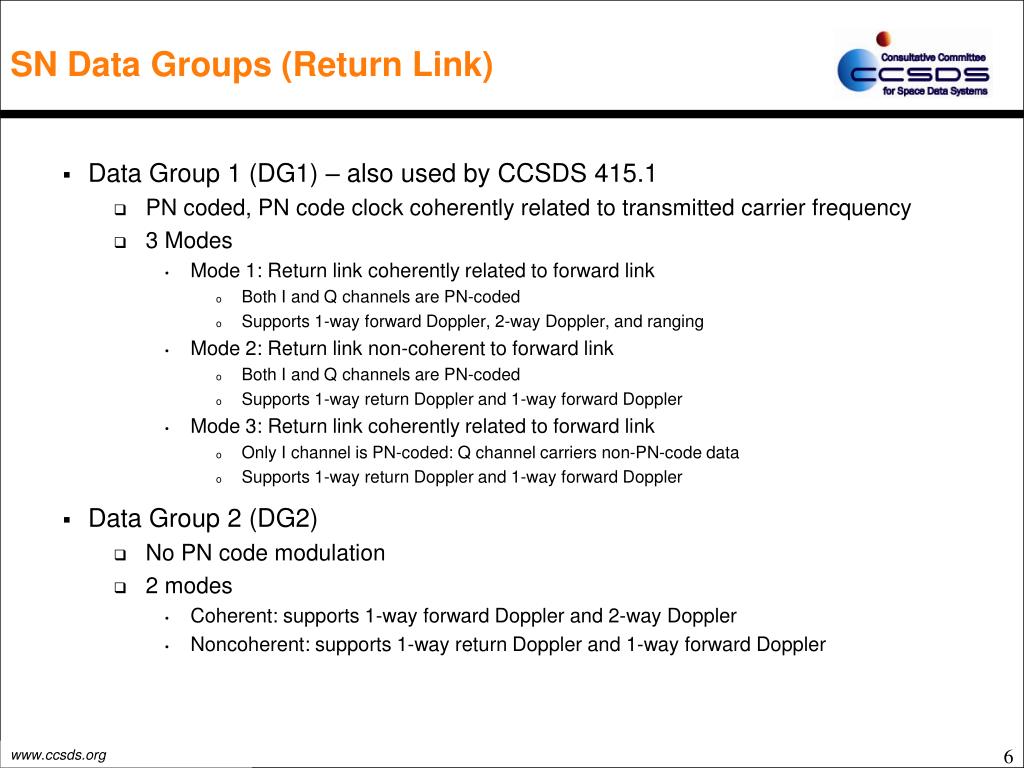

  6. SN Data Groups (Return Link) • Data Group 1 (DG1) – also used by CCSDS 415.1 • PN coded, PN code clock coherently related to transmitted carrier frequency • 3 Modes • Mode 1: Return link coherently related to forward link • Both I and Q channels are PN-coded • Supports 1-way forward Doppler, 2-way Doppler, and ranging • Mode 2: Return link non-coherent to forward link • Both I and Q channels are PN-coded • Supports 1-way return Doppler and 1-way forward Doppler • Mode 3: Return link coherently related to forward link • Only I channel is PN-coded: Q channel carriers non-PN-code data • Supports 1-way return Doppler and 1-way forward Doppler • Data Group 2 (DG2) • No PN code modulation • 2 modes • Coherent: supports 1-way forward Doppler and 2-way Doppler • Noncoherent: supports 1-way return Doppler and 1-way forward Doppler

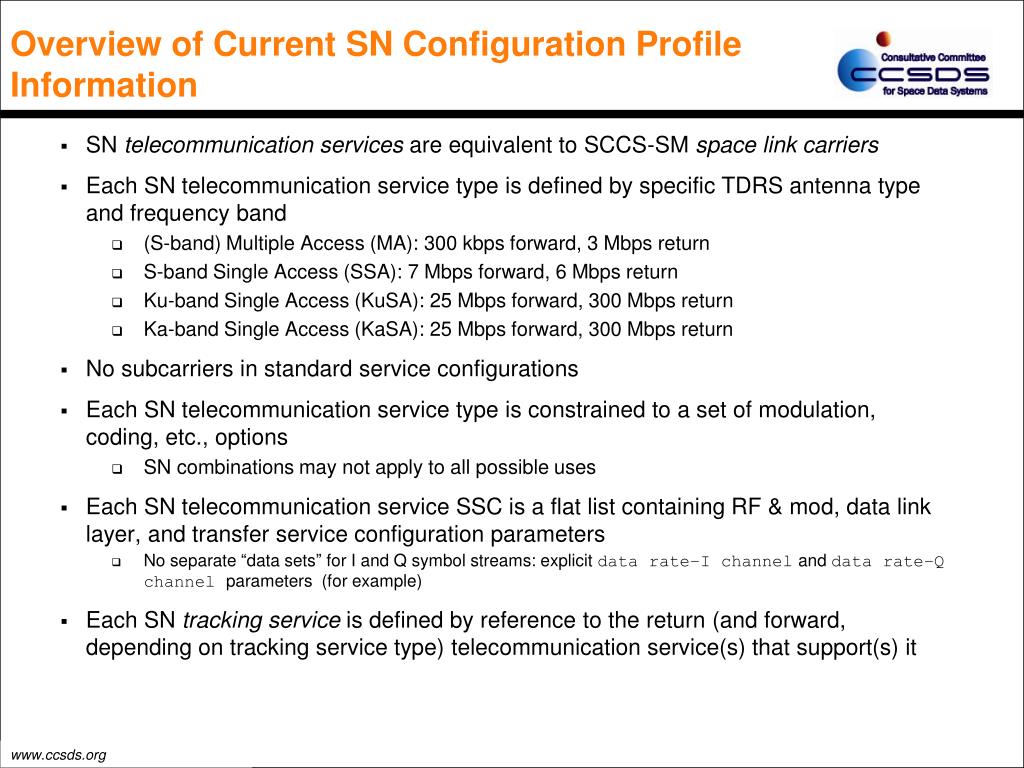

  7. Overview of Current SN Configuration Profile Information • SN telecommunication services are equivalent to SCCS-SM space link carriers • Each SN telecommunication service type is defined by specific TDRS antenna type and frequency band • (S-band) Multiple Access (MA): 300 kbps forward, 3 Mbps return • S-band Single Access (SSA): 7 Mbps forward, 6 Mbps return • Ku-band Single Access (KuSA): 25 Mbps forward, 300 Mbps return • Ka-band Single Access (KaSA): 25 Mbps forward, 300 Mbps return • No subcarriers in standard service configurations • Each SN telecommunication service type is constrained to a set of modulation, coding, etc., options • SN combinations may not apply to all possible uses • Each SN telecommunication service SSC is a flat list containing RF & mod, data link layer, and transfer service configuration parameters • No separate “data sets” for I and Q symbol streams: explicit data rate–I channeland data rate–Q channel parameters (for example) • Each SN tracking service is defined by reference to the return (and forward, depending on tracking service type) telecommunication service(s) that support(s) it

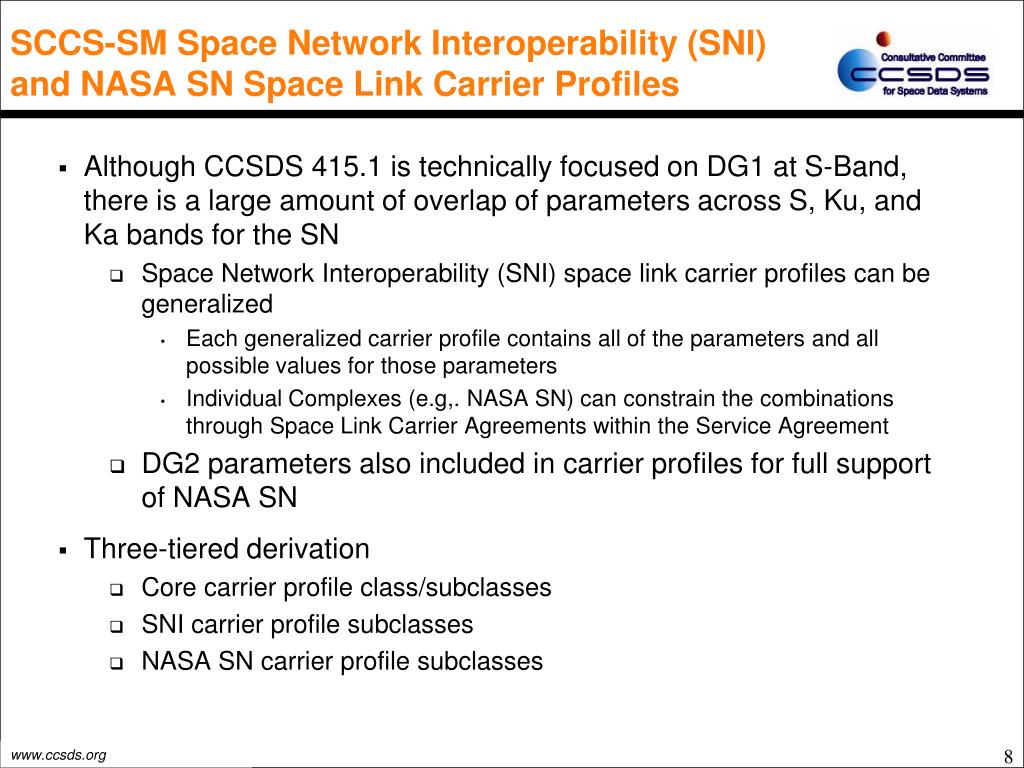

  8. SCCS-SM Space Network Interoperability (SNI) and NASA SN Space Link Carrier Profiles • Although CCSDS 415.1 is technically focused on DG1 at S-Band, there is a large amount of overlap of parameters across S, Ku, and Ka bands for the SN • Space Network Interoperability (SNI) space link carrier profiles can be generalized • Each generalized carrier profile contains all of the parameters and all possible values for those parameters • Individual Complexes (e.g,. NASA SN) can constrain the combinations through Space Link Carrier Agreements within the Service Agreement • DG2 parameters also included in carrier profiles for full support of NASA SN • Three-tiered derivation • Core carrier profile class/subclasses • SNI carrier profile subclasses • NASA SN carrier profile subclasses

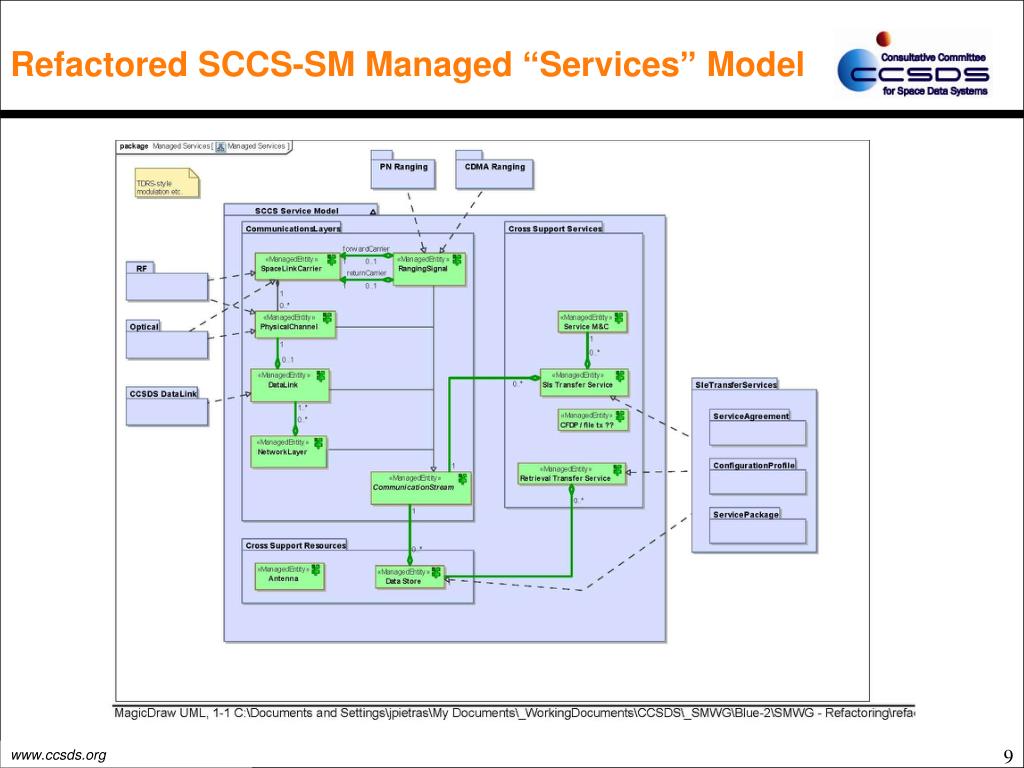

  9. Refactored SCCS-SM Managed “Services” Model

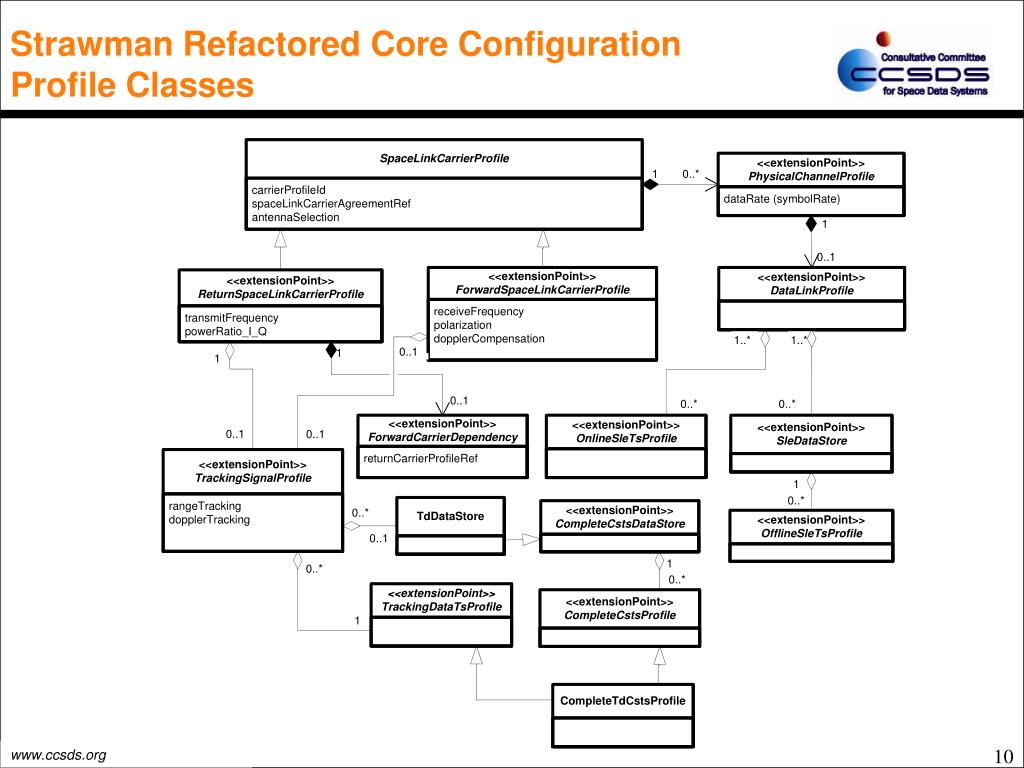

  10. Strawman Refactored Core Configuration Profile Classes

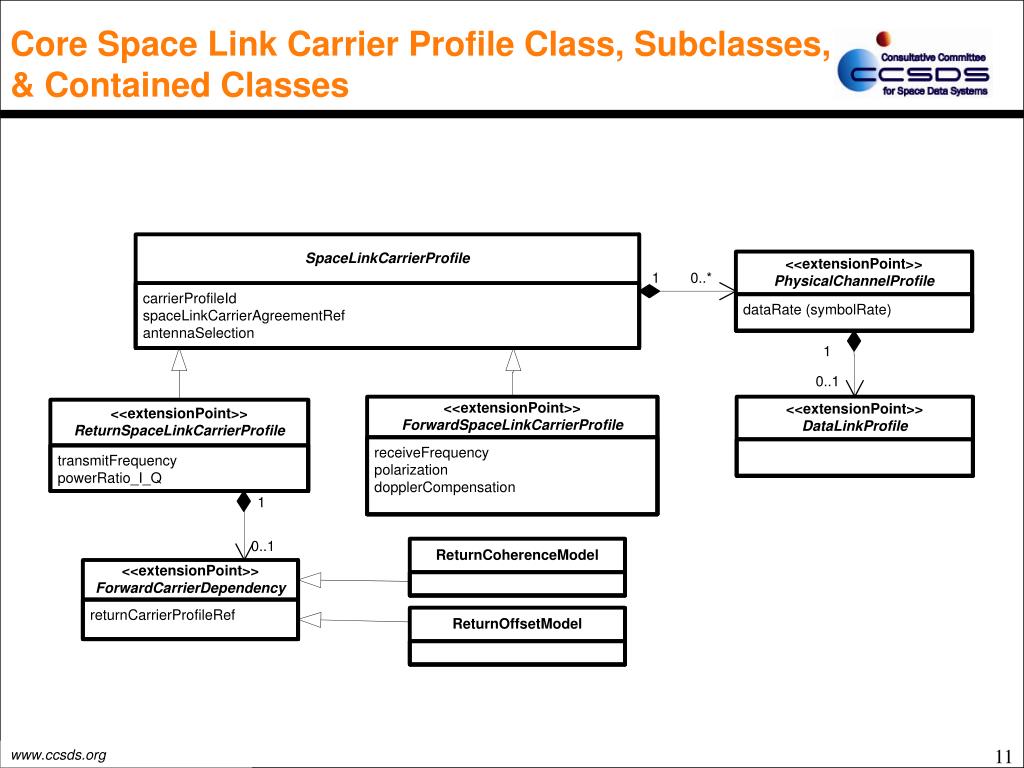

  11. Core Space Link Carrier Profile Class, Subclasses, & Contained Classes

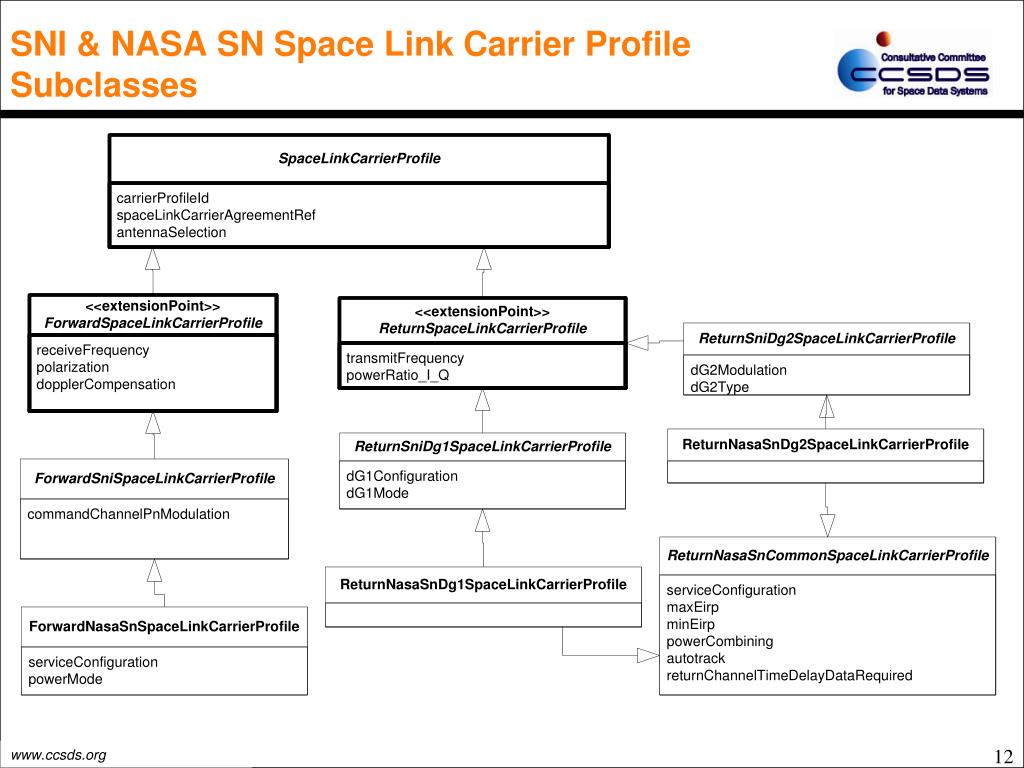

  12. SNI & NASA SN Space Link Carrier Profile Subclasses

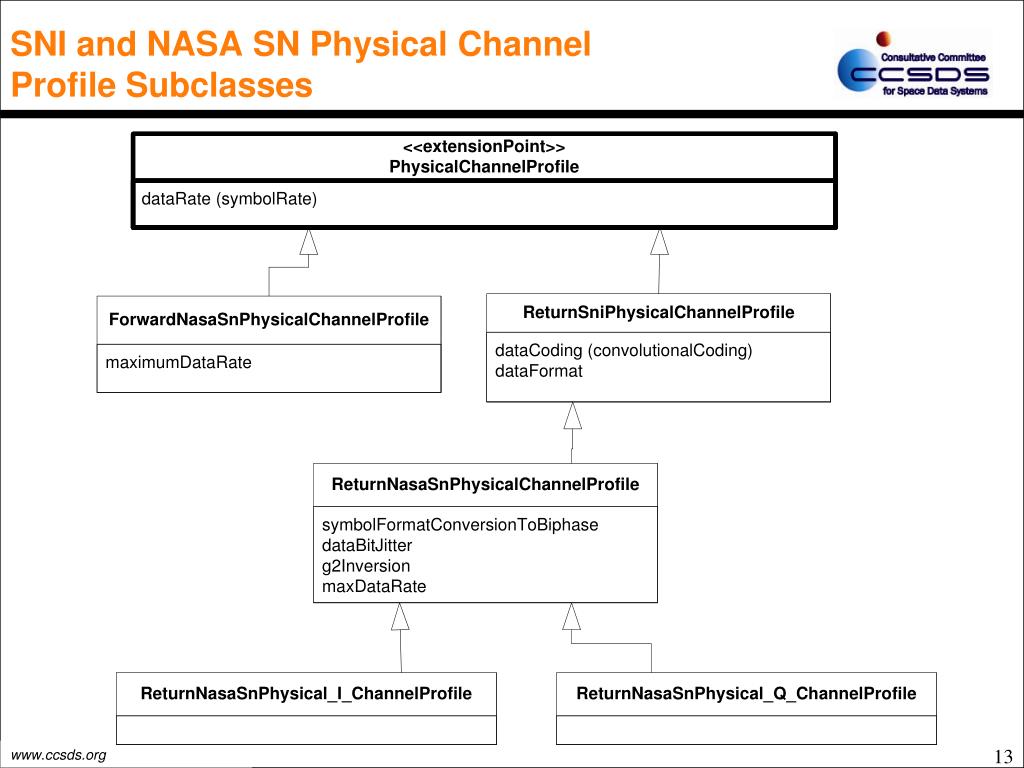

  13. SNI and NASA SN Physical Channel Profile Subclasses

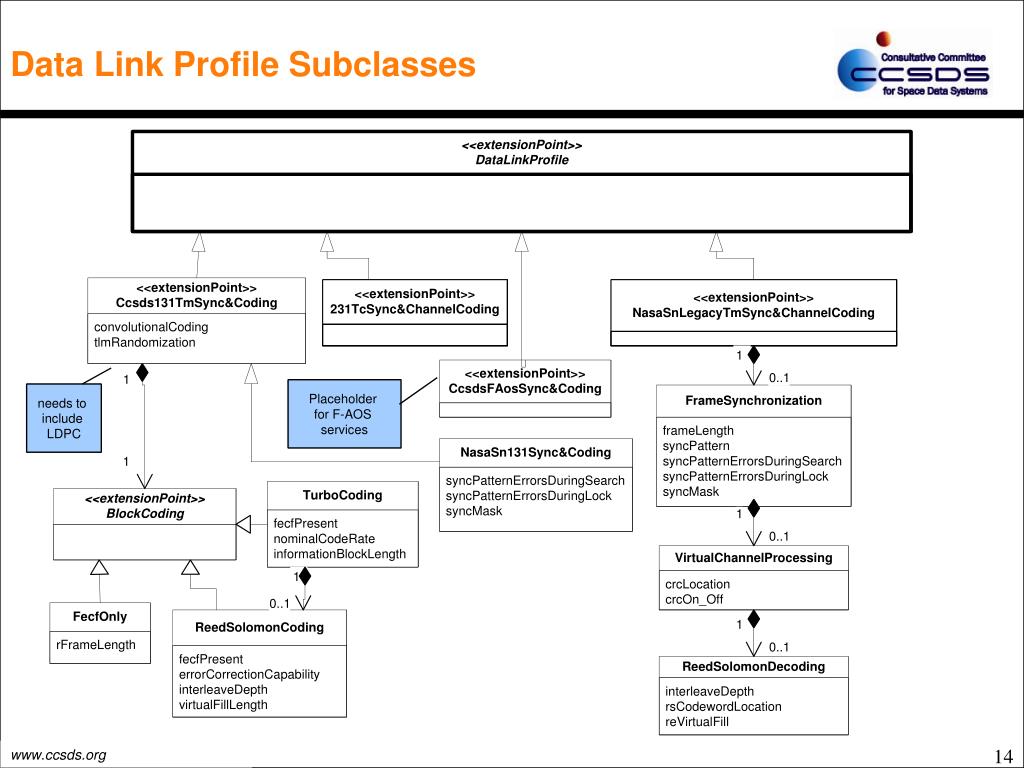

  14. Data Link Profile Subclasses Placeholder for F-AOS services needs to include LDPC

  15. Transfer Services • In SCCS-SM B-1, an attempt was made to accommodate future return CSTS services with “complete” and “timely” modes by merging them with SLE “online” and “offline” modes into new “SLS” and “retrieval” instances, respectively • However, the mapping in B-1 is not completely correct – it does not adequately address the dual online and offline nature of a complete-mode CSTS • The CSTSWG is re-evaluating the underlying protocols related to CSTS complete and real-time mode • It is premature to attempt to fix the SM configuration profiles for return CSTS complete services until that re-evaluation is complete • B-1 does not include any “attachment points” for non-spacecraft-data-bearing transfer services (such as tracking data and monitored data) • In the following strawman diagrams, the B-1 “SLS” and “retrieval” qualifiers are replaced with their CSTS and SLE terms • I.e., online and offline for SLE, complete and timely for CSTS • Further analysis is required to see if these various classes of transfer services can be grouped • SN extension classes for W[hite Sands Complex] [TCP/IP] D[ata] I[nterface] S[ervice] C[apability] (WDISC) are for illustrative purposes • Details of WDISC profiles are TBD

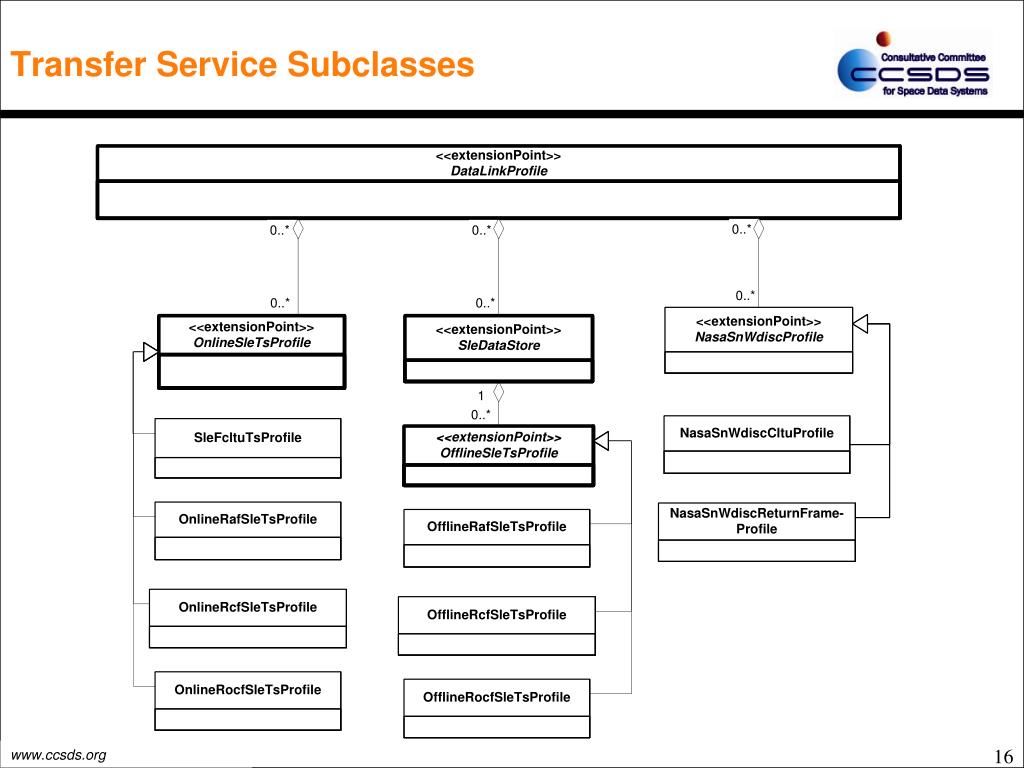

  16. Transfer Service Subclasses

  17. Tracking Services • Two components of tracking services • Tracking signal • Tracking data transfer service • Each tracking signal instance is associated with a return carrier (one-way Doppler) and a forward carrier (two-way Doppler, ranging) • Each tracking data transfer service instance can deliver tracking data associated with multiple tracking signals • What is the appropriate level to associate tracking data transfer services with tracking signals? • NASA SN aggregates all tracking data for a single Event (i.e., all services provided through a single TDRS) • Relating tracking services to stations (TDRSs or ground stations) supports storage of tracking data for subsequent retrieval • In general, grouping services by stations has practical advantages • TD-CSTS is capable of aggregating tracking data from an arbitrary set of resources • For the purposes of this presentation, we assume the existence of a station package component of a Service Package

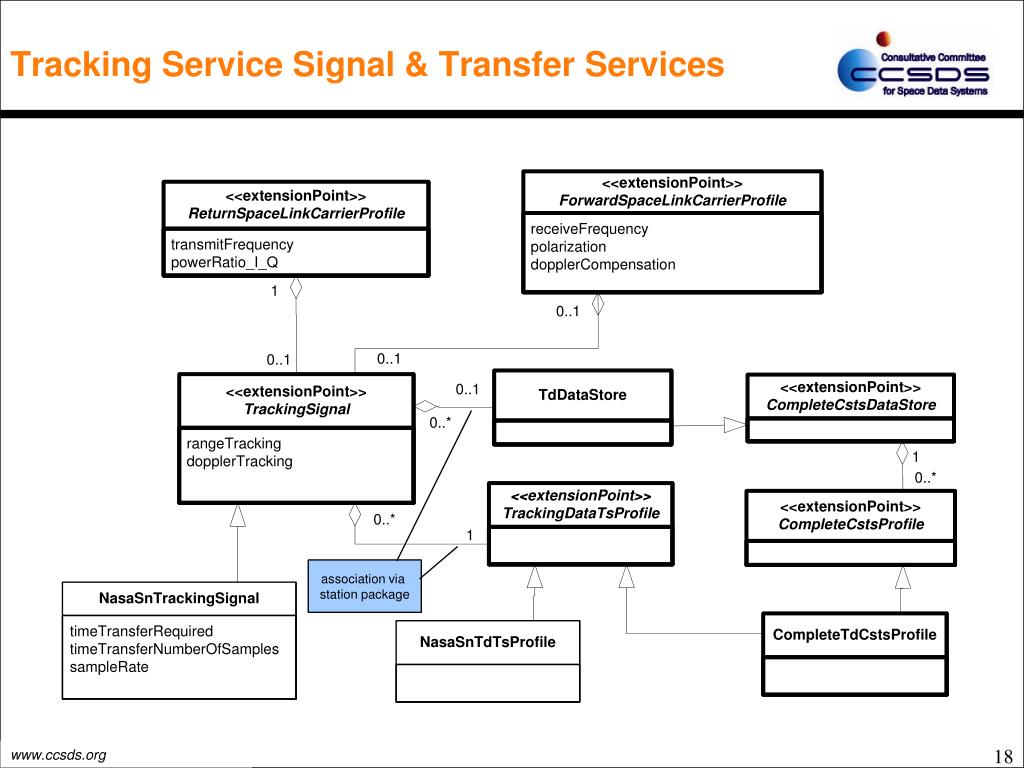

  18. Tracking Service Signal & Transfer Services association via station package

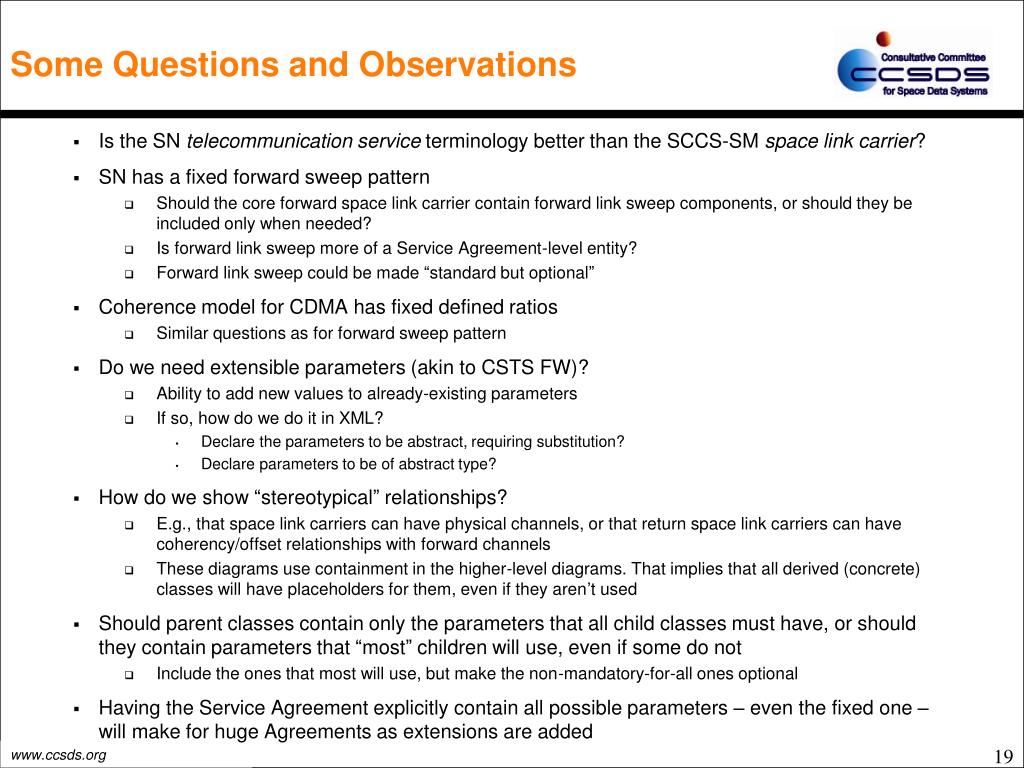

  19. Some Questions and Observations • Is the SN telecommunication service terminology better than the SCCS-SM space link carrier? • SN has a fixed forward sweep pattern • Should the core forward space link carrier contain forward link sweep components, or should they be included only when needed? • Is forward link sweep more of a Service Agreement-level entity? • Forward link sweep could be made “standard but optional” • Coherence model for CDMA has fixed defined ratios • Similar questions as for forward sweep pattern • Do we need extensible parameters (akin to CSTS FW)? • Ability to add new values to already-existing parameters • If so, how do we do it in XML? • Declare the parameters to be abstract, requiring substitution? • Declare parameters to be of abstract type? • How do we show “stereotypical” relationships? • E.g., that space link carriers can have physical channels, or that return space link carriers can have coherency/offset relationships with forward channels • These diagrams use containment in the higher-level diagrams. That implies that all derived (concrete) classes will have placeholders for them, even if they aren’t used • Should parent classes contain only the parameters that all child classes must have, or should they contain parameters that “most” children will use, even if some do not • Include the ones that most will use, but make the non-mandatory-for-all ones optional • Having the Service Agreement explicitly contain all possible parameters – even the fixed one – will make for huge Agreements as extensions are added
