developing an information technology risk management program

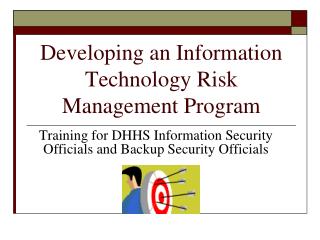

Developing an Information Technology Risk Management Program

Training for DHHS Information Security Officials and Backup Security Officials

what this training covers
What this training covers . .
  • What Risk Management means
  • What NIST says you should do
  • What ISO 17799 says you should do
  • What COBIT says you should do
  • What Microsoft says you should do
  • What HIPAA says you should do
  • What NC ITS says you should do
  • What DHHS says you should do
  • What you should do and when to do it
slide3
Risk

“Take calculated risks. That is quite different from being rash.” General George S. Patton

“Only those who risk going too far can possibly find out how far they can go” T.S. Elliot

“Of course you have to go out on a limb sometimes; that’s where the fruit is”Unknown

information security
Information Security

is

the protection of data against unauthorized access or modification

what is risk
What is “Risk”?
  • Risk is the net mission impact considering both the likelihood that a particular threat-source will exercise (accidentally trigger or intentionally exploit) a particular information system vulnerability, and the resulting impact on the organization if this should occur (NIST)
  • Risk is the probability of a vulnerability being exploited in the current environment, leading to a degree of loss of confidentiality, integrity, or availability, of an asset. (Microsoft)
what is risk management
What is Risk Management?
  • The total process of identifying, controlling, and minimizing information system related risks to a level commensurate with the value of the assets protected
  • The goal of a risk management program is to protect the organization and its ability to perform its mission from IT-related risk
golden and silver rules of rm
GoldenandSilver Rules of RM

All risk is owned!

Risk that is not assigned is owned by the organization’s Director

why are we doing this
Why are we doing this?
  • Why do we do risk management?
  • Why does a car have brakes?

A car has brakes so it can go fast

We do risk management so we can take risks

An organization that can take advantage of opportunities (and the inherent risks) will outlast an organization which cannot

reactive risk management
Reactive Risk Management
  • Protect human life and people’s safety
  • Contain the damage
  • Assess the damage
  • Determine the cause of the damage
  • Repair the damage
  • Review response, and update policies
proactive risk management
Proactive Risk Management

Owners

wish to

minimize

to reduce

Controls

impose

value

that may be

reduced by

that may possess

Vulnerabilities

may be aware of

ThreatSources

that

exploit

leading to

Risk

to

give rise

to

that increase

Threats

to

Assets

wish to abuse and/or may damage

proactive risk management12
Proactive Risk Management

Owners

Controls

Vulnerabilities

ThreatSources

Risk

Threats

Assets

what assets are we protecting
Servers

Desktop Computers

Laptops and PDAs

Switches and Routers

Application software

Development Tools

Source Code

VPN Access

Backup Tapes

Email

Data Integrity

All Files on the Server

Consumer Information

Network Infrastructure

DHCP

Web Site Availability

Reputation

Employee Morale

What Assets are we Protecting?
proactive risk management14
Proactive Risk Management

Owners

Controls

Vulnerabilities

ThreatSources

Risk

Threats

Assets

protecting from what threats
Protecting From What Threats?
  • Human Threats – Carelessness, Shoulder Surfing, User Abuse, Sabotage, Arson, Data Entry Errors, Intentional and Unintentional Procedure Violations
  • Technical Threats – Takeover of authorized session, Intrusion, Keystroke Eavesdropping, System Failure, Saturation of Resources
  • Environmental Threats – Fire, Earthquake, Hurricane, Tornado, Cable Cuts, Power Fluctuation, Hazardous Material Accident, Overheating
proactive risk management16
Proactive Risk Management

Owners

Controls

Vulnerabilities

ThreatSources

Risk

Threats

Assets

threats to what vulnerabilities
Unlocked doors

Unlocked windows

Misconfigured systems

Missing patches

Antivirus out-of-date

Poorly written apps

Vendor backdoors

Spyware

Software Configuration

Systems not monitored

Unnecessary protocols

Poorly defined procedures

Stolen credentials

Poor password protection

Poor Disaster Recovery

Violations not reported

Threats to What Vulnerabilities?
proactive risk management18
Proactive Risk Management

Owners

Controls

Vulnerabilities

ThreatSources

Risk

Threats

Assets

proactive risk management20
Proactive Risk Management

Owners

wish to

minimize

to reduce

Controls

impose

value

that may be

reduced by

that may possess

Vulnerabilities

may be aware of

ThreatSources

that

exploit

leading to

Risk

to

give rise

to

that increase

Threats

to

Assets

wish to abuse and/or may damage

two approaches to risk assessment
Two Approaches to Risk Assessment

1) Quantitative Risk Assessment

  • Value your assets
  • Determine the SLE (total amount lost from a single occurrence of the risk) Single Loss Expectancy
  • Determine the ARO (number of times you expect the risk to occur during one year) Annual Rate of Occurrence
  • Determine the ALE (amount you will lose in one year if the risk is not mitigated) Annual Loss Expectancy
  • Determine the ROSI (ALE before control) – (ALE after control) – (annual cost of control) = ROSI Return On Security Investment
two approaches to risk assessment22
Two Approaches to Risk Assessment

2) Qualitative Risk Assessment

  • Estimate relative values
  • Determine what threats each asset may be facing
  • Determine what vulnerabilities those threats might exploit in the future
  • Determine controls which will mitigate the risks, and the approximate cost of each control
  • Management performs a cost-benefit analysis on the results
comparing the two approaches the benefits quantitative qualitative
Risks and assets are prioritized by financial values

Results facilitate management of risk by Return on Security Investment

Results expressed in terms management understands ($)

Accuracy tends to increase over time

Enables visibility and understanding of risk ranking

Easier to reach consensus

Not necessary to quantify threat frequency or determine financial value of assets

Easier to involve people who are not experts on security or computers

Comparing the Two Approaches – the BenefitsQuantitative Qualitative
comparing the two approaches the drawbacks quantitative qualitative
Impact values assigned to risks are based on subjective opinion

Very time-consuming

Calculations can be very complex

Results are presented only in monetary terms, and can be difficult for non-technical people to interpret

Process requires expertise

Insufficient differentiation between important risks

Difficult to justify investing in control implementation when there is no basis for a cost-benefit analysis

Results are dependent on the quality of the Risk Management Team that is created

Comparing the Two Approaches – the DrawbacksQuantitative Qualitative
effective risk management
Effective Risk Management

Threats

Malicious

attacks

Sabotage

Attempts to

access private

information

Natural

disasters

User

error

Fraud

Pranks

Controls Protecting Data,

Applications, LAN and Workstations

Potential Damage

Sensitive

information

disclosed

Services and

benefits

interrupted

Integrity of data

and reports

compromised

Assets lost

:Public’s Loss of

confidence

Failure to

meet contractual

obligations

Critical

operations

halted

nist the national institute of standards and technology
NIST - The National Institute of Standards and Technology
  • NIST is a non-regulatory Federal agency with the mission of developing and promoting measurement, standards and technology to enhance productivity and improve quality of life
  • They invent – an atomic clock; a cement-like substance that promotes bone regrowth
  • They develop - software for the 170 VA hospitals; complex computational models
  • The set standards – weights and measures, cholesterol testing, and . . .

Information Security

pertinent nist publications
Pertinent NIST Publications
  • SP 800-12 An Introduction to Computer Security: The NIST Handbook
  • SP 800-18 Guide for Developing Security Plans for Information Technology Systems
  • SP 800-26 Security Self-Assessment Guide for Information Technology Systems
  • SP 800-30 Risk Management Guide for Information Technology Systems
nist says it s a management function
NIST SaysIt’s a Management Function
  • The goal of Risk Management is to protect the organization and its ability to perform its mission
  • The focus is the mission; not IT assets
  • Risk Management, therefore, is an essential management function of the organization
nist says risk management has three parts
NIST SaysRisk Management has Three Parts
  • Risk Assessment - Determining where risks lie, and how big they are
  • Risk Mitigation - Prioritizing, evaluating, and implementing appropriate risk-reducing controls
  • Evaluation and Assessment – Since Risk Management is continuous and evolving, the past year’s Risk Management efforts should be assessed and evaluated prior to beginning the cycle again
risk management process
Risk Management Process

What is my risk?

What will I do about it?

How did I do?

Risk Assessment

Risk Mitigation

RM Evaluation

national institute of standards and technology sp 800 30 the ten steps of risk assessment
National Institute of Standards and Technology SP 800-30The Ten Steps of Risk Assessment
  • System Characterization
  • Threat Identification
  • Vulnerability Identification
  • Control Analysis
  • Identify Threat-source/Vulnerability Pairs
  • Likelihood Determination
  • Impact Analysis
  • Risk Determination
  • Control Recommendations
  • Results Documentation
risk management process34
Risk Management Process

What is my risk?

What will I do about it?

Risk Assessment

Risk Mitigation

risk mitigation
Risk Mitigation
  • Risk Mitigation is the process of identifying areas of risk that are unacceptable; and estimating countermeasures, costs and resources to be implemented as a measure to reduce the level of risk
  • Determining “appropriate risk-reducing controls” is a job for your Risk Management Committee
what is acceptable risk
What is “Acceptable” Risk?
  • Setting your agency’s “risk appetite” is up to your Director and Senior Management
  • Because elimination of all risk is impossible, we must use the least-cost approach and implement the most appropriate controls to decrease mission risk to an acceptable level, with minimal adverse impact on the organization’s resources and mission
risk mitigation options
Risk Mitigation Options
  • Assumethe Risk – Accept the risk and continue operating (how big is your appetite?)
  • Avoidthe Risk – Stop running the program or sharing the data
  • Transferthe Risk – Use options to compensate for the loss, such as insurance
  • Lessenthe Risk – Implement controls that lessen the impact or lower the likelihood
risk mitigation methodology
Risk Mitigation Methodology
  • Prioritize based on risk levels presented
  • Evaluate recommended control options
  • Conduct a cost-benefit analysis
  • Select additional controls, as necessary
  • Assign responsibility
  • Develop an action plan, if necessary
  • Implement the selected controls
cost benefit analysis
Cost-Benefit Analysis
  • If control reduces risk more than needed, see if a less expensive alternative exists
  • If control would cost more than the risk reduction provided, then find something else
  • If control does not reduce risk sufficiently, look for more controls or a different control
  • If control provides enough risk reduction and is cost-effective, then use it
residual risk
Residual Risk
  • The risk remaining after the implementation of new or enhanced controls is the residual risk
  • If the residual risk has not been reduced to an acceptable level, the risk management cycle must be repeated to identify a way of lowering the residual risk to an acceptable level
  • Understand that no IT system can be risk-free
risk management process41
Risk Management Process

What is my risk?

What will I do about it?

How did I do?

Risk Assessment

Risk Mitigation

RM Evaluation

evaluation and assessment
Evaluation and Assessment
  • People, systems, and networks change, so risk management must be ongoing
  • Federal agencies must conduct risk management at least every three years
  • Stay flexible to allow changes when warranted
nist says good risk management depends upon
NIST SaysGood Risk Management Depends Upon
  • Senior management’s commitment
  • Support of the IT Team
  • Competence of the Risk Management Committee
  • Cooperation and education of the users
  • Ongoing assessment of IT-related mission risks
iso international organization of standardization
ISO - International Organization of Standardization
  • In the late 1990s, the British Standard Institute (BSI) developed a program to accredit auditing firms, called “BS 7799”
  • When demand grew quickly for an information security standard, the ISO (International Organization for Standardization) adapted 7799 and released Part 1 in 2000 as “ISO 17799”
  • ISO 17799 defines a set of recommended information security management practices
on line purchases of iso 17799
On-line Purchases of ISO 17799

9 %

35 %

18%

9 %

6 %

Others 9%

iso 17799 a set of recommendations
ISO 17799 – A Set of Recommendations
  • ISO does not expect you to apply every piece of the standard
  • Instead ISO suggests that you consider each recommendation as you try to improve your information security program
  • If a particular recommendation helps you address an important security need, then accept it – otherwise, ignore it
iso 17799 says first understand
ISO 17799 Says “First, Understand”

Perfect security may be achievable only for networkless servers located in rooms without doors in stone buildings without people on high ground with no earth faults in areas with very little rain

10 key contexts of iso 17799
10 Key Contexts of ISO 17799

Security policy

Compliance

Organizational

security

Business continuity

management

Asset classification

and control

Integrity

Confidentiality

Information

Systems

development &

maintenance

Personnel security

Availability

Access control

Physical and

environmental

security

Communications

and operations

management

iso 17799 s information security management process
ISO 17799’s Information Security Management Process
  • Obtain Upper Management Support
  • Define Security Perimeter
  • Create Information Security Policy
  • Create Info Security Management System
  • Perform Risk Assessment
  • Select and Implement Controls
  • Document in Statement of Accountability
  • Audit
iso 17799 risk assessment steps
ISO 17799 Risk Assessment Steps
  • Identify assets within the security perimeter
  • Identify threats to the assets
  • Identify vulnerabilities to the assets
  • Determine realistic probability
iso 17799 risk assessment steps54
ISO 17799 Risk Assessment Steps
  • Identify assets within the security perimeter
  • Identify threats to the assets
  • Identify vulnerabilities to the assets
  • Determine realistic probability
  • Calculate harm
iso 17799 risk assessment steps56
ISO 17799 Risk Assessment Steps
  • Identify assets within the security perimeter
  • Identify threats to the assets
  • Identify vulnerabilities to the assets
  • Determine realistic probability
  • Calculate harm
  • Calculate risk (probability x harm)
iso 17799 s information security management process58
ISO 17799’s Information Security Management Process
  • Obtain Upper Management Support
  • Define Security Perimeter
  • Create Information Security Policy
  • Create Info Security Management System
  • Perform Risk Assessment
  • Select and Implement Controls
  • Document in Statement of Accountability
  • Audit
c obi t control objectives for information and related technology
COBIT – Control Objectives for Information and related Technology
  • Created by the Information Systems Audit and Control Association (ISACA) and the IT Governance Institute (ITGI)
  • The first edition was published in 1996, the second in 1998, the third in 2000, and the on-line edition became available in 2003
  • Recently found favor due to Enron scandal and the subsequent passage of the Sarbanes-Oxley Act
what c obi t says you should do
What COBIT Says You Should Do
  • COBIT looks at information that is needed to support business requirements and the associated IT resources and processes
  • COBIT has 34 high level objectives that cover 318 control objectives, categorized in four domains:

1) Planning and Organization2) Acquisition and Implementation3) Delivery and Support4) Monitor

microsoft says successful risk management requires
Microsoft Says . .Successful Risk Management Requires:
  • Executive sponsorship
  • A well-defined list of RM stakeholders
  • Organizational maturity in terms of RM
  • An atmosphere of open communication
  • A spirit of teamwork
  • A holistic view of the organization
  • Security Risk Management Team authority
microsoft says risk management has four phases
Microsoft Says . .Risk Management Has Four Phases
  • Assessing Risk – Triage an entire list of security risks, identifying the most important
  • Conducting Decision Support – Potential control solutions are evaluated, and the best are recommended for mitigating top risks
  • Implementing Controls – Control solutions are put in place
  • Measuring Program Effectiveness – Checking to make sure that the controls are providing the expected protection
microsoft says assessing risk phase has three steps
Microsoft Says . .Assessing Risk Phase has Three Steps
  • Planning – Align your annual process with your budget; Specify your scope; Identify and pre-sell stakeholders; embrace subjectivity
  • Facilitated Data Gathering – Identify tangible and intangible assets, threats, vulnerabilities, existing controls, probable impact
  • Risk Prioritization – Determine probabilities, and combine impact with probability to produce a risk statement
microsoft says conducting decision support phase
Microsoft Says . .Conducting Decision Support Phase
  • Determine functional requirements
  • Identify combinations of controls (Organizational, Operational, Technological)
  • Compare proposed controls to functional requirements
  • Calculate the probable overall risk reduction to the organization
  • Estimate the cost of teach proposed control
  • Select which controls to implement
microsoft says implementing controls phase
Microsoft Says . .Implementing Controls Phase

Solid Building Structure

Good Network Design

Secure Wireless Segment

Disable LAN Services

Remove User Rights

Good Firewall Settings

Least Privilege Necessary

Small attack surface

Frequent Backups

Encryption

microsoft says measuring program effectiveness phase
Microsoft Says . .Measuring Program Effectiveness Phase
  • Ongoing – continues until next assessment phase
  • Should catch changes in the information systems environment, and in applications
  • Includes creating and maintaining a security risk scorecard that demonstrates the organization’s current risk profile
hipaa says covered entities must

Final Rule, “Administrative Safeguards” – 45 CFR Part 164.306

HIPAASays Covered Entities Must
  • Ensure the confidentiality, integrity and availability of all protected health information the covered entity creates, receives, maintains or transmits
  • Protect against any reasonably anticipated threats or hazards to the security or integrity of such information
hipaa security specifications

Final Rule, “Administrative Safeguards” – 45 CFR Part 164.308

HIPAASecurity Specifications
  • Security Management Process – “Implement policies and procedures to prevent, detect, contain and correct security violations” Standard: (a)(1)(i)
  • Train workforce – “Implement a security awareness and training program for all members of its workforce (including management)” Standard: (a)(5)(i)
hipaa security specifications79

Final Rule, “Administrative Safeguards” – 45 CFR Part 164.308

HIPAASecurity Specifications
  • Information Systems Activity Review – “Implement procedures to regularly review records of information system activity, such as audit logs, access reports, and security incident tracking reports” Standard: (a)(1)(D)
  • Security Incidence Procedures – “Mitigate, to the extent practicable, harmful effects of security incidents that are known to the covered entity” Standard: (a)(6)(2)
hipaa security specifications80

Final Rule, “Administrative Safeguards” – 45 CFR Part 164.308

HIPAASecurity Specifications
  • Risk Analysis – A covered entity “must conduct an actual and thorough assessment of the potential risks and vulnerabilities of the confidentiality, integrity, and availability of electronic PHI held by the covered entity” Standard (a)(1)(2)(A)
  • Risk Management – A covered entity “must implement security measures sufficient to reduce risks and vulnerabilities to a reasonable and appropriate level” Standard (a)(1)(ii)(D)
and wh y you should do it
. . And Why You Should Do It
  • Civil Monetary Penalties for Non-Compliance$100/person/violation, up to $25,000 per person per year per violation (Section 1176)
  • Knowingly Misusing PHI - $50,000, 1 year
  • Misuse of PHI under False Pretenses - $100,000 and up to 5 years
  • Misuse of PHI with Intent to Sell - $250,000 and up to 10 years (Section 1777)
what nc its says you should do
What NC ITSSays You Should Do*
  • They say you should focus on four things:

Identification of Risks

Analysis of Risks

Mitigation Planning

Tracking and Controlling Risks

*

Based on November 2004 Risk Management policy issued by the State Chief Information Officer

nc its s risk management program
NC ITS’s Risk Management Program
  • Consists of two components: Pre-Risk Assessment, and Risk Assessment (three phases), explained in a Risk Management Guide Phase I – Identify Risks Phase II – Analyze Risks Phase III – Manage Risks
  • Heavily uses the NIST rating scale: Low – Limited adverse effect on agency Moderate – Serious adverse effect High – Severe or catastrophic adverse effect
nc its s rm pre risk assessment
NC ITS’s RM – Pre-Risk Assessment
  • Review lines of business service that have automated systems that support the business service
  • Determine if critical infrastructures are involved, or if there are critical infrastructure dependencies
  • Complete the Pre-Risk Assessment form
nc its s rm phase i
NC ITS’s RM – Phase I
  • A Facilitator leads a team of people responsible for delivery of a particular line of business through completing the Phase I Questions of the ITS Risk Assessment Questionnaire
  • If the final score is “Low”, the risk assessment process ends
  • If the final score is “Moderate” or “High”, proceed to Phase II for additional analysis
nc its s rm phase ii
NC ITS’s RM – Phase II
  • A Facilitator leads a team of people knowledgeable in the particular line of business through the Phase II Questions of the ITS Risk Assessment Questionnaire
  • If the final score is “Low”, the risk assessment process ends
  • If the final score is “Moderate” or “High”, proceed to Phase III for mitigation
nc its s rm phase iii
NC ITS’s RM – Phase III
  • A Facilitator leads appropriate managers and staff through an analysis that focuses on mitigation
  • The team identifies options to mitigate the risk, analyzes the cost implications, determines the benefits, and balances the cost of implementing each option against the benefits derived from it
  • The result is completion of the Risk Analysis Results & Mitigation Plans form found in the ITS Risk Assessment Questionnaire
nc its s risk management training
NC ITS’s Risk Management Training
  • On March 31, 2004, ITS and its vendor partner, Strohl Systems, presented a two hour agency training session (introduced by Ann Garrett) which covered both Business Impact Analysis and Risk Management
  • Let’s fast forward and view the Risk Management part of the PowerPoint slide show presented there
  • Let’s try working through an example
pre risk assessment form
Pre-Risk Assessment Form
  • Line of Business – Pharmacy
  • Business Process Owner – Pharmacy Director
  • Automated System Supporting – MCPlus
  • Critical Infrastructure – Linux Server
  • Critical Dependencies – Vendor
risk assessment questionnaire
Risk Assessment Questionnaire
  • 20 Phase I Questions (Q1 – Q19)
  • If one or more questions is answered as “Moderate” or “High”, then proceed to Phase II questions
  • 65 Phase II Questions (Q1 – Q25)
  • If one or more questions (except for Q3) is answered as “Moderate” or “High”, then proceed to Phase III
  • Let’s try to fill out the Mitigation Plan now
based on june 15 2005 dhhs risk management policy what dhhs says you should do
(Based on June 15, 2005 DHHS Risk Management Policy)What DHHS Says You Should Do
  • Assign responsibility for managing risk to senior management
  • Provide a mechanism for tracking and reporting risks
  • Identify system threats in the environment
  • Identify system vulnerabilities the threats could attack
  • Identify current security controls
  • Identify current security gaps
dhhs risk management policy june 15 2005 more things dhhs says to do
DHHS Risk Management Policy, June 15, 2005More Things DHHS Says to Do
  • Ensure that every risk has at least one owner
  • Develop the responses or controls necessary to mitigate identified and reported risks
  • Assess the probability of risks occurring and their potential impact
  • Identify the risks associated with critical processes in the workflow
  • Identify security controls currently implemented
  • Provide an analysis of risks
dhhs risk management policy june 15 2005 even more things dhhs says to do
DHHS Risk Management Policy, June 15, 2005 Even More Things DHHS Says to Do
  • Ensure that Risk Management is an intrinsic part of operations
  • Keep Risk Management policies and procedures current
  • Perform an analysis to evaluate risk mitigation actions taken, and to determine further steps
  • Respond to changes in risks, and take corrective action as needed
dhhs information security management policy june 15 2005 even more things dhhs says to do
DHHS Information Security Management Policy, June 15, 2005 Even More Things DHHS Says to Do
  • Implement a systematic, analytical and continuous risk management program for information systems
  • Ensure that risk identification, analysis and mitigation activities are performed
  • Ensure that risk assessments are performed periodically to evaluate effectiveness of existing controls
  • Define strategies and mitigate risks to acceptable levels
dhhs says to address risks by
DHHS Says to Address Risks by:
  • Risk Reduction – Implement measures to alter the risk position of an asset
  • Risk Transference – Assign or transfer the potential cost of the loss to another party
  • Risk Acceptance – Accept the level of loss that will occur and be prepared to absorb the loss
confused yet
Confused Yet?

ISO 17799

HIPAA

DHHS

NIST

What you thought you knew

Microsoft

COBIT

nist says risk management has three parts101
NIST SaysRisk Management has Three Parts
  • Risk Assessment - Determining where risks lie, and how big they are
  • Risk Mitigation - Prioritizing, evaluating, and implementing appropriate risk-reducing controls
  • Evaluation and Assessment – Since Risk Management is continuous and evolving, the past year’s Risk Management efforts should be assessed and evaluated prior to beginning the cycle again
risk management process102
Risk Management Process

What is my risk?

What will I do about it?

How did I do?

Risk Assessment

Risk Mitigation

RM Evaluation

national institute of standards and technology sp 800 30 the ten steps of risk assessment103
National Institute of Standards and Technology SP 800-30The Ten Steps of Risk Assessment
  • System Characterization
  • Threat Identification
  • Vulnerability Identification
  • Control Analysis
  • Identify Threat-source/Vulnerability Pairs
  • Likelihood Determination
  • Impact Analysis
  • Risk Determination
  • Control Recommendations
  • Results Documentation

White

Lie

1 system characterization
1) System Characterization
  • Define the boundaries of the IT system you are addressing, along with the resources and the information that constitute the system, setting the scope of the assessment effort
  • Methods of gathering system characterization information include the use of questionnaires, interviews, and automatic scanning tools
  • Output #1: A system characterization paragraph
2 threat identification
2) Threat Identification
  • A threat is the potential for a particular threat-source to successfully exercise a particular vulnerability
  • A threat-source is any circumstance or event with the potential to cause harm to an IT system
  • A vulnerability is a weakness that can be accidentally triggered or intentionally exploited
two types of threat sources
Two Types of Threat-Sources
  • Intent and method targeted at the intentional exploitation of a vulnerability
  • A situation and method that may accidentally trigger a vulnerability
common threat sources
Common Threat-Sources
  • Natural Threats – Floods, earthquakes, tornadoes, electrical storms, landslides, avalanches, etc.
  • Human Threats – Events either enabled or caused by human beings, including both unintentional acts (inadvertent data entry) and deliberate actions (unauthorized access)
  • Environmental Threats – Long-term power failure, pollution, chemicals, liquid leakage
threat source identification
Threat-Source Identification
  • Humans are the most dangerous threat-source
  • For each type of human threat-source, estimate the motivation, resources, and capabilities that may be required to carry out a successful attack (to be used during the Likelihood Determination phase)
  • Output #2: A list of threats
  • Output #3: A chart showing motivation and necessary threat actions for human threats
3 vulnerability identification
3) Vulnerability Identification
  • A vulnerability is a flaw or weakness in system security procedures, design, implementation, or controls that could be exercised (accidentally triggered or intentionally exploited) and result in a security breach or a violation of an information security policy
  • Output #4: A list of vulnerabilities that could be exploited by the potential threat-sources
where vulnerabilities are found
Where Vulnerabilities are Found
  • Hardware Configuration – Servers, Workstations, Routers, Switches, Firewalls
  • Software Applications – How installed, Where installed, Rights granted
  • IS Policies and Procedures – How complete, How up-to-date, How well known
  • Humans – Procedures not being followed, Staff not being trained
how we find vulnerabilities
Hardware Configuration – Complete a System Risk Analysis form for each network component, arrange for penetration testing

Software Applications – Complete an Application Criticality and Risk Analysis form for each application

IS Policies and Procedures – Complete a review of the quality of your Information Security Policies and Procedures every year

Humans – Review log files, training records, and incident reports

How We Find Vulnerabilities
4 control analysis
4) Control Analysis
  • The goal of this step is to analyze the controls that have been implemented to minimize the likelihood of a threat exercising a vulnerability
  • Output #5: A list of controls currently in use by network hardware components
  • Output #6: A list of controls currently in use by applications
5 threat source vulnerability pairs
5) Threat-Source/Vulnerability Pairs
  • Considering the controls in place, what are the Threat-source/Vulnerability pairs which are of most concern?
  • A vulnerability with no threat-source is not a risk
  • A threat-source with no vulnerability is not a risk
  • Output #7: A list of Threat-source and Vulnerability pairs of concern
6 likelihood determination
6) Likelihood Determination
  • A determination of the probability that a potential vulnerability will be exercised
  • When determining likelihood, consider:
  • Threat-source motivation and capability
  • The nature of the vulnerability
  • The existence and effectiveness of current controls
likelihood determination results
Likelihood Determination Results
  • Output #8: For each identified vulnerability, a determination of likelihood (H, M, or L)

High – The threat-source is highly motivated and sufficiently capable, and controls to prevent the vulnerability from being exercised are ineffective

Medium – The threat-source is motivated and capable, but controls are in place that may impede successful exercise of the vulnerability

Low – The threat-source lacks motivation or capability, or controls are in place to prevent or significantly impede exercising the vulnerability

7 impact analysis
7) Impact Analysis
  • Determine the adverse impact resulting from a successful threat exercise of each threat-source/vulnerability pair of concern
adverse impact comes from
Adverse Impact Comes From:
  • Loss of Integrity- Improper modification
  • Loss of Availability- System cannot be accessed or data cannot be located
  • Loss of Confidentiality- Information classified as sensitive is disclosed without authorization
impact analysis needs
Impact Analysis Needs
  • For an Impact Analysis we must know:
  • The organization’s mission
  • The criticality of the data
  • The sensitivity of the data

Sensitivity is the sum of the potential injury from a breakdown in confidentiality

Criticality is the sum of the potential injury from a breakdown in integrity and/or availability

impacts are high medium or low
Impacts are High, Medium, or Low
  • Output #9: For each identified vulnerability, an estimation of the magnitude of probable impact

High – Exercise of the vulnerability may result in a highly costly loss or may significantly impede an organization’s mission or reputation

Medium – Exercise of the vulnerability may result in a costly loss or may harm an organization’s mission or reputation

Low – Exercise of the vulnerability may result in the loss of some assets, or may noticeably affect an organization’s mission or reputation

8 risk determination
8) Risk Determination
  • NIST says risk is the net mission impact considering both the likelihood that a particular threat-source will exercise (accidentally trigger or intentionally exploit) a particular information system vulnerability, and the resulting impact on the organization if this should occur
  • Likelihood x Impact = Risk
use a risk level matrix
Use a Risk-Level Matrix

Risk Scale: High (>50 to 100); Medium (>10 to 50); Low (1 to 10)

assessing the risk level
Assessing the Risk Level
  • Final determination of mission risk is derived by multiplying the threat likelihood and the threat impact scores
  • Output #10: A numeric risk score for each identified vulnerability/threat-source pair
  • The Vulnerability Analysis form can be used to capture this information
9 control recommendations
9) Control Recommendations
  • Finish your risk assessment by thinking of controls which could help minimize the risk of the vulnerability/threat-source combinations you are most concerned about
  • To determine which controls are appropriate to add, perform a cost-benefit analysis
  • Output #11: Recommendation of additional controls based on risk assessment
10 results documentation
10) Results Documentation
  • The Risk Assessment report should be of sufficient detail to allow the organization’s management to make informed decision on appropriate actions in response to the risks identified
  • Unlike an audit or investigative report that looks for “wrong-doing”, the Risk Assessment report should be not be presented in an accusatory manner
risk assessment report
Risk Assessment Report
  • Your Risk Assessment report should have:A) An IntroductionB) A description of your Risk Assessment approachC) A system characterization summaryD) A list of Threat-SourcesE) Vulnerability/Threat-Source analysis resultsF) A summary of risk levels and recommendations
  • Output #12: Risk Assessment Report that measures risk and provides recommendations
report introduction
Report - Introduction
  • Purpose
  • Scope
  • Describe * System Controls * Elements * Users * Site Locations * Other Details as necessary
report risk assessment approach
Report – Risk Assessment Approach
  • Describe Approach UsedRisk Assessment Team membersTechniques used to gather information(use of tools, questionnaires, etc.)Development and description of risk scale (3x3, 4x4, or 5x5 risk level matrix)
report system characterization
Report – System Characterization
  • Describe the system - Hardware (server, router, switch) - Software (application, operating system) - System Interfaces (communication link) - Data - Users
  • Provide connectivity diagram or system input and output flowchart
report threat statement
Report - Threat Statement
  • Compile potential threat sources
  • List associated threat actions
  • Review Human Motivations
report risk assessment results
Report – Risk Assessment Results
  • List observations (vulnerability/threat pairs)
  • Observations contain- Observation number and brief description- Discussion of threat-source and vulnerability- Identification of existing security controls- Likelihood discussion and evaluation- Risk rating- Recommended controls or alternative options
report summary
Report - Summary
  • Total number of threat-source/vulnerabilities pairs identified (“observations”)
  • Summarize- Observations- Associated risk levels- Recommendations- Any comments
  • Organize into a table to facilitate implementation
the ten steps of risk assessment
The Ten Steps of Risk Assessment
  • System Characterization
  • Threat Identification
  • Vulnerability Identification
  • Control Analysis
  • Identify Threat-source/Vulnerability Pairs
  • Likelihood Determination
  • Impact Analysis
  • Risk Determination
  • Control Recommendations
  • Results Documentation
reviewing nist s ra output
System Characterization

List of Threats

Human Motivation Review

List of Vulnerabilities

Review Network Hardware Controls

Review Application Controls

List Threat-Source and Vulnerability pairs

Likelihood determination for each pair of concern

Estimation of probable impact

Identify risk scores

Recommendations, if any, for additional controls

Risk Assessment Report

Reviewing NIST’s RA Output
risk management process135
Risk Management Process

What is my risk?

What will I do about it?

Risk Assessment

Risk Mitigation

risk mitigation136
Risk Mitigation
  • Risk Mitigation is the process of identifying areas of risk that are unacceptable; and estimating countermeasures, costs and resources to be implemented as a measure to reduce the level of risk
  • Determining “appropriate risk-reducing controls” is a job for your Risk Management Committee
what is acceptable risk137
What is “Acceptable” Risk?
  • Setting your agency’s “risk appetite” is up to your Director and Senior Management
  • Because elimination of all risk is impossible, we must use the least-cost approach and implement the most appropriate controls to decrease mission risk to an acceptable level, with minimal adverse impact on the organization’s resources and mission
risk mitigation options138
Risk Mitigation Options
  • Assumethe Risk – Accept the risk and continue operating (how big is your appetite?)
  • Avoidthe Risk – Stop running the program or sharing the data
  • Transferthe Risk – Use options to compensate for the loss, such as insurance
  • Lessenthe Risk – Implement controls that lessen the impact or lower the likelihood
risk mitigation methodology139
Risk Mitigation Methodology
  • Prioritize based on risk levels presented
  • Evaluate recommended control options
  • Conduct a cost-benefit analysis
  • Select additional controls, as necessary
  • Assign responsibility
  • Develop an action plan, if necessary
  • Implement the selected controls
possible technical controls
Possible Technical Controls
  • User Identification
  • Security Administration
  • Authentication
  • Authorization
  • Nonrepudiation
  • Transaction Privacy
  • Restore Secure State
  • Virus Detection and Eradication
possible management controls
Possible Management Controls
  • Assign Security Responsibility
  • Conduct Security Awareness Training
  • Conduct end-user training for system users
  • Implement personnel clearance procedures
  • Perform periodic system audits
  • Conduct ongoing risk management activities
  • Establish incident response capability
possible operational controls
Possible Operational Controls
  • Control physical access
  • Secure hub and cable wiring closets
  • Establish off-site storage procedures
  • Provide an uninterruptible power supply
  • Control temperature and humidity
  • Provide motion sensors or CCTV monitoring
  • Ensure environmental security
cost benefit analysis143
Cost-Benefit Analysis
  • If control reduces risk more than needed, see if a less expensive alternative exists
  • If control would cost more than the risk reduction provided, then find something else
  • If control does not reduce risk sufficiently, look for more controls or a different control
  • If control provides enough risk reduction and is cost-effective, then use it
residual risk145
Residual Risk
  • The risk remaining after the implementation of new or enhanced controls is the residual risk
  • If the residual risk has not been reduced to an acceptable level, the risk management cycle must be repeated to identify a way of lowering the residual risk to an acceptable level
  • Understand that no IT system can be risk-free
risk management process146
Risk Management Process

What is my risk?

What will I do about it?

How did I do?

Risk Assessment

Risk Mitigation

RM Evaluation

evaluation and assessment147
Evaluation and Assessment
  • People, systems, and networks change, so risk management must be ongoing
  • Federal agencies must conduct risk management at least every three years
  • Stay flexible to allow changes when warranted
nist says good risk management depends upon148
NIST SaysGood Risk Management Depends Upon
  • Senior management’s commitment
  • Support of the IT Team
  • Competence of the Risk Management Committee
  • The cooperation of the users
  • Ongoing assessment of IT-related mission risks
risk management examples
Risk Management Examples

Scenario #1 - The Grounds of My Home

1 the grounds of my home
#1) The Grounds of My Home
  • System Characterization - the land my home sits on (risk owned by my wife)
  • Threat Identification – Environmental? From people? From Nature?
  • Vulnerability Identification – Looking for weaknesses which could be exercised by a threat-source; use eyes and knowledge
  • Control Analysis – City Services, fire hydrant, Home Owner’s insurance, car insurance
the grounds of my home continued
The Grounds of My Home – Continued
  • Identify Threat-Source/Vulnerability Pairs – Dead limb or whole tree could fall on my car
  • Likelihood Determination – Has happened before; lots of storms; high likelihood
  • Impact Analysis – Dents, broken glass, car not drivable, repair cost – medium impact
  • Risk Determination – High (1.0) Likelihood x Medium (50) Impact = Medium (50) Risk
the grounds of my home continued152
The Grounds of My Home – Continued

9) Control Recommendation Options:

  • Have wife pull the limb down
  • Hire a tree surgeon to take off the limb
  • Take the tree down
  • Don’t park there
  • Park my wife’s company car there
  • Buy a bicycle
  • Lower amount of deductible
completing mitigation
Completing Mitigation . .
  • Assign ResponsibilityTaking down the limb - My wife (stronger)Parking differently - Me (get home first)
  • Develop an Action Plan (if necessary)This weekend--------------------------------------------------------
  • Lessen the likelihood by removing the limb
  • Transfer some risk to my wife’s company
  • Accept the residual risk
risk management examples155
Risk Management Examples

Scenario #2 - The Agency File Servers

2 the file servers
#2) The File Servers
  • System Characterization - the File Servers in our Server Closet
  • Threat Identification – Environmental? From people? From Nature?
  • Vulnerability Identification – Looking for weaknesses which could be exercised by a threat-source; use eyes and knowledge
  • Control Analysis – Firewall, Locks, Daily Observation, Separate Circuit, UPSs
the file servers continued
The File Servers – Continued
  • Identify Threat-Source/Vulnerability Pairs – Big Oak could fall on flat roof, break it
  • Likelihood Determination – Tree appears strong, but lots of storms; low likelihood
  • Impact Analysis – Damage from impact, water damage, repair cost – high impact
  • Risk Determination – Low (0.1) Likelihood x High (100) Impact = Low (10) Risk
the file servers continued158
The File Servers – Continued

9) Control Recommendation Options:

  • Have the tree removed
  • Weaken the tree on the other side to affect fall
  • Relocate the File Servers
  • Reinforce the roof
  • Buy a tarp and rig it over the servers
  • Buy a tarp and keep it handy
completing mitigation159
Completing Mitigation . .
  • Assign ResponsibilityLAN Manager - Buying a tarp at Wal-Mart for $9
  • Develop an Action Plan (if necessary)Do it tomorrow

--------------------------------------------------------

  • Lessen the impact by preparing for the event (even though it is unlikely)
  • Accept the residual risk
risk management examples161
Risk Management Examples

Scenario #3 - An Agency Application

3 an agency application
#3) An Agency Application
  • System Characterization - Local Access-based system with PHI sent over the internet
  • Threat Identification – From people? From telecommunication?
  • Vulnerability Identification – Availability and Integrity risks are low, but Confidentiality risk is high; also, data is sent elsewhere
  • Control Analysis – Logical and Physical Access controls, Security Awareness Program, Staff Sensitivity Designations
an application continued
An Application – Continued
  • Identify Threat-Source/Vulnerability Pairs – We are sharing PHI with no Business Associate agreement in place
  • Likelihood Determination – Sent to another CE, but no BA in place; low likelihood
  • Impact Analysis – PHI becoming exposed could hurt image badly – high impact
  • Risk Determination – Low (0.1) Likelihood x High (100) Impact = Low (10) Risk
an application continued164
An Application – Continued

Control Recommendation Options:

  • Make sure the receiver of the PHI understands their BA responsibilities
  • Offer training to the Business Associate
  • Request written documentation for the program
  • Establish a written Memorandum of Understanding between the agencies
completing mitigation165
Completing Mitigation . .
  • Assign ResponsibilitySecurity Official will contact other Security OfficialSecurity Official will develop and offer training showData Owner will request software documentation
  • Develop an Action Plan (if necessary)--------------------------------------------------------
  • Lessen the likelihood establishing a HIPAA compliant Business Associate relationship
  • Accept the residual risk
so let s go
So Let’s Go!
  • All Set? - We know where we want to go, and we have a map, so we’re ready, right?
  • Hold On – How long is this trip, and how old are we now?
  • Let’s estimate our organization’s risk management maturity, and our readiness
what is your security risk management maturity level
What is your Security Risk Management Maturity Level?

Based on ISO 17799

Which of these 6 levels best describes your organization?

what is your security risk management readiness level
What is your Security Risk Management Readiness Level?

Based on Microsoft’s Security Risk Management Guide – Chapter 3

The following test measures your organization’s readiness level

For each of these 17 questions, score your organization on a scale of zero to five, using the previous maturity level definitions as a guide

risk management readiness test

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • Information security policies and procedures are clear, concise, well-documented, and complete
  • All staff positions with job responsibilities involving information security have clearly articulated and well understood roles and responsibilities
  • Policies and procedures for securing third-party access to business data are well-documented. For example, remote vendors performing application development for an internal business tool have sufficient access to network resources to effectively collaborate and complete their work, but they have only the minimum amount of access that they need
risk management readiness test174

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • An inventory of Information Technology (IT) assets such as hardware, software, and data repositories is accurate and up-to-date
  • Suitable controls are in place to protect business data from unauthorized access by both outsiders and insiders
  • Effective user awareness programs such as training and newsletters regarding information security policies and practices are in place
  • Physical access to the computer network and other information technology assets is restricted through the use of effective controls
risk management readiness test175

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • New computer systems are provisioned following organizational security standards in a standardized manner using automated tools such as disk imaging or build scripts
  • An effective patch management system is able to automatically deliver software updates from most vendors to the vast majority of the computer systems in the organization
  • Effective user awareness programs such as training and newsletters regarding information security policies and practices are in place
risk management readiness test176

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • The organization has a comprehensive anti-virus program including multiple layers of defense, user awareness training, and effective processes for responding to virus outbreaks
  • User provisioning processes are well documented and at least partially automated so that new employees, vendors, and partners can be granted an appropriate level of access to the organization's information systems in a timely manner. These processes should also support the timely disabling and deletion of user accounts that are no longer needed
risk management readiness test177

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • Computer and network access is controlled through user authentication and authorization, restrictive access control lists on data, and proactive monitoring for policy violations
  • Application developers are provided with education and possess a clear awareness of security standards for software creation and quality assurance testing of code
  • Business continuity and business continuity programs are clearly defined, well documented, and periodically tested through simulations and drills
risk management readiness test178

From Microsoft’s Security Risk Management Guide, Chapter 3

Risk Management Readiness Test
  • Programs have commenced and are effective for ensuring that all staff perform their work tasks in a manner compliant with legal requirements
  • Third-party review and audits are used regularly to verify compliance with standard practices for security business assets

How did you do?

are you ahead or behind
Are You Ahead or Behind?

According to the Gartner Group, using a population of G2000 type companies

so let s go181
So Let’s Go!
  • All Set? - We know where we want to go, and we have a map
  • We know how mature we are, and have an idea about the readiness of our organization to begin risk management

Hold On!

Can we kill any other birds with the same stones?

related dhhs policies
Related DHHS Policies
  • “System owners are responsible for determining the sensitivity of data and ensuring that adequate controls are implemented to protect the data.”DHHS Information Systems Review and Auditing Policy
  • “Tests that shall be included in overall security testing strategy for each Division/Offices shall include Vulnerability Scanning and Penetration Testing.”DHHS Security Testing Policy
related dhhs policies183
Related DHHS Policies
  • “The BC/DR planning team shall do the following: Identify the types of disasters most likely to occur and the resultant impacts on the agency’s ability to perform its mission.”DHHS Business Continuity and Disaster Recovery Policy
  • “The BC/DR planning team shall do the following: Propose protective measures to be implemented in anticipation of a natural or man-made disaster.”DHHS Business Continuity and Disaster Recovery Policy
related dhhs policies184
Related DHHS Policies
  • “Plans shall include: A risk assessment to determine risk priorities and probability of identified risk.”DHHS Business Continuity and Disaster Recovery Policy
  • “Plans shall include: Development of recovery/restoration procedures for time critical systems and applications.”DHHS Business Continuity and Disaster Recovery Policy
related dhhs policies185
Related DHHS Policies
  • For each application, classify the risk from loss of confidentiality as “low”, “medium”, or “high
  • For each application, classify the risk from loss of integrity as “low”, “medium” or “high”
  • For each application, classify the availability need level as 1 (2 to 4 days), 2 (5 to 9 days), 3 (10 to 19 days) or 4DHHS Data Classification, Labeling and Access Control Policy
related dhhs policies186
Related DHHS Policies
  • “System Administrators have the responsibility of periodically reviewing user access privileges and notifying management of any access concerns.”
  • “The system owner of each information system shall ensure that all user accounts are reviewed and access rights evaluated at least once per quarter.”DHHS User Authorization, Identification and Authentication Policy
more related dhhs policies
More Related DHHS Policies
  • “DHHS Divisions/Offices shall protect data on all sensitive and critical applications/systems by implementing controls that are commensurate with the security level required to protect the data”
  • “If sensitive electronic data resides in a DHHS Division/Office, administrative, physical and technical security controls must be implemented to limit unauthorized access to the data”DHHS Data Protection Policy
more related dhhs policies188
More Related DHHS Policies
  • “All technology shall be evaluated to ensure that it can provide the level of security required.”
  • “Security risk in the operations environment shall be kept to a level that is considered “acceptable risk”DHHS IT Operations Security Policy
related hipaa requirements
Related HIPAA Requirements
  • Application and Data Criticality Analysis – Assess the relative criticality of specific applications and data in support of other contingency plan componentsHIPAA Section 164.308 (a)(7)(ii)(E)
  • Emergency Mode Operation Plan – Establish procedures to enable continuation of critical business processes for protection of the security of electronic PHI while operating in emergency modeHIPAA Section 164.308 (a)(7)(ii)(C)
hipaa security specifications190

Final Rule, “Administrative Safeguards” – 45 CFR Part 164.308

HIPAASecurity Specifications
  • Risk Analysis – A covered entity “must conduct an actual and thorough assessment of the potential risks and vulnerabilities of the confidentiality, integrity, and availability of electronic PHI held by the covered entity” Standard (a)(1)(2)(A)
  • Risk Management – A covered entity “must implement security measures sufficient to reduce risks and vulnerabilities to a reasonable and appropriate level” Standard (a)(1)(ii)(D)
12 steps towards your program
Educate Management

Locate all assets

Assign all risk

Complete Network Risk Analysis forms

Complete Application Risk Analysis forms

Penetration and Vulnerability Testing

Update Threats list

Review IS P&P

Complete Vulnerability Analysis forms

RM Committee meets and decides on additional controls

Report sent to Director

RM mid-year meeting

12 Steps Towards YOUR Program
1 educate management
1) Educate Management
  • Risk Management is one of a half dozen Information Security projects which Management must be educated about
  • Consider an Information Security Training for Management presentation
  • Risk Management MUST be driven by management if it is to be successful
  • Don’t neglect training for “middle” managers, including application owners and supervisors
2 locate all assets
2) Locate All Assets
  • Hardware and Data - Start listing what you know about, then find the rest
  • Do searches on the network for file types
  • Find out who has been storing data on local hard drives (and stop it)
  • List applications, including which have PHI
  • Determine where Word, Excel, and Access files with PHI are kept
3 assign all risk
3) Assign all Risk
  • All applications have Data Owners
  • If you created a file (not part of an application program), then you own it
  • If you own a file, you are responsible for protecting it
  • All network components – wiring, router, switches, servers, concentrators – have a person assigned to them who owns the risk
4 network risk analysis forms
4) Network Risk Analysis Forms

For Network Risk Analysis form instructions, click HERE

  • Complete one form for each type of component
    • Windows XP Workstations
    • Windows 2000 workstations
    • Windows 98 workstations
    • File Servers
    • Firewall
    • Router
    • Core Switch
    • Workgroup Switches
    • Wireless Segment, etc.
5 application risk analysis forms
5) Application Risk Analysis Forms

For Application Risk Analysis form instructions, click HERE

  • Complete one form for each application
    • HEARTS
    • MCPlus Pharmacy
    • NC Accounting
    • Personal Planning System
    • NCSnap
    • Restraint Tracking
    • Staff Development Records
    • Staff Vacancies, etc.
6 penetration and vulnerability tests
6) Penetration and Vulnerability Tests
  • DIRM may be willing to provide penetration and vulnerability testing
  • You may have to hire a firm to provide these services
  • Testing should be done from both inside your firewall, and from outside your firewall
  • If necessary, hire a teenager
7 update threats list
7) Update Threats List
  • Consider Natural Threats, Human Threats, and Environmental Threats
  • For Human Threats, consider sources of motivation
  • Your Threats List will not be identical to others, since local factors must be considered
  • Provide this updated list to your Risk Management Committee each year
8 review is policies and procedures
8) Review IS Policies and Procedures
  • Many risks are inherent in the absence of information security policies and procedures
  • Procedures must evolve as new policies develop and old policies change
  • Your IS Policy and Procedure review should be done by someone other than the agency’s Information Security Official
  • The results of this review are presented at the Risk Management Team meeting
9 vulnerability analysis forms
9) Vulnerability Analysis Forms

For Vulnerability Analysis form instructions, click HERE

  • Complete one form for each vulnerability/threat-pair combination
    • HEARTS PHI being disclosed to or by the Client Data Warehouse
    • Workgroup switch located in unlocked wiring closet
    • Loss of application availability due to file server running out of disk space
10 risk management team meets
10) Risk Management Team Meets
  • RM Committee should be made up of senior managers, such as the Assistant Director and Business Manager, and at least one information system owner
  • Team reviews all input, and makes decisions as to what additional cost-effective controls should be implemented
  • Educating this team is an important part of improving your risk management process
  • It is the Team’s experience that sets priorities
11 send rm report to the director
11) Send RM Report to the Director
  • The Risk Management Report should clearly list the vulnerability/threat-source pairings of concern, and any additional controls which are recommended
  • The report should ideally include a cover letter to the Director, signed by each member of the Committee
12 the committee s mid year meeting
12) The Committee’s Mid-Year Meeting
  • The Risk Management Committee should meet at least twice each year
  • The mid-year meeting should be concerned about evaluating the results of the recommendations which emerged from the year’s first meeting, where mitigation measures were discussed and decided upon
  • Minutes of your Risk Management Committee meetings should be saved for 6 years
12 steps towards your program205
Educate Management

Locate all assets

Assign all risk

Complete Network Risk Analysis forms

Complete Application Risk Analysis forms

Penetration and Vulnerability Testing

Update Threats list

Review IS P&P

Complete Vulnerability Analysis forms

RM Committee meets and decides on additional controls

Report sent to Director

RM mid-year meeting

12 Steps Towards YOUR Program
risk management process timeline
Risk Management Process Timeline

Jan Feb Mar Apr May Jun Jul Aug Sep Oct Nov Dec

Risk Mitigation Meeting

Report Sent to Director

Implement Additional Controls

Risk Management Mid-Year Meeting

Penetration Testing

Network Risk Forms

Application Risk Forms

Update Threat List

Vulnerability Forms

what we covered today
What We Covered Today . .
  • What Risk Management means
  • What NIST says you should do
  • What ISO 17799 says you should do
  • What COBIT says you should do
  • What Microsoft says you should do
  • What HIPAA says you should do
  • What NC ITS says you should do
  • What DHHS says you should do
  • Developing YOUR program in 12 steps
links found in this slide show
Links Found in this Slide Show

NIST

NIST SP 800-12

NIST SP 800-18

NIST SP 800-26

NIST SP 800-30

ISO

Microsoft’s Security Risk Management Guide

COBIT

DHHS’s Risk Management

ITS’s November 2005 Risk Management Policy

Maturity Level Definitions

HIPAA Security Rule

ITS Risk Management Site

ITS Risk Management Guide

ITS Pre-Risk Assessment Form

ITS RA Questionnaire

Threats List

Human Motivations List

Network Risk Analysis Form

Instructions for above form

Application Criticality and Risk Analysis Form

Instructions for above form

Vulnerability Analysis Form

Instructions for above form

Training for Management Show

Training for Supervisors Show

Training for Application Owners

Training for Users Show
