Presentation Transcript
microsoft server 2008 r2

Microsoft Server 2008 R2

Remote Desktop Services

remote desktop services
Remote Desktop Services
  • Remote Desktop Services
  • Remote Desktop Session Host
  • RemoteApps
  • Remote Desktop Protocol
  • Hardware
  • Roles
  • Users
remote desktop services1
Remote Desktop Services
  • Who needs Remote Desktop Services (RDS)?
    • Can be used to allow users to run Windows-based applications on a remote server from the computer
    • Hosting server is called a Remote Desktop Session Host (RD Session Host)
    • Users can also access a full desktop using this method. (standard method in 2003 and prior)
remote desktop services2
Remote Desktop Services
  • What can you do with RDS?
    • Deploy and manage applications on RDS servers rather than on hundreds of client computers
    • Provide applications to end users who you cannot easily support because they are in remote offices
      • File based applications
      • Removes need for dedicated server
remote desktop services3
Remote Desktop Services
  • What can you do with RDS?
    • Reduce impact of client hardware failures by keeping applications on a central server.
      • Plug new computer in and back in business
    • Avoid configuring or mis-configuring computers
    • Extend the lifetime of existing client hardware
    • Use computers/thin clients in environments that are not so computer friendly
    • Simplify helpdesk support
remote desktop services4
Remote Desktop Services
  • Thin client/Server based networking
    • Application processing is done at the server, not the client.
    • All processes/instructions are run by the server:
      • Video
      • Mouse clicks
      • Keystrokes
  • Mainframe born again?
    • Not quite…but close
remote desktop session host
Remote Desktop Session Host
  • Centralized application deployment
    • Install application once on a RD Session host.
  • Supporting remote users
    • Performance isn’t impacted by poor connections
    • Allows for more users to work from home
remote desktop session host1
Remote Desktop Session Host
  • PC unfriendly environments
    • Install thin clients or older PCs
    • Reduces the exposure due to theft
  • Extend hardware refreshes
    • PC is simply a window or interface to the RD Session host server
    • Utilizes the power of the server and not dependent upon the processor/RAM of workstation.
managing rds
Managing RDS
  • Remote Desktop Session Host
hardware
Hardware
  • Server—bigger is better
    • Calculate the resources needed for OS
    • Calculate the resources for a small number of sessions
    • Multiply resources by total number of sessions
    • Add to the resources needed for the OS
hardware1
Hardware
  • Server—bigger is better
    • Processor—faster is better, but caching is more important…choose caching over speed
    • Memory—high speed error-correcting memory and a lot of it. A lot depends on the apps you will be running…C.A.D. v. Notepad?
    • Disk—SCSI or SAS
    • Network—load balancing (TEAMING) NICs
roles
Roles
  • Not all are required
  • RD Session Host—enables server to host Windows-based programs. This service is required
  • RD Virtualization Host—integrated with Hyper-V to allow users to connect to a virtual machine on a server hosting Hype-V. Can allow users to connect to their own VM and allows users to run multiple OS’s.
  • RD Licensing—manages the client access licenses that are needed to connect to the session host. 120 day grace period w/out licenses.
  • RD Connection Broker—load balancing
  • RD Gateway—allows users to connect o host servers and remote desktops over the Internet. Requires IIS, NP and Access services, RPC over HTTP proxy and RSAT.
  • RD Web Access—allows users to connect through browser. Requires IIS and RSAT.
users
Users
  • You will be prompted to select a group of users for RDS
  • These users will be added to the Remote Desktop Users Group
    • Required to be a member if accessing the RD Session host
    • Administrators are added by default
    • Two groups exist. Domain and local. Users must be added to the local group on session host.
managing rds1
Managing RDS
  • Group Policy
remote desktop protocol

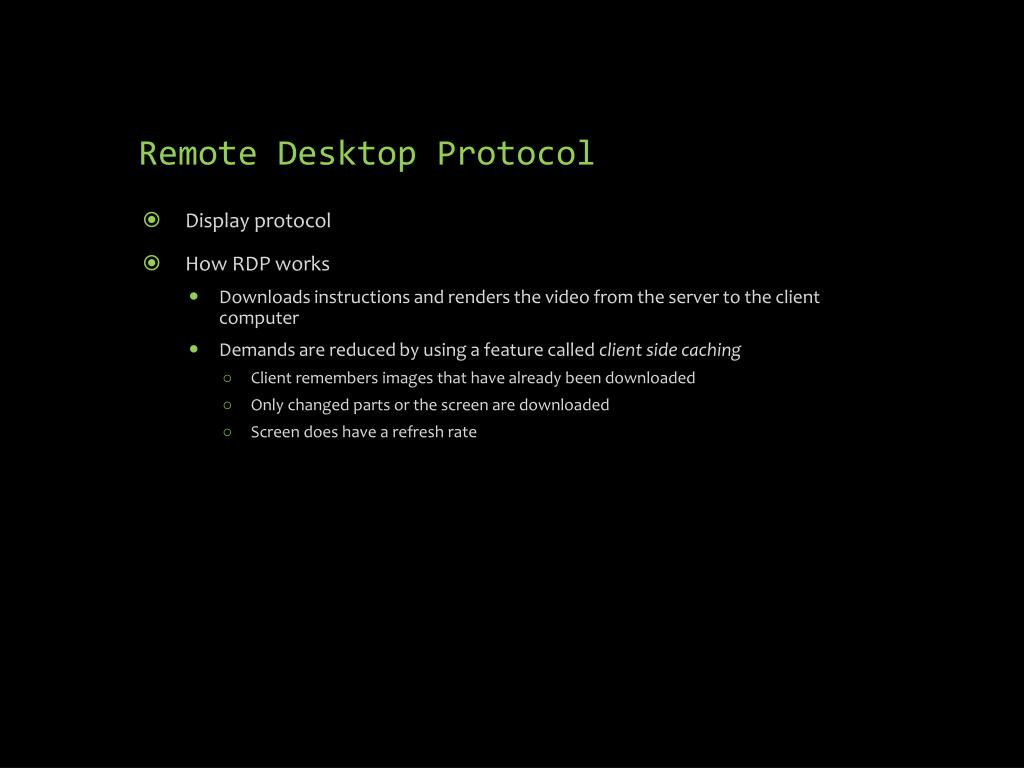

Remote Desktop Protocol
  • Display protocol
  • How RDP works
    • Downloads instructions and renders the video from the server to the client computer
    • Demands are reduced by using a feature called client side caching
      • Client remembers images that have already been downloaded
      • Only changed parts or the screen are downloaded
      • Screen does have a refresh rate
rds protocol configuration
RDS Protocol Configuration
  • Remote Desktop Session Host
remoteapps
RemoteApps
  • Deploying RDS Applications
    • Application is installed/running on RD Session Host server
    • Appears as if it is running on the end users desktop
      • This was not available in previous versions of Terminal Services. Introduced in Server 2008
remoteapps1
RemoteApps
  • Remoteapps can be accessed by the following (Quiz/Exam):
    • Web browser—requires RD Web Access
    • RDP file
    • Start Menu/Icon—can be installed using a .MSI file
resources
Resources
  • http://technet.microsoft.com/en-us/windowsserver/ee236407
  • http://technet.microsoft.com/en-us/library/dd772639(WS.10).aspx
