  1. Go into SATURN/P1X

  2. Steps in Creating a DRACULA Network from a SATURN Model

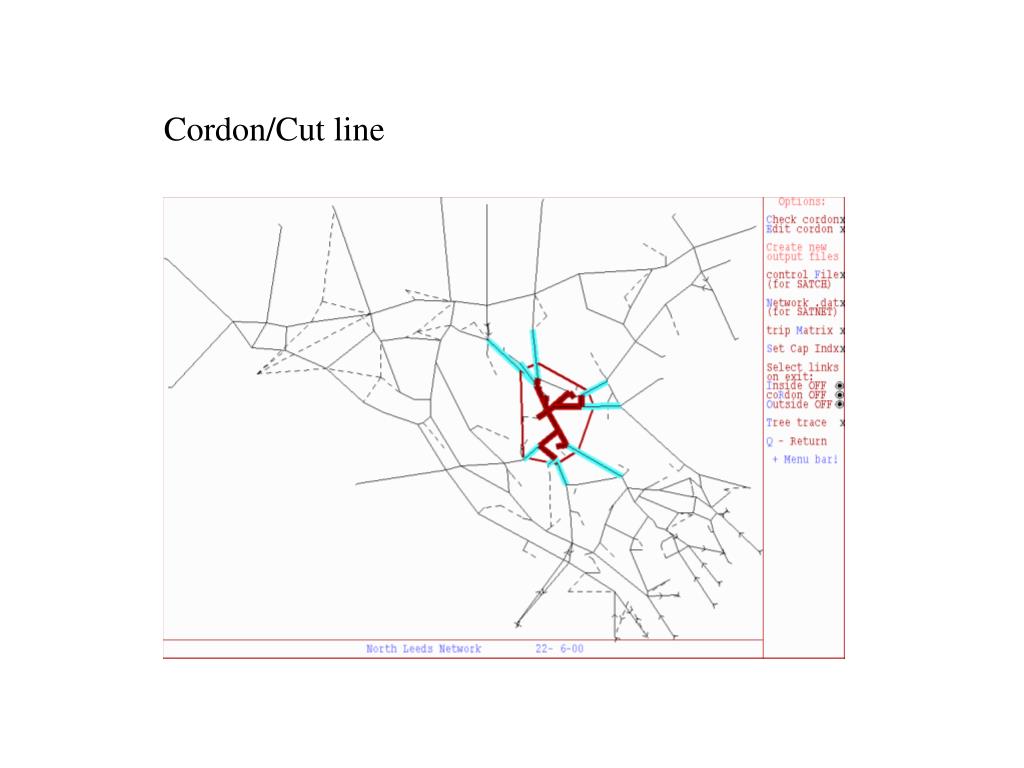

  3. Cordon/Cut line

  4. Save “Network .dat (for SATNET)” to file testcod.dat

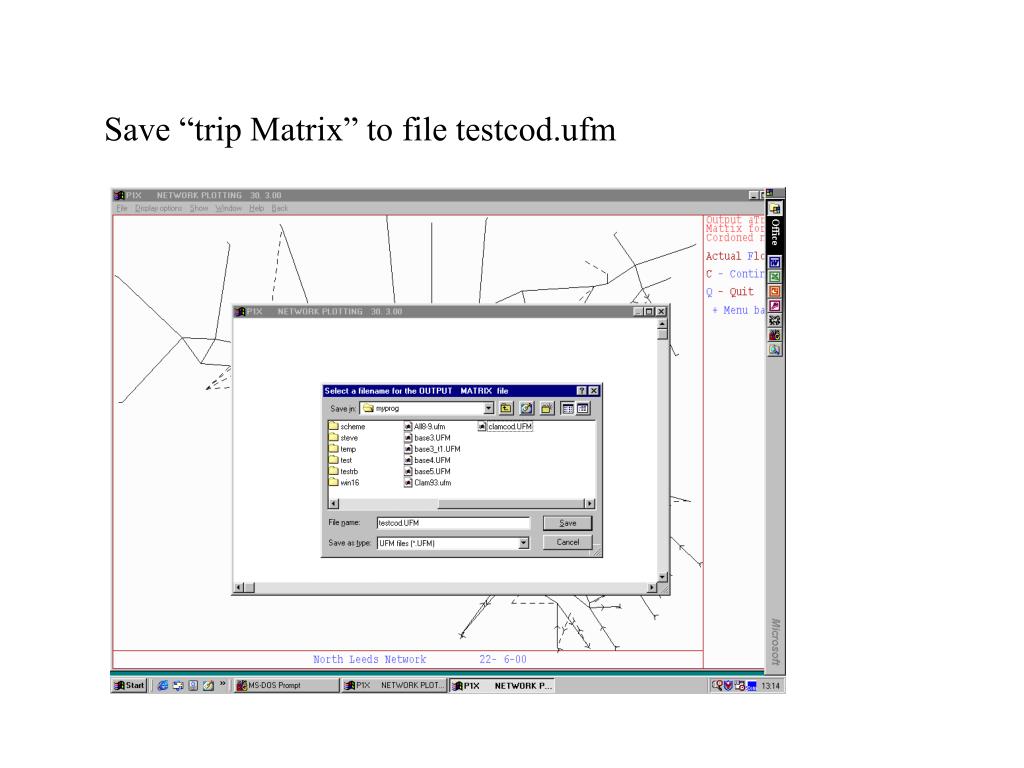

  5. Save “trip Matrix” to file testcod.ufm

  6. Save the trip matrix with “Actual Flows”

  7. Then follow the steps below: • Quit P1X • Run “SATNET testcod” and get output testcod.ufn • Run “SATURN testcod testcod” and get testcod.ufs and testcod.ufc files • Run “SATPIG testcod testcod” and get testcod.lpg file which contains the assigned routes and route flows • Rename testcod.dat testcod.net • Run DRACULA pre-processor program “DRACPREP” • Run DRACULA microsimulation program “DRACSIM”

  8. List of the files for the cordoned network

  9. Run DRACPREP

  10. Finished pre-processing of testcod network successfully

  11. Run DRACSIM on the cordoned network testcod.net

  12. Select an area to enlarge, using menu View/Box
