Serratia marcescens serrawettin 0.75% agar Broth Plate Alberti & Harshey, 1992 Swarming in Serratia marcescens Wetting agents and surfactants play a critical role in surface motility H + Ab that tether Pof Mot mutations Na+ channel blockers i.e. slow motor rotation Low Iron Na +

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'Serratia marcescens' - liam


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Slide2 l.jpg

serrawettin

0.75% agar

Broth

Plate

Alberti & Harshey, 1992

Swarming in Serratia marcescens

Wetting agents and surfactants play a critical role in surface motility


Slide3 l.jpg

H+

Ab that tether Pof

Mot mutations

Na+ channel blockers

i.e. slow motor rotation

Low Iron

Na+

High viscosity

Low viscosity

H+-driven

Lateral flagella

Na+-driven

Polar flagellum

Na+-driven

Polar flagellum

McCarter et al., 1988, 1989

Kawagishi et al 1996

Vibrio parahaemolyticus has two different types of flagella

Laf

Pof



Signals l.jpg
Signals…

Not

Slowedmotor

Ironstarvation

Specificaminoacids

pHchanges

Oxygengradients

Knownautoinducers


Slide6 l.jpg


Slide7 l.jpg

Chemotaxis wetness through some means other that quorum sensing.

LPS

Surfactant?

Wetting

Two major classes of swarming-defective mutants

?


Slide8 l.jpg

The chemotaxis system, but not chemotaxis, is essential for swarming

Burkart et al., 1998

Mutants in the chemotaxis pathway areswarming-defective in S.marcescens, E. coli & S. typhimurium

O’Rear et al., 1992

Harshey & Matsuyama, 1994


Slide9 l.jpg

Cell expressing only a serine binding mutant of Tsr swarming

0.7% agar

0.3% agar

Burkart et al., PNAS, 1998


Slide10 l.jpg

The chemotaxis signaling pathway in swarmingE. coli/Salmonella

V. Sourjik, Trends Microbiol., 2004


Che mutants are developmentally impaired l.jpg
che swarming mutants are developmentally impaired


Slide12 l.jpg

The chemotaxis signaling pathway modulates motor bias swarming

V. Sourjik, Trends Microbiol., 2004



Slide14 l.jpg

How does Che system control swarmer cell development? swarming

  • 1.Genome-wide expression profiles of WT vs Dche

  • 2. Genetic suppressor analysis of DcheY



Slide16 l.jpg

Time course of swarming in wild-type swarmingS. typhimurium

100 x

25 x

Flagellar genes is not upregulated during swarming

Tim Wang


Slide17 l.jpg

Che mutants are developmentally impaired swarmingonly on the surface

WT(B) WT(P) cheY(B) cheY(P) cheZ(B) cheZ(P)

3.5h

2.5h

1.5h



Slide19 l.jpg

Induced swarming

Repressed

Not changed

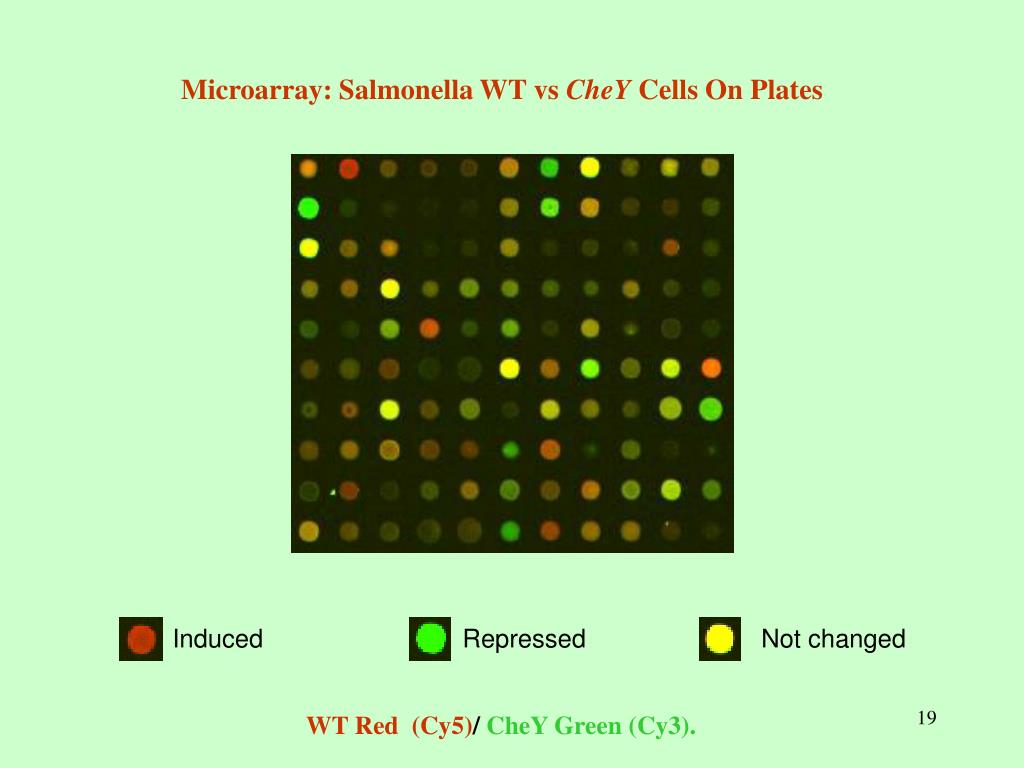

Microarray: Salmonella WT vs CheY Cells On Plates

WT Red (Cy5)/ CheY Green (Cy3).


Slide20 l.jpg

Che mutants specifically down-regulate class 3 motility genes

Genome-wide expression profiles of WT vs DChe


Slide21 l.jpg

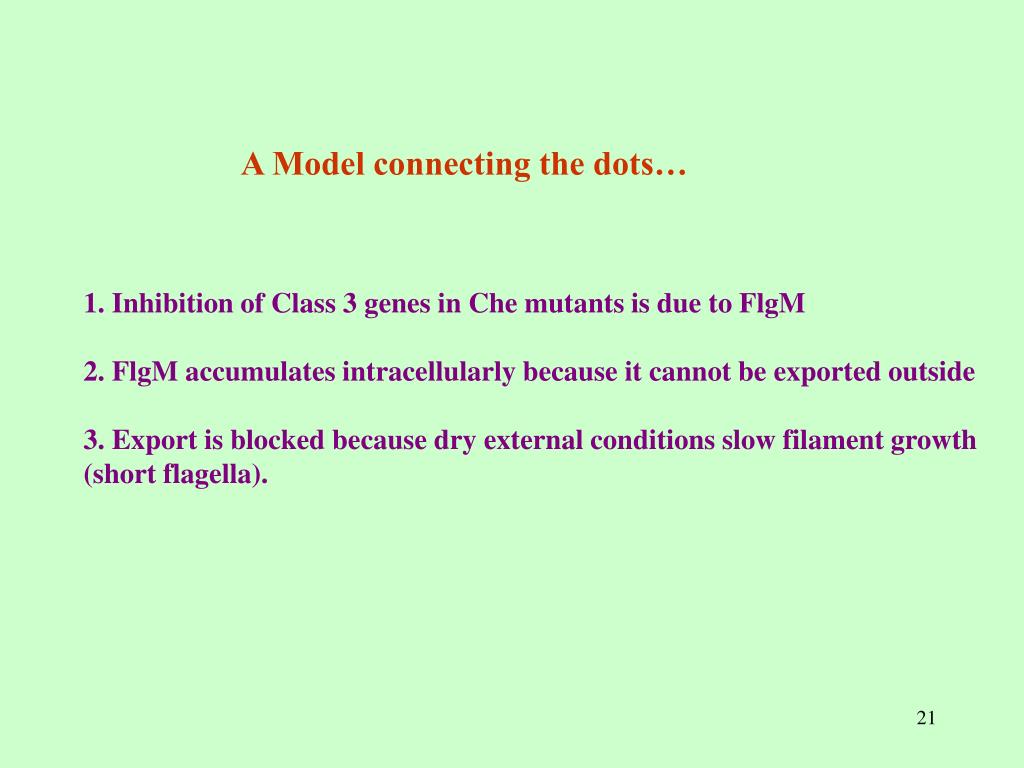

A Model connecting the dots… genes

1. Inhibition of Class 3 genes in Che mutants is due to FlgM

2. FlgM accumulates intracellularly because it cannot be exported outside

3. Export is blocked because dry external conditions slow filament growth

(short flagella).


Slide22 l.jpg

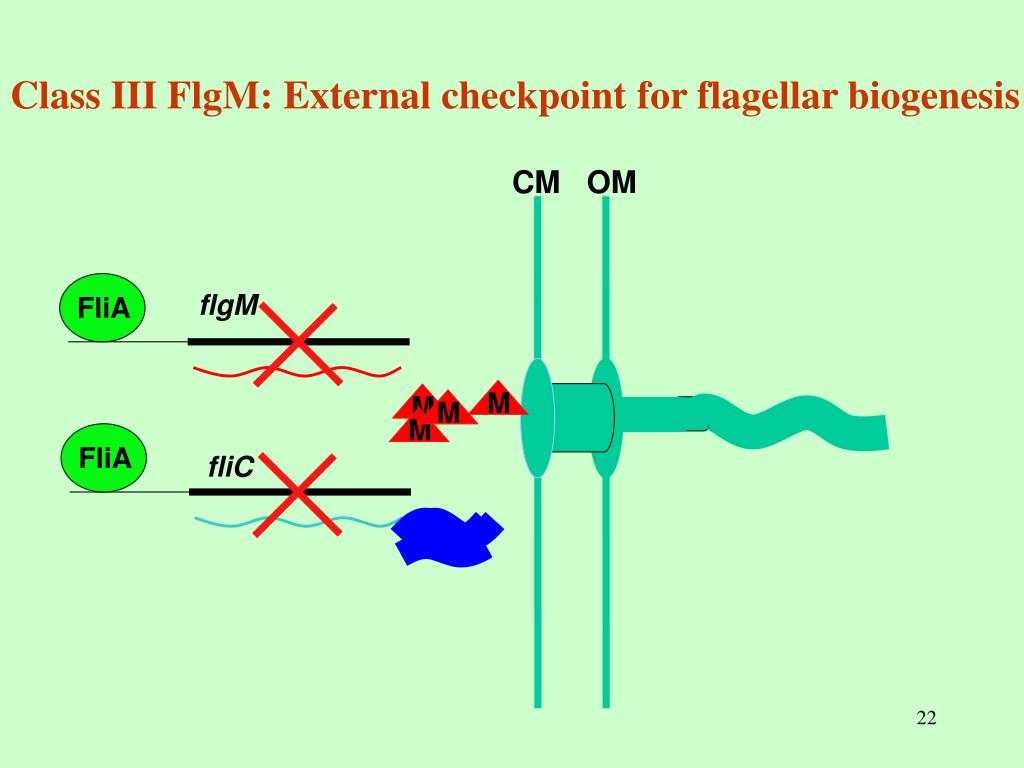

Class III FlgM: External checkpoint for flagellar biogenesis genes

CM

OM

flgM

FliA

M

M

M

M

FliA

fliC





Slide26 l.jpg

Prediction: flagellationflgM mutation should restore class 3 gene expression

It does


Slide28 l.jpg

Testing ‘regulation of flagellar length’ model flagellation

Flagella stained with Texas Red-conjugated antibody


Slide29 l.jpg

Testing ‘quick response’ model flagellation

After shearing

Flagellate & non-flagellate controls

Rosu & Hughes, J. Bact. 2006


Slide30 l.jpg

FlgM secretion after shearing (blending) flagellation

IC – Intracellular; EC - Extracellular


Slide31 l.jpg

Class 3 flagellationFlgM as drought sensor: Regulation in reverse


Slide32 l.jpg

Susana Mariconda

But why are che mutant colonies dry?


Slide33 l.jpg

Suppressors of a flagellationcheY null mutant map to the switch complex

0.3% agar

0.7% agar

Mariconda et al., Mol. Microbiol. 2006


Slide34 l.jpg

Swarming can be correlated with the ability to switch motor direction

Mariconda et al., Mol. Microbiol. 2006

mM IPTG

Chemoreceptor-less strain expressing a inducible CW signaling fragment


Model for chey as swarming regulator35 l.jpg
Model for CheY as swarming regulator direction

How does motor switching control control surface wetness?


Slide36 l.jpg

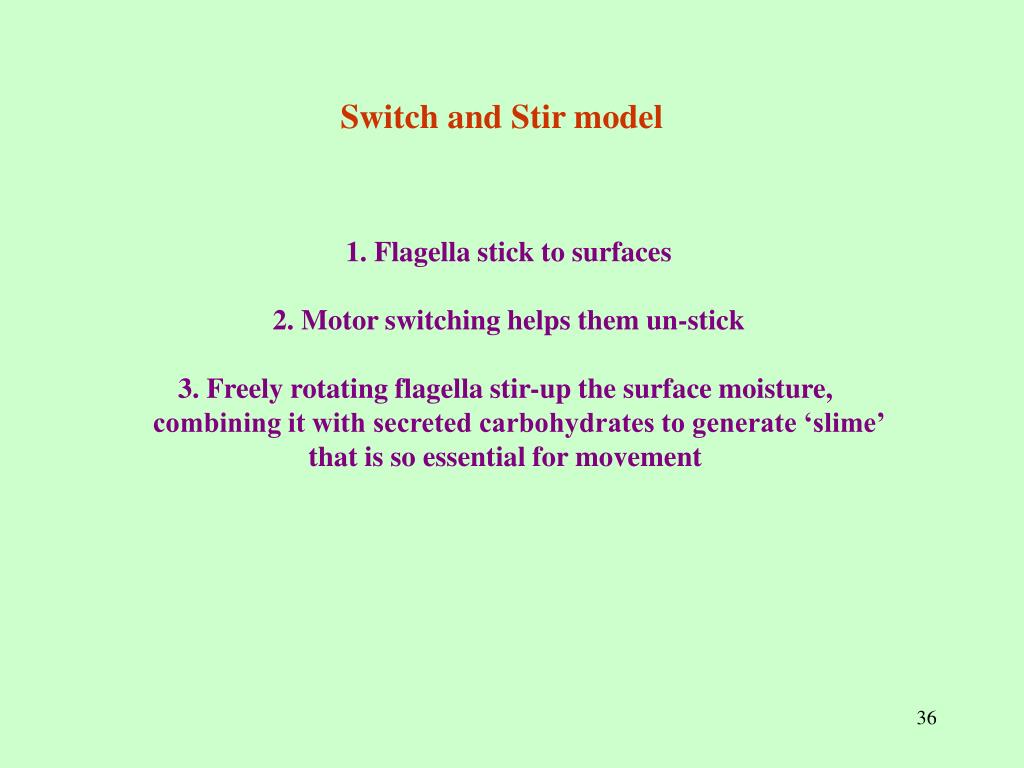

Switch and Stir model direction

1. Flagella stick to surfaces

2. Motor switching helps them un-stick

3. Freely rotating flagella stir-up the surface moisture,

combining it with secreted carbohydrates to generate ‘slime’

that is so essential for movement



Slide38 l.jpg

We may have discovered an ancient role for the chemotaxis system!

In the beginning, there was CheY

CheY could be phophorylated by other phospho donors (Acetyl~P)

And CheY~P was sufficient for movement

The sophisticated machinery for chemotaxis system evolved later


Slide39 l.jpg

H system!+

Na+

High viscosity

Low viscosity

H+-driven

Lateral flagella

Na+-driven

Polar flagellum

Na+-driven

Polar flagellum

Flagellum as a mechanosensor

Ab that tether Pof

Mot mutations

Na+ channel blockers

i.e. slow motor rotation

Low Iron

Motor speed

Laf

Pof

McCarter et al., 1988, 1989
