Presentation Transcript
slide2
BCNF
  • Written recursively
  • Pseudo code:

doBCNF(schema r , fds)

Let fd = BCNF violating dependency in fds

if fd is null then return

else

split into two tables

table1 = fd[domain] U fd[range]

table2 = r – fd[range]

doBCNF(table2, fds)

bcnf results

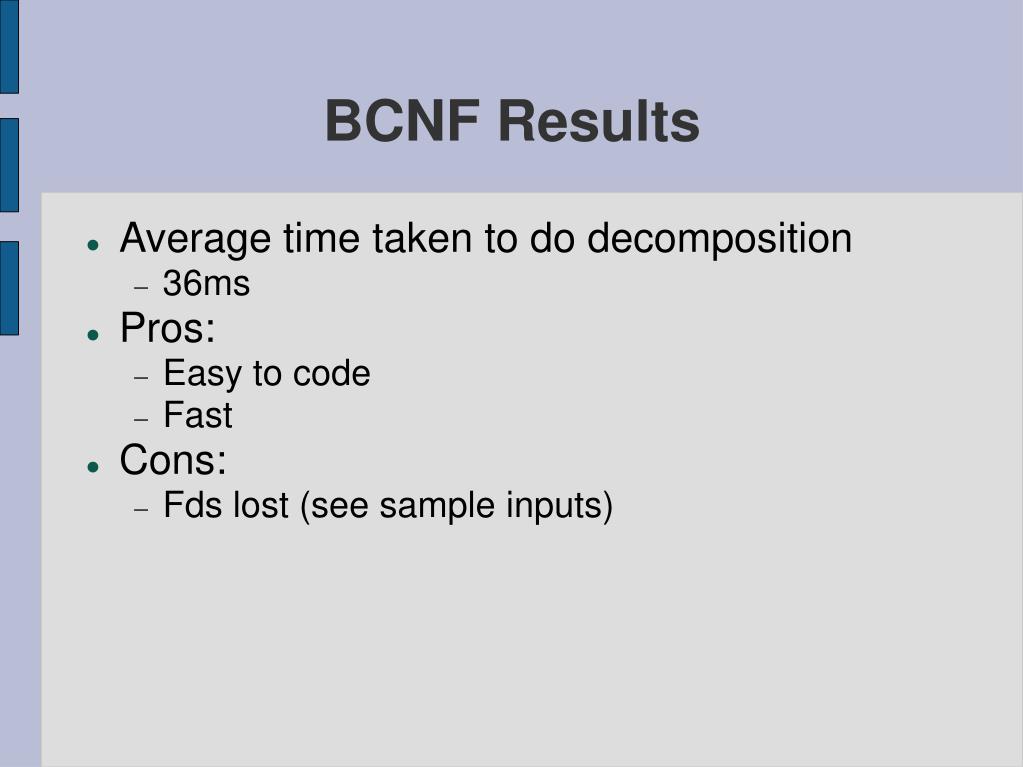

BCNF Results
  • Average time taken to do decomposition
    • 36ms
  • Pros:
    • Easy to code
    • Fast
  • Cons:
    • Fds lost (see sample inputs)
bcnf sample inputs

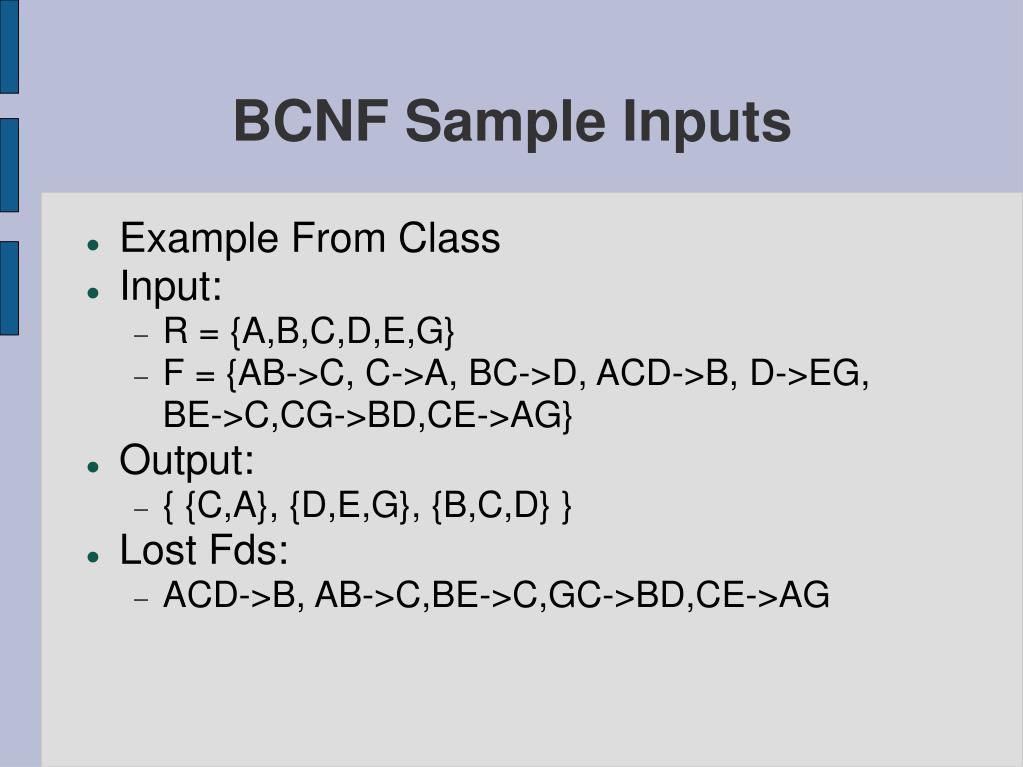

BCNF Sample Inputs
  • Example From Class
  • Input:
    • R = {A,B,C,D,E,G}
    • F = {AB->C, C->A, BC->D, ACD->B, D->EG, BE->C,CG->BD,CE->AG}
  • Output:
    • { {C,A}, {D,E,G}, {B,C,D} }
  • Lost Fds:
    • ACD->B, AB->C,BE->C,GC->BD,CE->AG
another bcnf example
Another BCNF Example
  • From Class Also
  • Input:
    • R = {C,T,H,R,S,G}
    • F = {CS->G, C->T, HR->C, HS->R, HT->R}
  • Output:
    • { {C,S,G}, {C,T}, {H,R,C}, {H,R,S} }
  • Lost Fds
    • HT->R
beers example from book
Beers Example (from book)
  • Input:
    • R = {beer, manf, bar, bar_addr, license, person, phone, person_addr, price}
    • F = { {beer -> manf}, {bar -> bar_addr license}, {person -> person_addr, phone}, {bar, beer -> price } }
  • Output:
    • { {beer, manf}, {bar, bar_addr, license}, {person, phone, person_addr}, {beer, bar, price} }
  • Lost Fds
    • None
movies example
Movies Example
  • Input:
    • R={Movie, Year, Director, Studio, LeadActor, LeadActress, Duration, BoxOfficeRevenue, Awards, Rating}
    • F = { {Movie,Year -> Director,Studio,Duration,BoxOfficeRevenue, Awards, Rating}, {Director, Studio, Year -> Movie}, {LeadActor,Year -> Movie} {LeadActress, Year -> Movie} }
  • Output
    • {Movie,Year,Director,Studio,Duration,BoxOfficeRevenue,Awards,Rating}, {Year,LeadActor,Movie} ,{Year,LeadActor,LeadActress}
  • Lost Fds
    • LeadActress,Year->Movie
3nf synthesis
3NF Synthesis
  • Implementation
    • Broke into modules that performed a separate step in the algorithm
    • MinimalCover, MergeLHS, FormSubSchema, MergeSubShema, AddMissing, AddKey
  • Average Time Taken: 200ms
  • Pros:
    • Lossless
  • Cons:
    • Slow and complex
3nf example 1
3NF Example 1
  • Example From Class
  • Input:
    • R = {A,B,C,D,E,G}
    • F = {AB->C, C->A, BC->D, ACD->B, D->EG, BE->C,CG->BD,CE->AG}
  • Output:
    • { {A,B,C}, {B,C,D}, {D,E,G}, {B,E,C}, {C,G,B}, {C,E,G} }
3nf example 2
3NF Example 2
  • From Class Also
  • Input:
    • R = {C,T,H,R,S,G}
    • F = {CS->G, C->T, HR->C, HS->R, HT->R}
  • Output:
    • { {S,C,G}, {C,T}, {R,H,C}, {S,H,R}, {T,H,R} }
3nf example 3
3NF Example 3
  • Input:
    • R = {beer, manf, bar, bar_addr, license, person, phone, person_addr, price}
    • F = { {beer -> manf}, {bar -> bar_addr license}, {person -> person_addr, phone}, {bar, beer -> price } }
  • Output:
    • { {beer, manf}, {bar,bar_addr,license}, {person,phone,person_addr}, {beer,bar,price} }
  • Same as BCNF
3nf example 4

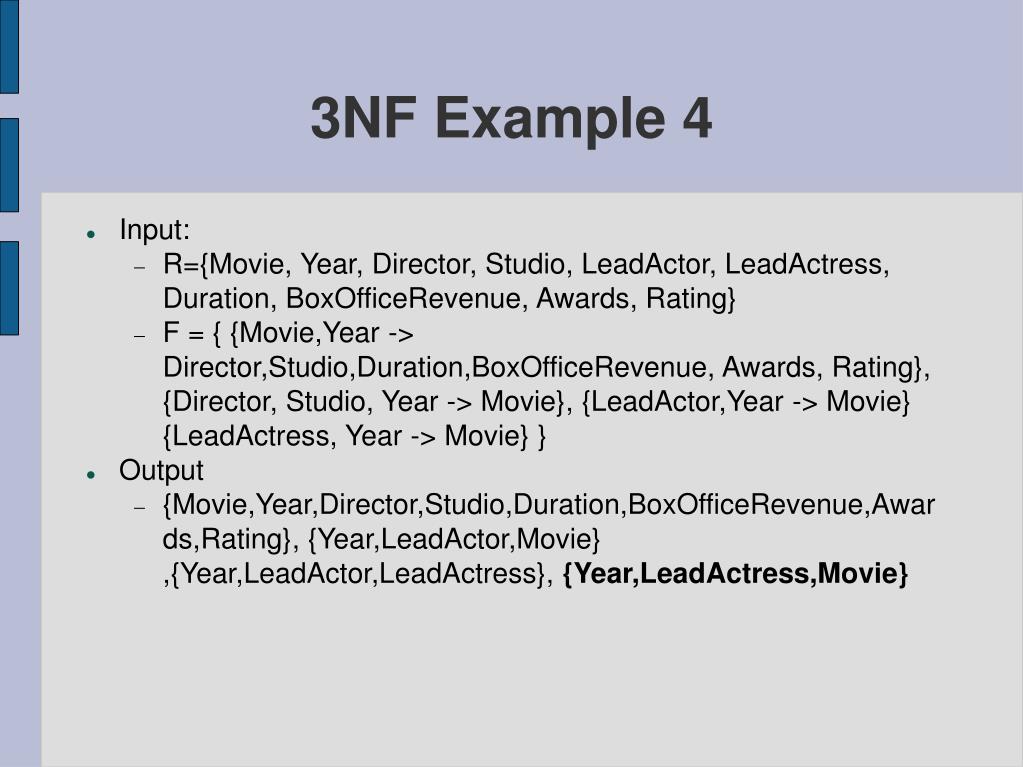

3NF Example 4
  • Input:
    • R={Movie, Year, Director, Studio, LeadActor, LeadActress, Duration, BoxOfficeRevenue, Awards, Rating}
    • F = { {Movie,Year -> Director,Studio,Duration,BoxOfficeRevenue, Awards, Rating}, {Director, Studio, Year -> Movie}, {LeadActor,Year -> Movie} {LeadActress, Year -> Movie} }
  • Output
    • {Movie,Year,Director,Studio,Duration,BoxOfficeRevenue,Awards,Rating}, {Year,LeadActor,Movie} ,{Year,LeadActor,LeadActress}, {Year,LeadActress,Movie}
hybrid approach

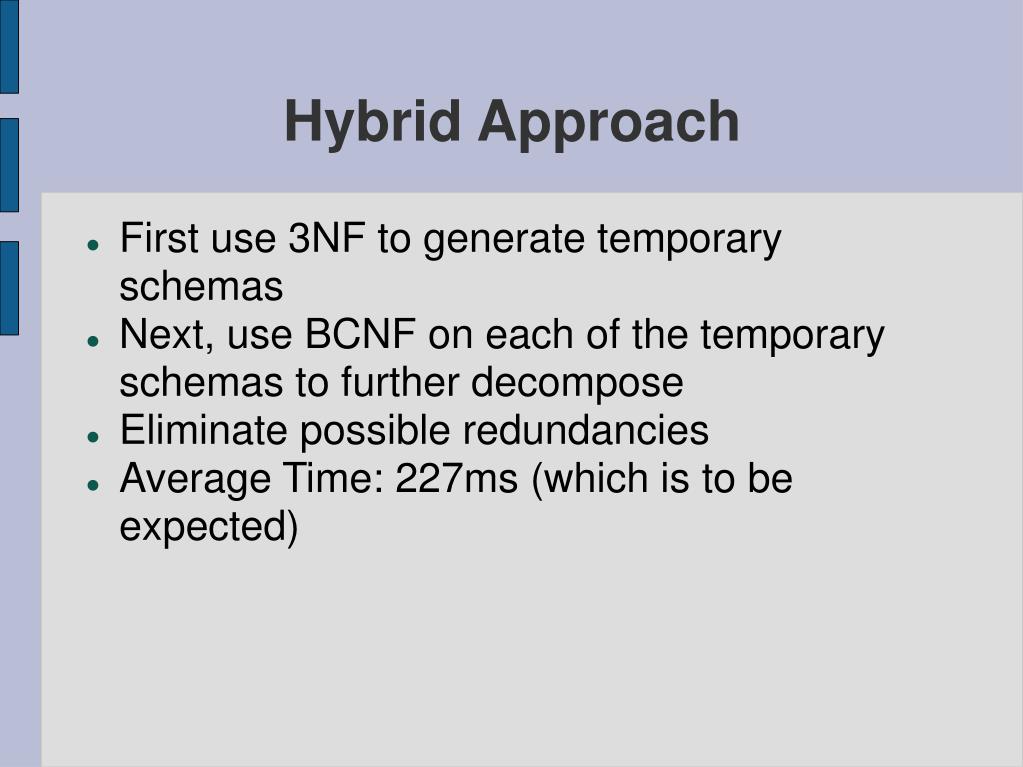

Hybrid Approach
  • First use 3NF to generate temporary schemas
  • Next, use BCNF on each of the temporary schemas to further decompose
  • Eliminate possible redundancies
  • Average Time: 227ms (which is to be expected)
hybrid example 1
Hybrid Example 1
  • Example From Class
  • Input:
    • R = {A,B,C,D,E,G}
    • F = {AB->C, C->A, BC->D, ACD->B, D->EG, BE->C,CG->BD,CE->AG}
  • Output:
    • { {C,A}, {B,C,D}, {D,E,G}, {E,B,C}, {G,C,B}, {E,C,G} }
  • Lost Fds
    • ?
hybrid movies
Hybrid: Movies
  • Input:
    • R={Movie, Year, Director, Studio, LeadActor, LeadActress, Duration, BoxOfficeRevenue, Awards, Rating}
    • F = { {Movie,Year -> Director,Studio,Duration,BoxOfficeRevenue, Awards, Rating}, {Director, Studio, Year -> Movie}, {LeadActor,Year -> Movie} {LeadActress, Year -> Movie} }
  • Output
    • {Movie,Year,Director,Studio,Duration,BoxOfficeRevenue,Awards,Rating}, {Year,LeadActor,Movie} ,{Year,LeadActor,LeadActress}, {Year,LeadActress,Movie}
  • Same as 3NF
data mining17
Data Mining
  • Artificial Neural Network
    • Weka Implementation
    • ANN with error back propagation
  • Oracle-XE Database
    • Java Connectivity
      • Oracle Thin Driver
  • Get database data with java and use Weka to build ANN and classify
data set
Data Set
  • Census Data
  • Predict Income Class of US citizens given census data.
    • Income Class: <=$50,000 or >$50,000
    • For simplicity (difficult to predict exact income)
  • > 30,000 tuples
  • CSV:
    • http://cs.uga.edu/~mcknight/nlp/data.csv
  • Database: (login required)
    • http://128.192.101.74:9090/apex
results
Results
  • ANN with 27 internal nodes, 55 input nodes
  • Training Data:
    • 66% of original data used for training
    • the remaining 33% used as test set for classification
  • Training Time: 2050.91 seconds
  • Error:

Correctly classified: 84.0665 %

Mean absolute error: 0.1698

Root mean squared error: 0.3558

Relative absolute error: 46.6323 %

Root relative squared error: 83.9026 %
