Presentation Transcript

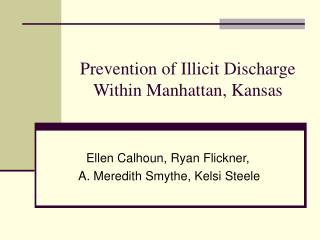

Prevention of illicit discharge within manhattan kansas l.jpg

Prevention of Illicit Discharge Within Manhattan, Kansas

Ellen Calhoun, Ryan Flickner,

A. Meredith Smythe, Kelsi Steele


Outline l.jpg
Outline

  • Project Overview

  • Project Objectives

  • National Pollutant Discharge Elimination System

  • Illicit Discharge

  • Common Illicit Discharges

  • Clean-Up Procedure

  • Environmental Impact

  • Employee Training

  • Emergency Procedure

  • Haz-Mat

  • Conclusions and Recommendations


Project overview l.jpg
Project Overview

  • Our Service Learning project was to assist the City of Manhattan in establishing an illicit discharge prevention plan that fulfills a minimum control measure established through NPDES.


Project objectives l.jpg
Project Objectives

  • Define regulations presented in NPDES

  • Develop a plan for the prevention of illicit discharges into the stormwater sewer

  • Formulate a list of potential contaminants, the actions required, and the environmental impact of the contaminants.

  • Formulate a spill prevention and spill clean-up procedures.


National pollutant discharge elimination system npdes l.jpg
National Pollutant Discharge Elimination System (NPDES)

  • Established by Federal Water Pollution Control Act (FWPCA) Amendments of 1972

  • Requires that facilities that release pollutants into waters of the US to obtain a permit

  • Has 4 goals…


National pollutant discharge elimination system npdes6 l.jpg
National Pollutant Discharge Elimination System (NPDES)

  • Goal 1

    • Eliminate the discharge of pollutants into navigable waters of the United States


National pollutant discharge elimination system npdes7 l.jpg
National Pollutant Discharge Elimination System (NPDES)

  • Goal 2

    • Protect fish, shellfish and wildlife


National pollutant discharge elimination system npdes8 l.jpg
National Pollutant Discharge Elimination System (NPDES)

  • Goal 3

    • Provide safe water for recreational purposes


National pollutant discharge elimination system npdes9 l.jpg
National Pollutant Discharge Elimination System (NPDES)

  • Goal 4

    • Prohibit the release of toxic discharges


National discharge pollutant elimination system npdes l.jpg
National Discharge Pollutant Elimination System (NPDES)

  • Permit (EPA definition)

    • “a license for a facility to discharge a specified amount of a pollutant into a Office of Wastewater Management - Water Permitting receiving water under certain conditions; however, permits may also authorize facilities to process, incinerate, landfill, or beneficially use sewage sludge.”


National discharge pollutant elimination system npdes11 l.jpg
National Discharge Pollutant Elimination System (NPDES)

  • Types of Permits

    • Individual

      • Customized to the specific facility

    • General

      • Envelop multiple facilities within a specific category

        Currently Manhattan, Kansas has neither type of permit on record with the EPAwebsite


Illicit discharge l.jpg
Illicit Discharge

  • Any discharge into a storm water drain or treatment plant that is not composed entirely of storm water

  • Exempt items: wetlands, diverted stream flows, springs

  • Exempt under certain conditions: foundation drains, landscape irrigation, individual residential care washing, sidewalk washing, as well as flows from emergency fire fighting activities


Common illicit discharges l.jpg
Common Illicit Discharges

  • Our focus: oil, grease, gasoline, paints, yard wastes, garbage, household chemicals, and pesticides

  • Cause for concern: chlorinated pool water, cigarette butts, sanitary sewer flows, commercial car wash wastewater, construction debris, and food wastes


Clean up procedure l.jpg
Clean-Up Procedure

  • Yard Waste – Compost Pile

  • Garbage

    • Paper Litter – Recycle

    • Plastic Bottles – Recycle

Source: http://www.bidisposal.com/images/YARDWASTE.jpg


Clean up procedure15 l.jpg
Clean-Up Procedure

  • Motor Oil, Gasoline, Grease, Paint

    • Shut off all possible ignition sources

    • Transfer excess pollutant into spill proof container.

    • Remove remaining residue use an absorbent such as earth, sand, or vermiculite.

Source: http://www.homedepot.com/cmc_upload/HDUS/EN_US/asset/images/eplus/130232_3.jpg

Source: http://www.phasmidsincyberspace.com/Pictures/Vermiculite.JPG


Clean up procedure16 l.jpg
Clean-Up Procedure

  • Acid/Base

    • Neutralize an acid with soda ash, sodium bicarbonate, or lime

    • Neutralize a base with citric acid or dilute hydrochloric acid

  • Liquid Detergent

    • Transfer into another container

    • Remove residue with absorbents

    • Flush with water


Safety equipment l.jpg
Safety Equipment

  • Safety Goggles

  • Rubber or Nitrile Gloves

  • Respirator

  • Protective Clothing

Source: http://www.dick-blick.com/items/329/07/32907-OA2ww.jpg

Source: http://www.ritop.com/information/images/ya127c.jpg

Source:http://www.ritop.com/information/images/glass1bk.jpg


Environmental impact l.jpg
Environmental Impact

  • If any discharge enters the stormwater sewer contact the National Emergency Response Center

  • Absorbent pillow can be used to contain the pollutant until remediation can occur

  • It is important to act quickly to prevent substantial damage to the ecosystem.


Employee training l.jpg
Employee Training

  • Employee training is crucial in pollution prevention

  • The EPA recommends at a minimum the following in a program

    • Maintenance training

    • Maintenance schedules

    • Long-term inspection training

    • Procedure for properly disposing of waste when removed from storm sewers

    • Ability to transfer knowledge through public education

    • Finance planning for enough funding


Employee training20 l.jpg
Employee Training

  • Options for training procedures:

    • Visual: posters, bulletin boards

    • Verbal: employee meetings, courses

    • Field training: hands-on demonstrations


Employee training21 l.jpg
Employee Training

  • Record process of training programs

  • Senior management involvement is vital


Employee training22 l.jpg
Employee Training

  • Advantages

    • Cost effective

    • Easily implement able

    • Able to be Duplicate/ can be standardized

  • Disadvantages

    • Senior management apathy

    • Employee lack of motivation

    • Lack of Incentives to become involved


Prioritization l.jpg
Prioritization

  • List all illicit disposal incidents that have been reported but not yet investigated and place in one of the following categories:

    • Hazardous, affecting public health and safety

    • Hazardous, affecting the environment (receiving waters, air, etc…)

    • Hazardous, affecting property

    • Hazardous, other

    • Non-hazardous, affecting public health and safety

    • Non-hazardous, affecting the environment (receiving waters, air, etc…)

    • Non-hazardous, affecting property

    • Remaining incidents


Emergency procedure l.jpg
Emergency Procedure

  • Contact the Fire Department immediately with information

    • Type/cause of incident

    • Types of chemicals involved

    • Resources available on site

    • Possible injured personnel

Source: http://www.ecy.wa.gov/programs/spills/incidents/willapa/willapaphotos/willabase.jpg


Haz mat l.jpg
Haz-Mat

  • Hazardous Materials Division

    • Within the Kansas State Fire Marshal’s Office

    • Supports local first responders by isolating hazardous materials

      • Accidents and/or Acts of Terrorism


Haz mat26 l.jpg
Haz-Mat

  • Kansas Haz-Mat Response Team

    • Within the state boundaries, regardless of local government jurisdiction


Haz mat27 l.jpg

Regional Response Teams

Coffeyville

Colby

Emporia

Ford County

Hays

Manhattan

Newton

Overland Park

Salina

Sedgwick County

Seward County

Topeka

Wellington

Haz-Mat


Haz mat28 l.jpg
Haz-Mat

  • Kansas State Fire Marshal’s Office

    • Teams can respond to most areas in Kansas within an hour or less

    • Can haz-mat incidents and accidents as well as terrorist events

      • Chemical

      • Biological

      • Radiological

      • Nuclear (CBRN)


Haz mat29 l.jpg
Haz-Mat

  • To Request a Response Team

    • Call the toll-free hotline

      • (1-866-KHAZMAT)

    • Call the group pager

      • (785-357-3261)

    • website

      • (www.myairmail.com)

Both hotline and website forward to the group pager


Conclusions l.jpg
Conclusions

  • Manhattan has accomplished two out of the six minimum control measures.

    • Public education and outreach

    • Public participation and involvement

  • Recommendations to accomplish next minimum control measure

    • Two or more city workers become trained in hazardous materials protocol

    • Obtain a MSDS database

    • Keep on hand absorbents such as: sand, earth and vermiculite.


Acknowledgements l.jpg
Acknowledgements

  • Dr. Alok Bhandari, Team Advisor

  • Steve Hampton, Assistant City Engineer
