economic feasibility of sugar beet biofuel production in north dakota

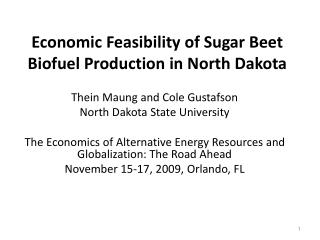

Economic Feasibility of Sugar Beet Biofuel Production in North Dakota

Thein Maung and Cole Gustafson

North Dakota State University

The Economics of Alternative Energy Resources and Globalization: The Road Ahead

November 15-17, 2009, Orlando, FL

non food sugarbeet feedstock to advanced biofuels

Non-Food Sugarbeet Feedstock to Advanced Biofuels

NDSU

Green Vision Group

“Architects For Rural Development”

Heartland Renewable Energy (HRE)

“Sugar Is The New Oil”

project goal
Project Goal
  • Develop sugar beet to biofuel industry across North Dakota with five irrigated production regions.
  • First biofuel non-food sugar beet processing plant to be built in 2012.
  • Provide local economic opportunity
slide4

Introduction

  • Energy Independence and Security Act (EISA) of 2007 defines three classes of biofuels:
    • Conventional biofuel – 20% GHG reduction
    • Advanced biofuel – 50% GHG reduction

(Highlands EnviroFuels LLC conducted LCA of GHG emissions)

    • Cellulosic – 60% GHG reduction
slide5

Introduction

  • Sugar beets and sugarcane are uniquely qualified as advanced biofuels under EISA.
  • By 2022, about 15 billion gallons per year of advanced biofuels will be required
slide6

Introduction

  • North Dakota has great potential to expand irrigated sugar beet production, minimizing land competition with existing sugar beet food crops.
  • Because of their high sugar content, sugar beets can yield higher ethanol production per acre.
  • Growing sugar beet feedstock can reduce nitrogen requirements, water use and reduces CO₂ emissions
slide7

Literature

  • USDA (2006)
    • Examined the feasibility of ethanol production from sugar in the U.S.
  • Outlaw et al. (2007)
    • Analyzed the feasibility of integrating ethanol production into existing sugar mill that uses sugarcane juice
  • Yoder et al. (2009)
    • Investigated the potential development of an ethanol industry in Washington State using sugar beets
technology overview
Technology Overview
  • The plant makes most of it’s own energy.
  • Stillage waste from fermentation process is spray-dried and burned to produce thermal and electrical energy supplying about 75% of the plant’s energy needs.
  • Patent has been successfully lab tested by HRE and now needs commercial scale test .
slide9

Spent Yeast

Sugar Beets

Dryer

Slicing/Grinding

Recovered Yeast

Wet Pulp

Pressing/Juice Extraction

Dryer

Beet Pulp/Feed

Molasses

Cooking and Sterilization

Ash/Fertilizer

Steam

Boiler

Fermentation

Distillation

Dehydration

Denaturing

Fuel Ethanol Storage

Evaporation

Dryer

Dried Powder

Stillage

Syrup

methodology
Methodology
  • Divided into four sections:
    • Production assumptions
    • Balance sheet
    • Income statement
    • Cash flow financial statement
summary and conclusions
Summary and Conclusions
  • One of the most important factors that affect the profitability of the investment is the price of ethanol.
  • Changes in prices of co-products have a relatively minor affect on the profitability of investment
  • The ethanol plant can tolerate the feedstock price increase to a certain level without having a critical impact on profits.
additional research and study needs
Additional Research and Study Needs
  • Commercial scale burn test of fermentation sediment material to be used for plant energy
  • Optimal design of feedstock supply chain
  • Environment lifecycle of the biofuel produced
  • Impacts on rural employment
