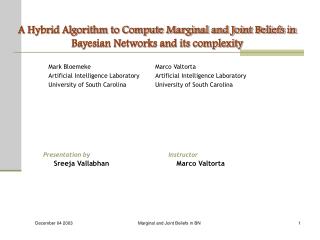

a hybrid algorithm to compute marginal and joint beliefs in bayesian networks and its complexity
Mark Bloemeke

Artificial Intelligence Laboratory

University of South Carolina

Marco Valtorta

Artificial Intelligence Laboratory

University of South Carolina

A Hybrid Algorithm to Compute Marginal and Joint Beliefs in Bayesian Networks and its complexity

Presentation by

Instructor

Sreeja Vallabhan

Marco Valtorta

Marginal and Joint Beliefs in BN

abstract
Abstract

Methods (algorithms) to Update Probability in Bayesian Network

  • Using a structure (Clique Tree) and perform local message based calculation to extract the belief in each variable.
  • Using Non Serial Dynamic Programming Techniques to extract the belief in some desired group of variables.
slide3
Goal

Present a hybrid algorithm based on Non Serial Dynamic Programming Techniques and possessing the ability to retrieve the belief in all single variables.

symbolic probabilistic inference spi
Symbolic Probabilistic Inference (SPI)

Consider the Bayesian Network with DAG G = (V, E)

and conditional probability tables

where are the parents of vi in G.

Total joint probability using Chain Rule of Bayesian Network

(1)

Using marginalization to retrieve belief in any subset of variables V’ as

(2)

SPI is based on these two equations

symbolic probabilistic inference spi5
Symbolic Probabilistic Inference (SPI)

In SPI, to maintain control over the size and time complexity of the resulting tables:

  • Variables are ordered before calculations
  • Summations are pushed down into products
symbolic probabilistic inference spi6
Symbolic Probabilistic Inference (SPI)

Consider the following Bayesian Network

Assuming that each variable has two states, P(A,C) require a total of 92 significant operations

From equation (1) and (2), the joint probability of the variable A and C

symbolic probabilistic inference spi7
Symbolic Probabilistic Inference (SPI)

With a single re-ordering of the terms combined by equation (1) followed by the distribution of the summation from (2):

This requires only 32 significant operations.

factor trees
Factor Trees

Two Stage method for deriving the desired joint and single beliefs.

  • Creation of Factor Tree.
  • Passing algorithm on the Factor Tree to retrieve desired joint and single beliefs.
factor trees algorithm
Factor Trees Algorithm
  • Start by Calculating the optimal factoring order for the network given the target set of variables whose joint is desired.
  • Construct a Binary Tree showing the combination of initial probability table and conformal table.
  • Label edges between table along which variables are marginalized with the variables marginalized before combination.
  • Add an additional head that has an empty label above the current root, a conformal table labeled with the target set of variables, that has no variables.
