  1. Single p0Electroproduction in the Resonance Region with CLAS Kyungseon Joo University of Connecticut For the CLAS Collaboration N* 2009 Beijing, China April 19, 2009

  2. SU(6)xO(3) Classification of Low Lying N*

  3. CLAS Exclusive Processes in N* Studies p(e,e’)X Hadronic mass

  4. Transition Form Factors of Low Lying N* States pp0 channel is important to study: N* Transition Form Factors in the 2nd Resonance Region – “Roper” P11(1440), S11(1535), D13(1520)

  5. Roper P11(1440) Helicity amplitudes + +

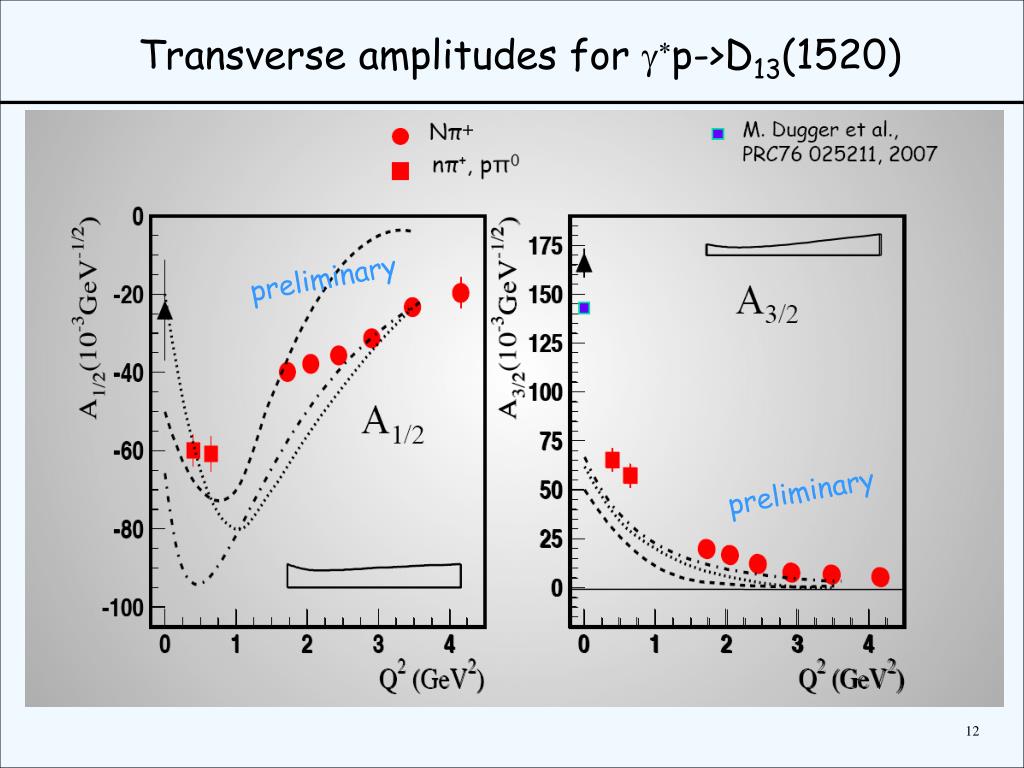

  6. Transverse amplitudes for g*p->D13(1520) + preliminary preliminary

  7. CLAS Single Pion Electro-production Data Data in the D(1232) region up to W = 1.4 GeV

  8. CLAS Single Pion Electro-production Data Data up to the 3rd resonance region up to W = 1.7 GeV

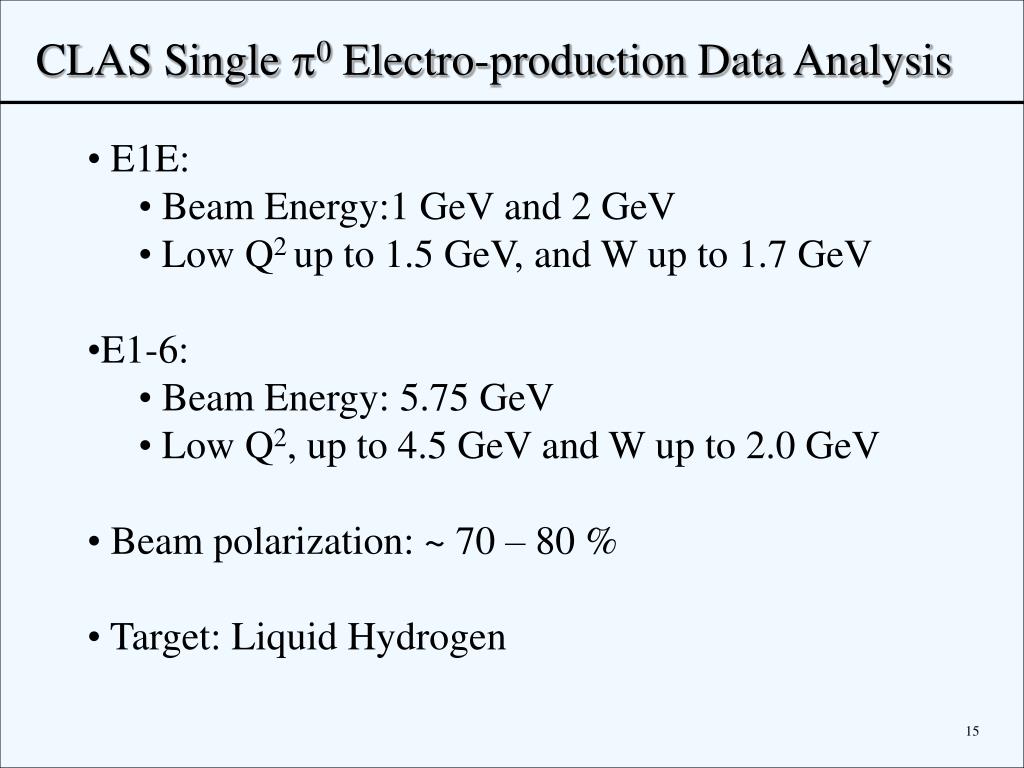

  9. CLAS Single p0 Electro-production Data Analysis • E1E: • Beam Energy:1 GeV and 2 GeV • Low Q2 up to 1.5 GeV, and W up to 1.7 GeV • E1-6: • Beam Energy: 5.75 GeV • Low Q2, up to 4.5 GeV and W up to 2.0 GeV • Beam polarization: ~ 70 – 80 % • Target: Liquid Hydrogen

  10. CEBAF at Jefferson Lab Emax ~ 6 GeV Imax ~ 200 mA Duty Factor ~ 100% sE/E ~ 2.5 10-5 Beam P ~ 80% Eg(tagged) ~ 0.8- 5.5 GeV CLAS B C A

  11. CEBAF Large Acceptance Spectrometer (CLAS) • Six identical sectors • 5 T toroidal B-field • Δθ=15-140 degrees • Δφ= 0-50 degrees • Δp/p = 10-2-10-3

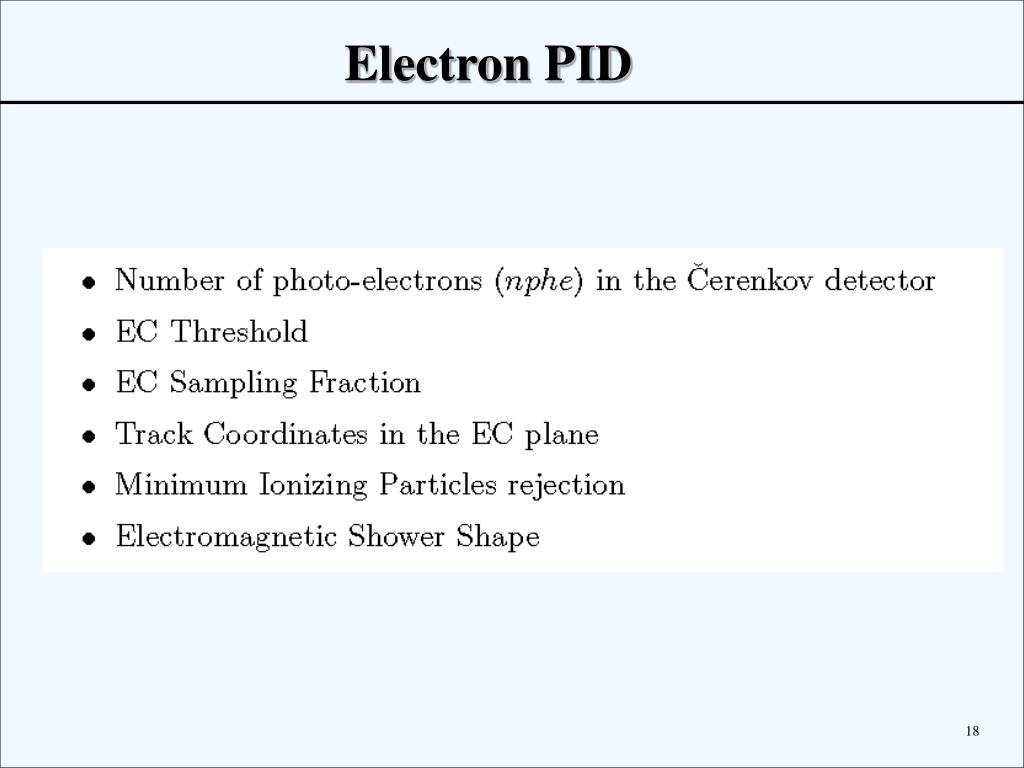

  12. Electron PID

  13. Electron PID

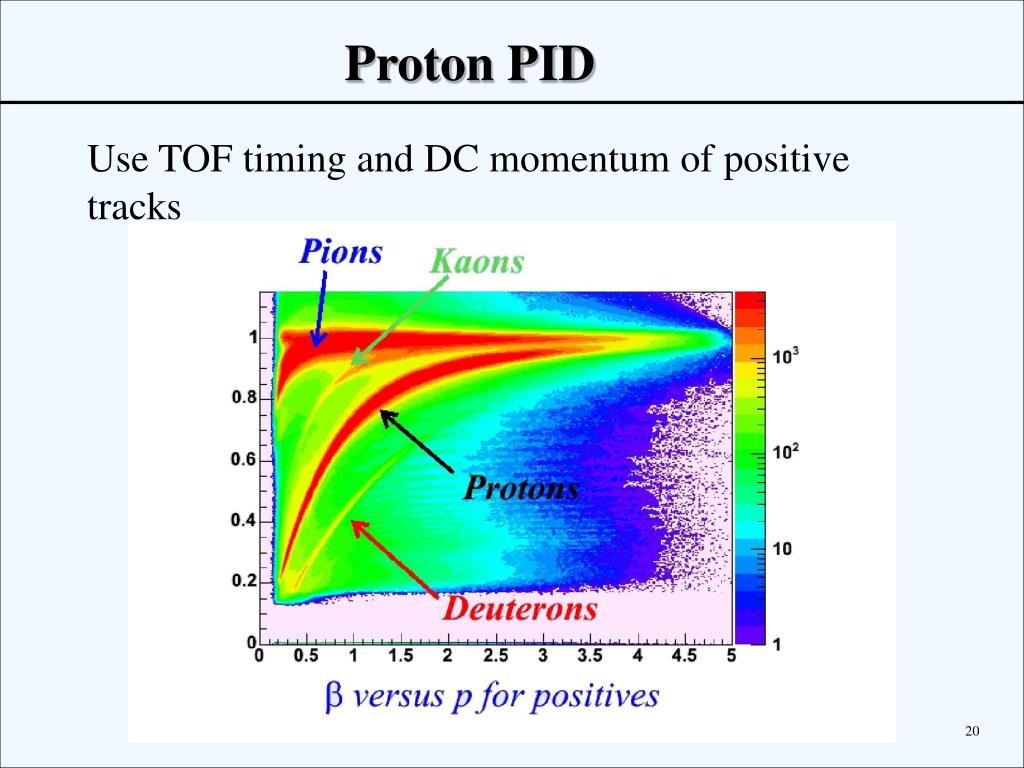

  14. Proton PID Use TOF timing and DC momentum of positive tracks

  15. p0 selection e + p -> e’ + p + X on D(1232) resonance region from 5.7 GeV MX2 MX2 MX2 from e + p -> e’ + p + X on D(1232) resonance region from 2. 0 GeV

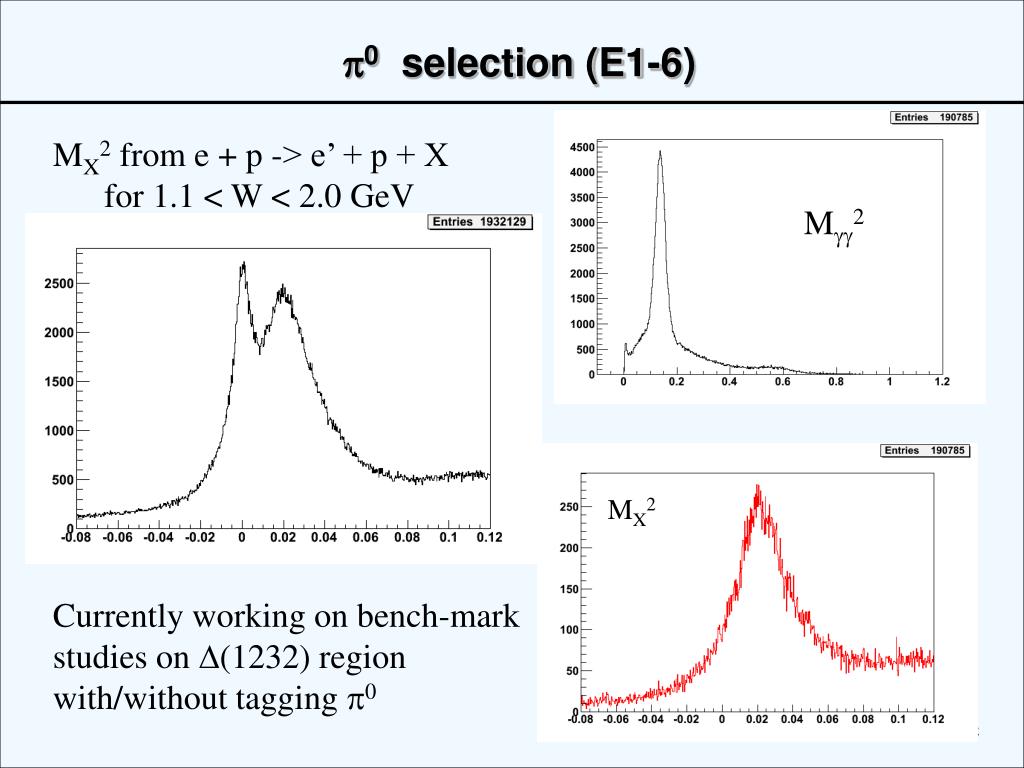

  16. p0 selection (E1-6) MX2 from e + p -> e’ + p + X for 1.1 < W < 2.0 GeV Mgg2 MX2 Currently working on bench-mark studies on D(1232) region with/without tagging p0

  17. Typical ep→ e’pπ0 cross sections vs cos θ* and φ* Q2 = 0.2 GeV2 W=1.22 GeV Very preliminary

  18. π+ electroproduction at Q2=0.20 GeV2 using CLAS Very preliminary

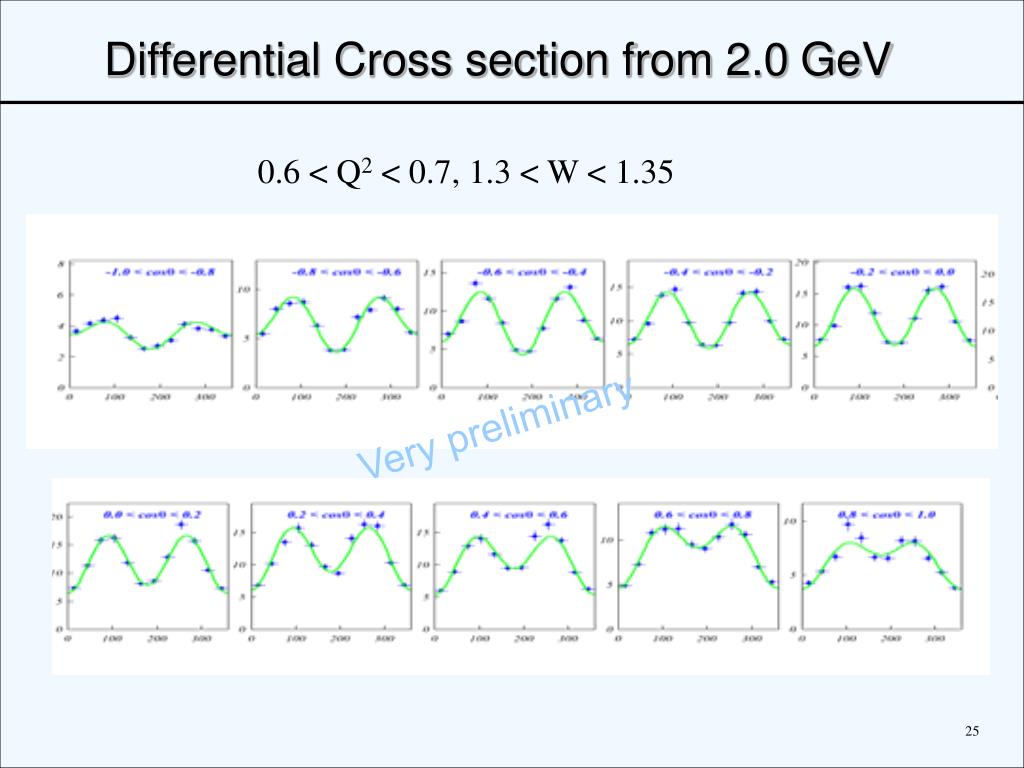

  19. Differential Cross section from 2.0 GeV 0.6 < Q2 < 0.7, 1.3 < W < 1.35 Very preliminary

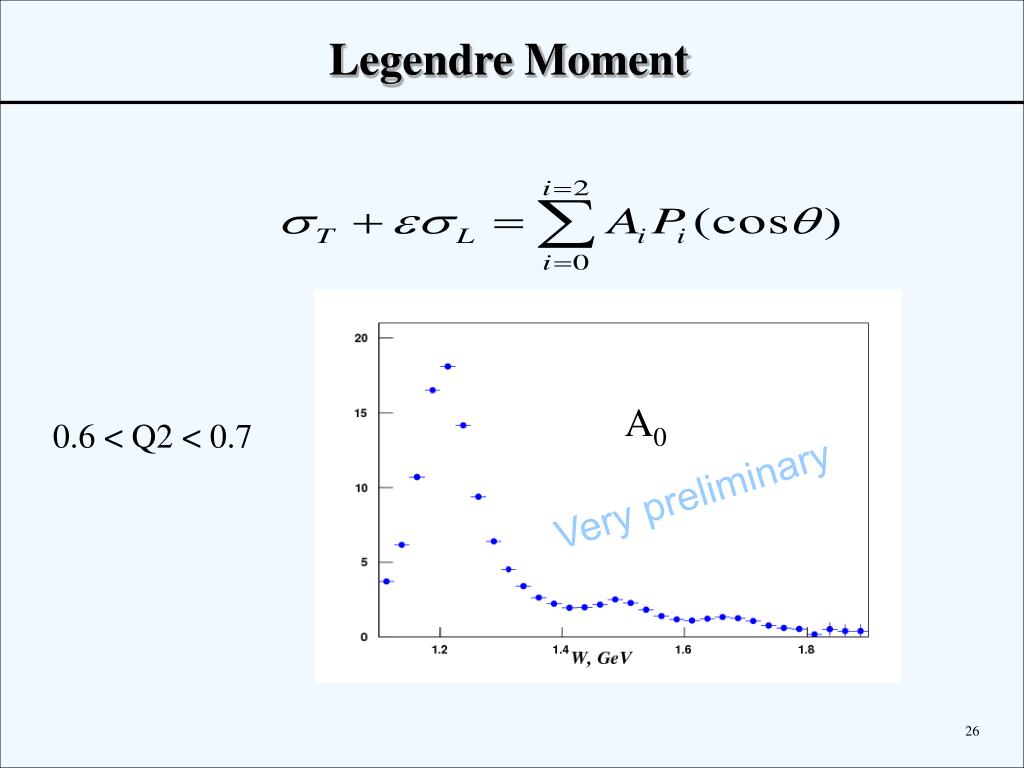

  20. Legendre Moment A0 0.6 < Q2 < 0.7 Very preliminary

  21. pπ0 only nπ+ only pπ0 and nπ+ E1+/M1+ and S1+/M1+ CLAS e1e UIM Fit

  22. Roper P11(1440) Helicity amplitudes + +

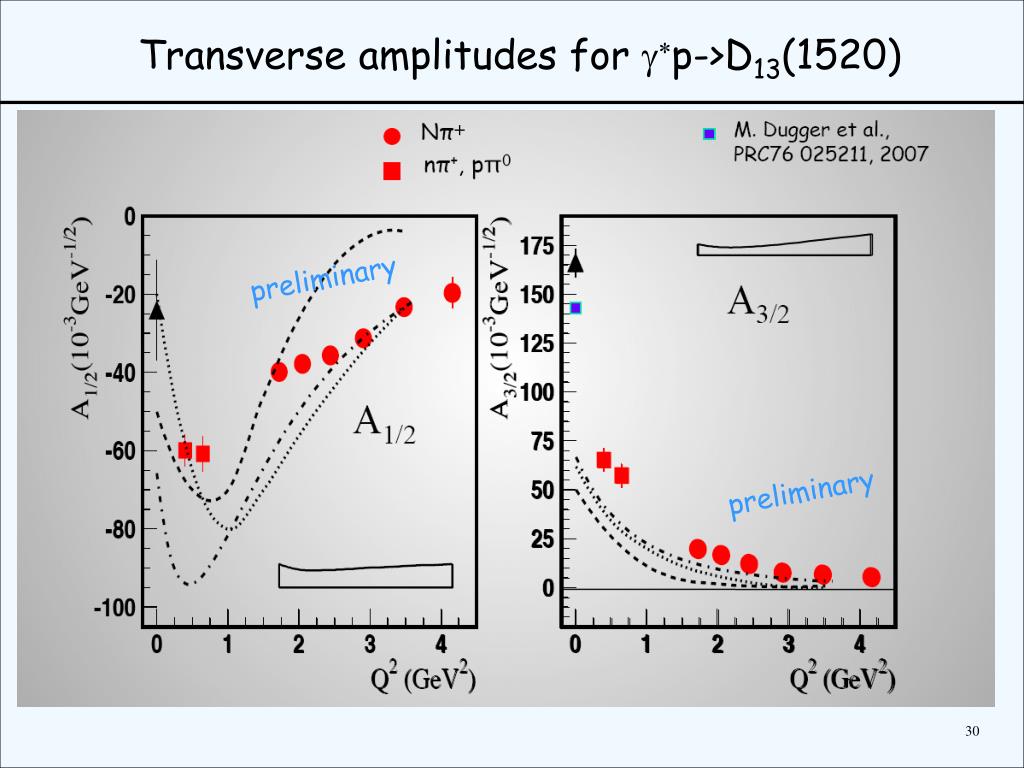

  23. Transverse amplitudes for g*p->D13(1520) + preliminary preliminary

  24. Summary • Single p0 electro-production analysis is under way • for low and high Q2 range up to 2.0 GeV in W. • Able to perform combined analysis with np+ and two pion • channels • pp0 channel is an important part of 12 GeV N* program • with CLAS12. • Current pp0 analysis measuring all final states will provide • an important step for 12 GeV N* program.
