  1. Fast Fourier Transform

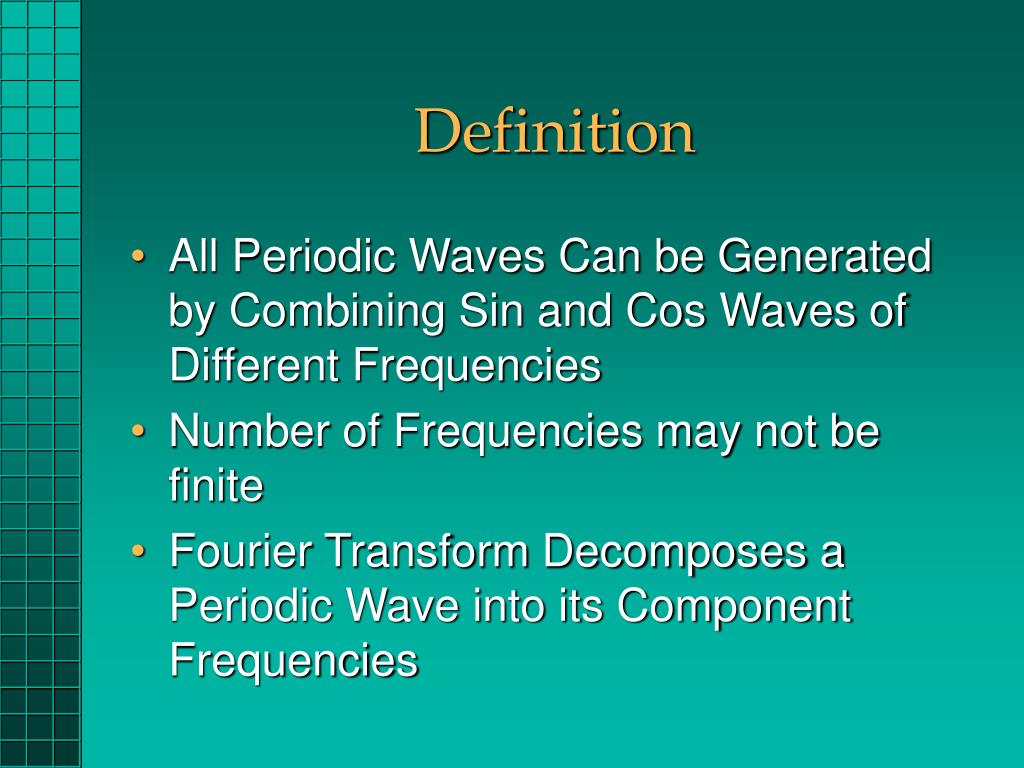

  2. Definition • All Periodic Waves Can be Generated by Combining Sin and Cos Waves of Different Frequencies • Number of Frequencies may not be finite • Fourier Transform Decomposes a Periodic Wave into its Component Frequencies

  3. DFT Definition • Sample consists of n points, wave amplitude at fixed intervals of time:(p0,p1,p2, ..., pn-1) (n is a power of 2) • Result is a set of complex numbers giving frequency amplitudes for sin and cos components • Points are computed by polynomial:P(x)=p0+p1x+p2x2+ ... +pn-1xn-1

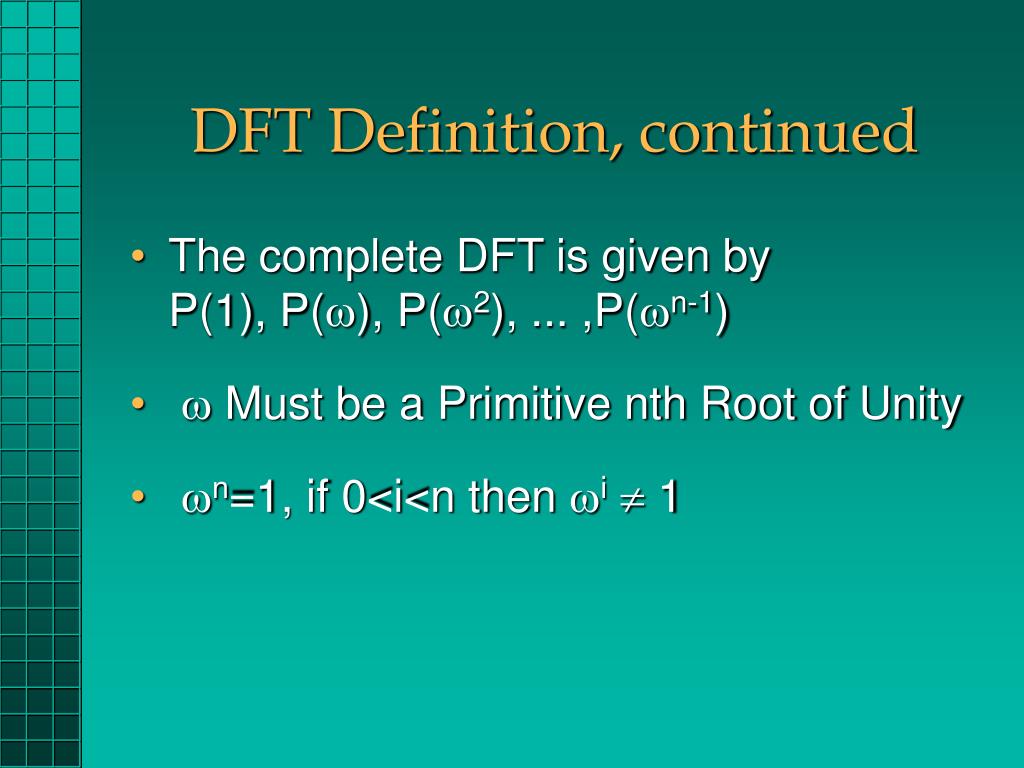

  4. DFT Definition, continued • The complete DFT is given byP(1), P(w), P(w2), ... ,P(wn-1) • w Must be a Primitive nth Root of Unity • wn=1, if 0<i<n then wi¹ 1

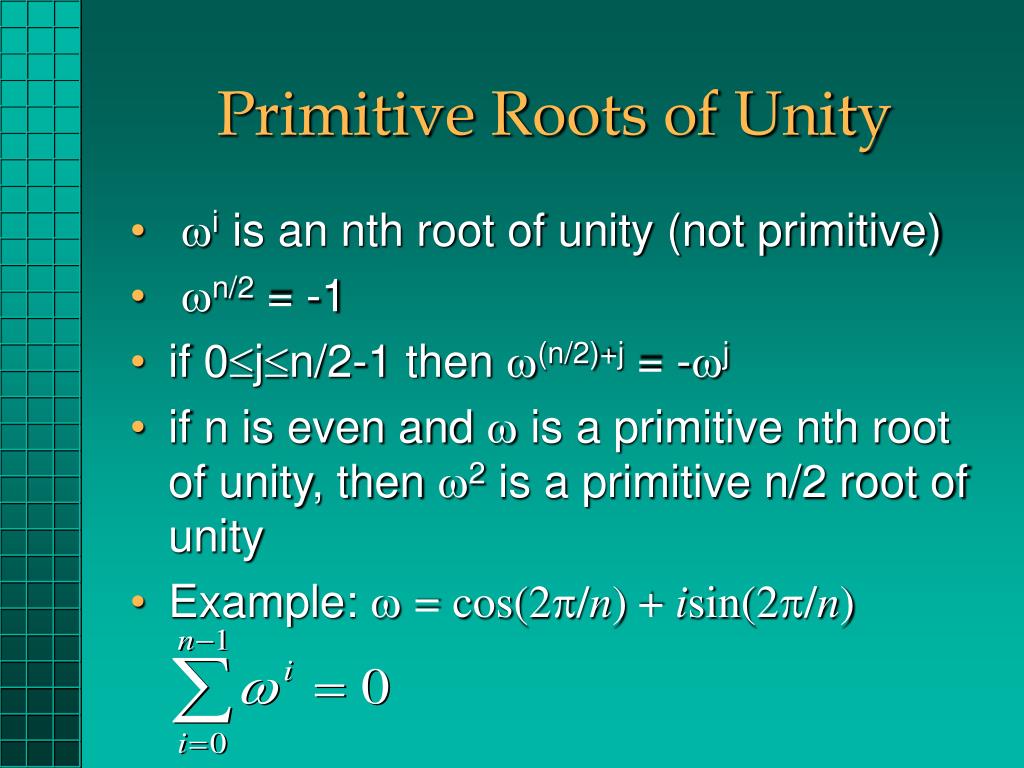

  5. Primitive Roots of Unity • wi is an nth root of unity (not primitive) • wn/2 = -1 • if 0£j£n/2-1 then w(n/2)+j = -wj • if n is even and w is a primitive nth root of unity, then w2 is a primitive n/2 root of unity • Example: w=cos(2p/n) + isin(2p/n)

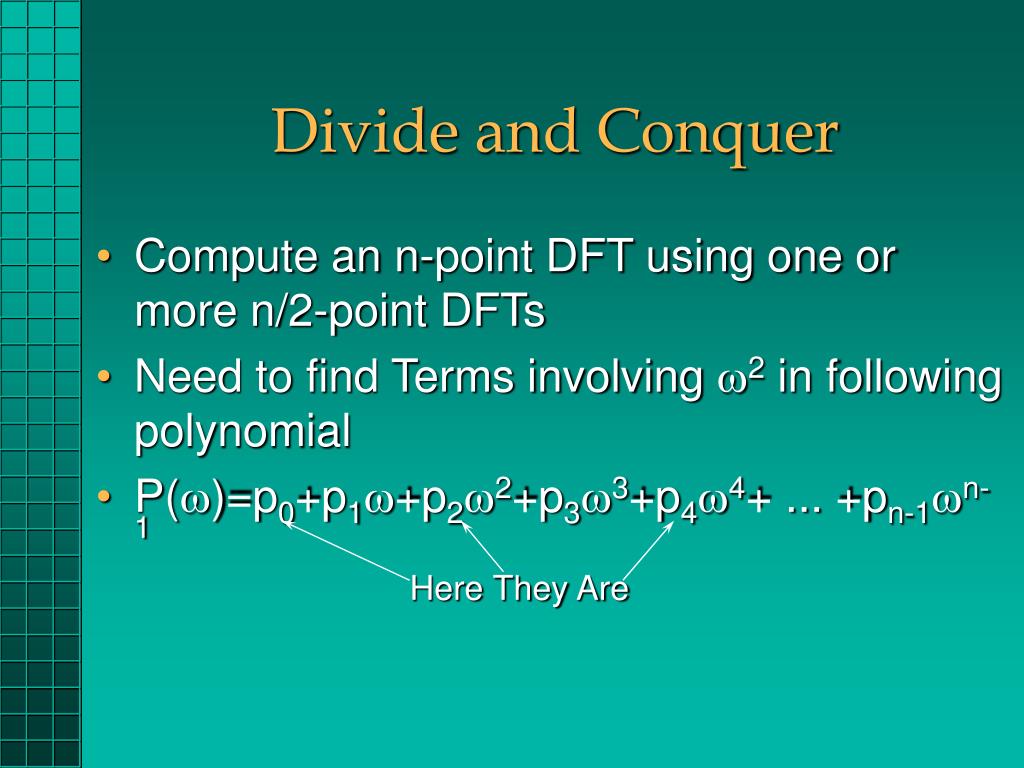

  6. Divide and Conquer • Compute an n-point DFT using one or more n/2-point DFTs • Need to find Terms involving w2 in following polynomial • P(w)=p0+p1w+p2w2+p3w3+p4w4+ ... +pn-1wn-1 Here They Are

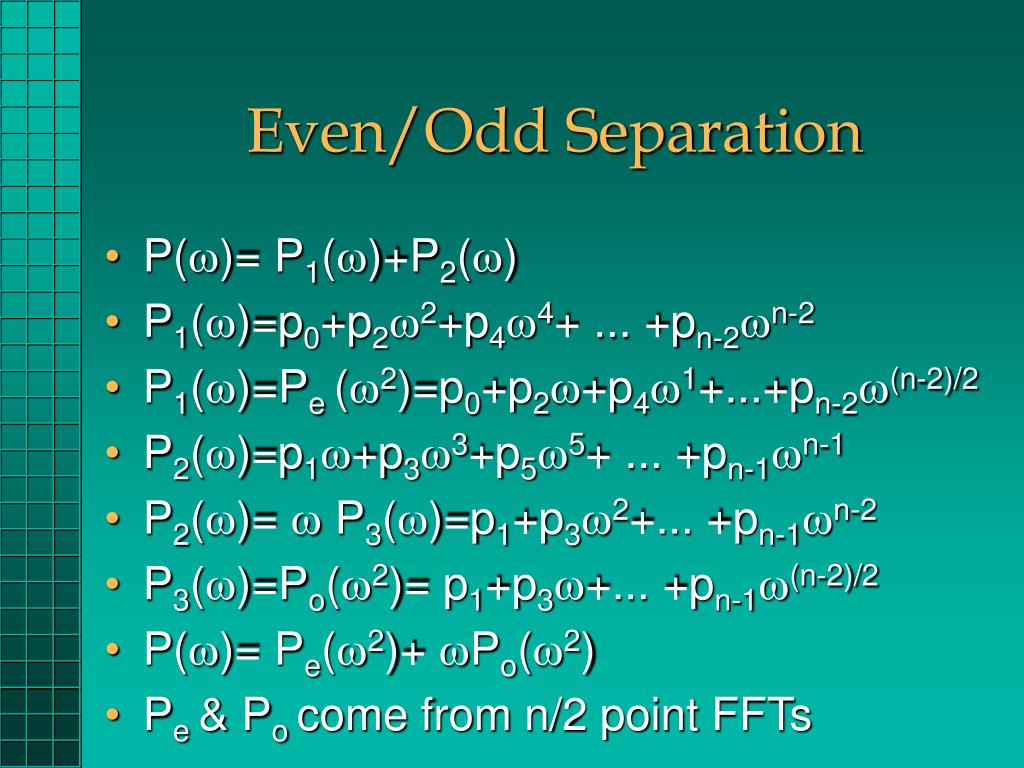

  7. Even/Odd Separation • P(w)= P1(w)+P2(w) • P1(w)=p0+p2w2+p4w4+ ... +pn-2wn-2 • P1(w)=Pe (w2)=p0+p2w+p4w1+...+pn-2w(n-2)/2 • P2(w)=p1w+p3w3+p5w5+ ... +pn-1wn-1 • P2(w)= w P3(w)=p1+p3w2+... +pn-1wn-2 • P3(w)=Po(w2)= p1+p3w+... +pn-1w(n-2)/2 • P(w)= Pe(w2)+ wPo(w2) • Pe & Po come from n/2 point FFTs

  8. The Algorithm DFFT(P:Array;k,m:Integer):Array; begin If k=0 Then DFFT[0]=P[0];DFFT[1]=P[0]; Else Evens = DFFT(EvenElemOf(P),k-1,2m); Odds = DFFT(OddElemOf(P),k-1,2m); For i := 0 to 2k-1-1 Do x := Odds[j]*wmj DFFT[j] := Evens[j] + x DFFT[2k-1+j] := Evens[j] - x End For End If end

  9. Iterative Algorithm For i := 0 To n-2 By 2 Do T[i] = p[f(i)] + p[f(t+1)]; T[i+1] := p[f(i)] - p[f(t+1)]; End For m := n/2; n := 2; For k := lg n - 2 To 0 By -1 Do m := m/2; n := 2*n; For i := 0 To (2k-1)*n By n Do For j := 0 To (n/2)-1 Do x := wmj * T[i+n/2+j]; T[i+n/2+j] := T[i+j] - x; T[i+j] := T[i+j] + x; End For End For End For

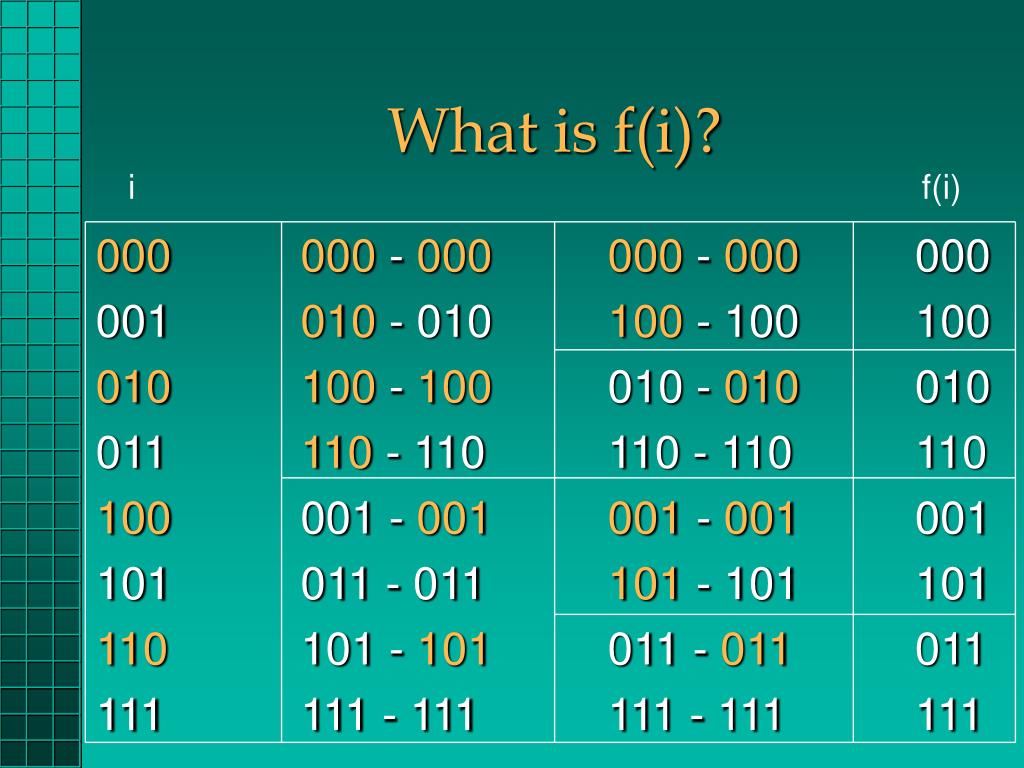

  10. What is f(i)? i f(i) 000000 - 000 000 - 000 000 001 010 -010 100 - 100 100 010 100 - 100 010 - 010 010 011 110 - 110 110- 110 110 100 001 - 001 001 - 001 001 101 011 - 011 101 - 101 101 110 101 - 101 011 - 011 011 111 111 - 111 111 - 111 111
