My attempt to multi thread an audio talk though program using batches of data

My attempt to multi-thread an audio talk-though program using batches of data

M. Smith

Electrical and Computer Engineering

University of Calgary,

Smithmr @ ucalgary.ca


Laboratory 5 done in c and c
Laboratory 5 – Done in “C and C++” using batches of data

  • Stage 1 – 30%

    • Develop and investigate a multi-tasking system where the threads are free-running. Thread tasks are “Sleep(time_task)”

    • Develop and investigate a multi-tasking system where the threads communicate through semaphores to control order of operation

  • Stage 2 – 55%

    • Demonstrate and investigate turning an “audio – talk-through program” into a multi-threaded system – one point processed per interrupt

  • Stage 3 – 15%

    • Demonstrate a batch processing system as a multi-threaded system

  • Options

    • Use SHARC ADSP-21061 boards (40 MHz) – existing audio-libraries – have not attempted

    • Use Blackfin ADSP-BF533 boards (600 MHz) – existing audio-libraries – have been successful at home, but not here

    • Use Blackfin ADSP-BF533 boards (600 MHz) – using very simple, no frills, audio-talk though library – surprising simple with 1 to 32 points being processed. Fails with 33 points. Code logic issue, not a timing issue as I can waste 25000 cycles per block at 32 points

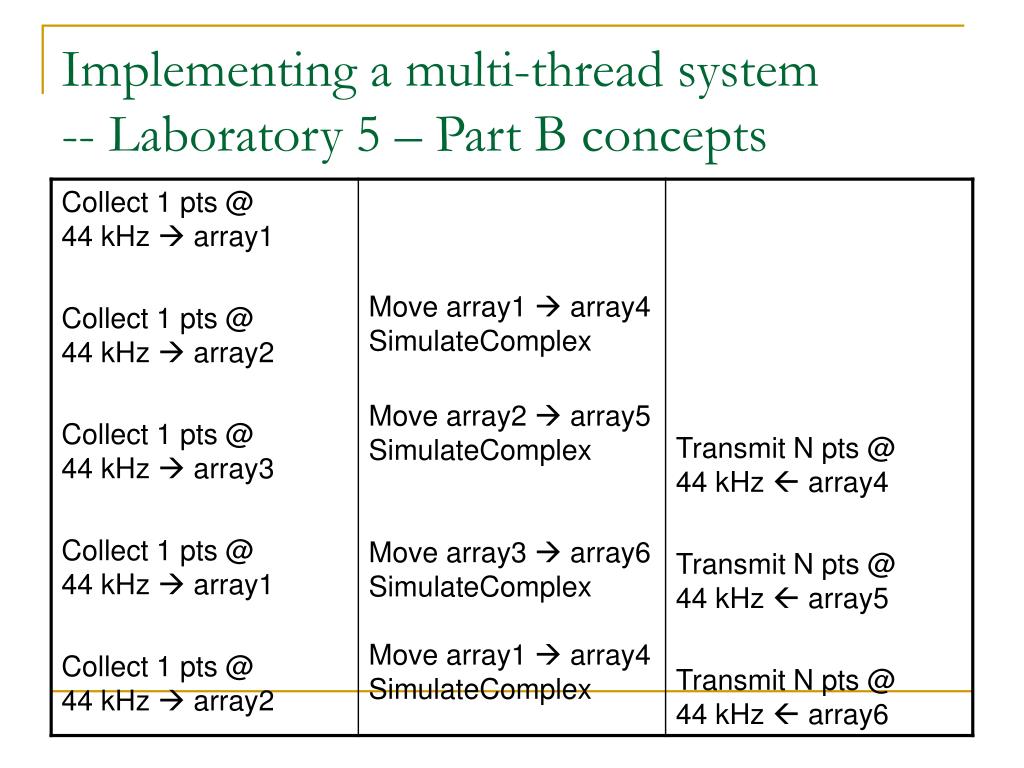

Implementing a multi thread system laboratory 5 part b concepts
Implementing a multi-thread system using batches of data-- Laboratory 5 – Part B concepts


Final readthread single point
Final ReadThread – Single Point using batches of data



Final writethread single point
Final WriteThread – Single Point using batches of data


Read thread isr driven
Read Thread – ISR driven using batches of data



Laboratory 5 done in c and c1
Laboratory 5 – Done in “C and C++” using batches of data

  • Stage 1 – 30%

    • Develop and investigate a multi-tasking system where the threads are free-running. Thread tasks are “Sleep(time_task)”

    • Develop and investigate a multi-tasking system where the threads communicate through semaphores to control order of operation

  • Stage 2 – 55%

    • Demonstrate and investigate turning an “audio – talk-through program” into a multi-threaded system – one point processed per interrupt

  • Stage 3 – 15%

    • Demonstrate a batch processing system as a multi-threaded system

  • Options

    • Use SHARC ADSP-21061 boards (40 MHz) – existing audio-libraries – have not attempted

    • Use Blackfin ADSP-BF533 boards (600 MHz) – existing audio-libraries – have been successful at home, but not here

    • Use Blackfin ADSP-BF533 boards (600 MHz) – using very simple, no frills, audio-talk though library – surprising simple with 1 to 32 points being processed. Fails with 33 points. Code logic issue, not a timing issue as I can waste 25000 cycles per block at 32 points

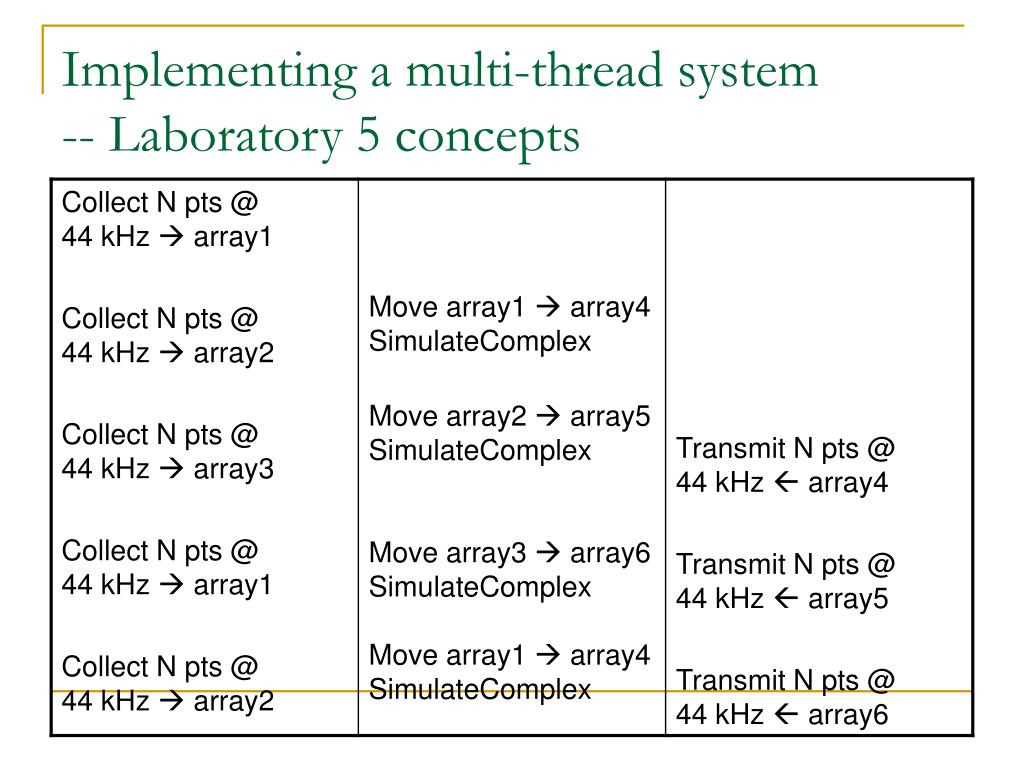

Implementing a multi thread system laboratory 5 concepts
Implementing a multi-thread system using batches of data-- Laboratory 5 concepts


Read handling 4 points no audio intention just see if it will work test
Read – Handling 4 points using batches of dataNo-audio intention – just see if it will work test


Process handling 4 points no audio intention just see if it will work test
Process – Handling 4 points using batches of dataNo-audio intention – just see if it will work test

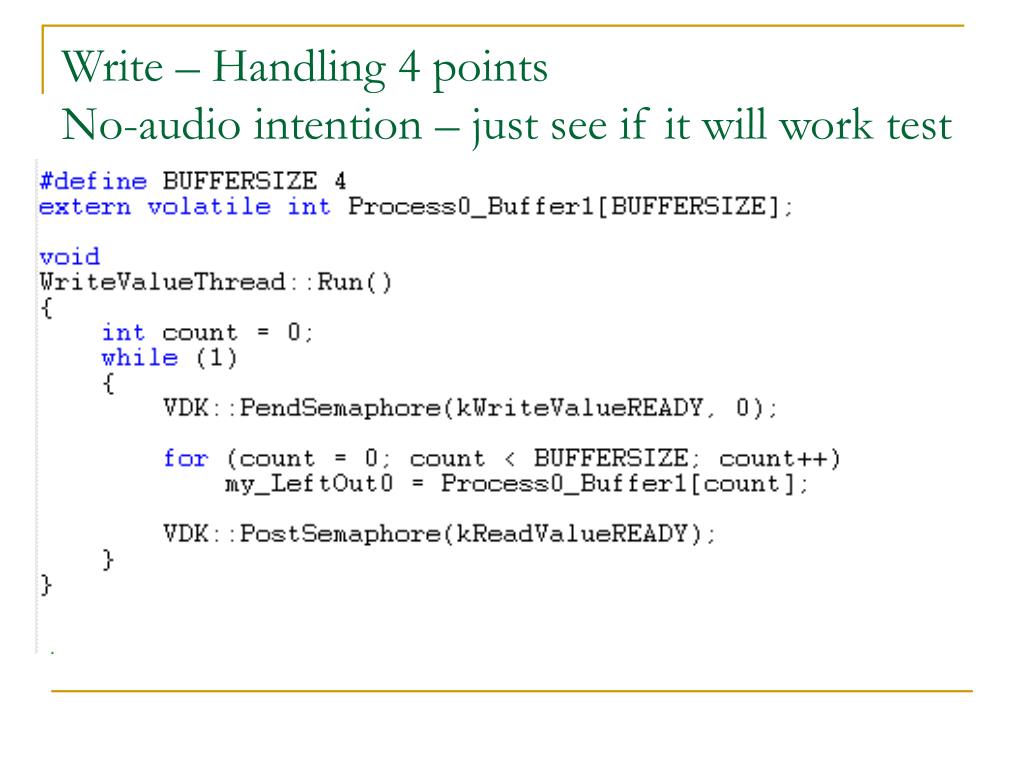

Write handling 4 points no audio intention just see if it will work test
Write – Handling 4 points using batches of dataNo-audio intention – just see if it will work test


Nett result
Nett Result using batches of data

Not working as expected – equal priority (5) on each task

We are obviously missing samples


Changing priorities
Changing Priorities using batches of data

Priorities

ReadThread 3 -- obviously the most critical

ProcessThread 5

WriteThread 5


Different priorities
Different Priorities using batches of data

Priorities

ReadThread 3 -- obviously the most critical

ProcessThread 5

WriteThread 4


No idle time available optimize the code
No idle time available – Optimize the code using batches of data

Priorities

ReadThread 3

ProcessThread 5

WriteThread 5

Priorities

ReadThread 3

ProcessThread 5

WriteThread 4

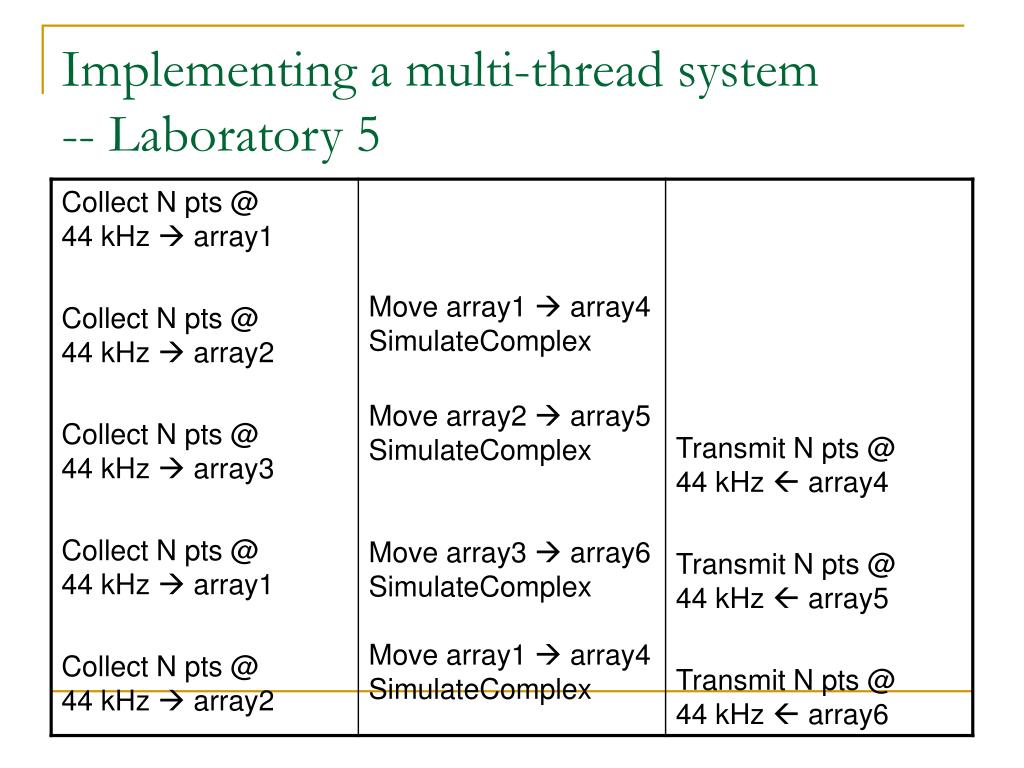

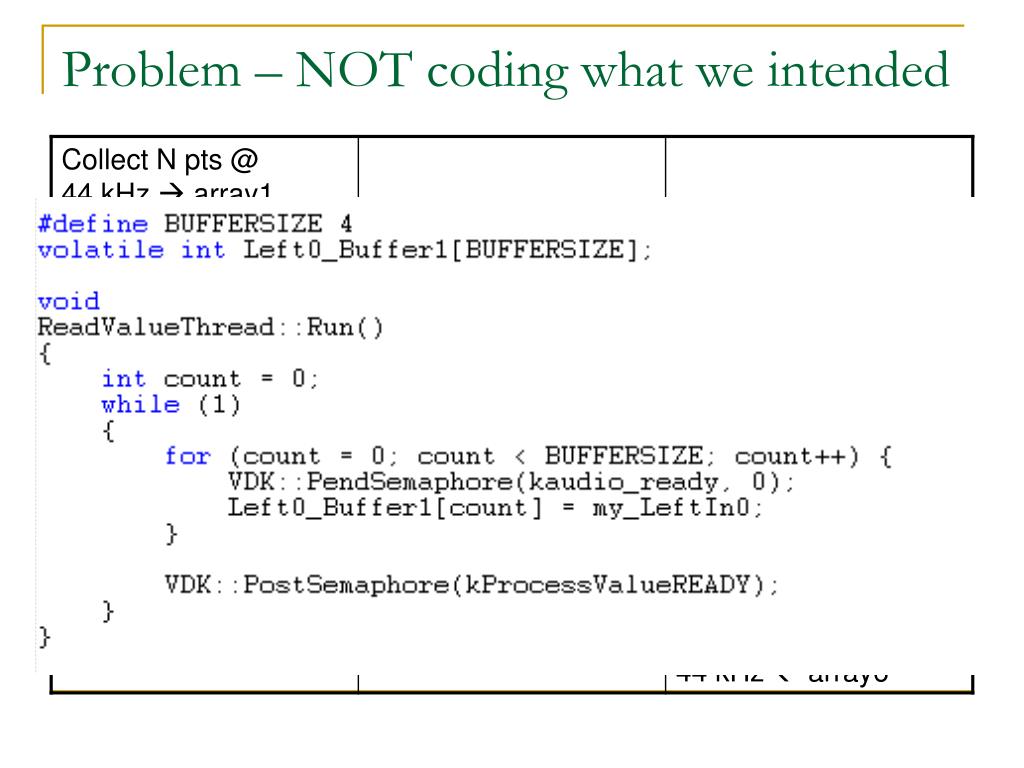

Implementing a multi thread system laboratory 5
Implementing a multi-thread system using batches of data-- Laboratory 5



Proper code
Proper Code using batches of data


Net result
Net Result using batches of data

TOTAL SYSTEM HANG

BLOCKED SEMAPHORES


Tried a number of things
Tried a number of things using batches of data

Worked out which semaphore was blocking

Different priorities

Different TIC times

Better – but obviously missing cycles – particularly write



Final test result
Final Test Result ReadThread

Seems to behaving as expected

However – when changed MAXIMUM COUNT FOR READ / WRITE ISR Semaphores – status history changes

This could indicate that missing some interrupts

Could mean nothing – interrupts asynchronous to timer TICs


Could handle 800 waste times every 32 samples plenty of time 50000 cycles
Could handle 800 waste “times” every 32 samples – plenty of time 50000 cycles +

Inner loop =2 * BUFFERLENGTHOuter loop = Wastetime * (3 + INNER)

Total = 13 + Inner loop

BUFFER = 32, waste time = 800

Cycles around 800 * 64 = 50000+

68K Blackfin SHARC

D0 (8) R0 (16) R0

A0 (6) P0 (with a bit of MIPS) (6)

I0 (4) I0 (16)


Real life test small buffers
Real life test -- small buffers plenty of time 50000 cycles +

  • Absolutely nothing

  • However

    • 4 audio connections in

    • 6 audio connections out

  • Got the correct connections

    • Set buffer = 1 – worked first time

    • Set buffer = 32 – worked first time


Larger buffers
Larger buffers plenty of time 50000 cycles +

  • BUFFERSIZE – 64 – out of bsz memory error

  • Fix .LDF file – manually (GUI window works how?)

MEMORY

{

mem_VDK_strt { TYPE(RAM) START(0xFFA00000) END(0xFFA00003) WIDTH(8) }

mem_l1_code { TYPE(RAM) START(0xFFA00004) END(0xFFA0FFFF) WIDTH(8) }

mem_l1_code_cache { TYPE(RAM) START(0xFFA10000) END(0xFFA13FFF) WIDTH(8) }

mem_EVT_all { TYPE(RAM) START(0xFF900000) END(0xFF900003) WIDTH(8) }

mem_EVT_NMI { TYPE(RAM) START(0xFF900004) END(0xFF900007) WIDTH(8) }

mem_EVT_EVX { TYPE(RAM) START(0xFF900008) END(0xFF90000B) WIDTH(8) }

mem_EVT_IRPTEN { TYPE(RAM) START(0xFF90000C) END(0xFF90000F) WIDTH(8) }

mem_EVT_IVHW { TYPE(RAM) START(0xFF900010) END(0xFF900013) WIDTH(8) }

mem_EVT_IVTMR { TYPE(RAM) START(0xFF900014) END(0xFF900017) WIDTH(8) }

mem_EVT_IVG7 { TYPE(RAM) START(0xFF900018) END(0xFF90001B) WIDTH(8) }

mem_EVT_IVG8 { TYPE(RAM) START(0xFF90001C) END(0xFF90001F) WIDTH(8) }

mem_EVT_IVG9 { TYPE(RAM) START(0xFF900020) END(0xFF900023) WIDTH(8) }

mem_EVT_IVG10 { TYPE(RAM) START(0xFF900024) END(0xFF900027) WIDTH(8) }

mem_EVT_IVG11 { TYPE(RAM) START(0xFF900028) END(0xFF90002B) WIDTH(8) }

mem_EVT_IVG12 { TYPE(RAM) START(0xFF90002C) END(0xFF90002F) WIDTH(8) }

mem_EVT_IVG13 { TYPE(RAM) START(0xFF900030) END(0xFF900033) WIDTH(8) }

mem_EVT_IVG14 { TYPE(RAM) START(0xFF900034) END(0xFF900037) WIDTH(8) }

mem_EVT_IVG15 { TYPE(RAM) START(0xFF900038) END(0xFF90003B) WIDTH(8) }

mem_sysstack { TYPE(RAM) START(0xFF90003C) END(0xFF90083B) WIDTH(8) }

mem_l1_data_b { TYPE(RAM) START(0xFF90083C) END(0xFF903FFF) WIDTH(8) }

mem_l1_data_b_cache { TYPE(RAM) START(0xFF904000) END(0xFF907FFF) WIDTH(8) }


Memory issues on 64 point data batches
Memory issues – on 64 point data batches plenty of time 50000 cycles +

  • Still did not work

    • Did I change the memory map correctly?

    • No – seems okay as works with 32 – but perhaps having caching issue

  • Went back to old memory map

    • Went to configure external SDRAM and use that

    • Modified only 1 array – left channel

      • Left channel fails – right channel works

  • Spending too much time in context switching

    • Group ReadThread and WriteThread code together

    • Does not even work with 32 !!!!!!

  • Am convinced that there is a logical issue associated with the semaphore handling.


Bonus 20 bonus
Bonus – 20% bonus plenty of time 50000 cycles +

  • If you can get all parts of Lab. 5 running and then solve this issue of why fails at 64 points (even when not wasting cycles) – 20% bonus on this lab. marks and either a mention or a “co-author-ship” on one of the Circuit Cellar articles

  • May even be worth some money if I manage to sell the articles
