MODELING OF MECHANICAL SYSTEMS BY ANSYS

m. k. 1. 2. MODELING OF MECHANICAL SYSTEMS BY ANSYS. Example: 2.1. ω=18.71 rad/s=2.98 Hz. * Run ANSYS Interactive. * Set Working Directory. k=35000 N/m. m=100 kg. * Run Notepad text editor and write the following commands below. /prep7. Save as e01.txt. et,1,mass21. /solu.

lewis-cain
Download Presentation

MODELING OF MECHANICAL SYSTEMS BY ANSYS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. m k 1 2 MODELING OF MECHANICAL SYSTEMS BY ANSYS Example:2.1 ω=18.71 rad/s=2.98 Hz * Run ANSYS Interactive * Set Working Directory k=35000 N/m m=100 kg * Run Notepad text editor and write the following commands below. /prep7 Save as e01.txt et,1,mass21 /solu et,2,combin14 d,all,ux,0 Write e01.txt in ANSYS Command Window r,1,0,100 d,all,uz,0 r,2,35000,0 d,1,uy,0 n,1,0,0 antype,2 n,2,0,0.25 modopt,lanb,1 type,1 solve finish real,1 General Postproc > Results Summary e,2 type,2 File>Clear&Start New...>OK>YES real,2 e,1,2 eplot

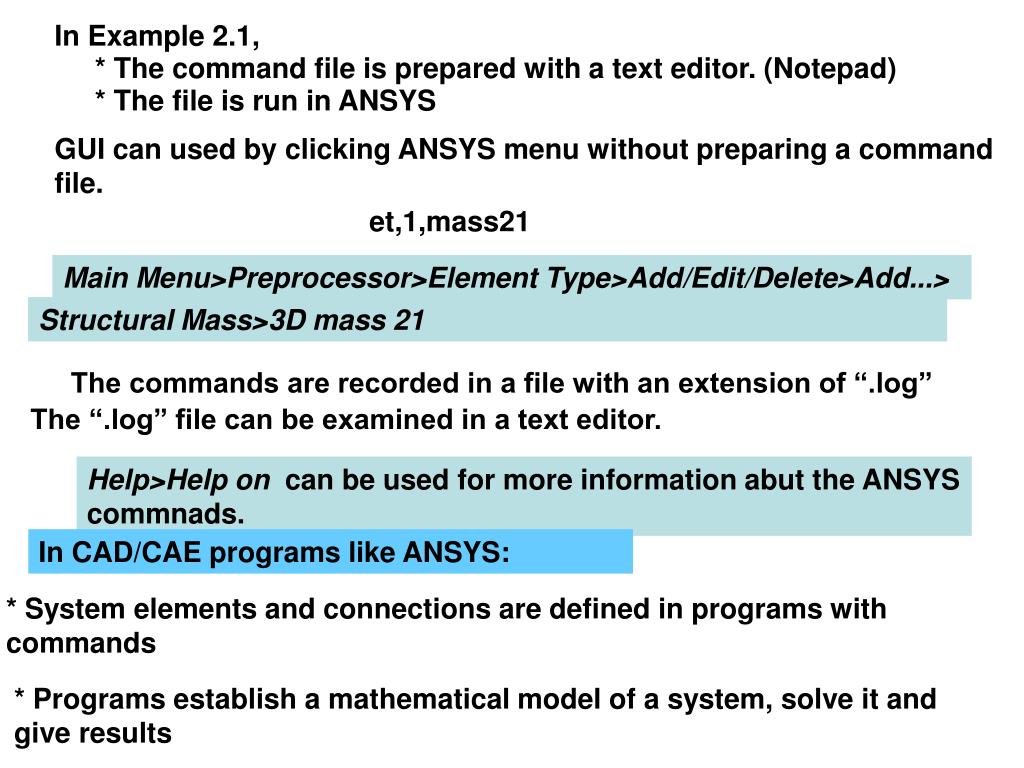

  2. In Example 2.1, * The command file is prepared with a text editor. (Notepad) * The file is run in ANSYS GUI can used by clicking ANSYS menu without preparing a command file. et,1,mass21 Main Menu>Preprocessor>Element Type>Add/Edit/Delete>Add...> Structural Mass>3D mass 21 The commands are recorded in a file with an extension of “.log” The “.log” file can be examined in a text editor. Help>Help on can be used for more information abut the ANSYS commnads. In CAD/CAE programs like ANSYS: * System elements and connections are defined in programs with commands * Programs establish a mathematical model of a system, solve it and give results

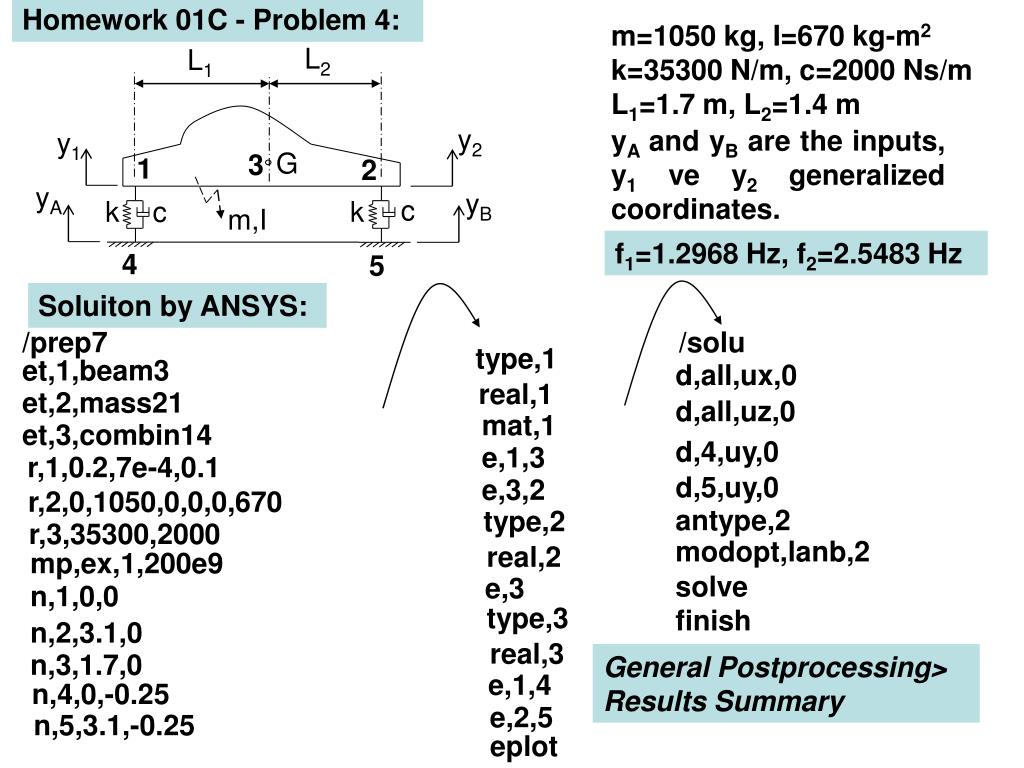

  3. Homework 01C - Problem 4: L2 L1 y2 y1 G yA yB c k c k m,I m=1050 kg, I=670 kg-m2 k=35300 N/m, c=2000 Ns/m L1=1.7 m, L2=1.4 m yA and yB are the inputs, y1 ve y2 generalized coordinates. 3 1 2 f1=1.2968 Hz, f2=2.5483 Hz 4 5 Soluiton by ANSYS: /prep7 /solu type,1 et,1,beam3 d,all,ux,0 real,1 et,2,mass21 d,all,uz,0 mat,1 et,3,combin14 d,4,uy,0 e,1,3 r,1,0.2,7e-4,0.1 d,5,uy,0 e,3,2 r,2,0,1050,0,0,0,670 antype,2 type,2 r,3,35300,2000 modopt,lanb,2 real,2 mp,ex,1,200e9 solve finish e,3 n,1,0,0 type,3 n,2,3.1,0 real,3 n,3,1.7,0 General Postprocessing> Results Summary e,1,4 n,4,0,-0.25 e,2,5 n,5,3.1,-0.25 eplot
