  1. Form Exploration: From Art to PartRechargeable Lamp Aska Yeung Student: Aska Yeung Date: 28-2-2008

  2. Research on Different Rechargeable Lamp

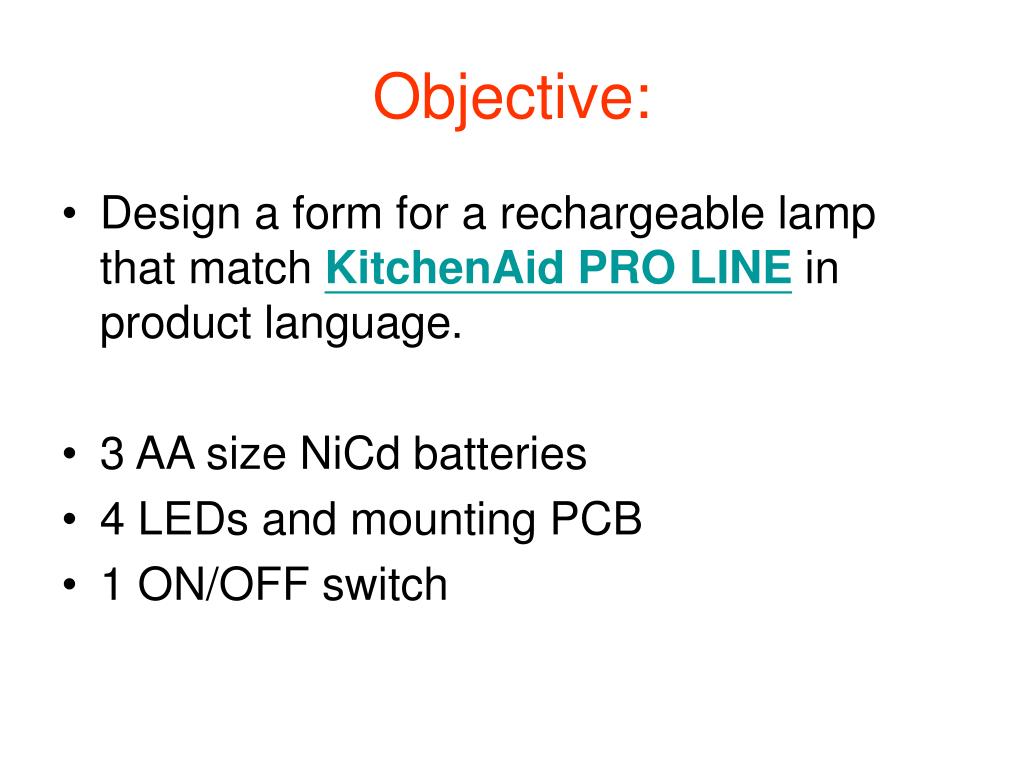

  3. Objective: • Design a form for a rechargeable lamp that match KitchenAid PRO LINEin product language. • 3 AA size NiCd batteries • 4 LEDs and mounting PCB • 1 ON/OFF switch

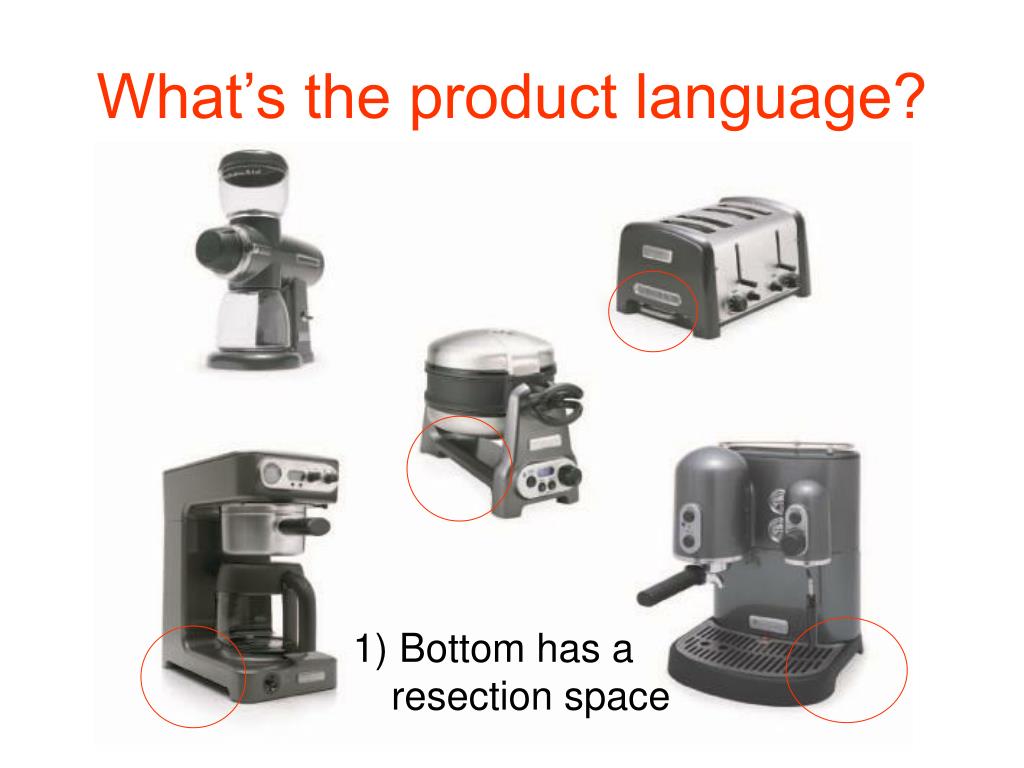

  4. What’s the product language? 1) Bottom has a resection space

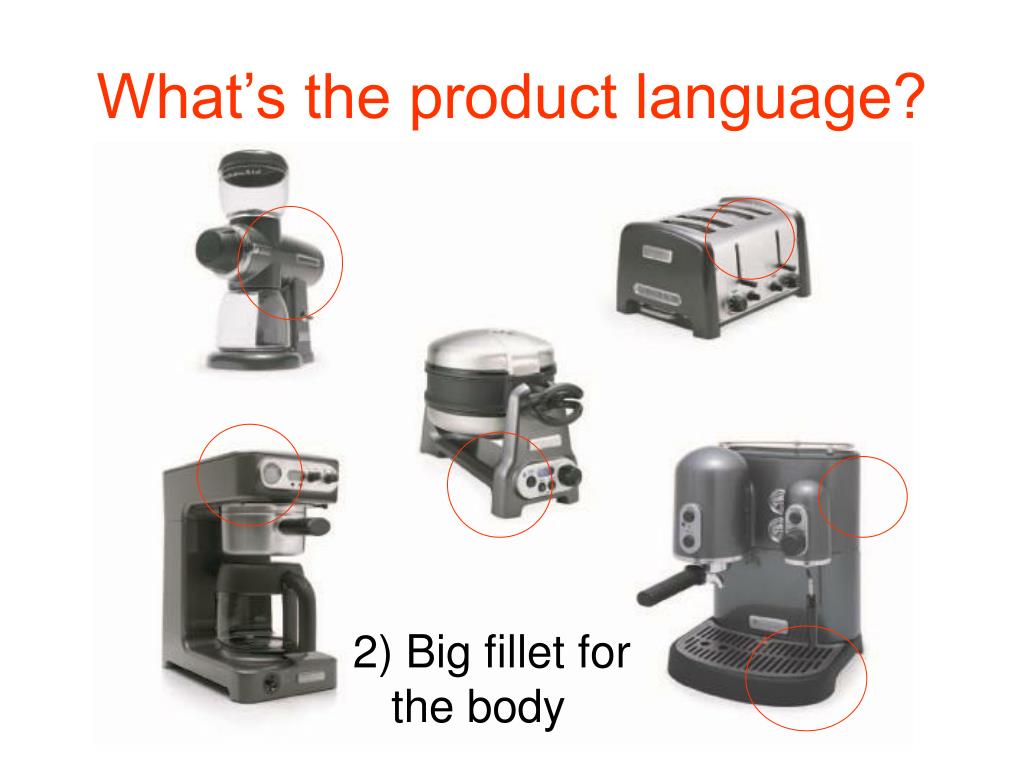

  5. What’s the product language? 2) Big fillet for the body

  6. What’s the product language? 3) Color Contrast from layers on compartments.

  7. What’s the product language? 4) Second level extend layer for a surface.

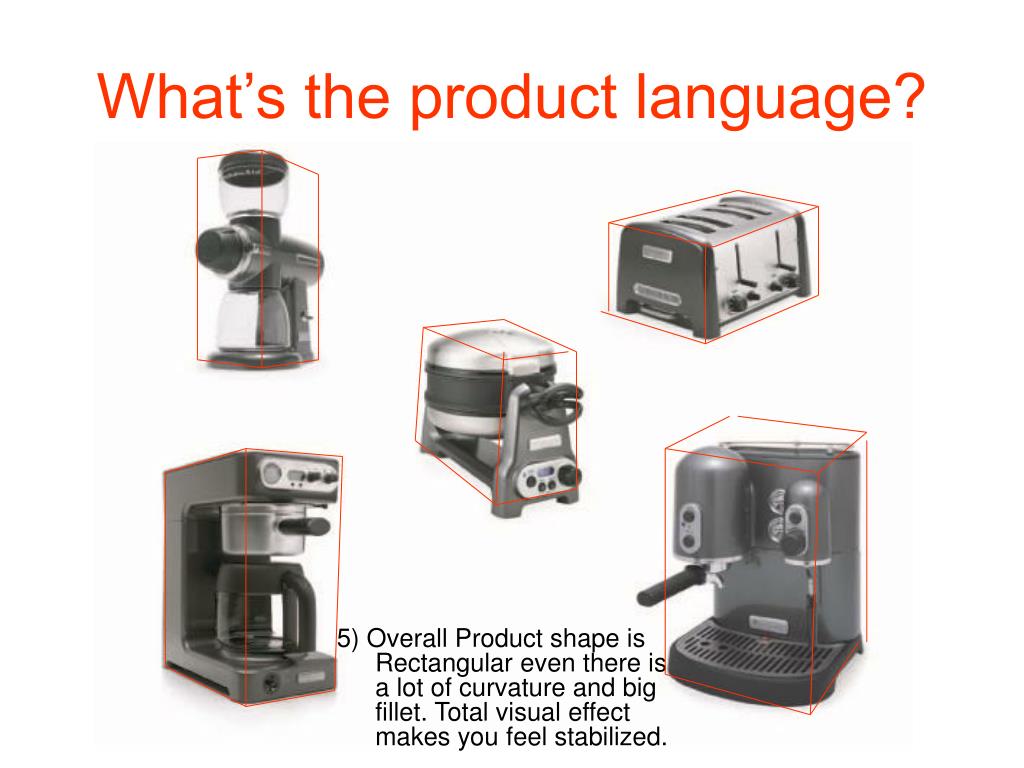

  8. What’s the product language? 5) Overall Product shape is Rectangular even there is a lot of curvature and big fillet. Total visual effect makes you feel stabilized.

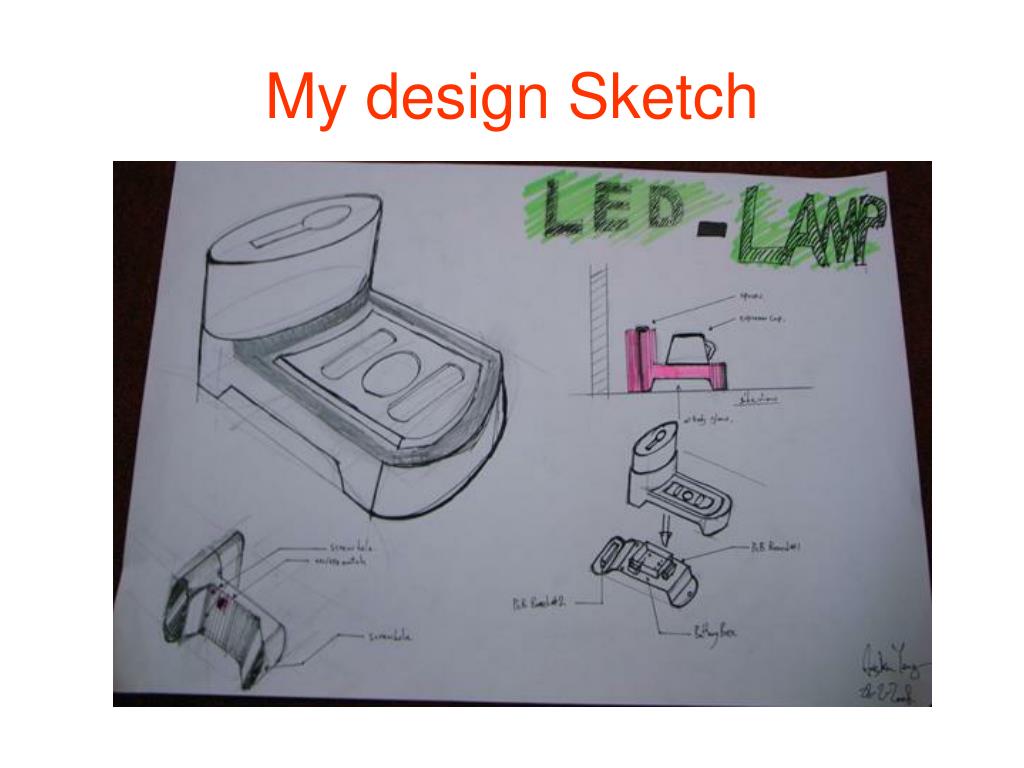

  9. My design Sketch

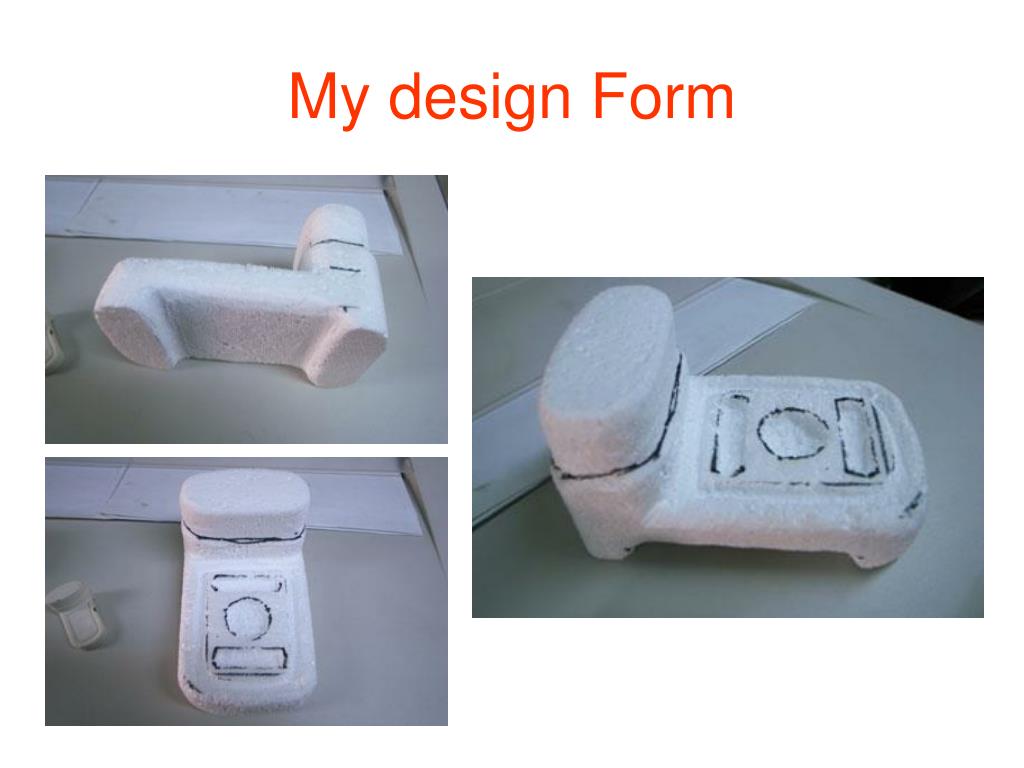

  10. My design Form

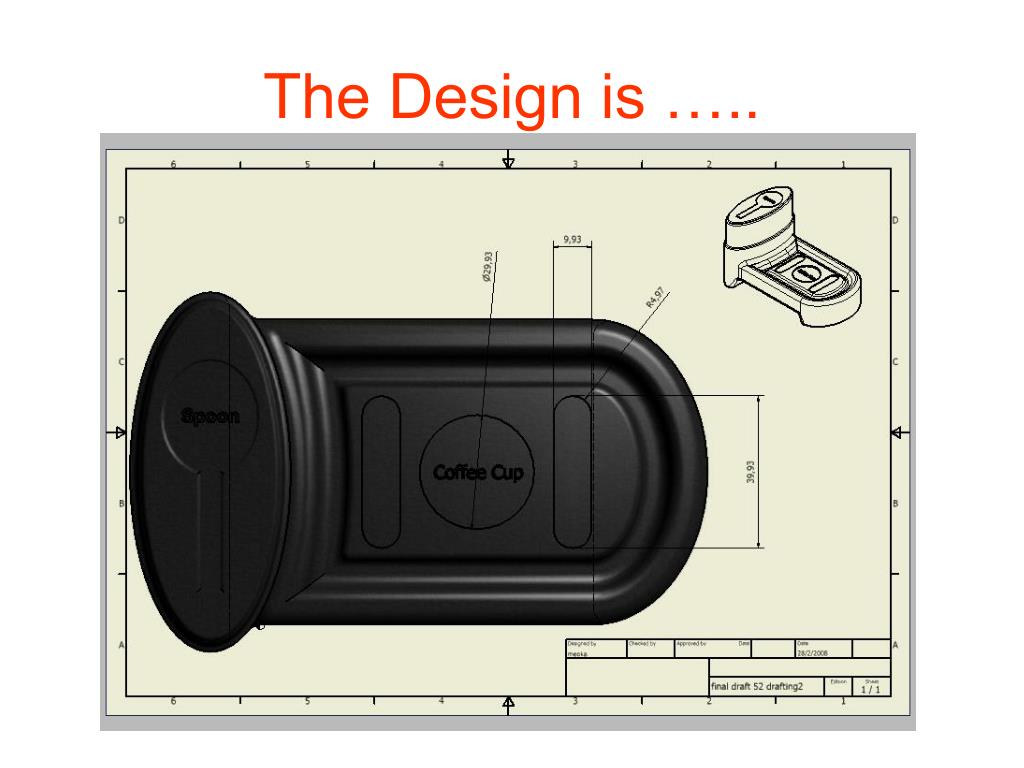

  11. The Design is …..

  12. The Design is …..

  13. The Design is …..

  14. Product Info: • Dimension: 151mm x 181mm x 90mm • Molding will be in 2 pieces to be cost effective with cover and base. • Leds with pcb will be placed in two places (written pcb) at the base, need 2 blue color LED on each side • Batteries will be place in the middle.

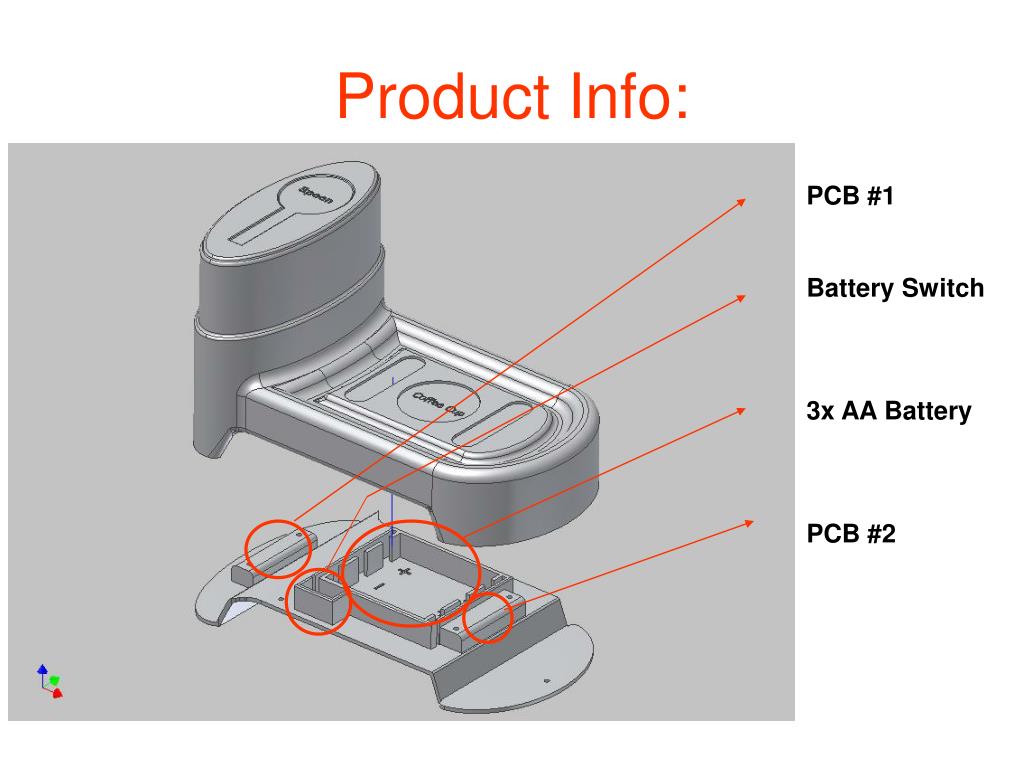

  15. Product Info: PCB #1 Battery Switch 3x AA Battery PCB #2

  16. Special Function ? You can rest the coffee cup and spoon on the lamp while waiting it to dry. Led Lighting effects will may the whole compartment looks COOL~!

  17. Who to Sale? Targeting customers,…. • Give away premium items for the kitchen ware industry. • Coffee Cups Company • Second Cups, Pacific Coffee

  18. Thank you very much
