A Proposal for a Video Modeling for Composing Multimedia Document

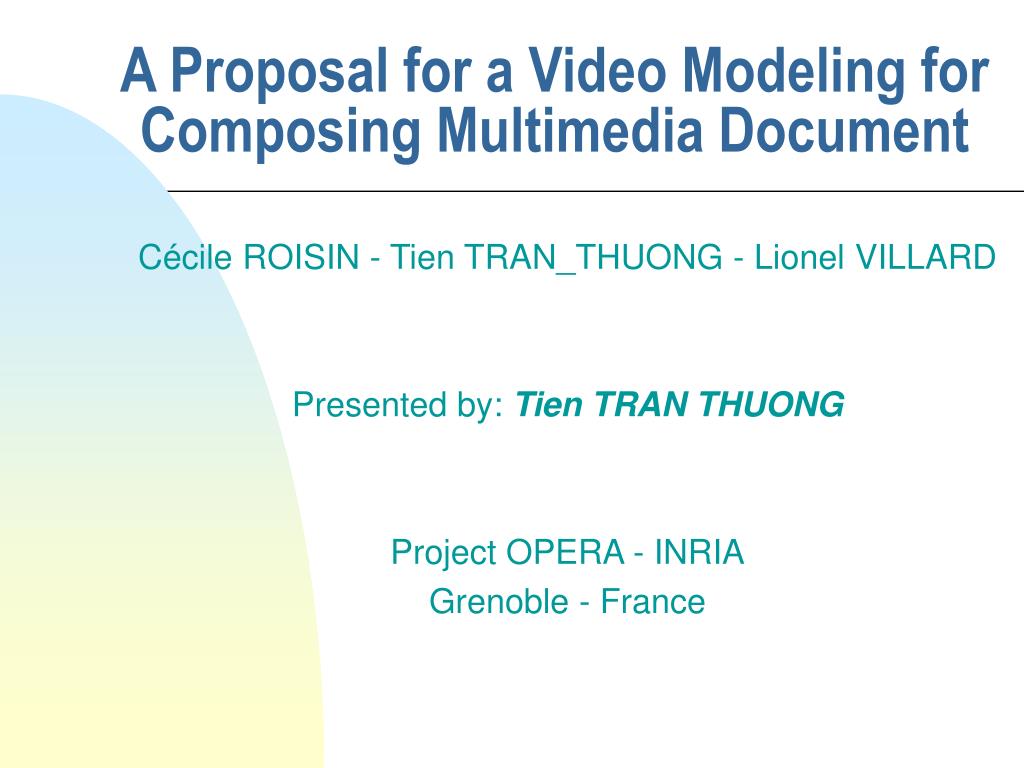

A Proposal for a Video Modeling for Composing Multimedia Document. Cécile ROISIN - Tien TRAN_THUONG - Lionel VILLARD Presented by: Tien TRAN THUONG Project OPERA - INRIA Grenoble - France. Work Context. Theme: Multimedia Document (Madeus)

levia
Download Presentation

A Proposal for a Video Modeling for Composing Multimedia Document

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Proposal for a Video Modeling for Composing Multimedia Document Cécile ROISIN - Tien TRAN_THUONG - Lionel VILLARD Presented by: Tien TRAN THUONG Project OPERA - INRIA Grenoble - France

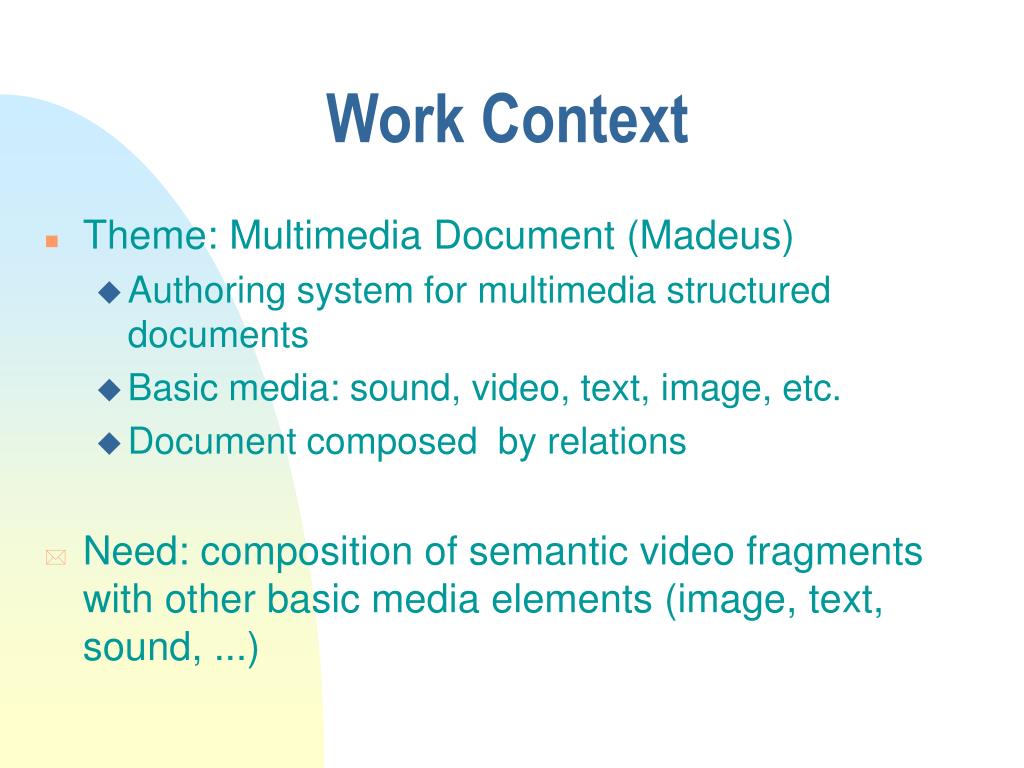

  2. Work Context • Theme: Multimedia Document (Madeus) • Authoring system for multimedia structured documents • Basic media: sound, video, text, image, etc. • Document composed by relations • Need: composition of semantic video fragments with other basic media elements (image, text, sound, ...)

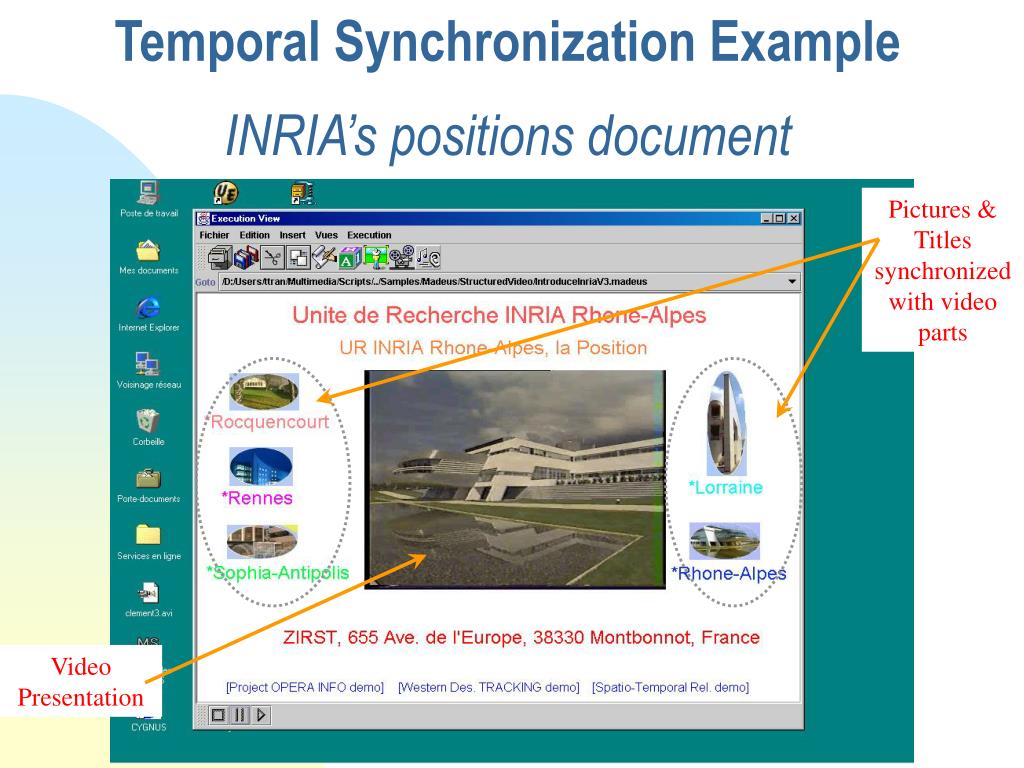

  3. Temporal Synchronization ExampleINRIA’s positions document Pictures & Titles synchronized with video parts Video Presentation

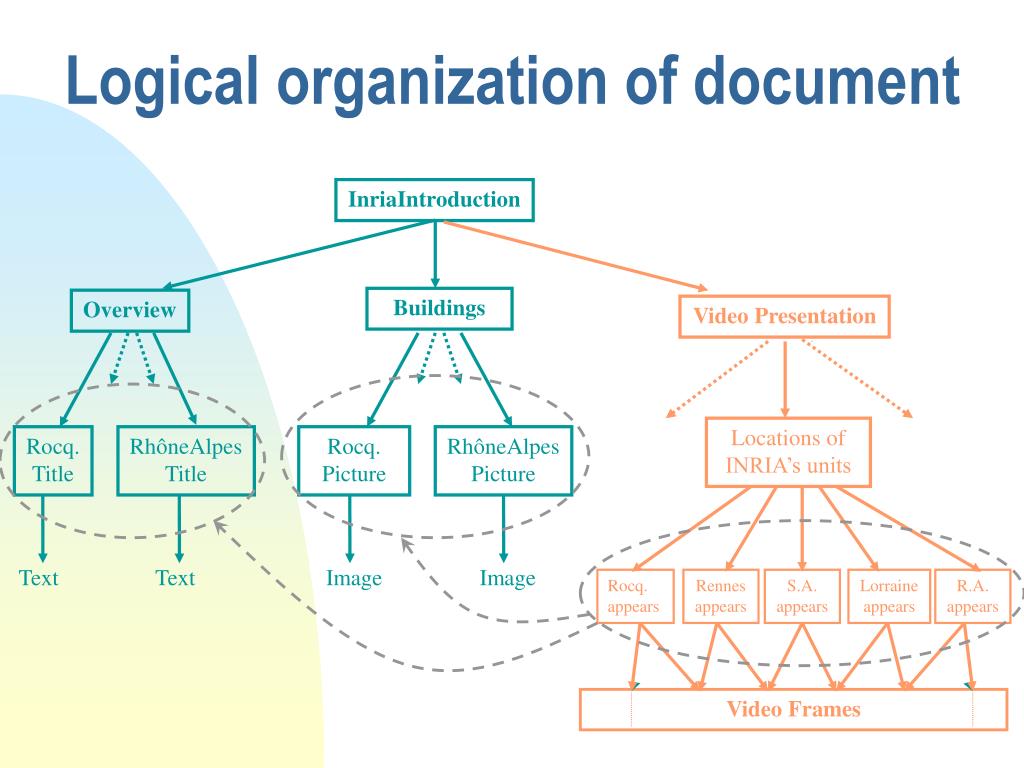

  4. Locations of INRIA’s units Rocq. Title RhôneAlpes Title Rocq. Picture RhôneAlpes Picture Text Text Image Image Rocq. appears Rennes appears S.A. appears Lorraine appears R.A. appears Logical organization of document InriaIntroduction Buildings Overview Video Presentation Video Frames

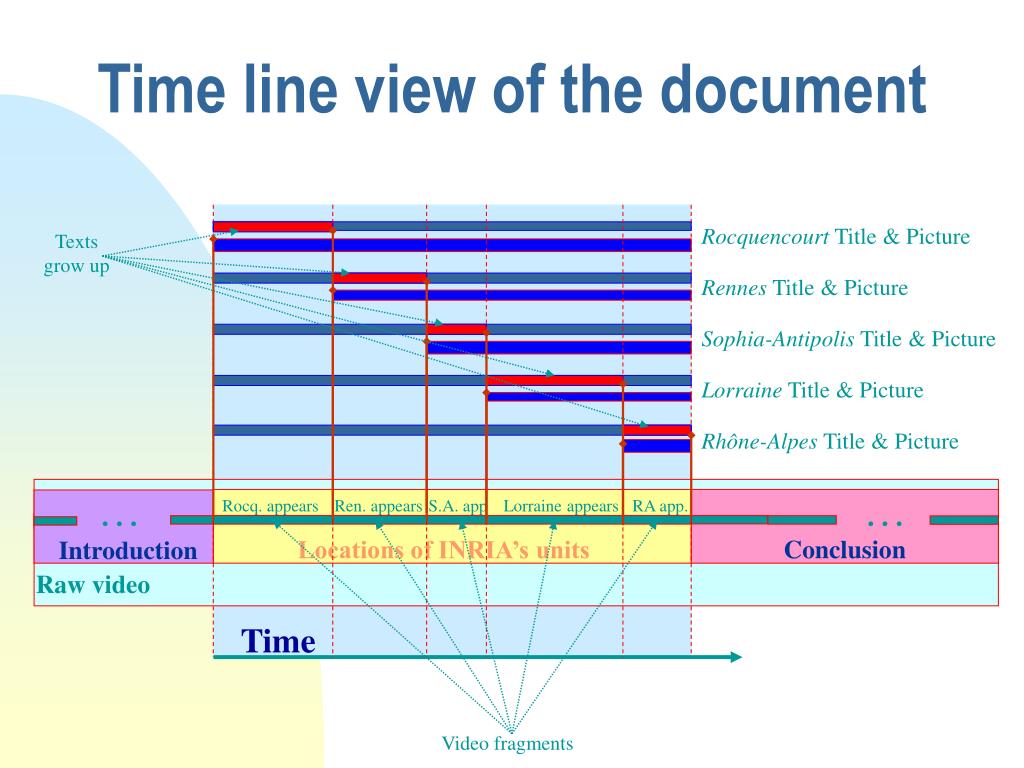

  5. Rocq. appears Ren. appears S.A. app Lorraine appears RA app. . . . . . . Locations of INRIA’s units Conclusion Introduction Time line view of the document Rocquencourt Title & Picture Texts grow up Rennes Title & Picture Sophia-Antipolis Title & Picture Lorraine Title & Picture Rhône-Alpes Title & Picture Raw video Time Video fragments

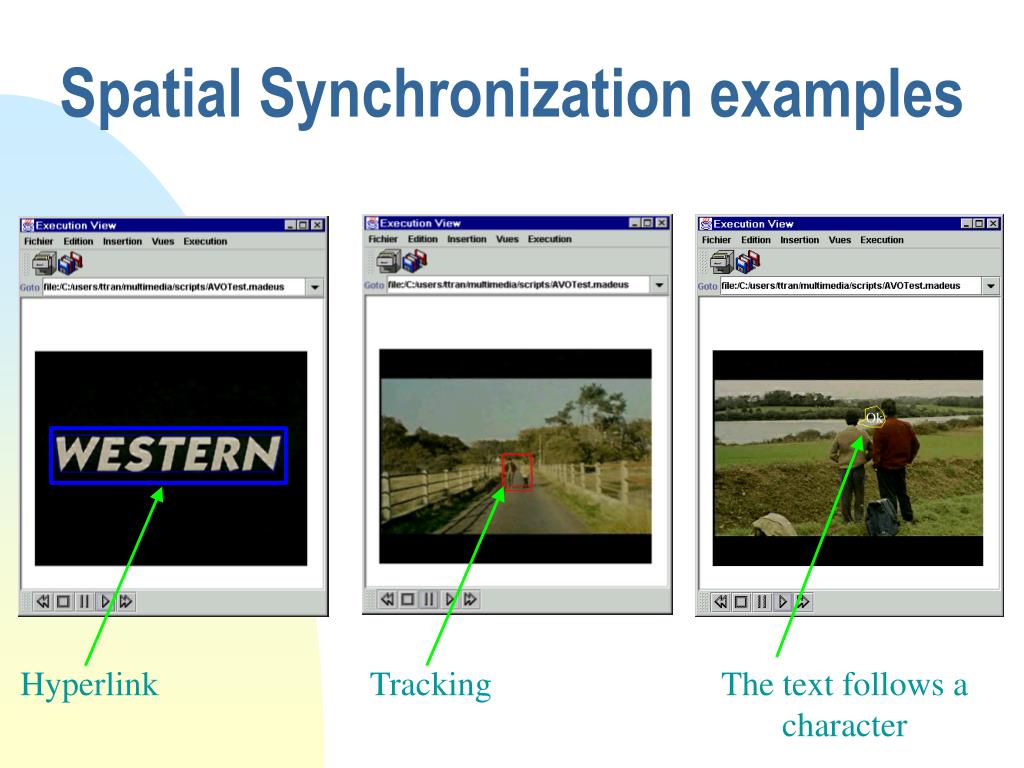

  6. Ok Hyperlink Tracking The text follows a character Spatial Synchronization examples

  7. . . . . . . Ok . . . . . . Video Object Region{x(t), y(t)} Right-Top-Align Spatial layout of text follow video object document Document Region (Left, Top, Width, Height) • Location of the video object region that is moving region in the video region Text Region (Width, Height) Video Region (Left, Top, Width, Height)

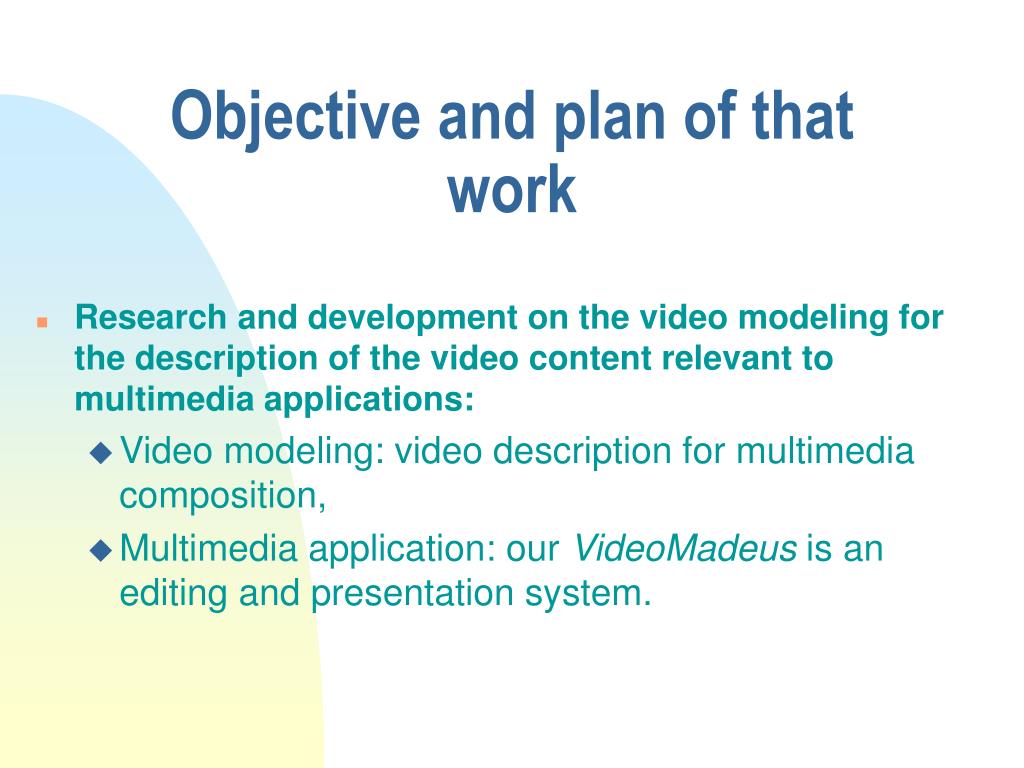

  8. Objective and plan of that work • Research and development on the video modeling for the description of the video content relevant to multimedia applications: • Video modeling: video description for multimedia composition, • Multimedia application: our VideoMadeus is an editing and presentation system.

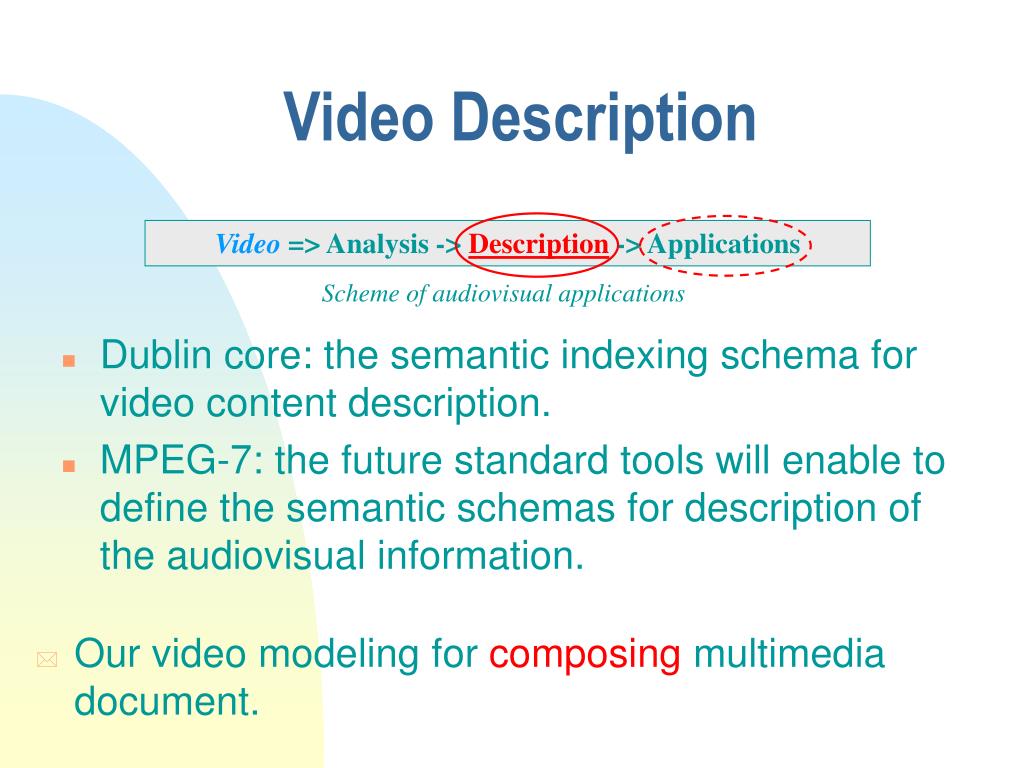

  9. Video => Analysis -> Description -> Applications Scheme of audiovisual applications Video Description • Dublin core: the semantic indexing schema for video content description. • MPEG-7: the future standard tools will enable to define the semantic schemas for description of the audiovisual information. • Our video modeling for composing multimedia document.

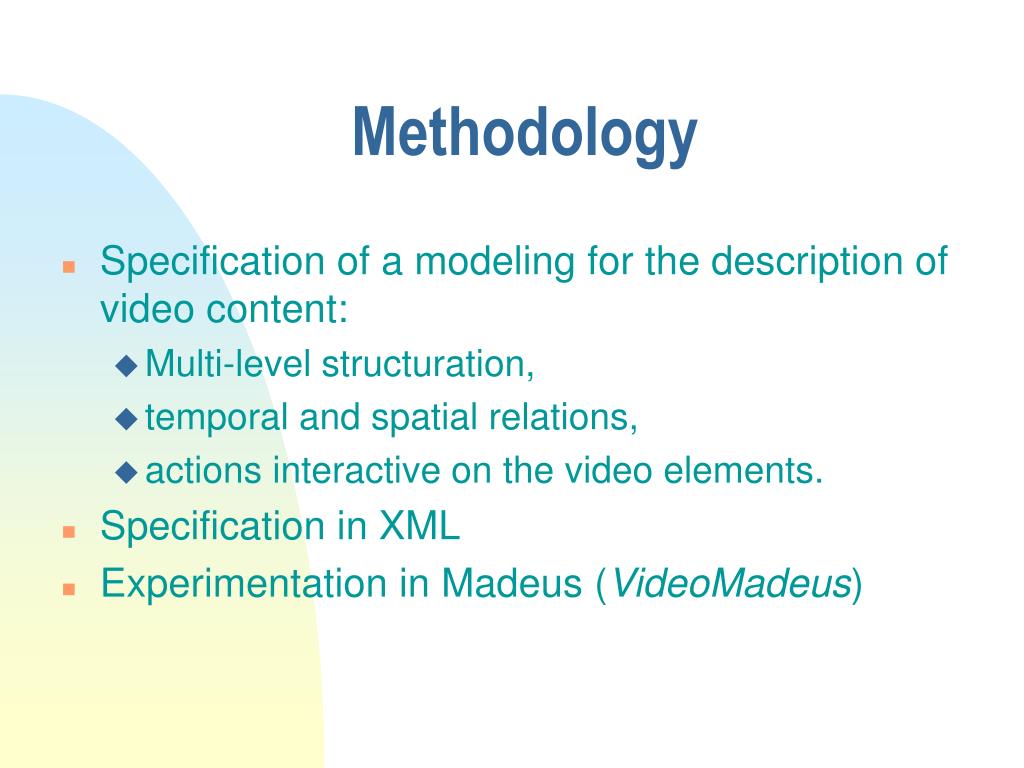

  10. Methodology • Specification of a modeling for the description of video content: • Multi-level structuration, • temporal and spatial relations, • actions interactive on the video elements. • Specification in XML • Experimentation in Madeus (VideoMadeus)

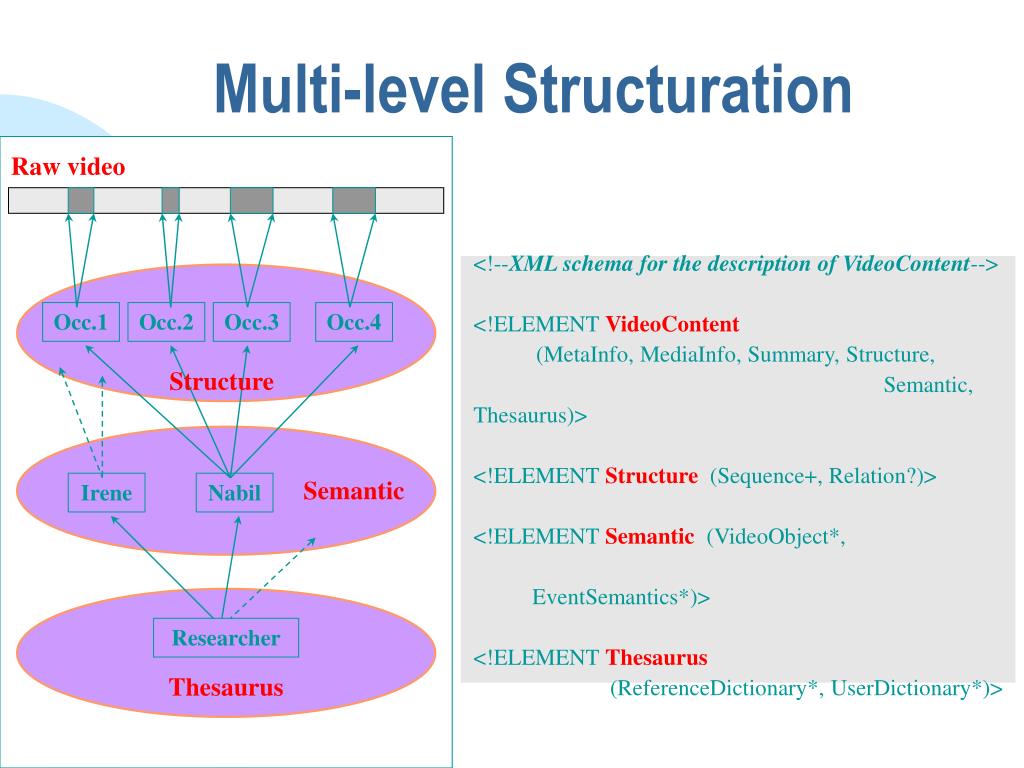

  11. Video Raw video Thesaurus • Video Content Description • Structural Description Occ.1 Occ.2 Occ.3 Occ.4 Semantic • Semantic Description Structure Video Content Description • Thesaurus Structure Semantic Irene Nabil Researcher Thesaurus Multi-level Structuration <!--XML schema for the description of VideoContent--> <!ELEMENT VideoContent (MetaInfo, MediaInfo, Summary, Structure, Semantic, Thesaurus)> <!ELEMENT Structure (Sequence+, Relation?)> <!ELEMENT Semantic (VideoObject*, EventSemantics*)> <!ELEMENT Thesaurus (ReferenceDictionary*, UserDictionary*)>

  12. Video Structure Description • Motivation: for composition, the basis is to have the Structure description level. • Semantic and Thesaurus are more necessary for retrieval applications or as a support for structuration level. • First step is Structure description

  13. Video Video Structure • Shots Sequences • Scenes • Sequences Scenes Shots High Level Description • Video Structure <!--XML schema for the description high level structure--> <!ELEMENT Structure (Sequence+, Relation?)> <!ELEMENT Sequence (Scene+,Relation?)> <!ELEMENT Scene (Shot+,Event*, Relation?)> <!ELEMENT Shot (Transition?,Event*,Occurrence*, Background?, Relation?)>

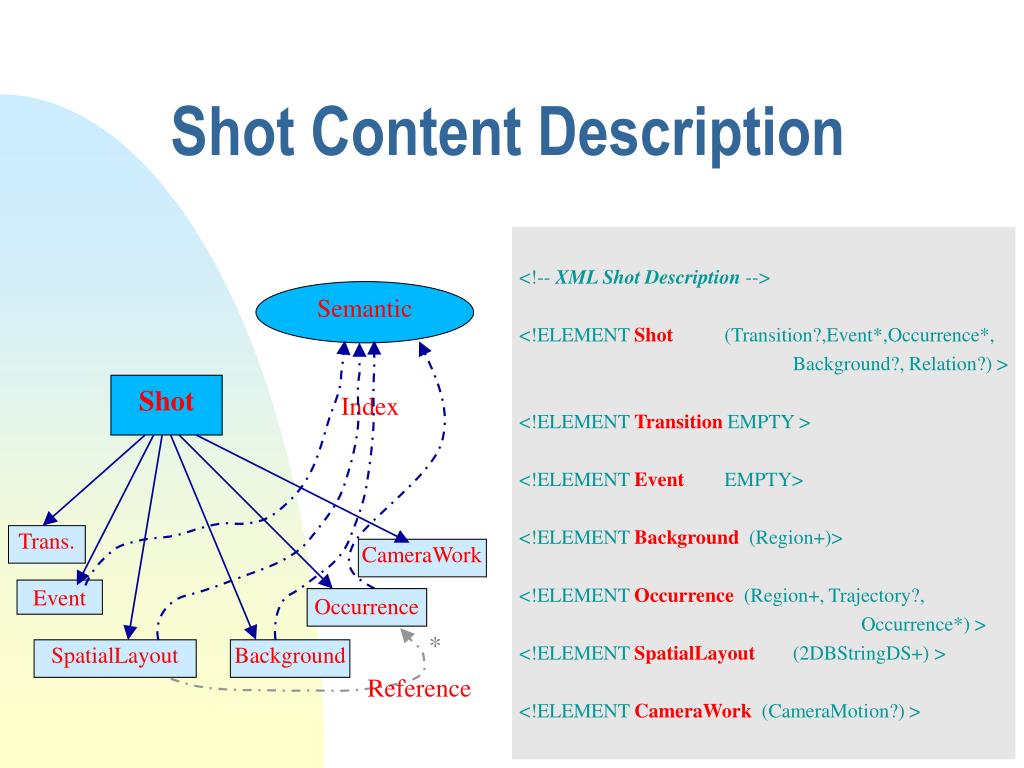

  14. Index Shot Content Description <!-- XML Shot Description --> <!ELEMENT Shot(Transition?,Event*,Occurrence*, Background?, Relation?) > <!ELEMENT Transition EMPTY > <!ELEMENT Event EMPTY> <!ELEMENT Background (Region+)> <!ELEMENT Occurrence (Region+, Trajectory?, Occurrence*) > <!ELEMENT SpatialLayout (2DBStringDS+) > <!ELEMENT CameraWork (CameraMotion?) > • Shot Content Semantic • Transition • Event Shot • SpatialLayout • Background Trans. CameraWork • Occurrence Event Occurrence SpatialLayout Background * • Camerawork Reference

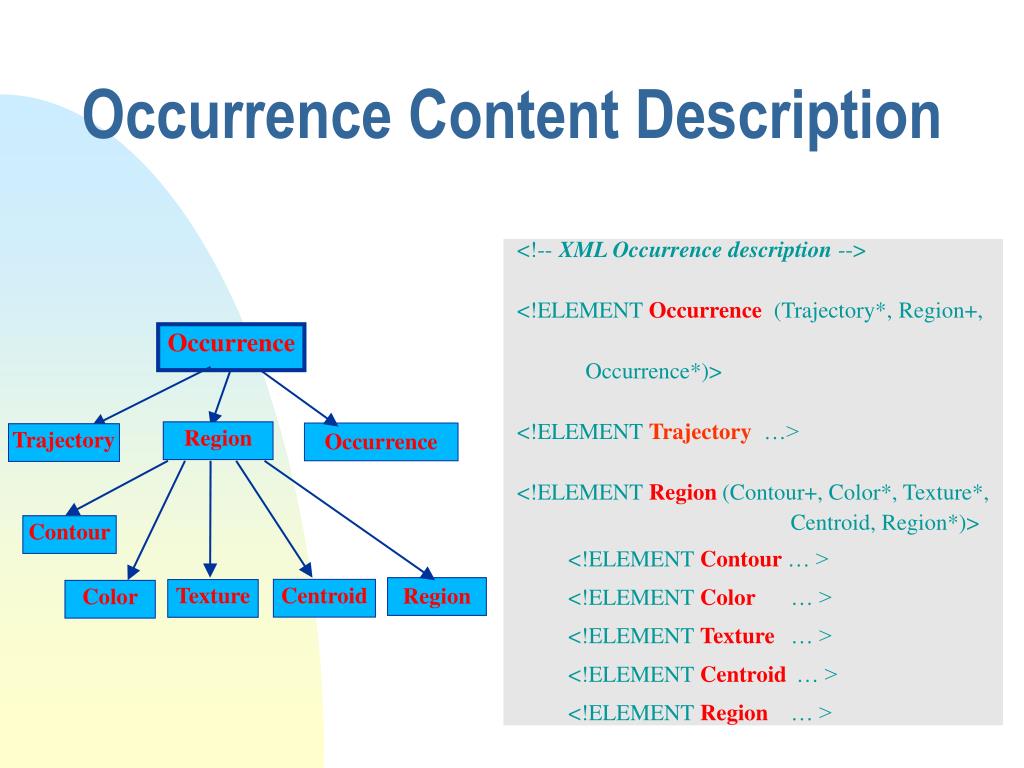

  15. Trajectory • Regions Region Occurrence Trajectory • Contour • Color Contour • Texture Region Centroid Texture Color • Regions • Occurrences Occurrence Content Description • Occurrence Content • <!--XML Occurrence description --> • <!ELEMENT Occurrence (Trajectory*, Region+, Occurrence*)> • <!ELEMENT Trajectory …> • <!ELEMENT Region (Contour+, Color*, Texture*, Centroid, Region*)> • <!ELEMENT Contour … > • <!ELEMENT Color … > • <!ELEMENT Texture … > • <!ELEMENT Centroid … > • <!ELEMENT Region … > Occurrence

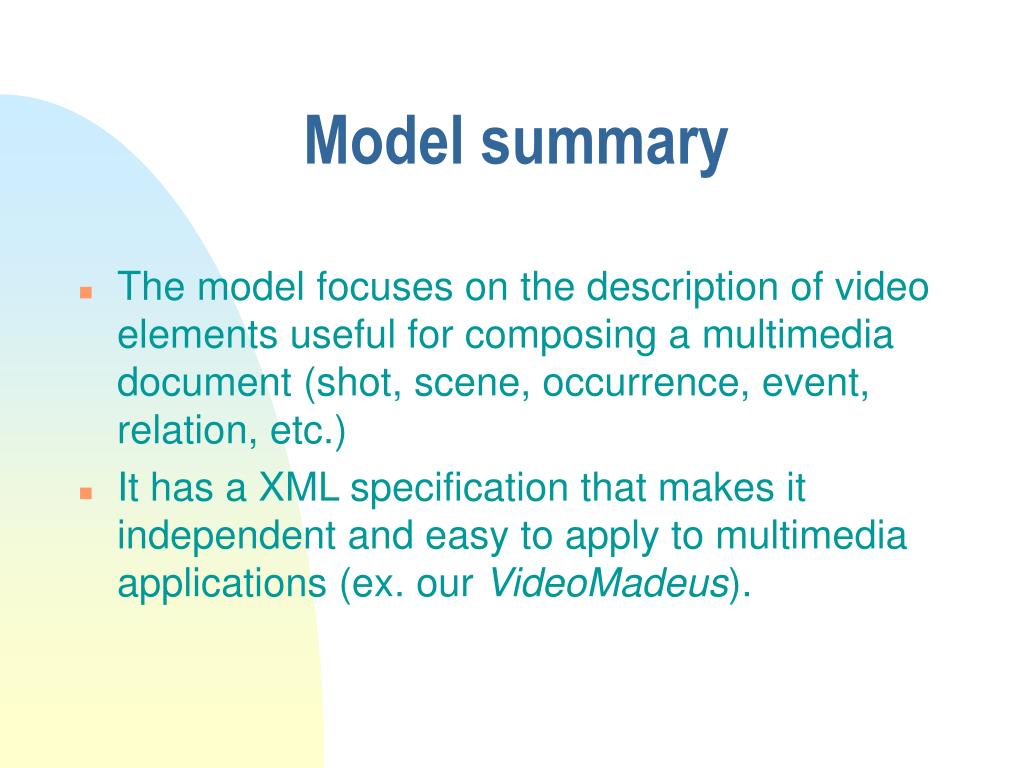

  16. Model summary • The model focuses on the description of video elements useful for composing a multimedia document (shot, scene, occurrence, event, relation, etc.) • It has a XML specification that makes it independent and easy to apply to multimedia applications (ex. our VideoMadeus).

  17. Experimentation of the model in Madeus - VideoMadeus

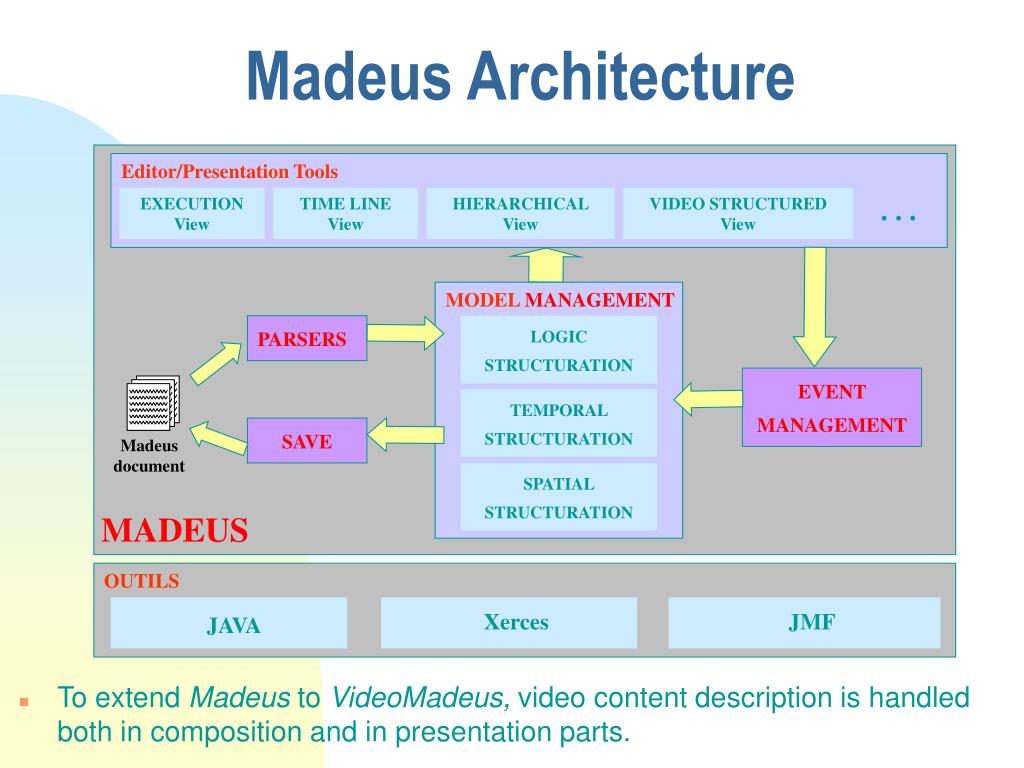

  18. Xerces JMF JAVA Madeus Architecture Editor/Presentation Tools EXECUTION View TIME LINE View HIERARCHICAL View VIDEO STRUCTURED View . . . MODEL MANAGEMENT PARSERS LOGIC STRUCTURATION EVENT MANAGEMENT TEMPORAL STRUCTURATION SAVE Madeus document SPATIAL STRUCTURATION MADEUS OUTILS • To extend Madeus to VideoMadeus, video content description is handled both in composition and in presentation parts.

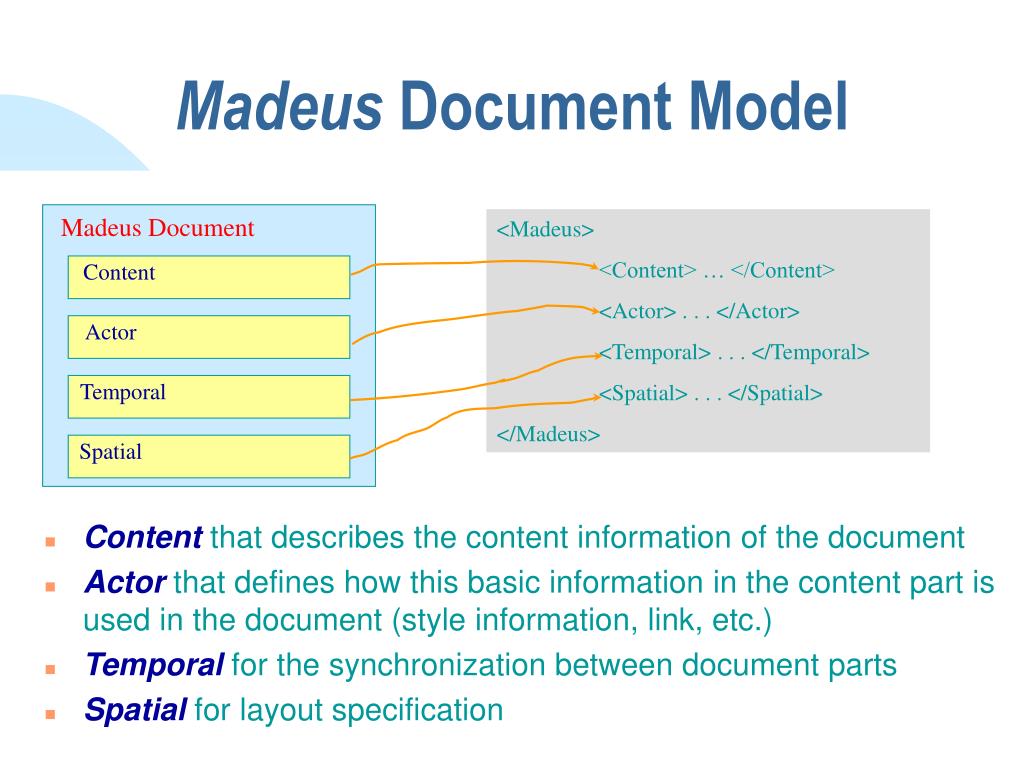

  19. <Madeus> <Content> … </Content> <Actor> . . . </Actor> <Temporal> . . . </Temporal> <Spatial> . . . </Spatial> </Madeus> Madeus Document Content Actor Temporal Spatial • Content that describes the content information of the document • Actor that defines how this basic information in the content part is used in the document (style information, link, etc.) • Temporal for the synchronization between document parts • Spatial for layout specification Madeus Document Model • Structured document organized according to the dimensions: Logical, temporal, spatial. Internal Document Madeus Document Logical Content Actor Temporal Spatial

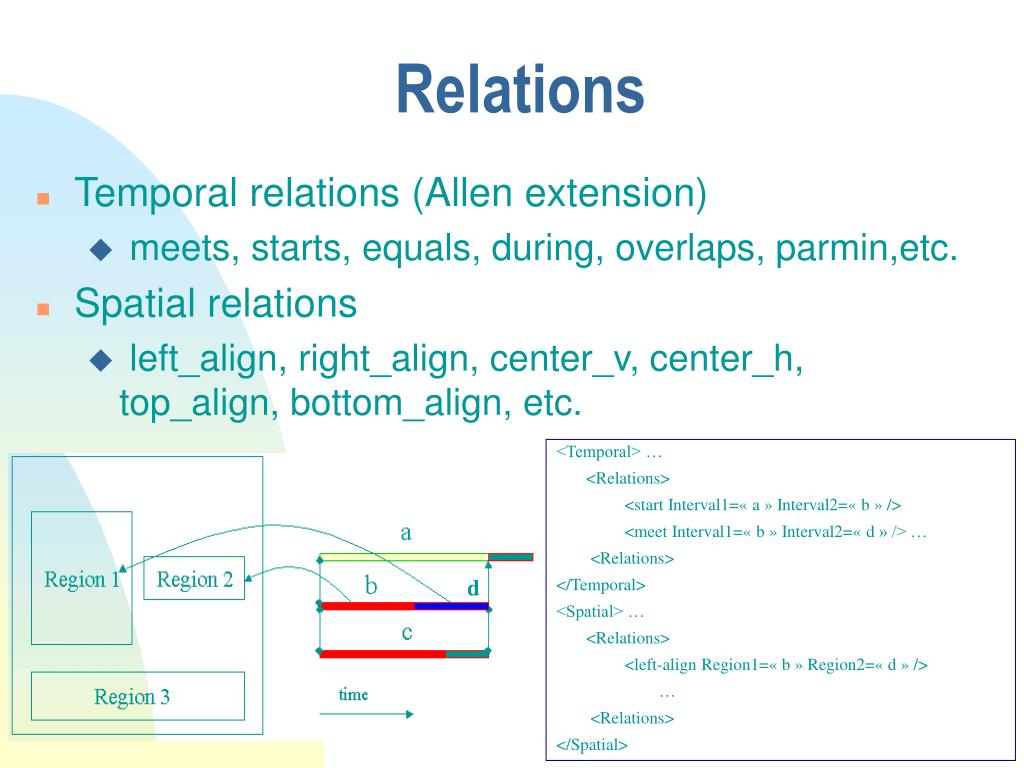

  20. Relations • Temporal relations (Allen extension) • meets, starts, equals, during, overlaps, parmin,etc. • Spatial relations • left_align, right_align, center_v, center_h, top_align, bottom_align, etc. <Temporal> … <Relations> <start Interval1=« a » Interval2=« b » /> <meet Interval1=« b » Interval2=« d » /> … <Relations> </Temporal> <Spatial> … <Relations> <left-align Region1=« b » Region2=« d » /> … <Relations> </Spatial> d

  21. Video Overview of VideoMadeus Editing and Presentation Tools Video edition View Execution View SynchronizationManagement Behavior Management • Structure View • Semantic View • Thesaurus View Element Management Synchronization • Hyperlink • Follow-up • Erase • Display, etc... • Temporal • Spatial • Edit • Play • Search Requested descriptions Requested descriptions Modified description Data Management XML Description of video content Internal Structure (MODEL) Modify Parser Index on video

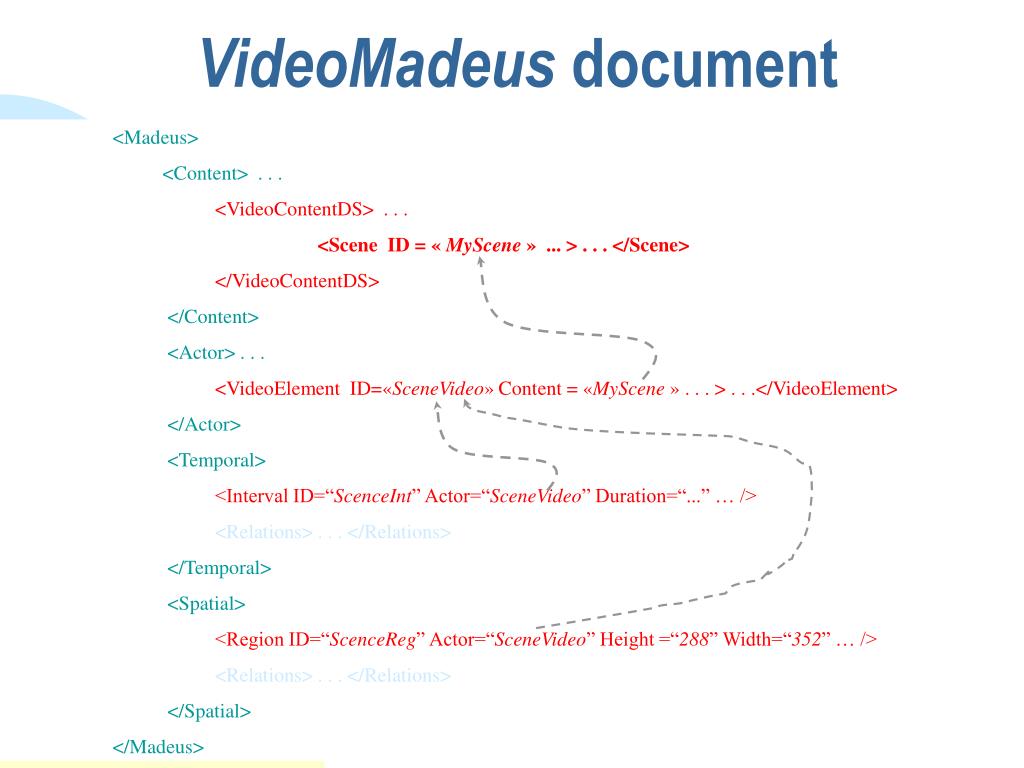

  22. VideoMadeus document <Madeus> <Content> . . . <VideoContentDS> . . . <Scene ID = « MyScene » ... > . . . </Scene> </VideoContentDS> </Content> <Actor> . . . <VideoElement ID=«SceneVideo» Content = «MyScene » . . . > . . .</VideoElement> </Actor> <Temporal> <Interval ID=“ScenceInt” Actor=“SceneVideo” Duration=“...” … /> <Relations> . . . </Relations> </Temporal> <Spatial> <Region ID=“ScenceReg” Actor=“SceneVideo” Height =“288” Width=“352” … /> <Relations> . . . </Relations> </Spatial> </Madeus>

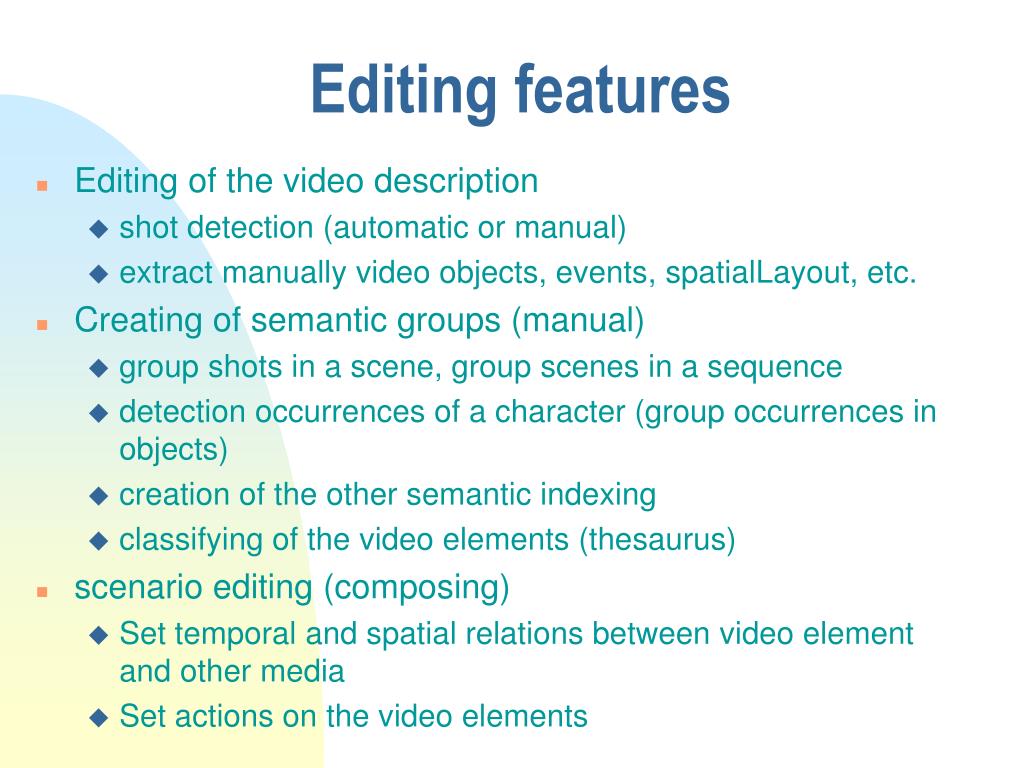

  23. Editing features • Editing of the video description • shot detection (automatic or manual) • extract manually video objects, events, spatialLayout, etc. • Creating of semantic groups (manual) • group shots in a scene, group scenes in a sequence • detection occurrences of a character (group occurrences in objects) • creation of the other semantic indexing • classifying of the video elements (thesaurus) • scenario editing (composing) • Set temporal and spatial relations between video element and other media • Set actions on the video elements

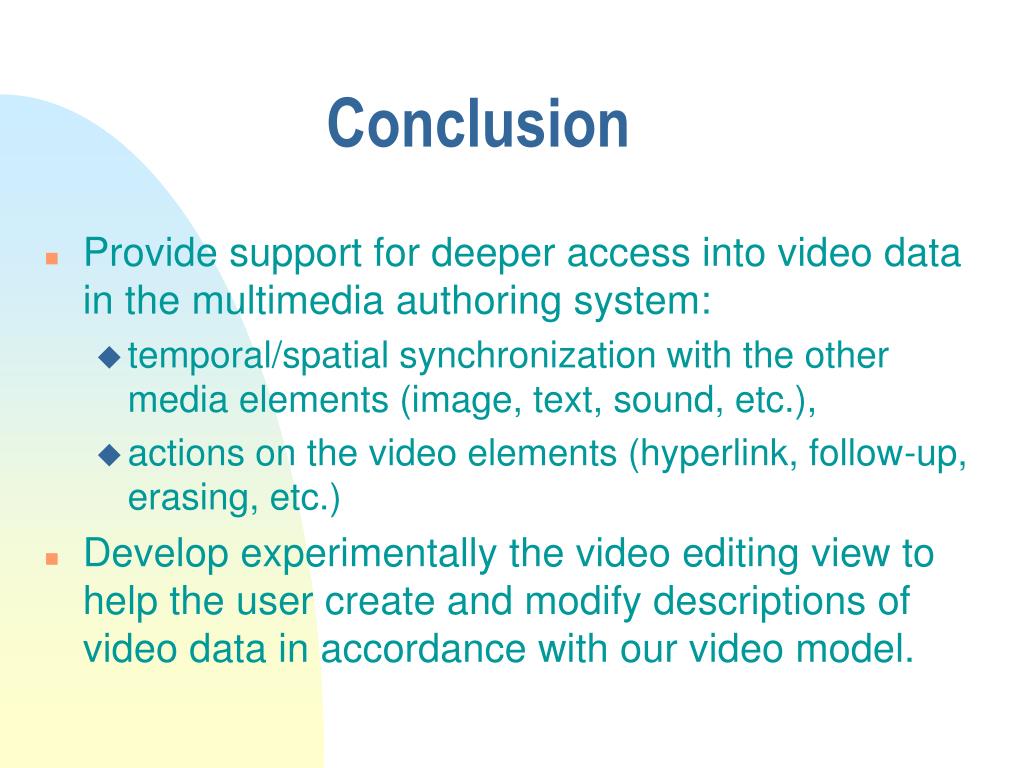

  24. Conclusion • Provide support for deeper access into video data in the multimedia authoring system: • temporal/spatial synchronization with the other media elements (image, text, sound, etc.), • actions on the video elements (hyperlink, follow-up, erasing, etc.) • Develop experimentally the video editing view to help the user create and modify descriptions of video data in accordance with our video model.

  25. Perspectives • More experimentation for spatial synchronization, • Extension and experimentation of the semantic parts (Semantic and Thesaurus) -> semantic queries, • Use the MPEG-7 tools to specify our video model, • Develop the video content description editing tool: • Integration and adaptation of the video analyzing algorithms for generating more automatically possible the video elements, • Timeline editing view for video structure, etc. • Semantic queries for playing a part of video through network.

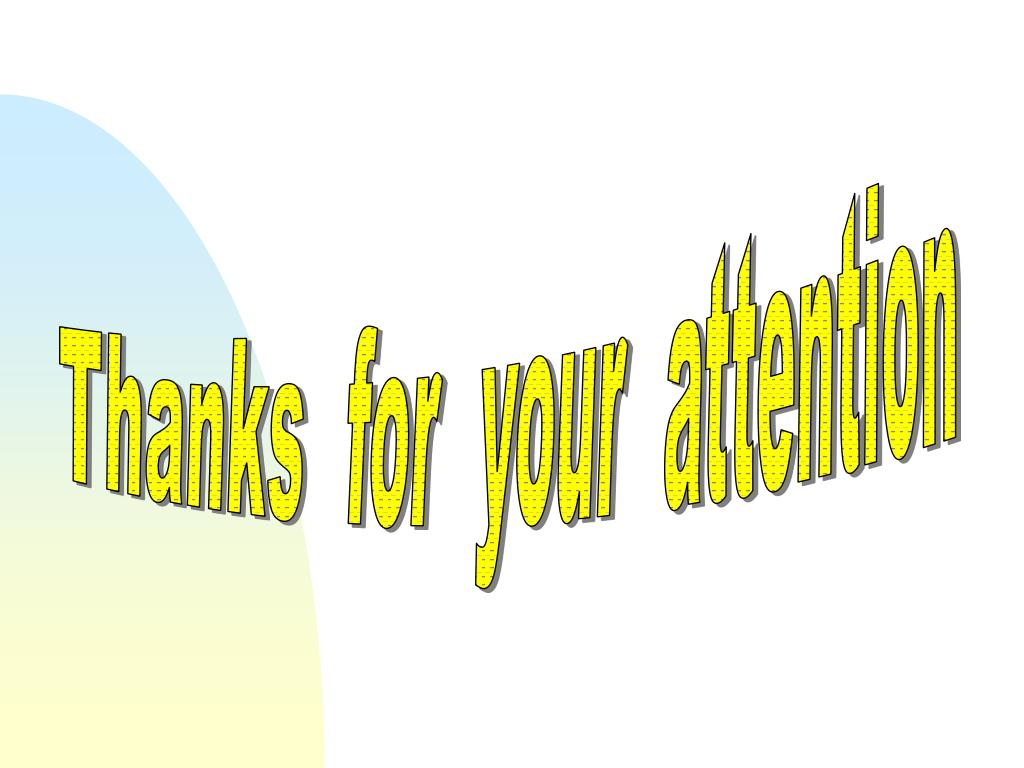

  26. Thanks for your attention

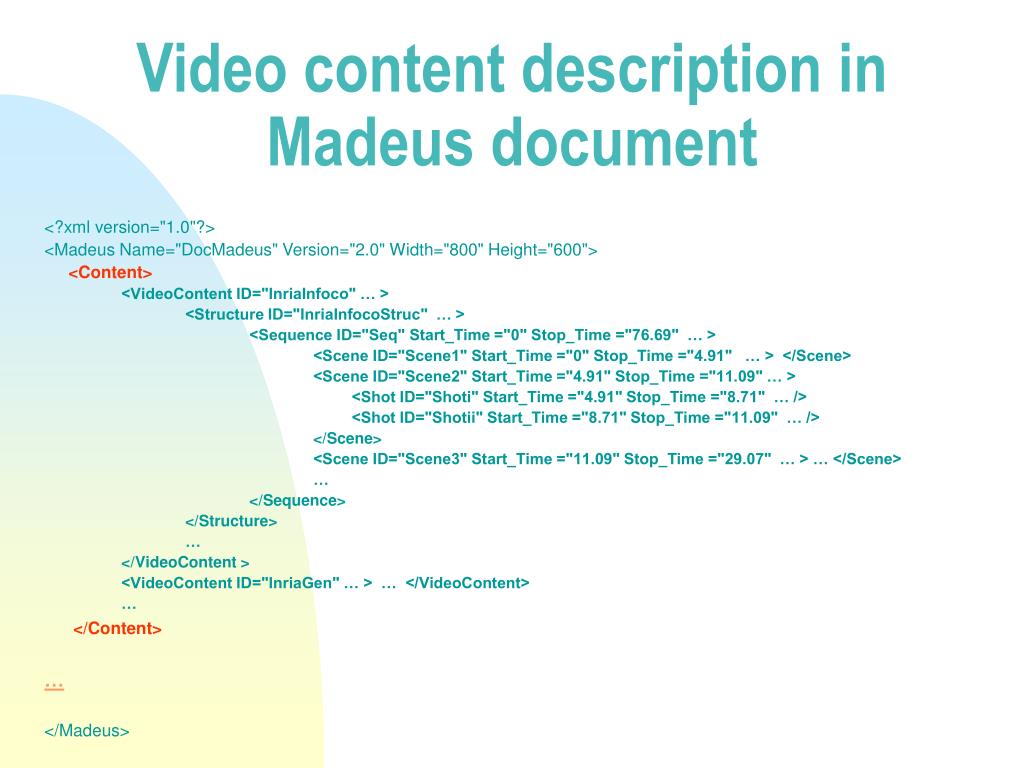

  27. Video content description in Madeus document <?xml version="1.0"?> <Madeus Name="DocMadeus" Version="2.0" Width="800" Height="600"> <Content> <VideoContent ID="InriaInfoco" … > <Structure ID="InriaInfocoStruc" … > <Sequence ID="Seq" Start_Time ="0" Stop_Time ="76.69" … > <Scene ID="Scene1" Start_Time ="0" Stop_Time ="4.91" … > </Scene> <Scene ID="Scene2" Start_Time ="4.91" Stop_Time ="11.09" … > <Shot ID="Shoti" Start_Time ="4.91" Stop_Time ="8.71" … /> <Shot ID="Shotii" Start_Time ="8.71" Stop_Time ="11.09" … /> </Scene> <Scene ID="Scene3" Start_Time ="11.09" Stop_Time ="29.07" … > … </Scene> … </Sequence> </Structure> … </VideoContent > <VideoContent ID="InriaGen" … > … </VideoContent> … </Content> … </Madeus>

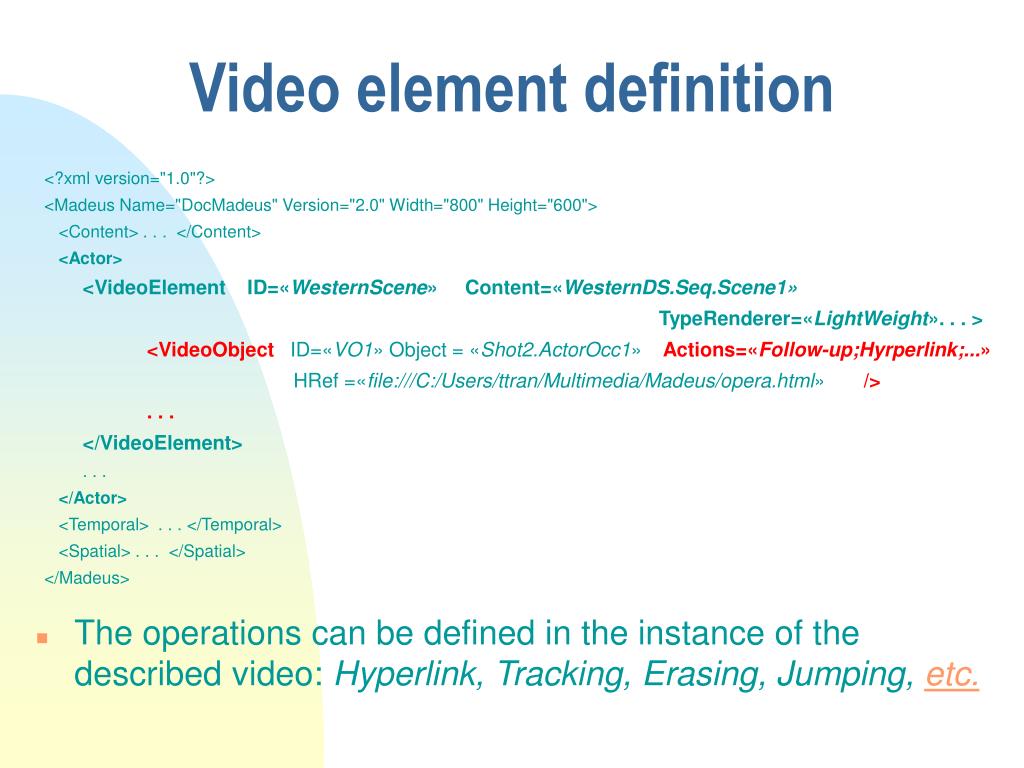

  28. Video element definition <?xml version="1.0"?> <Madeus Name="DocMadeus" Version="2.0" Width="800" Height="600"> <Content> . . . </Content> <Actor> <VideoElement ID=«WesternScene» Content=«WesternDS.Seq.Scene1» TypeRenderer=«LightWeight». . . > <VideoObject ID=«VO1» Object = «Shot2.ActorOcc1» Actions=«Follow-up;Hyrperlink;...» HRef =«file:///C:/Users/ttran/Multimedia/Madeus/opera.html» /> . . . </VideoElement> . . . </Actor> <Temporal> . . . </Temporal> <Spatial> . . . </Spatial> </Madeus> • The operations can be defined in the instance of the described video: Hyperlink, Tracking, Erasing, Jumping, etc.

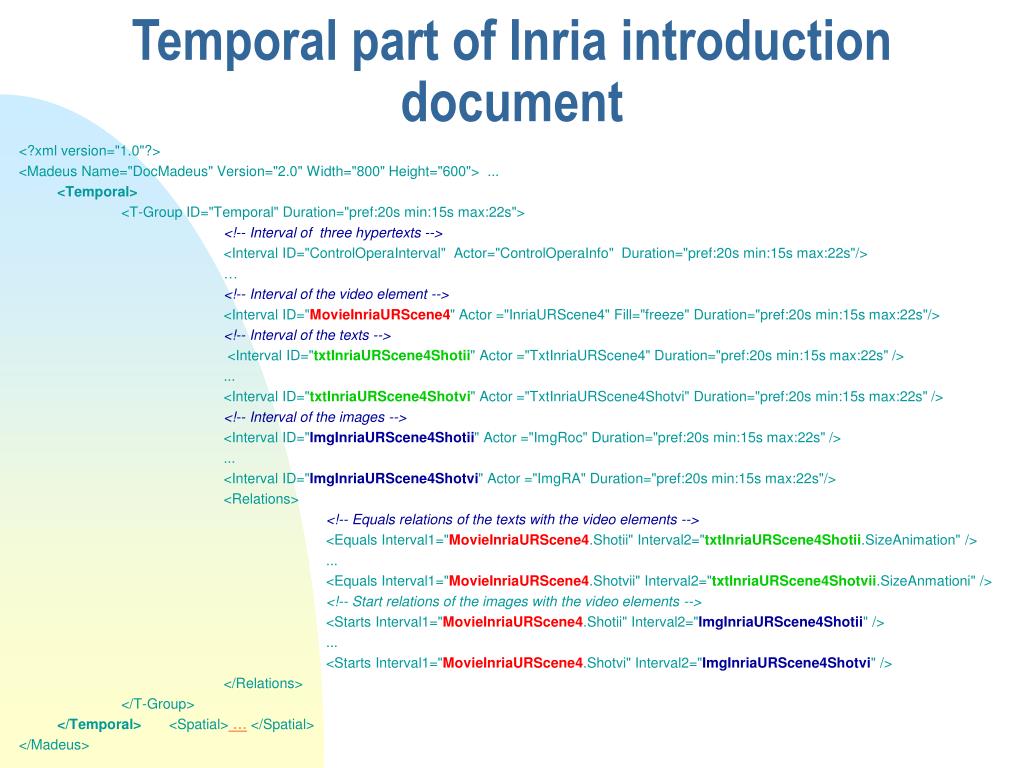

  29. Temporal part of Inria introduction document <?xml version="1.0"?> <Madeus Name="DocMadeus" Version="2.0" Width="800" Height="600"> ... <Temporal> <T-Group ID="Temporal" Duration="pref:20s min:15s max:22s"> <!-- Interval of three hypertexts --> <Interval ID="ControlOperaInterval" Actor="ControlOperaInfo" Duration="pref:20s min:15s max:22s"/> … <!-- Interval of the video element --> <Interval ID="MovieInriaURScene4" Actor ="InriaURScene4" Fill="freeze" Duration="pref:20s min:15s max:22s"/> <!-- Interval of the texts --> <Interval ID="txtInriaURScene4Shotii" Actor ="TxtInriaURScene4" Duration="pref:20s min:15s max:22s" /> ... <Interval ID="txtInriaURScene4Shotvi" Actor ="TxtInriaURScene4Shotvi" Duration="pref:20s min:15s max:22s" /> <!-- Interval of the images --> <Interval ID="ImgInriaURScene4Shotii" Actor ="ImgRoc" Duration="pref:20s min:15s max:22s" /> ... <Interval ID="ImgInriaURScene4Shotvi" Actor ="ImgRA" Duration="pref:20s min:15s max:22s"/> <Relations> <!-- Equals relations of the texts with the video elements --> <Equals Interval1="MovieInriaURScene4.Shotii" Interval2="txtInriaURScene4Shotii.SizeAnimation" /> ... <Equals Interval1="MovieInriaURScene4.Shotvii" Interval2="txtInriaURScene4Shotvii.SizeAnmationi" /> <!-- Start relations of the images with the video elements --> <Starts Interval1="MovieInriaURScene4.Shotii" Interval2="ImgInriaURScene4Shotii" /> ... <Starts Interval1="MovieInriaURScene4.Shotvi" Interval2="ImgInriaURScene4Shotvi" /> </Relations> </T-Group> </Temporal> <Spatial> … </Spatial> </Madeus>

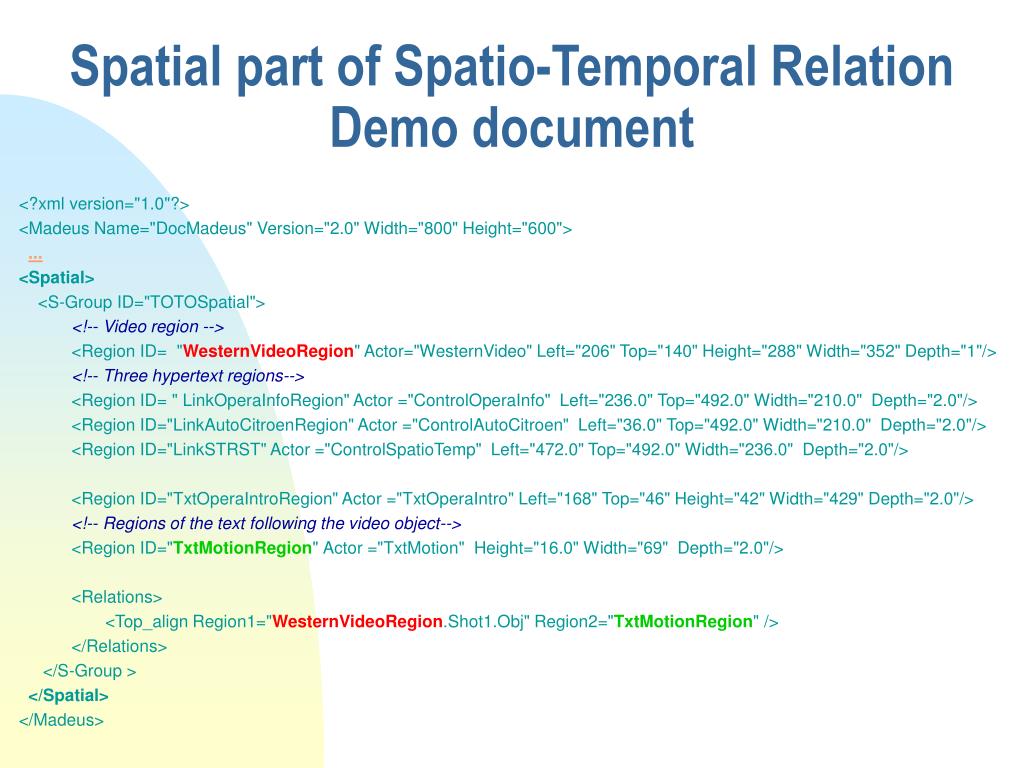

  30. Spatial part of Spatio-Temporal Relation Demo document <?xml version="1.0"?> <Madeus Name="DocMadeus" Version="2.0" Width="800" Height="600"> ... <Spatial> <S-Group ID="TOTOSpatial"> <!-- Video region --> <Region ID=  "WesternVideoRegion" Actor="WesternVideo" Left="206" Top="140" Height="288" Width="352" Depth="1"/> <!-- Three hypertext regions--> <Region ID= " LinkOperaInfoRegion" Actor ="ControlOperaInfo" Left="236.0" Top="492.0" Width="210.0" Depth="2.0"/> <Region ID="LinkAutoCitroenRegion" Actor ="ControlAutoCitroen" Left="36.0" Top="492.0" Width="210.0" Depth="2.0"/> <Region ID="LinkSTRST" Actor ="ControlSpatioTemp" Left="472.0" Top="492.0" Width="236.0" Depth="2.0"/> <Region ID="TxtOperaIntroRegion" Actor ="TxtOperaIntro" Left="168" Top="46" Height="42" Width="429" Depth="2.0"/> <!-- Regions of the text following the video object--> <Region ID="TxtMotionRegion" Actor ="TxtMotion" Height="16.0" Width="69" Depth="2.0"/> <Relations> <Top_align Region1="WesternVideoRegion.Shot1.Obj" Region2="TxtMotionRegion" /> </Relations> </S-Group > </Spatial> </Madeus>
