  1. Binary Analysis and Rewriting Min Gyung Kang Stephen McCamant Pongsin Poosankam Dawn Song UC, Berkeley Arvind Ayyangar Niranjan Hasabnis Alireza Saberi Tung Tran R. Sekar Stony Brook University

  2. Motivation • A popular approach for protecting applications from untrusted OS is to rely on a trusted VMM • Binary translation is one of the commonly used implementation technologies in VMMs • QEMU, earlier versions of VMWare, … • Benefits: No need for hardware support, applicable to COTS binaries, whole system can be instrumented • Unfortunately, existing binary translators unsuited for enforcing higher level properties • Information flow, control-flow integrity, object-granularity memory safety, … • Incur very high overheads (4x to 10x slowdown), or are simply unable to express certain properties

  3. Our Approach • Develop novel static analysis based methods to overcome the drawbacks of today’s techniques • Robust, scalable static analysis of low-level code • From different compilers, or hand-coded assembly • Accurate disassembly of binary code • Indirect control-flow transfers, non-standard call/return conventions, mixing of data and code, … • Accurate reasoning about key properties • Dynamic taint analysis

  4. Robust and scalable Static analysis of low-level code

  5. Static analysis of low-level code • Scalability: requires modular analysis • Analyze functions individually, compose results • Avoids repeated analysis of same code (esp. libraries) • Strength: requires accurate reasoning about variables (esp. local variables) • Challenges in low-level binary code • Difficult to identify parameter passing in optimized code • Missing pushes, parameter passing via registers,… • Difficult to distinguish local variables from other accesses • Caller/callee-saved registers, stack pointer conventions, …

  6. Static analysis of low-level code • To solve these challenges, previous approaches • make optimistic assumptions, or rely on compiler idioms • often fail on optimized code and/or large programs • don’t work for other compilers, or hand-written assembly • Our solution: Develop a new approach that • Uses systematic analysis to reduce assumptions/heuristics • Accurately tracks local variables by analyzing values held in registers and on the stack

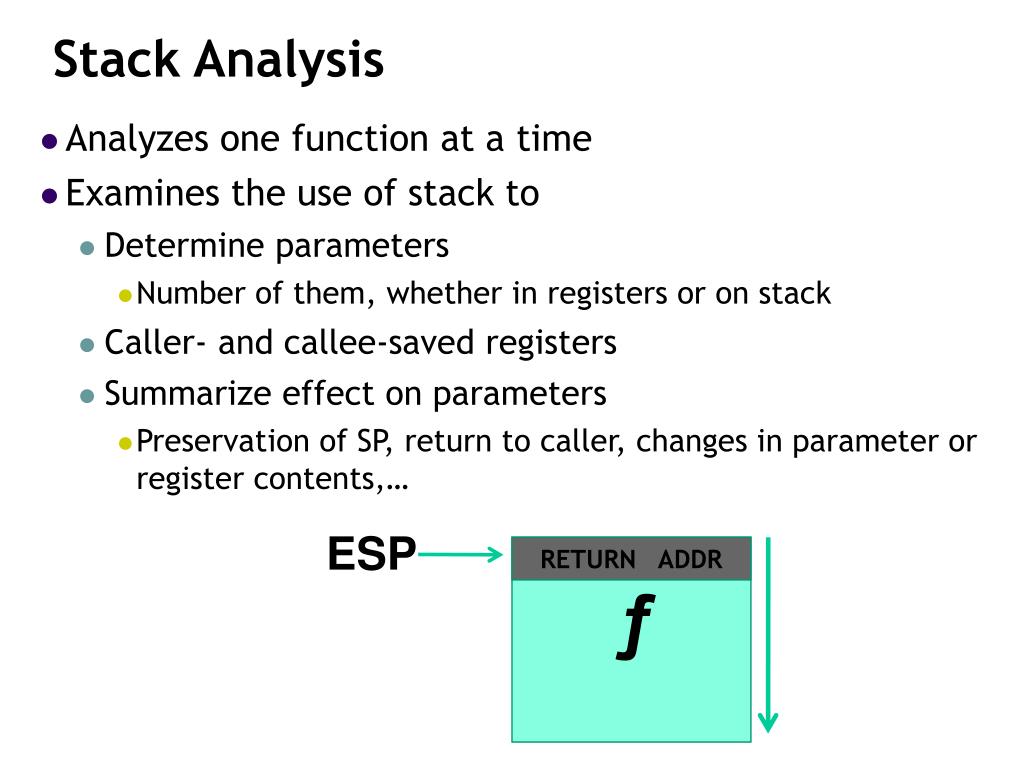

  7. Stack Analysis • Analyzes one function at a time • Examines the use of stack to • Determine parameters • Number of them, whether in registers or on stack • Caller- and callee-saved registers • Summarize effect on parameters • Preservation of SP, return to caller, changes in parameter or register contents,… ESP RETURN ADDR ƒ

  8. Abstract Interpretation for Stack Analysis EBP ESP Base_BP +[0,0] Base_SP +[0,0] <ƒ> : push %ebp mov %esp, %ebp sub $16, %esp Base_SP 0 Activation Record LATTICE

  9. Abstract Interpretation for Stack Analysis EBP ESP Base_BP +[0,0] Base_SP +[-4,-4] <ƒ> : push %ebp mov %esp, %ebp sub $16, %esp Base_SP 0 Activation Record Base_BP+[0,0] -4 LATTICE

  10. Stack Analysis (contd) <f>: push %ebp mov %esp, %ebp sub $16, %esp mov 8(%ebp), %eax add $3, %eax mov %eax, 8(%ebp) mov $7, -12(%ebp) mov 12(%ebp), %edx mov %edx, -8(%ebp) leave ret • Summary for f: • No change to ESP • Two input parameters on stack • EAX, EDX, arg1 changed as shown • Others unchanged Base_SP+[-20,-20] Base_SP args locals

  11. Stack Analysis: Preliminary results

  12. Static disassembly of binary code

  13. Background: Disassembly Techniques • Linear sweep algorithm • Start with program entry point, proceed to disassemble instructions sequentially • Key assumption: all instructions appear one after the next, without any gaps • Violated in most code (presence of data or padding) • Recursive Traversal Algorithm • After a control-flow transfer instruction (CTI), proceed to disassemble target address • For conditional CTI and non-CTI, proceed to disassemble next instruction • Key problems • Code reached only through indirect CTIs • Functions that don’t return in the usual way

  14. Our Approach for Disassembly • Assumption • No code obfuscation • Non-assumptions • Function prologue and epilogue patterns • Compiler idioms or (lack of) optimizations • Approach • Use recursive traversal • Use stack analysis to compute/verify return targets • Develop new analysis to determine targets of indirect control-flow transfers

  15. Our Approach: Type inference • Key insight: Code pointer values don’t undergo arithmetic or other transformations • Implication: values assigned to code pointers must represent indirect CTI targets • Achieves much better results than data flow analysis • Avoids global def-use problem, which is very hard in low-level languages • Compute sets C of possible code addresses and C of definite code addresses • Code at addresses in C can be safely disassembled • Code at addresses not in C can be safely relocated

  16. Static Disassembly: Preliminary Results • Analysis of disassembler on 'ls' binary

  17. Static Disassembly: Preliminary Results • Gap in dhclient due to incomplete implementation, dealing with global arrays

  18. DTA++: Improving accuracy of Dynamic Taint Analysis [NDSS 2011]

  19. Under-tainting and Over-tainting • Results vary based on which values are considered to depend on others:

  20. Under-tainting and Over-tainting • Results vary based on which values are considered to depend on others: • Too few dependencies lead to under-tainting

  21. Under-tainting and Over-tainting • Results vary based on which values are considered to depend on others: • Too many dependencies lead to over-tainting

  22. Key Idea • Under-tainting occurs when control flow state represents (almost) all of the information in inputs • Key idea: propagate taint only for control dependencies that would cause under-tainting (culprit implicit flows)

  23. Key Idea • Under-tainting occurs when control flow state represents (almost) all of the information in inputs • Key idea: propagate taint only for control dependencies that would cause under-tainting (culprit implicit flows) 1 char output[256]; 2 char input = next_in(); 3 long len = 0; 4 if (input == '{') { 5 output[0] = '\\'; 6output[1] = '{'; 7 len = 2; 8 }

  24. DTA++ Approach Overview • Hypothesis: under-tainting occurs at just a few locations in a program (culprit branches) • Approach: find these locations in advance, and construct new taint propagation rules for them • Assumption: we are given test inputs that demonstrate the under-tainting

  25. Approach Details • Under-tainting Detection Predicate • Given a (partial) execution trace t, φ(t) holds if t contains a culprit implicit flow • Implementation • Use symbolic execution to count how many other inputs could take the same execution path as t • Few or none → φ(t) = true • Search for Culprit Branches • Find shortest prefix of t that satisfies φ • the last instruction in the prefix is the culprit • Remove culprit, repeat the search to find others

  26. DTA++ Results: Diagnosis Time

  27. DTA++ Results: Over-tainting

  28. Summary and Future Work • Develop novel static analysis based methods to overcome the drawbacks of today’s techniques • Robust, scalable static analysis of low-level code • Accurate disassembly of binary code • Accurate reasoning about key properties • Dynamic taint analysis • Future work • Experimentation and evaluation of stack analysis and disassembly • Robust and efficient binary instrumentation for information flow and related properties • Application to hostile OS defense
