agent programming in goal modules

Agent Programming in GoalModules

Multi-Agent Systems Course

Koen Hindriks

Delft University of Technology, The Netherlands

multi agent systems project
Multi-Agent Systems Project

Course Multi-Agent Systems:

Learn to program amulti-agent system

Project Multi-Agent Systems:

CTF Competition in UT2004

  • Develop logic-based agents programs:
  • Apply reasoning technology (Prolog)
  • Write agent programs (GOAL)
  • Hands-on experience by various programming assignments.
  • Control a team of bots by means of a multi-agent system.
  • Compete at the end of the project.
outline
Outline

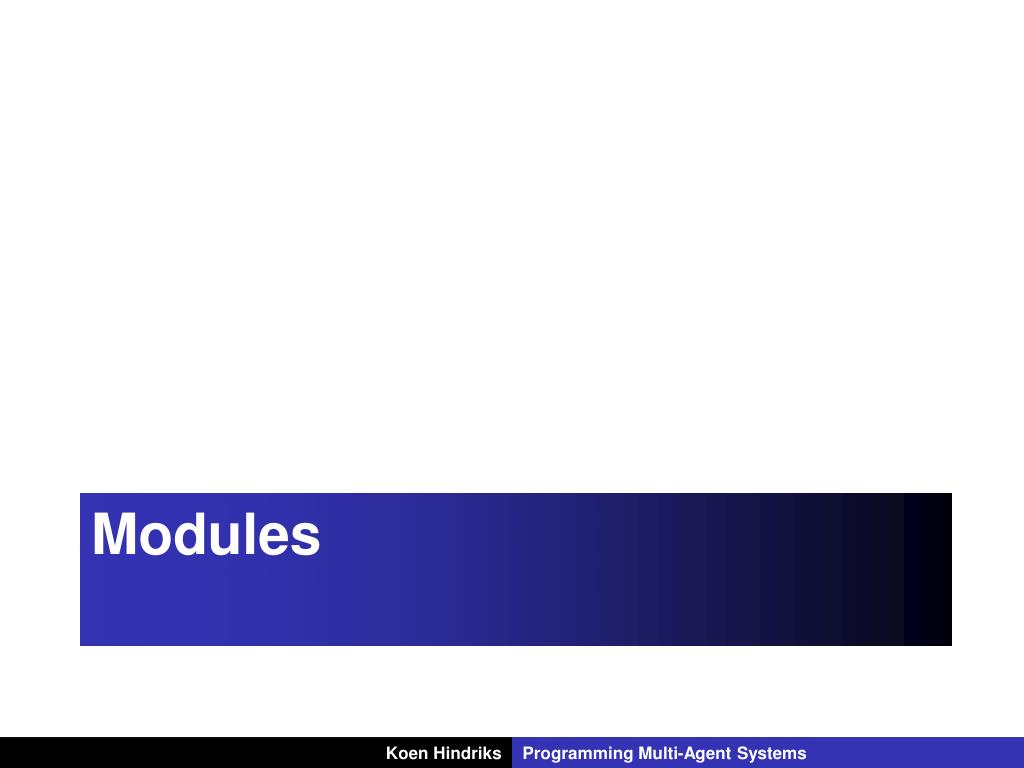

  • Modules
  • BW4T Assignment
an agent is a set of modules
An Agent is a Set of Modules

init module{

knowledge{

}

beliefs{

%%% INITIAL BELIEFS ONLY IN INIT MODULE %%%

}

goals{

}

program{

%%% PROCESS “SEND ONCE” PERCEPTS HERE %%%

}

actionspec{

%%% SPECIFY ENVIRONMENT ACTIONS HERE %%%

}

}

main module{

% OPTIONAL knowledge section

% NO beliefs section HERE!

% OPTIONAL goal section (not advised in ‘main’)

program{

%%% ENVIRONMENT ACTION SELECTION HERE %%%

}

}

event module{

program{

%%% PROCESS PERCEPTS HERE %%%

%%% PROCESS MESSAGES HERE %%%

%%% PERFORM GOAL MANAGEMENT HERE %%%

}

}

Built-in modules:

  • init module:
    • Define global knowledge
    • Define initial beliefs & goals
    • Process “send once” percepts
    • Specify environment actions
  • main module
    • Action selection strategy
  • event module
    • Process percepts
    • Process messages
    • Goal management

User-defined modules.

defined module components
Defined Module Components

init module{

...

}

main module{

program{

}

}

event module{

...

}

%%% YOUR OWN MODULES GO HERE %%%

%%% CAN ALSO IMPORT MODULES %%%

module moduleName {

% may have: [<options>]

knowledg{ … } % optional

goals{ … } % optional

program{ … } % OBLIGATORY

actionspec{ … } % optional

}

  • User-defined module is similar to any other module.
  • Even though knowledge may be specified within a module, knowledge is global. I.e. all knowledge is put in a global knowledge base.
  • Goals, macros, rules and actions specified within a module are local: They can only be used within that module.
tower env agent design
Tower Env: Agent Design

% moving X on top of Y is a constructive move if that move results in X being

% in position.

#define constructiveMove(X, Y)

a-goal( tower([X, Y | T]) ),

bel( tower([Y | T]), clear(Y), (clear(X) ; holding(X)) ) .

main module{

program{

% pick up a block if you can and want to.

if a-goal( holding(X) ) then pickup(X) .

% put a block you're holding down, ideally where you want it, but otherwise put it on the table.

if bel( holding(X) ) then {

if constructiveMove(X,Y) then putdown(X, Y) .

if true then putdown(X, table) .

}

% otherwise, there is nothing to do, so we can move the gripper to the top left corner.

% no need to check whether we're holding a block because of linear order.

if true then nil .

}

}

Design rule: Only use action rules that select environment actions in main module.

Use main module to define a strategy for handling the environment as above.

tower env agent design1
Tower Env: Agent Design

main module{

program{

if a-goal( holding(X) ) then pickup(X) .

if bel( holding(X) ) then {

if constructiveMove(X,Y) then putdown(X, Y) .

if true then putdown(X, table) .

}

if true then nil .

}

}

event module{

program{

% process percepts from Tower World environment. rules below assume full observability.

forallbel( block(X), not(percept(block(X))) ) do delete( block(X) ) .

forallbel( percept(block(X)), not(block(X)) ) do insert( block(X) ) .

forallbel( holding(X), not(percept(holding(X))) ) do delete( holding(X) ) .

forallbel( percept(holding(X)), not(holding(X)) ) do insert( holding(X) ) .

forallbel( on(X,Y), not(percept(on(X,Y))) ) do delete( on(X,Y) ) .

forallbel( percept(on(X,Y)), not(on(X,Y)) ) do insert( on(X,Y) ) .

}

Process perceptsfirst in event module. Always use most up-to-date information.

tower env agent design2
Tower Env: Agent Design

event module{

program{

% a block is *in position* if it achieves a goal.

#define inPosition(X) goal-a( tower([X|T]) ) .

% GOAL MANAGEMENT

% check for reasons to DROP a goal FIRST.

if goal( holding(X) ) then {

% first reason: cannot pick up block X because it's not clear.

if bel( not(clear(X)) ) then drop( holding(X) ) .

% second reason: cannot pick up block X because now holding other block!

if bel( holding(_) ) then drop( holding(X) ) .

% third reason: block X is already in position, don't touch it.

if inPosition( X ) then drop( holding(X) ) .

% fourth reason: we can do better by moving another block constructively.

listall L <- constructiveMove(Y,Z) do {

if bel(not(L=[]), not(member([X,_],L))) then drop( holding(X) ) .

}

}

% check reasons for ADOPTING a goal.

% holding(X) is a *single instance goal* to maintain focus.

if not(goal( holding(X) )) then adoptgoal.

}

}

What is adoptgoal?

Strategy for adopting goals  rules in user-defined module

Locate rules for updating the agent’s mental state outside main module.

Design rule: for goal mngt, first delete content, then add content.

tower env agent design3
Tower Env: Agent Design

main module{

program{

if a-goal( holding(X) ) then pickup(X) .

}

}

event module{

program{

% holding(X) is a *single instance goal* to maintain focus.

if not(goal( holding(X) )) then adoptgoal.

}

}

module adoptgoal{

% default order=linear: adopt at most one goal to hold a block at any time.

% gripper cannot hold more than one block.

program{

#define obstructingBlock(X) a-goal( on(Y, Z) ), bel( above(X, Z); above(X, Y) ) .

if constructiveMove(X, Y) then adopt( holding(X) ) . % prefer making constructive moves.

if obstructingBlock(X) then adopt( holding(X) ) .

}

}

Use of single instance goal for maintaining focus.

Standard module: select one applicable action, perform it, and exit module again.

tower env agent design4
Tower Env: Agent Design

main: towerBuilder

{

event module{

program{

% a block is *in position* if it achieves a goal.

#define inPosition(X) goal-a( tower([X|T]) ) .

% check for reasons to drop or adopt a goal (goal management).

if goal( holding(X) ) then {

% first reason: cannot pick up block X.

if not(bel( clear(X) )) then drop( holding(X) ) .

% second reason: block X is already in position, don't touch it.

if inPosition( X ) then drop( holding(X) ) .

}

% adopt new goal only after cleaning up.

if not(goal( holding(X) )) then adoptgoal.

}

}

module adoptgoal{

program{

if constructiveMove(X, Y) then adopt( holding(X) ) .

if obstructingBlock(X) then adopt( holding(X) ) .

}

Q: Why not put all goal management rules in event module?

A: In event module all rules are applied, but we want to adopt at most one goal.

multiple goals in blocks world
Multiple Goals in Blocks World

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

clear(table).

tower([X]) :- on(X, table).

tower([X,Y|T]) :- on(X,Y), tower([Y|T]).

}

goals{

on(a, b), on(b, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

move(X,Y) {

pre{ clear(X),clear(Y),on(X,Z),not(on(X,Y)) }

post{ not(on(X,Z)), on(X,Y) }

}

}

}

main module{

program[order=random]{

#define misplaced(X) a-goal(tower([X|T])).

#define constructiveMove(X,Y)

a-goal(tower([X,Y|T])), bel(tower([Y|T])).

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X, table).

}

}

...

Objective:

Move blocks in initial state such that all goals are achieved.

EXERCISE:

Q: Does agent achieve goals?

A: Yes. Goals are not conflicting.

multiple goals in blocks world1
Multiple Goals in Blocks World

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

clear(table).

tower([X]) :- on(X, table).

tower([X,Y|T]) :- on(X,Y), tower([Y|T]).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

move(X,Y) {

pre{ clear(X),clear(Y),on(X,Z),not(on(X,Y)) }

post{ not(on(X,Z)), on(X,Y) }

}

}

}

main module{

program[order=random]{

#define misplaced(X) a-goal(tower([X|T])).

#define constructiveMove(X,Y)

a-goal(tower([X,Y|T])), bel(tower([Y|T])).

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X, table).

}

}

Objective:

Move blocks in initial state such that all goals are achieved.

EXERCISE:

Q: Does agent achieve goals?

A: No. After achieving one of the goals the agent cannot remove block a or d.

multiple goals in blocks world2
Multiple Goals in Blocks World

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

clear(table).

tower([X]) :- on(X, table).

tower([X,Y|T]) :- on(X,Y), tower([Y|T]).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

move(X,Y) {

pre{ clear(X),clear(Y),on(X,Z),not(on(X,Y)) }

post{ not(on(X,Z)), on(X,Y) }

}

}

}

main module{

program[order=random]{

#define misplaced(X) a-goal(tower([X|T])).

#define constructiveMove(X,Y)

a-goal(tower([X,Y|T])), bel(tower([Y|T])).

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X, table).

}

}

Objective:

Move blocks in initial state such that all goals are achieved.

EXERCISE:

Q: How can this be fixed?

multiple goals in blocks world3
Multiple Goals in Blocks World

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

above(X,Y) :- on(X,Y).

above(X,Y) :- on(X,Z), above(Z,Y).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

move(X,Y) {

pre{ clear(X),clear(Y),on(X,Z),not(on(X,Y)) }

post{ not(on(X,Z)), on(X,Y) }

}

}

}

main module{

program{

#define misplaced(X) a-goal(tower([Y|T])), bel(above(X,Y) ; X=Y).

#define constructiveMove(X,Y)

a-goal(tower([X,Y|T])), bel(tower([Y|T])).

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X, table).

}

}

Objective:

Move blocks in initial state such that all goals are achieved.

A: Fixing the problem:

A block is misplaced if it is “in the way”.

multiple goals in blocks world4
Multiple Goals in Blocks World

(Continued)

Agent performs action: move(c,table)

Agent performs action: move(e,table)

Agent performs action: move(f,table)

Agent performs action: move(d,table)

Agent performs action: move(e,c)

Agent performs action: move(e,table)

Agent performs action: move(e,c)

Agent performs action: move(e,table)

Agent performs action: move(e,f)

Agent performs action: move(e,c)

Agent performs action: move(e,f)

Agent performs action: move(e,c)

Agent performs action: move(e,table)

Agent performs action: move(e,c)

Agent performs action: move(e,f)

Agent performs action: move(e,table)

Agent performs action: move(e,c)

Agent performs action: move(e,f)

Agent performs action: move(d,e)

Agent performs action: move(d,table)

Agent performs action: move(e,table)

Agent performs action: move(e,c)

Agent performs action: move(f,table)

Agent performs action: move(e,f)

Agent performs action: move(e,table)

Agent performs action: move(e,f)

Agent performs action: move(e,table)

Agent performs action: move(e,f)

Agent performs action: move(e,f)

Agent performs action: move(d,e)

Objective:

Move blocks in initial state such that all goals are achieved.

But the agent achieves its goals

very inefficiently!!

multiple goals in blocks world5
Multiple Goals in Blocks World

(Continued)

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

above(X,Y) :- on(X,Y).

above(X,Y) :- on(X,Z), above(Z,Y).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

move(X,Y) {

pre{ clear(X),clear(Y),on(X,Z),not(on(X,Y)) }

post{ not(on(X,Z)), on(X,Y) }

}

}

}

main module{

program{

#define misplaced(X) a-goal(tower([Y|T])), bel(above(X,Y) ; X=Y).

#define constructiveMove(X,Y)

a-goal(tower([X,Y|T])), bel(tower([Y|T])).

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X, table).

}

}

Objective:

Move blocks in initial state such that all goals are achieved.

Fixing the problem (2):

Part of the problem is due to randomness, adding order partly fixes this problem.

multiple goals in blocks world6
Multiple Goals in Blocks World

(Continued)

Agent performs action: move(c,table)

Agent performs action: move(e,c)

Agent performs action: move(d,table)

Agent performs action: move(a,e)

Agent performs action: move(a,table)

Agent performs action: move(e,table)

Agent performs action: move(f,table)

Agent performs action: move(e,f)

Agent performs action: move(d,e)

Objective:

Move blocks in initial state such that all goals are achieved.

But still the agent performs

an unnecessary action…

multiple goals in blocks world7
Multiple Goals in Blocks World

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

}

}

main module{

program{

if a-goal(tower([X|T]), clear(X))

then buildTower.

}

}

event module{

...

}

modulebuildTower[exit=nogoals, focus=select]{

program{

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X,table).

}

}

Objective:

Move blocks in initial state such that all goals are achieved.

Fixing the problem (3):

The agent also lacks focus on a single goal…

multiple goals in blocks world8
Multiple Goals in Blocks World

Agent performs action: Entering module buildTower

Agent performs action: move(c,table)

Agent performs action: move(e,c)

Agent performs action: move(d,table)

Agent performs action: move(a,e)

Agent performs action: Entering module buildTower

Agent performs action: move(f,table)

Agent performs action: move(a,table)

Agent performs action: move(e,f)

Agent performs action: move(d,e)

Objective:

Move blocks in initial state such that all goals are achieved.

Focus of attention on goal removes

unnecessary action…

modules focus of attention
Modules: Focus of Attention

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

}

}

main module{

program{

if a-goal(tower([X|T]), clear(X))

then buildTower.

}

}

modulebuildTower[exit=nogoals, focus=select]{

program{

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X,table).

}

}

  • Focus option of module creates new attention set (‘local’ goal base):
  • [….., focus=select]
  • Mental state conditions that trigger modules act like a filter
  • One of the (possibly multiple) goals that satisfies the condition is put in the attention set of the module.
  • In the example both goals satisfy the mental state condition, so either one of:
  • on(a,b), on(b,c), on(c,table).
  • on(d,e), on(e,f), on(f,table).
  • may be selected and put in the attention set of the module.
  • For example, attention set for buildTower module is:

on(a,b), on(b,c), on(c,table).

modules mental state conditions
Modules: Mental state conditions

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

}

}

main module{

program{

if a-goal(tower([X|T]), clear(X))

then buildTower.

}

}

modulebuildTower[exit=nogoals, focus=select]{

program{

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X,table).

}

}

  • An attention set functions like a regular goal base.
  • Mental state conditions used within a module are evaluated on the attention set and the global belief base.
  • For example, if the attention set is:
  • on(a,e), on(e,c), on(c,table).
  • the mental state condition:
  • goal(tower([X,Y|T]))
  • yields:
  • [T/[c],Y/e,X/a]
  • [T/[],Y/c,X/e]
modules action rules
Modules: Action Rules

When a module is activated:

  • Only action rules within the module’s program section are applied.
  • Provides:
    • a scoping mechanism.
    • encapsulation of action logic.
  • Actions specified outside module that are specified in init module may be used.
modules options
Modules: Options
  • Set exit condition using [exit=…]

[exit=always] :Always exit (default)

[exit=nogoals] :Exit focus goals have been achieved.

[exit=noaction] :Exit when no actions are enabled.

  • Set filter condition using [focus=…]

[focus=none] : no new attention set, global goal base used (default)

[focus=new] : new empty attention set is used instead of global gb

[focus=select] : new attention set with selected goal instead of global gb

[focus=filter] : new attention set with filtered goal instead of global gb

NB: Setting rule order option using [order=…] is associated with program sections, NOT modules. Options are:

Default : [order=linear]

Other options : random, linearall, randomall

modules focus filter example
Modules: Focus=Filter (Example)
  • Suppose current goal is:

on(a,b), on(b,c), on(c,table), on(d,e), on(e,f), on(f,table), maintain.

  • Then mental state condition:

a-goal(tower([X,Y|T])),

bel(tower([Y|T]),clear(Y),(clear(X);holding(X)))

and filter focusyields goals of the form:

tower([a,b,c])

a-goal(on(X,table)), bel(clear(X); holding(X))

yields goals of the form:

on(a,table)

focus filter select
focus = filter, select
  • A mental state only acts as a method to focus on a goal if it contains at least one positive goal literal.
  • a-goal(…), goal(…), goal-a(…) are positive goal literals.

 these act to select a focus goal.

  • not(a-goal(…)), not(goal(…)), not(goal-a(…)) are negative goal literals.

 these do not select or filter goals.

modules exit condition
Modules: Exit Condition

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

}

}

main module{

program{

if a-goal(tower([X|T]), clear(X))

then buildTower.

}

}

modulebuildTower[exit=nogoals, focus=select]{

program{

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X,table).

}

}

  • Example: [exit=nogoals]
  • Whenever all goals in the attention set are achieved, a module is terminated.
  • For example, if the attention set is:
  • on(a,b), on(b,c), on(c,table).
  • and this goal is achieved, control returns to:
    • top-level, or
    • the module from which this module was entered.
  • NB: modules may be entered from an active module.
modules explicit exit
Modules: Explicit exit

init module{

knowledge{

block(X) :- on(X, Y).

clear(X) :- block(X), not(on(Y,X)).

}

goals{

on(a, e), on(e, c), on(c, table).

on(d, e), on(e, f), on(f, table).

}

actionspec{

}

}

main module{

program{

if a-goal(tower([X|T]), clear(X))

then buildTower.

}

}

modulebuildTower[exit=nogoals, focus=select]{

program{

if bel( cannotBuildTower )

then exit-module.

ifconstructiveMove(X,Y) then move(X,Y).

if misplaced(X) then move(X,table).

}

}

  • The built-in action exit-module may be used to exit a module even if the goals in an attention set have not been achieved.
  • Use this action as in any other action rule within the program section of a module.
  • Best practice: if used with other actions (using the + construct), then put exit-module last.
modules adopt and drop
Modules: Adopt and Drop
  • Semantics of the built-in adopt and drop action within modules:
  • adopt action within module:
    • Adds goal to the current attention set.
    • Only local effect.
  • drop action within module:
    • Removes goal from all attention sets (including global goal base)
    • Has global effect.
a working program
A Working Program
  • Your agent program should solve the task: deliver blocks in right order to drop zone.
  • It does not need to perform optimally but some efficiency would be nice:
    • Do not visit rooms more often than needed.
    • I.e., keep track of what has been visited!
agent does not exist
Agent does not exist???
  • Name of GOAL file should match your actual GOAL file.

environment{

}

agentfiles{

% insert (list of) agent file references below.

“someName.goal" [name = robot] .

}

launchpolicy{

when [max=1]@env do launch robot : robot .

}

hardcoding rooms
Hardcoding rooms??
  • Better & Simpler:

% ?????

if bel(not(visited('RoomC3'))) then adopt(in('RoomC3')).

if bel(visited('RoomC3'),not(visited('RoomC2'))) then adopt(in('RoomC2')).

if bel(visited('RoomC2'),not(visited('RoomC1'))) then adopt(in('RoomC1')).

if bel(visited('RoomC1'),not(visited('RoomB1'))) then adopt(in('RoomB1')).

if bel(visited('RoomB1'),not(visited('RoomB2'))) then adopt(in('RoomB2')).

if bel(visited('RoomB2'),not(visited('RoomB3'))) then adopt(in('RoomB3')).

if bel(visited('RoomB3'),not(visited('RoomA3'))) then adopt(in('RoomA3')).

if bel(visited('RoomA3'),not(visited('RoomA2'))) then adopt(in('RoomA2')).

if bel(visited('RoomA2'),not(visited('RoomA1'))) then adopt(in('RoomA1')).

% ?????

if bel( percept(room(RoomID)), not(visited(RoomID))) then adopt(in(RoomID)).

specifying durative actions
Specifying Durative Actions
  • BW4T has instantaneous & durative actions.
  • Which of the following are durative?
    • pickUp
    • putDown
    • goTo
    • goToBlock
postcondition durative actions
Postcondition Durative Actions
  • Do NOT insert information that is not immediately true.
  • One Solution: use empty postcondition

goTo(Location) {

pre { not(state(traveling)), place(Location) }

post { state(arrived), at(Location) }

}

Will be inserted too early.

goTo(Location) {

pre { not(state(traveling)), place(Location) }

post { true }

}

spec for gotoblock blockid
Spec for goToBlock(<BlockID>)

Other similar example:

goTo(PlaceId) with precondition not(visited(PlaceID)).

  • Not holding a block is NOT a precondition for being able to perform goToBlock…
  • goToBlock action takes time (when tick delay>0). Agent should NOT be made to believe it will immediately arrive…

Guideline: Pre- and post-condition should match real conditions present in environment!

goToBlock(BlockID) {

pre{ not(holding(_)) }

post{ state(arrived) }

}

spec for gotoblock blockid1

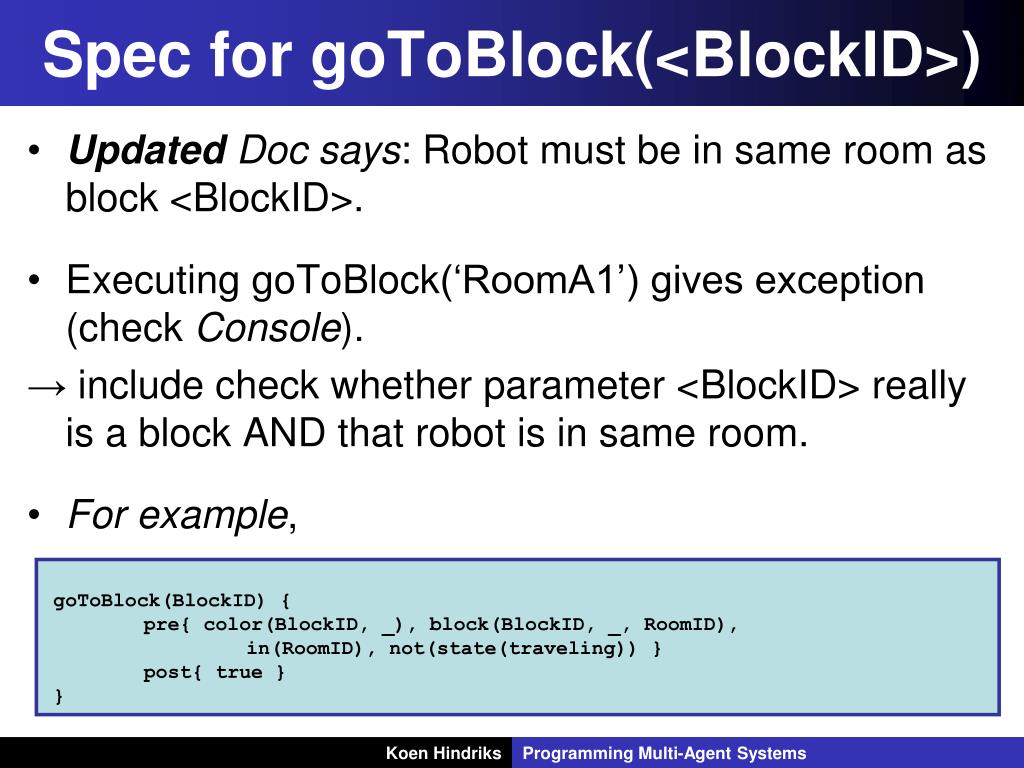

Spec for goToBlock(<BlockID>)
  • Updated Doc says: Robot must be in same room as block <BlockID>.
  • Executing goToBlock(‘RoomA1’) gives exception (check Console).
  • include check whether parameter <BlockID> really is a block AND that robot is in same room.
  • For example,

goToBlock(BlockID) {

pre{ color(BlockID, _), block(BlockID, _, RoomID),

in(RoomID), not(state(traveling)) }

post{ true }

}

spec for pickup
Spec for pickUp
  • Doc says:

“Precondition: Robot is close to a block and

does not hold a block yet.

Postcondition: Robot is holding the block, and the block is not located anywhere (i.e., there is no ‘at’ percept for the block) until it is dropped.”

  • For example,

pickUp{

pre{ not(holding(_)), atBlock(BlockID) }

post{ holding(BlockID) }

}

using the operator
Using the + operator
  • Rule of thumb: Do NOT combine environment actions that take time with + operator.
  • Make reasons for doing action explicit!
  • Increases agent’s flexibility & code readability

program{

if bel(not(holding(_)),color(A,B),nextColorInSeq(B)) then goToBlock(A) + pickUp. % ?????

}

% BETTER:

% FIRST THINGS FIRST... LINEAR ORDER IN MAIN MODULE BY DEFAULT

if a-goal( holding(ColorID) ), bel( block(BlockID, ColorID, PlaceID), atBlock(BlockID) )

then pickUp.

% if agent wants to be at block, go there.

if a-goal( at(Id) ), bel( block(Id, _, _) ) then goToBlock(Id).

FIRST THINGS FIRST... (USE) LINEAR ORDER IN MAIN MODULE (DEFAULT)

setting goals
Setting Goals
  • Adopt goals that agent will eventually believe.
  • For example, use atBlock(Block) en in(Room).
  • No need to use drop action in this case!

Goals:

-

in(‘RoomA1’)

goal

adopted

goal

removed

belief

inserted

Beliefs:

in(‘RoomA1’)

code for interruptable goto
Code for interruptablegoTo
  • Precondition not(traveling) prevents interruption of goTo action, but in MAS sometimes you want this.
  • For example(N.B.: different from spec above!)
  • Plus remove not(traveling) to change direction:
  • Instead of not(goal( atSomeWhere)) use own reason

% Go to place PlaceID.

% Precondition 'not(state(traveling))' prevents interruption of goToaction.

% The action may fail if PlaceID is a room that is occupied at the time the % robot wants to enter it.

goTo(PlaceID) {

pre{ place(PlaceID), state(State), not(state(traveling)) }

post{ not(state(State)), state(traveling) }

}

% If robot does not want to go somewhere, make sure we can redirect the robot

% by removing state(traveling).

if not(goal( atSomeWhere )), bel( state(traveling) )

then delete( state(traveling) ) + insert( state(arrived) ).

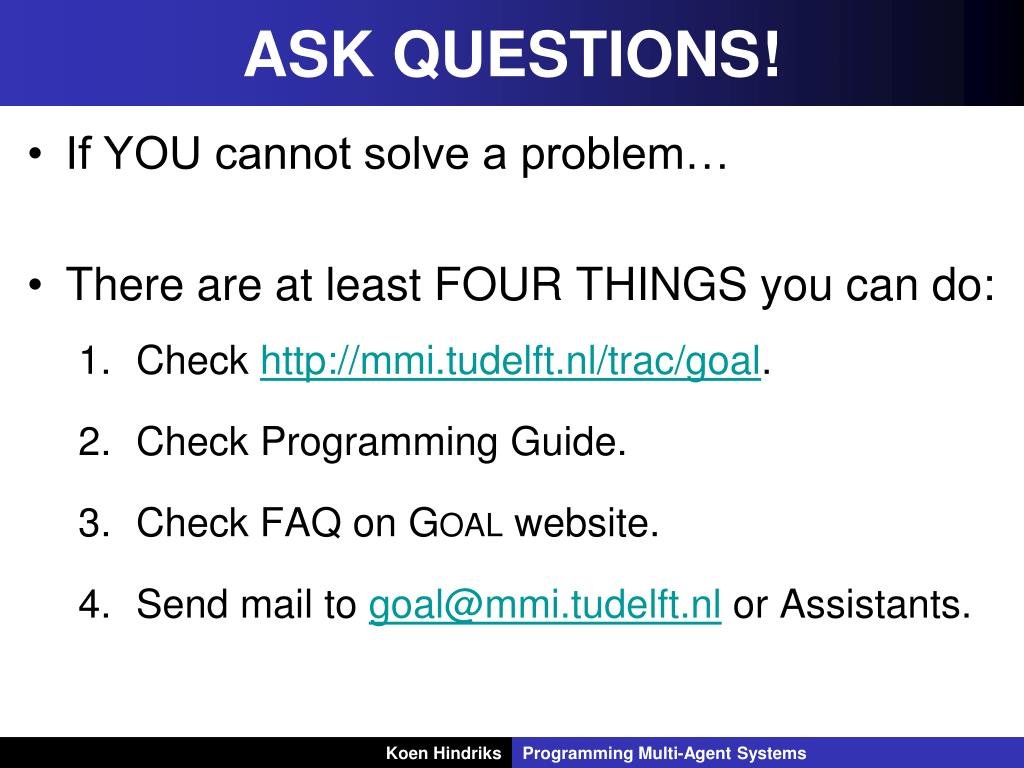

ask questions
ASK QUESTIONS!
  • If YOU cannot solve a problem…
  • There are at least FOUR THINGS you can do:
    • Check http://mmi.tudelft.nl/trac/goal.
    • Check Programming Guide.
    • Check FAQ on Goal website.
    • Send mail to goal@mmi.tudelft.nl or Assistants.
documentation
!! DOCUMENTATION !!

Document your code using COMMENTS!

  • Solution can be provided in about 100 lines of code.
  • But then add at least half that amount to document and explain your code
organisation
Organisation
  • Next lecture: Multi-Agent Systems
  • Tutorial this week:
    • Assignment 4: BW4T MAS
  • Updated GOAL Installer available at: http://ii.tudelft.nl/trac/goal/wiki/Releases.

includes:

    • Simplified reset/restart for BW4T.
