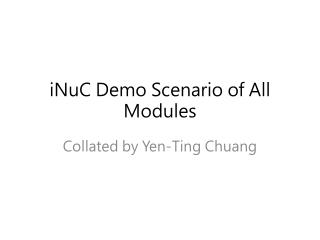

  1. iNuC Demo Scenario of All Modules Collated by Yen-Ting Chuang

  2. AAA module (1/2) • Use NTU AD Server • Authentication 使用者輸入ID/PW User Guest Key in ID/PW Function List Page Authentication Check false true Pop up a messageBox. Back to Login Page. Show Usersetting StartPage. 連結院內系統

  3. AAA module (2/2) • Authorization • User Pages are enable or disable. • Buttons are visible (enable) or invisible (disable). disable Before Login After Login enable

  4. DRM Module • Network down or server down • DRM send an error message to the callee module. • iNuC shutdown abnormally • Recover all data automatically when iNuC reboot again. • Should notify IT that iNuC recover data fail. • Logout • Only if the current user’s data all commit to the finish, next user will login.

  5. iMan module (1/3) • Alert type • Pop up MessageBoxDialog • Make a sound • Flash LED light • Print a message via RG modules • Send E-mail

  6. iMan module (2/3) • Usercan choose some alert types in iNuC setting pages. • 所有工作 <執行前> • 所有缺藥 <給藥前> • 藥單改變 <給藥前> Ex. 給藥前10分鐘發出訊息視窗提示及燈號閃爍提示。 Ex. 在所有工作執行前5分鐘發出聲音提示。

  7. iMan module (3/3) • Give nurse or IT a notification by some kinds of the alert notification when any of one module has encountered an unexpected problem. Ex. 網路無法傳輸時，發出聲音提示。 Ex. 車上藥盒裝置故障時，發出E-mail提示IT人員。

  8. LIM Module Click PrepareDrug Button. Wait for drawers to open. • Prepare drug (備藥) Scan bar code. Plug in drawer. Plug in drawer. (without scan barcode) Map patient Id and drawer Id. Complete preparing drug. Click OpenDrawer without mapping Button. Unfinished! Finished! Drag patient icon from finished area to unfinished area. Open patient’s drawers. Finished! Unfinished!

  9. LIM Module • Give drug (給藥) Click Givedrug Button. Open drawers. Yes Click GoBack one page. Is drawer plug in or not Go back one page. No Stay in Givedrug Page. Click Exception button. Keep an exception record.

  10. WTM Module • Add events • Nurse Event • Continues schedule event • Patient Event • Periodic schedule event • Continues schedule event • Delete events • Delete any events besides givedrug event. • Modify events • Modify time or content of any events besides givedrug event.

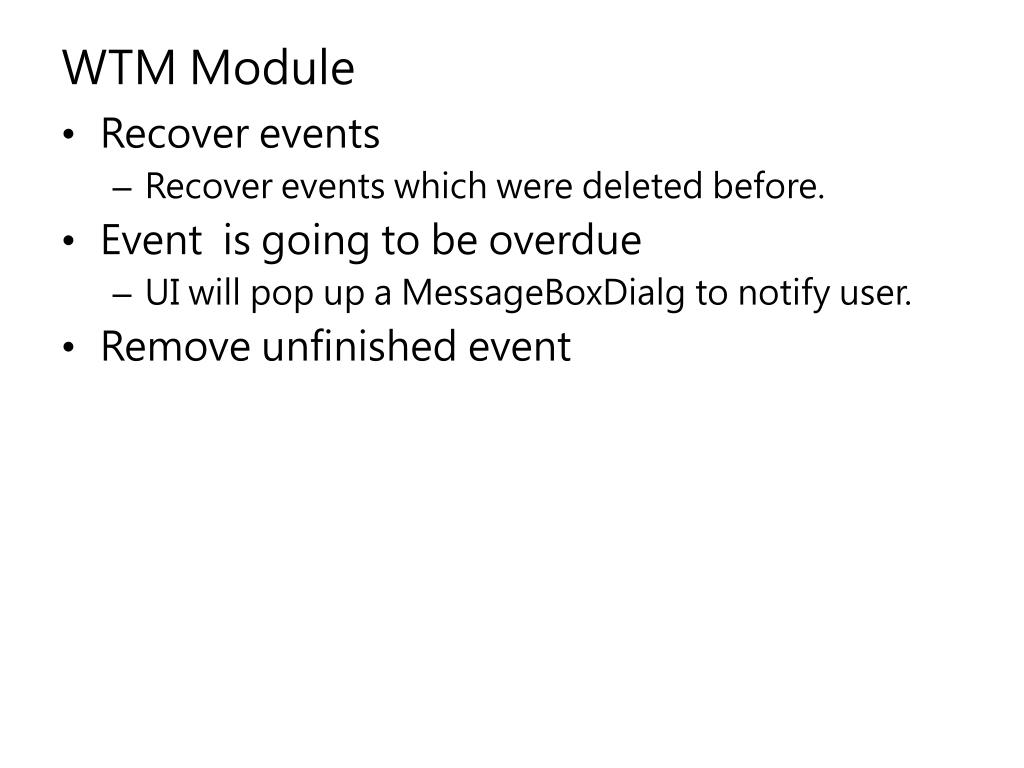

  11. WTM Module • Recover events • Recover events which were deleted before. • Event is going to be overdue • UI will pop up a MessageBoxDialg to notify user. • Remove unfinished event

  12. User Interface (1/5) • Patient List

  13. User Interface (2/5) • Patient Records • Physical records • Table mode • Graph mode • Memo records • Injection records

  14. User Interface (3/5) • Web Browser

  15. User Interface (4/5) • Medication Searching

  16. User Interface (5/5) • Quickshow toolbar

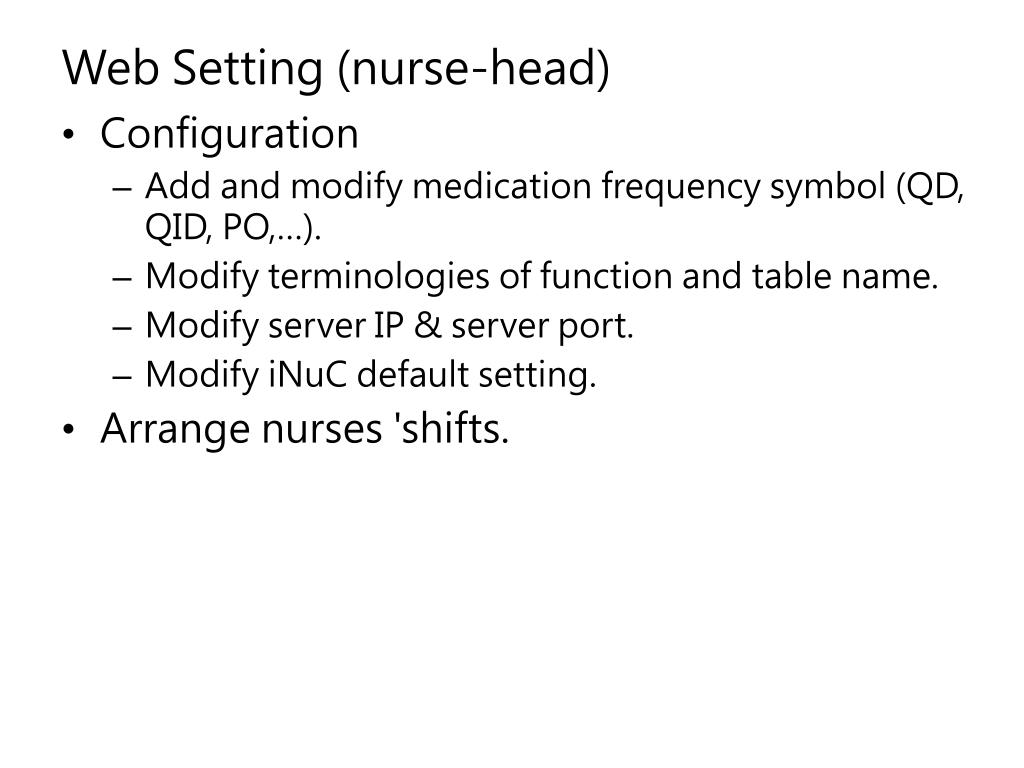

  17. Web Setting (nurse-head) • Configuration • Add and modify medication frequency symbol (QD, QID, PO,…). • Modify terminologies of function and table name. • Modify server IP & server port. • Modify iNuC default setting. • Arrange nurses 'shifts.
