  1. Introduction to SimpleScalar Tool Set CPEG323 Tutorial Long Chen September, 2005

  2. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to use it? • Demo

  3. Why This Tutorial? • Course Labs and projects are based on SimpleScalar tool set. • It will help you develop the ability to practice what you learned in class.

  4. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to use it? • Demo

  5. What is SimpleScalar Tool Set? A Complete Computer Architecture Test Bed • Simulators • Compiler, assembler, linker • Targeted to the SimpleScalar PISA architecture • A source–level debugger.

  6. System output Device Simulator System input System metrics A Computer Architecture Simulator Primer • What is an architecture simulator? • A tool that reproduces the behaviors of a computer device • Why use a simulator? • Leverage faster, more flexible S/W development cycle

  7. Simulators • sim-fast -> a very fast functional (i.e., no timing) simulator • sim-safe -> the minimal functional SimpleScalar simulator • sim-profile -> a program profiling simulator • sim-cache -> a multi-level cache simulator • sim-cheetah -> a single-pass multi-configuration cache simulator • sim-bpred -> a branch predictor simulator • sim-outorder -> a detailed out-of-order issue performance (timing) simulator with a multi-level memory system

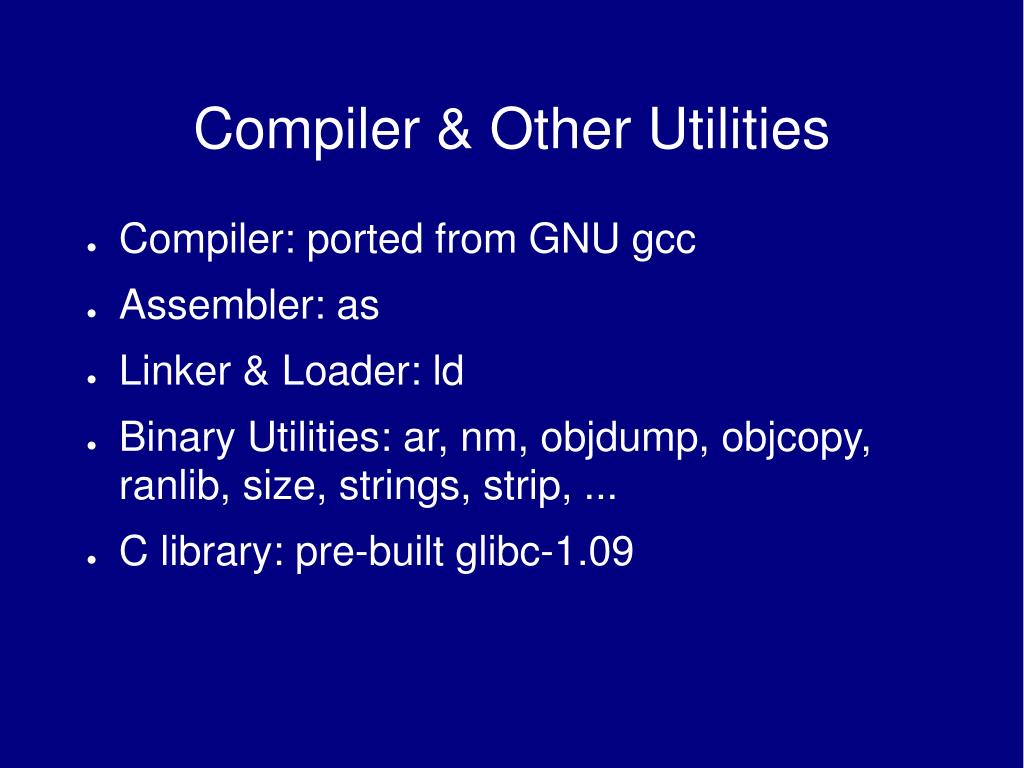

  8. Compiler & Other Utilities • Compiler: ported from GNU gcc • Assembler: as • Linker & Loader: ld • Binary Utilities: ar, nm, objdump, objcopy, ranlib, size, strings, strip, ... • C library: pre-built glibc-1.09

  9. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to use it? • Demo

  10. Where to Get It? • simplesim-3v0d.tgz: SimpleScalar simulator source code; • simpletools-2v0.tgz: gcc compiler and glibc; • simpleutils-2v0.tgz: binary utilities; Obtain tar balls from www.simplescalar.comorwww.capsl.udel.edu/courses/cpeg323/2005/

  11. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to use it? • Demo

  12. Preparation • Logon the Linux machine in the Computer Lab, 132 Evans Hall • Create an empty directory in you home directory, say, “$HOME/simplescalar/” • Copy all three tar balls to that directory. • cd $HOME/simplescalar/ • tar xzvfsimplesim-3v0d.tgz • tar xzvf simpletools-2v0.tgz • tar xzvf simpleutils-2v0.tgz

  13. Directories • simplesim-3.0/: the sources of the SimpleScalar simulators. • binutils-2.5.2/: the GNU binary utilities code, ported to the SimpleScalar architecture. • sslittle-na-sstrix/: the root directory for the tree in which little-endian SimpleScalar binary utilities and compiler tools will be installed. The unpacked directories contain header files and a pre-compiled copy of libc. • ssbig-na-sstrix/: the same as above, except that it holds big-endian staffs. • gcc-2.6.3/: the GNU C compiler code, ported to SimpleScalar architecture. • glibc-1.09/: the GNU libraries code, ported to SimpleScalar architecture.

  14. Build & Install Steps - 1 • Build GNU Binary Utilities • cd $HOME/simplescalar/binutil-2.5.2 • ./configure --host=i386-\*-gnu/linux --target=sslittle-na-sstrix --with-gnu-as --with-gnu-ld --prefix=$HOME/simplescalar • make • make install

  15. Build & Install Steps - 2 • Build Simulators • cd $HOME/simplescalar/simplesim-3.0 • make config-pisa • make

  16. Build & Install Steps - 3 Build the Compiler • cd $HOME/simplescalar/gcc-2.6.3 • ./configure --host=i386-\*-gnu/linux --target=sslittle-na-sstrix --with-gnu-as --with-gnu-ld --prefix=$HOME/simplescalar • make LANGUAGE=c • ../simplesim-3.0/sim-safe ./enquire -f >! float.h-cross • make install

  17. Got Error Messages! • Do not panic! Try to solve these problems by yourself first. You will gain valuable experience in this procedure. • If you REALLY need help, please refer to the appendix of the simplescalar build memo. • If you STILL have difficulty to install the tool set, you might seek help from TA.

  18. Check Your Installation • Check $HOME/simplescalar/bin for the complier, assembler, linker, and other binary utilities. • Write simple program to verify it • Check $HOME/simplescalar/simplesim-3.0 for simulators • cd $HOME/simplescalar/simplesim-3.0 • make sim-tests

  19. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to use it? • Demo

  20. How to Use it? • Write program • Write C code. • Or, just write assembly code (you will learn how to do it in the following lectures) • Compile the source code • sslittle-na-sstrix-gcc –o foo foo.c C code to binary code • sslittle-na-sstrix-gcc –o foo.s –S foo.c C code to Assemble code • sslittle-na-sstrix-gcc –o foo foo.s Assemble code to binary code • Use the simulator to run the binary code • sim-fast foo • …

  21. Hints for Lab1 • Do Problem 2 first • Generate the assembly code from C code • Investigate the assembly code • Try to modify the assembly code by your own (for Problem 1) • Compile the modified assembly code, run the binary code, find the difference between outputs

  22. Outline • Why this tutorial? • What is SimpleScalar Tool Set? • Where to get it? • How to install it? • How to write program for it? • Demo

  23. SimpleScalar Demo
