  1. Lecture 3: Secret Key Cryptography Outline • concepts • DES • IDEA • AES

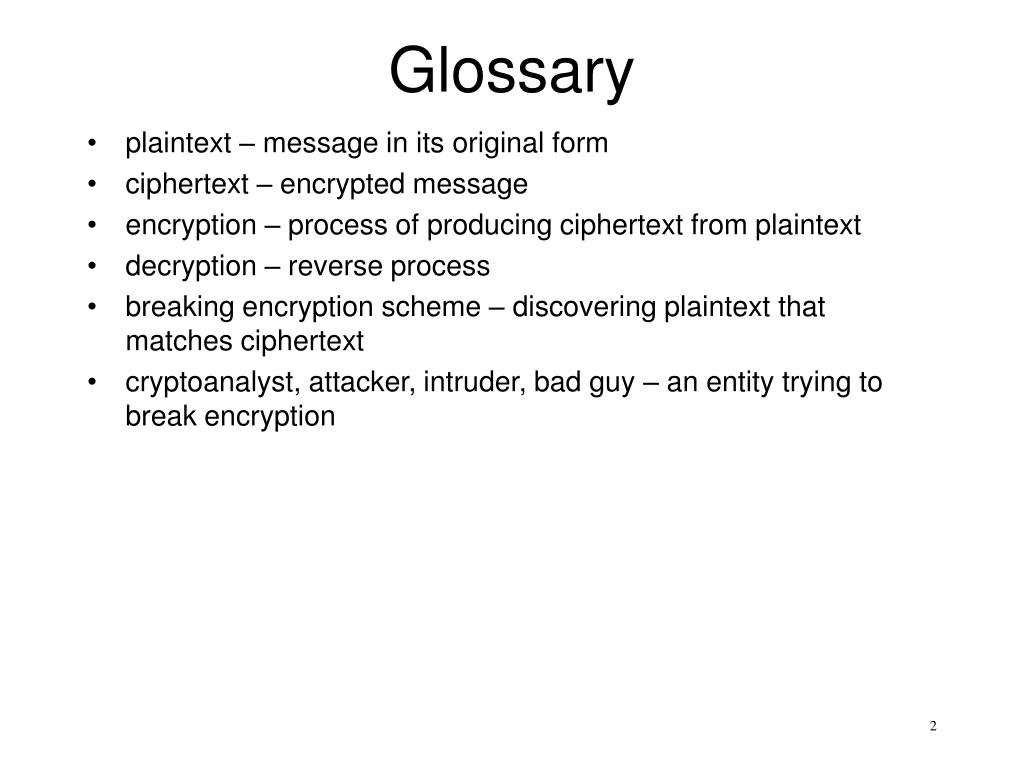

  2. Glossary • plaintext – message in its original form • ciphertext – encrypted message • encryption – process of producing ciphertext from plaintext • decryption – reverse process • breaking encryption scheme – discovering plaintext that matches ciphertext • cryptoanalyst, attacker, intruder, bad guy – an entity trying to break encryption

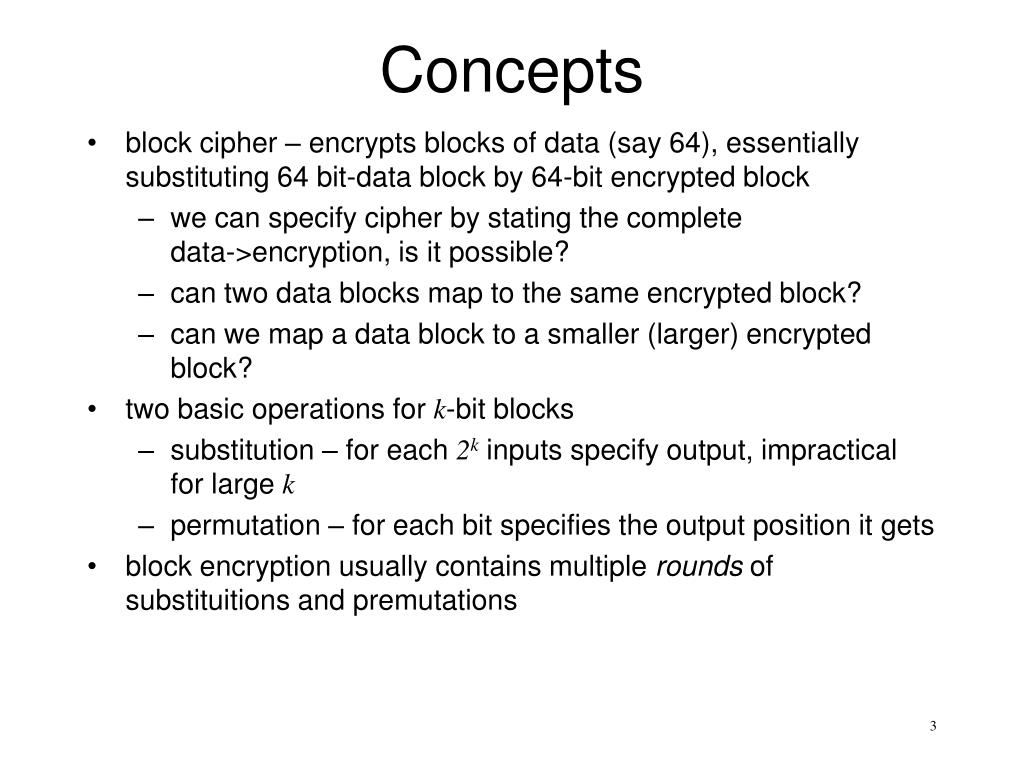

  3. Concepts • block cipher – encrypts blocks of data (say 64), essentially substituting 64 bit-data block by 64-bit encrypted block • we can specify cipher by stating the complete data->encryption, is it possible? • can two data blocks map to the same encrypted block? • can we map a data block to a smaller (larger) encrypted block? • two basic operations for k-bit blocks • substitution – for each 2k inputs specify output, impractical for large k • permutation – for each bit specifies the output position it gets • block encryption usually contains multiple rounds of substituitions and premutations

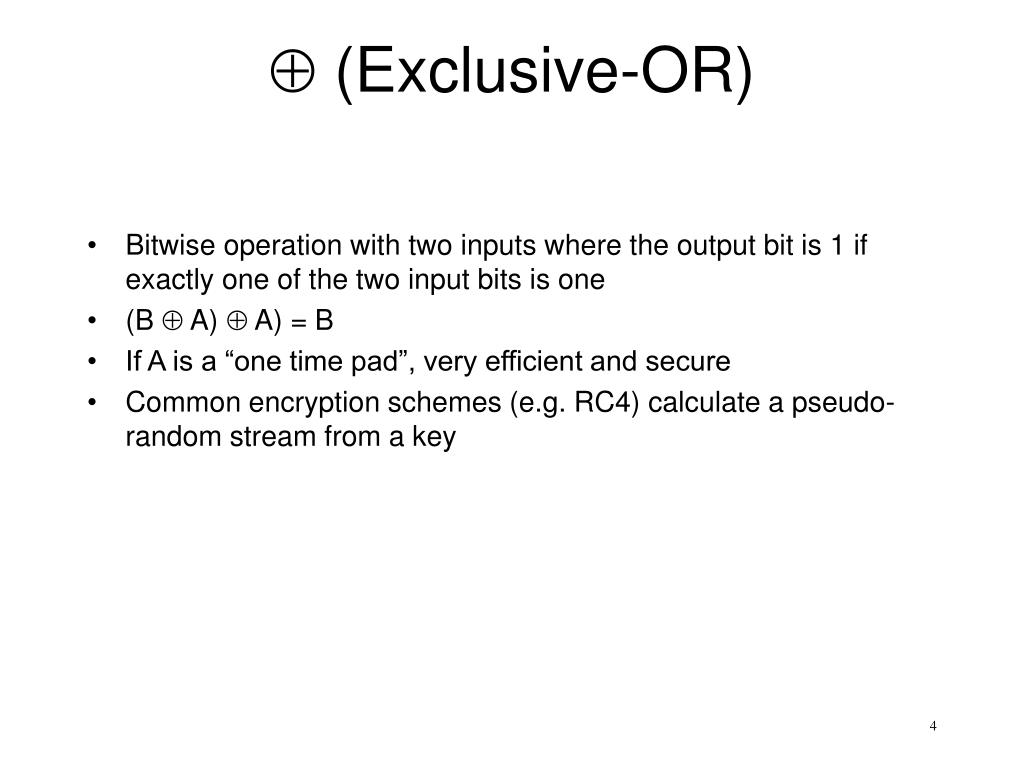

  4.  (Exclusive-OR) • Bitwise operation with two inputs where the output bit is 1 if exactly one of the two input bits is one • (B  A)  A) = B • If A is a “one time pad”, very efficient and secure • Common encryption schemes (e.g. RC4) calculate a pseudo-random stream from a key

  5. DES Intro • DES – Data Encryption Standard • published in 1977 by National Bureau of Standards (now NIST) with input from NSA • based on IBM Lucifer cipher • encodes 64-bit blocks • uses 56-bit key • key consists of 8 octets, where 7 bits are useful and 8th is parity • efficient to implement in hardware, but slow in software • the adoption of DES was done without public scrutiny • some operations are suspect

  6. DES Basic Structure • encryption • 64 bit data block is permuted (initial permutation) • from 56-bit key – generate sixteen 48-bit round keys • 16 rounds: at each round take 64-bit data from previous round and 48-bit key and produce data for the next round • final permutation (inverse of initial permutation) • decryption • do initial permutation (to undo final) • run 16 rounds “in reverse” (more later) • do final permutation • security value of initial/final permutations is suspect

  7. DES Round Key Generation • 56-bit key is divided into two 28-bit halves: C0 and D0 • initial permutation of both parts (security value suspect) • 16 rounds • in each round the bits Ci-1 and Di-1 are rotated (to produce Ciand Di) then permuted (this permutation may be of security value) and some bits dropped to produce two 24-bit halves of Ki

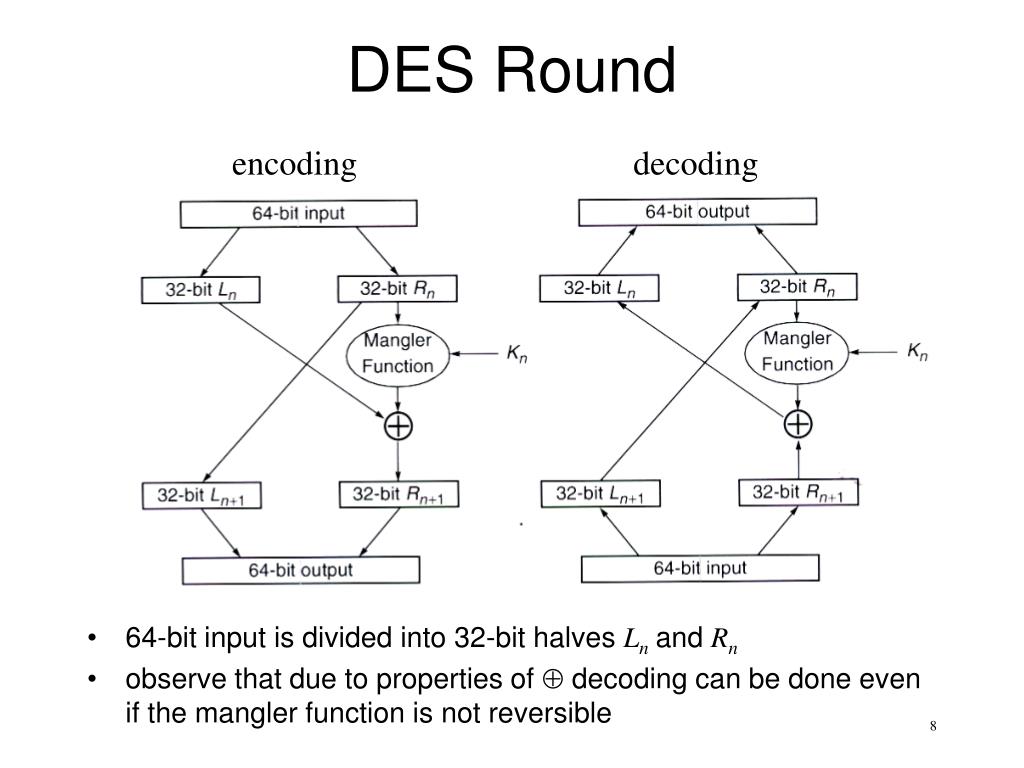

  8. DES Round • 64-bit input is divided into 32-bit halves Lnand Rn • observe that due to properties of  decoding can be done even if the mangler function is not reversible encoding decoding

  9. DES Mangler Function • takes 32-bit Rn and 48-bit Kn and produces a 32-bit Rn+1 • operation • 32-bit Rn is expanded to 48 bits – each 4-bits are expanded to 6 bits by duplicating adjacent bits • each 6 bits or Rn are XOR-ed with corresponding 6 bits of Kn and fed into S-Box (1 through 8) each S-box is different • S-Box is a (completely defined) substitution that accepts 6 bits and produces 4 bits (mapping is not unique) • the output 32 bits are then permuted to produce Rn+1the idea of the permutation is so that the output of one S-Box affexts the input of multiple S-Boxes in the next round

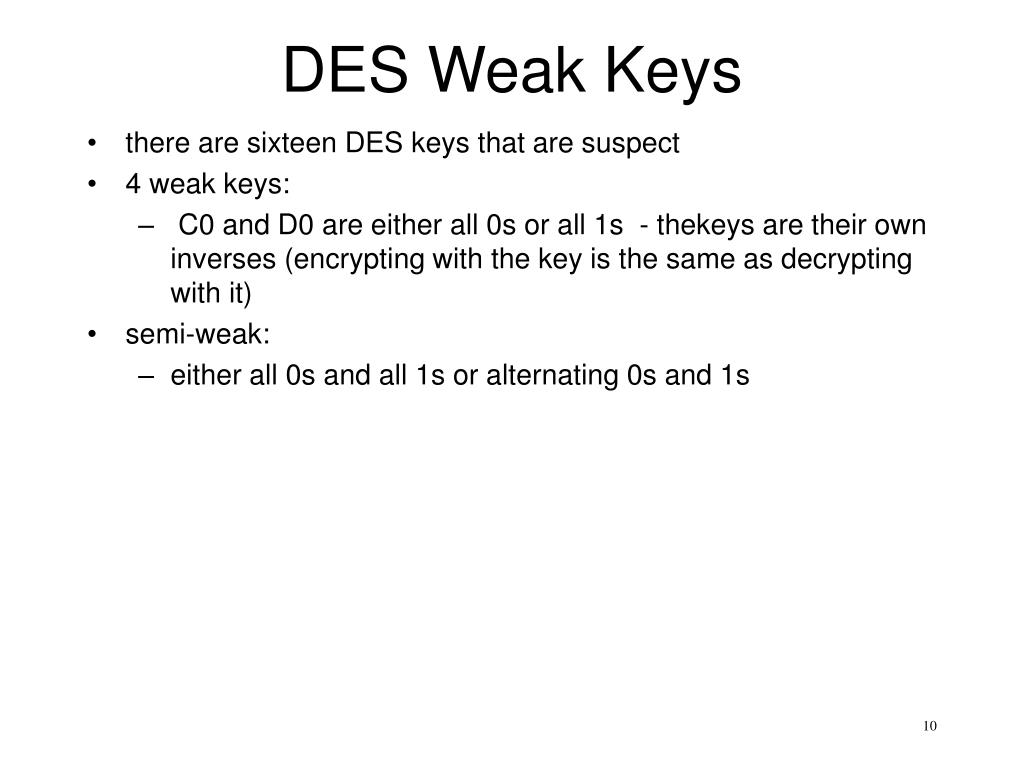

  10. DES Weak Keys • there are sixteen DES keys that are suspect • 4 weak keys: • C0 and D0 are either all 0s or all 1s - thekeys are their own inverses (encrypting with the key is the same as decrypting with it) • semi-weak: • either all 0s and all 1s or alternating 0s and 1s

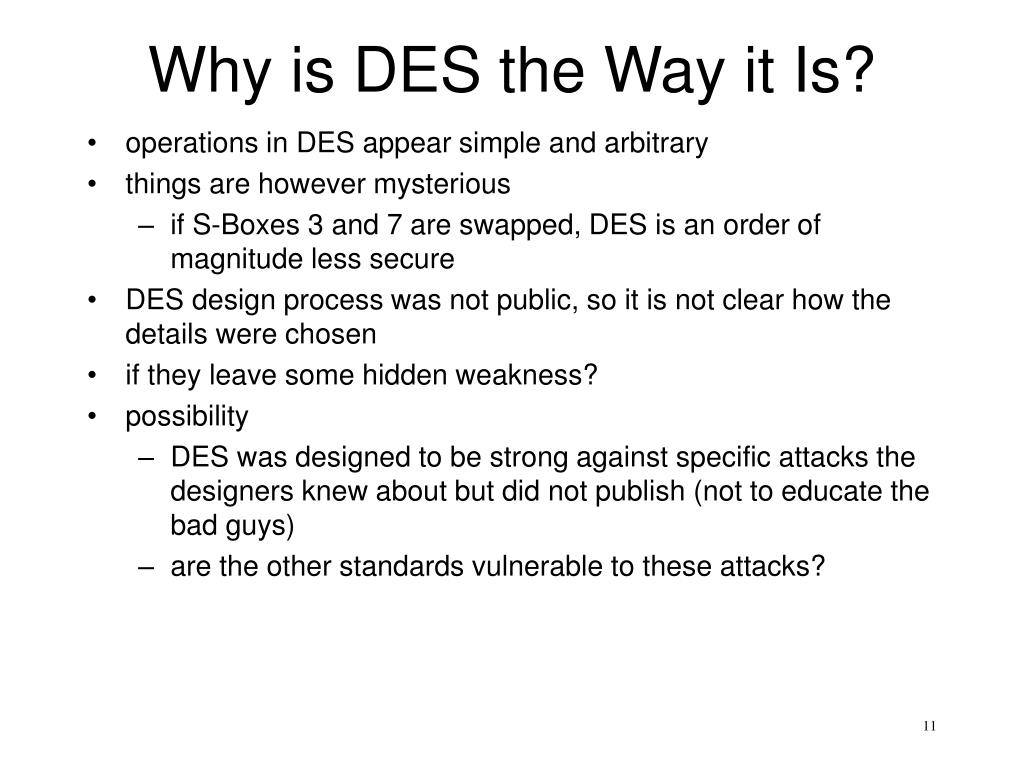

  11. Why is DES the Way it Is? • operations in DES appear simple and arbitrary • things are however mysterious • if S-Boxes 3 and 7 are swapped, DES is an order of magnitude less secure • DES design process was not public, so it is not clear how the details were chosen • if they leave some hidden weakness? • possibility • DES was designed to be strong against specific attacks the designers knew about but did not publish (not to educate the bad guys) • are the other standards vulnerable to these attacks?

  12. IDEA • IDEA = international data encryption standard • devloped by Lai and Massey, 1992 • 64-bit block size, 128-bit key • similar to DES in the sense – operates in rounds, complicated one-way mangler function • 8.5 rounds of: : bitwise XOR +: addition mod 216 : multplication mod 216 + 1 • decryption: same as encryption, with inverse keys • very secure, a bit slow (about the same as DES)

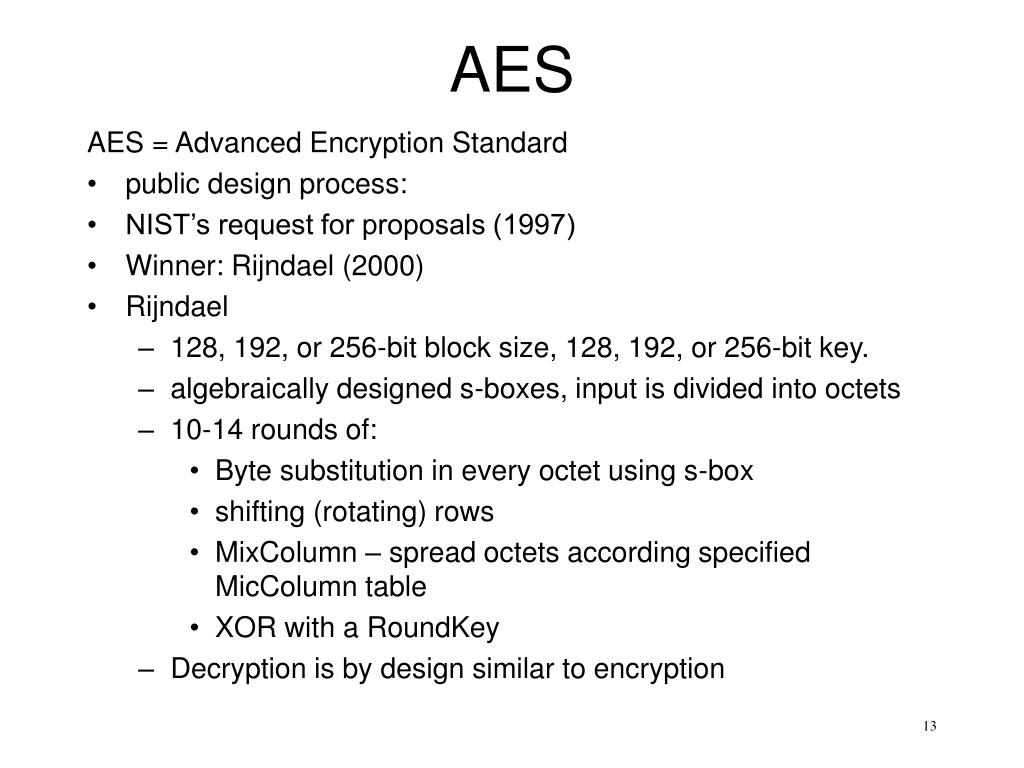

  13. AES AES = Advanced Encryption Standard • public design process: • NIST’s request for proposals (1997) • Winner: Rijndael (2000) • Rijndael • 128, 192, or 256-bit block size, 128, 192, or 256-bit key. • algebraically designed s-boxes, input is divided into octets • 10-14 rounds of: • Byte substitution in every octet using s-box • shifting (rotating) rows • MixColumn – spread octets according specified MicColumn table • XOR with a RoundKey • Decryption is by design similar to encryption
