  1. The Visual System:Retinal Mechanisms Lecture 14

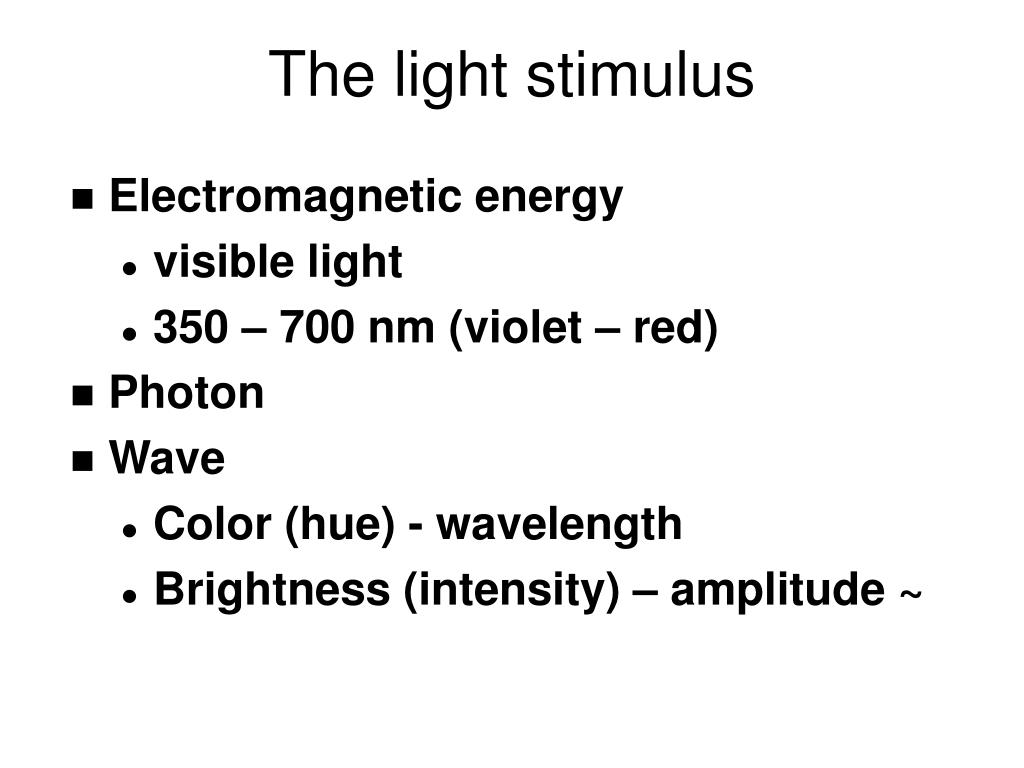

  2. The light stimulus • Electromagnetic energy • visible light • 350 – 700 nm (violet – red) • Photon • Wave • Color (hue) - wavelength • Brightness (intensity) – amplitude ~

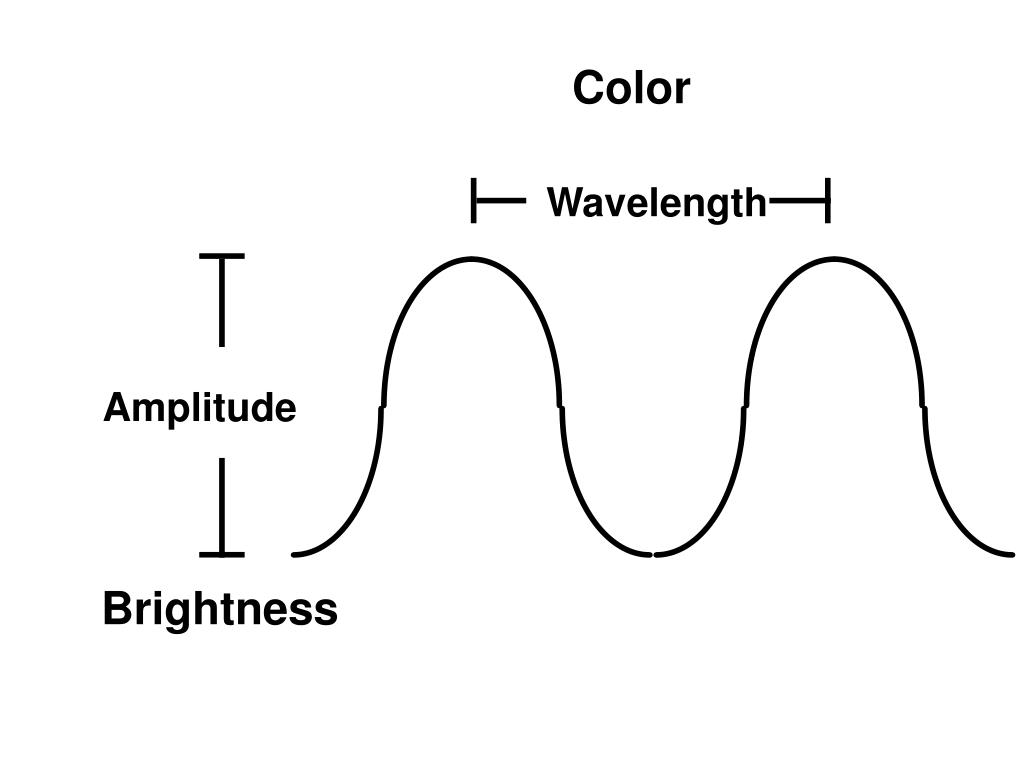

  3. Color Wavelength Amplitude Brightness

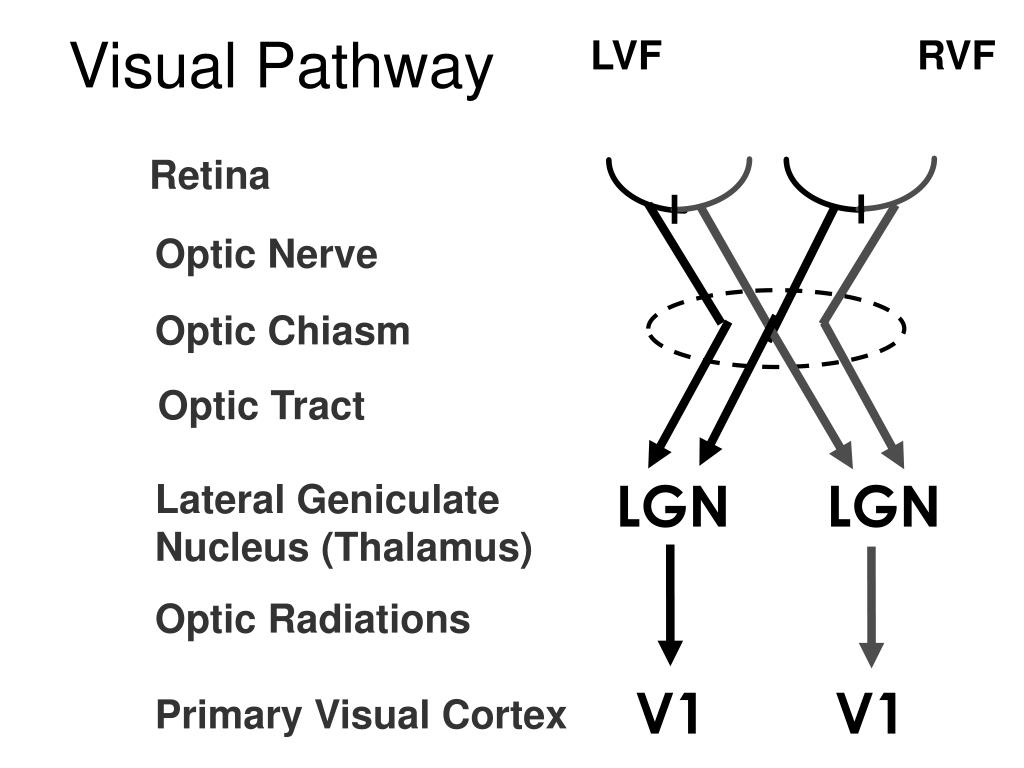

  4. Visual Pathway Optic Nerve Optic Chiasm Optic Tract LGN LGN Lateral Geniculate Nucleus (Thalamus) Optic Radiations V1 V1 Primary Visual Cortex LVF RVF Retina

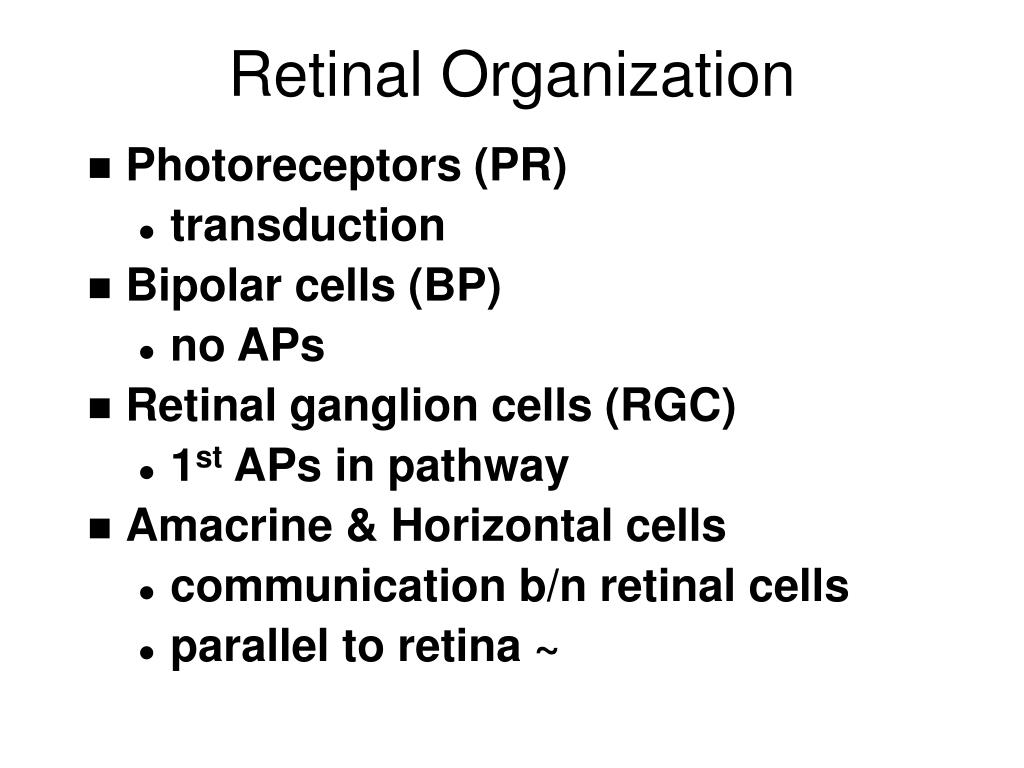

  5. Retinal Organization • Photoreceptors (PR) • transduction • Bipolar cells (BP) • no APs • Retinal ganglion cells (RGC) • 1st APs in pathway • Amacrine & Horizontal cells • communication b/n retinal cells • parallel to retina ~

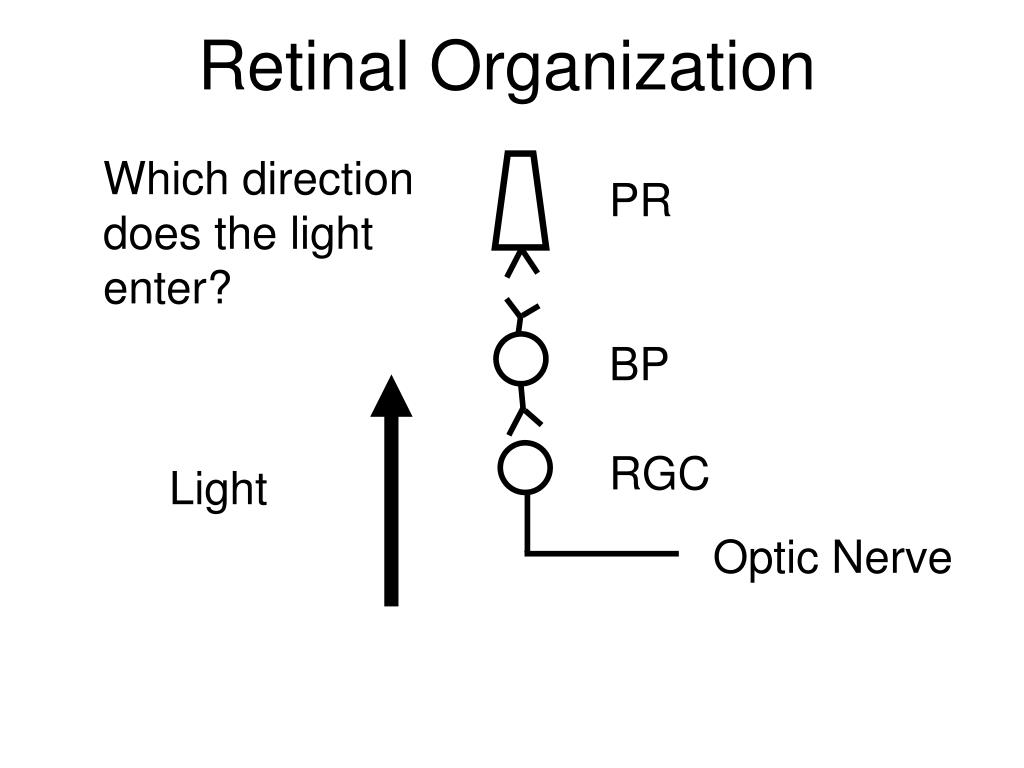

  6. Retinal Organization Light Which direction does the light enter? PR BP RGC Optic Nerve

  7. Photoreceptors (PR) • Transduction • Rods • achromatic • Cones • color ~

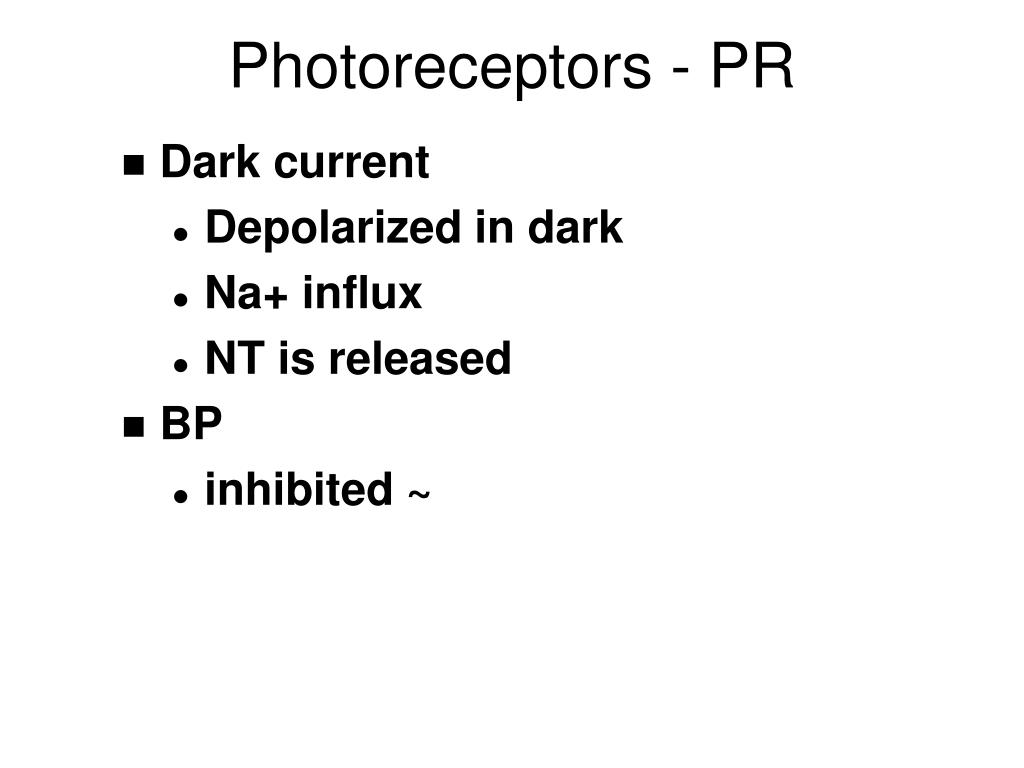

  8. Photoreceptors - PR • Dark current • Depolarized in dark • Na+ influx • NT is released • BP • inhibited ~

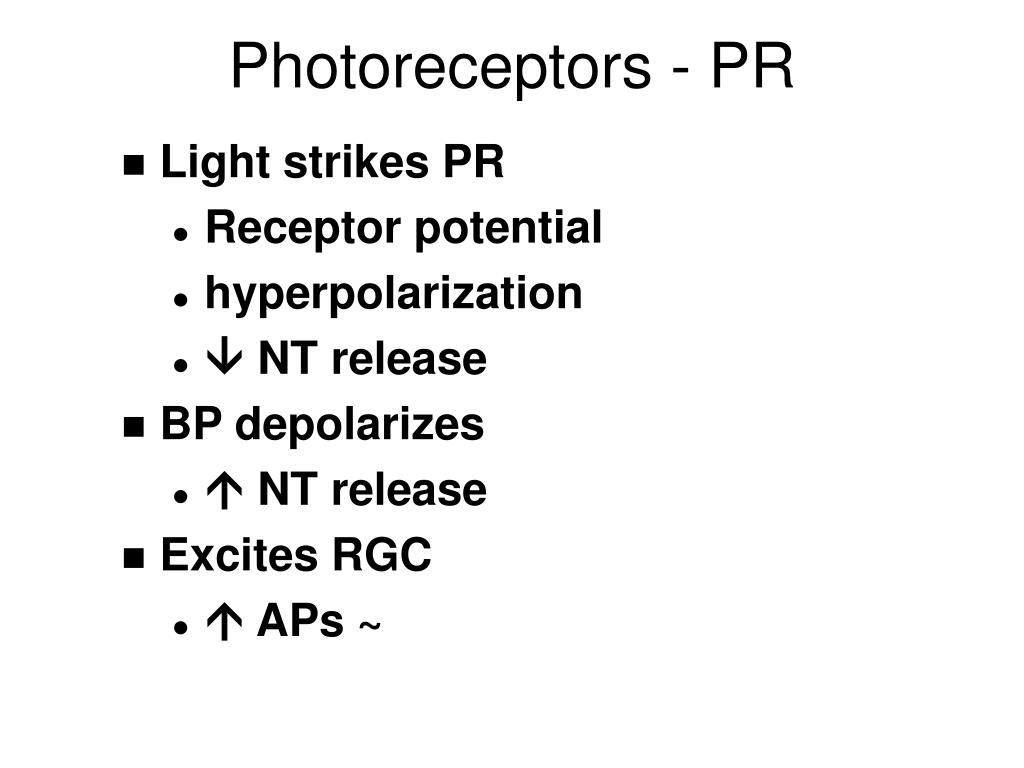

  9. Photoreceptors - PR • Light strikes PR • Receptor potential • hyperpolarization •  NT release • BP depolarizes •  NT release • Excites RGC •  APs ~

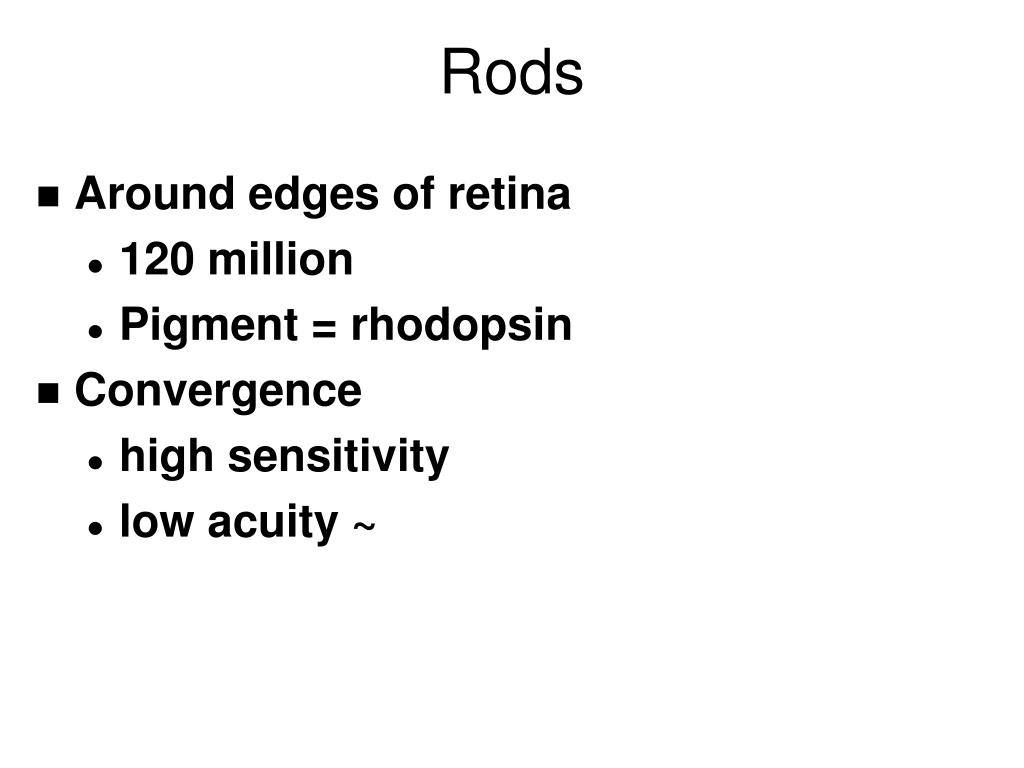

  10. Rods • Around edges of retina • 120 million • Pigment = rhodopsin • Convergence • high sensitivity • low acuity ~

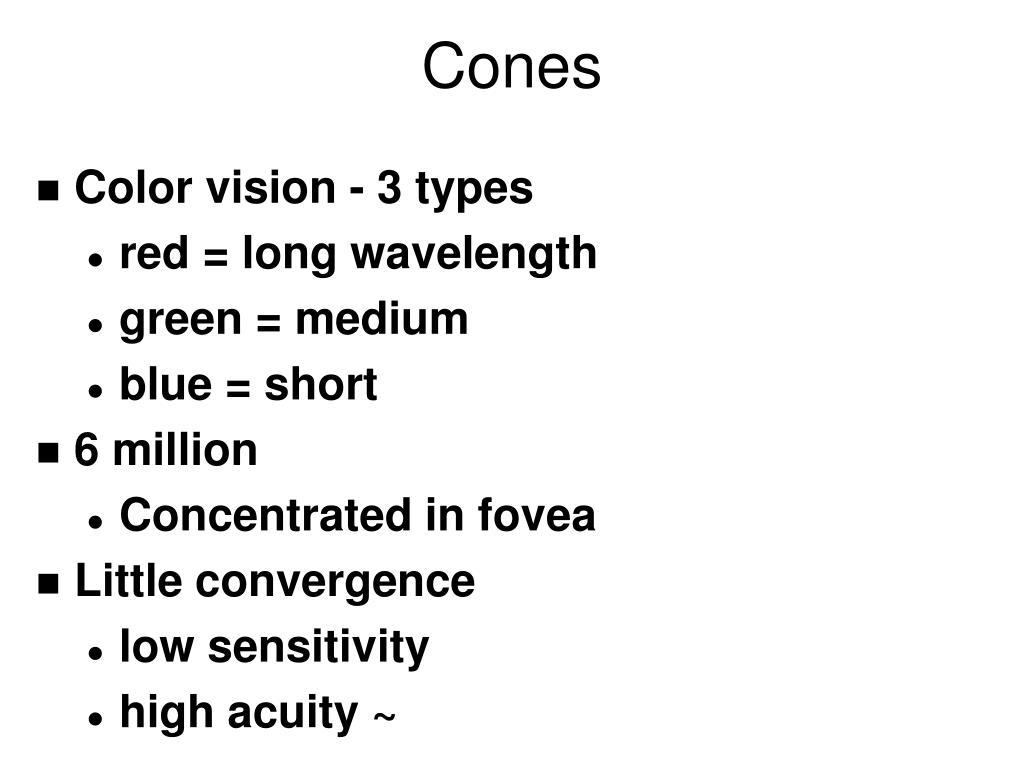

  11. Cones • Color vision - 3 types • red = long wavelength • green = medium • blue = short • 6 million • Concentrated in fovea • Little convergence • low sensitivity • high acuity ~

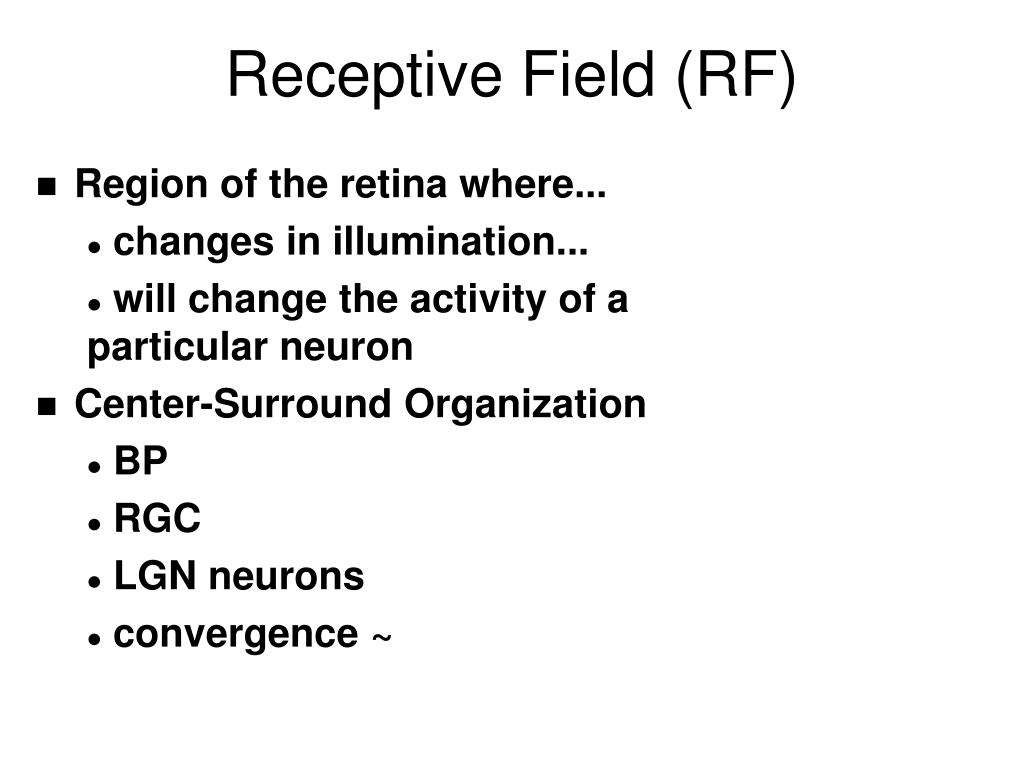

  12. Receptive Field (RF) • Region of the retina where... • changes in illumination... • will change the activity of a particular neuron • Center-Surround Organization • BP • RGC • LGN neurons • convergence ~

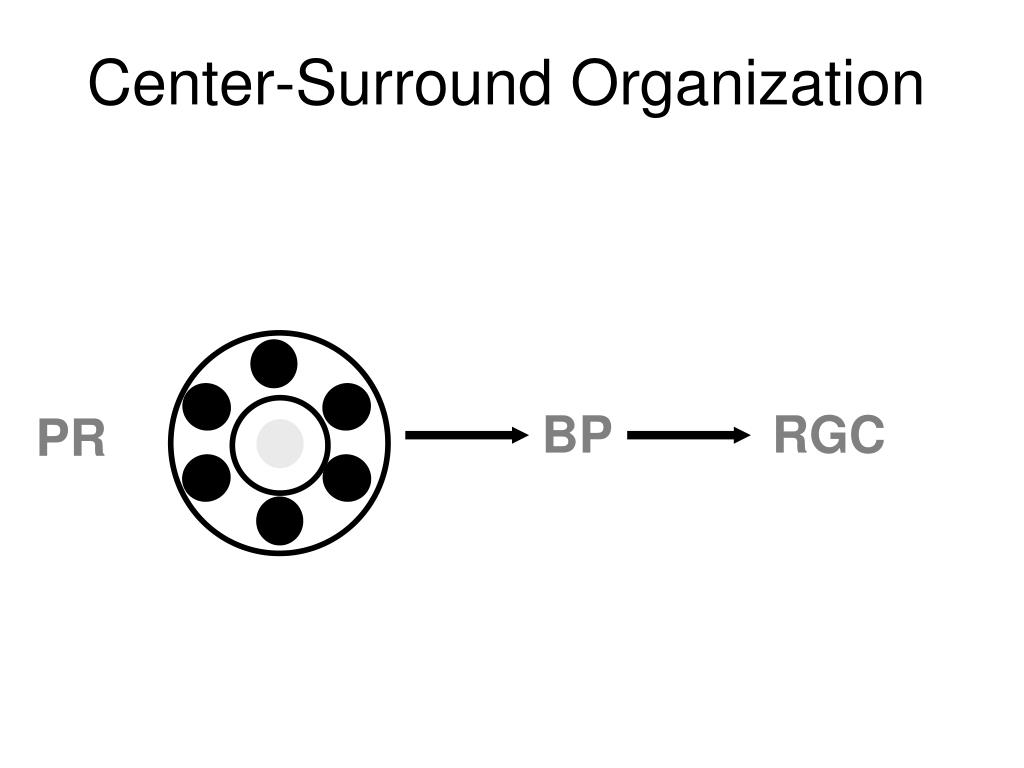

  13. Center-Surround Organization BP RGC PR

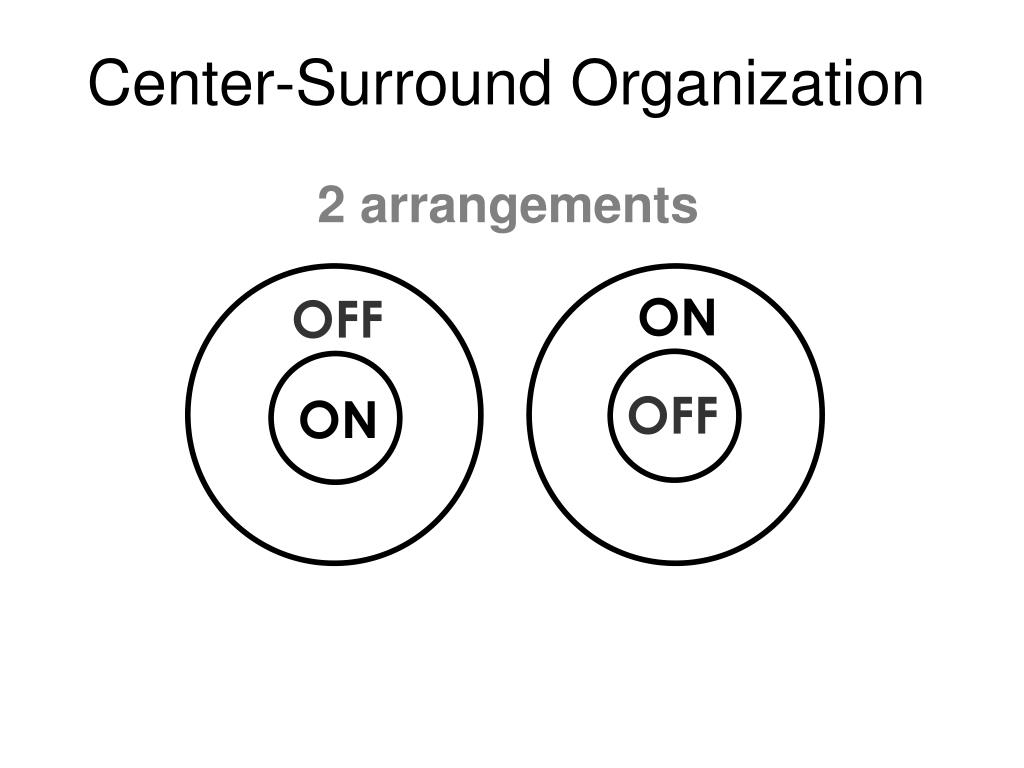

  14. Center-Surround Organization 2 arrangements ON OFF OFF ON

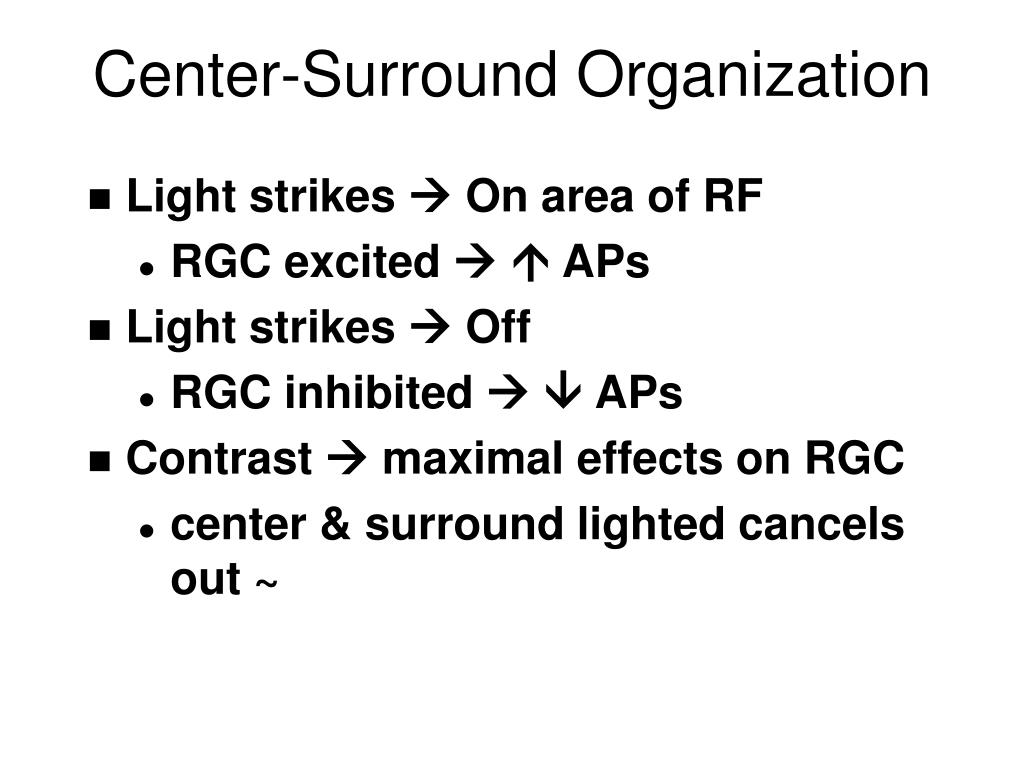

  15. Center-Surround Organization • Light strikes  On area of RF • RGC excited   APs • Light strikes  Off • RGC inhibited   APs • Contrast  maximal effects on RGC • center & surround lighted cancels out ~

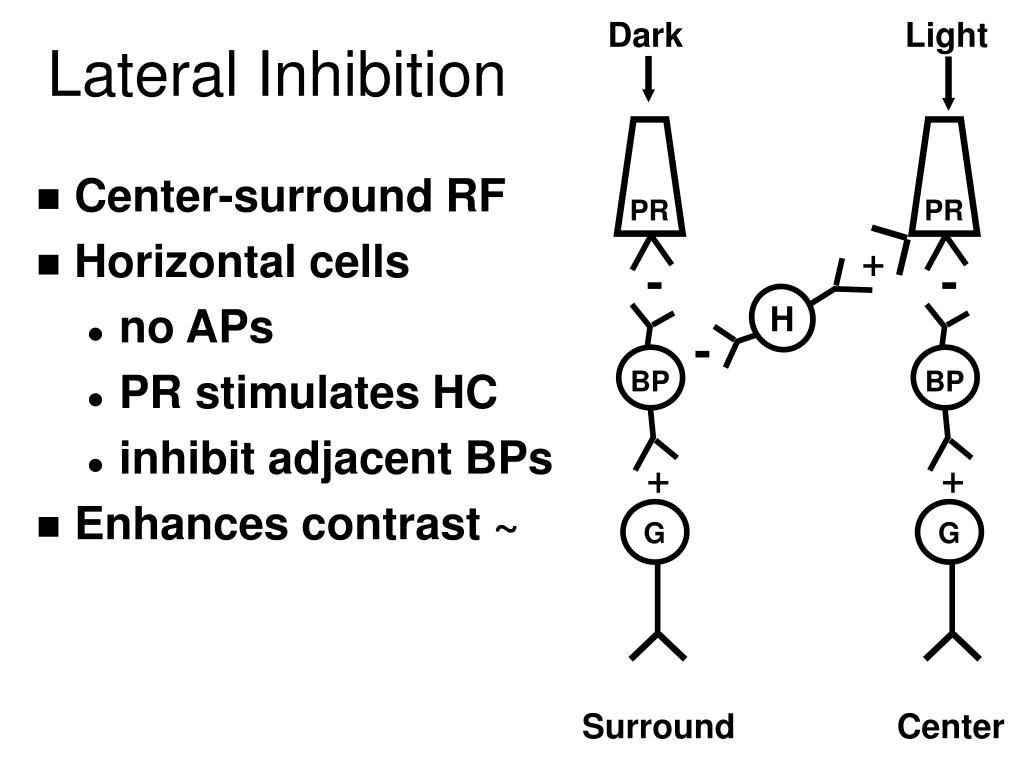

  16. Dark Light PR PR - - H - BP BP + + G G Lateral Inhibition • Center-surround RF • Horizontal cells • no APs • PR stimulates HC • inhibit adjacent BPs • Enhances contrast ~ + Surround Center
