current status of hdf eos maintenance developments and tools

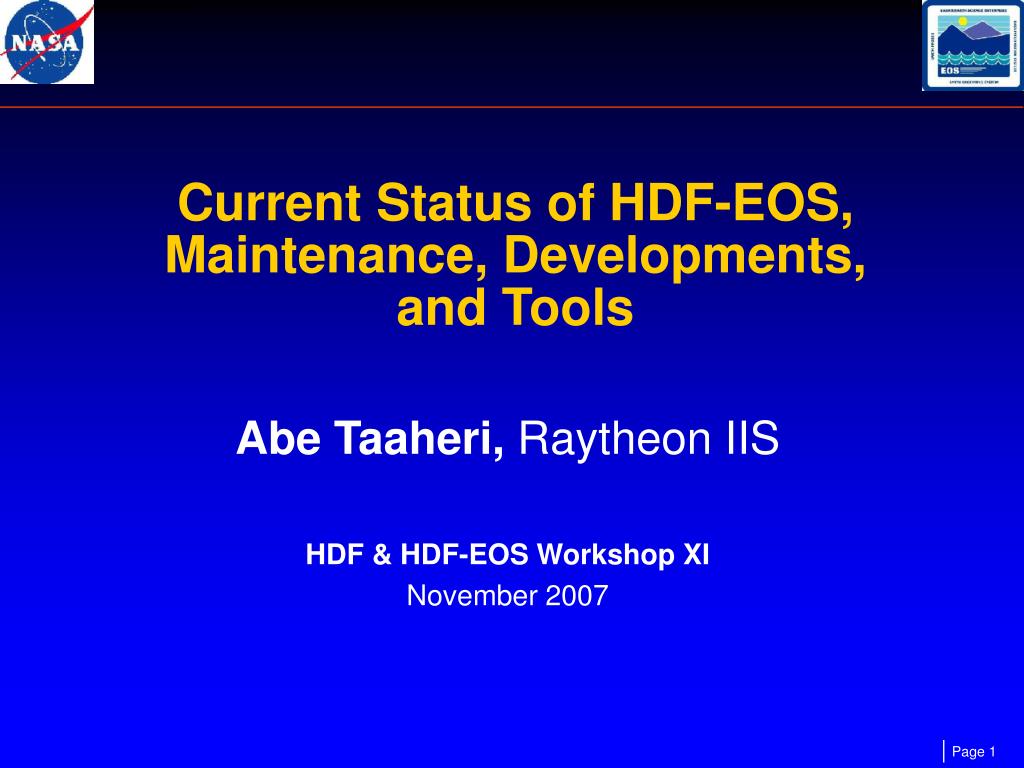

Current Status of HDF-EOS,Maintenance, Developments, and Tools

Abe Taaheri, Raytheon IIS

HDF & HDF-EOS Workshop XI

November 2007

toolkit hdf eos support
TOOLKIT / HDF-EOS Support
  • Maintenance support is funded on EMD Evolution through May 2008
  • One year extension until May 2009
  • Current staff

- One full-time developer for maintaining:

        • SDP/MTD Toolkit
        • HDF-EOS2 & 5
        • HDF-EOS plug-in for HDFView
        • HDF-EOS2 to GeoTIFF Converter (HEG)
        • Other Toolkit/HDF-EOS related software
        • Toolkit/HDF-EOS/HEG helpdesk

- One half-time developer for HEG maintenance

ecs support of hdf eos
ECS Support of HDF-EOS
  • Both HDF4 and HDF5 based flavors of HDF-EOS are part of ECS baseline.
  • OS’s: Solaris (9, 10), Irix6.5 (64, n32), Windows XP,

Linux (including 64-bit Opteron and Itanium),

Mac OS X (MTD Toolkit, HDF-EOS2 & 5)

(Dropped support for Solaris 8, HP, HP11, Dec, IBM for next release)

  • adding Mac Intel support for 2007 release and full Cygwin support for 2008
  • Compilers: Fortran 77/90 & g77/pgf90 , C, C++, gcc, g++
downloadable software and applications

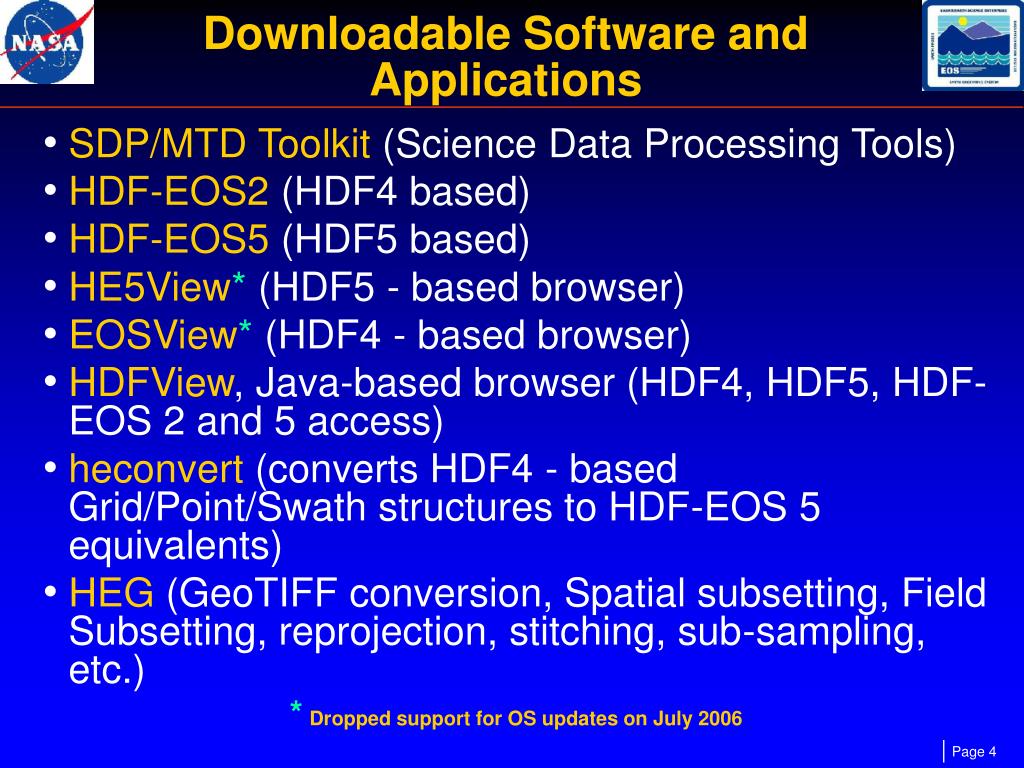

Downloadable Software and Applications
  • SDP/MTD Toolkit (Science Data Processing Tools)
  • HDF-EOS2 (HDF4 based)
  • HDF-EOS5 (HDF5 based)
  • HE5View*(HDF5 - based browser)
  • EOSView*(HDF4 - based browser)
  • HDFView, Java-based browser (HDF4, HDF5, HDF-EOS 2 and 5 access)
  • heconvert (converts HDF4 - based Grid/Point/Swath structures to HDF-EOS 5 equivalents)
  • HEG (GeoTIFF conversion, Spatial subsetting, Field Subsetting, reprojection, stitching, sub-sampling, etc.)

*Dropped support for OS updates on July 2006

software releases
Software Releases

Toolkit/HDF-EOS:

  • Last release – March 2006

- TOOLKIT 5.2.14, HDF-EOS 2.14, HDF-EOS5.1.10

- with HDF4.2r1, HDF5-1.6.5-post5, Szip2.0

  • Next release – November 2007

- TOOLKIT 5.2.15, HDF-EOS 2.15, HDF-EOS5.1.11

- with new releases of HDF4, HDF5, and SZIP

HDF-EOS Plug-in for HDFView:

  • Last release – May 2006
    • Version 2.3
  • Next release – Dec. 2007
    • HDFView2.4 was released October 31 by The HDF Group
software releases cont
Software Releases (Cont.)

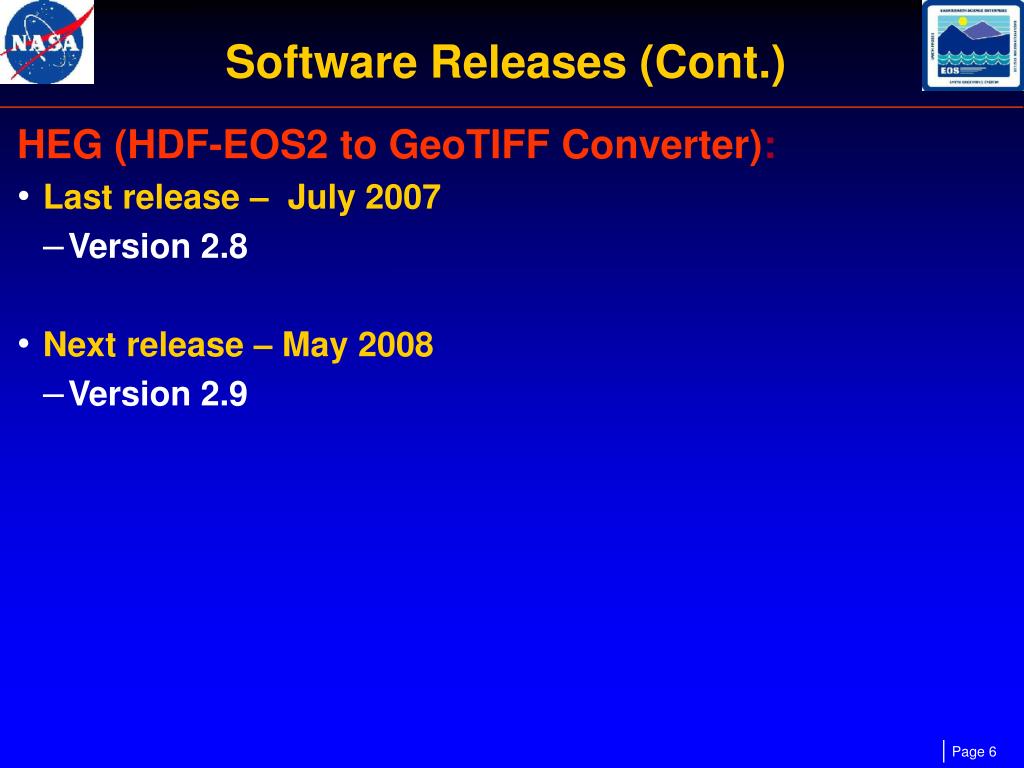

HEG (HDF-EOS2 to GeoTIFF Converter):

  • Last release – July 2007
    • Version 2.8
  • Next release – May 2008
    • Version 2.9
sdp toolkit
SDP Toolkit
  • Science Data Production (SDP) Toolkit is a collection of tools used by

- Science software developers who produce

code to process instrument data.

- HDF-EOS userswho need to

          • Access metadata in HDF-EOS files
          • Perform Time/Date conversion
          • Access Digital Elevation Model Data
          • Access Ancillary Data, such as Digital Chart

of the World database (DCW), Olson World Ecosystem files, DEM data files, etc.

sdp toolkit cont

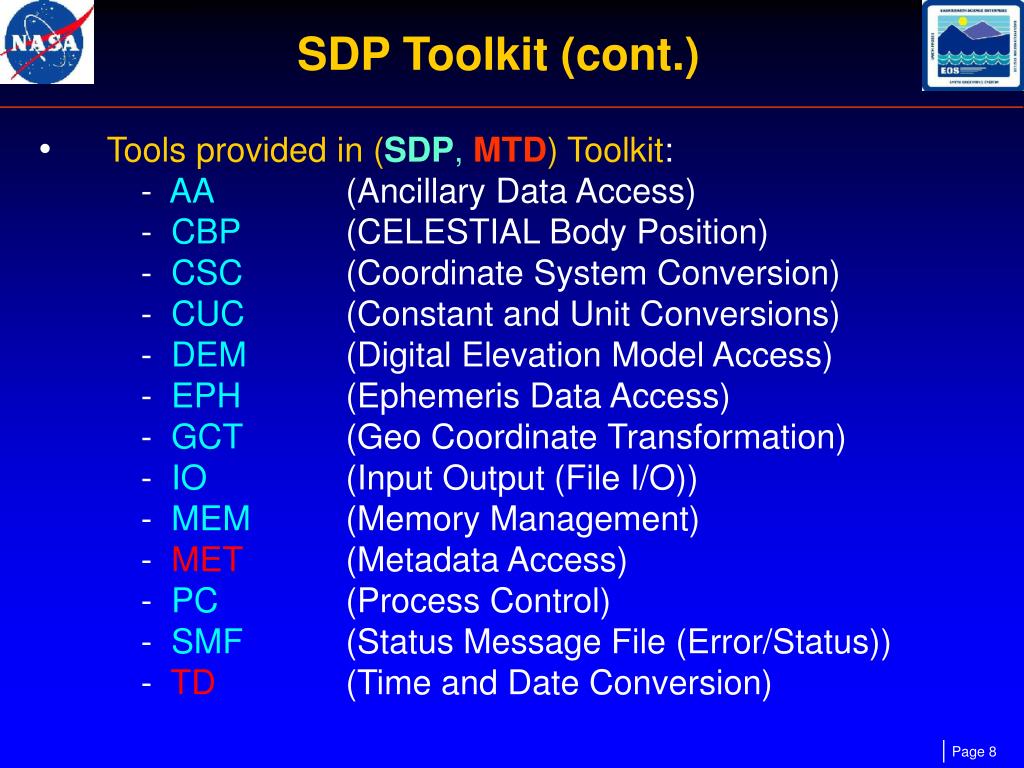

SDP Toolkit (cont.)
  • Tools provided in (SDP, MTD) Toolkit:

- AA (Ancillary Data Access)

- CBP (CELESTIAL Body Position)

- CSC (Coordinate System Conversion)

- CUC (Constant and Unit Conversions)

- DEM (Digital Elevation Model Access)

- EPH (Ephemeris Data Access)

- GCT (Geo Coordinate Transformation)

- IO (Input Output (File I/O))

- MEM (Memory Management)

- MET (Metadata Access)

- PC (Process Control)

- SMF (Status Message File (Error/Status))

- TD (Time and Date Conversion)

what is hdf eos

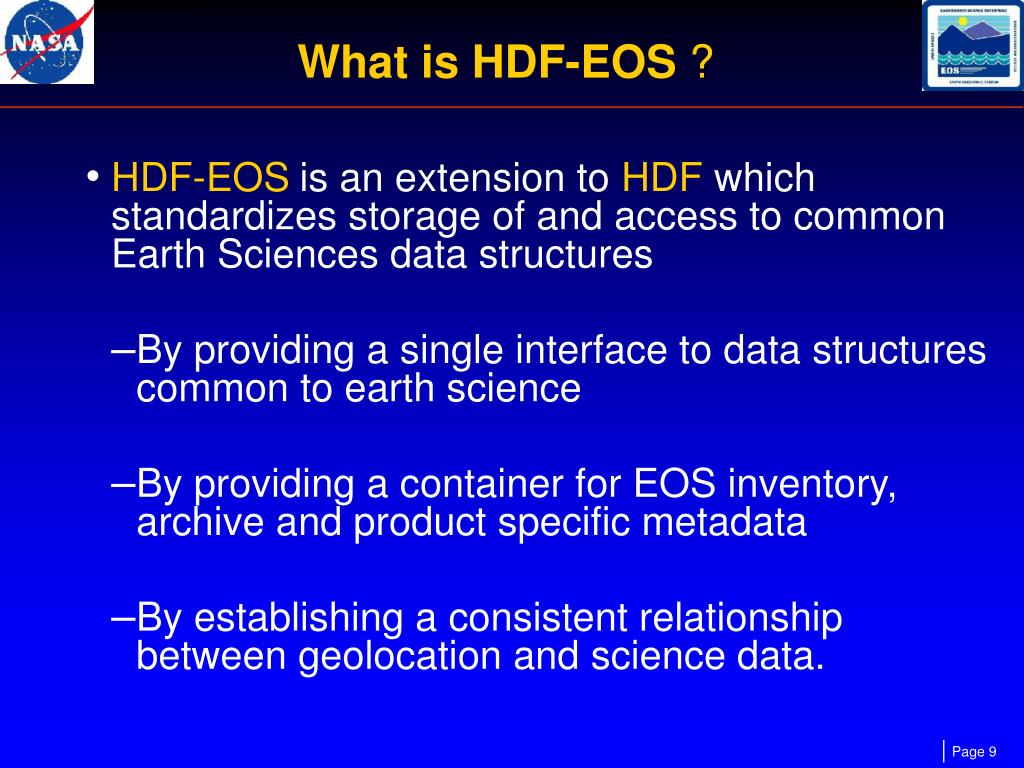

What is HDF-EOS ?
  • HDF-EOSis an extension to HDF which standardizes storage of and access to common Earth Sciences data structures
    • By providing a single interface to data structures common to earth science
    • By providing a container for EOS inventory, archive and product specific metadata
    • By establishing a consistent relationship between geolocation and science data.
hdf eos 2
HDF-EOS 2
  • HDF4 - based, storage format for EOS standard products.
  • Used operationally by MODIS, MISR, ASTER, Landsat, AIRS and other EOS instruments
  • Support for Grid/Point/Swath structures
  • HDF4 and HDF-EOS 2 will be supported by THG/NASA for the fore-seeable future.
hdf eos 5
HDF-EOS 5
  • Based on HDF5, a complete rewrite of HDF-EOS2 with a different user interface.
    • First released in 2000.
    • Format used byEOS Aurainstruments
  • Designed to ‘resemble’ HDF-EOS 2 to the maximum extent possible.
    • Supports same data structures
    • Added prefix ‘HE5_’ to HDF-EOS 2 functions.

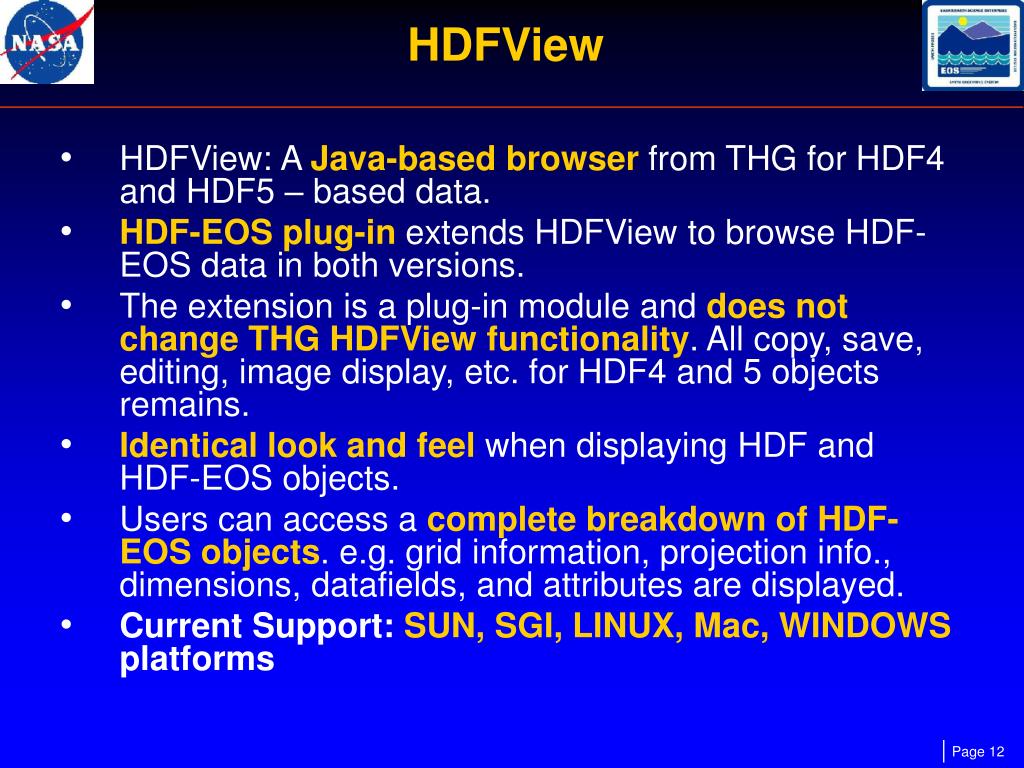

hdfview

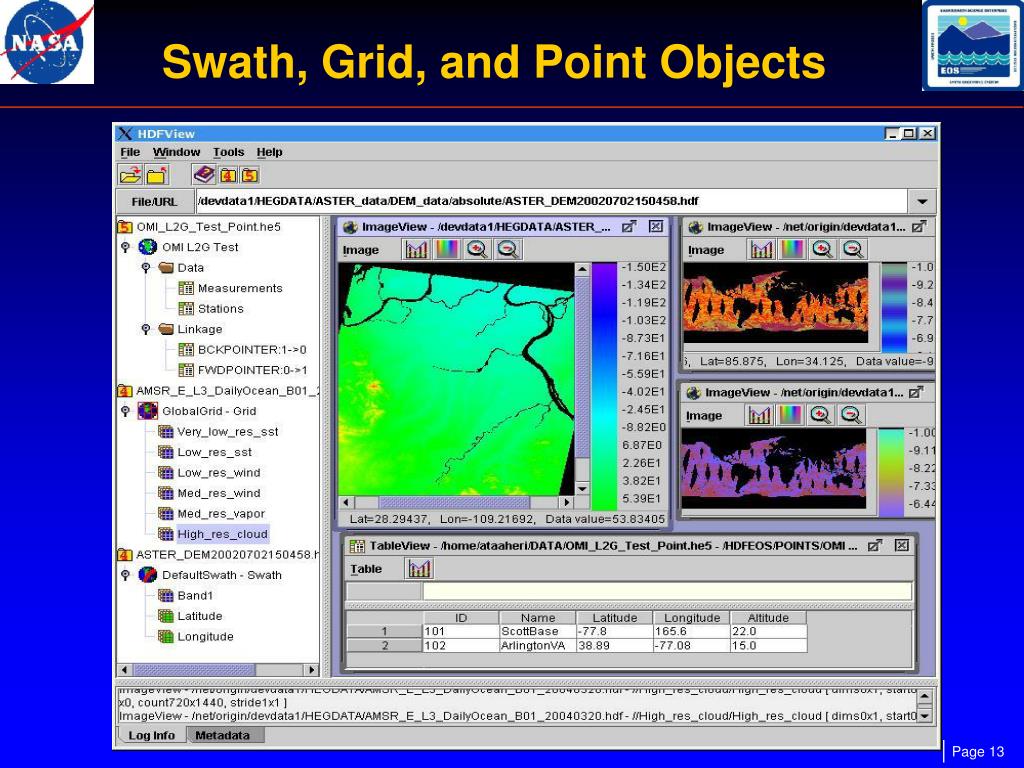

HDFView
  • HDFView: A Java-based browser from THG for HDF4 and HDF5 – based data.
  • HDF-EOS plug-in extends HDFView to browse HDF-EOS data in both versions.
  • The extension is a plug-in module and does not change THG HDFView functionality. All copy, save, editing, image display, etc. for HDF4 and 5 objects remains.
  • Identical look and feel when displaying HDF and HDF-EOS objects.
  • Users can access a complete breakdown of HDF-EOS objects. e.g. grid information, projection info., dimensions, datafields, and attributes are displayed.
  • Current Support: SUN, SGI, LINUX, Mac, WINDOWS platforms

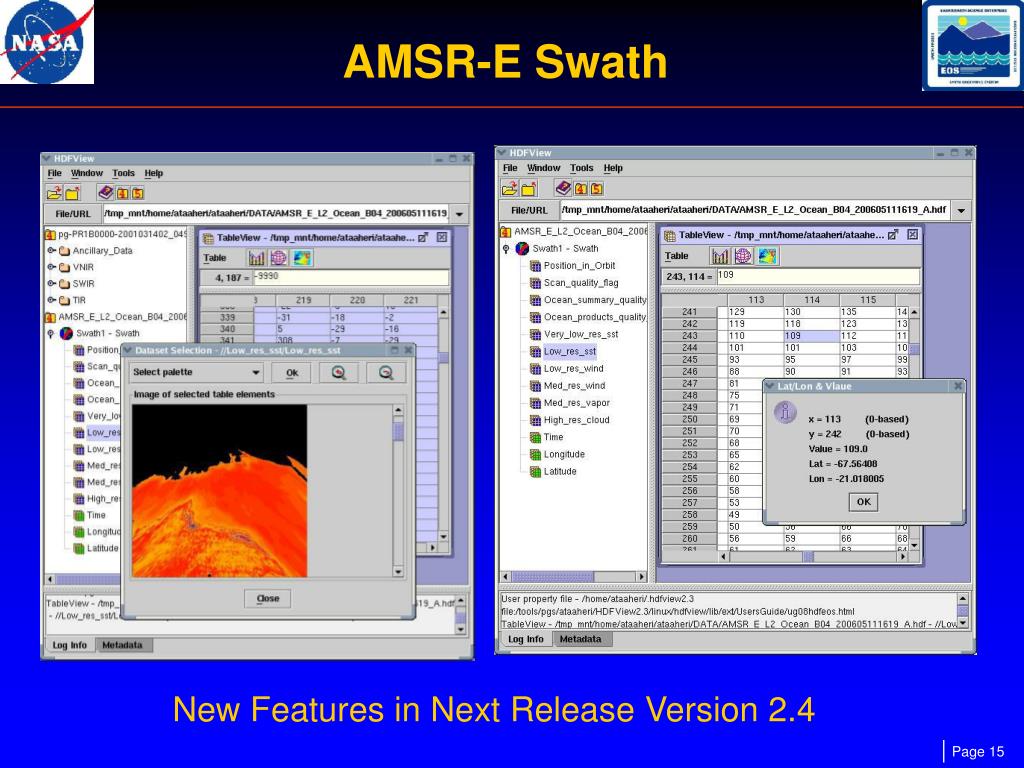

amsr e swath
AMSR-E Swath

New Features in Next Release Version 2.4

slide16

HDF-EOS to GeoTIFF Converter (HEG)

HEG: Utility that converts EOSDIS data from

HDF-EOS format to common Geographical

Information System (GIS)-compatible formats.

  • Two versions available:
    • A downloadable desktop version
    • Access through NASA archive online storage (Data Pools)
    • Implemented also in prototypes for Stand-alone Data Pool, OGC (Open Geospatial Consortium) for Web Services Chaining, and DOWS (Deploy OGC Web Services) on the DAACs
heg functionality

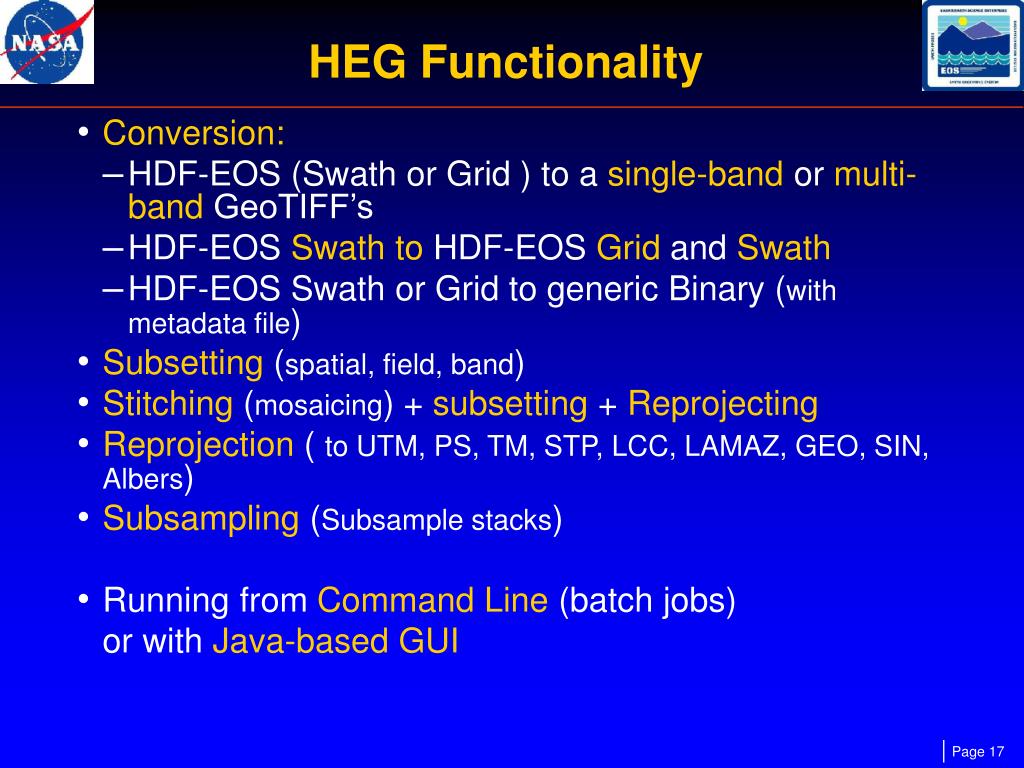

HEG Functionality
  • Conversion:
    • HDF-EOS (Swath or Grid ) to a single-band or multi-band GeoTIFF’s
    • HDF-EOS Swath toHDF-EOS GridandSwath
    • HDF-EOS Swath or Grid to generic Binary (with metadata file)
  • Subsetting (spatial, field, band)
  • Stitching (mosaicing) + subsetting + Reprojecting
  • Reprojection ( to UTM, PS, TM, STP, LCC, LAMAZ, GEO, SIN, Albers)
  • Subsampling (Subsample stacks)
  • Running from Command Line (batch jobs)

or with Java-based GUI

heg functionality1
HEG Functionality
  • Metadata preservation/creation.
  • Currently supports MODIS, MISR, ASTER, AIRS and AMSR-E products on TERRA and AQUA (>110 products),
  • Allows file selection from users local storage
  • Operable on Sun, SGI, Win, Linux, MAC
  • Integrated into ECS Data Pool
    • Reduces the transfer time of HDF-EOS data sets (if subset is requested)
    • Provides the end-user with the exact file required by their application
  • User Interface
    • Portable, written in Java.
    • Not dependent on COTS (eg. IDL).

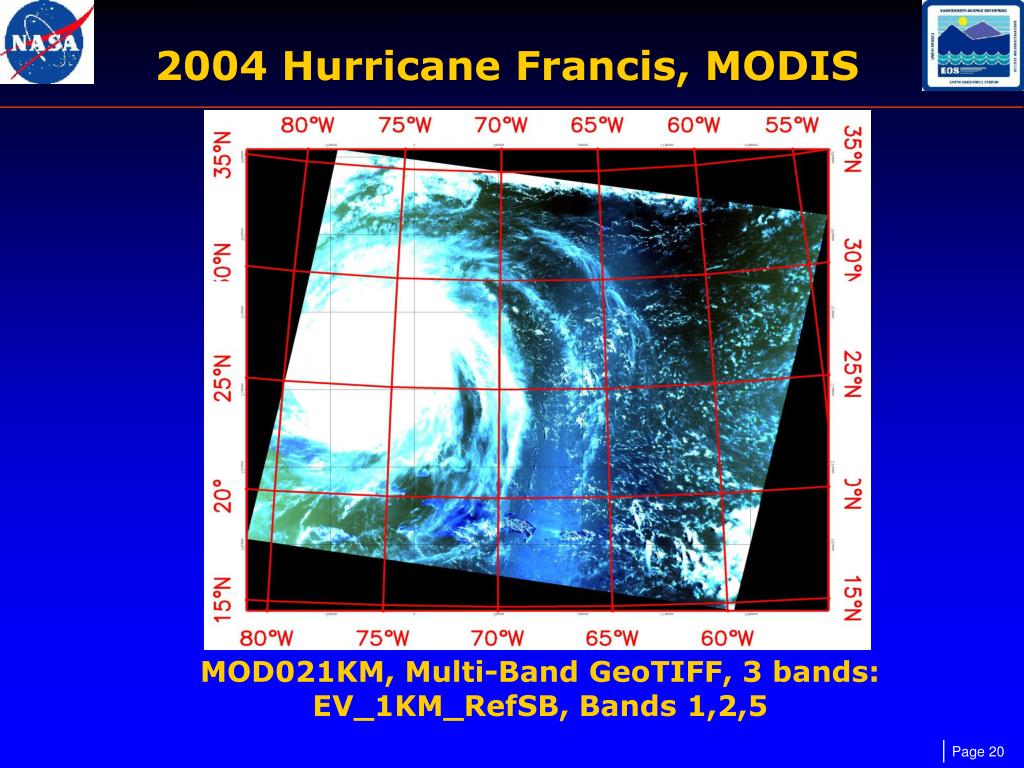

2004 hurricane francis modis
2004 Hurricane Francis, MODIS

MOD021KM, Multi-Band GeoTIFF, 3 bands: EV_1KM_RefSB, Bands 1,2,5

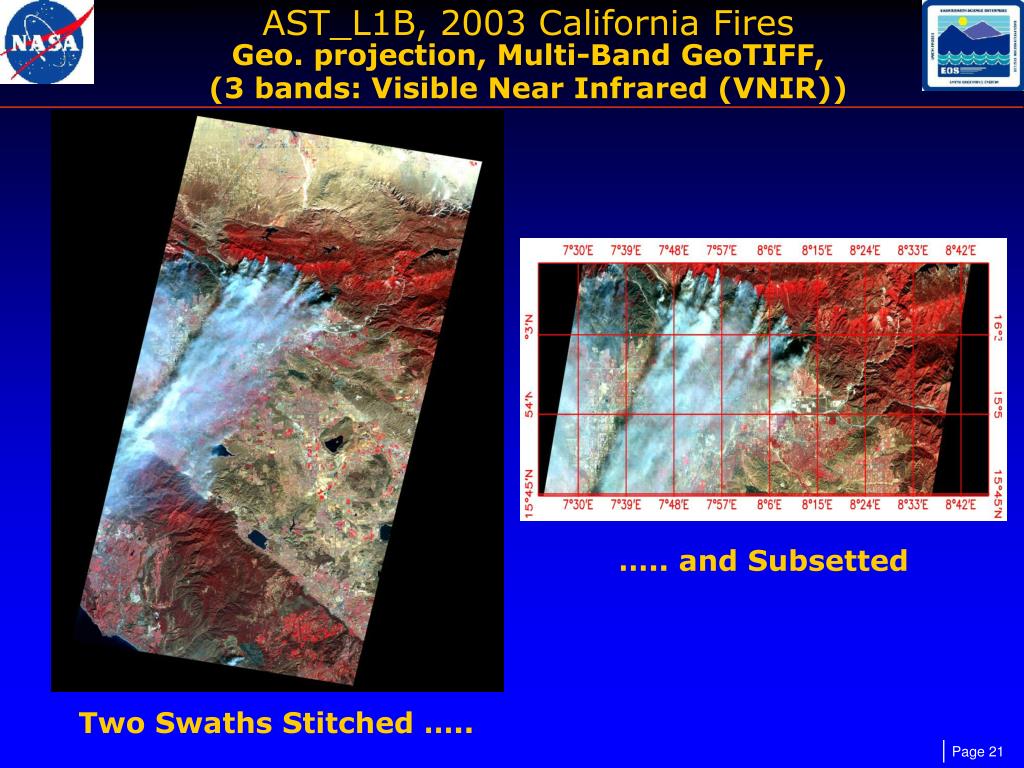

ast l1b 2003 california fires geo projection multi band geotiff 3 bands visible near infrared vnir
AST_L1B, 2003 California FiresGeo. projection, Multi-Band GeoTIFF, (3 bands: Visible Near Infrared (VNIR))

….. and Subsetted

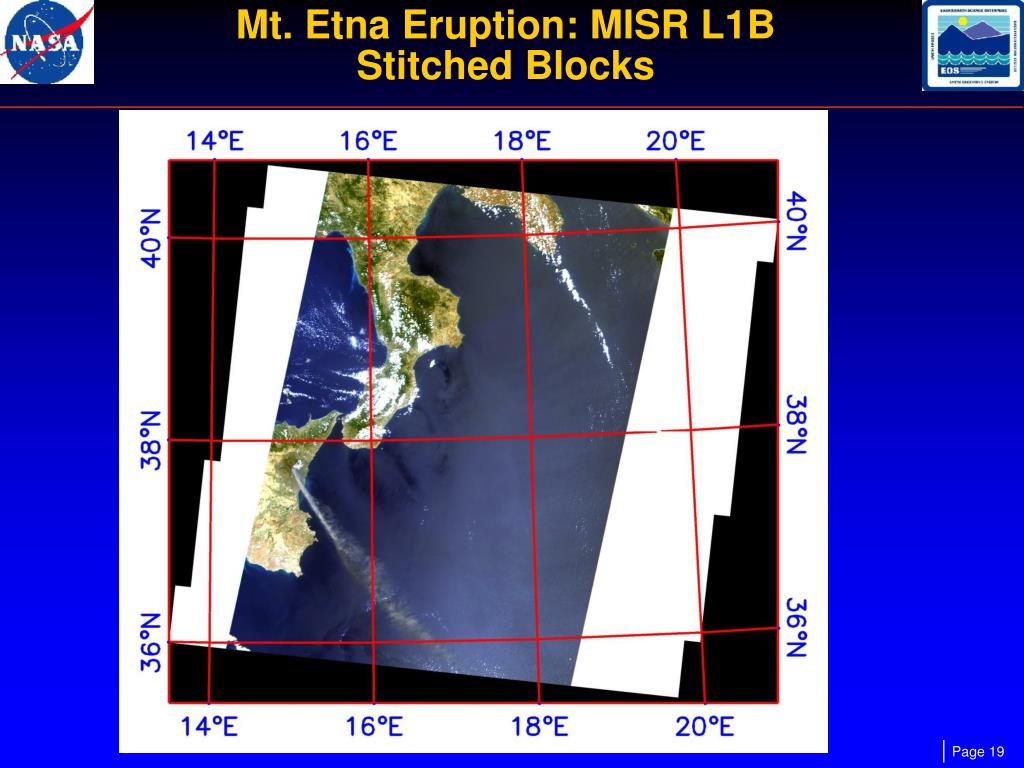

Two Swaths Stitched …..

slide22

Major Development/Fixes

Next Release: November 2007

  • SZIP Insatallation: Default decoder, Choice for encoder
  • Choice for configuring HDF4 with/without SZIP
  • Choice for disabling HDF4’s internal netCDF
  • Choice for installing Toolkit/HDF-EOS in 32 or 64-bit modes in 64-bit Linux platforms
  • Support for new releases of HDF4/HDF5/SZIP

(HDF4.2r2, HDF5-1.6.6, SZIP-2.1)

  • Installation fix for a problem caused by limits.h in some Linux platforms
  • Auto Configuration capability (like HDF) added for both

HDF-EOS2 and HDF-EOS5

  • Support for Mac Intel platform. Drop of support for Sun5.8, Dec, HP, HP 11, IBM
  • Fixes for Lat/Lon to pixel conversions in DEM tools for Linux to get results similar to those in Unix platforms
major development fixes cont
Major Development/Fixes (cont.)

HDF-EOS Plug-in for HDFView:

Current Support: SUN, SGI, LINUX, WINDOWS, and MAC platforms

Last Release: Version 2.3

  • Display Point Objects
  • Display pixel's lat/lon for swath and grid images
  • Scientific notation in Table data

Next Release: Version 2.4

  • Auto installation of plug-in into HDFView running self-extracting archives.
  • Display image for selected pixels in the viewed tables
  • Display Lat/Lon for a selected pixel in the data field tables
  • Mac OSX fixes for one-button mice
  • Better display of Plug-in User’s Guide
  • New icons for activating Lat/Lon display for Swath & Grid
major development fixes cont1
Major Development/Fixes (cont.)

HEG: Last Release (Version 2.8)

  • Added Support for:

MOD02SSH, MYD02SSH, MOD14A1.v005, MYD14A1.005

MOD29P1D.V005, MOD08_M3.v005, MOD11_L2.v005

AMSR-E Snow and Ice, AMSR-E Ocean

  • MISR Bug fixes & enhancements:
    • Added “No-reprojection” for ouput in SOM projection
    • Added “Nearest Neighbour” for sampling type
    • Fixed problem with missing metadata for HDF-EOS outputs
  • Added Albers Projection
  • New "Subsetter" functionality for Parameters (aka Fields). This results in:
    • Output to HDF-EOS SWATH from input HDF-EOS SWATH
    • No alteration of input data because of projection operation.
hdf eos toolkit
HDF-EOS/Toolkit

Future Plans:

  • Auto Configuration for TOOLKIT
  • Full Support for Cygwin platform
  • Support for HDF5-1.8
  • Performance improvement, if possible, for reading HDF

format ephemeris/attitude files in Toolkit

  • Performance improvement in HDF-EOS5 by redesigning some functions
  • More functionalities in HDF-EOS Plug-in for HDFView:

- Format conversion: HDF-EOS2 -> HDF-EOS5

- Improved Help Window

- Ability to modify input HDF-EOS2 granules.

- Ability to cut/paste objects, modify/delete attributes.

- Ability to create new grids/swaths

availability

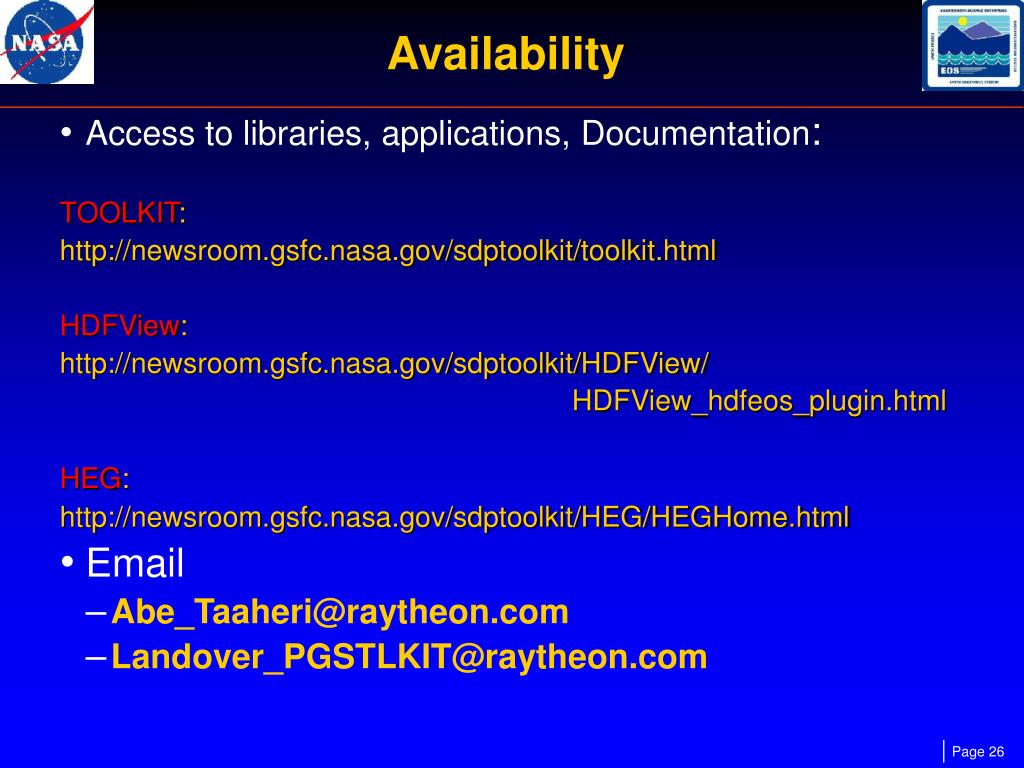

Availability
  • Access to libraries, applications, Documentation:

TOOLKIT:

http://newsroom.gsfc.nasa.gov/sdptoolkit/toolkit.html

HDFView:

http://newsroom.gsfc.nasa.gov/sdptoolkit/HDFView/

HDFView_hdfeos_plugin.html

HEG:

http://newsroom.gsfc.nasa.gov/sdptoolkit/HEG/HEGHome.html

  • Email
    • Abe_Taaheri@raytheon.com
    • Landover_PGSTLKIT@raytheon.com
slide28

Major Development/Fixes

Last Release

HDF-EOS5:

  • Added a routine to return list of aliases for a field
  • Used HDF5’s H5T_C_S1 datatype for string type
  • Added Fortran wrapper for SWwritedatameta() routine
  • Replaced symbol “H5E_NONE_MAJOR” with other symbols for better description of errors
  • Ported to Solaris 9 and Solaris 10
  • Fixed POINT object for:

- linkage between levels

- updating levels

- writing Forward and Backward Linkage data

- char field inquiry

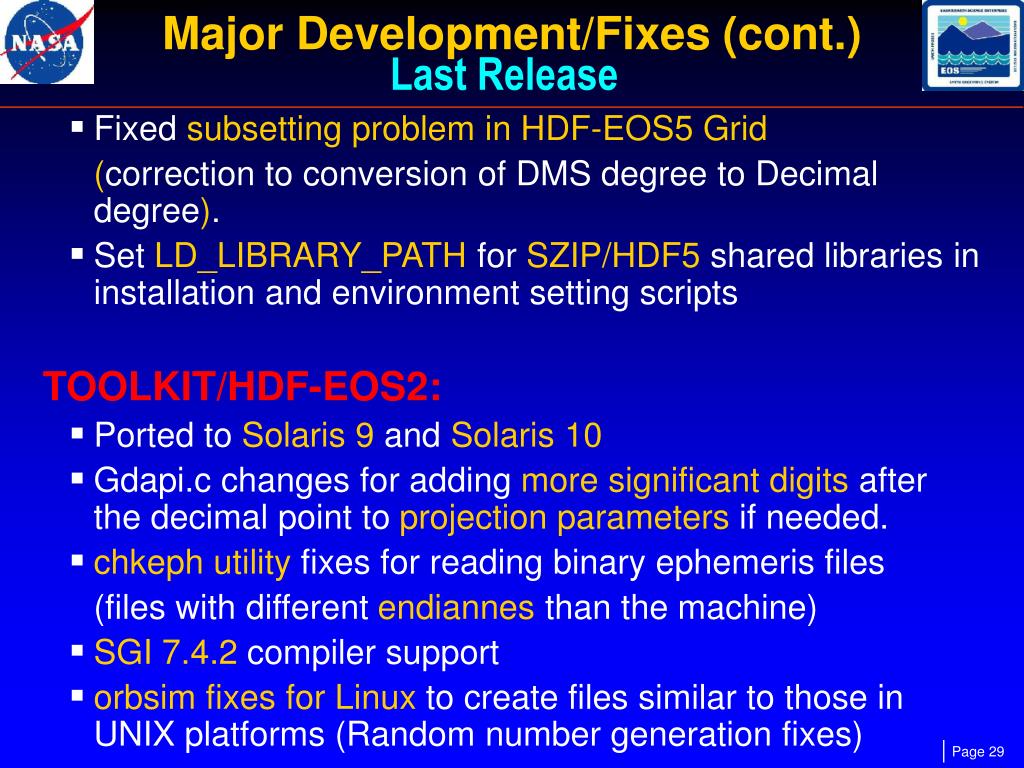

slide29

Major Development/Fixes (cont.)

Last Release

  • Fixed subsetting problem in HDF-EOS5 Grid

(correction to conversion of DMS degree to Decimal degree).

  • Set LD_LIBRARY_PATH for SZIP/HDF5 shared libraries in installation and environment setting scripts

TOOLKIT/HDF-EOS2:

  • Ported to Solaris 9 and Solaris 10
  • Gdapi.c changes for adding more significant digits after the decimal point to projection parameters if needed.
  • chkeph utilityfixes for reading binary ephemeris files

(files with different endiannes than the machine)

  • SGI 7.4.2 compiler support
  • orbsim fixes for Linuxto create files similar to those in UNIX platforms (Random number generation fixes)
