slide1

WEMESURF

Modeling Fretting Contact Mechanisms

Ecole des Mines de Paris

6th WEMESURF Meeting – Radom

Baris A. YAZICI

slide2

WEMESURF

Overview:

  • FE Modeling (General View)
  • Modeling Fretting – 1st approach: Modeling Surface Roughness
  • 2D Analytical & FE Solution
  • 3D Analytical & FE Solution

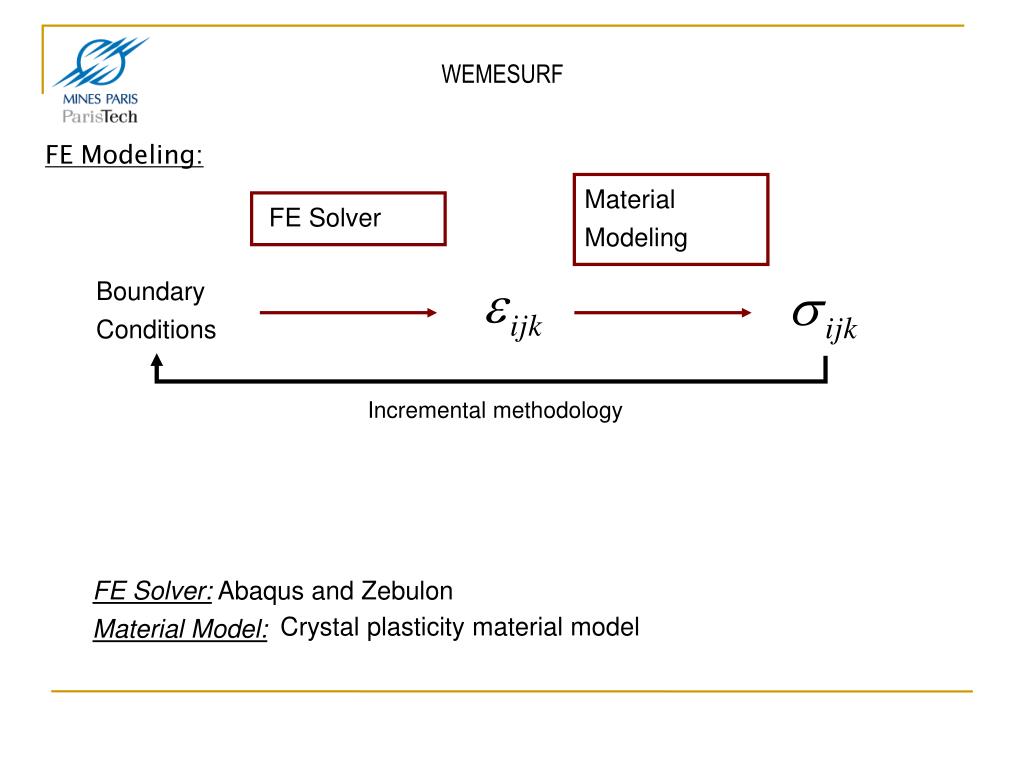

slide3

WEMESURF

FE Modeling:

Material Modeling

FE Solver

Boundary

Conditions

Incremental methodology

FE Solver: Abaqus and Zebulon

Material Model:

Crystal plasticity material model

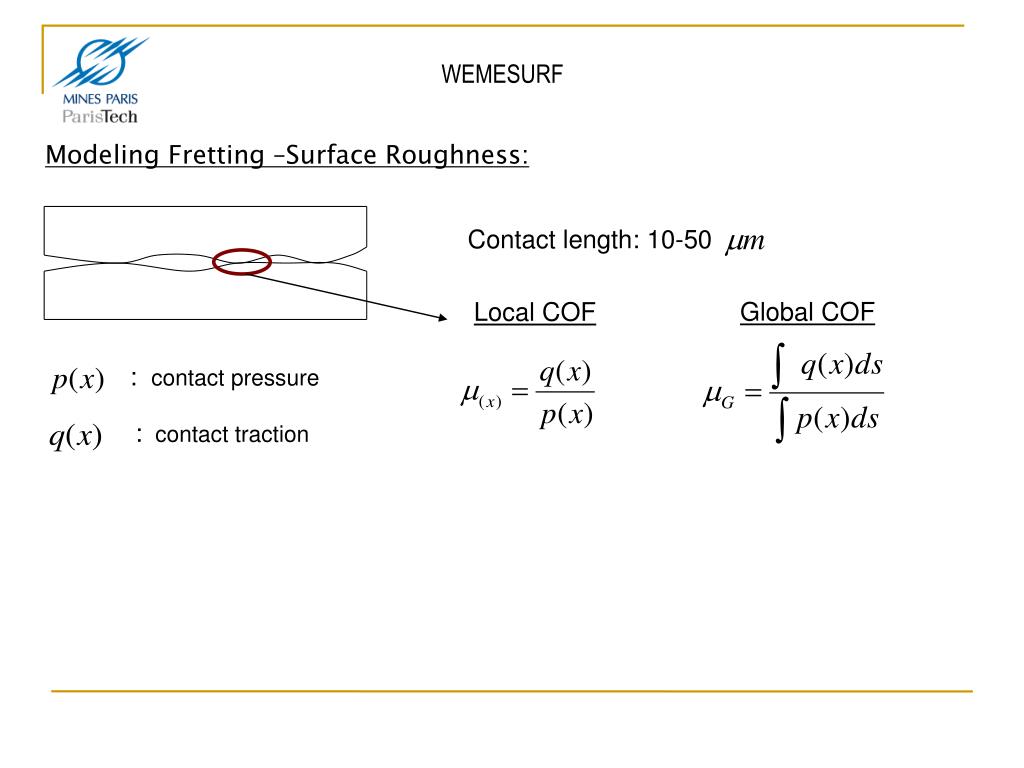

slide4

WEMESURF

Modeling Fretting –Surface Roughness:

Contact length: 10-50

Global COF

Local COF

: contact pressure

:contact traction

slide5

WEMESURF

Modeling Fretting –Surface Roughness:

=

Surface roughness

Constant local COF

Variable global COF

Start point:

  • FE Calculation
  • Analytical Solution

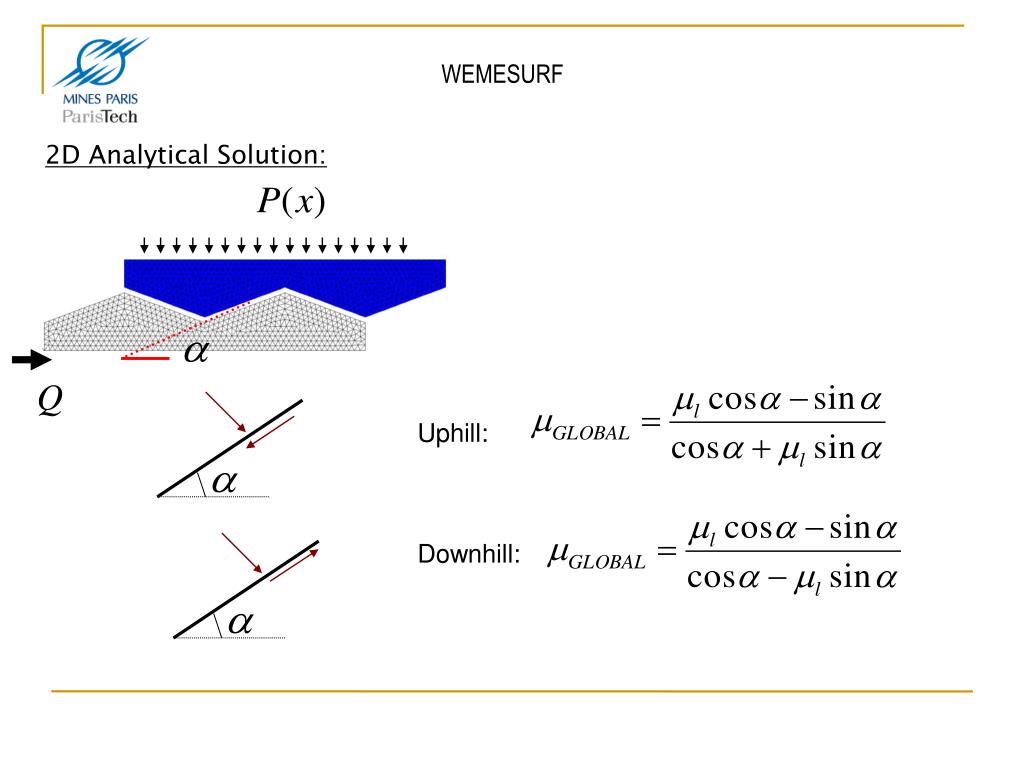

slide6

WEMESURF

2D Analytical Solution:

Uphill:

Downhill:

slide7

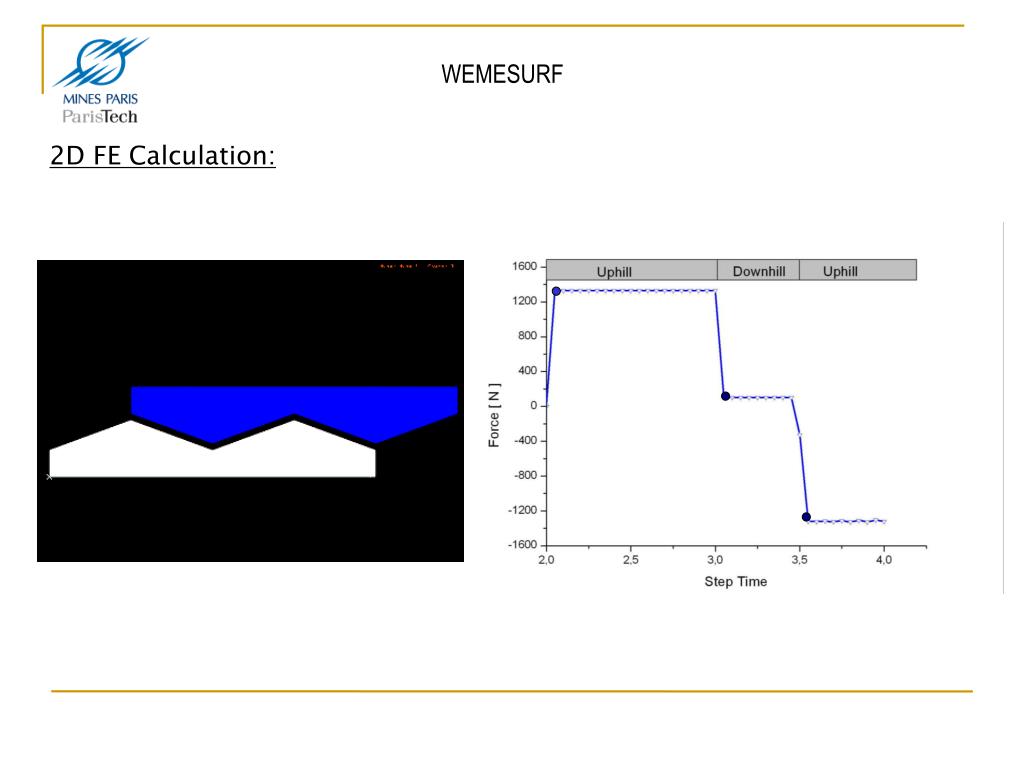

WEMESURF

2D FE Calculation:

slide8

WEMESURF

2D FE Calculation :

  • Reaction force:
  • due to Alpha
  • due to Local COF
slide9

WEMESURF

2D FE Calculation & Analytical Solution:

slide10

WEMESURF

2D FE Calculation & Analytical Solution:

slide11

WEMESURF

3D Analytical Solution

3’

1’

2’

Rotation in Alfa and Beta Directions

3

1

2

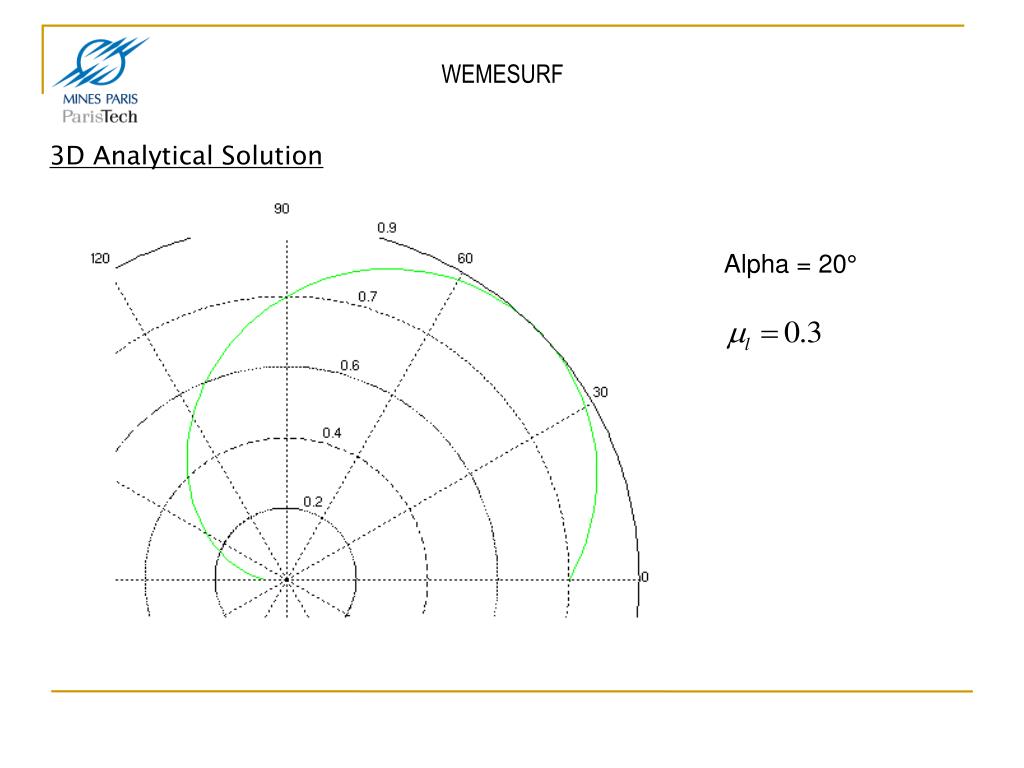

slide12

WEMESURF

3D Analytical Solution

Alpha = 20°

slide13

WEMESURF

3D FE Calculation

Beta = 180

Beta = 90

  • Boundary Conditions:

Lower Surface (Rigid):

Defined displacement in X-Z Plane

Higher Surface:

Free in Y, fixed all directions, applied Pressure

Beta = 0

Y

X

Z

slide14

WEMESURF

3D FE Calculation

Y

X

Z

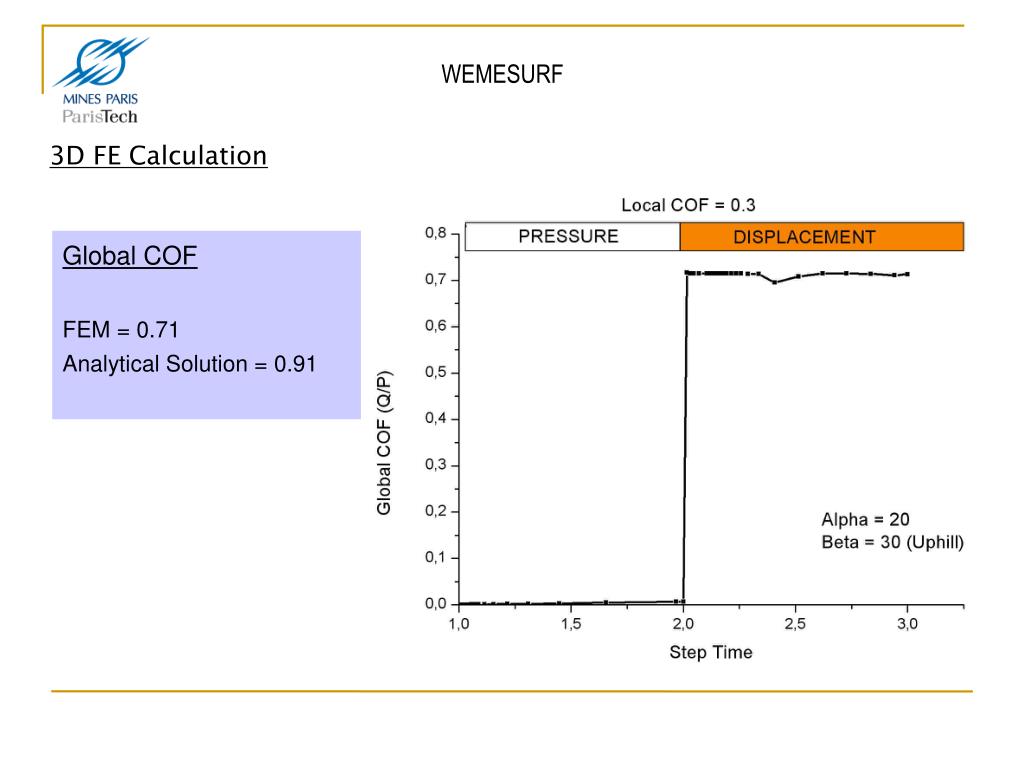

slide15

WEMESURF

3D FE Calculation

Global COF

FEM = 0.71

Analytical Solution = 0.91

slide16

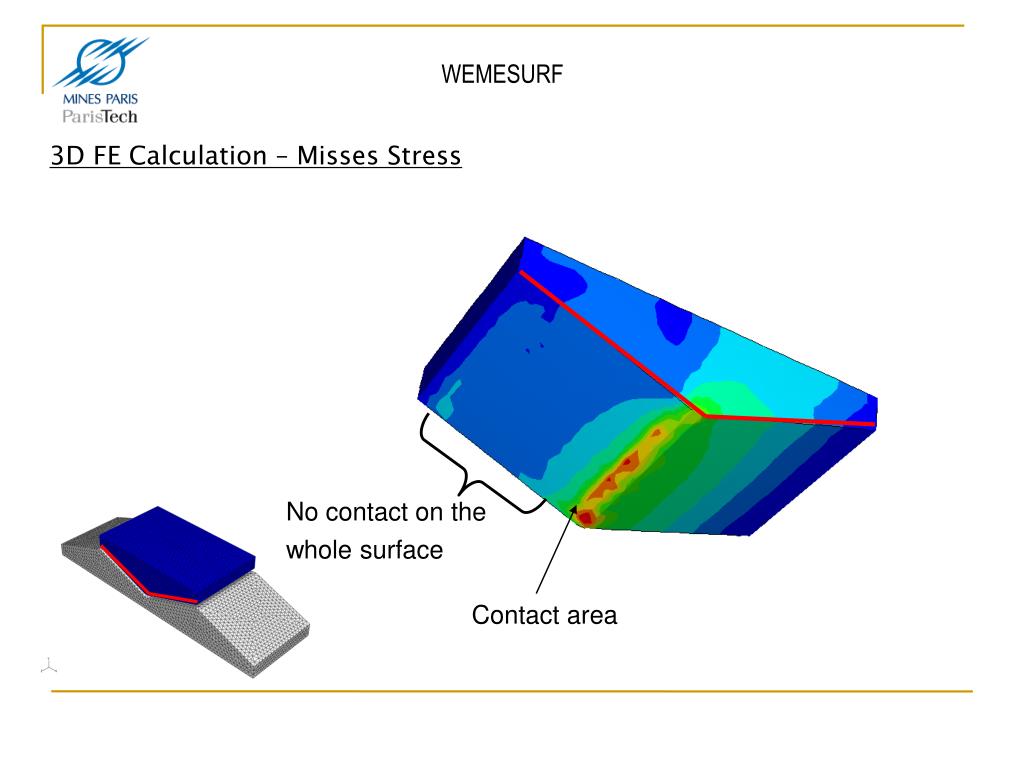

WEMESURF

3D FE Calculation – Misses Stress

No contact on the

whole surface

Contact area

slide17

WEMESURF

3D FE Calculation – Vertical Displacement

Y

  • Rotation around z

X

Z

slide18

WEMESURF

Summary

Done

  • Creation of 2D and 3D FE models
  • Validation of the analytical solution in 2D

To do

  • Correction of the 3D FE model & validation of the analytical solution
  • Investigation of a surface with variable degrees
  • Development of a subroutine which defines COF according to surface topology
slide19

WEMESURF

Thank you.
