Urinary System

Urinary System. Urinary System Basic Anatomy. Kidneys -filter blood of toxins, regulate water, pH, salt content of blood (also helps regulate blood pressure, produces erythropoietin) Ureters - carry urine to bladder Bladder - stores urine Urethra - allows urine to pass out of body.

les
Download Presentation

Urinary System

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Urinary System

  2. Urinary System Basic Anatomy • Kidneys -filter blood of toxins, regulate water, pH, salt content of blood (also helps regulate blood pressure, produces erythropoietin) • Ureters - carry urine to bladder • Bladder - stores urine • Urethra - allows urine to pass out of body

  3. Kidneys • Are located posterior to digestive organs in a retroperitoneal position (behind peritoneal membrane) • Covered by transparent membrane called the renal capsule

  4. Renal Blood Supply • Renal artery carries blood from aorta into kidneys at the hilus (see diagram) • Renal vein carries blood from kidneys to inferior vena cava • Blood vessels branch into tiny capillaries inside the kidneys

  5. Cross-section of Kidney • Cortex (outer portion of kidney) • Medulla (inner portion of kidney)

  6. The Nephron

  7. Nephron Functional unit of kidney (1 million per kidney): Composed of: • Glomerulus: ball of capillaries involved in filtration of blood- keeps large particles (blood cells, large proteins) out of the filtrate (filtrate becomes urine) • Renal tubules: involved in reabsorption - (putting needed substances back into the blood) and secretion (moving wastes from blood to the filtrate to be excreted in urine) Components of a nephron

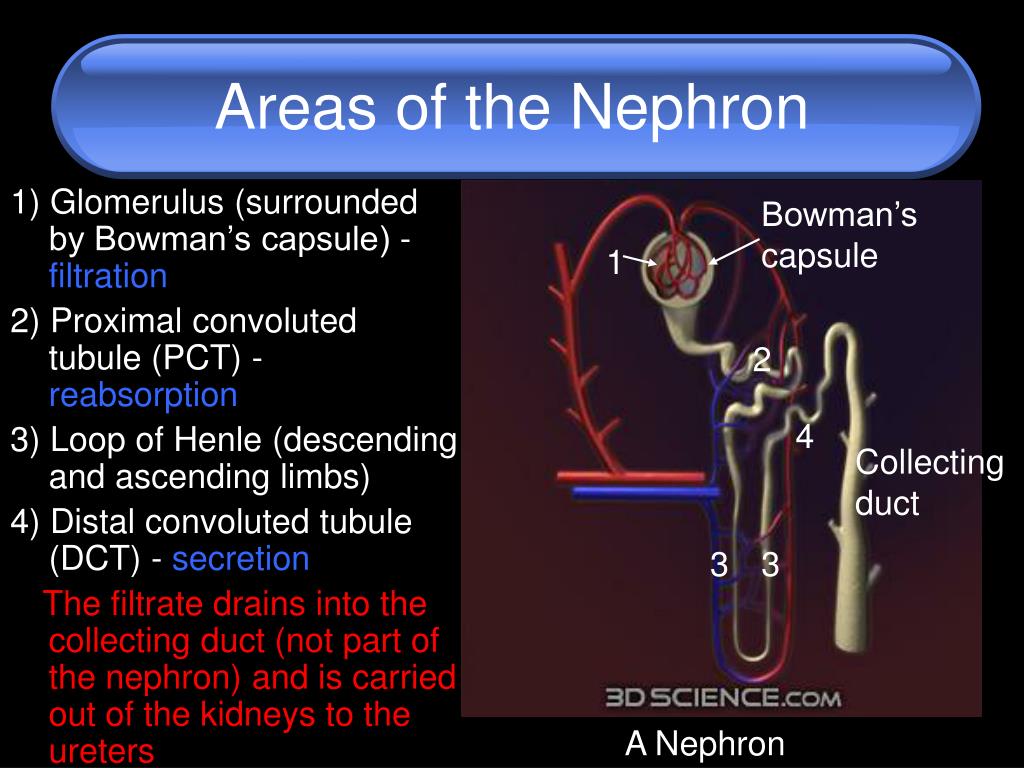

  8. Areas of the Nephron Bowman’s capsule 1) Glomerulus (surrounded by Bowman’s capsule) - filtration 2) Proximal convoluted tubule (PCT) - reabsorption 3) Loop of Henle (descending and ascending limbs) 4) Distal convoluted tubule (DCT) - secretion * The filtrate drains into the collecting duct (not part of the nephron) and is carried out of the kidneys to the ureters 1 2 4 Collecting duct 3 3 A Nephron

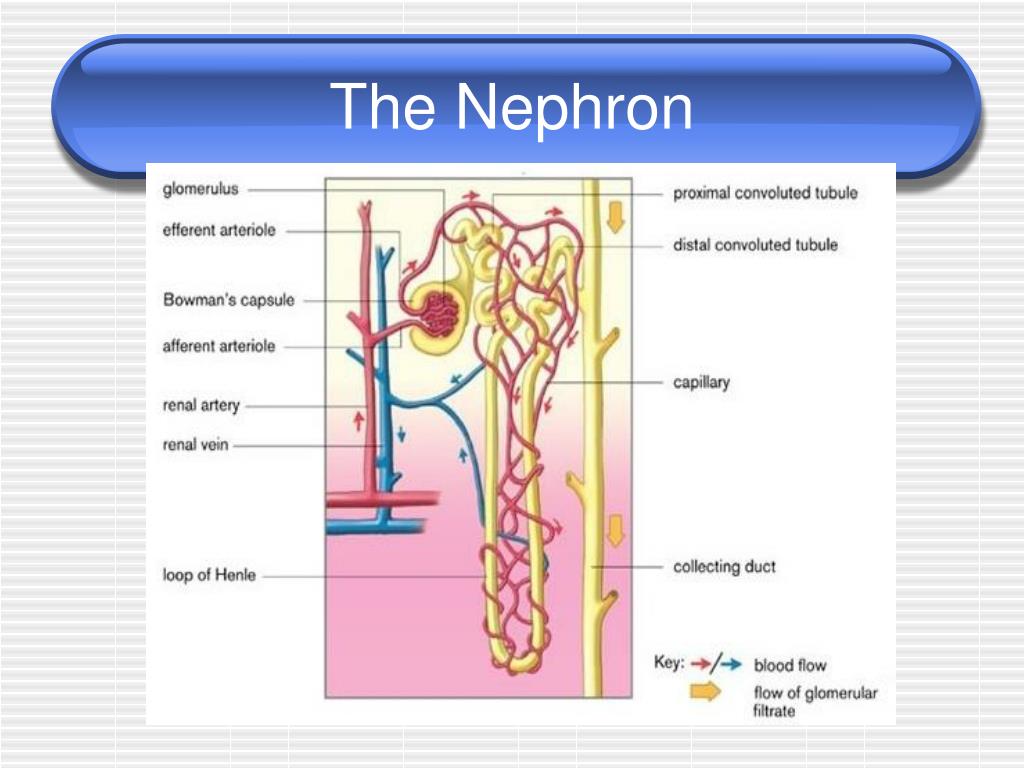

  9. The Nephron

  10. Concentration of Urine • ADH (antidiuretic hormone - released from pituitary gland) enhances the reabsorption of water in the collecting ducts • Triggered when blood pressure and volume are low • Makes urine very concentrated • Urine is dilute when ADH is not present No ADH With ADH

  11. ADH vs. No ADH ADH present No ADH

  12. Renin-Angiotensin System • Renin – enzyme secreted by juxtaglomerular cells in the kidneys in response to low blood pressure/volume • Leads to a cascade of reactions that results in production of angiotensin II, a vasoconstrictor • Angiotensin II stimulates aldosterone production from adrenal glands • Blood pressure increases

  13. Aldosterone • Released from the adrenal glands on top of the kidneys • Leads to conservation of sodium (and sometimes water) and the excretion of potassium • Raises blood pressure by increasing blood volume

  14. Bladder • Holds urine (made of smooth muscle) • Stretch receptors in wall of bladder trigger urge to urinate (occurs after about 200ml of urine collect) - maximum capacity is about 800-1000ml • Micturition (urination) occurs when it is “convenient” to go (see animation) Micturition Reflex

  15. Urinary Tract Infections (UTIs) • Infection of the urinary tract (most commonly urethra) by bacteria (usually E.coli from digestive tract) • More common in women (shorter urethra and proximity of urethra to anus) • Infections could spread to bladder (cystitis) or kidney (pyelonephritis) if not treated • Risk increases if urine flow is obstructed or if catheters are used frequently

  16. Kidney Stones
