comp541 memories ii drams

COMP541Memories II:DRAMs

Montek Singh

Mar 21, 2012

topics
Topics
  • Last class:
    • Read-Only Memories (ROMs)
    • Static Random-AccessMemory (SRAM)
  • Today:
    • Dynamic Random-Access Memory (DRAM)
dynamic ram
Dynamic RAM
  • Very “light-weight” bit-level memory
    • a single capacitor holds charge (= value)
      • no charge = ‘0’
    • a single transistor acts as gate
      • Write: connect switch & add charge to store a ‘1’…
      • … then disconnect switch
      • Read: read by connecting switch
dram bit cell
DRAM Bit Cell
  • Very lightweight
    • contrast with SRAM
    • DRAM cell consists of one transistor and one capacitor!
    • SRAM cell has at least 6 transistors

SRAM bit cell:

DRAM bit cell:

hydraulic analogy writing
Hydraulic Analogy: Writing

Storage

Full (1)

Empty (0)

Pump fills tank to 1 value

Pump drains tank to 0 value

hydraulic analogy reading
Hydraulic Analogy: Reading

Outside water begins at intermediate level (black wavy line)

Tank had a 1 value – raises water level

Tank had a 0 value – lowers water level

dram characteristics
DRAM Characteristics
  • Destructive Read
    • When cell is read, charge is (partially) removed
    • Must be restored after each read!
  • Refresh
    • Also, there’s steady leakage
    • Charge must be restored periodically
dram logical diagram

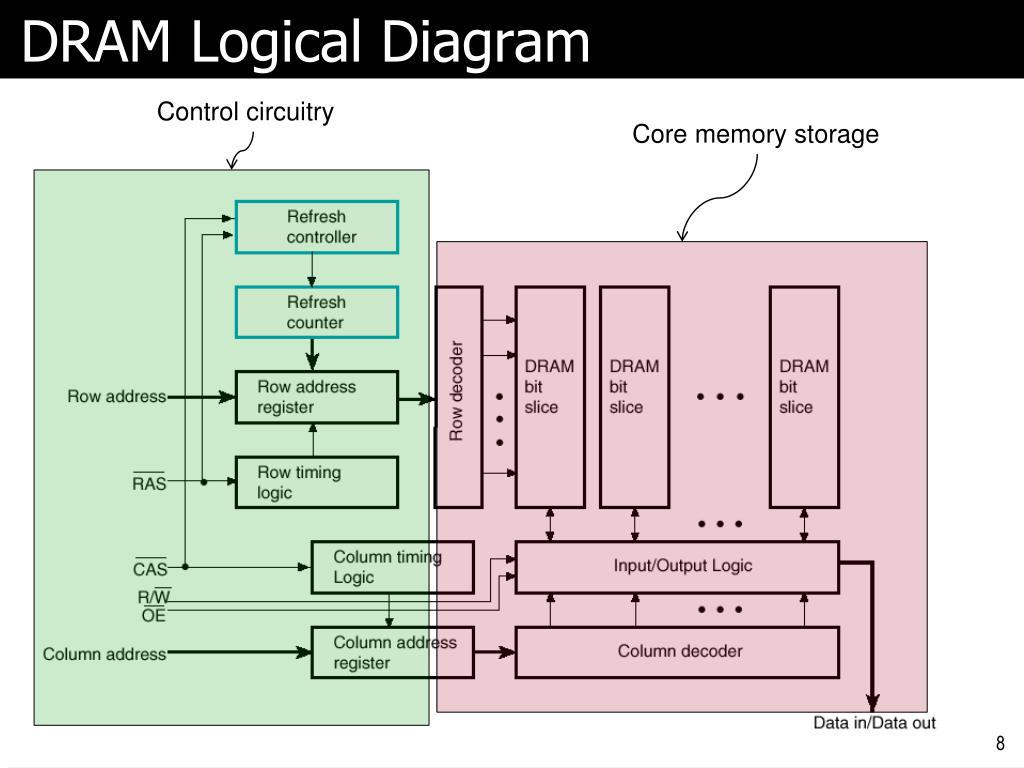

DRAM Logical Diagram

Control circuitry

Core memory storage

dram read signaling
DRAM Read Signaling
  • Since DRAM is often on a separate chip
    • number of pins available can be a limitation
    • lower pin count by using same pins for row and column addresses

Delay until data available

dram refresh
DRAM Refresh
  • Many strategies
    • refresh circuits on chip
    • here a simple row counter: reads and writes back
refresh timing
Refresh Timing
  • Say, need to refresh every 64ms
  • Distributed refresh
    • Spread refresh out evenly over 64ms
    • Say on a 4Mx4 DRAM, refresh window for row 64ms/4096=15.6 us
    • Total time spent is 0.25ms, but spread
  • Burst refresh
    • Same 0.25ms, but all at once
    • May not be good in a computer system
  • Refresh takes low % of total time
bidirectional lines
Bidirectional Lines
  • Another optimization for reducing pins:
    • Many chips have one set of data pins
      • same pins used as data input for write operations
      • same pins used as data output for read operations
      • otherwise float them (i.e., tri-state)
    • Makes sense because don’t need both read/write data at once
synchronous dram sdram
Synchronous DRAM (SDRAM)
  • Has a clock
  • Common type in PCs late-90s
    • Typical DRAMs still synchronous
  • Multiple banks
  • Pipelined
    • Start read in one bank after another
    • Come back and read the resulting values one after another
modes of dram operation
Modes of DRAM operation
  • DRAMs optimized to read & write entire blocks
    • or at least a few consecutive locations
  • Several different modes
    • normal/basic mode
    • Nibble or Burst Mode
    • Fast Page Mode
    • Extended Data Out (EDO) Mode
basic mode of operation
Basic Mode of Operation

Address

Row

Column

RAS

CAS

Data

Data

  • Slowest mode
  • Uses only single row and column address
  • Row access is slow (60-70ns) compared to column access (5-10ns)
  • Leads to three techniques for DRAM speed improvement
    • Getting more bits out of DRAM on one access given timing constraints
    • Pipelining the various operations to minimize total time
    • Segmenting the data in such a way that some operations are eliminated for a given set of accesses
nibble or burst mode
Nibble (or Burst) Mode

RAS ---- ---- ---- ---- ---- ---- ---- ---- ----

CAS CAS CAS CAS

RA CA

D1 D2 D3 D4

  • Several consecutive columns are accessed
  • Only first column address is explicitly specified
  • Rest are internally generated using a counter
fast page mode
Fast Page Mode

RAS ---- ---- ---- ---- ---- ---- ---- ---- ----

CAS CAS CAS CAS

RA CA1 CA2 CA3 CA4

D1 D2 D3 D4

  • Accesses arbitrary columns within same row
  • Static column mode is similar
edo mode
EDO Mode

RAS ---- ---- ---- ---- ---- ---- ---- ---- ----

CAS CAS CAS CAS CAS CAS CAS

RA CA1 CA2 CA3 CA4 CA5 CA6 CA7

D1 D2 D3 D4 D5 D6

  • Arbitrary column addresses
  • Pipelined
  • EDO = Extended Data Out
  • Has other modes like “burst EDO”, which allows reading of a fixed number of bytes starting with each specified column address
ddr dram

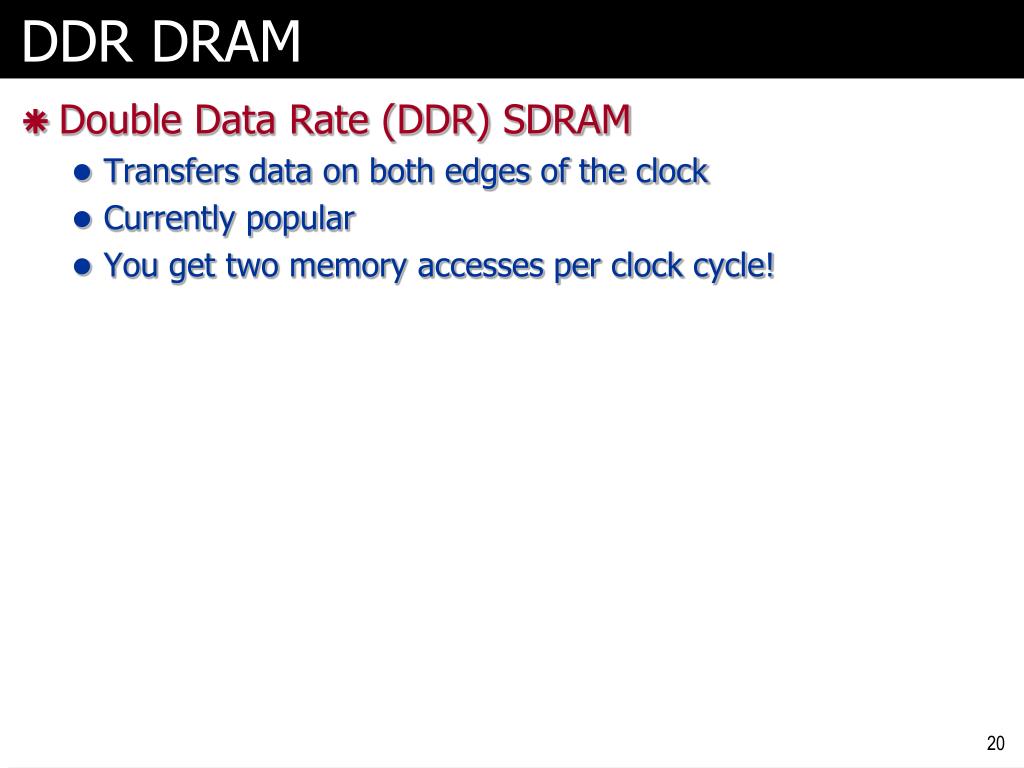

DDR DRAM
  • Double Data Rate (DDR) SDRAM
    • Transfers data on both edges of the clock
    • Currently popular
    • You get two memory accesses per clock cycle!
rambus dram rdram
RAMBUS DRAM (RDRAM)
  • Another attempt to alleviate pinout limits
  • Many (16-32) banks per chip
  • Made to be read/written in packets
  • Up to 1200MHz bus speeds
    • XDR – 8 bits per clock, 16-bit wide bus, 6.4GB
    • But DDR doing very well also
  • Quite expensive
    • almost disappeared from consumer PCs
    • still present in servers and specialized chips
dram controllers

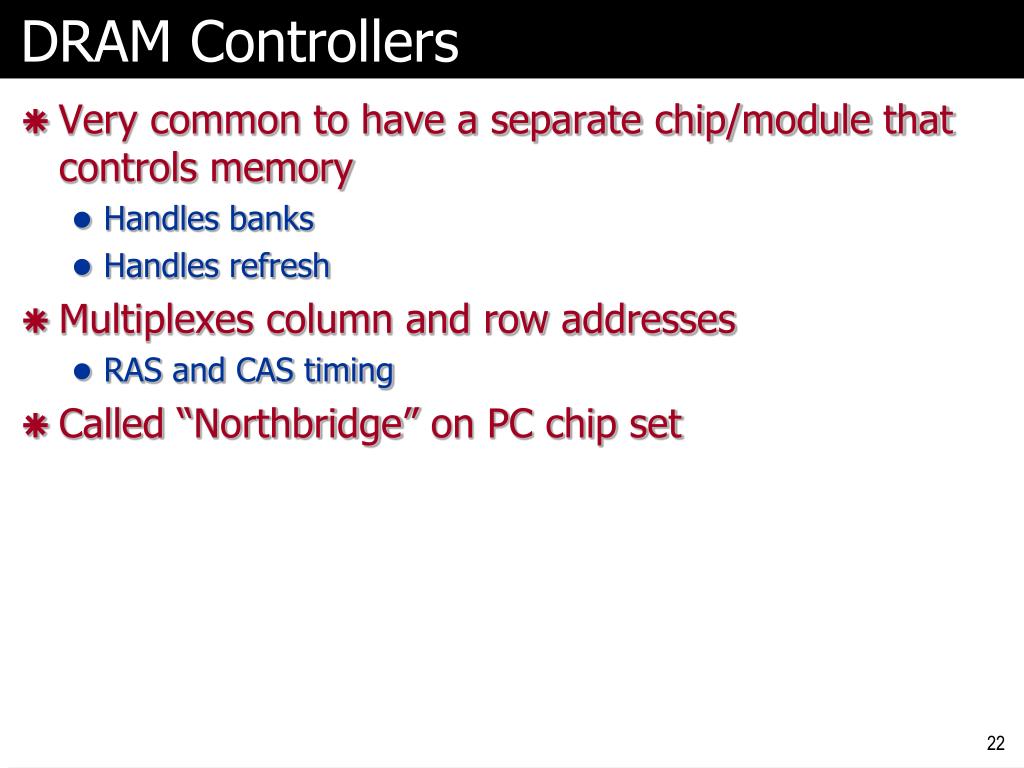

DRAM Controllers
  • Very common to have a separate chip/module that controls memory
    • Handles banks
    • Handles refresh
  • Multiplexes column and row addresses
    • RAS and CAS timing
  • Called “Northbridge” on PC chip set
conclusions
Conclusions
  • RAMs with different characteristics
    • For different purposes
  • Static RAM
    • Simple to use, small, expensive
    • Fast, used for cache
  • Dynamic RAM
    • Complex to interface, largest, cheap
    • Needs periodic refresh
links
Links
  • Ram Guides (not very technical)
    • http://arstechnica.com/paedia/storage.html
  • Your Nexys 3 board manual
