  1. Enterprise Datacenter Management Suite |ESDS SOFTWARE SOLUTION PVT. LTD.|

  2. CompanyProfile ESDS believes in INNOVATION

  3. Introducing eMagic

  4. eMagic - The All-in-One Datacenter Management Suite A Complete Datacenter Management Suite Change Management, Incident and Problem Management Hybrid Cloud Management (Orchestration) Netflowfor traffic analysis Servers and Network Management Component Stock management eMagic is an all-in-one solution to manage all the aspects of equipments deployed in a Data center.

  5. System Dashboard ISP Bandwidth Monitoring Current Alerts Power Utilization CMS Request Space Utilization IP Subnet Report Syslog Monitoring Device Report A Fully Customizable Dashboard


  6. Complete Datacenter Management Deploy Monitor & Manage Build In just 3 Steps

  7. Device Auto Discovery IP Range • Auto-discovery of all network devices and providing with their detailed Configuration. 120.112.10.1 120.112.10.50 From To • Provide Network IP Range • eMagicAutoDetects all reachable devices Auto Detection • Select & Provide Credentials of device to add • AutoDiscovery of device Configuration (Hardware, Network etc.) Chassis – Manufacturer , Serial No. Processor – Manufacturer, Current Speed ,Core, Type,Series,Cache Ram - Size , Type, Speed, Serial No. HDD – Type, Capacity Ethernet IP Credentials Deployment Type

  8. Device List List of all devices Real Time reports Your Network Real Time relevant reporting for all the devices in Network

  9. Rack Layout Rack 2 Rack 1 Rack 3 Deploy New Device Server 1 Server 1 Server 1 Graphical User interface providing an overview of the racks deployed Server 8 Server 7 Server 6 Server 5 Server 2 Server 3 Server 3 Server 9 Server 4 Server 4 Server 2 Server 10 Server 6 Server 7 Server 9 Server 6 Server 4 Server 2 Server 3 Server 8 Server 7 Server 11 Server 5 Server 5 Server 10 Server 12 Server 15 Users can easily Deploy or Add devices in the Racks Alert Racks can be deployed based on parameters such as Location, Zone, Rows etc Ready Device Live Device Suspended Device Stopped Device

  10. Network Topology Available Devices Save Topology Monitor Topology Build Topology IP 10.20.10.1 Graphical user interface providing an overview of the entire network Status : Go To Device Dashboard IP 10.20.10.3 IP 10.20.10.2 Status : Status : Users can design their own network by adding & linking devices Go To Device Dashboard Go To Device Dashboard IP 10.20.10.4 Status : Go To Device Dashboard Entire network on Single dashboard provides easy monitoring IP 10.20.10.5 Status : Go To Device Dashboard Branch 1 Network

  11. Comprehensive Monitoring Servers Switch Firewall Router • Performance monitoring Bandwidth, CPU, Memory, Power, Uptime. • Uptime Report - Current and Historical • Customized alert system, Alert console. • Service monitoring - HTTP, FTP, SMTP, POP3 and all ports. • Syslog monitoring - Monitoring any type of logs, custom files. Memory Power CPU Alert

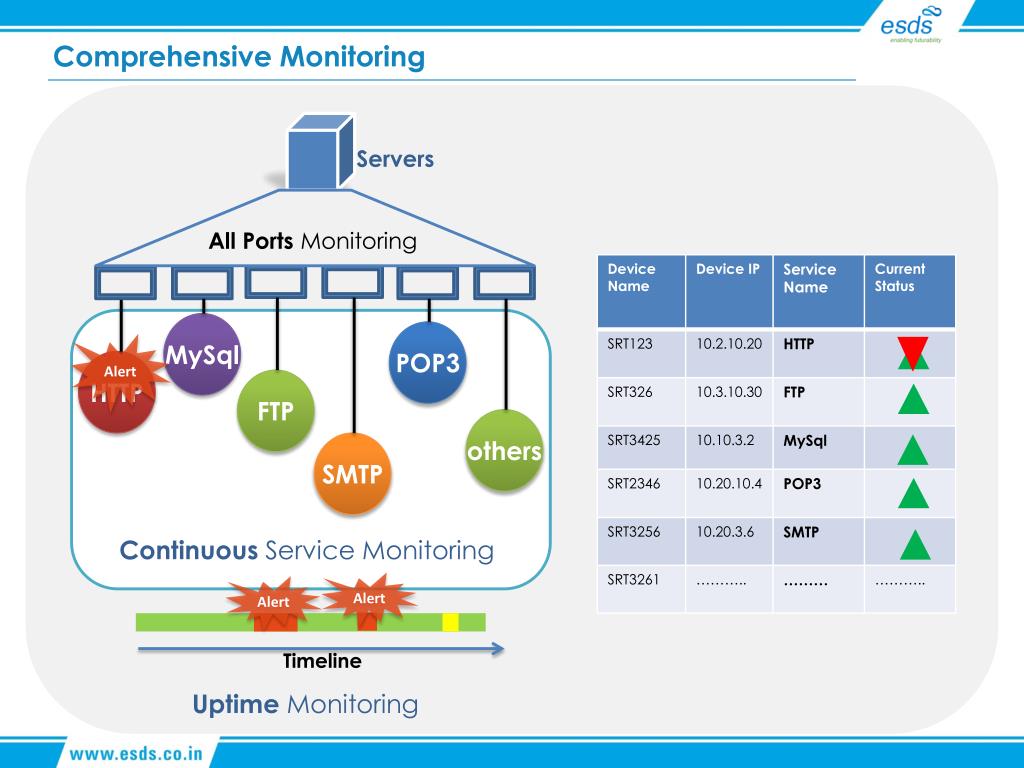

  12. Comprehensive Monitoring Servers All Ports Monitoring MySql POP3 Alert HTTP FTP others SMTP Continuous Service Monitoring Alert Alert Timeline Uptime Monitoring

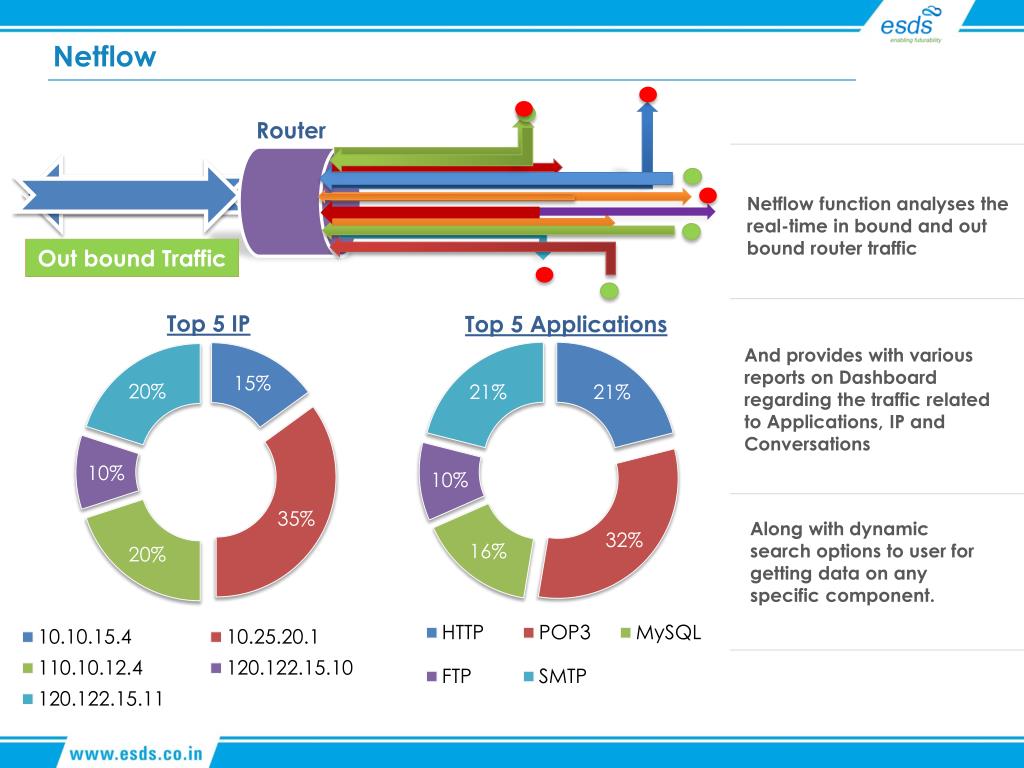

  13. Netflow Router Netflow function analyses the real-time in bound and out bound router traffic In bound Traffic Out bound Traffic And provides with various reports on Dashboard regarding the traffic related to Applications, IP and Conversations Along with dynamic search options to user for getting data on any specific component.

  14. Easy to use & Powerful Cloud Orchestration • Flexibility • eMagicsupports orchestration of VMware, Hyper-V,eNlight platforms Users can create and manage Virtual Machines from eMagic. • Create & Manage VMs • Manage VM operations like create, start, stop, remove etc monitor resources like CPU, RAM, Bandwidth and manage cluster. • VM Monitoring • Cloud Discovery operation enables system admin to cross check VMs on the actual Cloud and VMs in the eMagic. VM Cluster Node Node Node Node Cloud OrchestrationCovers all Storage Storage Storage Storage Storage Storage VMs VM Ware Cluster Remove VM Create VM Stop VM Start VM VMs VMs VMs VMs VMs VMs VMs Create VM Stop VM Autodiscoveryof VM in Cluster VMs VMs VMs VMs VMs VMs Start VM VMs VMs VMs VMs VMs VMs Remove VM

  15. Easy to use & Powerful Cloud Orchestration A Flexible &Powerful Cloud Orchestration Heterogeneous hypervisor support To create and manage VM’s from single console. Node Node Node Node Node Node Node Node Storage Storage Storage Storage Storage Storage Storage Storage Cloud Hyper V Cluster VM Cluster eNlight Cloud VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs VMs HyperV Cluster VMware Cluster Virtuozzo Xen Cloud

  16. Change Management System For Critical Requests For Non Critical Requests Change Management system lets the users track all changes and pending requests in the system User initiates Change Request through eMagic User initiates Change Request through eMagic Authorized Person takes action on the request Authorized Person takes action on the request If Change Management Module is enabled, all open requests for logged in (current) users can be monitored. Approver Approves the Change Request Change Management Board Reviewer reviews the change request

  17. eMagic - Licensing Editions Enterprise Edition Infrastructure Monitoring Standard Edition Addons Netflow Material Requisition Virtualization Standard Edition Inventory Monitoring IP Management Syslog Client Portal Management CMS Experience the excellence in Datacenter Management

  18. Thank You
