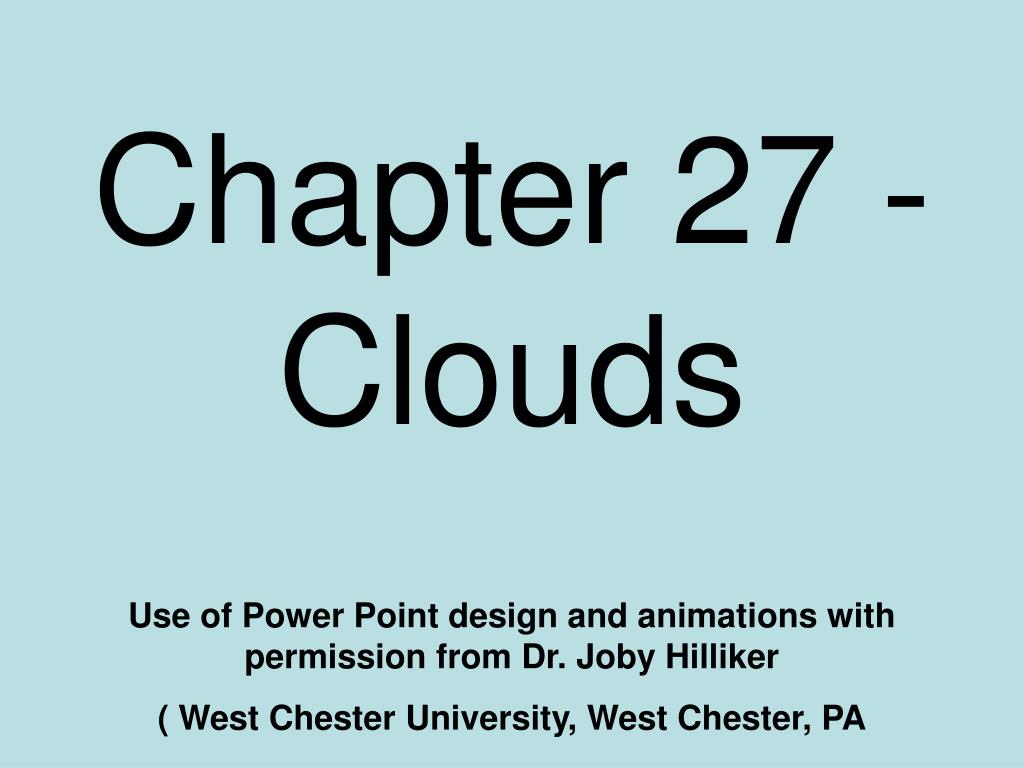

Chapter 27 - Clouds

Use of Power Point design and animations with permission from Dr. Joby Hilliker

( West Chester University, West Chester, PA

chapter 6 clouds

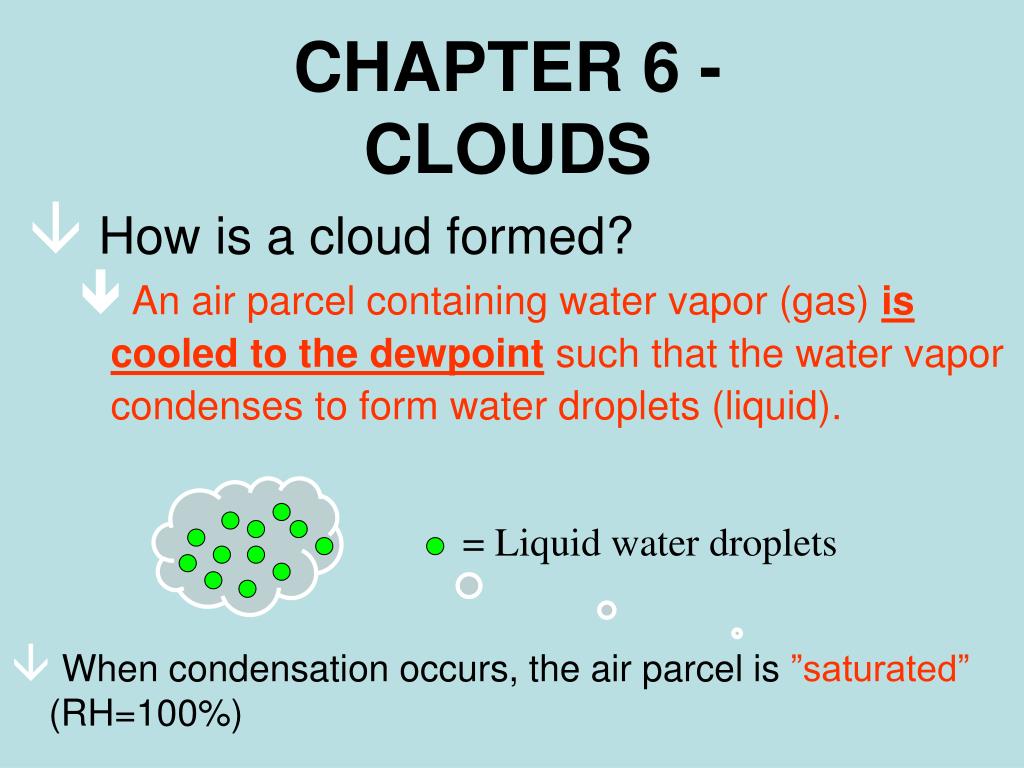

CHAPTER 6 - CLOUDS
  • How is a cloud formed?
    • An air parcel containing water vapor (gas) is cooled to the dewpoint such that the water vapor condensesto form water droplets (liquid).

= Liquid water droplets

  • When condensation occurs, the air parcel is ”saturated”(RH=100%)
slide3

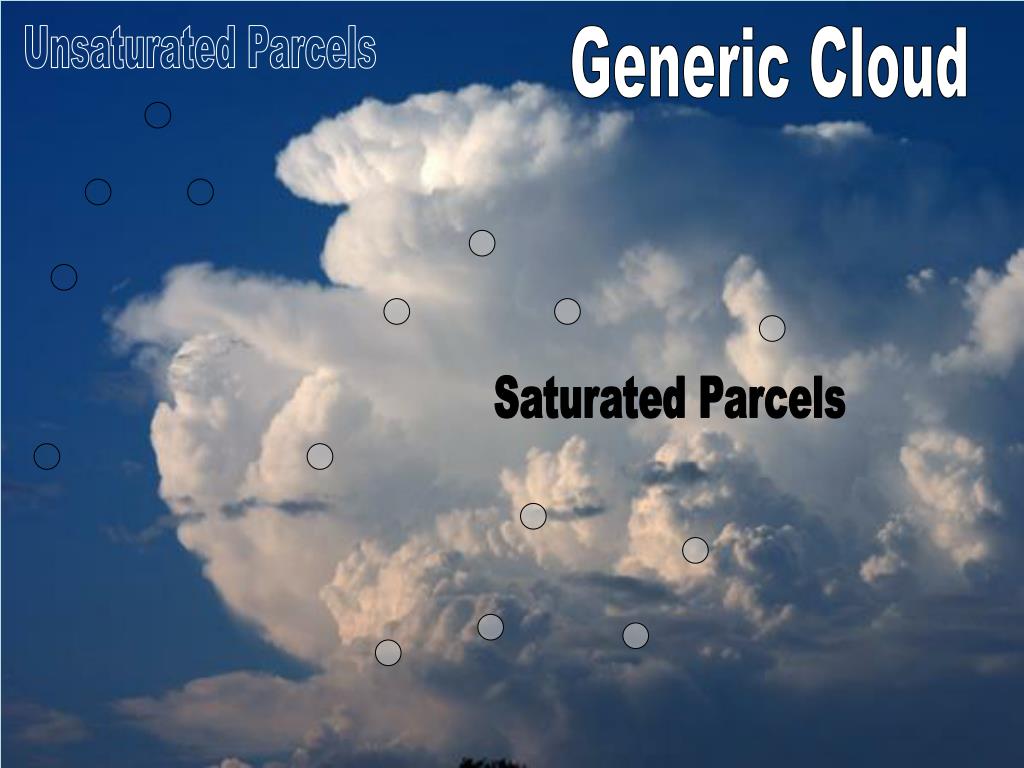

Unsaturated Parcels

Generic Cloud

Saturated Parcels

chapter 6 clouds1
CHAPTER 6 - CLOUDS
  • When condensation occurs, the air parcel is ”saturated”(RH=100%)
  • The temp. at which saturation (and condensation) will occur is the dewpoint
    • The farther the dewpoint is below the air temp, the lower the RH, and the less likely clouds will form.
chapter 6 rising parcels
6

6

6

6

Density of Surrounding Air

6

z

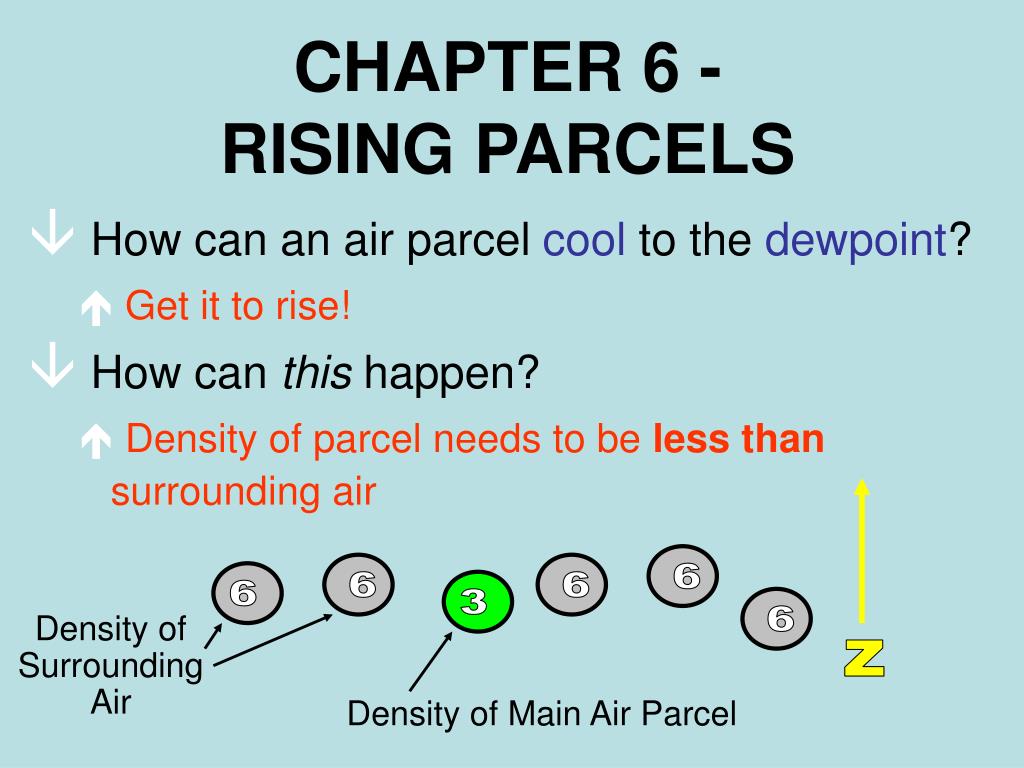

CHAPTER 6 - RISING PARCELS
  • How can an air parcel cool to the dewpoint?
    • Get it to rise!
  • How can this happen?
    • Density of parcel needs to be less than surrounding air

3

Density of Main Air Parcel

chapter 6 rising parcels1
60

60

60

60

Temp. of Surrounding Air

60

z

CHAPTER 6 - RISING PARCELS
  • Translate density into temperature:
    • Warmer air is less dense; Colder air is more dense
  • A parcel will rise if it’s warmer than surrounding air.
    • “Warm air rises” concept

70

Temp. of Main Air Parcel

slide7
CHAPTER 6 - RISING PARCELS

What happens when a parcel rises?

  • It expands
    • Finds itself in an environment with lesser density/pressure
  • It coolsadiabatically
    • Takes work (thermal energy) to expand parcel
    • adiabatic= no heat exchange between parcel and environment
    • parcels cools at the dry adiabatic lapse rate (DALR), which is 5.5°F / 1000 feet

60 F

z

70 F

chapter 6 rising parcels2
CHAPTER 6 - RISING PARCELS

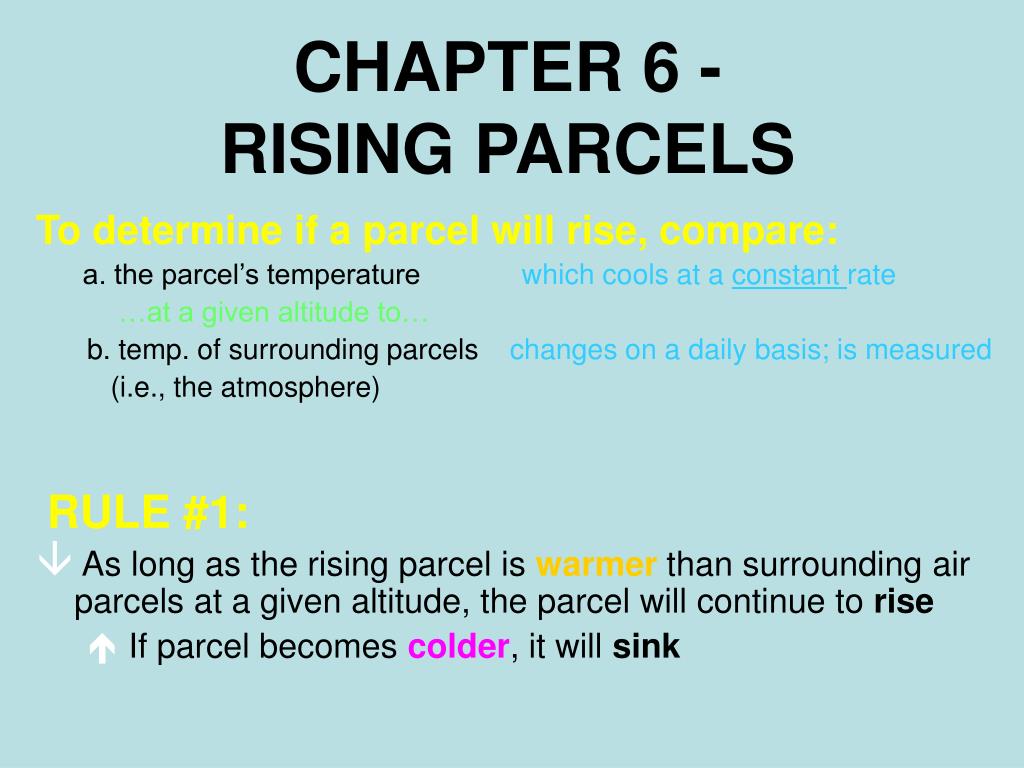

To determine if a parcel will rise, compare:

a. the parcel’s temperature which cools at a constant rate

…at a given altitude to…

b. temp. of surrounding parcels changes on a daily basis; is measured

(i.e., the atmosphere)

RULE #1:

  • As long as the rising parcel is warmerthan surrounding air parcels at a given altitude, the parcel will continue to rise
    • If parcel becomes colder, it will sink
chapter 6 case 1
CHAPTER 6 - CASE #1

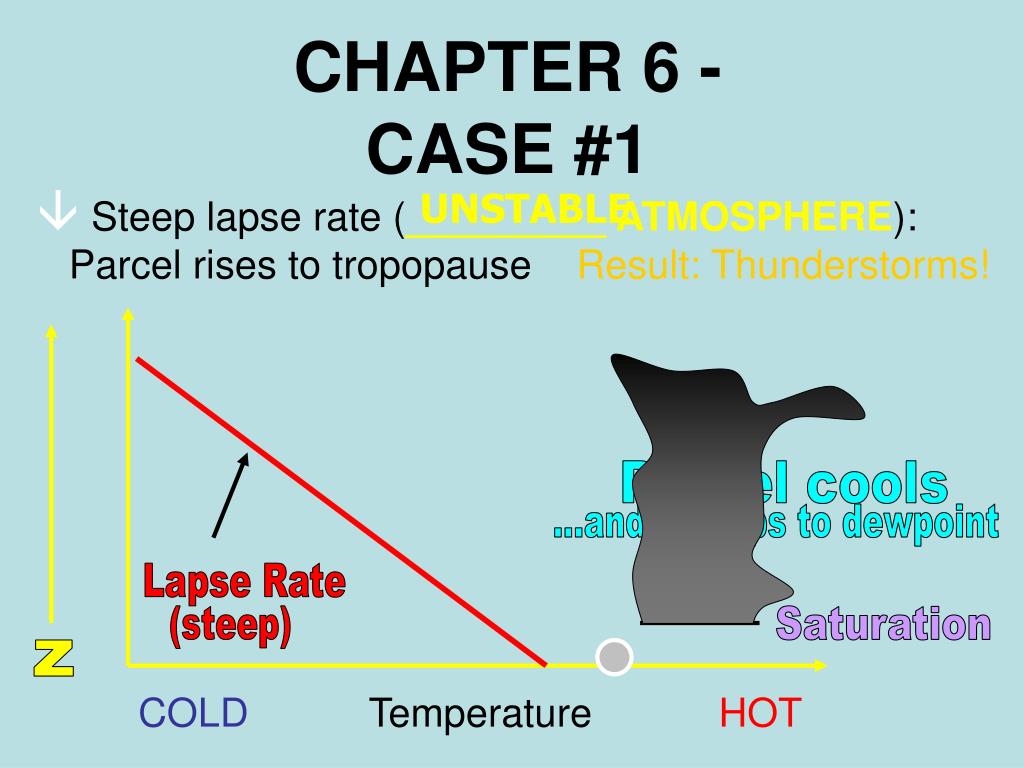

  • Steep lapse rate (_________ ATMOSPHERE):

Parcel rises to tropopause Result: Thunderstorms!

UNSTABLE

Parcel cools

...and if drops to dewpoint

Lapse Rate

(steep)

Saturation

z

COLD

Temperature

HOT

slide11
Cumulo-nimbus

(Thunderstorm)

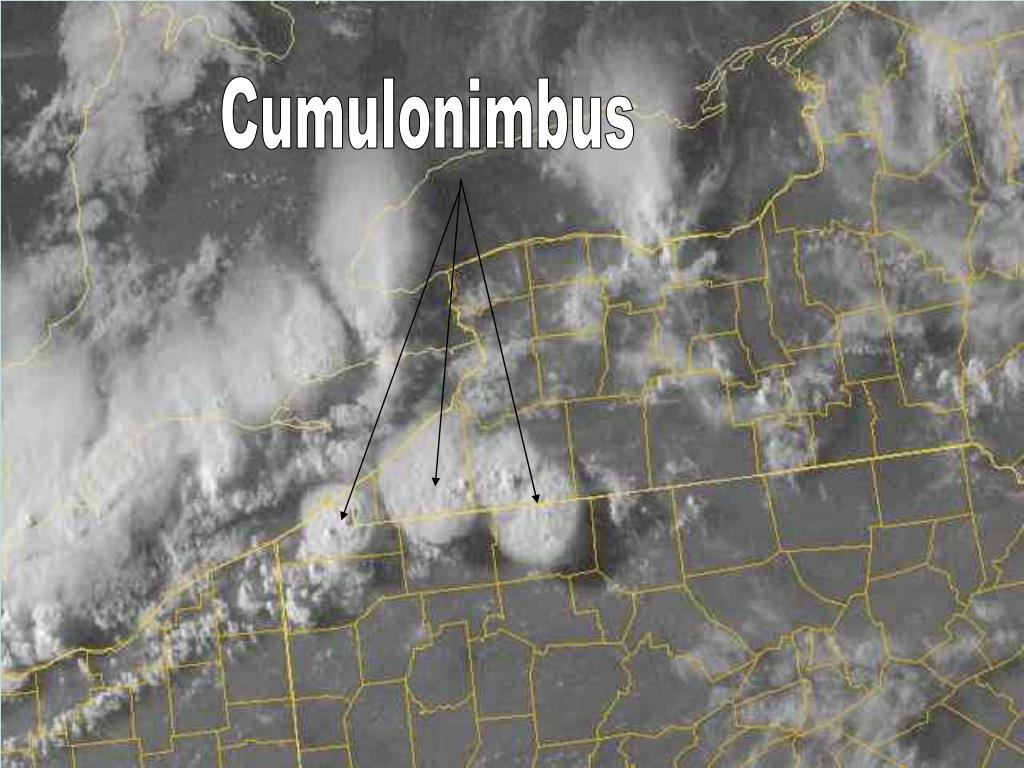

chapter 6 case 2
CHAPTER 6 - CASE #2

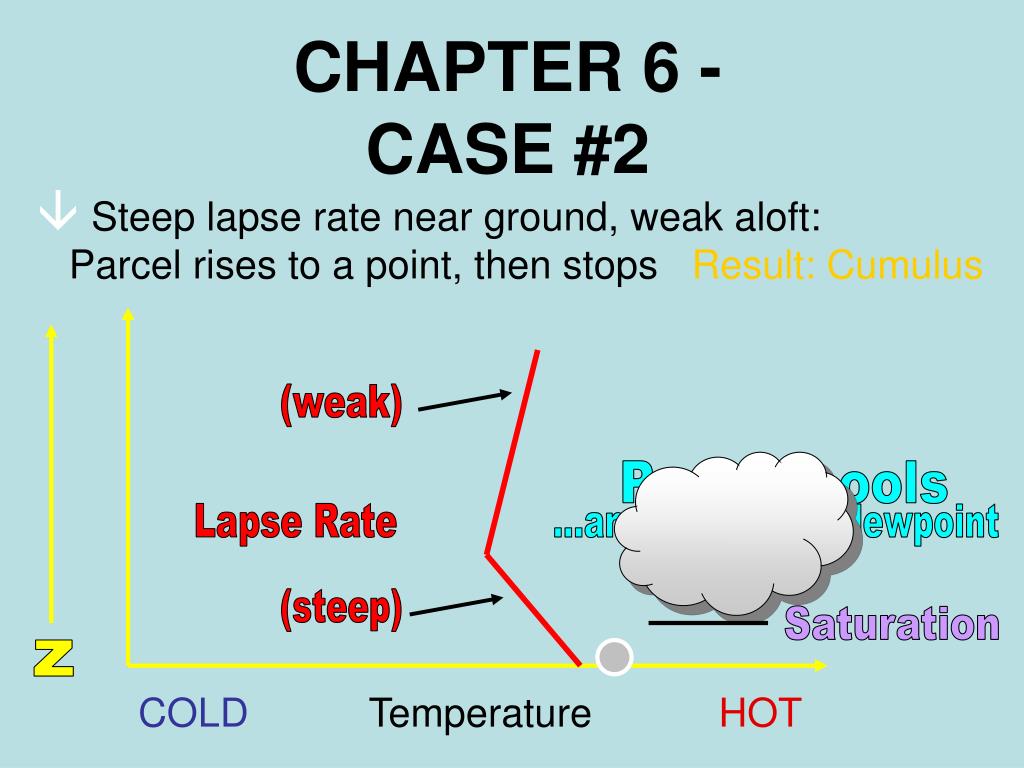

  • Steep lapse rate near ground, weak aloft:

Parcel rises to a point, then stops Result: Cumulus

(weak)

Parcel cools

Lapse Rate

...and if drops to dewpoint

(steep)

Saturation

z

COLD

Temperature

HOT

slide15
"Cumulus"

3000 - 8000 feet

slide16
Cumulus

3000 - 8000 feet

slide17
Alto-cumulus

10000 - 20000 feet

slide18
Alto-cumulus

10000 - 20000 feet

slide19
Cirro-cumulus

20000-40000 feet

chapter 6 case 3

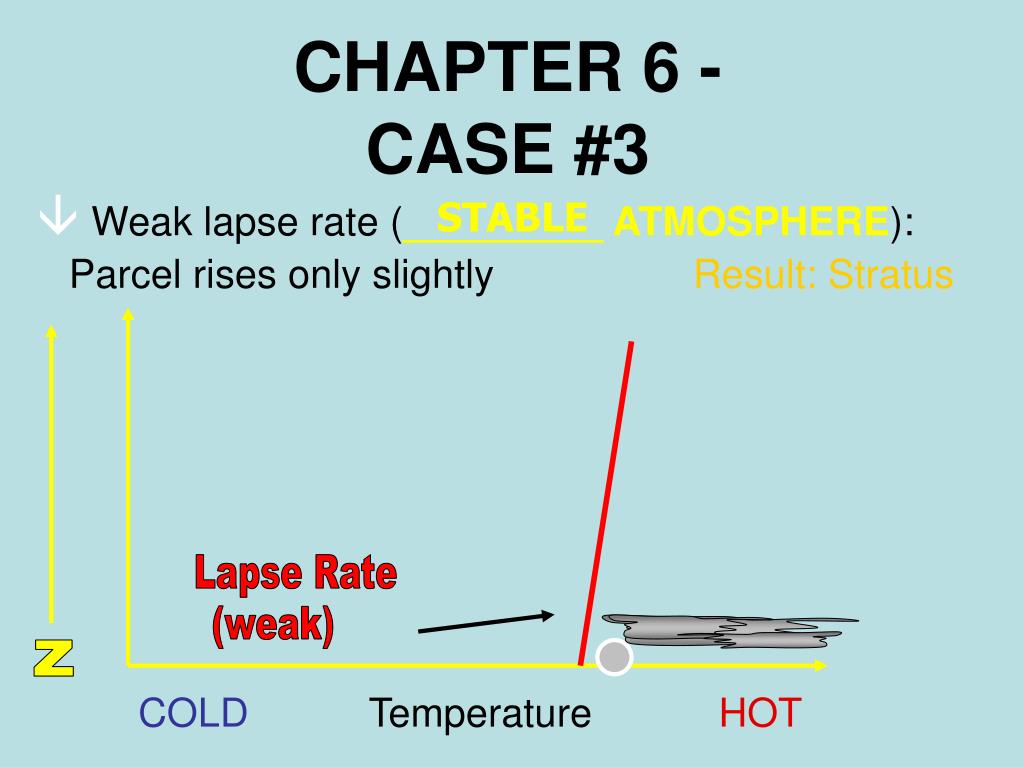

CHAPTER 6 - CASE #3
  • Weak lapse rate (_________ ATMOSPHERE):

Parcel rises only slightly Result: Stratus

STABLE

Lapse Rate

(weak)

z

COLD

Temperature

HOT

slide21
"Stratus"

0 - 8000 feet

slide22
Stratus

0 - 8000 feet

slide23
Altostratus

10000 - 20000 feet

slide24
Altostratus

10000 - 20000 feet

slide25
Cirrostratus

20000 - 40000 feet

chapter 6 summary of clouds

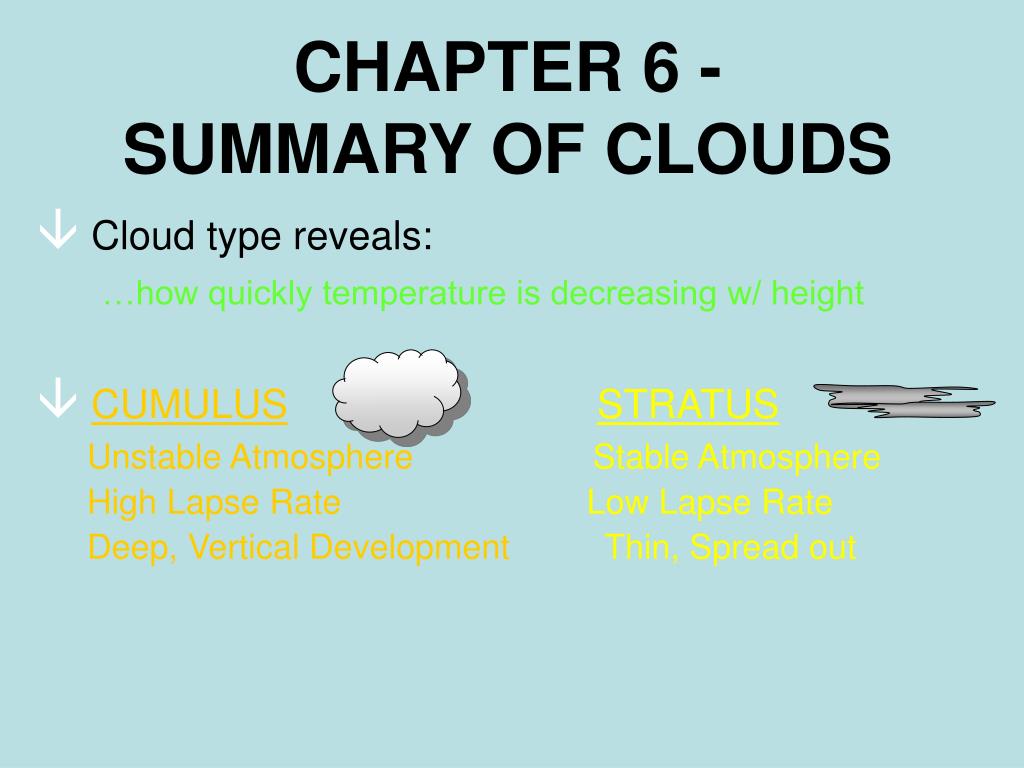

CHAPTER 6 - SUMMARY OF CLOUDS
  • Cloud type reveals:

…how quickly temperature is decreasing w/ height

  • CUMULUSSTRATUS

Unstable AtmosphereStable Atmosphere

High Lapse Rate Low Lapse Rate

Deep, Vertical DevelopmentThin, Spread out

chapter 6 summary of clouds1
CHAPTER 6 - SUMMARY OF CLOUDS

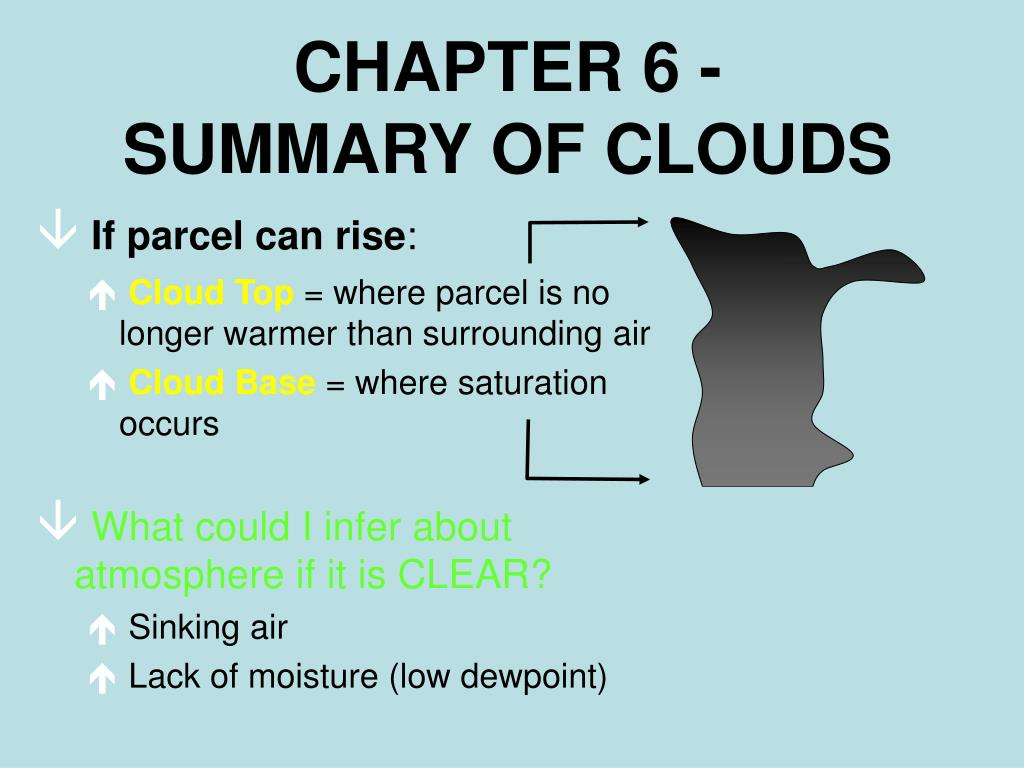

  • If parcel can rise:
    • Cloud Top = where parcel is no longer warmer than surrounding air
    • Cloud Base = where saturation occurs
  • What could I infer about atmosphere if it is CLEAR?
    • Sinking air
    • Lack of moisture (low dewpoint)
slide28
Cirrus

30000 feet +

Composed of Ice Crystals

slide29
Contrails

30000 feet +

Composed of Ice Crystals
