  1. Predictable Integration of Safety-Critical Software on COTS-based Embedded Systems Marco Caccamo University of Illinois at Urbana-Champaign

  2. Outline • Motivation • Memory-centric scheduling theory • PRedictableExecution Model (PREM) • Multicore memory-centric scheduling • Single Core Equivalence (SCE) • Memory bandwidth Isolation (MemGuard) • Cache space management (Colored Lockdown)

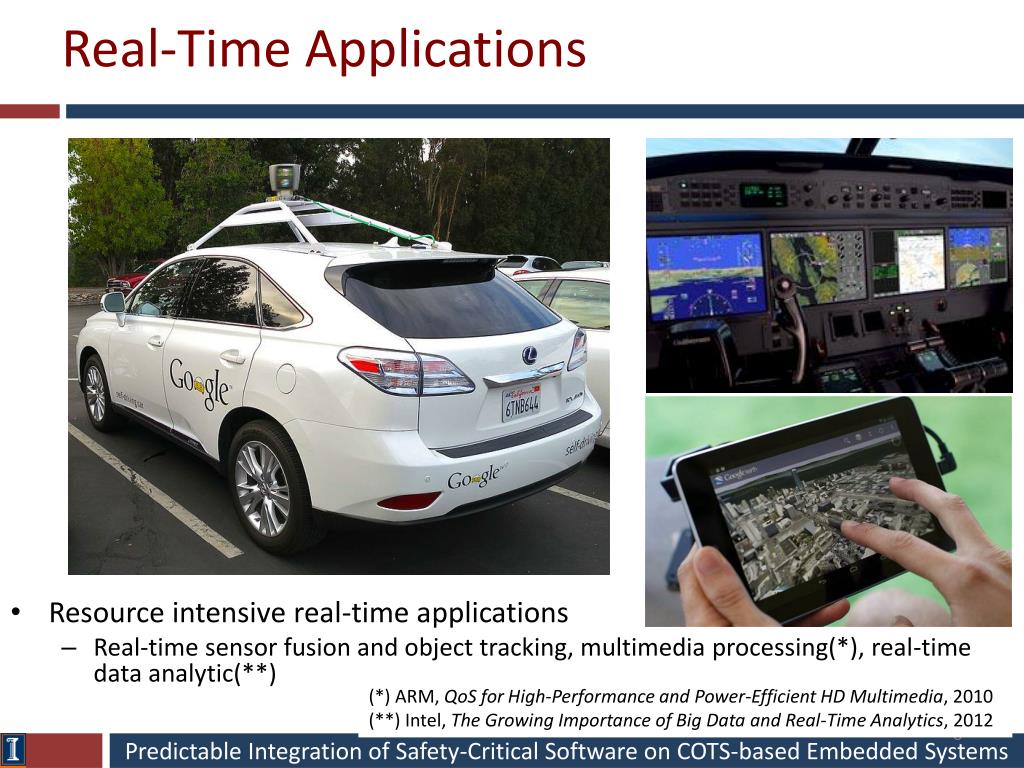

  3. Real-Time Applications • Resource intensive real-time applications • Real-time sensor fusion and object tracking, multimedia processing(*), real-time data analytic(**) (*) ARM, QoS for High-Performance and Power-Efficient HD Multimedia, 2010 (**) Intel, The Growing Importance of Big Data and Real-Time Analytics, 2012

  4. Modern System-on-Chip (SoC) • More cores • Freescale P4080 has 8 cores • More hardware sharing • Shared memory hierarchy (LLC, MC, DRAM) • Shared I/O channels Multicore chips offer high performance but predictability and safety are a serious concern More performance Less energy, Less cost But, isolation?

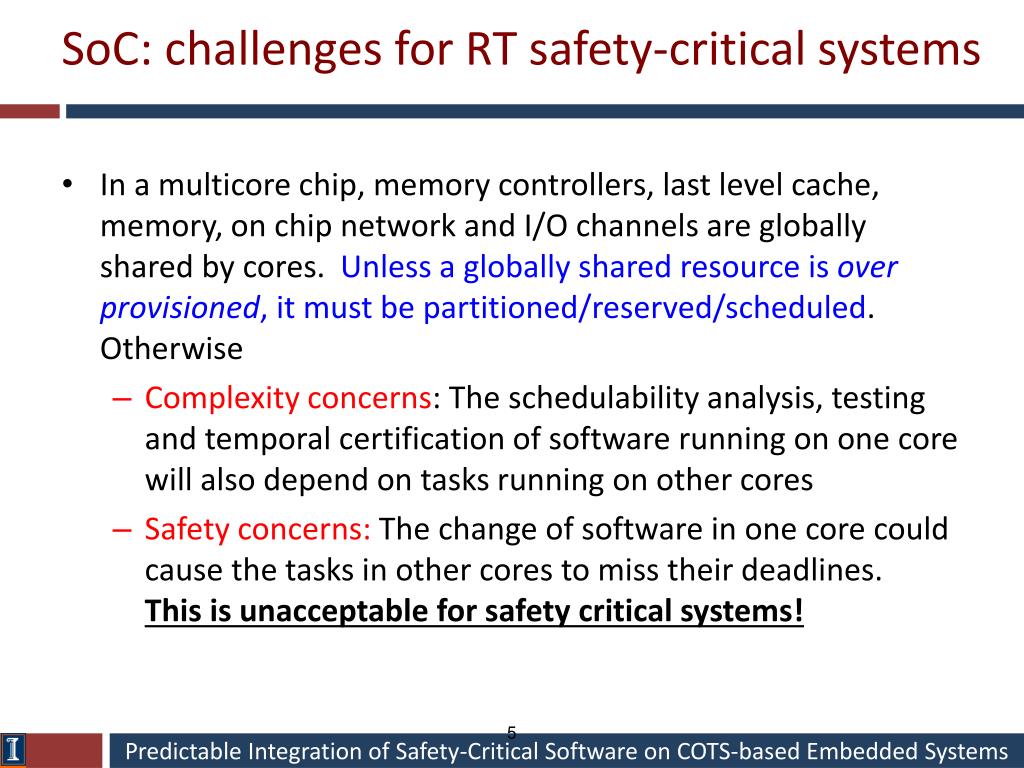

  5. SoC: challenges for RT safety-critical systems • In a multicore chip, memory controllers, last level cache, memory, on chip network and I/O channels are globally shared by cores. Unless a globally shared resource is over provisioned, it must be partitioned/reserved/scheduled. Otherwise • Complexity concerns: The schedulability analysis, testing and temporal certification of software running on one core will also depend on tasks running on other cores • Safety concerns: The change of software in one core could cause the tasks in other coresto miss their deadlines. This is unacceptable for safety critical systems!

  6. Problem: Shared Memory Hierarchy in Multicore App 3 App 4 App 2 App 1 Problem: • Shared hardware resources • OS has little control Core3 Core1 Core4 Core2 Space sharing Shared Last Level Cache (LLC) Access contention Memory Controller (MC) Shared banks contention DRAM On-chip network is a shared resource, but it is currently overprovisioned in embedded systems (e.g., Freescale P4080). Hence, I will not discuss about on chip network since it is still far from being a bottleneck in all of our existing studies.

  7. The Need for Engineering Solutions Solutions: • a new clean-slate real-time scheduling approach called memory-centric scheduling theory. • the idea is to effectively co-schedule cores activity, their memory usage, and the I/O channels • memory accesses are scheduled at high level (coarse granularity) • it uses the Predictable Execution Model (PREM, RTAS’11) • an engineering solution, named Single Core Equivalence (SCE): • control cores’ memory bandwidth usage (MemGuard) • manage cache space in a predictable manner (Colored Lockdown) • use a DRAM bank-aware memory allocator (RTAS’14, Univ. of Kansas) These are all software based solutions that require minimal or no modification to the HW. 26

  8. Outline • Motivation • Memory-centric scheduling theory • PRedictableExecution Model (PREM) • Multicore memory-centric scheduling • Single Core Equivalence (SCE) • Memory bandwidth Isolation (MemGuard) • Cache space management (Colored Lockdown)

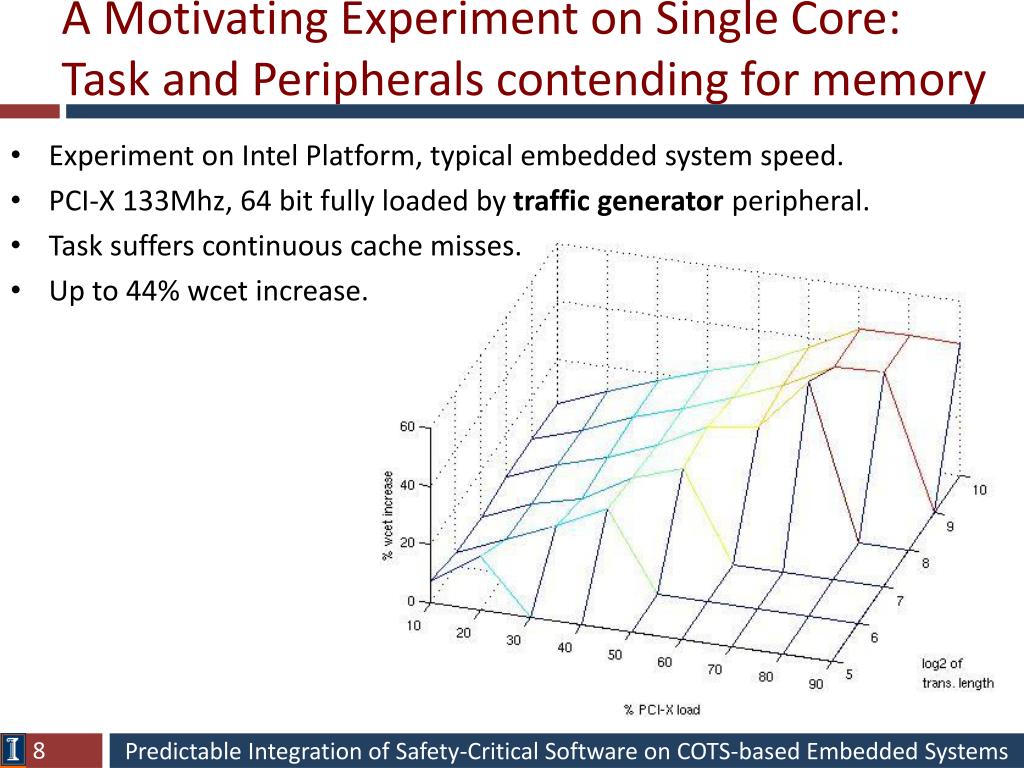

  9. A Motivating Experiment on Single Core: Task and Peripherals contending for memory • Experiment on Intel Platform, typical embedded system speed. • PCI-X 133Mhz, 64 bit fully loaded by traffic generator peripheral. • Task suffers continuous cache misses. • Up to 44% wcet increase. 8

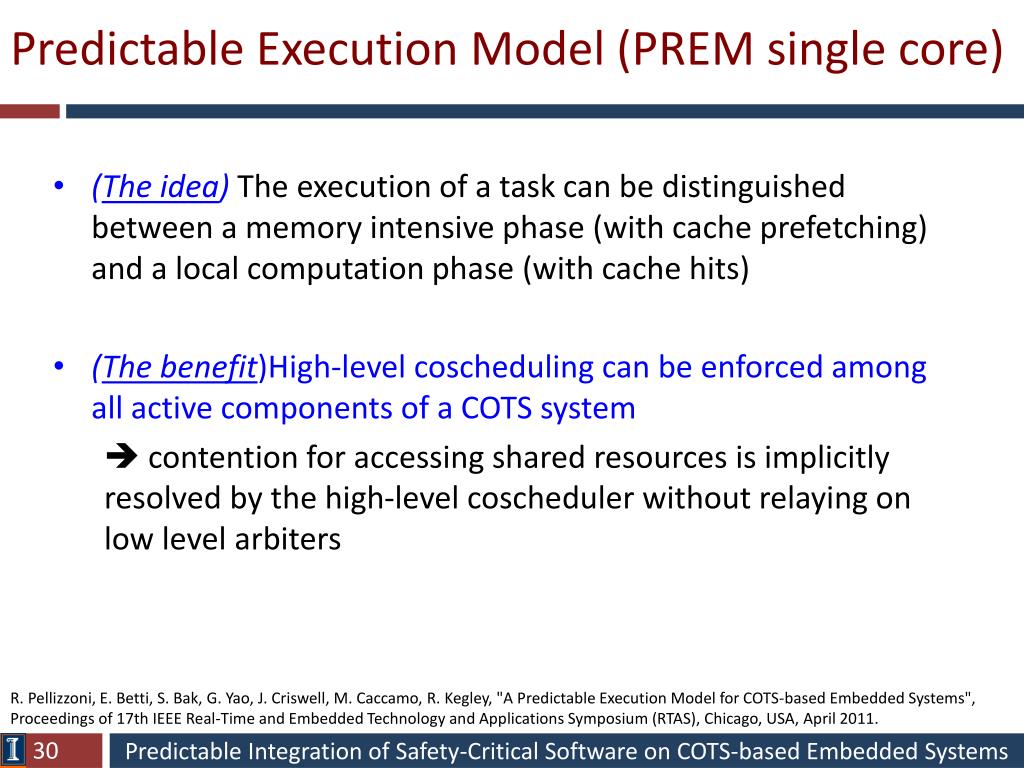

  10. Predictable Execution Model (PREM single core) • (The idea)The execution of a task can be distinguished between a memory intensive phase (with cache prefetching) and a local computation phase (with cache hits) • (The benefit)High-level coscheduling can be enforced among all active components of a COTS system  contention for accessing shared resources is implicitly resolved by the high-level coscheduler without relaying on low level arbiters R. Pellizzoni, E. Betti, S. Bak, G. Yao, J. Criswell, M. Caccamo, R. Kegley, "A Predictable Execution Model for COTS-based Embedded Systems", Proceedings of 17th IEEE Real-Time and Embedded Technology and Applications Symposium (RTAS), Chicago, USA, April 2011. 30

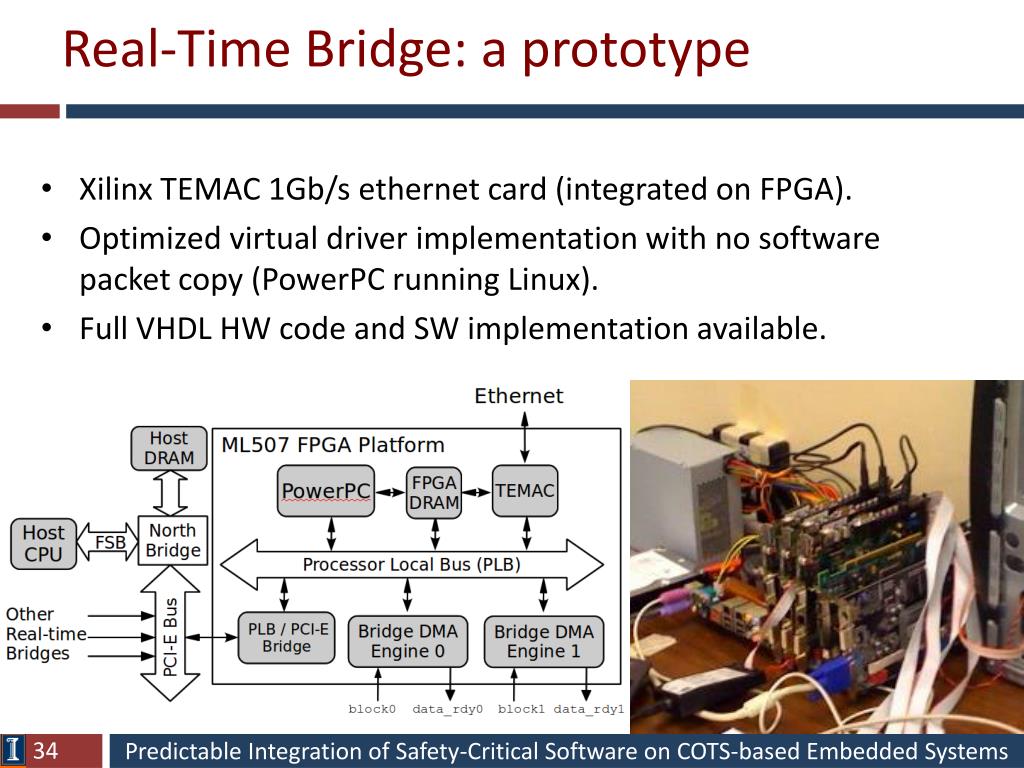

  11. Real-Time Bridge: a prototype • Xilinx TEMAC 1Gb/s ethernet card (integrated on FPGA). • Optimized virtual driver implementation with no software packet copy (PowerPC running Linux). • Full VHDL HW code and SW implementation available. 34

  12. Multicore memory-centric scheduling • It uses the PREM task model: each task is composed by a sequence of intervals, each including a memory phase followed by a computation phase. • It enforces a coarse-grain TDMA schedule for granting memory access to each core. • Each core can be analyzed in isolation as if tasks were running on a “single-core equivalent” platform. G. Yao, R. Pellizzoni, S. Bak, E. Betti, and M. Caccamo, "Memory-centric scheduling for multicore hard real-time systems", Real-Time Systems Journal, Vol. 48, No. 6, pp. 681-715, November 2012.

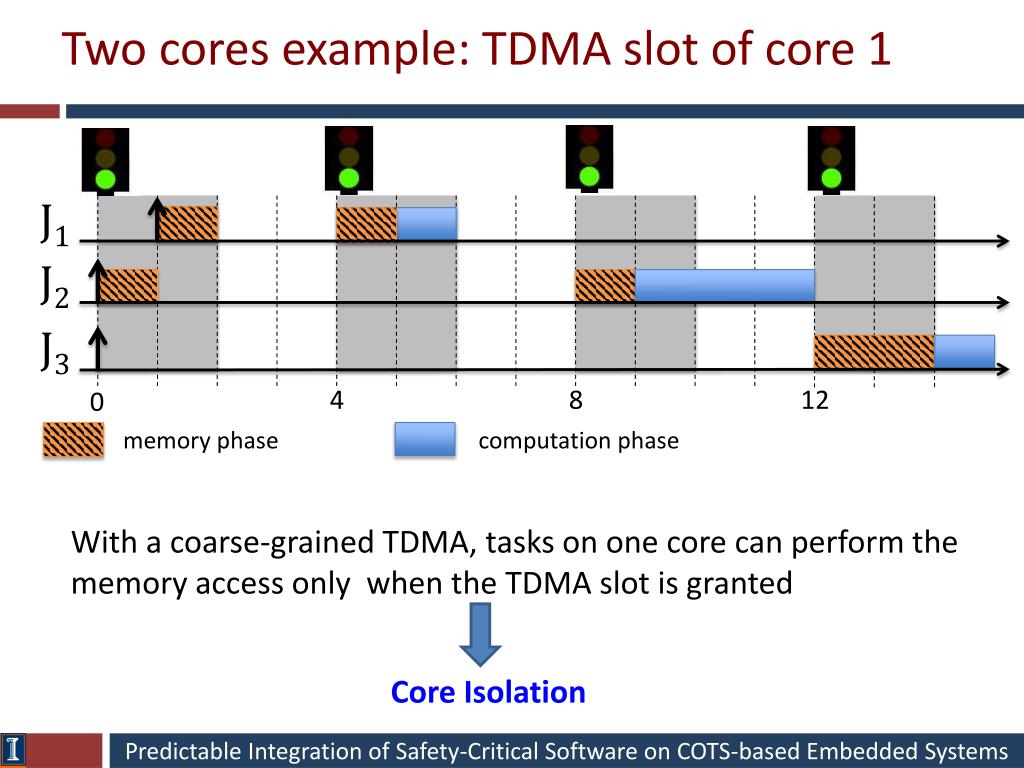

  13. Two cores example: TDMA slot of core 1 J1 J2 J3 4 8 12 0 memory phase computation phase With a coarse-grained TDMA, tasks on one core can perform the memory access only when the TDMA slot is granted Core Isolation

  14. Memory-centric scheduling: three rules • Assumption: fixed priority, partitioned scheduling • Rule 1: enforce a coarse-grain TDMA schedule among the cores for granting access to main memory; • Rule 2: raise scheduling priority of memory phases over execution phases when TDMA memory slot is granted; • Rule 3: memory phases are non-preemptive.

  15. Raise priority of mem. phases during TDMA slot J1 J2 J3 4 8 12 0 memory phase computation phase J1 J2 J3

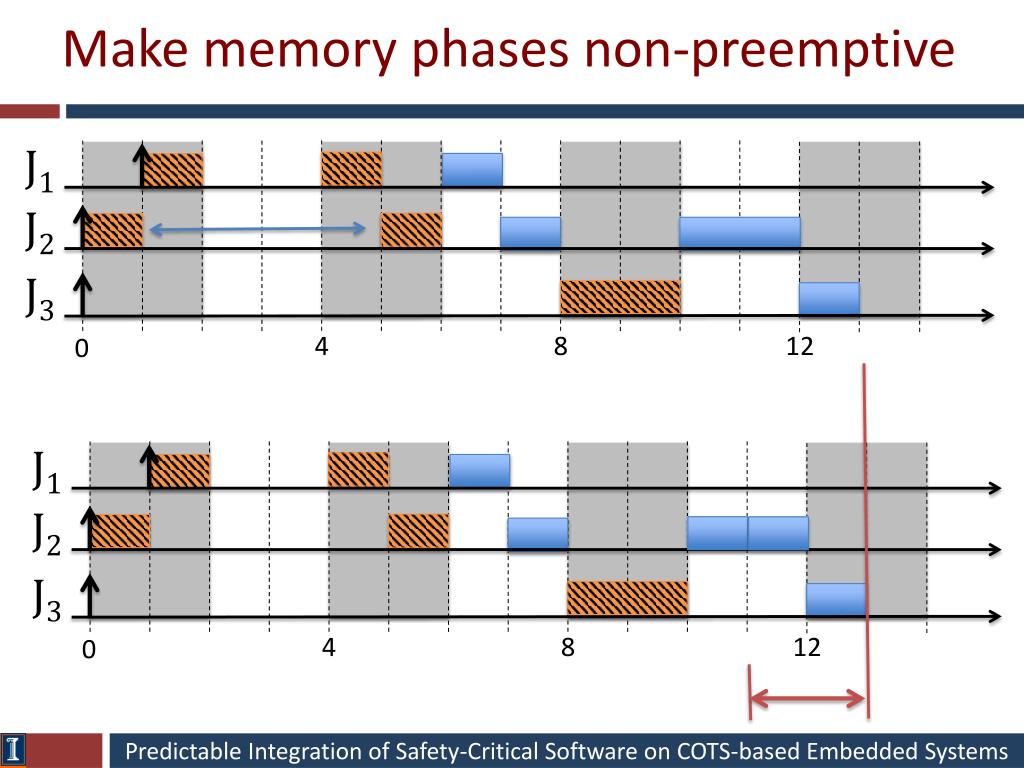

  16. Make memory phases non-preemptive J1 J2 J3 4 8 12 0 J1 J2 J3 4 8 12 0

  17. Summary of two cores example Rule 1 – TDMA memory schedule Rule 2 – Prioritize memory phases during a TDMA memory slot Rule 3 – memory phases are non-preemptive

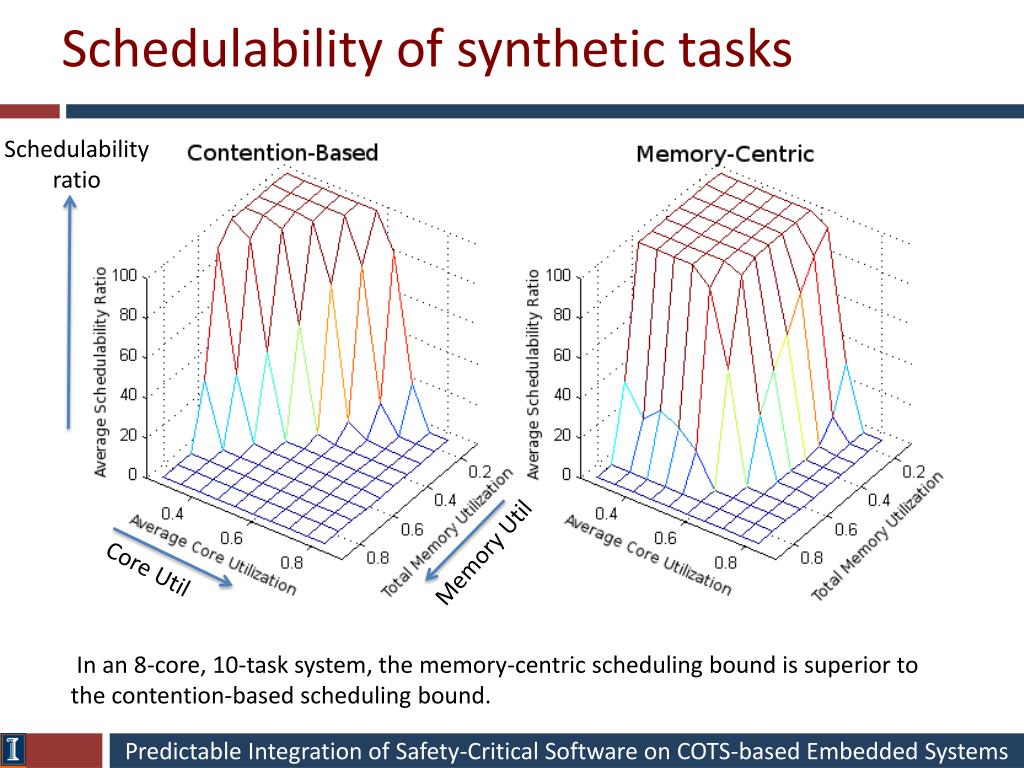

  18. Schedulabilityof synthetic tasks Schedulability ratio Memory Util Core Util In an 8-core, 10-task system, the memory-centric scheduling bound is superior to the contention-based scheduling bound.

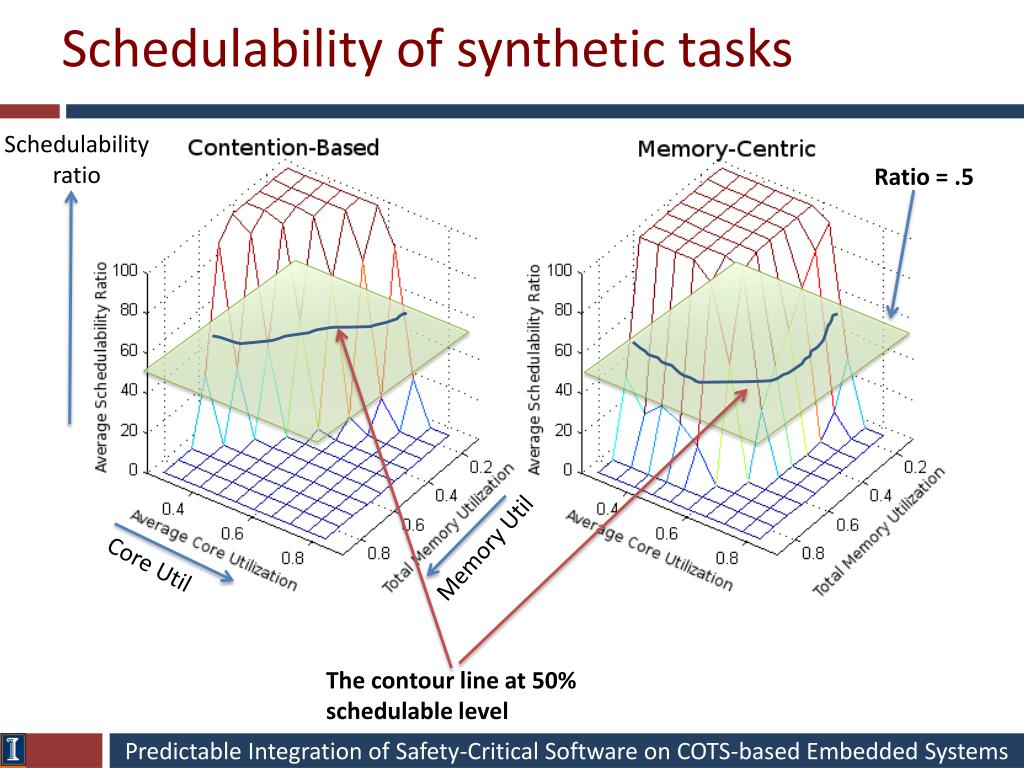

  19. Schedulabilityof synthetic tasks Schedulability ratio Ratio = .5 Memory Util Core Util The contour line at 50% schedulable level

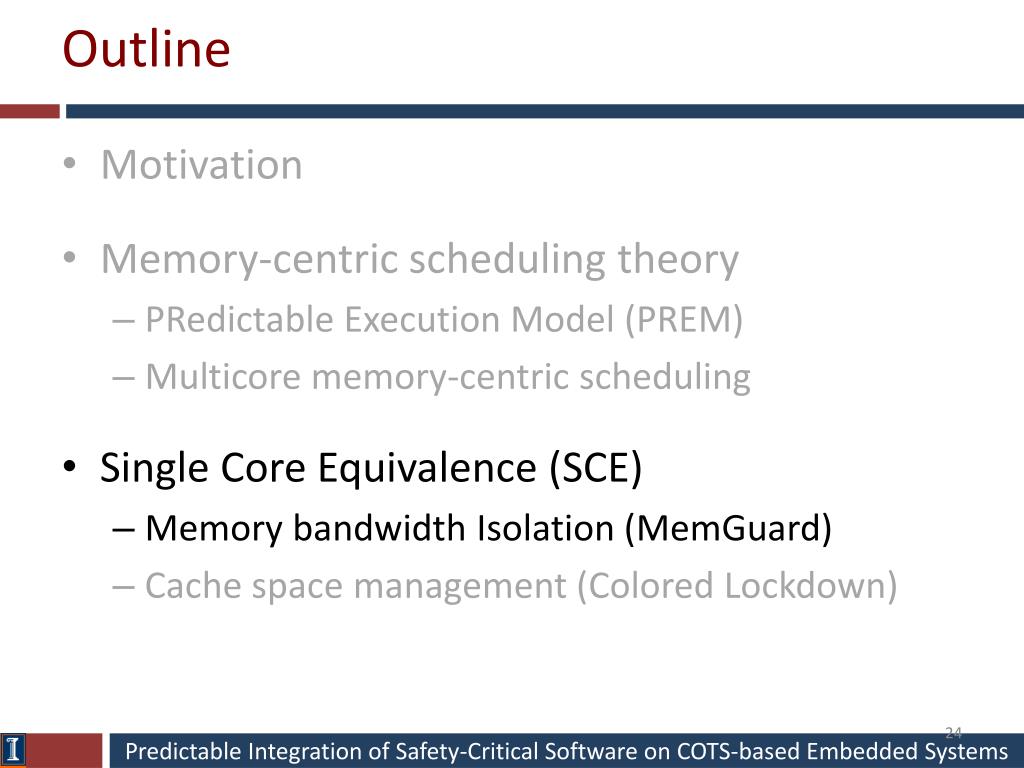

  20. Outline • Motivation • Memory-centric scheduling theory • PRedictableExecution Model (PREM) • Multicore memory-centric scheduling • Single Core Equivalence (SCE) • Memory bandwidth Isolation (MemGuard) • Cache space management (Colored Lockdown)

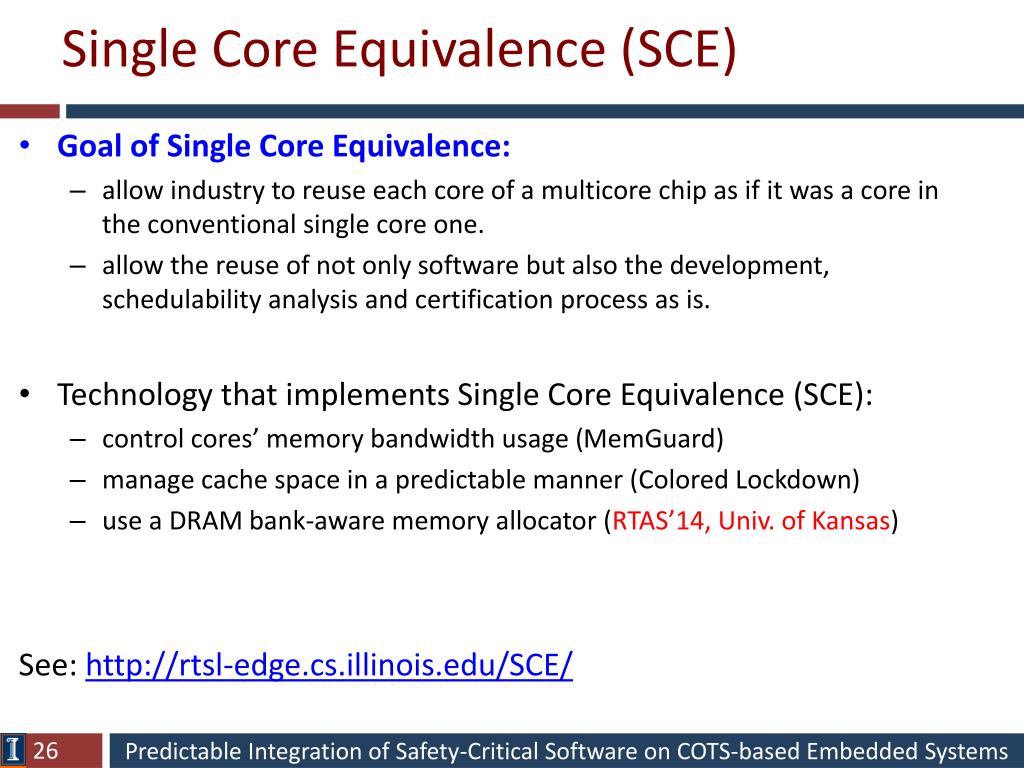

  21. Single Core Equivalence (SCE) • Goal of Single Core Equivalence: • allow industry to reuse each core of a multicore chip as if it was a core in the conventional single core one. • allow the reuse of not only software but also the development, schedulabilityanalysis and certification process as is. • Technology that implements Single Core Equivalence (SCE): • control cores’ memory bandwidth usage (MemGuard) • manage cache space in a predictable manner (Colored Lockdown) • use a DRAM bank-aware memory allocator (RTAS’14, Univ. of Kansas) See: http://rtsl-edge.cs.illinois.edu/SCE/ 26

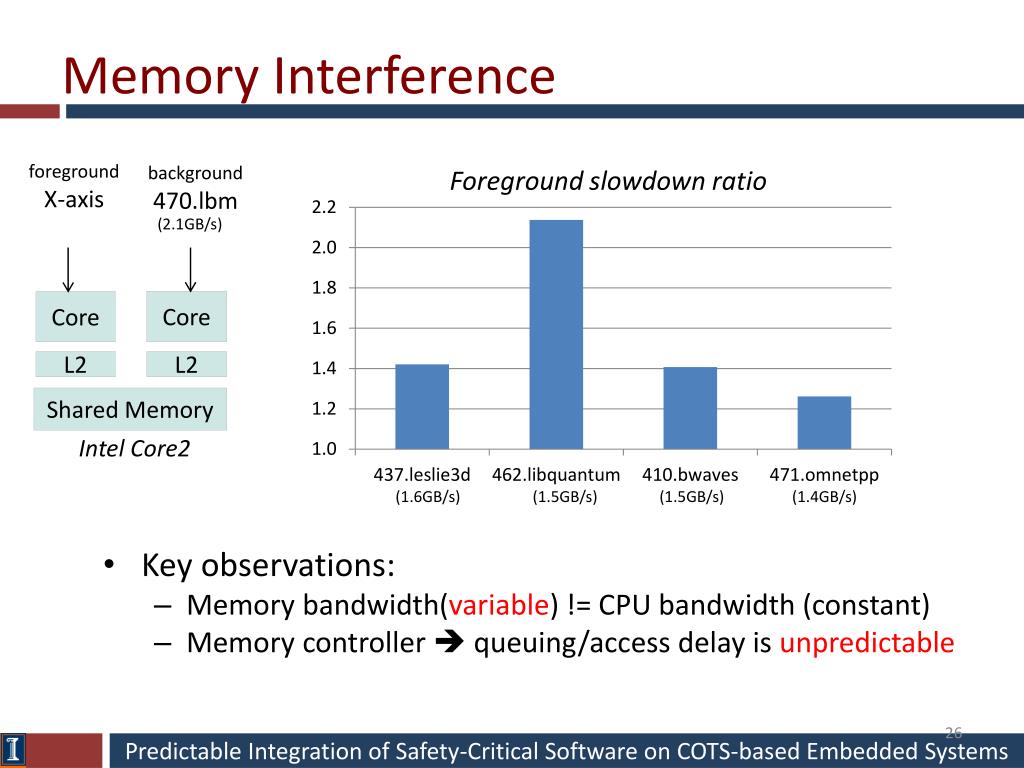

  22. Memory Interference • Key observations: • Memory bandwidth(variable) != CPU bandwidth (constant) • Memory controller  queuing/access delay is unpredictable foreground X-axis background 470.lbm Foreground slowdown ratio (2.1GB/s) Core Core L2 L2 Shared Memory Intel Core2 (1.6GB/s) (1.5GB/s) (1.5GB/s) (1.4GB/s)

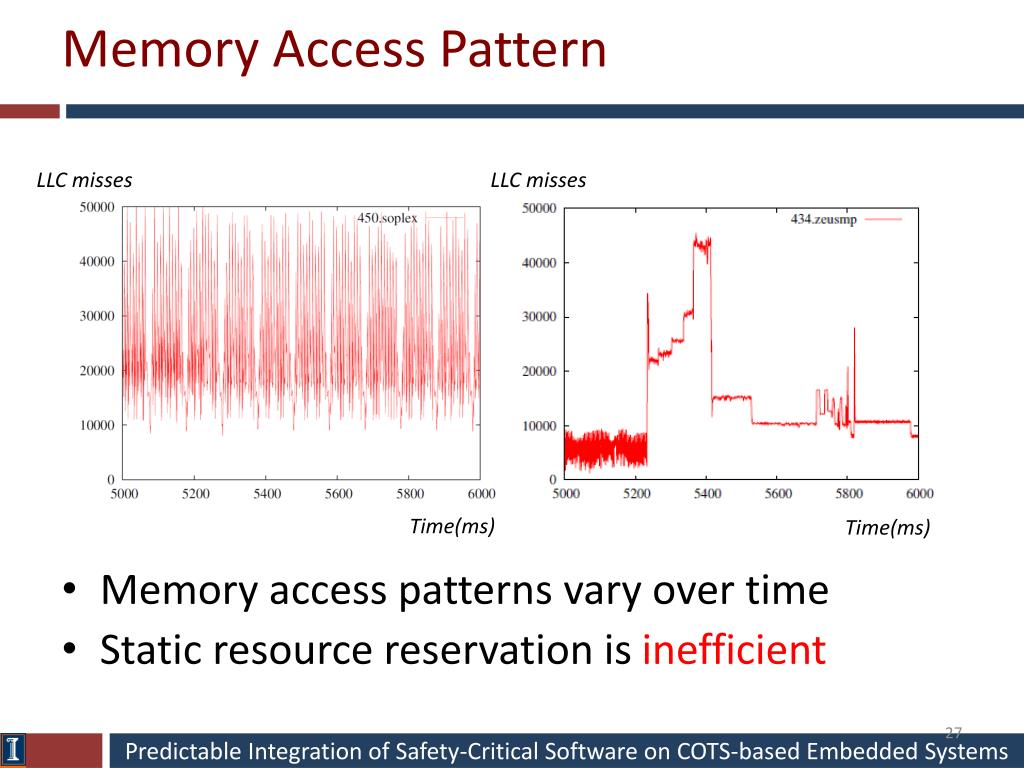

  23. Memory Access Pattern • Memory access patterns vary over time • Static resource reservation is inefficient LLC misses LLC misses Time(ms) Time(ms)

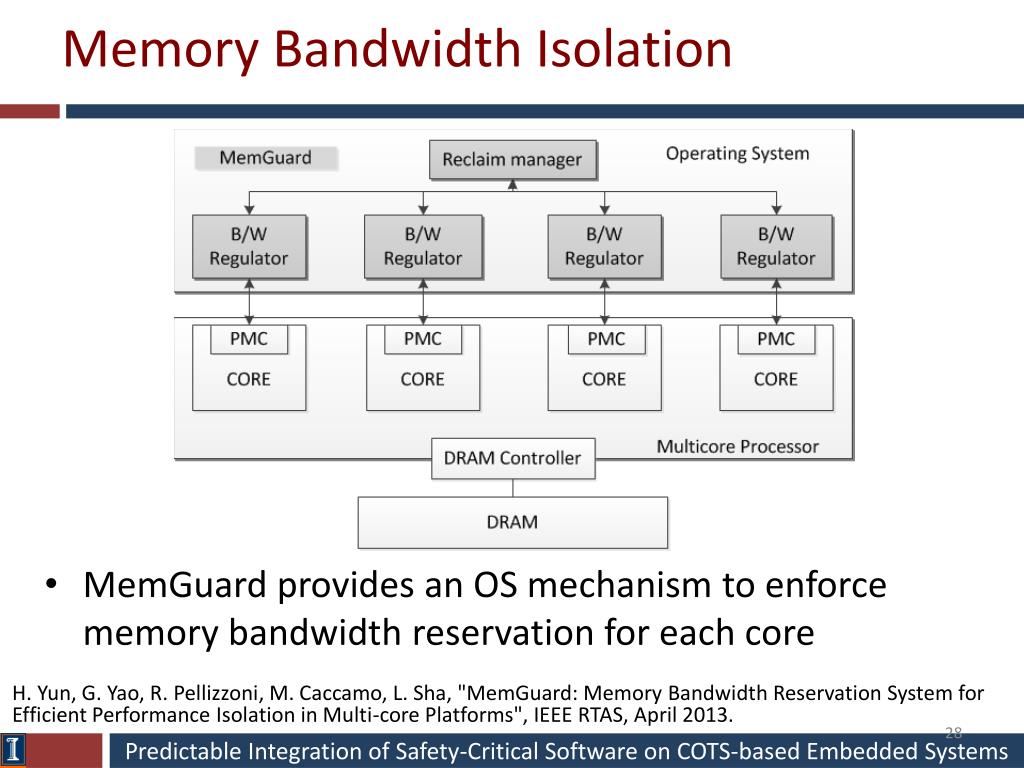

  24. Memory Bandwidth Isolation • MemGuard provides an OS mechanism to enforce memory bandwidth reservation for each core H. Yun, G. Yao, R. Pellizzoni, M. Caccamo, L. Sha, "MemGuard: Memory Bandwidth Reservation System for Efficient Performance Isolation in Multi-core Platforms", IEEE RTAS, April 2013.

  25. MemGuard • Characteristics • Memory bandwidth reservation system • Memory bandwidth: guaranteed + best-effort • Prediction based dynamic reclaiming for efficient utilization of guaranteed bandwidth • Maximize throughput by utilizing best-effort bandwidth whenever possible • Goal • Minimum memory performance guarantee • A dedicated (slower) memory system for each core in multi-core systems

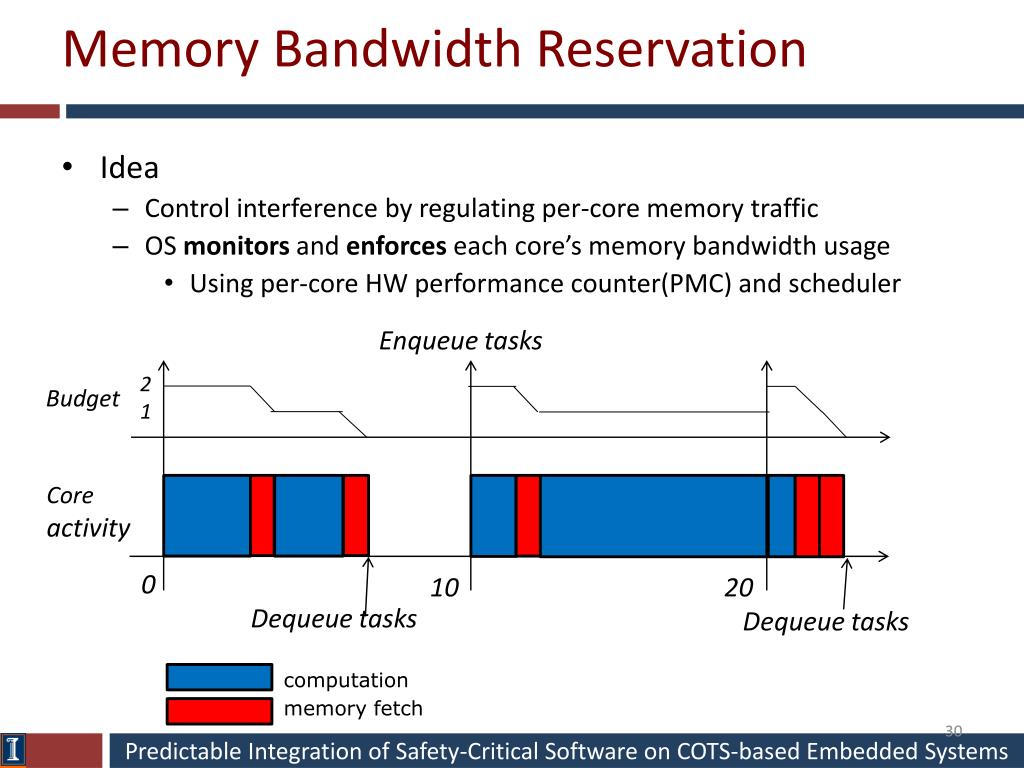

  26. Memory Bandwidth Reservation • Idea • Control interference by regulating per-core memory traffic • OS monitors and enforces each core’s memory bandwidth usage • Using per-core HW performance counter(PMC) and scheduler Enqueue tasks 2 1 Budget Core activity 0 10 20 Dequeue tasks Dequeue tasks computation memory fetch

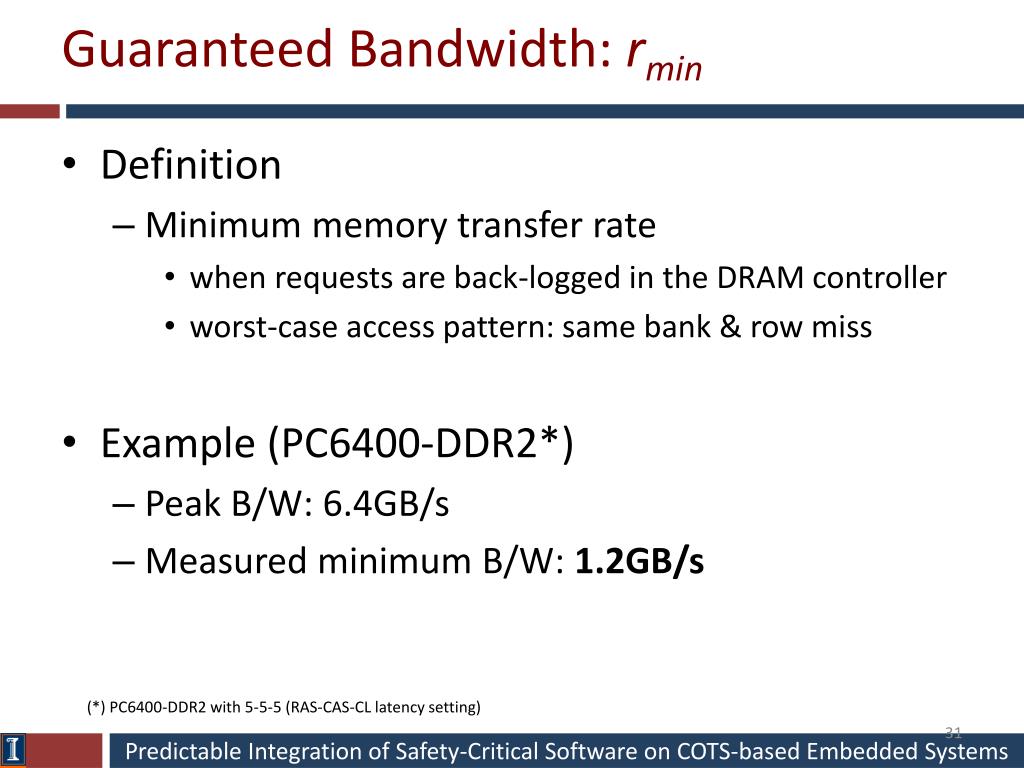

  27. Guaranteed Bandwidth: rmin • Definition • Minimum memory transfer rate • when requests are back-logged in the DRAM controller • worst-case access pattern: same bank & row miss • Example (PC6400-DDR2*) • Peak B/W: 6.4GB/s • Measured minimum B/W: 1.2GB/s (*) PC6400-DDR2 with 5-5-5 (RAS-CAS-CL latency setting)

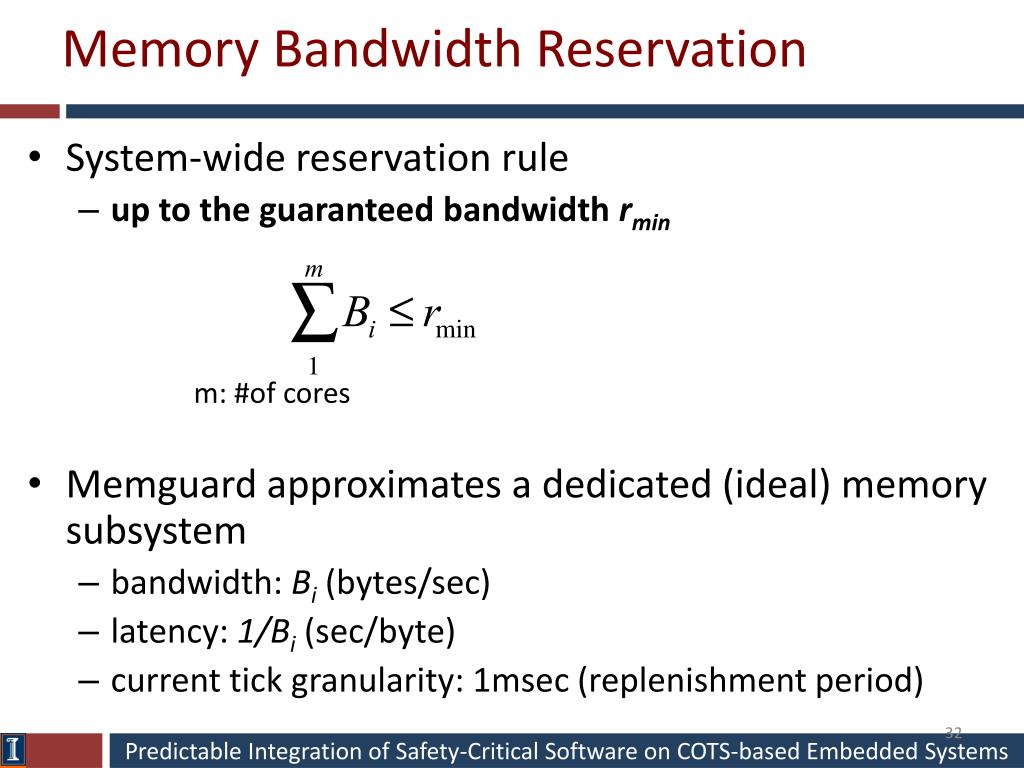

  28. Memory Bandwidth Reservation • System-wide reservation rule • up to the guaranteed bandwidth rmin m: #of cores • Memguard approximates a dedicated (ideal) memory subsystem • bandwidth: Bi (bytes/sec) • latency: 1/Bi (sec/byte) • current tick granularity: 1msec (replenishment period)

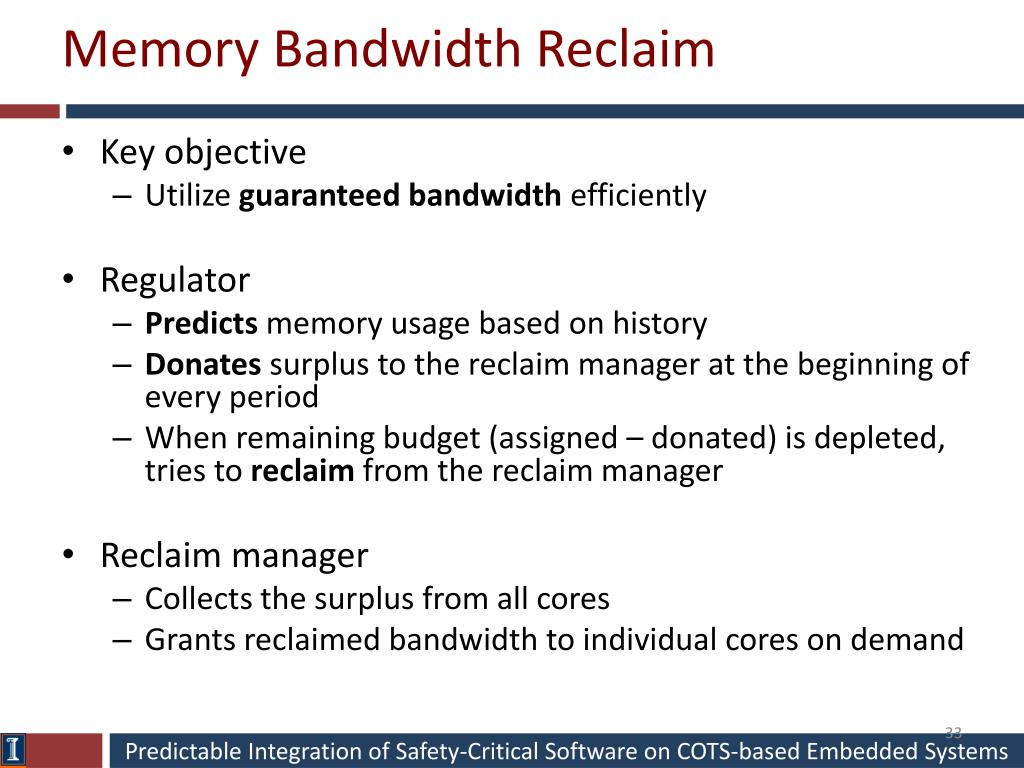

  29. Memory Bandwidth Reclaim • Key objective • Utilize guaranteed bandwidth efficiently • Regulator • Predicts memory usage based on history • Donates surplus to the reclaim manager at the beginning of every period • When remaining budget (assigned – donated) is depleted, tries to reclaim from the reclaim manager • Reclaim manager • Collects the surplus from all cores • Grants reclaimed bandwidth to individual cores on demand

  30. Hard/Soft Reservation on MemGuard • Hard reservation (w/o reclaiming) • Guarantee memory bandwidth Bi regardless of other cores • Selectively applicable on per-core basis • Soft reservation (w/ reclaiming) • Does not guarantee reserved bandwidth due to potential misprediction • Error cases can occur due tomisprediction • Error rate is small (shown in evaluation) • Best-effort bandwidth • After all cores use their given budgets, and before the next period begins, MemGuard broadcasts all cores to continue to execute

  31. Evaluation Platform • Intel Core2Quad 8400, 4MB L2 cache, PC6400 DDR2 DRAM • Modified Linux kernel 3.6.0 + MemGuard kernel module • https://github.com/heechul/memguard/wiki/MemGuard • Used the entire 29 benchmarks from SPEC2006 and synthetic benchmarks Intel Core2Quad Core 2 Core 3 Core 0 Core 1 L1-I L1-D L1-I L1-D L1-I L1-D L1-I L1-D L2 Cache L2 Cache System Bus DRAM

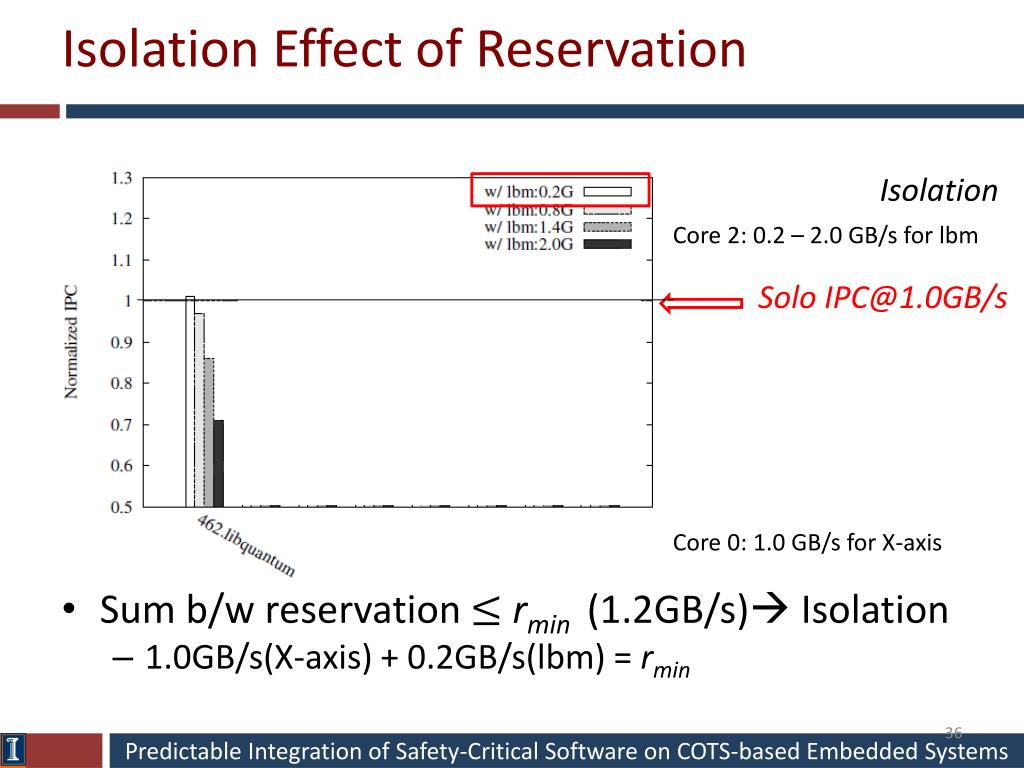

  32. Isolation Effect of Reservation • Sum b/w reservation rmin (1.2GB/s) Isolation • 1.0GB/s(X-axis) + 0.2GB/s(lbm) = rmin Isolation Core 2: 0.2 – 2.0 GB/s for lbm Solo IPC@1.0GB/s Core 0: 1.0 GB/s for X-axis

  33. Effects of Reclaiming and Spare Sharing • Guarantee foreground (SPEC@1.0GB/s) • Improve throughput of background (lbm@0.2GB/s): 368%

  34. Outline • Motivation • Memory-centric scheduling theory • PRedictableExecution Model (PREM) • Multicore memory-centric scheduling • Single Core Equivalence (SCE) • Memory bandwidth Isolation (MemGuard) • Cache space management (Colored Lockdown)

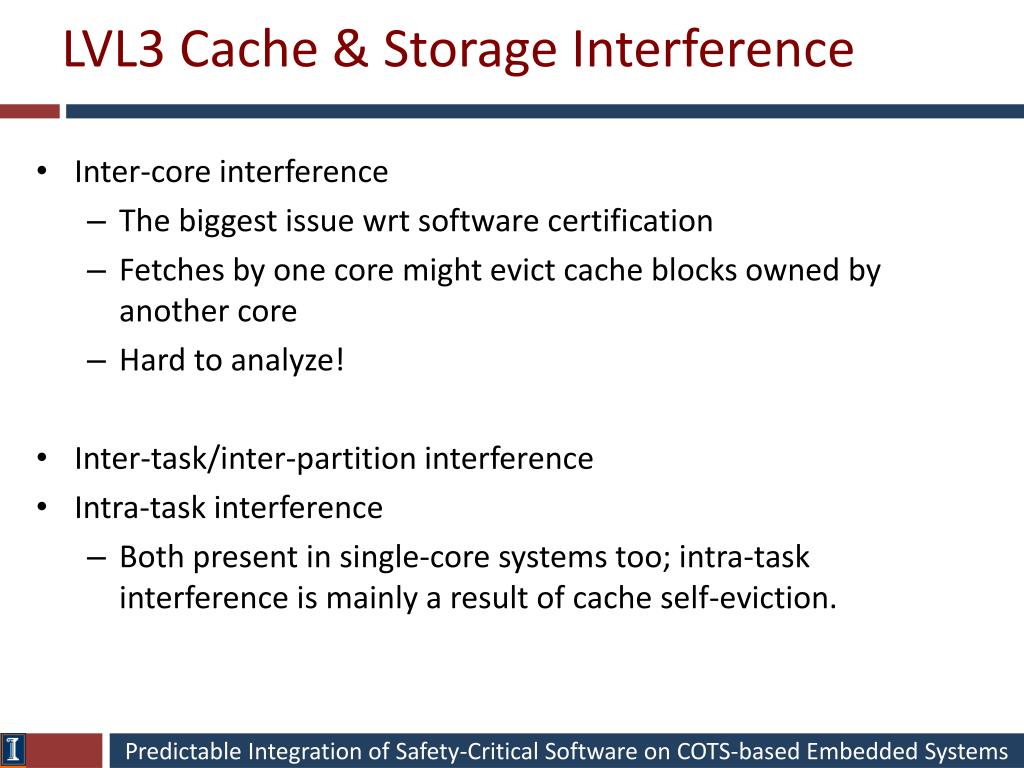

  35. LVL3 Cache & Storage Interference • Inter-core interference • The biggest issue wrt software certification • Fetches by one core might evict cache blocks owned by another core • Hard to analyze! • Inter-task/inter-partition interference • Intra-task interference • Both present in single-core systems too; intra-task interference is mainly a result of cache self-eviction.

  36. Inter-Core Interference: Options • Private cache • It is often not the case: majority of COTS multicore platforms have last level cache shared among cores • Cache-Way Partitioning • Easy to apply, but inflexible • Reducing number of ways per core can greatly increase cache conflicts • Colored Lockdown • Our proposed approach • Use coloring to solve cache conflicts • Fine-grained assignment of cache resources (page size – 4Kbytes) • Use cache locking instructions to lock “hot” pages of rt critical tasks  locked pages can not be evicted from cache R. Mancuso, R. Dudko, E. Betti, M. Cesati, M. Caccamo, R. Pellizzoni, "Real-Time Cache Management Framework for Multi-core Architectures", IEEE RTAS, Philadelphia, USA, April 2013.

  37. How Coloring Works • The position inside the cache of a cache block depends on the value of index bits within the physical address. • Key idea: the OS decides the physical memory mapping of task’s virtual memory pages  manipulate the indexes to map different pages into non-overlapping sets of cache lines (colors)

  38. How Coloring Works • The position inside the cache of a cache block depends on the value of index bits within the physical address. • Key idea: the OS decides the physical memory mapping of task’s virtual memory pages  manipulate the indexes to map different pages into non-overlapping sets of cache lines (colors)

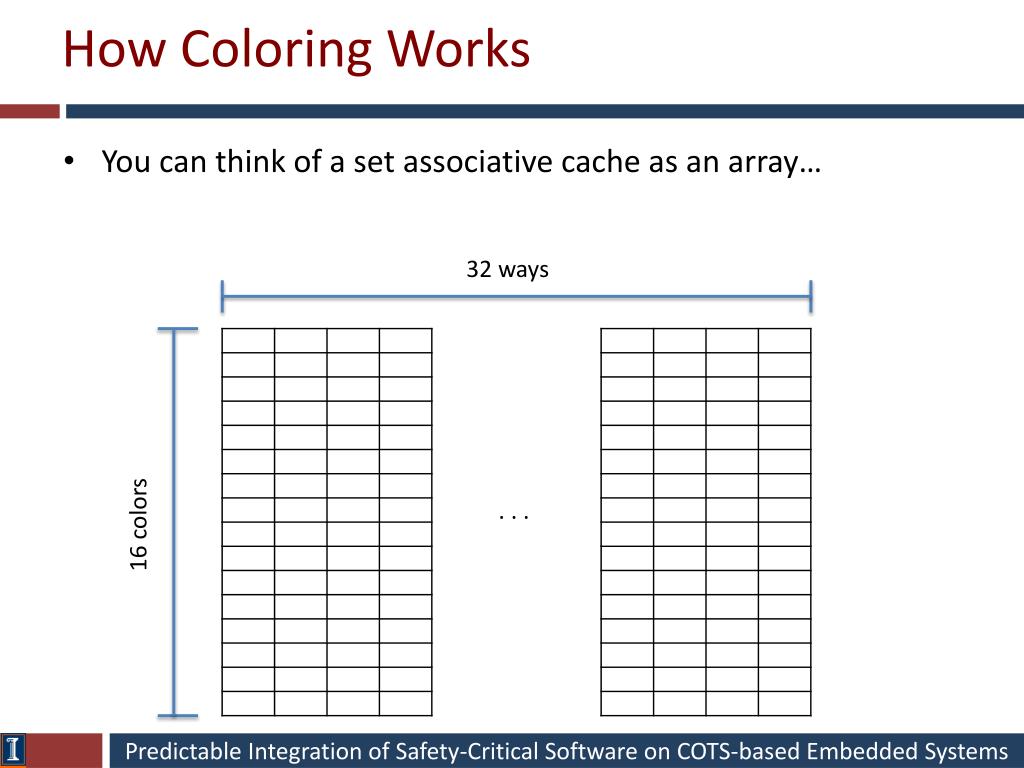

  39. How Coloring Works • You can think of a set associative cache as an array… 32 ways . . . 16 colors

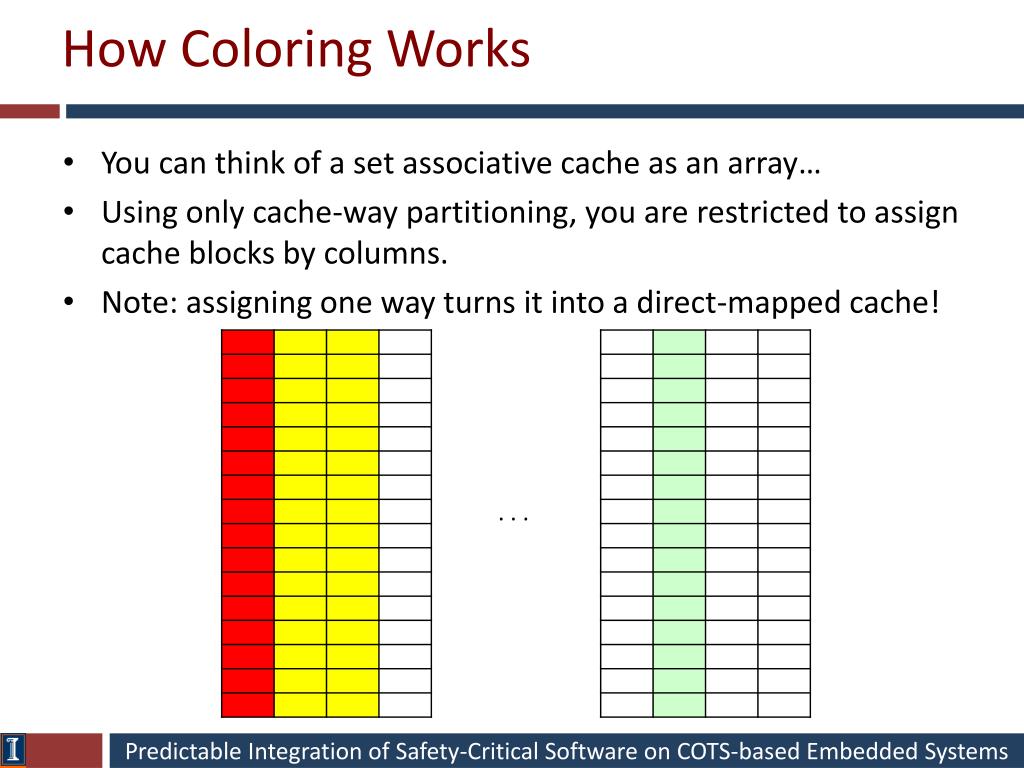

  40. How Coloring Works • You can think of a set associative cache as an array… • Using only cache-way partitioning, you are restricted to assign cache blocks by columns. • Note: assigning one way turns it into a direct-mapped cache! . . .

  41. How Coloring + Locking Works • You can think of cache as an array… • Combining coloring and locking, you can assign arbitrary position to cache blocks independently of replacement policy . . .

  42. Colored Lockdown Final goal • Aimed model - suffer cache misses in hot memory regions only once: • During the startup phase, prefetch & lockthe hot memory regions • Sharp improvement in terms of inter-core isolation andschedulability T1 CPU1 T2 CPU2 startup T1 CPU1 memory access T2 CPU2 T2 CPU2 execution

  43. Detecting Hot Regions • In the general case, the size of the cache is not enough to keep the working set of all running rt critical tasks. • For each rt critical task, we can identify some high usagevirtual memory regions, called: hot memory regions ( ). Such regions can be identified through profiling. • Critical tasks do NOT color dynamically linked libraries.Dynamic memory allocation is allowed only during the startup phase.

  44. Detecting Hot Regions • The final memory profile will look like: • Where A, B, … is the page ranking; • Where “#” is the section index; • It can be fed into the kernel to perform selective Colored Lockdown • How many pages should be locked per process? •  Task WCET reduction as function of locked pages has approximately a convex shape; convex optimization can be used for allocating cache among rt critical tasks # + page offset A B C D E I K O P Q 1 + 0x0002 1 + 0x0004 25 + 0x0000 1 + 0x0001 25 + 0x0003 3 + 0x0000 4 + 0x0000 6 + 0x0002 1 + 0x0005 1 + 0x0000 ...

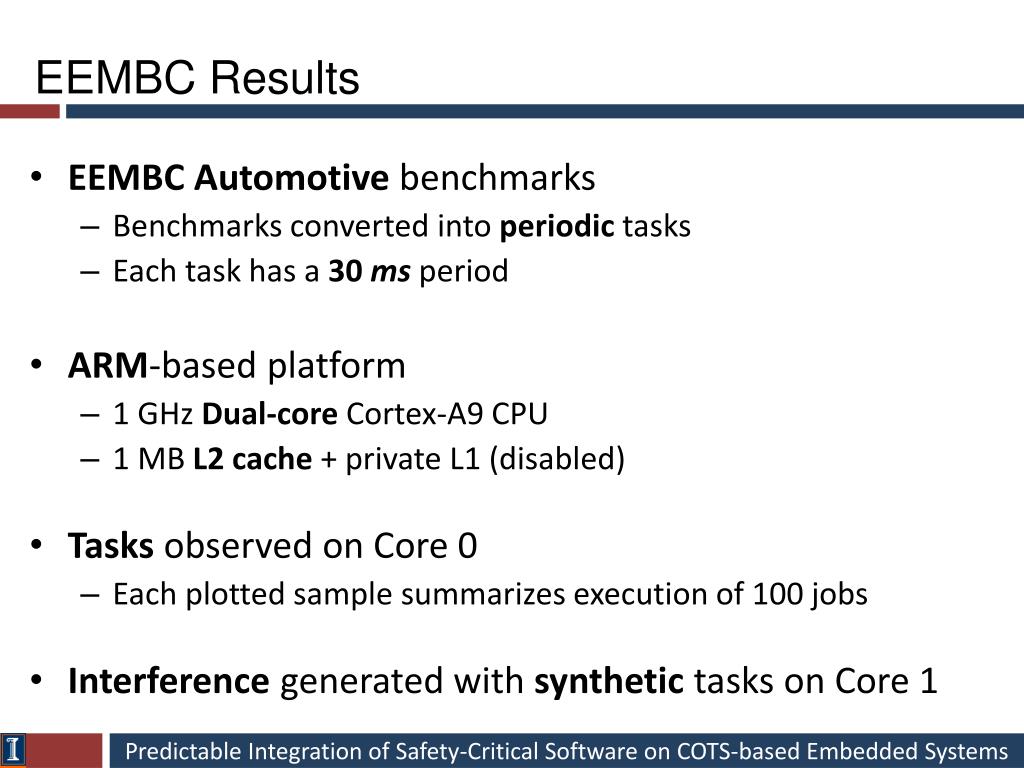

  45. EEMBC Results • EEMBC Automotive benchmarks • Benchmarks converted into periodic tasks • Each task has a 30 msperiod • ARM-based platform • 1 GHz Dual-core Cortex-A9 CPU • 1 MB L2 cache + private L1 (disabled) • Tasksobserved on Core 0 • Each plotted sample summarizes execution of 100 jobs • Interferencegenerated with synthetic tasks on Core 1

  46. EEMBC Results • Angle to time conversion benchmark (a2time) • Baseline reached when 4 hot pages are locked / 81% accesses caught
