  1. Automation, Robotics & Mechatronics Laboratory Demonstration of Dynamic Designer for Solid Edge for Newfane High School Date: Oct. 26, Nov 2, 2002 by Rajan Bhatt, Graduate Student Chin Pei Tang, Graduate Student Dr. Venkat Krovi, Supervisor

  2. Demo Overview • Why are we here? • Brief description of Functional Virtual Prototyping • What is Dynamic Designer? • Functionality • Frequently asked questions • Features and Definitions, Applications • Tutorial and Trainings, Resources available • Motion Tutor Step-by-step tutorial to get you started • Discussion of the examples: • Simple Pendulum • Fourbar Mechanism • Actuator Clamp • Governor • Scissor Lift

  3. Functional Virtual Prototyping • Functional Virtual Prototyping refers to virtual testing of functioning of your mechanical designs without having to build and test physical prototypes • How? • First: Create motion models containing constraints, contacts, forces, and actuators • Second: Simulate mechanism motion • Third: Review animations, plot engineering data, and check for interferences

  4. What does Dynamic Designer do? • Offers a powerful simulation engine • Permits functional simulation of your CAD models (Solid Works or Solid Edge) and outputs the same physical information (part interference, motor size, cam performance, gear and linkage layout, etc.) Pictures courtesy: http://www.dynamicdesignermotion.com/se/support/faq/index.htm

  5. The Functionality • Mechanism Animation • Animate mechanisms based on the assembly constraints, any additional constraints, and actuators using a VCR-type interface and save it to an AVI or a VRML file. • Moving Interference Detection • Check for interferences between parts as the mechanism moves through the real operating range. • The motion of many mechanisms results from contacting parts. • Engineering Data • visualize animations synchronized with XY plots of engineering data. • displacement, velocity, acceleration and reaction load/moment… Pictures courtesy: http://www.dynamicdesignermotion.com/se/support/faq/index.htm

  6. Frequently Asked Questions http://www.dynamicdesignermotion.com/se/support/faq/index.htm The following links should provide answers to most basic Dynamic Designer questions that you may have. InstallationResolve basic installation issues such as what operating systems and versions of Solid Edge Dynamic Designer can be installed on. Evaluation Find out how to obtain evaluation copies of Dynamic Designer and other evaluation options. LicensingDiscover the different licensing options you have to choose from and how they work. Features and DefinitionsAnswer your questions regarding Dynamic Designer features as well as an explanation of terminology used in the software. FunctionalityInvestigate how to take advantage of all the functionality that Dynamic Designer has to offer. ResultsLearn how to study the results of your simulation through plots and FEA analysis. ApplicationsView a list of industries and applications where Dynamic Designer can be used. Tutorials and TrainingFind out what type of training is available to users as well as information on tutorial models.

  7. Dynamic Designer Features & Definition “ So what is the minimum amount of terminology I will need ?” • Dynamics: Kinematics & Kinetics • Kinematics: Study of motion without regard to forces, gravity of motion. • Kinetics: Study of forces on systems in motion

  8. Dynamic Designer Features & Definition • Degree of Freedom (DOF) • The directions an object can move in. In 2D plane How about 3D Space?

  9. Dynamic Designer Features & Definition • DOF (Contd.) • 2D Motion (3 DOF) • 2 translation & 1 rotation (2 lengths & 1 angle) • 3D Motion (6 DOF) • 3 translation & 3 rotation (3 lengths & 3 angles)

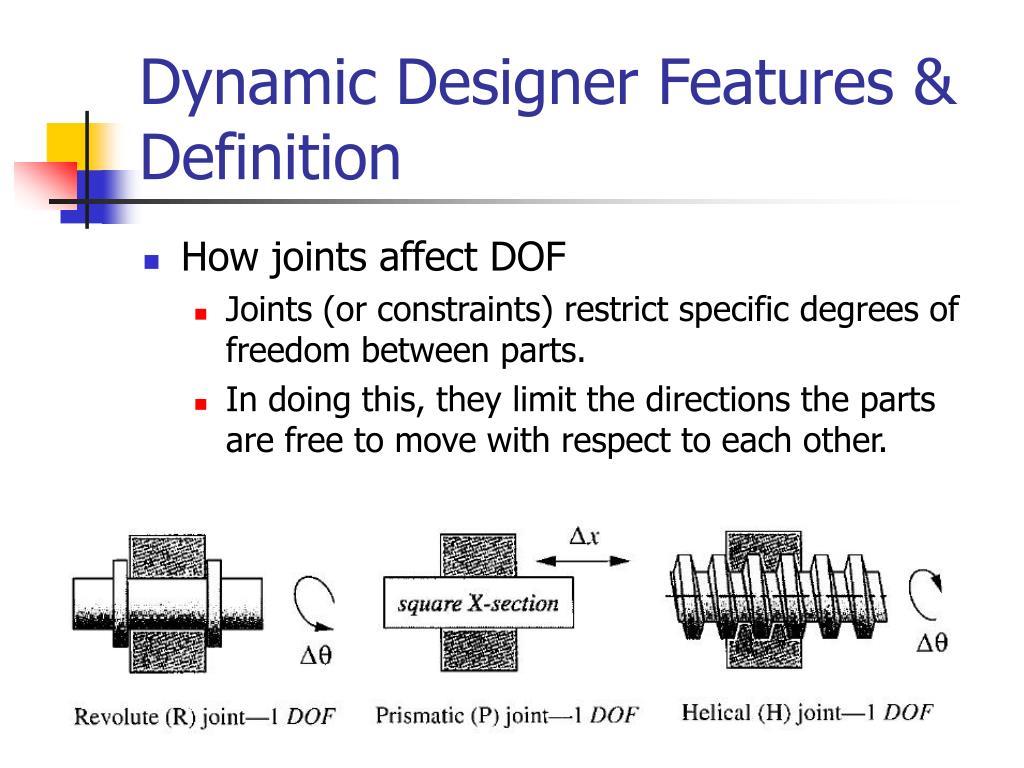

  10. Dynamic Designer Features & Definition • How joints affect DOF • Joints (or constraints) restrict specific degrees of freedom between parts. • In doing this, they limit the directions the parts are free to move with respect to each other.

  11. Dynamic Designer Features & Definition Revolute Joint 1 DOF (2 DOF restricted) Slider Joint 1 DOF (2 DOF restricted) Pin in slot 2 DOF (1 DOF restricted)

  12. Applications “ So how will this benefit my FIRST Robotics project?” • Size motors and actuators • What kind of motor to use? • Solve problem like underestimating peak motor torque. • Determine power consumption • actuator power consumption is immediately available in an XY plot • Friction • See how friction will increase power requirements and actuators size • Force Transmission • Understand how forces are transmitted through a mechanical system • Spring and Damper Stiffness • the effect of spring/damper systems on system motion, quickly experiment with spring/damper rates

  13. Applications http://www.dynamicdesignermotion.com/se/support/faq/apps.htm

  14. Tutorials & Trainings “ So how do I get started?” • A detailed tutorial comes with the software http://www.dynamicdesignermotion.com/download/service_packs/DDMSE01R1-01.pdf • Downloadable online training example Models: • Fourbar, Governor, Actuator Clamp, Electro-Mechanical Switch. http://www.dynamicdesignermotion.com/se/support.htm

  15. Resources • These are all available online (links provided in your booklet): • Dynamic Designer Motion Professional Manual (For Solid Edge) http://www.dynamicdesignermotion.com/download/service_packs/DDMSE01R1-01.pdf • The Quick Start File (also called Motion Tutor) – We will go over this today…

  16. Let’s take a break… Next… “Motion Tutor” Available in the booklet … Step-by-step walk through the tutorials

  17. Fourbar Mechanism Example Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  18. Opening Motion in Solid Edge Select “Motion” from the “Environment” pull down menu Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  19. Parts used in the assembly Moving parts in the assembly Fixed parts in the assembly Drag and drop components to desired locations Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

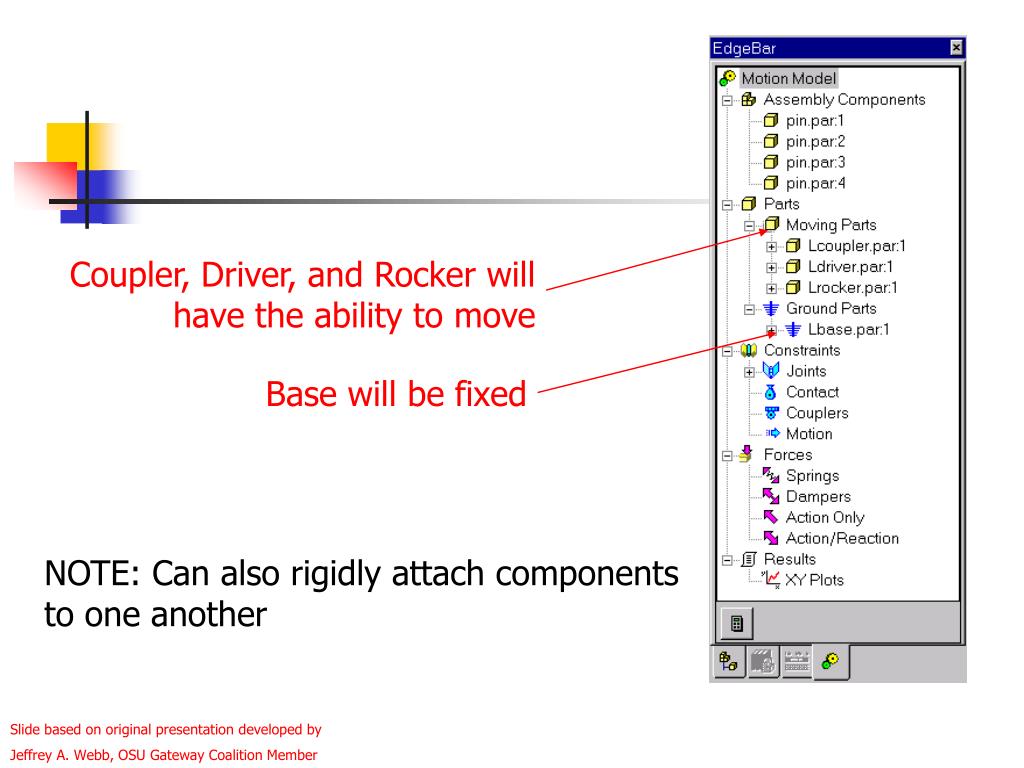

  20. Coupler, Driver, and Rocker will have the ability to move Base will be fixed NOTE: Can also rigidly attach components to one another Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  21. Inserting and Specifying Joints • Dynamic Designer Motion will create motion joints from assembly mates that exist between components in the model • One can also manually add motion joints when a suitable assembly mate does not exist Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  22. Initial Joints and Degrees of Freedom Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  23. Adding a Joint This box will pop up: Right Click on “Joint” and click on the desired joint type Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  24. Using the IntelliMotion Builder Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  25. “Gravity” Tab Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

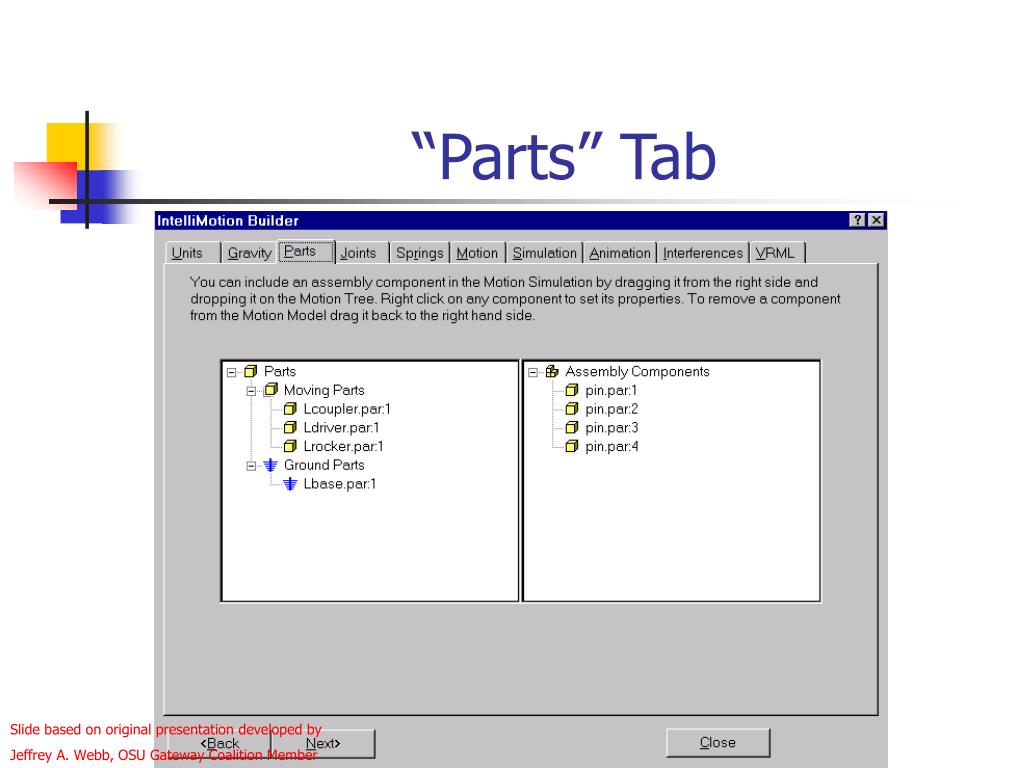

  26. “Parts” Tab Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  27. “Joints” Tab Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  28. “Springs” Tab Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  29. “Motion” Tab Motion Types: Free (Default) Displacement Velocity Acceleration Function: Constant Step Harmonic Spline Expression Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  30. “Simulation” Tab Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  31. “Animation” Tab Click to save as an .avi file Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

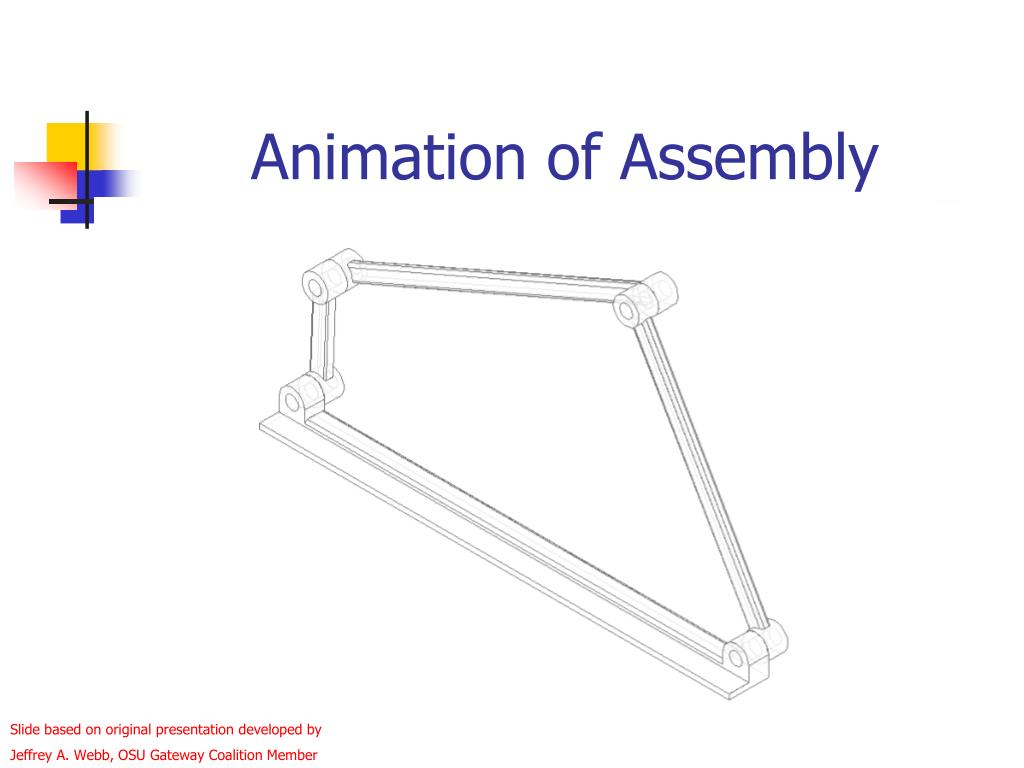

  32. Animation of Assembly Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  33. Plotting Desired Outputs Highlight desired object, right click, and then choose the desired output which you want to plot Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  34. Viewing Plots Right click on “XY Plots” and then select “Show all plots” Resulting Plot Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  35. Pulling Information from “Realtime” Plots Position of linkage when velocity is a maximum Position of linkage when velocity is a minimum Slide based on original presentation developed by Jeffrey A. Webb, OSU Gateway Coalition Member

  36. A few of other examples are available in the booklet… Thank you! Questions & Comments?
