  1. Media Transmisi

  2. Jenis Media Transmisi : 1. Kabel • Twisted Pair b. Coaxial 2. Serat Kaca 3. Gelombang Elektromagnetik 4. Satelit

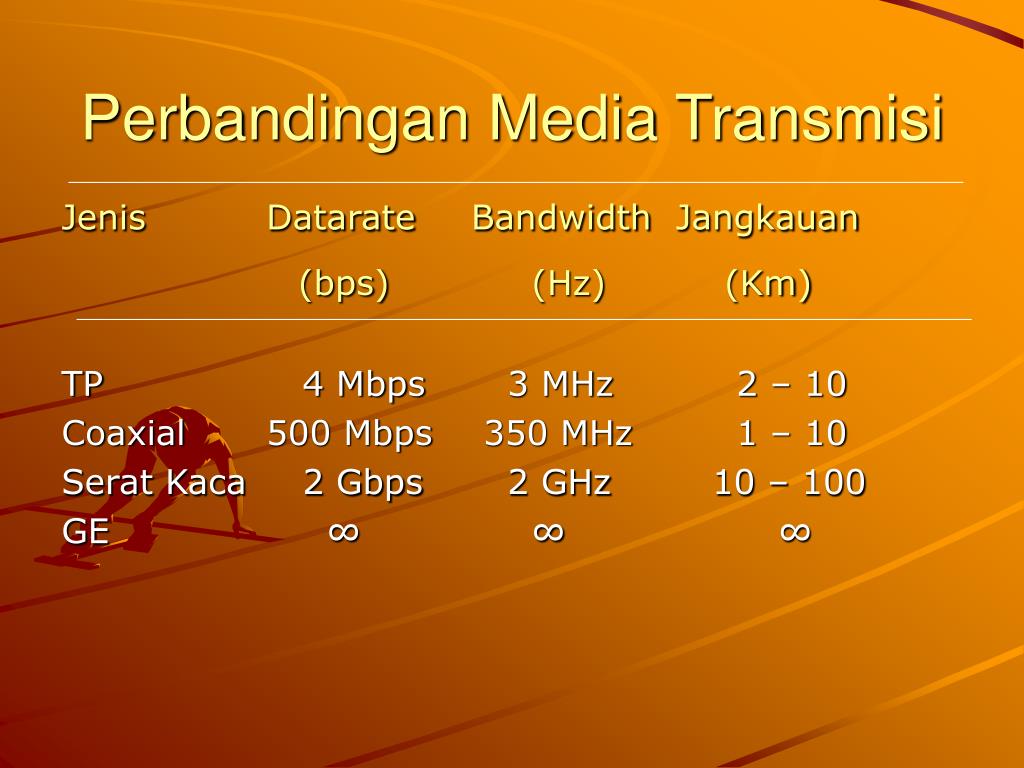

  3. Perbandingan Media Transmisi Jenis Datarate Bandwidth Jangkauan (bps) (Hz) (Km) TP 4 Mbps 3 MHz 2 – 10 Coaxial 500 Mbps 350 MHz 1 – 10 Serat Kaca 2 Gbps 2 GHz 10 – 100 GE ∞ ∞ ∞

  4. Thxz 4 ur attention

  5. Tugas…… Tidak ada tugas dulu ya….. Gak pa pa kan ? Bye…
