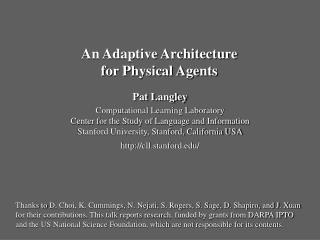

slide1

An Adaptive Architecture

for Physical Agents

Pat Langley

Computational Learning Laboratory

Center for the Study of Language and Information

Stanford University, Stanford, California USA

http://cll.stanford.edu/

Thanks to D. Choi, K. Cummings, N. Nejati, S. Rogers, S. Sage, D. Shapiro, and J. Xuan for their contributions. This talk reports research. funded by grants from DARPA IPTO and the US National Science Foundation, which are not responsible for its contents.

general cognitive systems

General Cognitive Systems

The original goal of artificial intelligence was to design and implement computational artifacts that:

combined many cognitive abilities in an integrated system;

exhibited the same level of intelligence as humans;

utilized its intelligence in a general way across domains.

Instead, modern AI has divided into many subfields that care little about systems, generality, or even intelligence.

But the challenge remains and we need far more research on general cognitive systems.

the domain of in city driving
The Domain of In-City Driving
  • Consider driving a vehicle in a city, which requires:
  • selecting routes
  • obeying traffic lights
  • avoiding collisions
  • being polite to others
  • finding addresses
  • staying in the lane
  • parking safely
  • stopping for pedestrians
  • following other vehicles
  • delivering packages

These tasks range from low-level execution to high-level reasoning.

the fragmentation of ai research

language

planning

perception

reasoning

action

learning

The Fragmentation of AI Research

newell s vision

In 1973, Allen Newell argued “You can’t play twenty questions with nature and win”. Instead, he proposed that we:

Newell’s Vision

move beyond isolated phenomena and capabilities to develop complete models of intelligent behavior;

demonstrate our systems’ intelligence on the same range of domains and tasks as humans can handle;

evaluate these systems in terms of generality and flexibility rather than success on a single application domain.

However, there are different paths toward achieving these goals.

an architecture with communicating modules

language

planning

perception

reasoning

action

learning

An Architecture with Communicating Modules

software engineering / multi-agent systems

an architecture with shared short term memory

language

planning

perception

reasoning

action

learning

An Architecture with Shared Short-Term Memory

short-term

beliefs and goals

blackboard architectures

architectures and constraints

Architectures and Constraints

Newell’s vision for research on theories of intelligence was that:

agent architectures should make strong theoretical assumptions about the nature of the mind.

architectural designs should change only gradually, as new structures or processes are determined necessary.

later design choices should be constrained heavily by earlier ones, not made independently.

A successful architecture is all about mutual constraints, and it should provide a unified theory of intelligent behavior.

He associated these aims with the idea of a cognitive architecture.

an architecture with shared long term memory

language

planning

perception

reasoning

action

learning

An Architecture with Shared Long-Term Memory

short-term

beliefs and goals

long-term memory

structures

cognitive architectures

a constrained cognitive architecture

language

planning

perception

reasoning

action

learning

A Constrained Cognitive Architecture

short-term

beliefs and goals

long-term memory

structures

the i carus architecture

The ICARUS Architecture

In this talk I will use one such framework  ICARUS to illustrate the advantages of cognitive architectures.

Like previous candidates, it incorporates ideas from theories of human problem solving and reasoning.

However, ICARUS is also distinctive in its concern with:

physical agents that operate in an external environment;

the hierarchical structure of knowledge and its origin.

These concerns have led to different assumptions than earlier cognitive architectures like ACT-R, Soar, and Prodigy.

theoretical claims of i carus

Theoretical Claims of ICARUS

Our recent work on ICARUS has been guided by six principles:

Cognition grounded in perception and action

Cognitive separation of categories and skills

Hierarchical organization of long-term memory

Cumulative learning of skill/concept hierarchies

Correspondence of long-term/short-term structures

Modulation of symbolic structures with numeric content

These ideas distinguish ICARUS from most other architectures.

architectural commitment to memories

Architectural Commitment to Memories

A cognitive architecture makes a specific commitment to:

long-term memories that store knowledge and procedures;

short-term memories that store beliefs and goals;

sensori-motor memories that hold percepts and actions.

Each memory is responsible for different content that the agent uses in its activities.

i carus memories

ICARUS’ Memories

Perceptual

Buffer

Short-Term

Conceptual

Memory

Long-Term

Conceptual

Memory

Environment

Long-Term

Skill Memory

Short-Term

Goal/Skill

Memory

Motor

Buffer

architectural commitment to representations

Architectural Commitment to Representations

Most cognitive architectures rely upon formalisms similar to predicate calculus that express relational content.

These build on the central assumption of AI that intelligence involves the manipulation of list structures.

For each memory, a cognitive architecture also commits to:

the encoding of contents in that memory;

the organization of structures within the memory;

the connections among structures across memories.

i carus percepts are objects with attributes
ICARUS’ Percepts are Objects with Attributes

(self me speed 24.0 wheel-angle 0.02 limit 25.0 road-angle 0.06)

(segment g1059 street 2 dist -5.0 latdist 15.0)

(segment g1050 street A dist -45.0 latdist nil)

(segment g1049 street A dist oor latdist nil)

(lane-line g1073 length 100.0 width 0.5 dist 35.0 angle 1.57 color white)

(lane-line g1074 length 100.0 width 0.5 dist 15.0 angle 1.57 color white)

(lane-line g1072 length 100.0 width 0.5 dist 25.0 angle 1.57 color yellow)

(lane-line g1100 length 100.0 width 0.5 dist -15.0 angle 0.0 color white)

(lane-line g1101 length 100.0 width 0.5 dist 5.0 angle 0.0 color white)

(lane-line g1099 length 100.0 width 0.5 dist -5.0 angle 0.0 color yellow)

(lane-line g1104 length 100.0 width 0.5 dist 5.0 angle 0.0 color white)

(intersection g1021 street A cross 2 dist -5.0 latdist nil)

(building g943 address 246 c1dist 43.69 c1angle -0.73 c2dist nil c2angle nil)

(building g941 address 246 c1dist 30.10 c1angle -1.30 c2dist 43.70 c2angle -0.73)

(building g939 address 197 c1dist 30.10 c1angle -1.30 c2dist 33.40 c2angle -2.10)

(building g943 address 172 c1dist 33.40 c1angle -2.09 c2dist 50.39 c2angle -2.53)

(sidewalk g975 dist 15.0 angle 0.0)

(sidewalk g978 dist 5.0 angle 1.57)

i carus beliefs are relations among objects
ICARUS’ Beliefs are Relations Among Objects

(not-on-street me g2980) (currrent-building me g2222)

(not-approaching-cross-street me g2980) (not-on-cross-street me g2980)

(current-street me A) (current-segment me g2480)

(not-delivered g2980) (in-U-turn-lane me g2533)

(in-leftmost-lane me g2533) (lane-to-right me g2533)

(fast-for-right-turn me) (fast-for-U-turn me)

(driving-in-segment me g2480 g2533) (at-speed-for-cruise me)

(steering-wheel-straight me) (centered-in-lane me g2533)

(aligned-with-lane me g2533) (in-lane me g2533)

(on-right-side-of-road me) (in-segment me g2480)

(buildings-on-right me g2231 g2230 g2480) (increasing me g2231 g2230 g2480)

(buildings-on-right me g2231 g2222 g2480) (increasing me g2231 g2222 g2480)

(buildings-on-right me g2231 g2211 g2480) (increasing me g2231 g2211 g2480)

(buildings-on-right me g2230 g2222 g2480) (increasing me g2230 g2222 g2480)

(buildings-on-right me g2230 g2211 g2480) (increasing me g2230 g2211 g2480)

(buildings-on-right me g2222 g2211 g2480) (increasing me g2222 g2211 g2480)

(buildings-on-left me g2366 g2480) (buildings-on-left me g2368 g2480)

(buildings-on-left me g2370 g2480) (buildings-on-left me g2372 g2480)

teleoreactive logic programs

Teleoreactive Logic Programs

ICARUS encodes long-term knowledge of three general types:

Concepts: A set of conjunctive relational inference rules;

Primitive skills: A set of durative STRIPS operators;

Nonprimitive skills: A set of clauses which specify:

a head that indicates a goal the method achieves;

a set of (possibly defined) preconditions;

one or more ordered subskills for achieving the goal.

These teleoreactive logic programs can be executed reactively but in a goal-directed manner (Nilsson, 1994).

i carus concepts for in city driving
ICARUS Concepts for In-City Driving

(in-segment (?self ?sg) :percepts ((self ?self segment ?sg) (segment ?sg)))(aligned-with-lane (?self ?lane) :percepts ((self ?self) (lane-line ?lane angle ?angle)) :positives ((in-lane ?self ?lane)) :tests ((> ?angle -0.05) (< ?angle 0.05)) )(on-street (?self ?packet) :percepts ((self ?self) (packet ?packet street ?street) (segment ?sg street ?street)) :positives ((not-delivered ?packet) (current-segment ?self ?sg)) )(increasing-direction (?self) :percepts ((self ?self)) :positives ((increasing ?b1 ?b2)) :negatives ((decreasing ?b3 ?b4)) )

i carus skills for in city driving
ICARUS Skills for In-City Driving

(on-street-right-direction (?self ?packet) :percepts ((self ?self segment ?segment direction ?dir)

(building ?landmark)) :start ((on-street-wrong-direction ?self ?packet))

:ordered ((get-in-U-turn-lane ?self) (prepare-for-U-turn ?self)

(steer-for-U-turn ?self ?landmark)) )

(get-aligned-in-segment (?self ?sg) :percepts ((lane-line ?lane angle ?angle)) :requires ((in-lane ?self ?lane)) :effects ((aligned-with-lane ?self ?lane)) :actions ((steer (times ?angle 2))) )

(steer-for-right-turn (?self ?int ?endsg) :percepts ((self ?self speed ?speed) (intersection ?int cross ?cross) (segment ?endsg street ?cross angle ?angle)) :start ((ready-for-right-turn ?self ?int)) :effects ((in-segment ?self ?endsg))

:actions ((times steer 2)) )

slide21

Hierarchical Structure of Long-Term Memory

ICARUS organizes both concepts and skills in a hierarchical manner.

concepts

Each concept is defined in terms of other concepts and/or percepts.

Each skill is defined in terms of other skills, concepts, and percepts.

skills

slide22

concepts

skills

Hierarchical Structure of Long-Term Memory

ICARUS interleaves its long-term memories for concepts and skills.

For example, the skill highlighted here refers directly to the highlighted concepts.

architectural commitment to processes

Architectural Commitment to Processes

In addition, a cognitive architecture makes commitments about:

performance processes for:

retrieval, matching, and selection

inference and problem solving

perception and motor control

learning processes that:

generate new long-term knowledge structures

refine and modulate existing structures

In most cognitive architectures, performance and learning are tightly intertwined.

i carus functional processes

Perceptual

Buffer

ICARUS’ Functional Processes

Short-Term

Conceptual

Memory

Long-Term

Conceptual

Memory

Conceptual

Inference

Perception

Environment

Skill Retrieval

Long-Term

Skill Memory

Short-Term

Goal/Skill

Memory

Problem Solving

Skill Learning

Skill

Execution

Motor

Buffer

the i carus control cycle

The ICARUS Control Cycle

On each successive execution cycle, the ICARUS architecture:

places descriptions of sensed objects in the perceptual buffer;

infers instances of concepts implied by the current situation;

finds paths through the skill hierarchy from top-level goals;

selects one or more applicable skill paths for execution;

invokes the actions associated with each selected path.

Thus, ICARUS agents are examples of what Nilsson (1994) refers to as teleoreactive systems.

slide26

Basic ICARUS Processes

ICARUS matches patterns to recognize concepts and select skills.

concepts

Concepts are matched bottom up, starting from percepts.

Skill paths are matched top down, starting from intentions.

skills

slide27

Skill Hierarchy

Problem

Primitive Skills

Executed plan

?

ICARUS Interleaves Execution and Problem Solving

Reactive

Execution

no

impasse?

yes

Problem

Solving

interleaving reactive control and problem solving

Solve(G) Push the goal literal G onto the empty goal stack GS. On each cycle, If the top goal G of the goal stack GS is satisfied, Then pop GS. Else if the goal stack GS does not exceed the depth limit, Let S be the skill instances whose heads unify with G. If any applicable skill paths start from an instance in S, Then select one of these paths and execute it. Else let M be the set of primitive skill instances that have not already failed in which G is an effect. If the set M is nonempty, Then select a skill instance Q from M. Push the start condition C of Q onto goal stack GS.

Else if G is a complex concept with the unsatisfied subconcepts H and with satisfied subconcepts F, Then if there is a subconcept I in H that has not yet failed, Then push I onto the goal stack GS. Else pop G from the goal stack GS and store information about failure with G's parent. Else pop G from the goal stack GS. Store information about failure with G's parent.

Interleaving Reactive Control and Problem Solving

This is traditional means-ends analysis, with three exceptions: (1) conjunctive goals must be defined concepts; (2) chaining occurs over both skills/operators and concepts/axioms; and (3) selected skills are executed whenever applicable.

slide29

C

B

B

A

A

C

A Successful Problem-Solving Trace

initial state

(clear C)

(hand-empty)

(unst. C B)

(clear B)

(unstack C B)

goal

(on C B)

(unst. B A)

(clear A)

(unstack B A)

(ontable A T)

(holding C)

(hand-empty)

(putdown C T)

(on B A)

(holding B)

architectures as programming languages

Architectures as Programming Languages

Cognitive architectures come with a programming language that:

includes a syntax linked to its representational assumptions

inputs long-term knowledge and initial short-term elements

provides an interpreter that runs the specified program

incorporates tracing facilities to inspect system behavior

Such programming languages ease construction and debugging of knowledge-based systems.

For this reason, cognitive architectures support far more efficient development of software for intelligent systems.

programming in i carus

Programming in ICARUS

The programming language associated with ICARUS comes with:

the syntax of teleoreactive logic programs

the ability to load and parse such programs

an interpreter for inference, execution, planning, and learning

a trace package that displays system behavior over time

We have used this language to develop adaptive intelligent agents in a variety of domains.

the origin of skill hierarchies

ICARUS’ commitment to hierarchical organization raises a serious question about the origin of its structures.

We want mechanisms which acquire these structures in ways that:

The Origin of Skill Hierarchies

are consistent with knowledge of human behavior;

operate in an incremental and cumulative manner;

satisfy constraints imposed by other ICARUS components.

This requires some source of experience from which to create hierarchical structures.

slide33

Skill Hierarchy

Problem

Primitive Skills

Executed plan

?

ICARUS Learns Skills from Problem Solving

Reactive

Execution

no

impasse?

yes

Problem

Solving

Skill

Learning

three questions about skill learning

Three Questions about Skill Learning

What is the hierarchical structure of the network?

The structure is determined by the subproblems that arise in problem solving, which, because operator conditions and goals are single literals, form a semilattice.

What are the heads of the learned clauses/methods?

The head of a learned clause is the goal literal that the planner achieved for the subproblem that produced it.

What are the conditions on the learned clauses/methods?

If the subproblem involved skill chaining, they are the conditions of the first subskill clause.

If the subproblem involved concept chaining, they are the subconcepts that held at the outset of the subproblem.

slide35

C

B

B

A

A

C

Constructing Skills from a Trace

(clear C)

skill chaining

1

(hand-empty)

(unst. C B)

(clear B)

(unstack C B)

(on C B)

(unst. B A)

(clear A)

(unstack B A)

(ontable A T)

(holding C)

(hand-empty)

(putdown C T)

(on B A)

(holding B)

slide36

C

B

B

A

A

C

Constructing Skills from a Trace

(clear C)

1

(hand-empty)

(unst. C B)

(clear B)

(unstack C B)

(on C B)

(unst. B A)

(clear A)

(unstack B A)

skill chaining

2

(ontable A T)

(holding C)

(hand-empty)

(putdown C T)

(on B A)

(holding B)

slide37

C

B

B

A

A

C

Constructing Skills from a Trace

(clear C)

concept chaining

3

1

(hand-empty)

(unst. C B)

(clear B)

(unstack C B)

(on C B)

(unst. B A)

(clear A)

(unstack B A)

2

(ontable A T)

(holding C)

(hand-empty)

(putdown C T)

(on B A)

(holding B)

slide38

C

B

B

A

A

C

Constructing Skills from a Trace

skill chaining

(clear C)

4

3

1

(hand-empty)

(unst. C B)

(clear B)

(unstack C B)

(on C B)

(unst. B A)

(clear A)

(unstack B A)

2

(ontable A T)

(holding C)

(hand-empty)

(putdown C T)

(on B A)

(holding B)

learned skills in the blocks world

(clear (?C) :percepts ((block ?D) (block ?C)) :start (unstackable ?D ?C) :skills ((unstack ?D ?C)))(clear (?B) :percepts ((block ?C) (block ?B)) :start [(on ?C ?B) (hand-empty)] :skills ((unstackable ?C ?B) (unstack ?C ?B)))(unstackable (?C ?B) :percepts ((block ?B) (block ?C)) :start [(on ?C ?B) (hand-empty)] :skills ((clear ?C) (hand-empty)))(hand-empty ( ) :percepts ((block ?D) (table ?T1)) :start (putdownable ?D ?T1) :skills ((putdown ?D ?T1)))

Learned Skills in the Blocks World

skill clauses learning for in city driving

(parked (?ME ?G1152) :percepts ( (lane-line ?G1152) (self ?ME)) :start ( ) :skills ( (in-rightmost-lane ?ME ?G1152) (stopped ?ME)) )(in-rightmost-lane (?ME ?G1152) :percepts ( (self ?ME) (lane-line ?G1152)) :start ( (last-lane ?G1152)) :skills ( (driving-in-segment ?ME ?G1101 ?G1152)) )

(driving-in-segment (?ME ?G1101 ?G1152) :percepts ( (lane-line ?G1152) (segment ?G1101) (self ?ME)) :start ( (steering-wheel-straight ?ME)) :skills ( (in-lane ?ME ?G1152) (centered-in-lane ?ME ?G1101 ?G1152) (aligned-with-lane-in-segment ?ME ?G1101 ?G1152) (steering-wheel-straight ?ME)) )

Skill Clauses Learning for In-City Driving

learned skill for changing lanes

Learned Skill for Changing Lanes

We have trained the ICARUS driving agent in a cumulative manner.

First we present the system with the task of changing lanes using only primitive skills.

The architecture calls on problem solving to handle the situation and caches the solution in a new composite skill.

This skill later lets the agent change lanes in a reactive fashion.

learned preparation for turning

Learned Preparation for Turning

After the ICARUS agent has mastered changing lanes, we give it the more complex task of preparing for a turn.

Again the system calls on problem solving, but this time it can use the skill already learned.

As before, the solution is stored as a new skill, this one calling on the acquired skill for changing lanes.

learned turning and parking

Learned Turning and Parking

Next we present the task of turning a corner and parking in the rightmost lane.

As before, the system calls the problem solver to handle the situation and stores additional structures in memory.

The resulting skill hierarchy can turn and park from the initial position using only reactive control.

intellectual precursors

Intellectual Precursors

ICARUS’ design has been influenced by many previous efforts:

earlier research on integrated cognitive architectures

especially ACT, Soar, and Prodigy

earlier frameworks for reactive control of agents

research on belief-desire-intention (BDI) architectures

planning/execution with hierarchical transition networks

work on learning macro-operators and search-control rules

previous work on cumulative structure learning

However, the framework combines and extends ideas from its various predecessors in novel ways.

directions for future research

Future work on ICARUS should introduce additional methods for:

Directions for Future Research

forward chaining and mental simulation of skills;

learning expected utilities from skill execution histories;

learning new conceptual structures in addition to skills;

probabilistic encoding and matching of Boolean concepts;

flexible recognition of skills executed by other agents;

extension of short-term memory to store episodic traces.

Taken together, these features should make ICARUS a more general and powerful cognitive architecture.

contributions of i carus

ICARUS is a cognitive architecture for physical agents that:

Contributions of ICARUS

includes separate memories for concepts and skills;

organizes both memories in a hierarchical fashion;

modulates reactive execution with goal seeking;

augments routine behavior with problem solving; and

learns hierarchical skills in a cumulative manner.

These concerns distinguish ICARUS from other architectures, but it makes commitments along the same design dimensions.

some other cognitive architectures

Some Other Cognitive Architectures

ACT

Soar

PRODIGY

EPIC

GIPS

RCS

3T

APEX

CAPS

CLARION

Dynamic

Memory

Society

of Mind

concluding remarks

We need more research on integrated intelligent systems that:

Concluding Remarks

are embedded within a unified cognitive architecture;

incorporate modules that provide mutual constraints;

demonstrate a wide range of intelligent behavior;

are evaluated on multiple tasks in challenging testbeds.

If you do not yet use a cognitive architecture in your research on intelligent agents, please consider it seriously.

For more information about the ICARUS architecture, see:

http://cll.stanford.edu/research/ongoing/icarus/

aspects of cognitive architectures

Aspects of Cognitive Architectures

As traditionally defined and utilized, a cognitive architecture:

specifies the infrastructure that holds constant over domains, as opposed to knowledge, which varies.

models behavior at the level of functional structures and processes, not the knowledge or implementation levels.

commits to representations and organizations of knowledge and processes that operate on them.

comes with a programming language for encoding knowledge and constructing intelligent systems.

Early candidates were cast as production system architectures, but alternatives have gradually expanded the known space.

the big bang theory of ai

language

planning

perception

reasoning

action

learning

The Big Bang Theory of AI

freecell solitaire

FreeCell Solitaire

FreeCell is a full-information card game that, in most cases, can be solved by planning; it also has a highly recursive structure.

an approach to hierarchy learning

We have extended ICARUS to incorporate a module for means-ends problem solving that:

An Approach to Hierarchy Learning

  • When ICARUS cannot execute a skill because its start condition is unmet, this mechanism:
  • chains backward off skills that would achieve the condition; or
  • chains backward off definitions of the unsatisfied concept.
  • Traces of successful problem solving serve as the basis for new hierarchical structures.

decomposes complex problems into subproblems;

relies on heuristic search to find useful decompositions.

evaluation of intelligent systems

Evaluation of Intelligent Systems

Experimental studies of intelligent systems have lagged behind ones for component methods because:

they focus on more complex, multi-step behavior;

they require more engineering to develop them;

they rely on interaction among their components.

Together, these factors have slowed the widespread adoption of experimental evaluation.

repositories for intelligent systems

Repositories for Intelligent Systems

Public repositories are now common among the AI subfields, and they offer clear advantages for research by:

providing fast and cheap materials for experiments;

supporting replication and standards for comparison.

However, they can also produce undesirable side effects by:

focusing attention on a narrow class of problems;

encouraging a ‘bake-off ’ mentality among researchers.

To support research on intelligent systems, we need testbeds and environments designed with them in mind.

concluding remarks61

Concluding Remarks

  • We must also think about ways to overcome social obstacles to pursuing this research agenda:
  • conference tracks on integrated systems (e.g., AAAI)
  • testbeds that evaluate general intelligence (e.g., GGP)
  • Both RoboCup and ICDL are in excellent positions to foster more work along these lines.
  • I hope to see increased activity of this type at future meetings of these conferences.
