Presentation Transcript
neural networks nns

Neural Networks (NNs)


S. Russell and P. Norvig, Section 20.5, Artificial Intelligence: A Modern Approach, Prentice Hall, 2002.

G. McNeil and D. Anderson, “Artificial Neural Networks Technology”,

The Data & Analysis Center for Software Technical Report, 1992.

the nature inspired metaphor

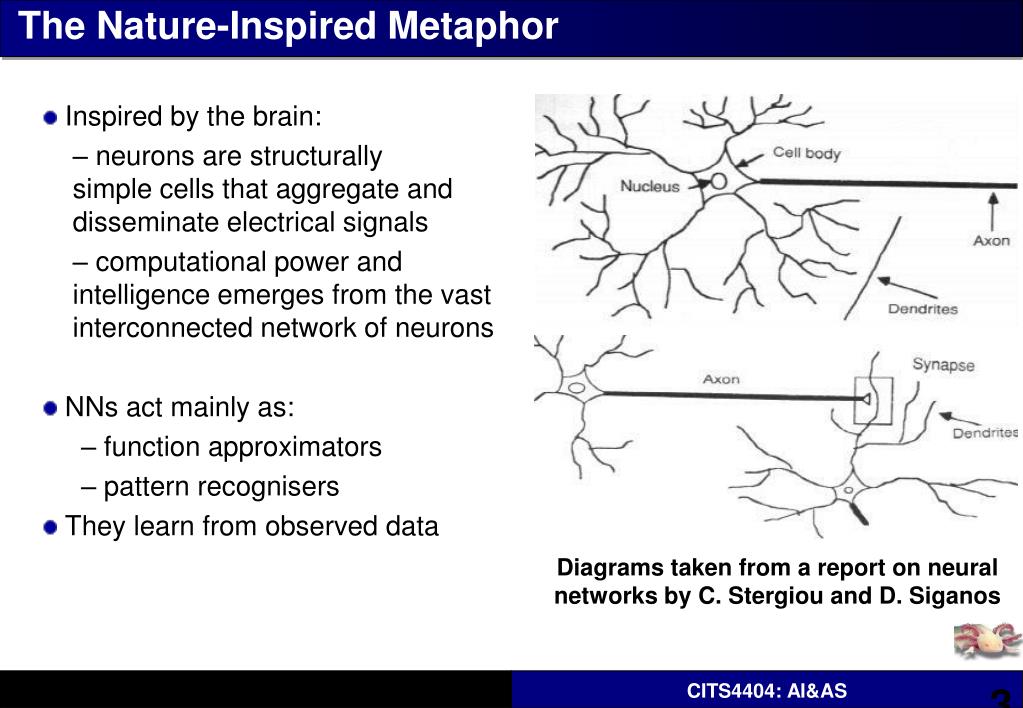

The Nature-Inspired Metaphor
  • Inspired by the brain:
    • neurons are structurally simple cells that aggregate and disseminate electrical signals
    • computational power and intelligence emerges from the vast interconnected network of neurons
  • NNs act mainly as:
    • function approximators
    • pattern recognisers
  • They learn from observed data

Diagrams taken from a report on neural networks by C. Stergiou and D. Siganos

An Overview of Core CI Technologies

the neuron model
The Neuron Model

Bias Weight



  • A neuron combines values via its input function and its activation function
  • The bias determines the threshold needed for a “positive” response
  • Single-layer neural networks (perceptrons) can represent only linearly-separable functions






Output Links

An Overview of Core CI Technologies

multi layered neural networks
Multi-Layered Neural Networks
  • A network is formed by the connections (links) of many nodes
    • inputs map to outputs through one or more hidden layers
  • Link-weights control the behaviour of the function represented by the NN
    • adjusting the weights changes the encoded function

An Overview of Core CI Technologies

multi layered neural networks1
Multi-Layered Neural Networks
  • Hidden layers increase the “power” of the NN at the cost of extra complexity and training time:
    • perceptrons capture only linearly-separable functions
    • an NN with a single (sufficiently large) hidden layer can represent any continuous function with arbitrary accuracy
    • two hidden layers are needed to represent discontinuous functions
  • There are two main types of multi-layered NNs:
    • feed-forward: simple acyclic structure – the stateless encoding allows functions of just its current input
    • recurrent: cyclic feedback loops are allowed – the stateful encoding supports short-term memory

An Overview of Core CI Technologies

training neural networks
Training Neural Networks
  • Training means adjusting link-weights to minimise some measure of error (the cost function)
    • i.e. learning is an optimisation search in weight-space
  • Any search algorithm can be used, most commonly gradient descent (back propagation)
  • Common learning paradigms:
    • supervised learning: training is by comparison with known input/output examples (a training set)
    • unsupervised learning: no a priori training set is provided; the system discovers patterns in the input
    • reinforcement learning: training uses environmental feedback to assess the quality of actions

An Overview of Core CI Technologies

neuro evolution and reinforcement learning
Neuro-Evolution and Reinforcement Learning
  • Neuro-evolution uses a Neural Network to describe the phenotype of a solution, where a genome is the weights on the edges (or even the topology of the network)
  • Methods such as PSO or EAs are then used to optimise the network weights, given feedback
  • These techniques are particularly useful for reinforcement learning, where fitness is easy to calculate but input-output pairs are hard to generate

An Overview of Core CI Technologies

neural nets in unsupervised learning
Neural Nets in Unsupervised Learning
  • Neural Networks can also be used for unsupervised learning
  • Large input and output layers have a smaller hidden layer in between, and the error is then calculated as the difference between the input and output layer
  • The distance between elements is the distance between their hidden layers

An Overview of Core CI Technologies

fuzzy systems

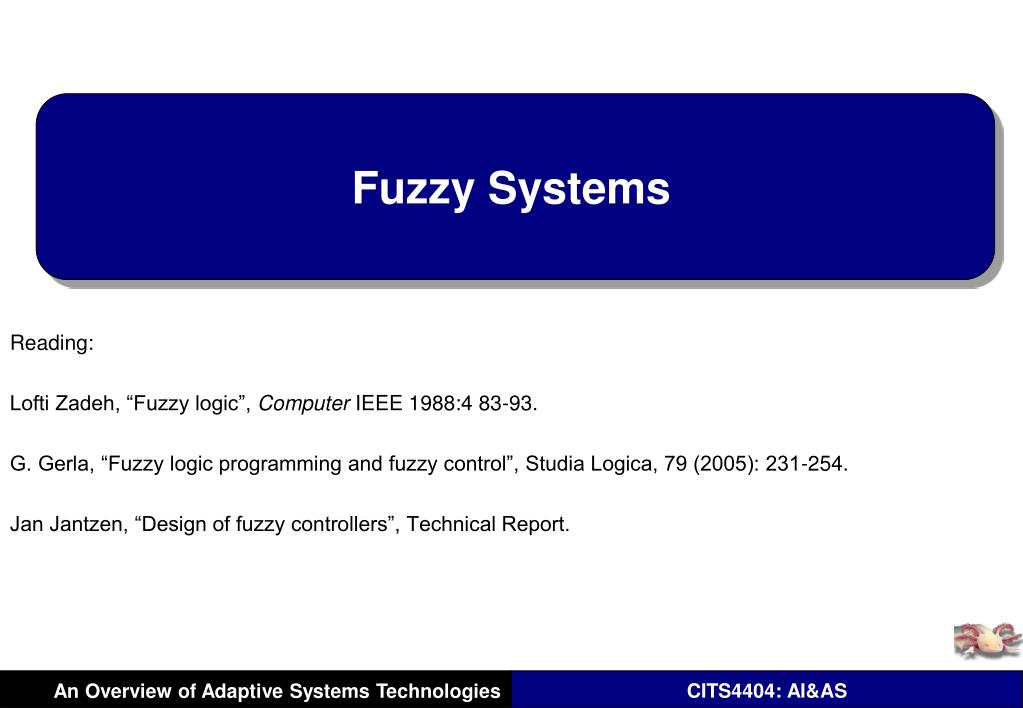

Fuzzy Systems


Lofti Zadeh, “Fuzzy logic”, Computer IEEE 1988:4 83-93.

G. Gerla, “Fuzzy logic programming and fuzzy control”, Studia Logica, 79 (2005): 231-254.

Jan Jantzen, “Design of fuzzy controllers”, Technical Report.

fuzzy systems1

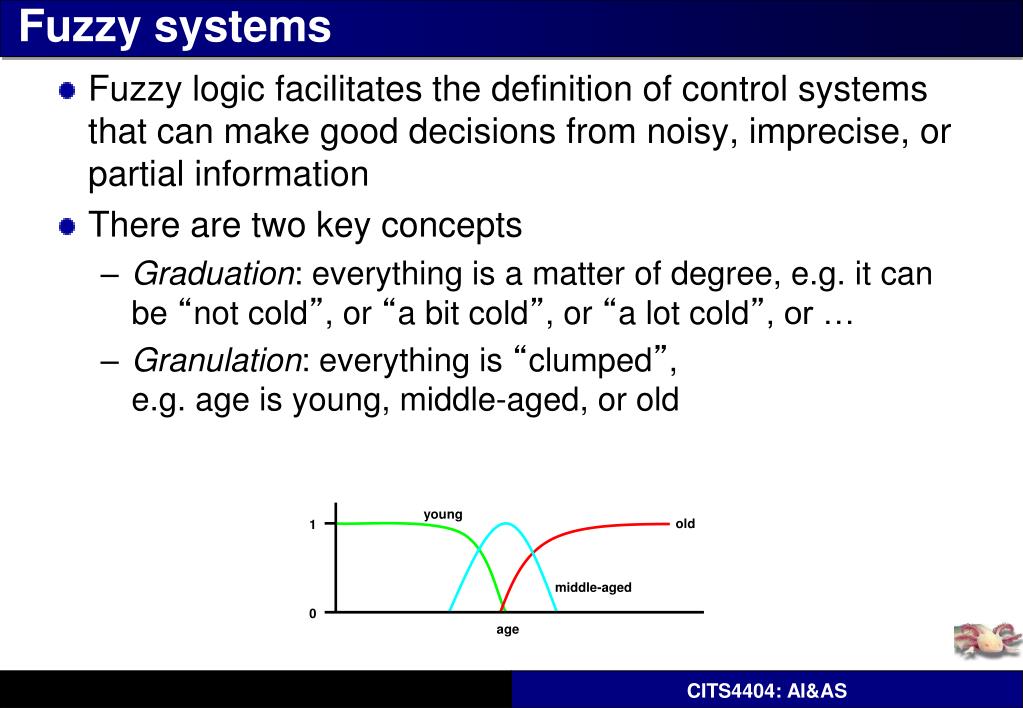

Fuzzy systems
  • Fuzzy logic facilitates the definition of control systems that can make good decisions from noisy, imprecise, or partial information
  • There are two key concepts
    • Graduation: everything is a matter of degree, e.g. it can be “not cold”, or “a bit cold”, or “a lot cold”, or …
    • Granulation: everything is “clumped”, e.g. age is young, middle-aged, or old







fuzzy logic

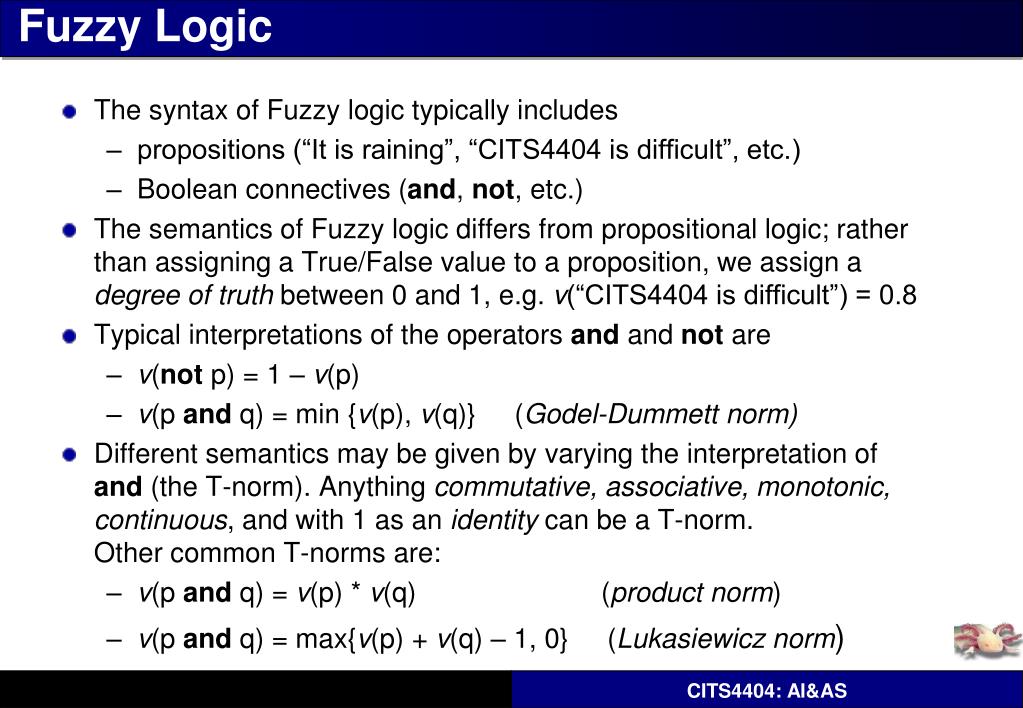

Fuzzy Logic
  • The syntax of Fuzzy logic typically includes
    • propositions (“It is raining”, “CITS4404 is difficult”, etc.)
    • Boolean connectives (and, not, etc.)
  • The semantics of Fuzzy logic differs from propositional logic; rather than assigning a True/False value to a proposition, we assign a degree of truth between 0 and 1, e.g. v(“CITS4404 is difficult”) = 0.8
  • Typical interpretations of the operators and and not are
    • v(not p) = 1 – v(p)
    • v(p and q) = min {v(p), v(q)} (Godel-Dummett norm)
  • Different semantics may be given by varying the interpretation of and (the T-norm). Anything commutative, associative, monotonic, continuous, and with 1 as an identity can be a T-norm. Other common T-norms are:
    • v(p and q) = v(p) * v(q) (product norm)
    • v(p and q) = max{v(p) + v(q) – 1, 0} (Lukasiewicz norm)
vagueness and uncertainty
Vagueness and Uncertainty
  • The product norm captures our understanding of probability or uncertainty with a strong independence assumption
    • prob(Rain and Wind) = prob(Rain) * prob(Wind)
  • The Godel-Dummett norm is a fair representation of Vagueness:
    • if it’s a bit windy and very rainy, it’s a bit windy and rainy
  • Fuzzy logic provides a unifying logical framework for all CI Techniques, as CI techniques are inherently vague
    • whether or not it is actually implemented is another question
fuzzy controllers
Fuzzy Controllers
  • A fuzzy control system is a collection of rules
    • IF X [AND Y] THEN Z
    • e.g. IF cold AND ¬warming-up THEN increase heating slightly
  • Such rulesare usually derived empirically from experience, rather than from the system itself
    • attempt to mimic human-style logic
    • granulation means that the exact values of any constants (e.g. where does cold start/end?) are less important
  • The fuzzy rules typically take observations, and according to these observations’ membership of fuzzy sets, we get a fuzzy action
  • The fuzzy action then needs to be defuzzified to become a precise output
fuzzy control
Fuzzy Control
  • Applying Fuzzy Rules





no change




no change



d(temperature) / dt

Image from


no change




statistical methods

Statistical Methods


S. Russell and P. Norvig, Section 20.1, Artificial Intelligence: A Modern Approach, Prentice Hall, 2002.

R. Barros, M. Basgalupp, A. de Carvalho, A Freitas,

“A Survey of Evolutionary Algorithms for Decision Tree Induction”,

IEEE Transactions on Systems, Man and Cybernetics.

na ve bayes classifiers
Naïve Bayes Classifiers
  • Naïve Bayes Classifiers use a strong independence assumption when trying to determine the class of entity, given observations of that entity
  • Bayes Rule:
  • Probabilities are easy to maintain from observations, and calculations are cheap

An Overview of Core CI Technologies

decision tree analysis
Decision Tree Analysis
  • Decision trees are used for classification problems, where leaves represent classes and branches represent features leading to those classes
  • Decision trees are easy to use and quite powerful
  • There are many statistical methods to build decision trees from observations

An Overview of Core CI Technologies
