1. The Memory Behaviorof Data Structures Kartik K. Agaram, Stephen W. Keckler, Calvin Lin, Kathryn McKinley Department of Computer Sciences The University of Texas at Austin

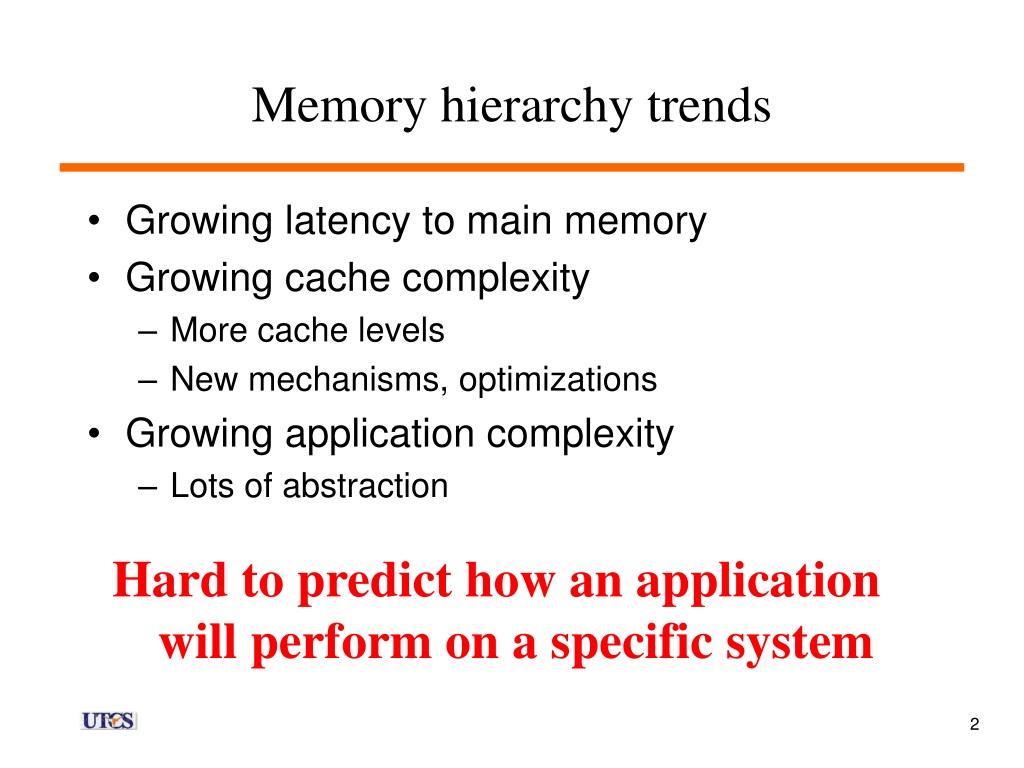

2. Memory hierarchy trends • Growing latency to main memory • Growing cache complexity • More cache levels • New mechanisms, optimizations • Growing application complexity • Lots of abstraction Hard to predict how an application will perform on a specific system

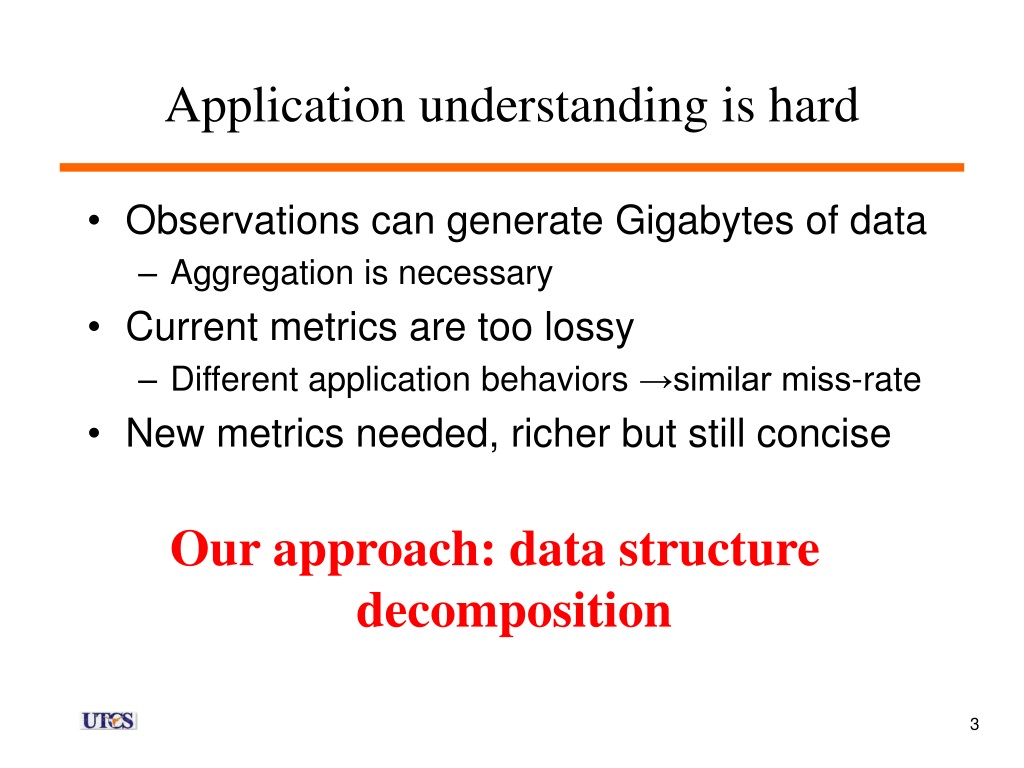

3. Application understanding is hard • Observations can generate Gigabytes of data • Aggregation is necessary • Current metrics are too lossy • Different application behaviors →similar miss-rate • New metrics needed, richer but still concise Our approach: data structure decomposition

4. Why decompose by data structure? • Irregular app = multiple regular data structures • while (tmp) tmp=tmp->next; • Data structures are high-level • Results easy to visualize • Can be correlated back to application source code

5. Outline • Data structure decomposition using DTrack • Automatic instrumentation + timing simulation • Methodology • Tools, configurations simulated, benchmarks studied • Results • Data structures causing the most misses • Different types of access patterns • Case study: data structure criticality

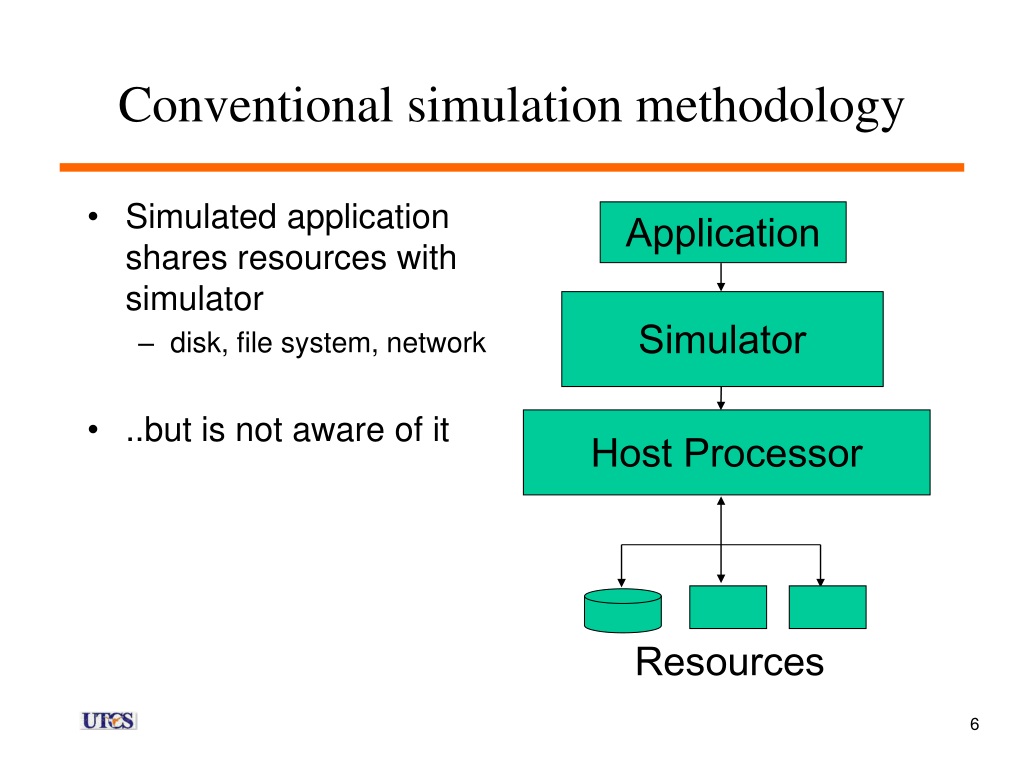

6. Conventional simulation methodology • Simulated application shares resources with simulator • disk, file system, network • ..but is not aware of it Application Simulator Host Processor Resources

7. A different perspective Application can communicate with simulator Leave core application oblivious; automatically add simulator-aware instrumentation Simulator Application Resources

8. DTrack Application Sources Instrumented Sources Application Executable Detailed Statistics Source Translator Compiler Simulator - DTrack’s protocol for application-simulator communication

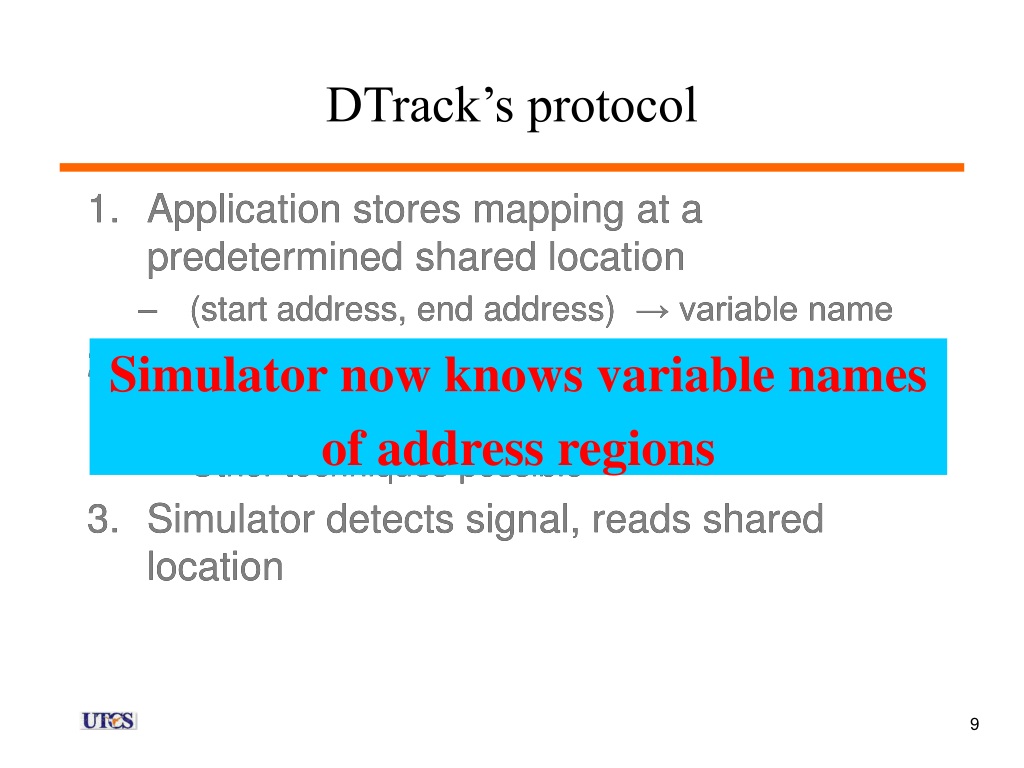

9. Application stores mapping at a predetermined shared location • (start address, end address) → variable name • Application signals simulator somehow • We enhance ISA with new opcode • Other techniques possible • Simulator detects signal, reads shared location Simulator now knows variable names of address regions DTrack’s protocol • Application stores mapping at a predetermined shared location • (start address, end address) → variable name • Application signals simulator somehow • We enhance ISA with new opcode • Other techniques possible • Simulator detects signal, reads shared location

10. DTrack instrumentation Global variables: just after initialization int globalTime ; int main () { … } Before: After: int Time ; int main () { print (FILE, “Time”, Time, sizeof(Time)); … asm (“mop”); }

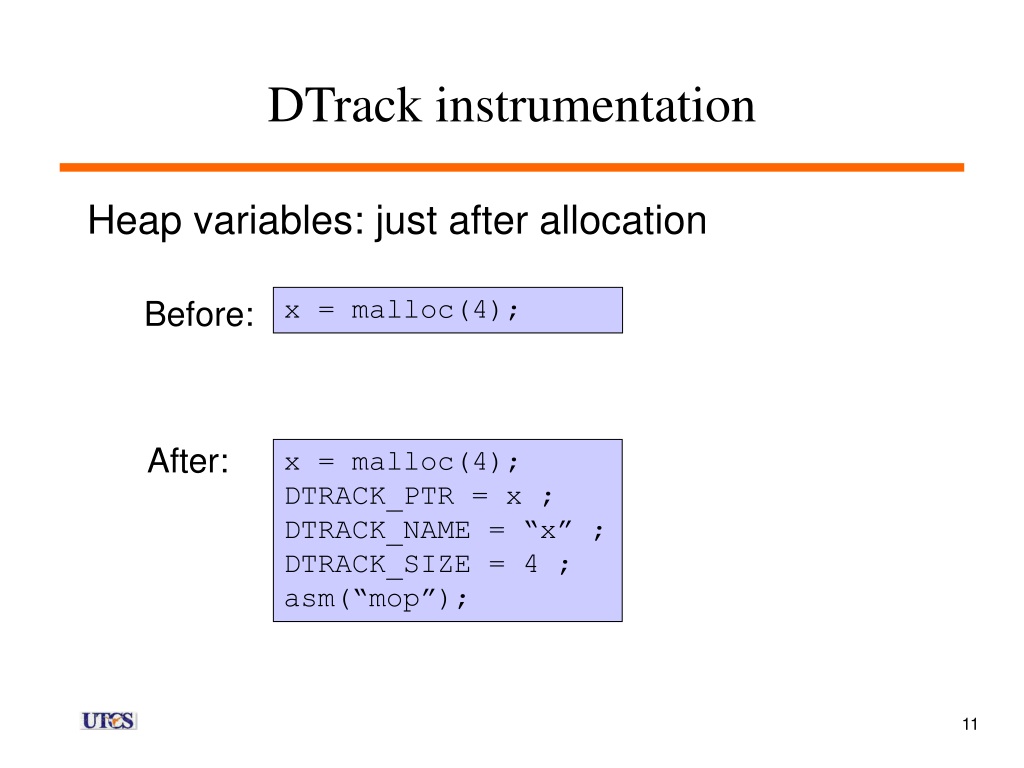

11. DTrack instrumentation Heap variables: just after allocation Before: x = malloc(4); After: x = malloc(4); DTRACK_PTR = x ; DTRACK_NAME = “x” ; DTRACK_SIZE = 4 ; asm(“mop”);

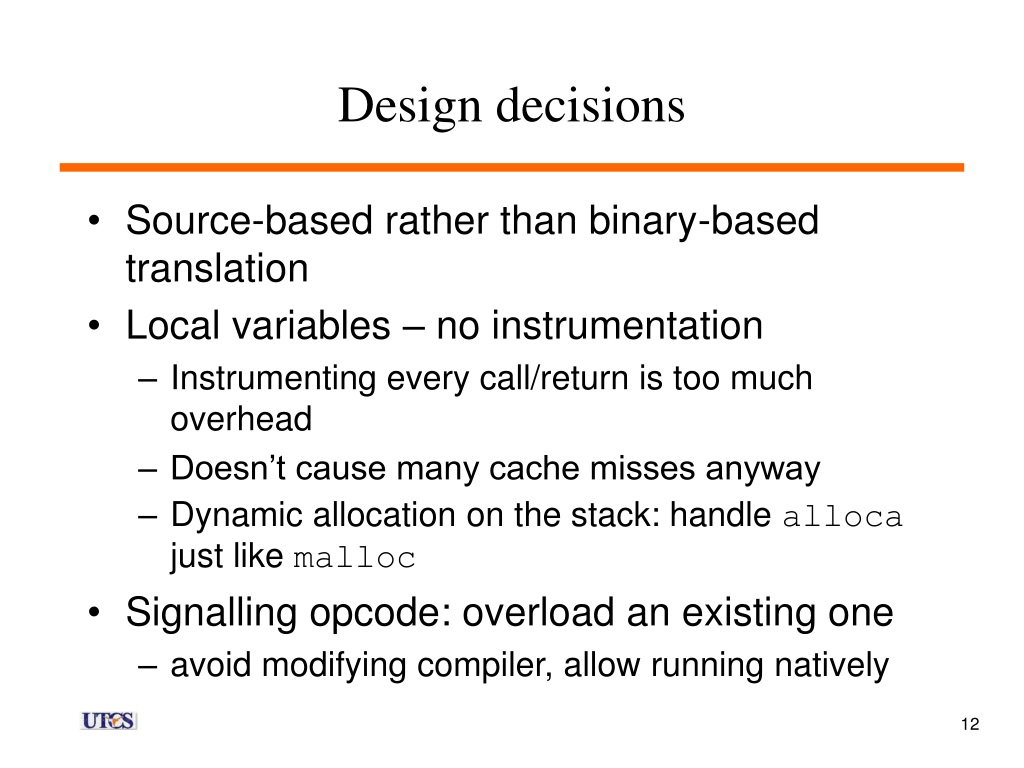

12. Design decisions • Source-based rather than binary-based translation • Local variables – no instrumentation • Instrumenting every call/return is too much overhead • Doesn’t cause many cache misses anyway • Dynamic allocation on the stack: handle alloca just like malloc • Signalling opcode: overload an existing one • avoid modifying compiler, allow running natively

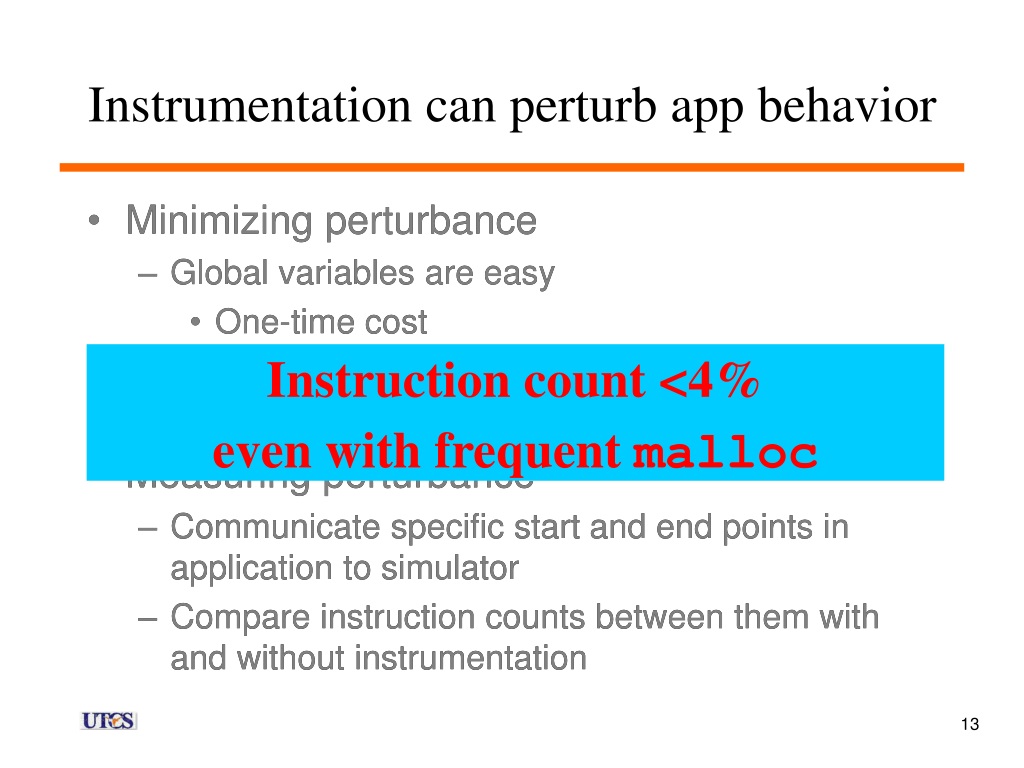

13. Minimizing perturbance • Global variables are easy • One-time cost • Heap variables are hard • DTRACK_PTR, etc. always hit in the cache • Measuring perturbance • Communicate specific start and end points in application to simulator • Compare instruction counts between them with and without instrumentation Instruction count <4% even with frequent malloc Instrumentation can perturb app behavior • Minimizing perturbance • Global variables are easy • One-time cost • Heap variables are hard • DTRACK_PTR, etc. always hit in the cache • Measuring perturbance • Communicate specific start and end points in application to simulator • Compare instruction counts between them with and without instrumentation

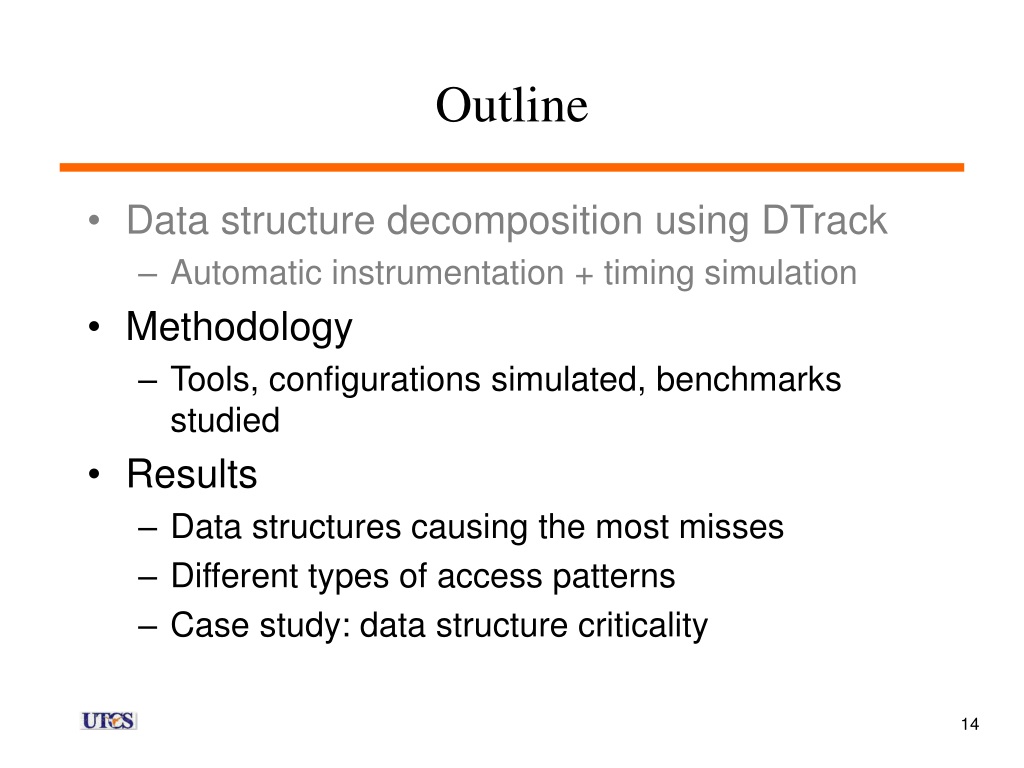

14. Outline • Data structure decomposition using DTrack • Automatic instrumentation + timing simulation • Methodology • Tools, configurations simulated, benchmarks studied • Results • Data structures causing the most misses • Different types of access patterns • Case study: data structure criticality

15. Methodology • Source translator: C-Breeze • Compiler: Alpha GEM cc • Simulator: sim-alpha • Validated model of 21264 pipeline • Simulated machine: Alpha 21264 • 4-way issue, 64KB 3-cycle DL1 • Benchmarks: 12 C applications from SPEC CPU2000 suite

16. Major data structures by DL1 misses % DL1 misses

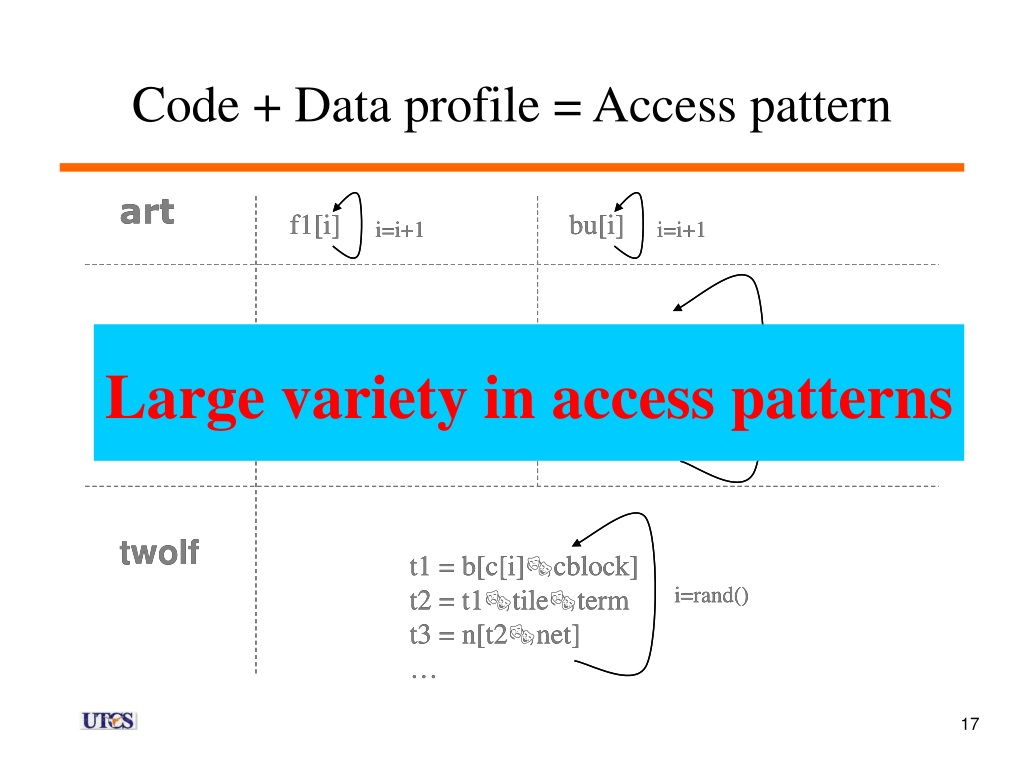

17. art art f1[i] f1[i] bu[i] bu[i] i=i+1 i=i+1 i=i+1 i=i+1 node child node parent node sibling node siblingp node child node parent node sibling node siblingp Large variety in access patterns mcf mcf node[i] node[i] node = DFS(node) node = DFS(node) i=i+1 i=i+1 twolf twolf t1 = b[c[i]cblock] t2 = t1tileterm t3 = n[t2net] … t1 = b[c[i]cblock] t2 = t1tileterm t3 = n[t2net] … i=rand() i=rand() Code + Data profile = Access pattern

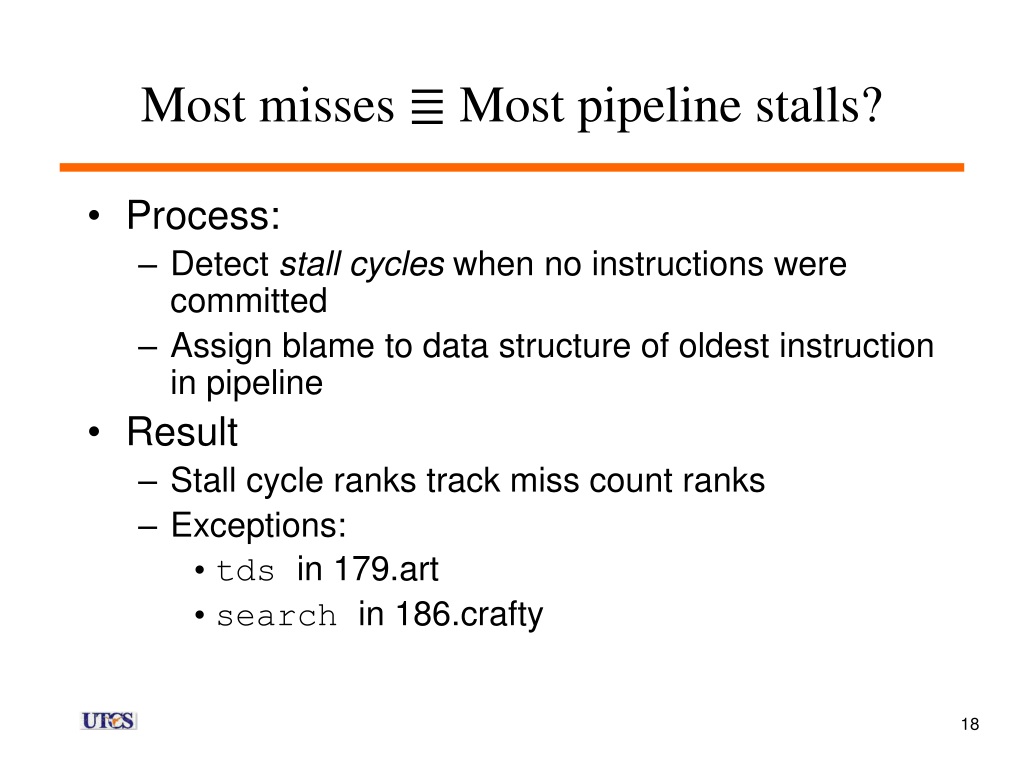

18. Most misses ≣ Most pipeline stalls? • Process: • Detect stall cycles when no instructions were committed • Assign blame to data structure of oldest instruction in pipeline • Result • Stall cycle ranks track miss count ranks • Exceptions: • tds in 179.art • search in 186.crafty

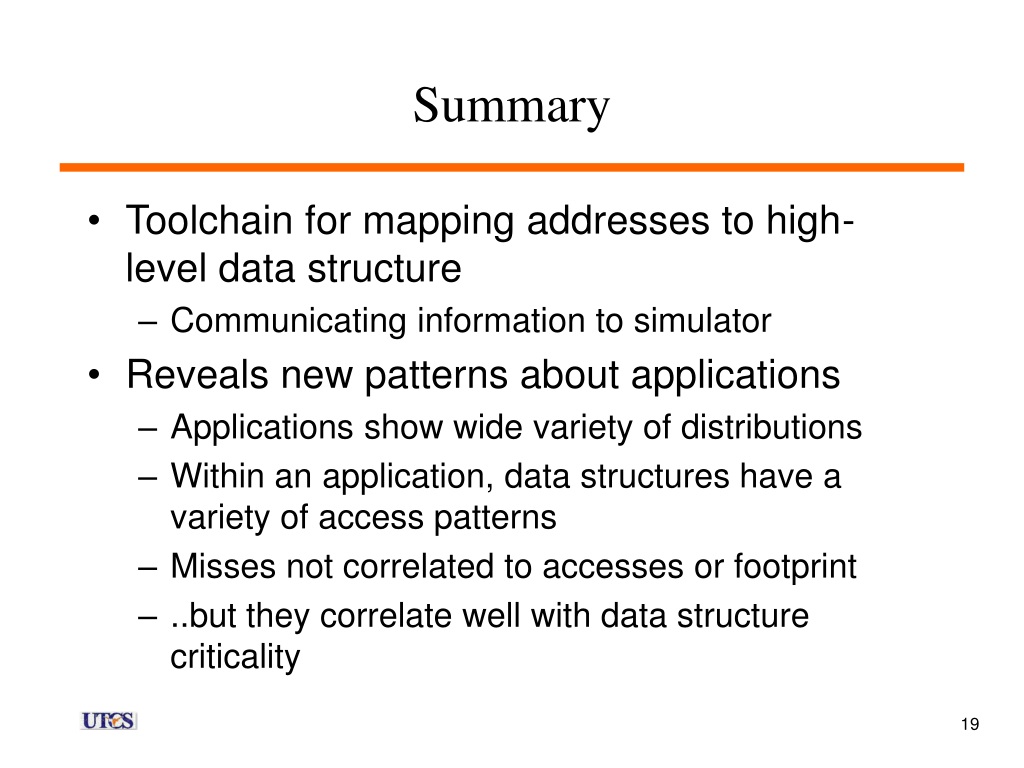

19. Summary • Toolchain for mapping addresses to high-level data structure • Communicating information to simulator • Reveals new patterns about applications • Applications show wide variety of distributions • Within an application, data structures have a variety of access patterns • Misses not correlated to accesses or footprint • ..but they correlate well with data structure criticality
